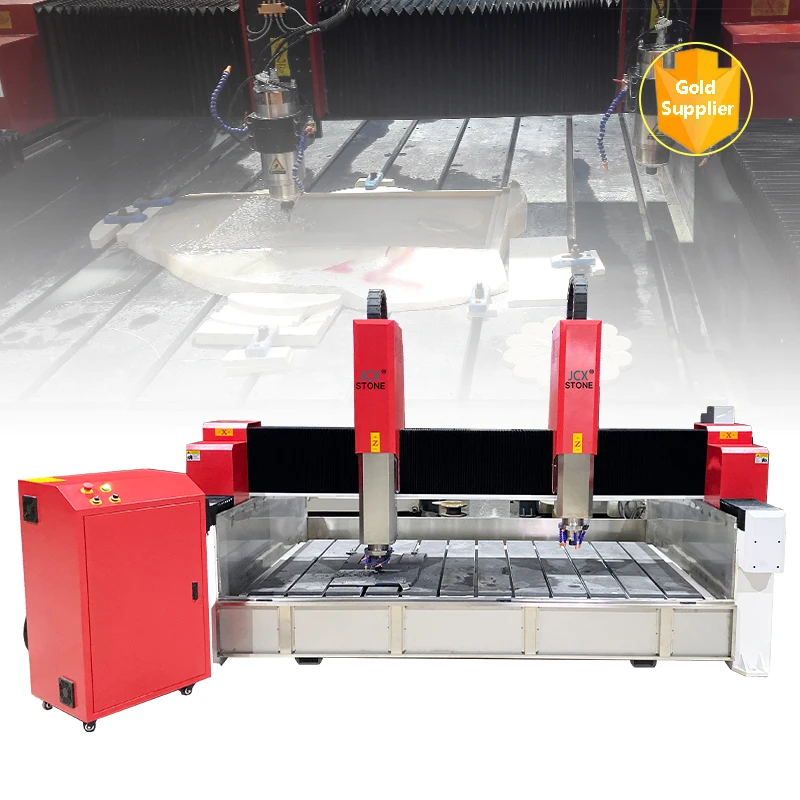

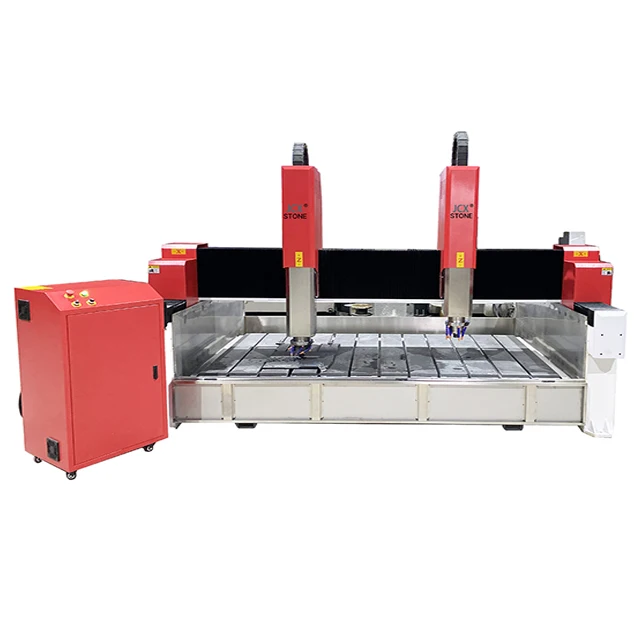

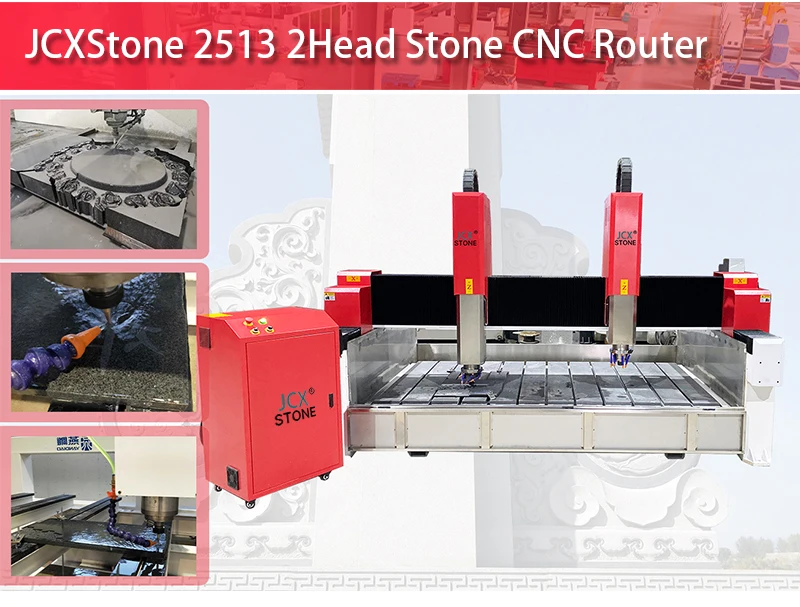

3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble
3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble

3 axis and 4 axis Tombstone Stone Carving 3d cnc router engraving and cutting machine for granite and marble

Share on (1600945340200):


Price:$6,700.00 - $7,000.00

Quantity:


Product Overview

Description













Model
JCXstone-2513
X/Y/Z axis working area
2500mm*1300mm*400mm
Table Size
2000*3000mm
Max traveling speed
15m/min
Max working speed
10m/min
Max feed height
500mm
Resolution
0.005mm
Reposition accuracy
0.05mm
Spindle /tool cooling
100W-220V cooling pump (circulation water)
Spindle power
7.5KW
Spindle Speed
0-24000rmp/min
Working Mode
Stepper
Driving system
Ball Screw
Control system
DSP system
Operating System
Windows98/2000/XP
Carving command
G code
Machine Power
7KW
Voltage
AC380V/50Hz
Machine Weight
2000kgs
Machine size
3500*2230*2250mm


PS: All the working area and specifications can be customized according to your requests.

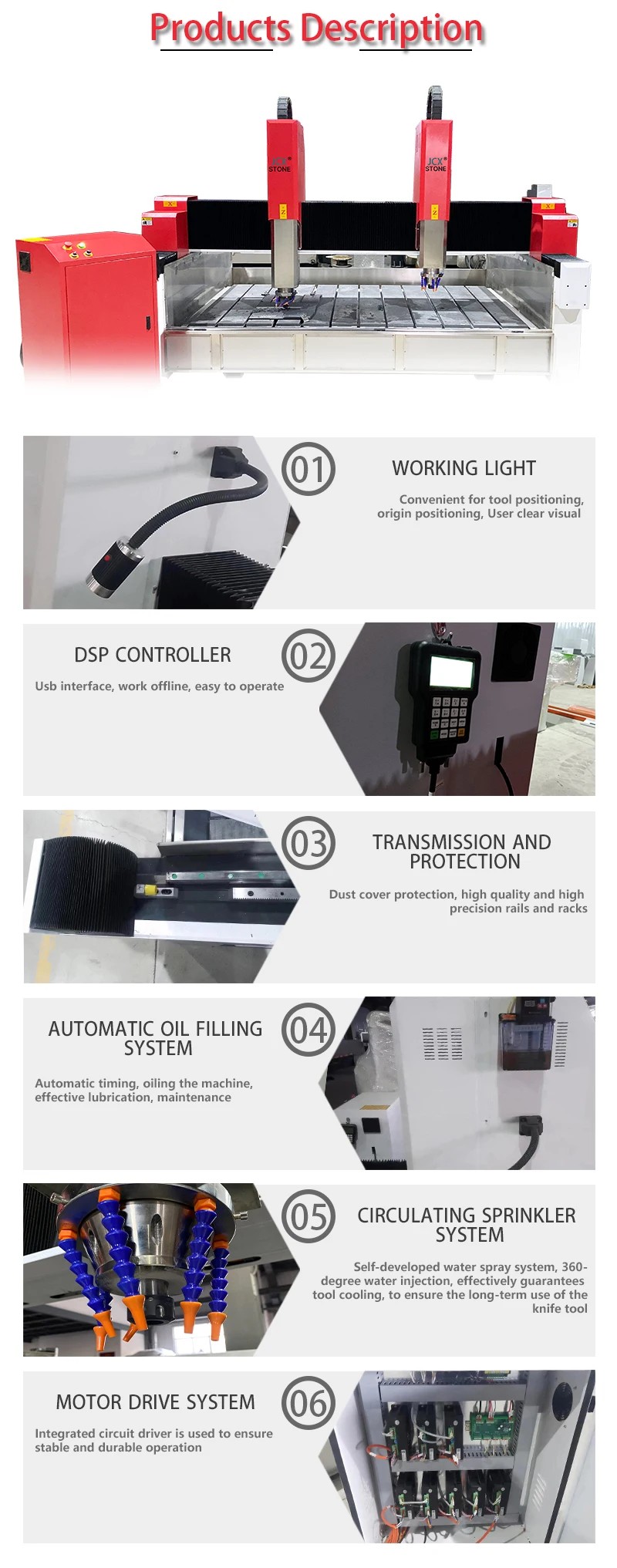

Product Advantages

The three shafts are exclusively protected by full dust and water-proof process to ensure that the guide rail, gear and rack are free from dust and waste cutting, and the service life of accessories is extended.

The lathe bed is made of high-quality steel structure and welded seamlessly. The gantry is processed by the machining center after being reinforced by the large tube to ensure the gantry has sufficient stability in the processing process.

High precision rack and pinion drive, equipped with high-power 7.5kW water-cooled spindle, large cutting force, high efficiency, suitable for long-time engraving.

The cable of the whole machine adopts CNC special high flexible anti-interference cable lt adopts Taiwan linear square guide rail, double row and four row sliding blocks. with large bearing capacity, stable operation, no shaking and vibration, high precision long service life and accurate cutting.

This equipment is CNC digital control, with the function of power-offmemory, with the function ofknife breaking and carving after power failure.
Automatic oil lubrication svstem is adopted to maintain the slide guide rail bv itself and the whole machine is free of maintenance.
