Automatic 45 degree Tile Cutter stone saw cutting machine
- Category: >>>
- Supplier: Quanzhou Hongxi Machinery Co. Ltd.
Share on (1600945455432):
Product Overview
Description

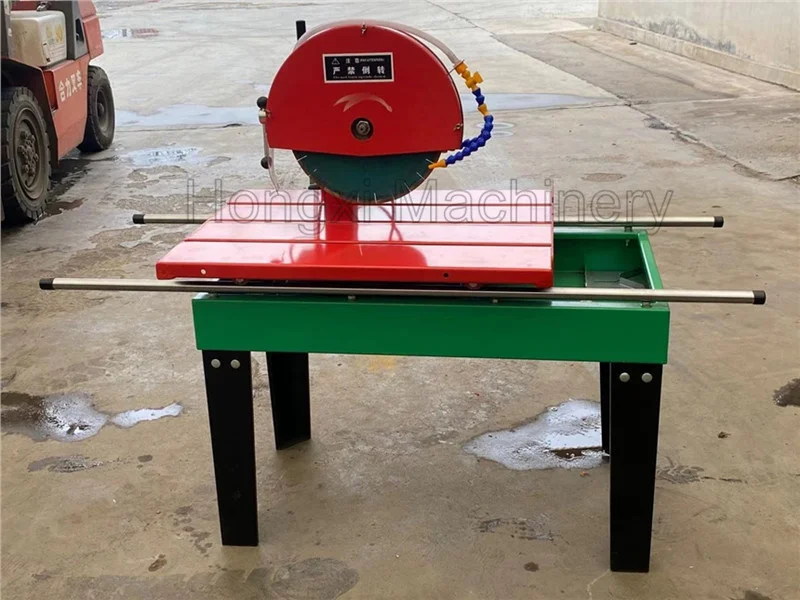

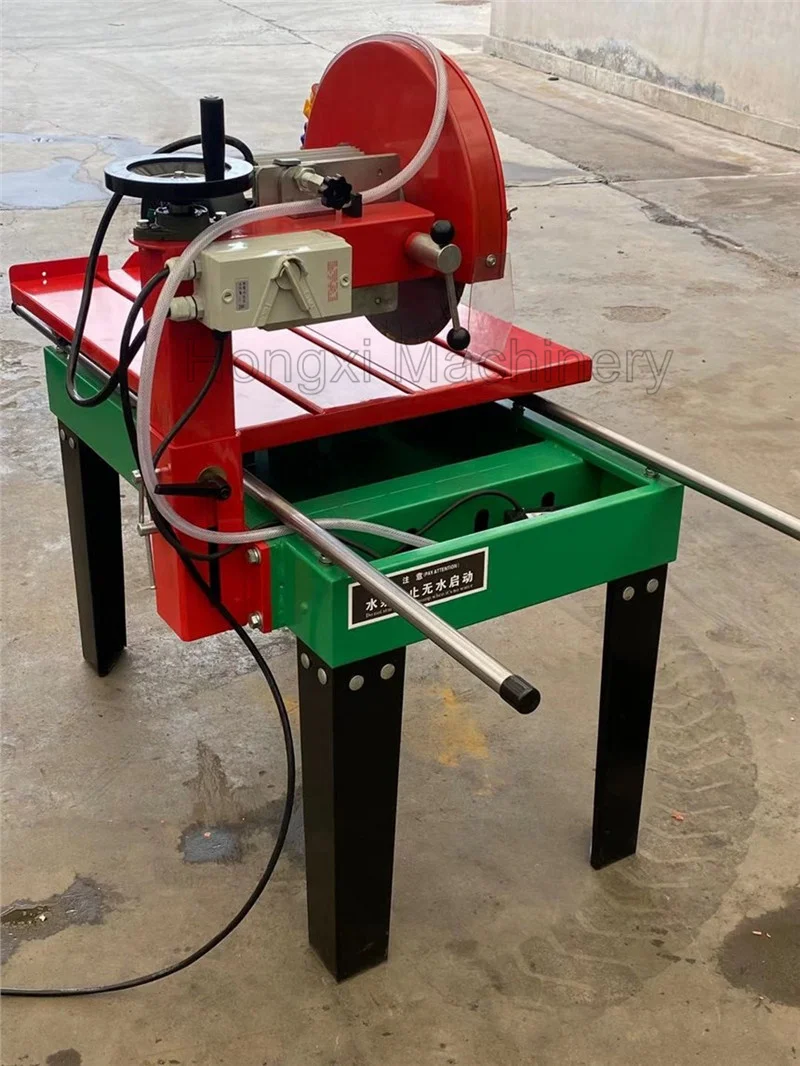

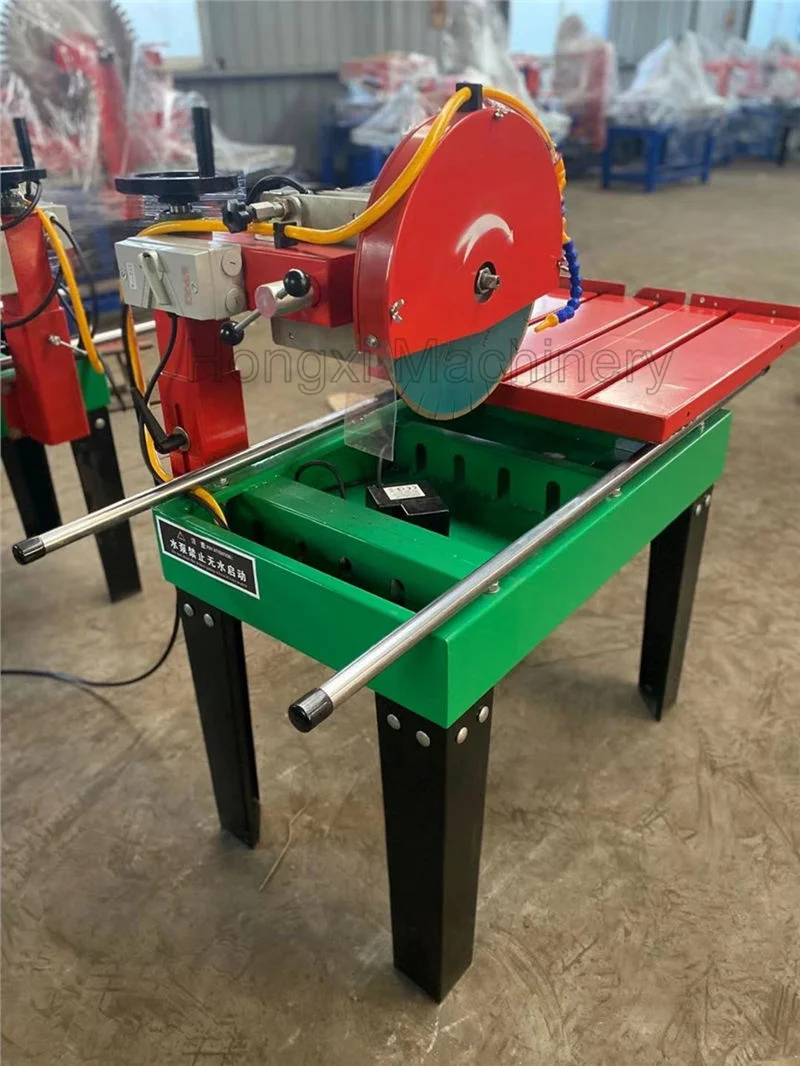

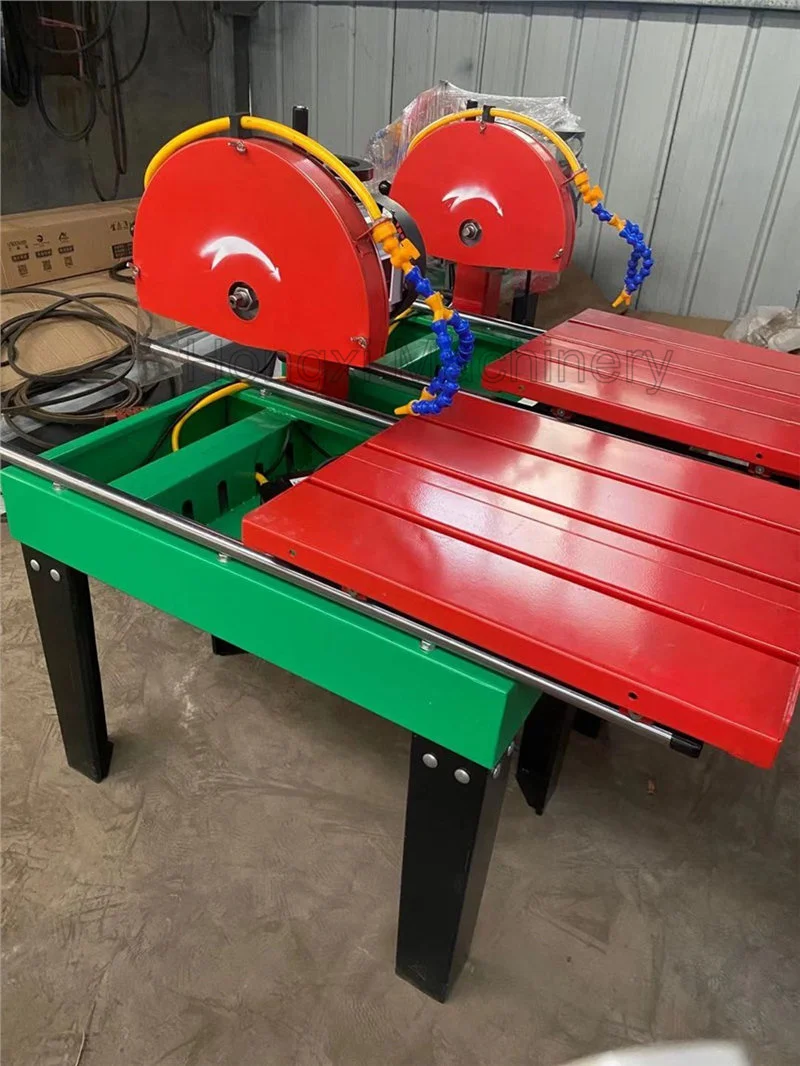

Automatic 45 degree Tile Cutter stone saw cutting machine
Product Features:300/350mm diamond saw blades can be used according to customer requirements.

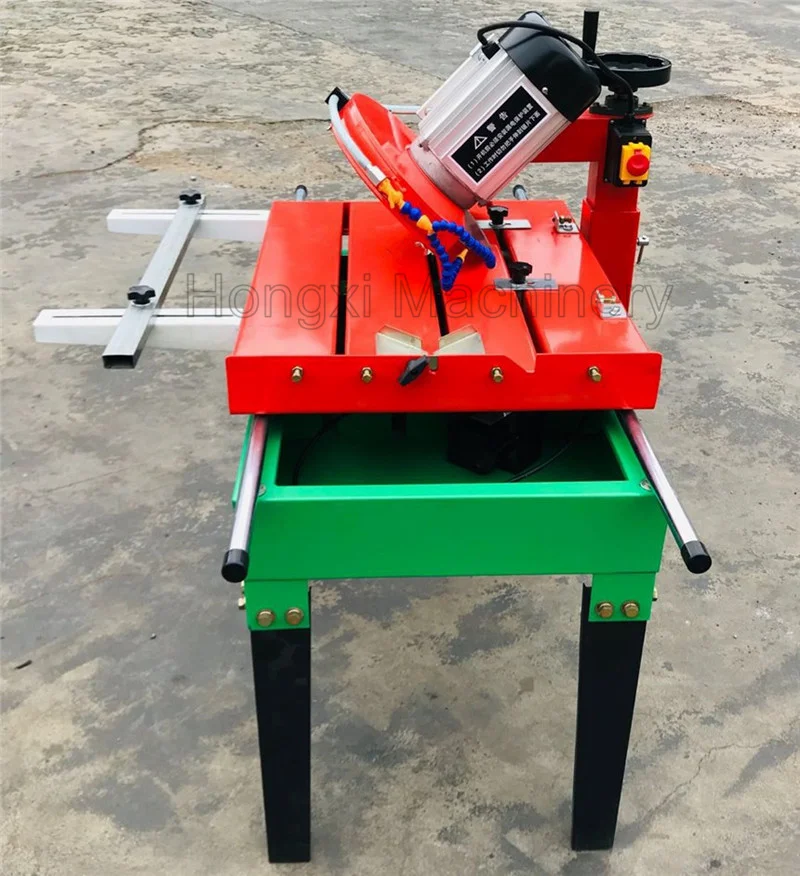

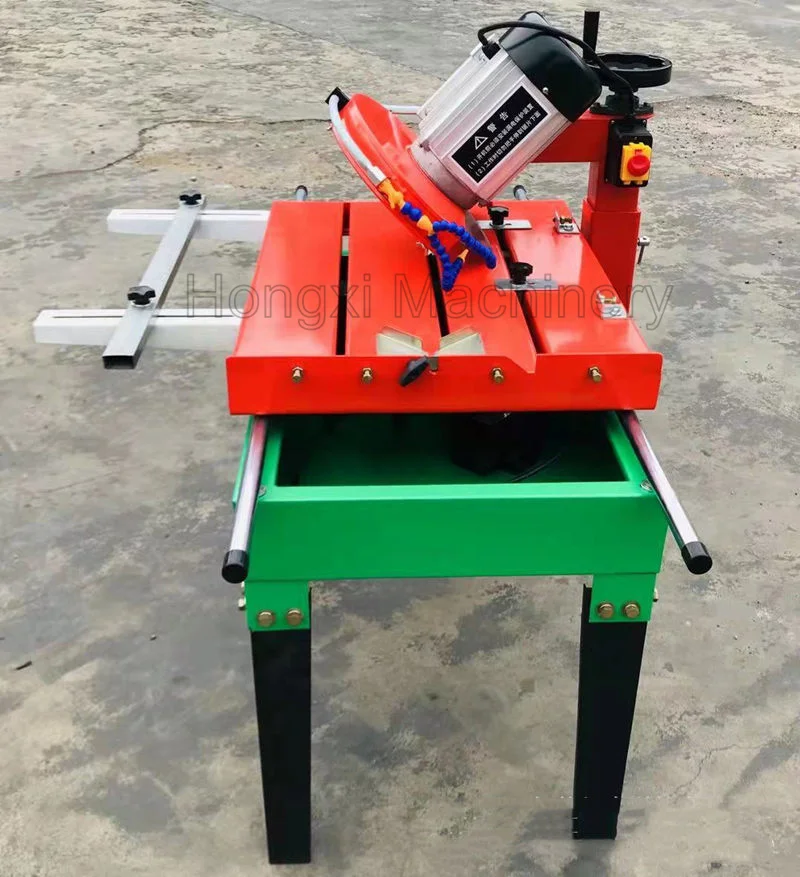

The nose can be rotated at an Angle of 45 degrees to ensure that customers are chamfered.
Customers can choose 220V or 380V models according to their needs, and equipped with 220V or 380V models waterproof switch.
Automatic water-bearing operation in cutting construction.
Model | HX-TCM600 | |
Blade diameter | mm | Φ300-Φ350 |
Max. Working dimensions（L×W×H） | mm | 600×600×80 |
Speed | r/min | 2800 |
Head rotating degree | n° | 0°-45° |
Main motor power | kw | 3/4 |
Water Pump Power | w | 80 |
Machine weight | kg | 130 |
Overall dimension（L×W×H） | mm | 1270*770*690 |

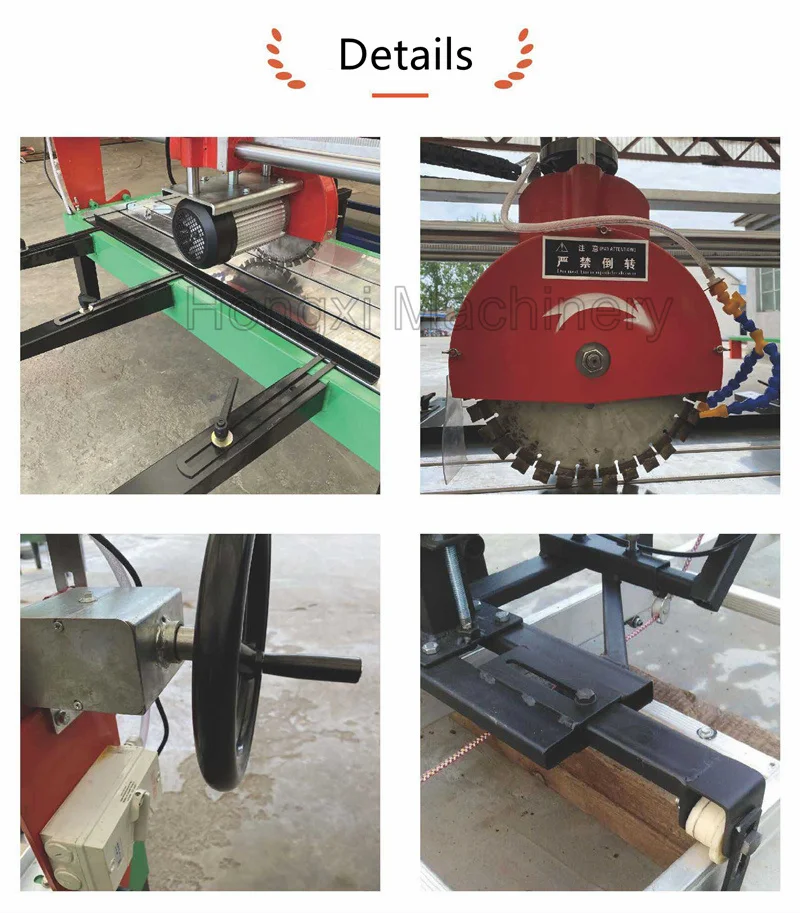

Machine Detail parts
We use high quality and famous brand to get the reliable performance
Some of part brand we cooperate
Choose the best for the customer
