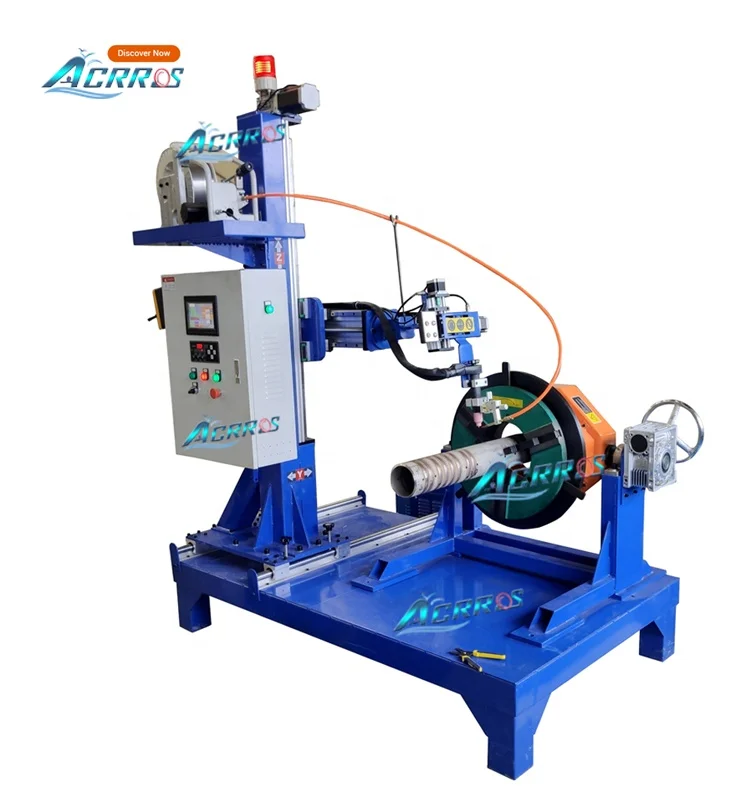

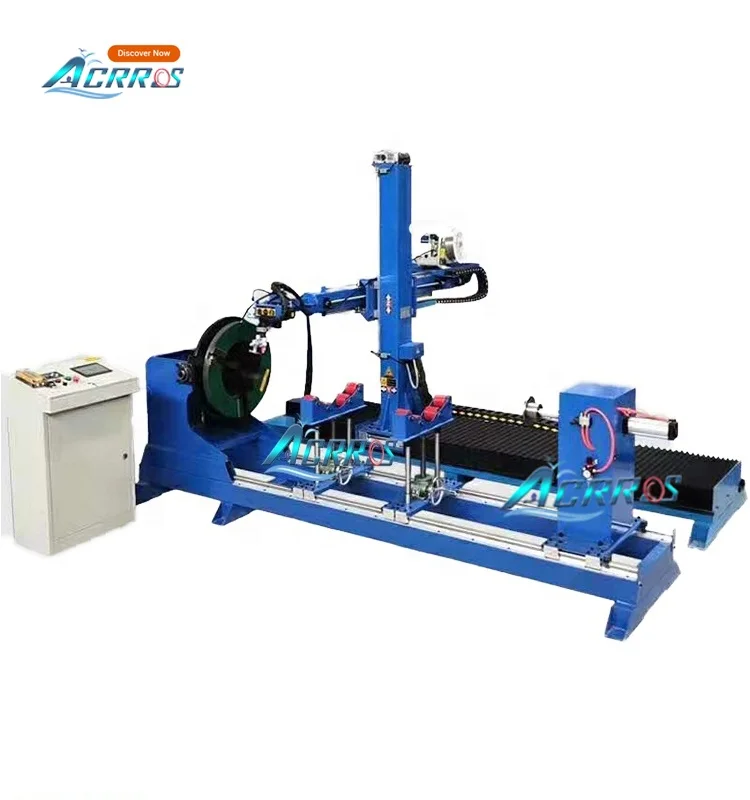

Mini Steel Tank Circular Seam Welding positioner with Column and Boom Manipulator price

Product Overview

Description

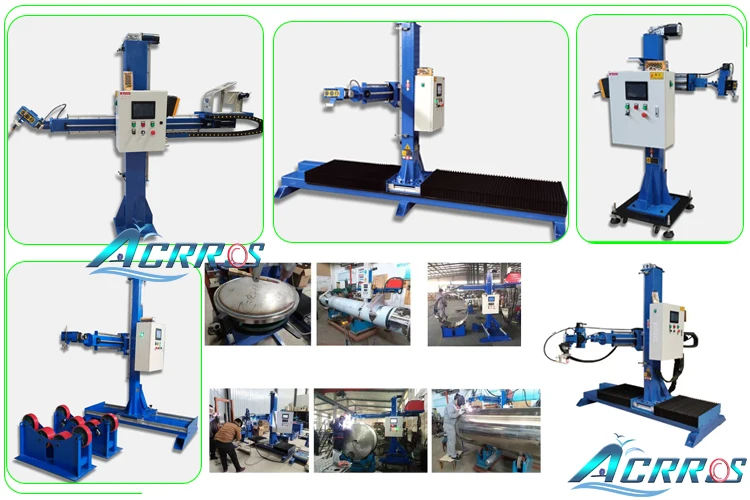

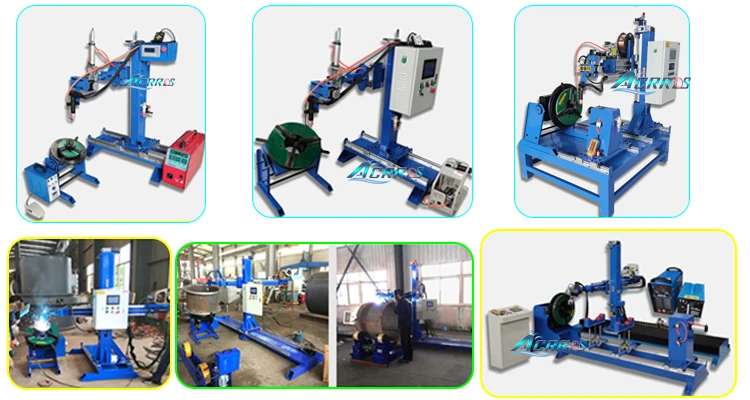

Welding Manipulator/ Automatic Welding Column And Boom

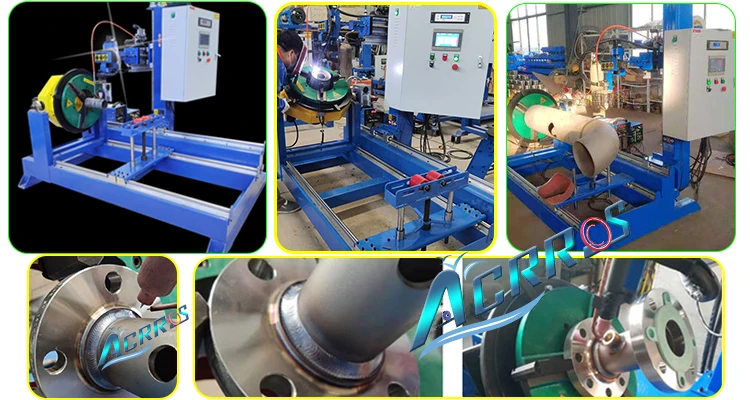

Flange Welding Machine Positioner Welding Column And Boom For Tig Mig

Our recommend you the Standard AUTOMATIC WELDING MANIPULATOR with Panasonic/Aotai argon arc welding machine, water tank, including welding swing, arc voltage automatic height adjustment, CNC wire feeder, through-hole positioner, movable cross, wireless remote control, PLC touch screen control box, etc.

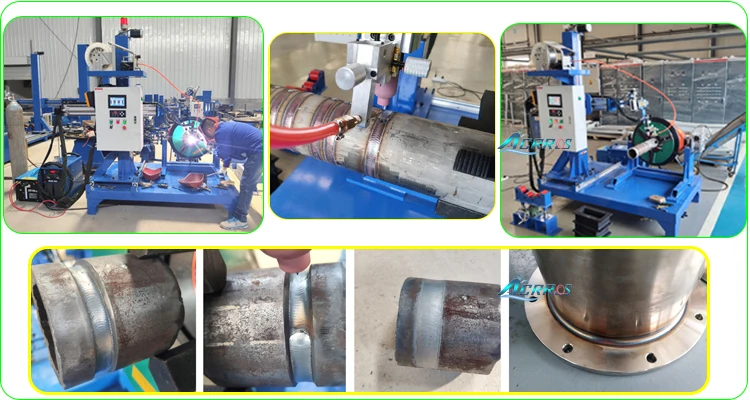

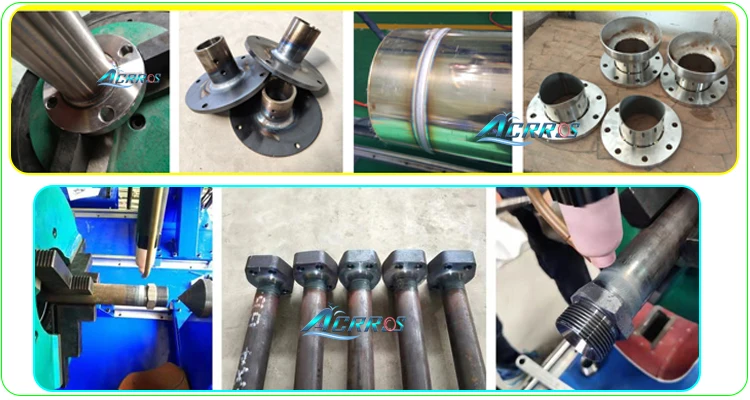

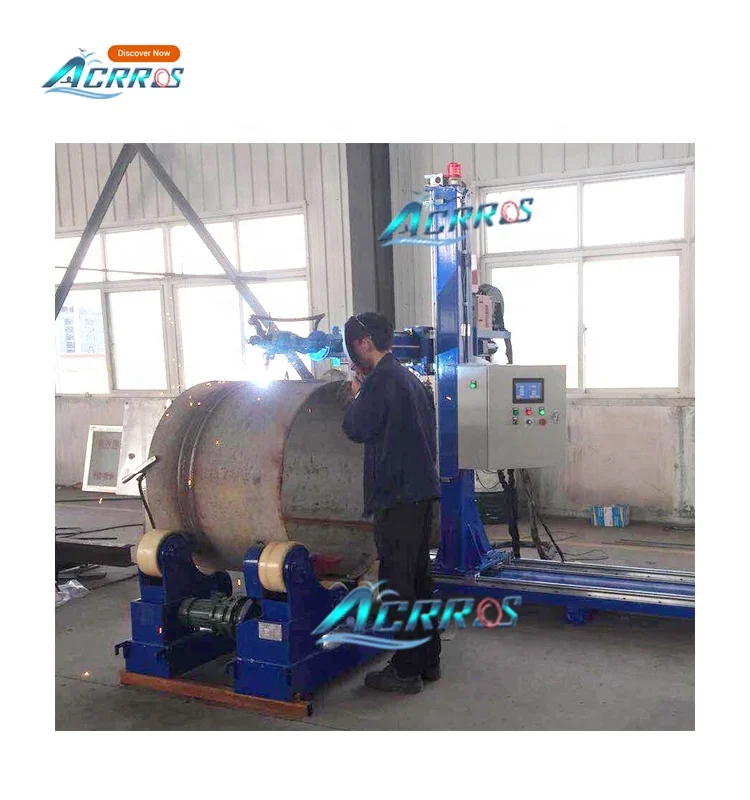

The large through hole argon arc automatic welding manipulator produced by our company can weld stainless steel/carbon steel flange fillet welds, pipe butt welds, outer ring seams of cylinders, and multi-layer and multi-channel automatic welding processes;

Small welding manipulator Mobile operation is easy to use, pre-stored 10 sets of welding processes, including different welding parameters such as bottoming and covering, single-sided welding and double-sided forming, parameters can be modified in real time and automatically saved;



Welding Column and Boom Technical Specificaions:

Welding Positioner		Welding Manipulator
Horizontal Capacity	600kgs	Stroke of up/down	800mm
Clamping diameter	30-550mm	Stroke of Front/back	800mm
Turning Angle	0-90°	Stroke of Left/right Straight	500mm
Through Hole	245mm	Stroke of Swing Arc Voltage	80/80mm

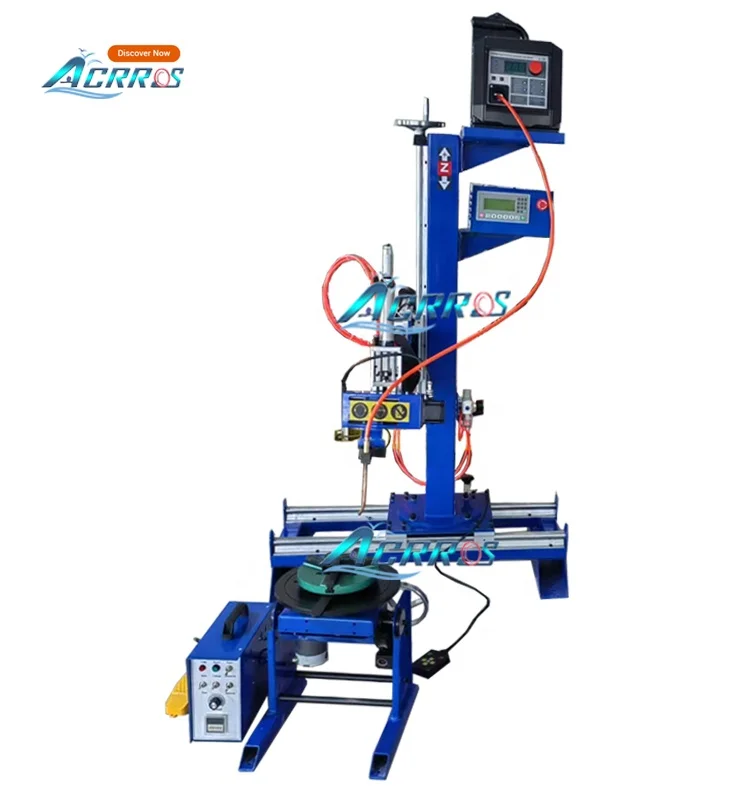

Small Manual Welding Manipulator, WIth Welding Oscillator

Stroke of up/down	300mm	List
Stroke of Front/back	300mm	1xColum 2xboom 1xpneumtiac lifting 1xwelding oscillator 2xhand wheel 1xsliding bottom base 1xwooden case
Effective stroke of Bottom base	600mm
Adjust stroke of welding torch	60mm
Stroke of Left/right oscillator	80mm
Stroke of Pneumatic lifting	100mm
Overall machine size	100x1100x1400mm

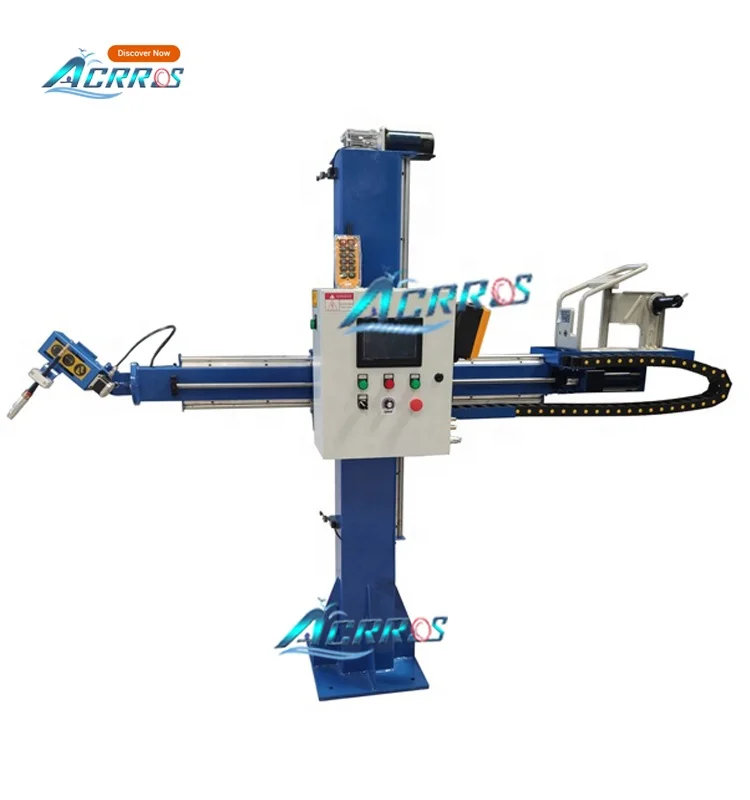

 Electric Small Welding Column and boom/Manipulator. Stroke 1000x1000mm. With Welding oscillator and wireless remote.



Model :1000x1000mm
Total height	1950mm	Total length of Boom	2200mm
Distance of Torch to underground	550mm	Stretch Stroke skeof boom	1000mm
Stroke of Up/down	1000mm	Walking speed	0-750mm/min

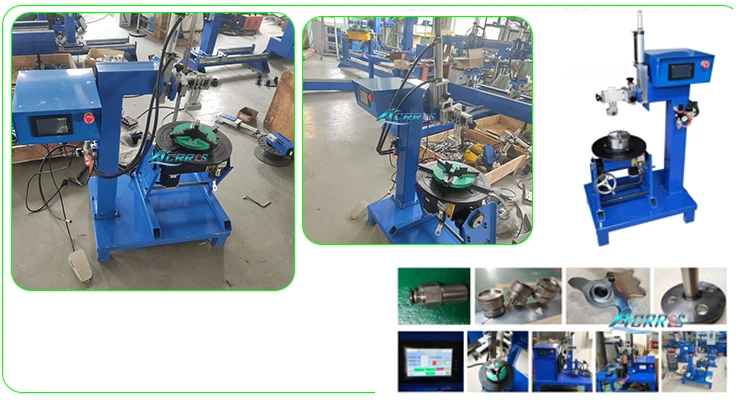

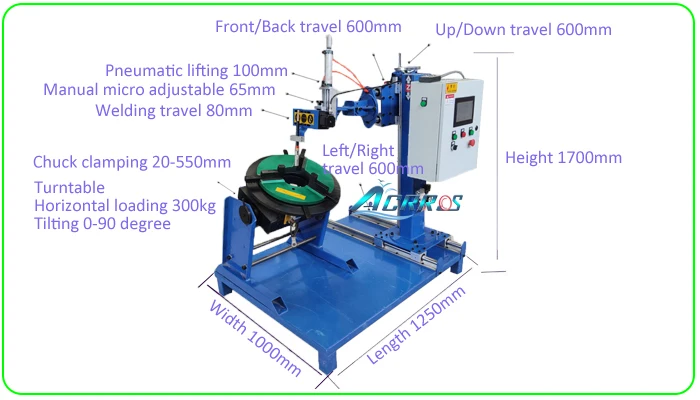

Small Welding Manipulator Column and Boom working with Welding Positioner

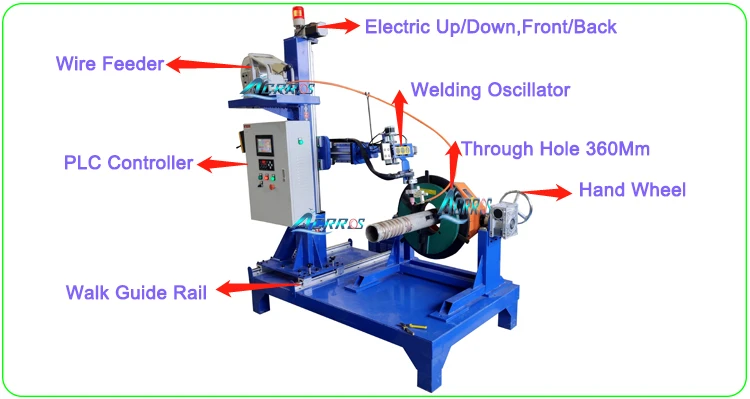

Configuration list of Welding manipulator with welding positioner turntable by PLC controller

30kg welding positioner	Wire feeder clamping tools	Weding oscillator
Pneumatic lifting	Column	Lifting Manual valve
Water cooling torch	Slider bottom base	Tig wire feeder/cnc feeder
Through hole positioner	Hand remote	PLC touch screen

Techincial Specifications of Tig Automatic Welding Boom and Column



Clamping diameter	0-200mm	Pneumatic lifting stroke up/down	100mm
Roating speed	0-10r/min	3D adjust stroke	60x60x60mm
Worktable diameter	310mm	Column height	1000mm
Capacity	30kg	Total weight	80kg

Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development strategy at present.
Many professionals have been brought together who specialize in researching and developing of Cnc welding and cutting equipments, technical strength is always cherished as core competitiveness of our company, With constant efforts of all staffs,our products have been sold well in domestic market and exported to many countries in the world, including USA, Canada, Germany, Italy, Spain, Portugal, Belgium, Switzerland, Australia,New Zealand, Indonesia,Malaysia,Singapore, Thailand, India, Peru,Brazil, Argentina, Columbia,Russia.Paraguay,Korea,Japan,Austria,Poland,Finland,
Guatemala,Mexico,Chile,Bolivia,Philippines,Etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future m a harmonious world.

If you interested in our products,Please dont hesitate to contact us for inquiry,
