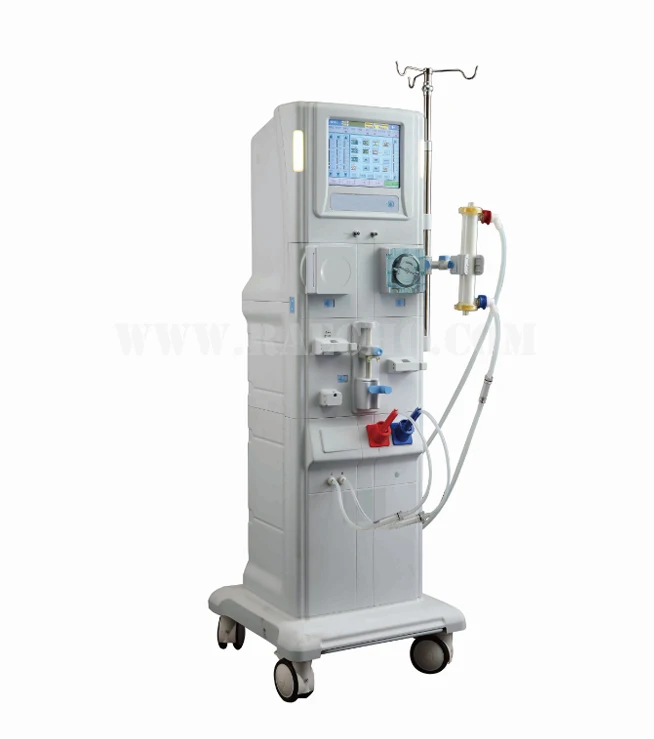

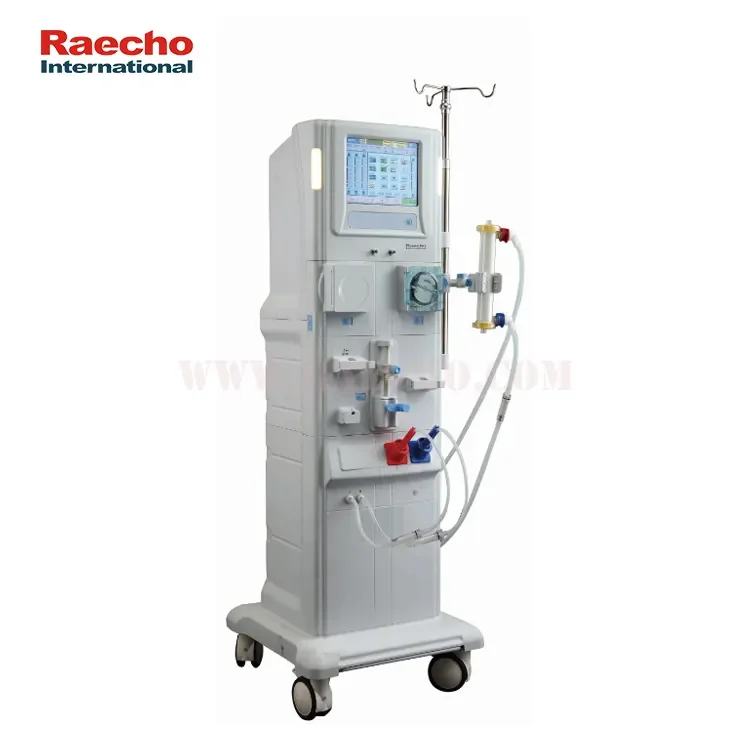

Highly Accurate Dialysis Machine Kidney Hemodialysis Machine Medical Hemodialysis Dialyzer for Human
- Category: >>>
- Supplier: Raecho International Limited
Share on (1600949145905):
Product Overview
Description
Order with Trade Assurance
Product Description
TECHNICAL PARAMETERS | ||
Extracorporeal circulation system | ||
Blood pump flow | 10-620ml/min | |
Blood pump segment Dia | 6.4 and 8mm adjustable | |
Heparin pump flow scope | 0-10ml/h | |
Syringe | 10ml/20ml/30ml; 20ml/30ml/50ml(optional) | |
Arterial and pressure monitor | -300~+400mmHg(±10mmHg) | |
Venous pressure monitor | -50~+300mmHg(±10mmHg) | |
Air bubble detector | Infrared and ultrasound detection | |
Dialysate system | ||
Dialysate flow | 300~800ml/min linearly adjustable(+10%, -5%) | |
Dialysate temperature scope | 35.0~39.0℃ | |
Conductivity | 12.3~15.8mS/cm | |
Na+ adjustable scope | 125~151mmol/L | |
HCO3- adjustment scope | 24.0~40.0mmol/L | |
Bicarb cartridge | Optional | |
Blood leakage detection | ||
Method | Photoelectricity detection | |
Ultrafiltration controlling system | ||
Ultrafiltration ratio | 0~4000ml/h 0~5000ml/h | |
Pump volume accuracy | ±1% | |
Disinfection and rinse | ||
Rinse and heat disinfection (above 90℃) | ||
Chemical disinfection | Peracetic acid | |
Heat chemical disinfection | Citric acid | |
Other parameter | ||
Dimension | Length*width*height: 370mm*340mm*1450mm | |
Weight | 93kg | |
Power supply voltage | 100~240V Ac±10% 50~60Hz | |
Power | 1.7KW | |
Back-up battery | At least 30minutes working after electricity cut | |
Working environment | Temperature: 10~30℃ | |
Relative humidity no higher than 70% | ||
Water supply temperature | Temperature: 5~30℃ | |
Dialysate formula | Great compatibility be applicable for various concentration | |
Ratio formula | ||
Pressure | 0.12~0.6Mpa | |
More comprehensive features
Combine with Hemodialysis, Hemoperfusion, ISO UF , Hemoperfusion, Plasa Exchange all-in-one.
Multi-language LCD touch screen with high definition display interface.
Multi-language LCD touch screen with high definition display interface.
Practicability
1) In-built battery backup lo support 30 minutes after power off
2) Disinfection: Rinse, hot disinfection and chemic disinfection. Circulated and closed disinfection system
3) Automatically turn off machine once disinfection process completes
4) Diameter of blood pump can be adjusted to be flexible for adult and child
5) Be applicable for various concentration ratio formula
6) Store treatments information in form of curve profile
7) Full function digital selftest process
8) With visual and auditive alarm. character message shows alarm item and troubleshooting on screen
2) Disinfection: Rinse, hot disinfection and chemic disinfection. Circulated and closed disinfection system
3) Automatically turn off machine once disinfection process completes
4) Diameter of blood pump can be adjusted to be flexible for adult and child
5) Be applicable for various concentration ratio formula
6) Store treatments information in form of curve profile
7) Full function digital selftest process
8) With visual and auditive alarm. character message shows alarm item and troubleshooting on screen
Safety
1) Air bubble monitor: optical and ultrasonic double control, can monitor blood level and accumulate air bubble
2) With safe and sensitive blood leakage monitor device
3) Complete water-way and electric way apart design, individual waterway control system to ensure the security
4) Dialysate temperature with high precision, safety control at 35-39℃
5) Protection from intercross infection, fluid supply loop and return loop is completely divided during disinfection to
6) Avoid pollution of whole machine in the case of mis-sucking disinfection liquid
7) Conductivity control and protection: conductivity A. mix. conductivity, water outlet conductivity, insure patient's security
8) Adjustable Na+ curve profile, with multiplicate optional auto-adjust program, can realize individual dialysis and ensure patient's safety
2) With safe and sensitive blood leakage monitor device
3) Complete water-way and electric way apart design, individual waterway control system to ensure the security
4) Dialysate temperature with high precision, safety control at 35-39℃
5) Protection from intercross infection, fluid supply loop and return loop is completely divided during disinfection to
6) Avoid pollution of whole machine in the case of mis-sucking disinfection liquid
7) Conductivity control and protection: conductivity A. mix. conductivity, water outlet conductivity, insure patient's security
8) Adjustable Na+ curve profile, with multiplicate optional auto-adjust program, can realize individual dialysis and ensure patient's safety

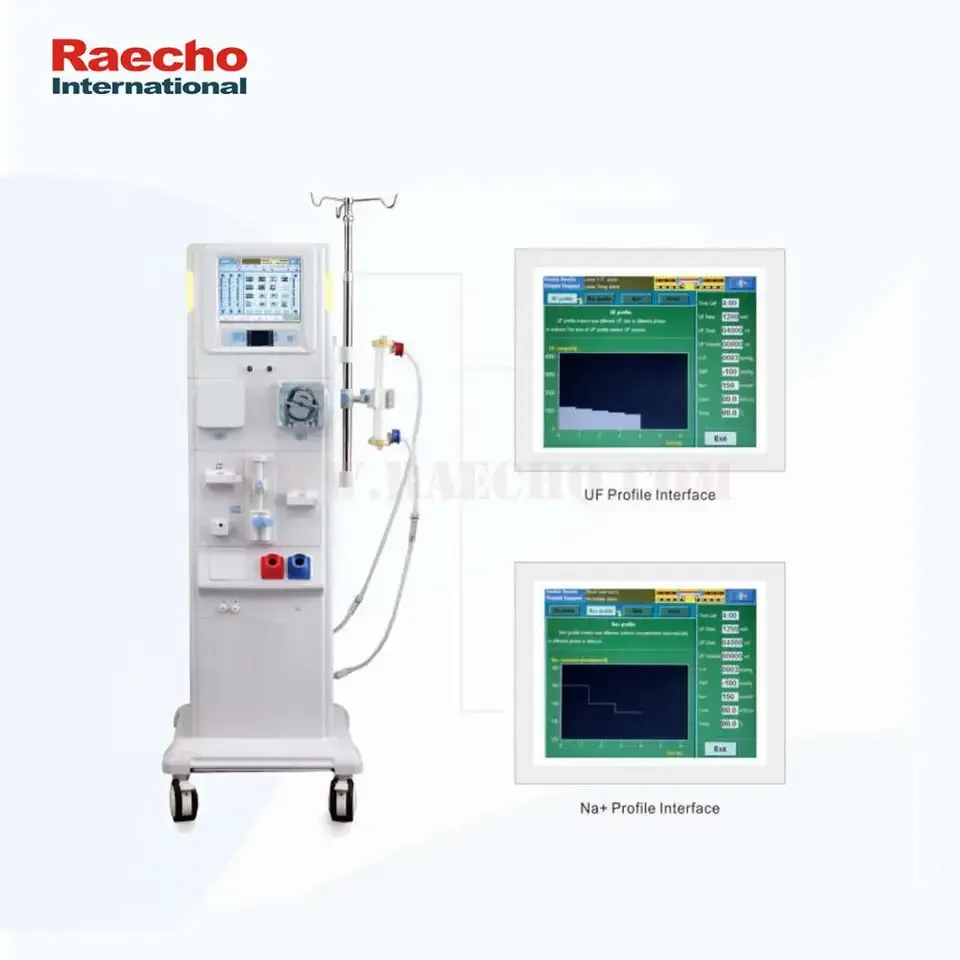

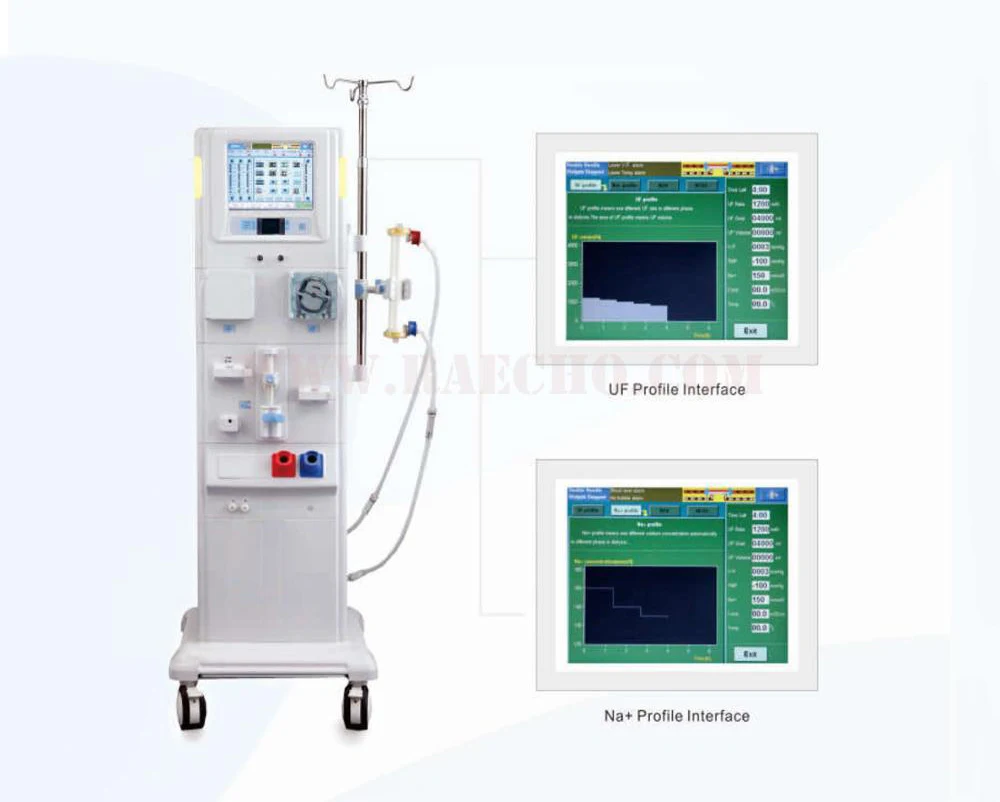

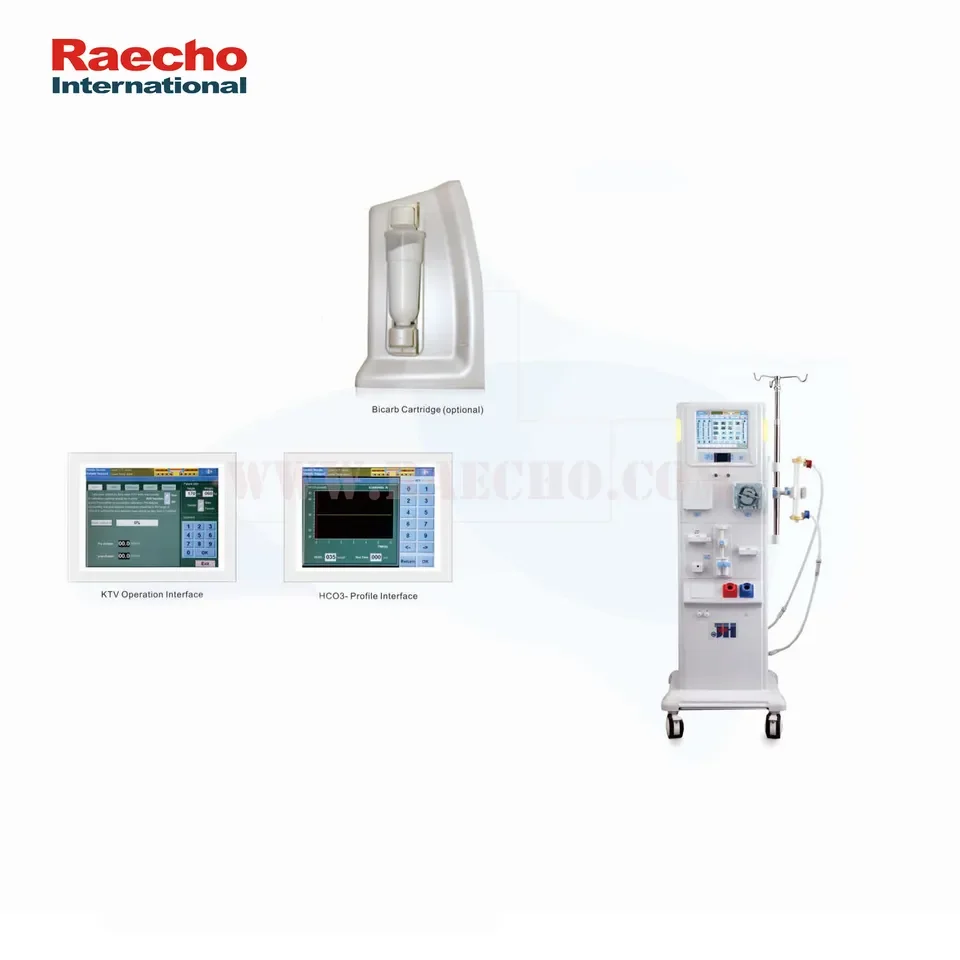

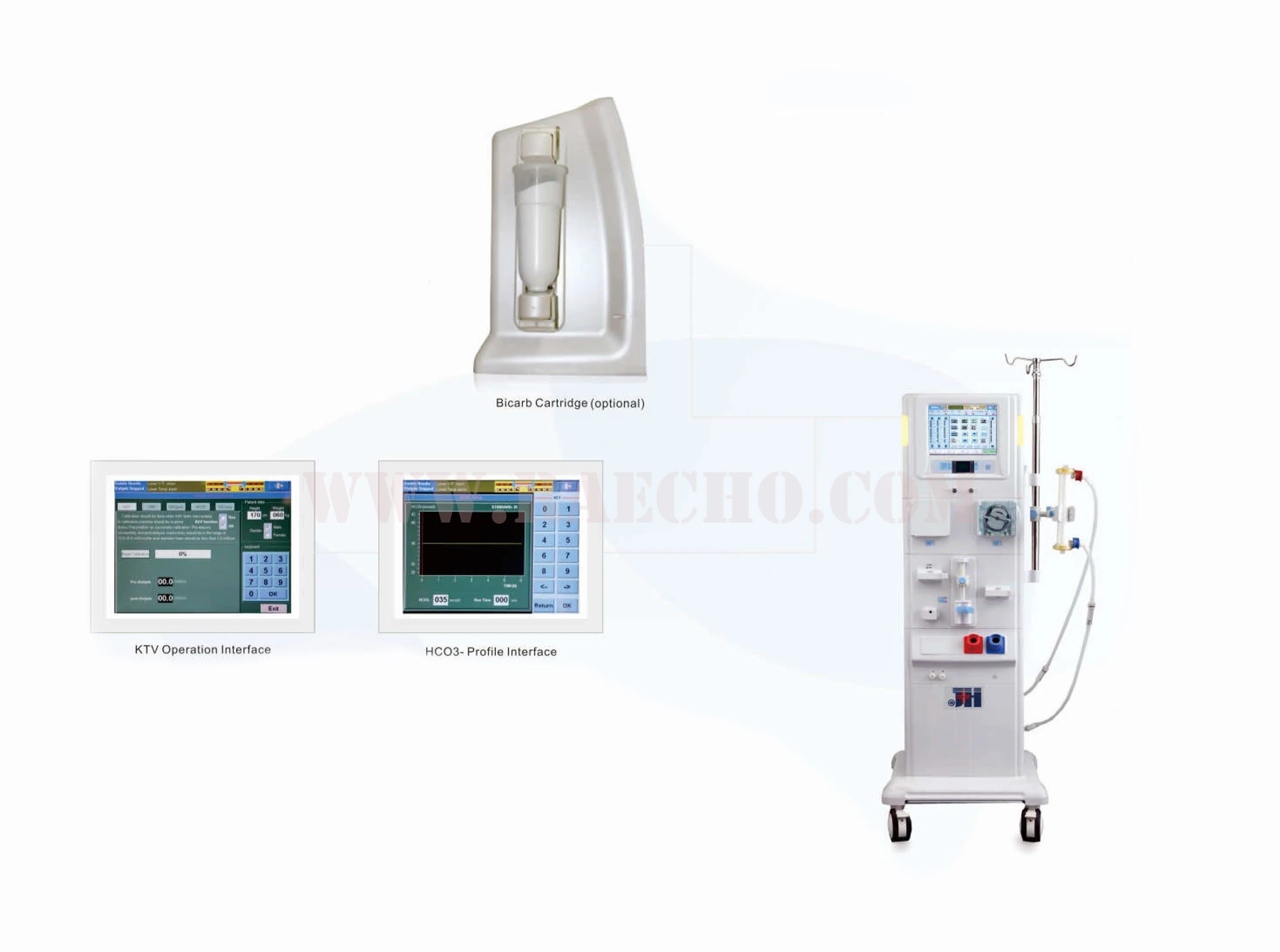

Details Images
