Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board
Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board

Cheap Factory Price Xps Fiber Cement Sandwich Panel Waterproof Toilet Tank Backer Board

Share on (1600949295553):


Price:

Quantity:


Product Overview

Description



FAQ


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Material
polystyrene foam board, polymer mortar, fiberglass mesh
Compressive strength
min 300Kpa
Thermal conductivity
0.030-0.036W/M.K
XPS density
32-35kg/M3
XPS color
grey
Thickness
20-30mm
Application
waterproof and heat insulation for wetroom, bathroom, toilet etc.








Products Description

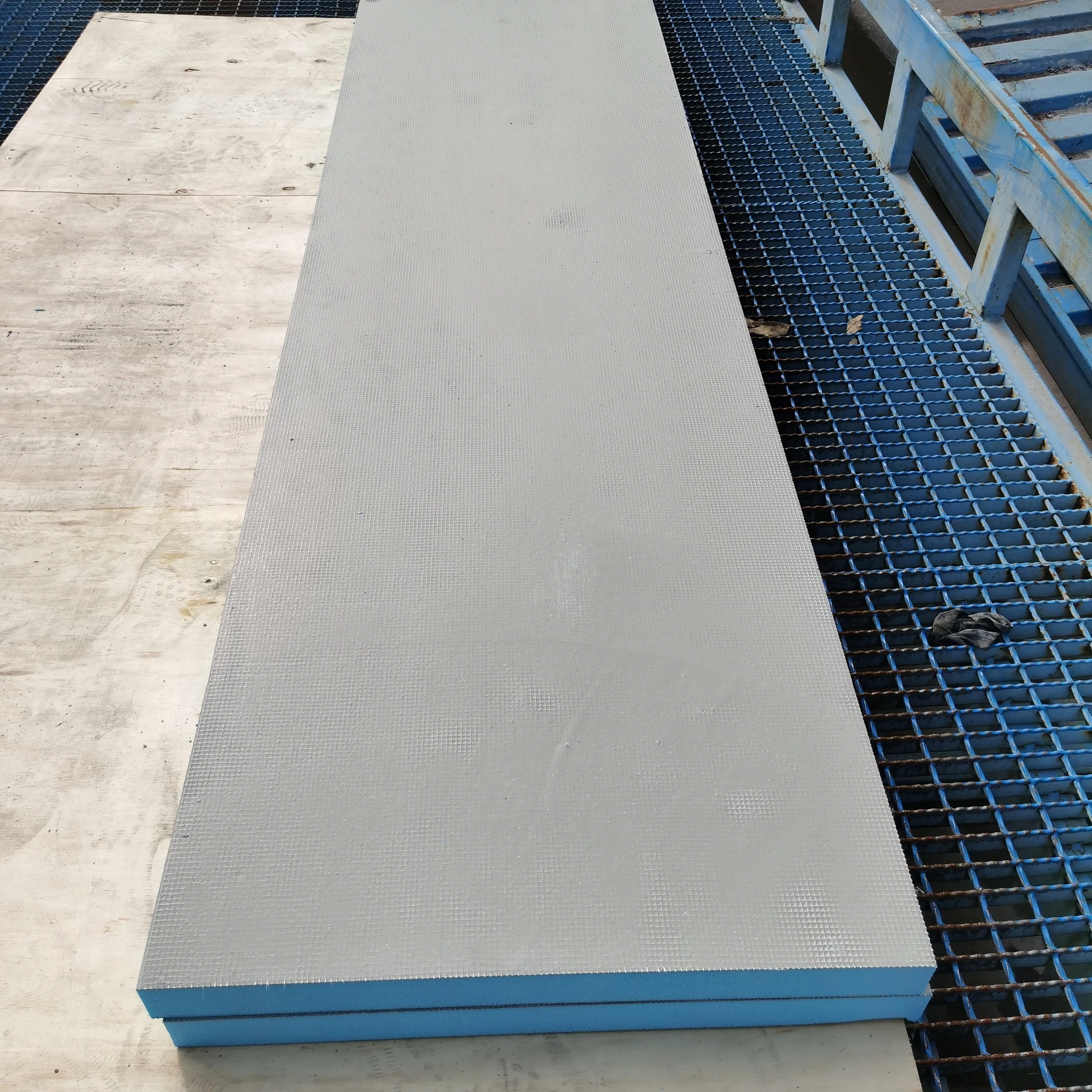

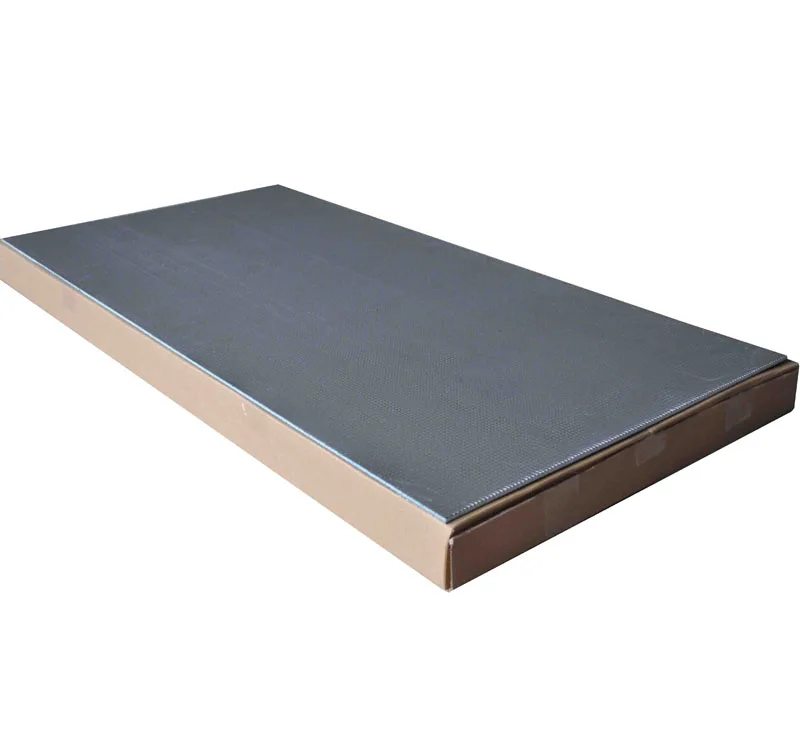

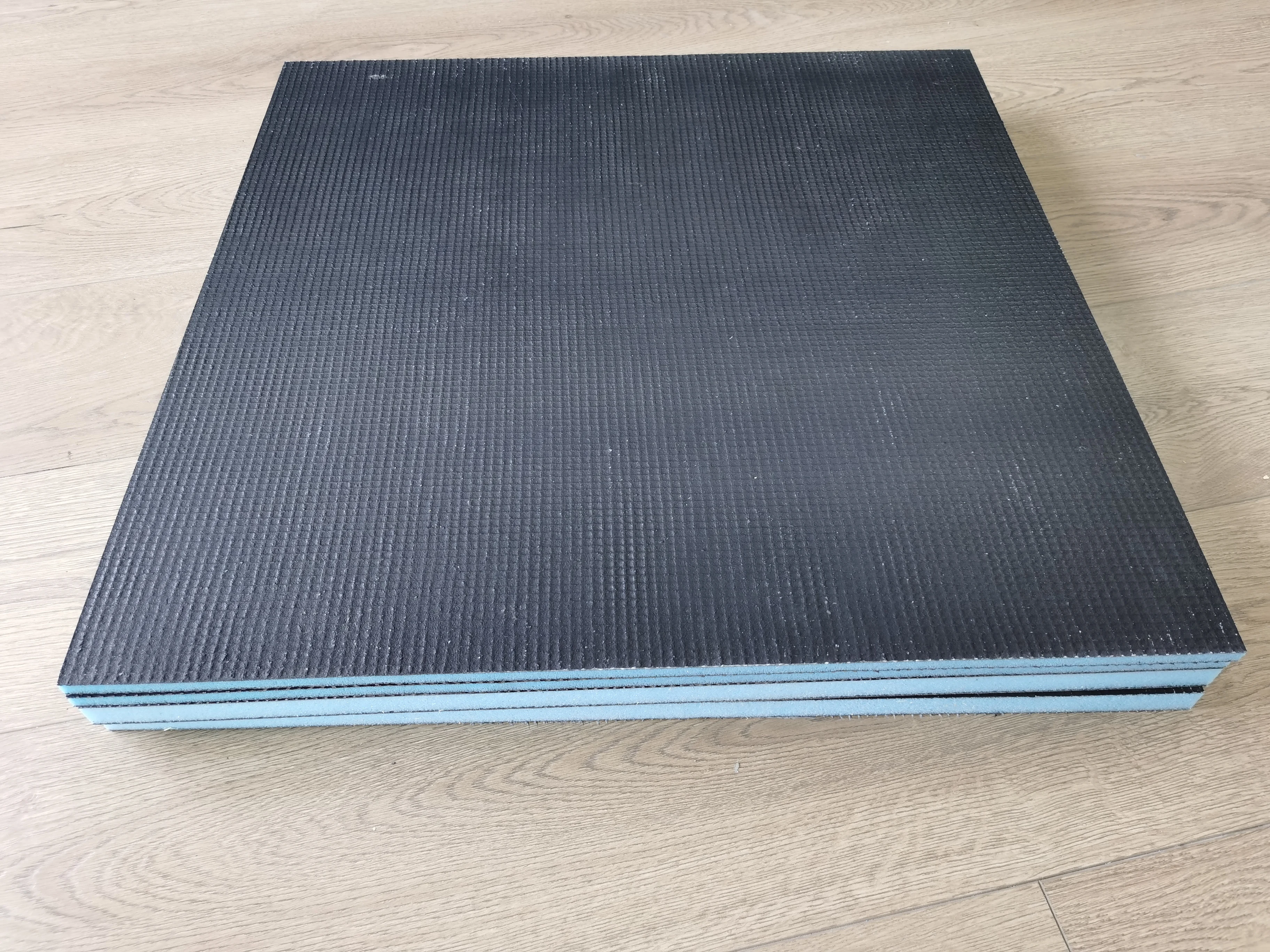

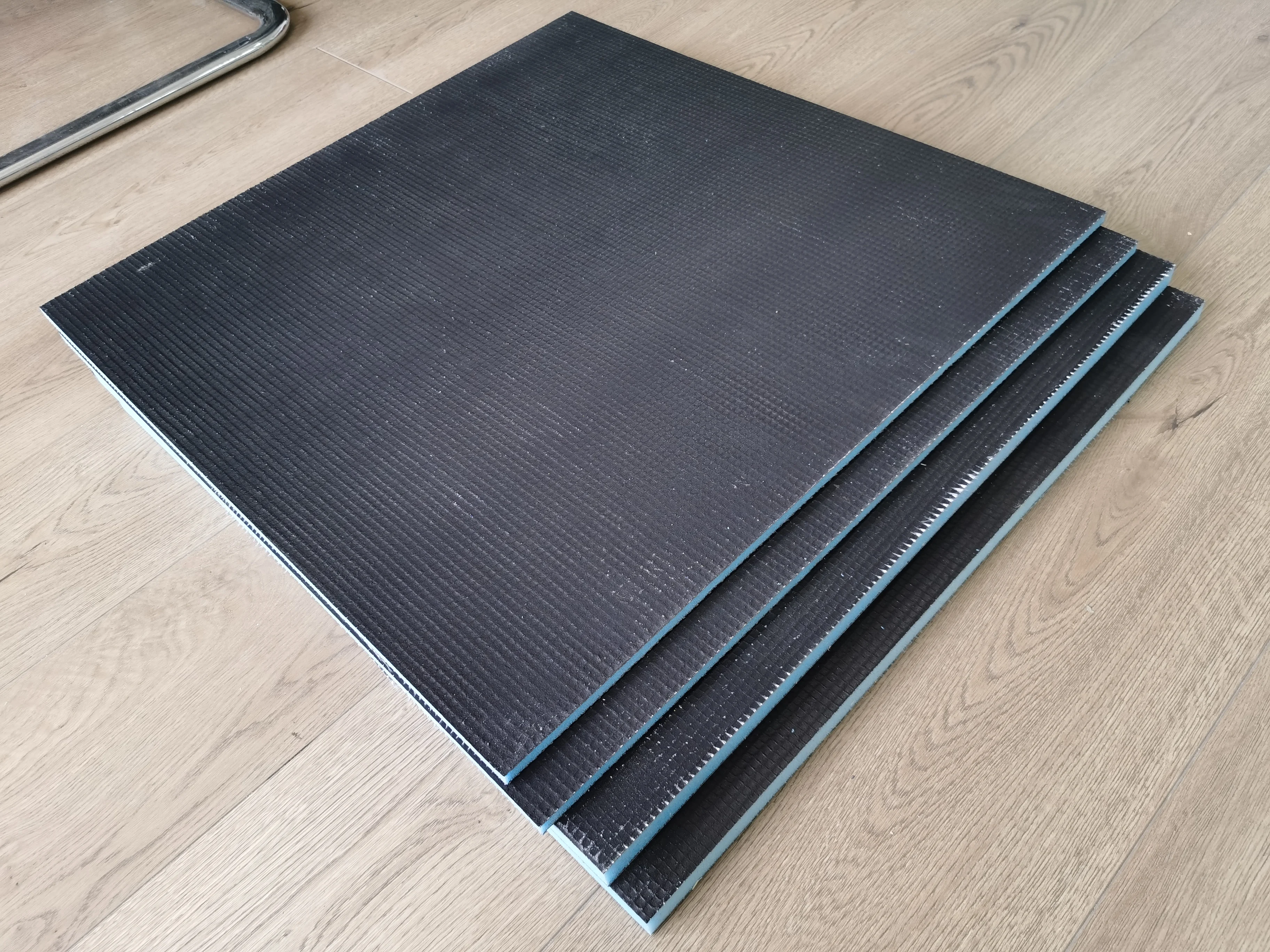

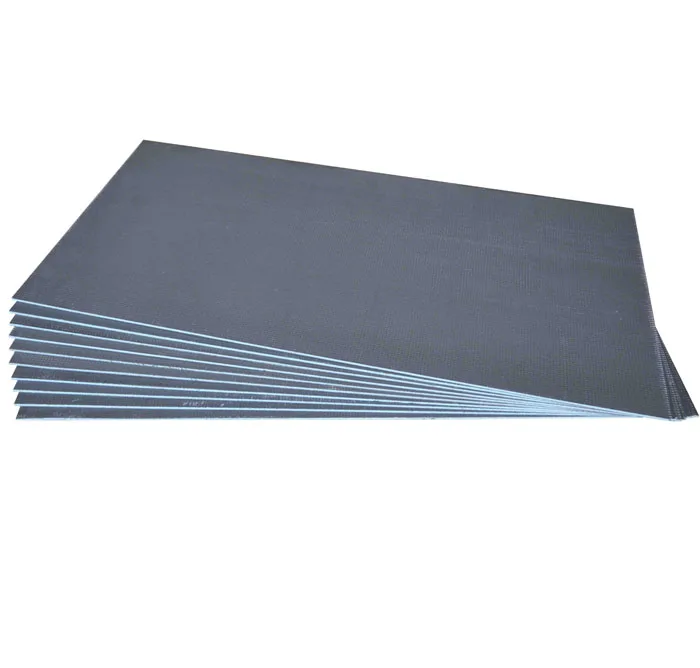

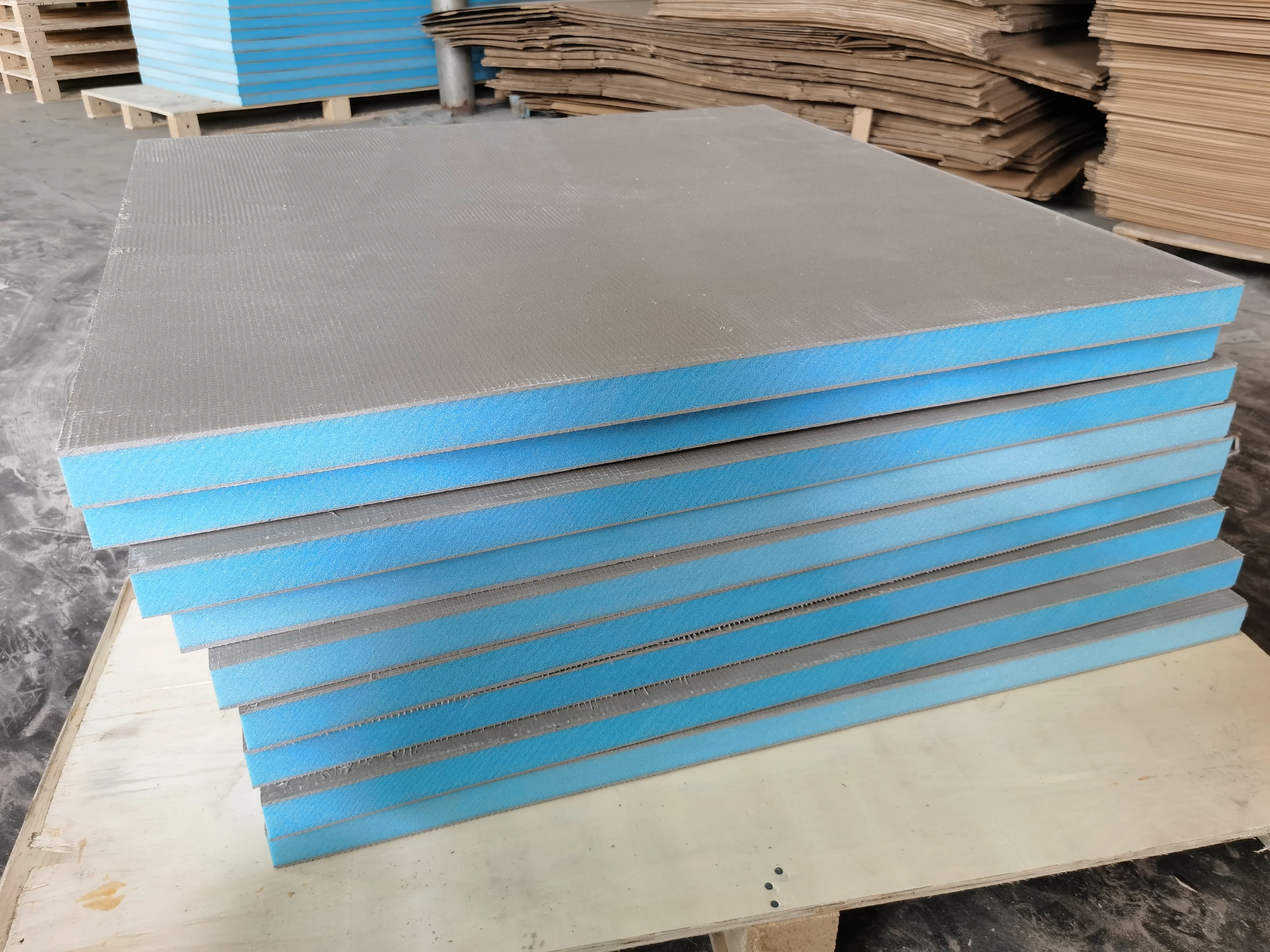

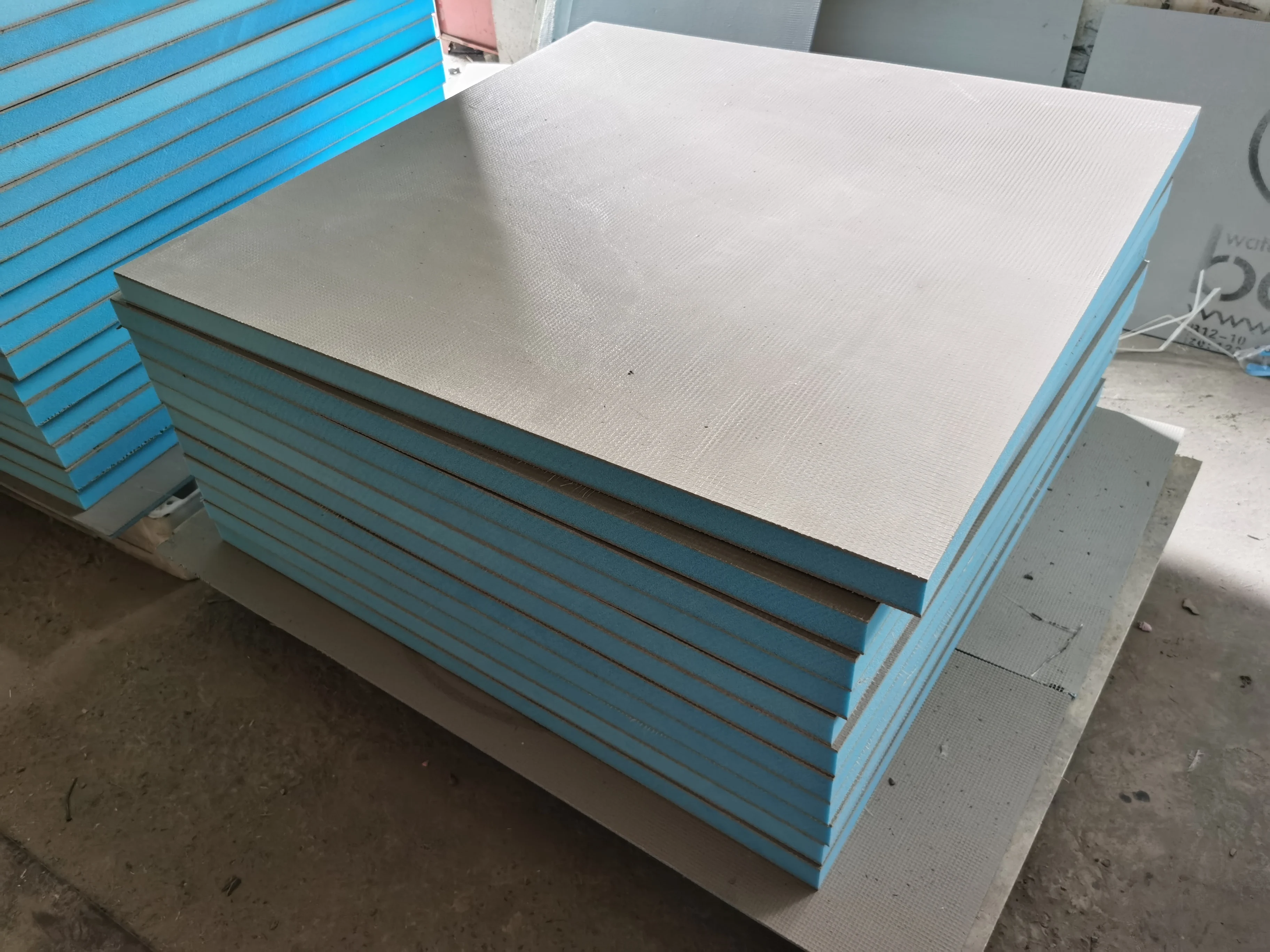

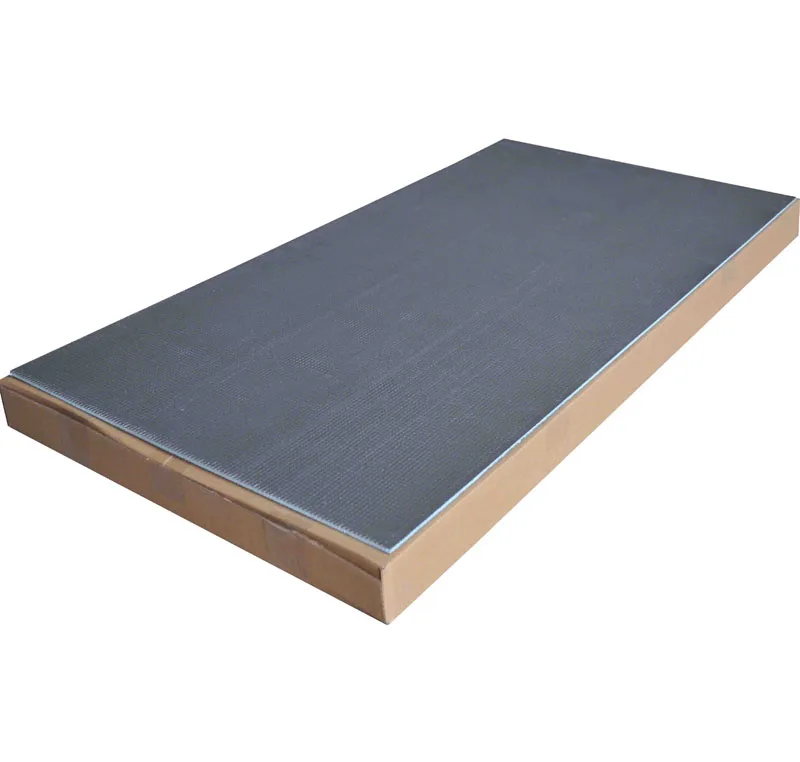

Shield Tile Backer Board is the innovative alternatives to traditional cement backers. Its waterproof XPS core, fiberglass
reinforced and cement coating gives the panels strength and vapor-retardant, making Shield panels are perfect choice for a variety
of interior and exterior applications, such as the interlayer to walls or floors and thermal insulation board in underfloor
heating systems, can be tiled with all types of ceramic, glass or stone tile whether they are mosaic or large format tiles.
Especially large and thin tile benefits of the durability of the Shield Tile Backer Board and the even surface it provides.


Characteristics of Shield Tile Backer Board
1. 100% waterproof, Environment friendly(free of CFC and HCFC)
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife


Technical Data


Property
Assessed to
Rating
Thermal Conductivity (>5yrs)
BS EN 13164
0.030-0.036 Watt/mK
Compressive Strength (10% deflection)
EN 826
≥300kpa
Bond Strength
AS/NZS 2588
401N
Maximum Tile Loading Weight
CERAM 121107
62kg/m2
Flexural Strength
ASTM C203
2.05 ± 0.02 Mpa
Water Vapour Permeability (Sd )
DIN EN 12086
1.5 m
Resistance to Body Impact
ETAG003
3×120N/m
Bending Stiffness, EI (20mm/30mm )
EN 12089
285kNmm2/mm ,399kNmm/mm
Working Temperature Range
N/A
-50℃ to +80℃


Item
Thickness (mm)
Width (mm)
Length (mm)
Weigth (kg/piece)
Packaging (sheet/box)
TB24410
10
600
2440
4.21
10
TB24412
12
600
2440
4.24
5
TB24420
20
600
2440
4.76
5
TB24430
30
600
2440
5.15
5
TB24440
40
600
2440
5.71
5
TB24450
50
600
2440
6.28
5
TB24460
60
600
2440
6.84
5
TB24480
80
600
2440
7.79
5
TB12206
6
600
1220
1.77
20
TB12210
10
600
1220
2.11
10
TB12212
12
600
1220
2.12
10
TB12220
20
600
1220
2.38
5
TB12230
30
600
1220
2.56
5
TB12240
40
600
1220
2.86
5
TB12250
50
600
1220
3.14
5
Remark: other sizes can be customized.
