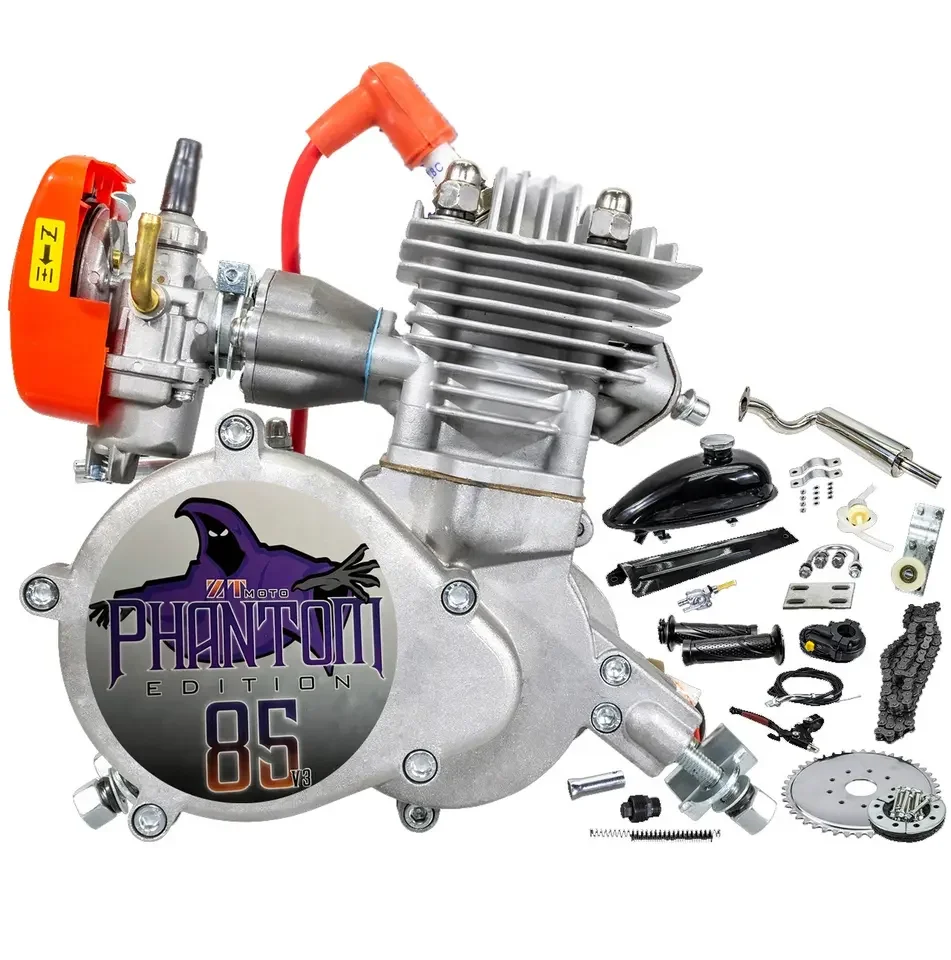

4 Stroke 49CC 2 Stroke 80CC 100CC 85CC ZTMOTO 85 V3 Gasoline Engine Motorized Bicycle Conversion Kit
- Category: >>>
- Supplier: Quicker (Tianjin) Sports Equipment Co. Ltd.
Share on (1600950168313):
Product Overview
Description
Product Description
Specification
Model | ZTMOTO-85 |
Bore & stroke | 52mmx40mm |
Engine Type | single cylinder, air-cooling, two strokes gasoline engine |
Ignition Mode | CDI Ignition |
Max. Power | 3kw/9000r/min |
Compression ratio | 6:1 |
Transmission ratio | 18:1 |
Sparking plug | Z8C 16MMM |
Mixing ratio of fuel & engine oil | 20:1 for new sets, 25:1 after running 310miles |
Starting | Kick starting |
Tank capacity | 2L |
Fuel consumption | 2.8L/100km |
Clutch type | Rub bloc drying |
Cooling | Air-cooling |
Shifting way | sprocket |
Max.speed | 66km/h - 70km/h |
Max. Load capacity | 180kg |
Fuel Type | 90# |
Net weight | 11kg |
Gross weight | 11.7kg |
Ctn size | 42*42*17CM |
20'GP | 950pcs |
Mini order | 30pcs |
ZTMOTO 85 Features Include：
* 52mm Bore, 40mm Stroke - Actual U.S. engine displacement: 85cc

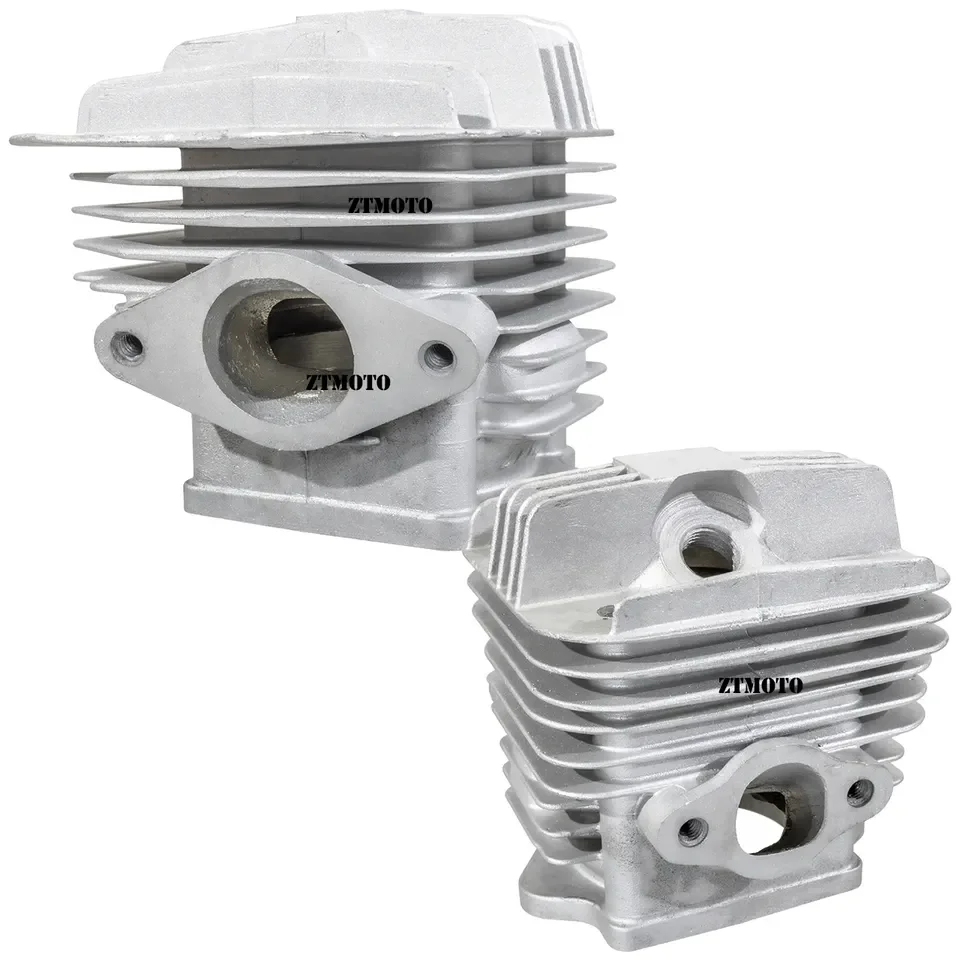

* Single piece cylinder and head (Lower operating temps, increased rider weight capacity, improved power output across varied rpm range)
* High performance Speed carb
* Reed Valve (Controls air-fuel mixture flow to increase performance)
* Ceramic lined cylinder (Significantly improves cylinder durability, reduces friction, lowers operating temps, increases performance)
* All new ultra-quiet exhaust pipe
* Oversized exhaust port
* High performance CDI with Yamaha components
* Performance magneto
* High end allen bolts
* Improved gas cap
* 52mm Bore, 40mm Stroke - Actual U.S. engine displacement: 85cc
* Single piece cylinder and head (Lower operating temps, increased rider weight capacity, improved power output across varied rpm range)
* High performance Speed carb
* Reed Valve (Controls air-fuel mixture flow to increase performance)
* Ceramic lined cylinder (Significantly improves cylinder durability, reduces friction, lowers operating temps, increases performance)
* All new ultra-quiet exhaust pipe
* Oversized exhaust port
* High performance CDI with Yamaha components
* Performance magneto
* High end allen bolts
* Improved gas cap

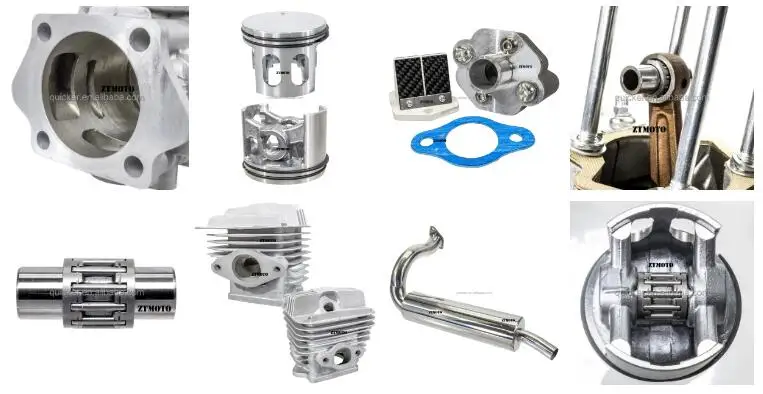

ZTMOTO 85 Engine Kit Includes

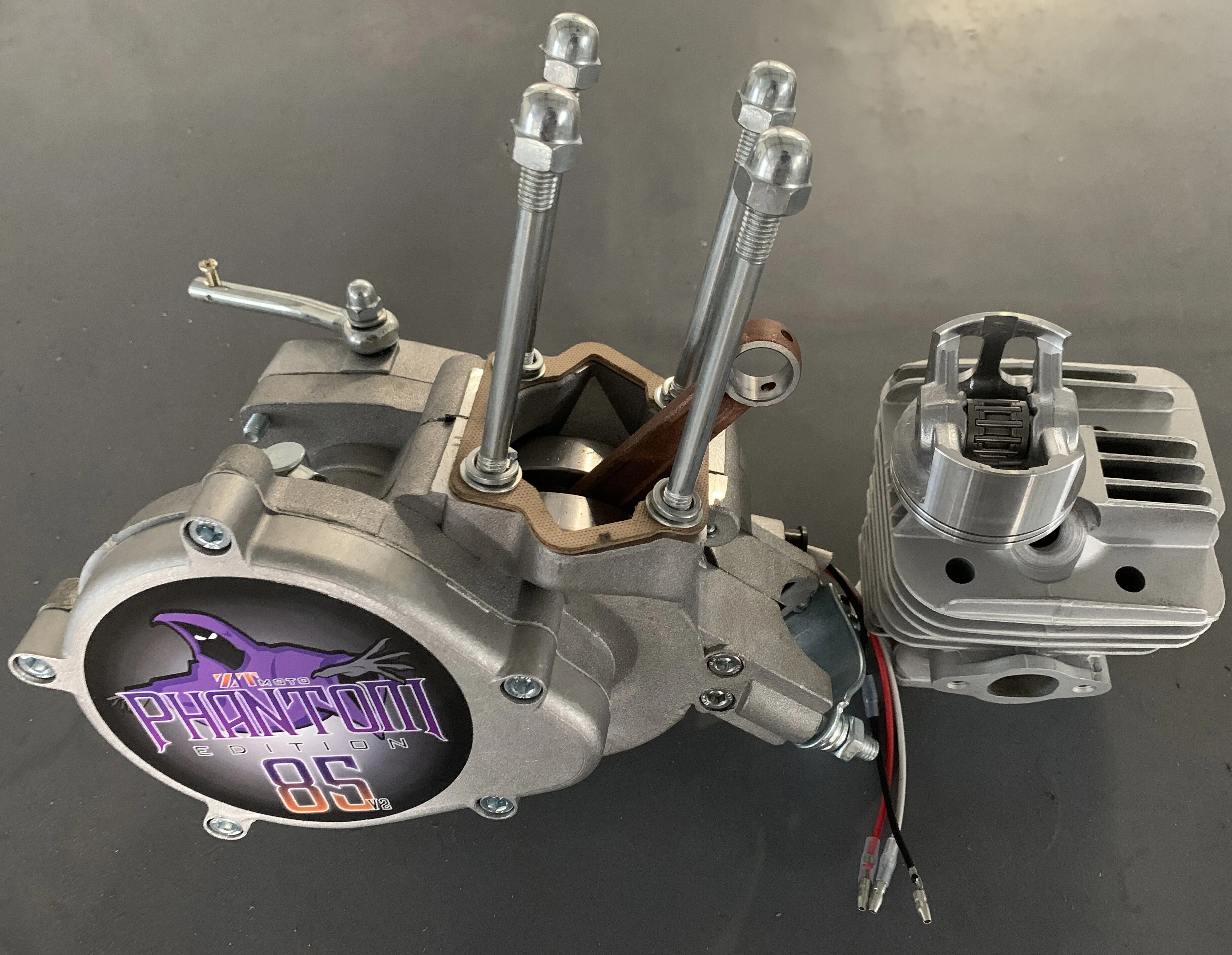

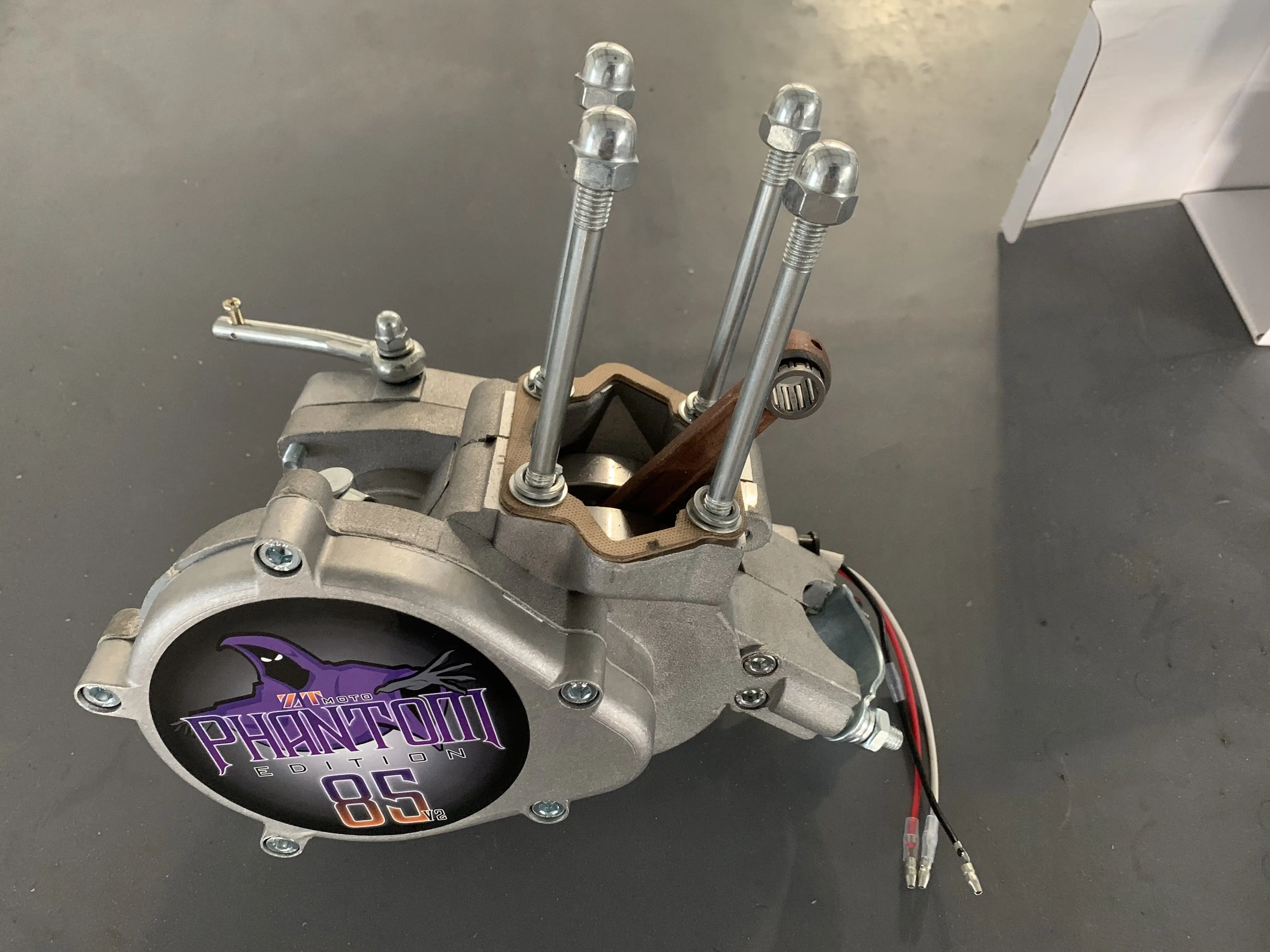

* 85cc 2 stroke engine with one piece cylinder and head
* Reed valve air intake
* Needle bearing for piston wrist pin
* High performance Speed carb
* Angled LD Z8C spark plug
* Performance magneto
* Stainless steel allen bolts
* Better balanced crank
* Upgraded bearings / 60% thicker crank case around bearings
* Stuffed crank case
* Large intake port (40mm bolt hole width)
* Oversized round exhaust port - 28mm diameter, 60mm stud spacing
* 40mm crank stroke (more powerful, efficient, and reliable)
* Double window piston
* Long rod (89mm)
* Larger 8mm x 1.25 engine mount studs
* Approximate engine dimensions:
9" x 9" x 5"
* 85cc 2 stroke engine with one piece cylinder and head
* Reed valve air intake
* Needle bearing for piston wrist pin
* High performance Speed carb
* Angled LD Z8C spark plug
* Performance magneto
* Stainless steel allen bolts

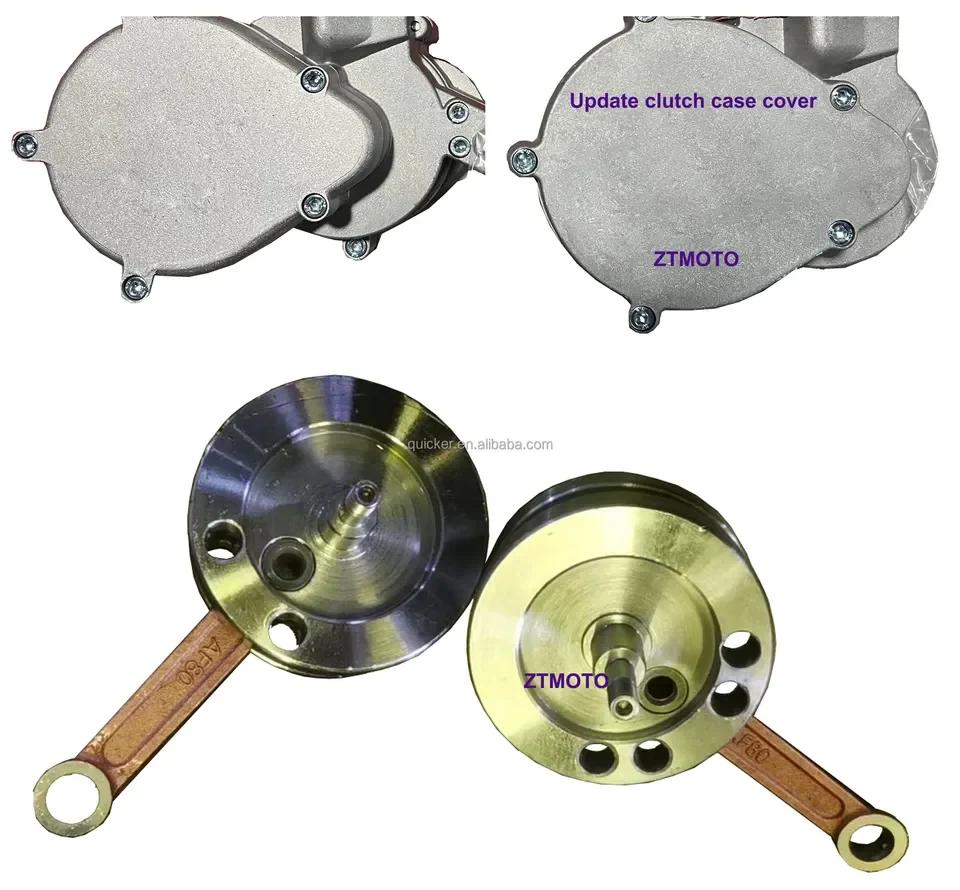

* Better balanced crank
* Upgraded bearings / 60% thicker crank case around bearings
* Stuffed crank case
* Large intake port (40mm bolt hole width)
* Oversized round exhaust port - 28mm diameter, 60mm stud spacing
* 40mm crank stroke (more powerful, efficient, and reliable)

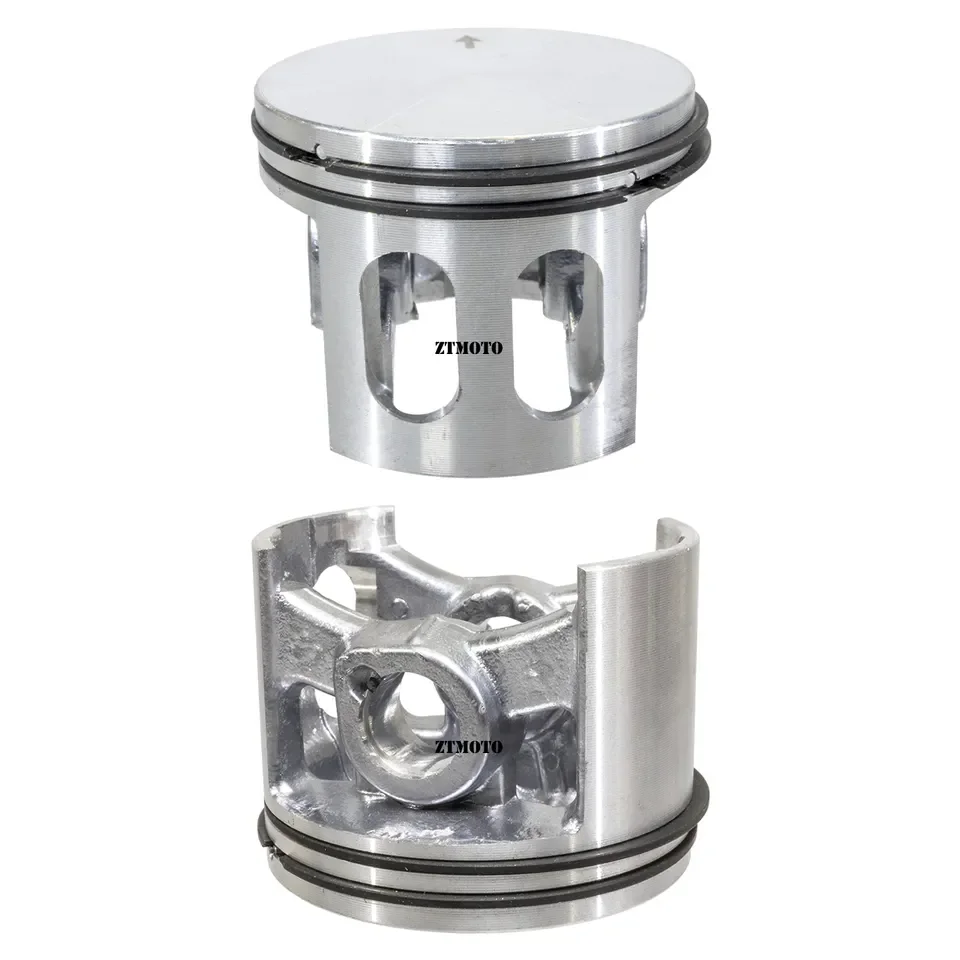

* Double window piston
* Long rod (89mm)
* Larger 8mm x 1.25 engine mount studs
* Approximate engine dimensions:
9" x 9" x 5"
Mounting Kit & Accessories Included：
* High performance CDI with Yamaha components
* Black tear drop gas tank (2L) w/ new fuel cap, fuel valve, fuel filter, and fuel line
* 415 Heavy duty chain with chain guard
* Ball bearing chain tensioner
* Ultra quiet muffler (Stainless steel with sound insulation cotton inside)
* Throttle assembly w/gooseneck style throttle cable
* Twist throttle and cable with matching grip and kill switch
* New quick release clutch handle
* Large front mount for bicycles that have large down tubes
* Available with 36, 44, or 48 tooth rear sprocket
* Spark plug socket tool and gear removal tool
* Improved Intake Port and Transfer Port, more horsepower
* High performance CDI with Yamaha components
* Black tear drop gas tank (2L) w/ new fuel cap, fuel valve, fuel filter, and fuel line
* 415 Heavy duty chain with chain guard
* Ball bearing chain tensioner
* Ultra quiet muffler (Stainless steel with sound insulation cotton inside)
* Throttle assembly w/gooseneck style throttle cable
* Twist throttle and cable with matching grip and kill switch
* New quick release clutch handle
* Large front mount for bicycles that have large down tubes
* Available with 36, 44, or 48 tooth rear sprocket
* Spark plug socket tool and gear removal tool
* Improved Intake Port and Transfer Port, more horsepower

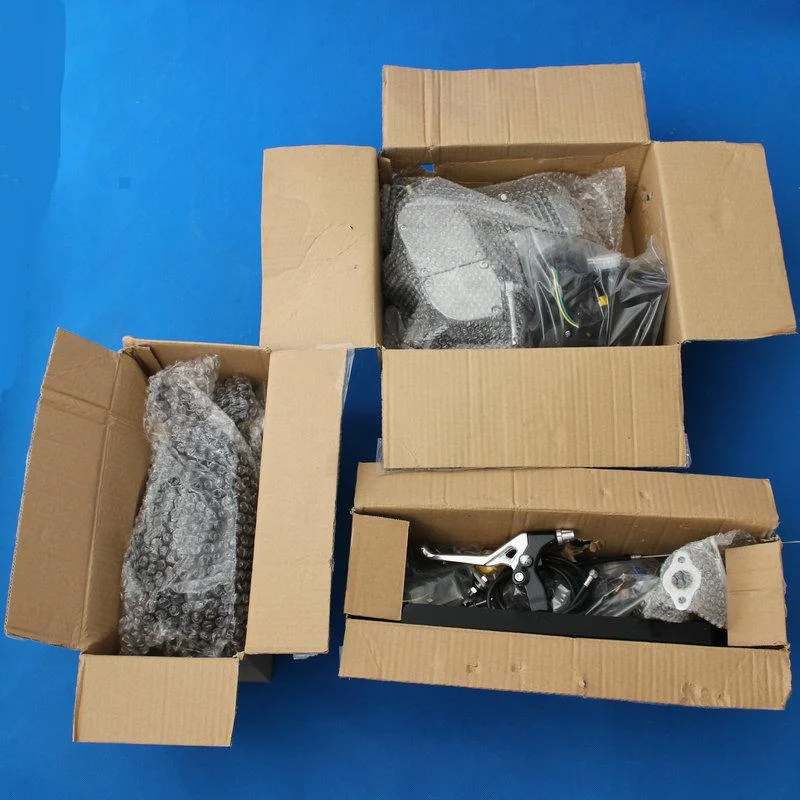

Product packaging
