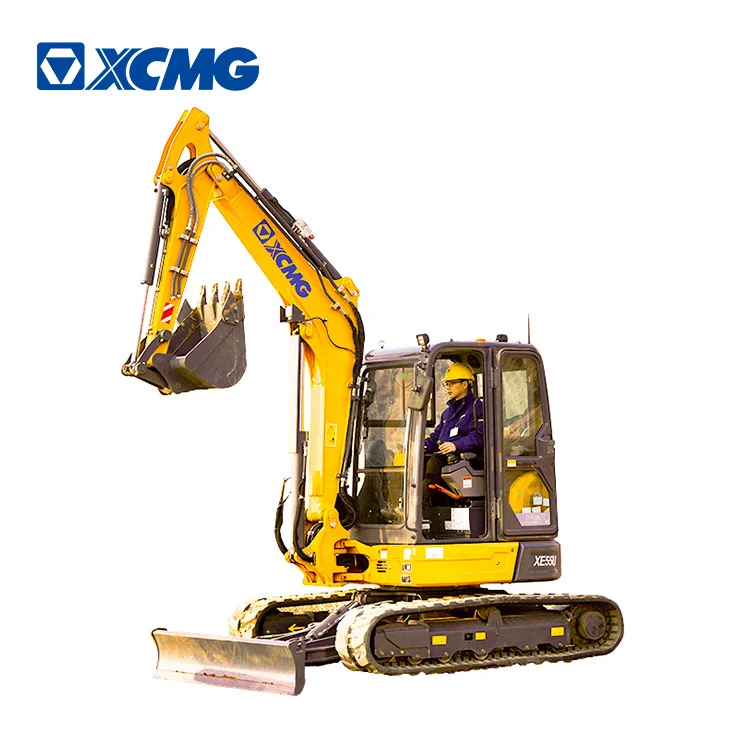

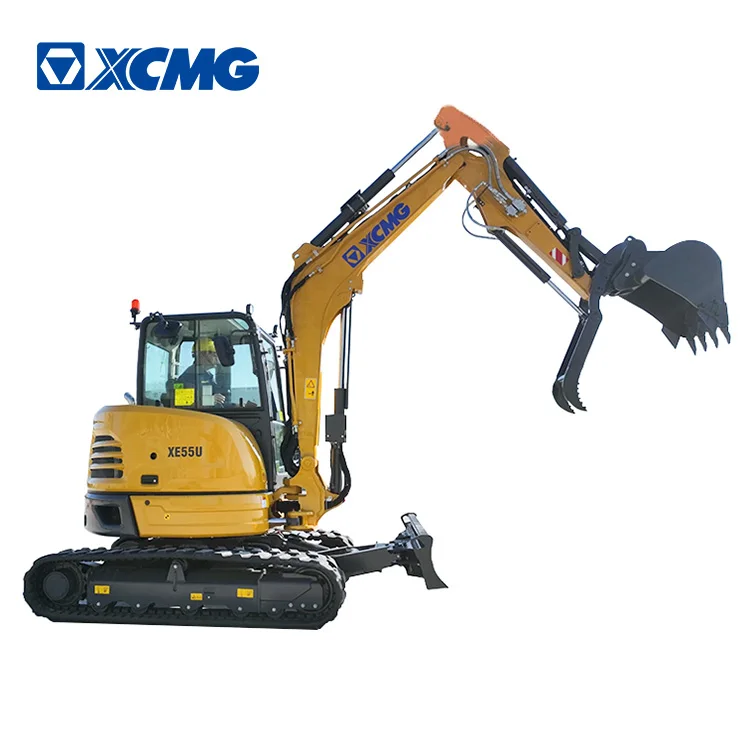

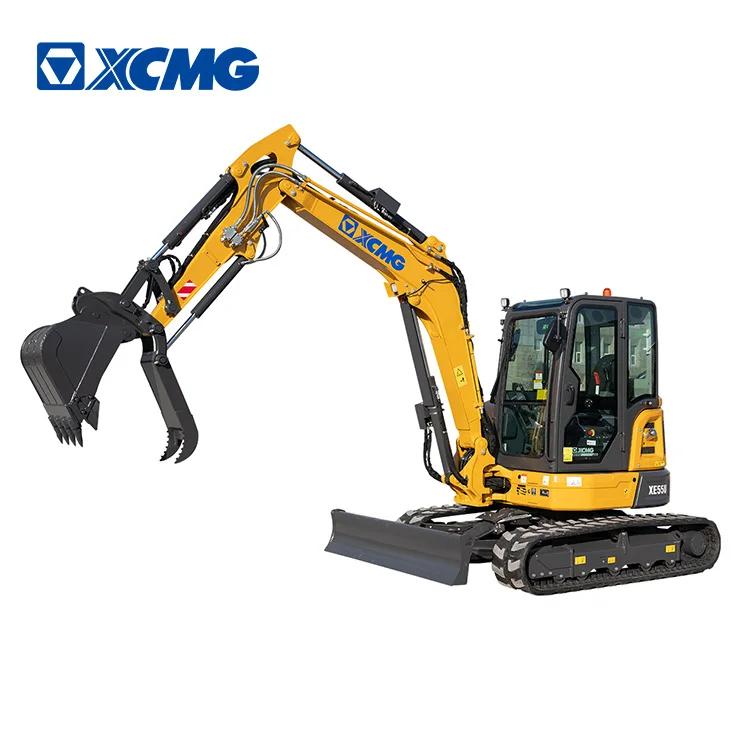

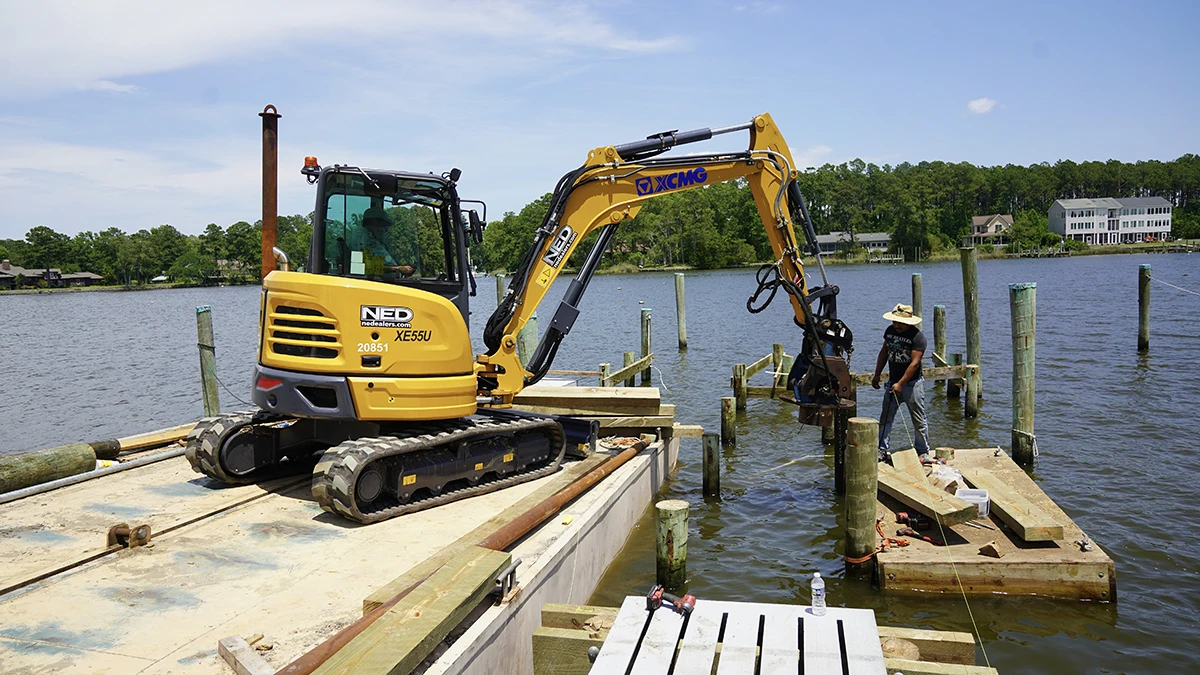

XCMG 5 ton excavator mini digger XE55U small crawler excavators with price for sale
- Category: >>>
- Supplier: Xuzhou Construction Machinery Group Import & Export Co. Ltd.
Share on (1600950428862):
Product Overview
Description
Technical Specification
Rated Power: 30.7 kW
Operating Weight With Cab: 5.7 t
Bucket Capacity: 0.16 m3
XCMG 5.5ton Excavator
XE55U
Tight Tail Swing
This tight tail swing model and short slewing radius prove to be highly versatile when undertaking operations in a confined space. The left and right boom swing angle is respectively 70° and 53°, it can realize complex operation together with upper structure slewing to ensure that the digging is parallel with wall surface in narrow space through the cooperation of upper structure slewing so as to easily deal with various operating conditions.
Performance meets Efficiency
Designed to combine power and smoothness, the XE55U is ready to take on the challenges. This short-tail 12,566 lb machine can easily perform on your jobsites even in confined spaces. Its versatility is enhanced by two standard hydraulic circuits (AUX1 & AUX2) and precise oil flow control. High digging and lifting performance together with smooth driving performance make this XE55U an ideal machine for demanding jobs.

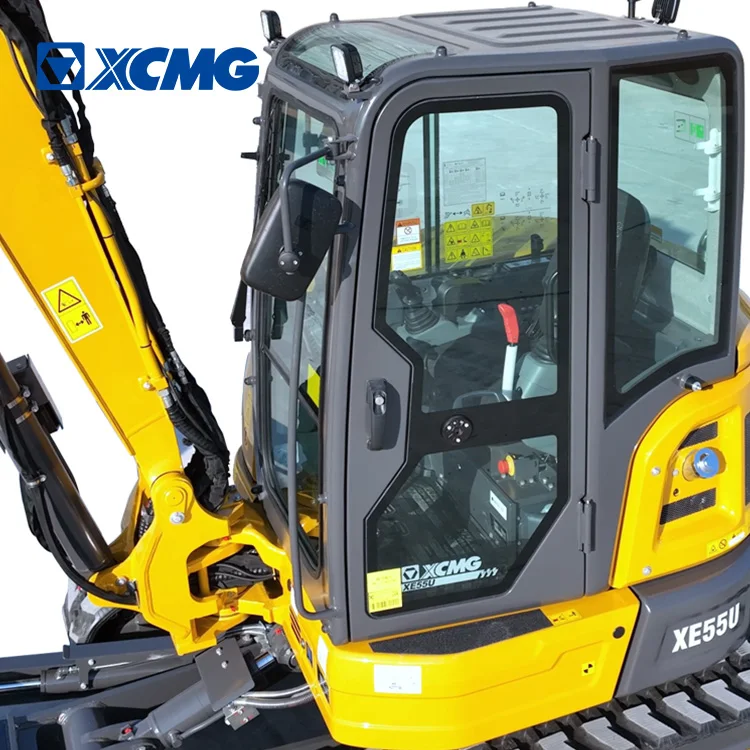

Ergonomic and Comfortable
With the XE55U, your comfort comes first. The cab has a wide entrance door, which makes it more accessible. The OPG/TOPS/ROPS(ISO 3471) cabin maximises your safety.
Engine | Make/model | Kubota/V2403/Tier 4F |
No. of cylinders | 4 | |
Piston displacement | 2 434 cm3 (0.6 gal.) | |
Max torque | 159.8 N·m/1500 rpm | |
Power output | 30.7 kW (41.2 hp) (ISO 14396) | |
Digging forces | Digging force, standard arm | 24.3 kN (5,462.9 lbf.) |
Digging force, bucket (ISO 6015) | 44.5 kN (10,004 lbf.) | |
Overall track length | 2 490 mm (8'2") | |
Swing mechanism | Boom swing, left | 70° |
Boom swing, right | 53° | |
Slew rate | 9.5 rpm | |
Drive | Travel speed (low - high) | 2.8-4.6 km/h (1.7-2.9 mph) |
Traction force | 52.8 kN (11,869.9 lbf.) | |
Gradeability | 70%/35° | |
Weight | Operating Weight With Cab | 5.7 t (12,566 lb.) |
Operating Weight With Canopy | 5.6 t (12,346 lb.) | |
Working range | Maximum digging height - std arm | 5 650 mm (18'6") |
Maximum digging depth - std arm | 3 640 mm (11'11") | |
Maximum dumping height - std arm | 4 010 mm (13'2") | |
Minimum swing radius - std arm | 2 430 mm (7'12") | |
Dimensions | Overall length | 5 340 mm (17'6") |
Tail slew radius | 1 040 mm (3'5") | |
Overall width | 1 831 mm (6') | |
Overall height | 2 555 mm (8'5") | |
Track shoe width | 400 mm (16") | |
Tumbler length | 1 990 mm (6'6") |
