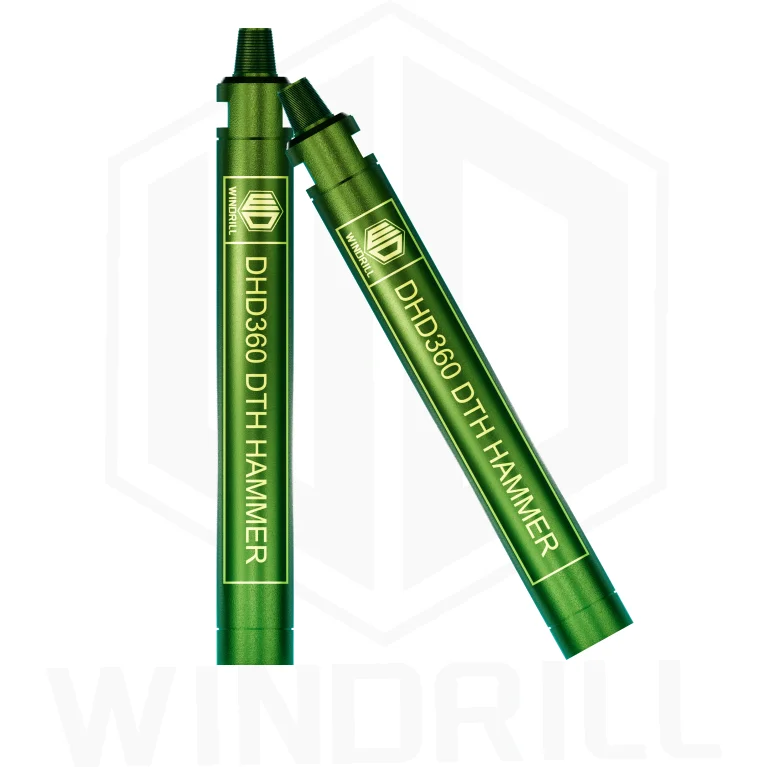

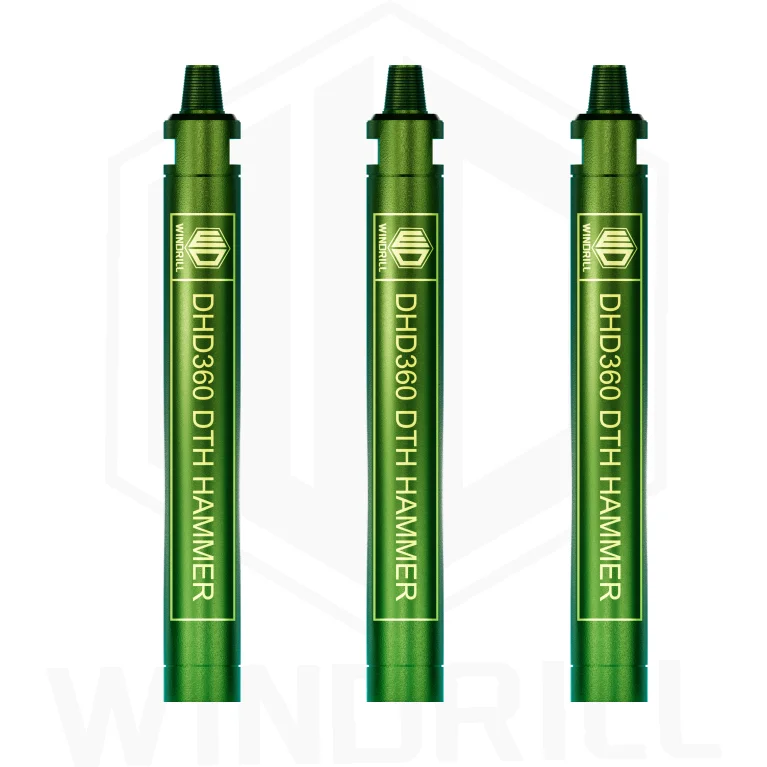

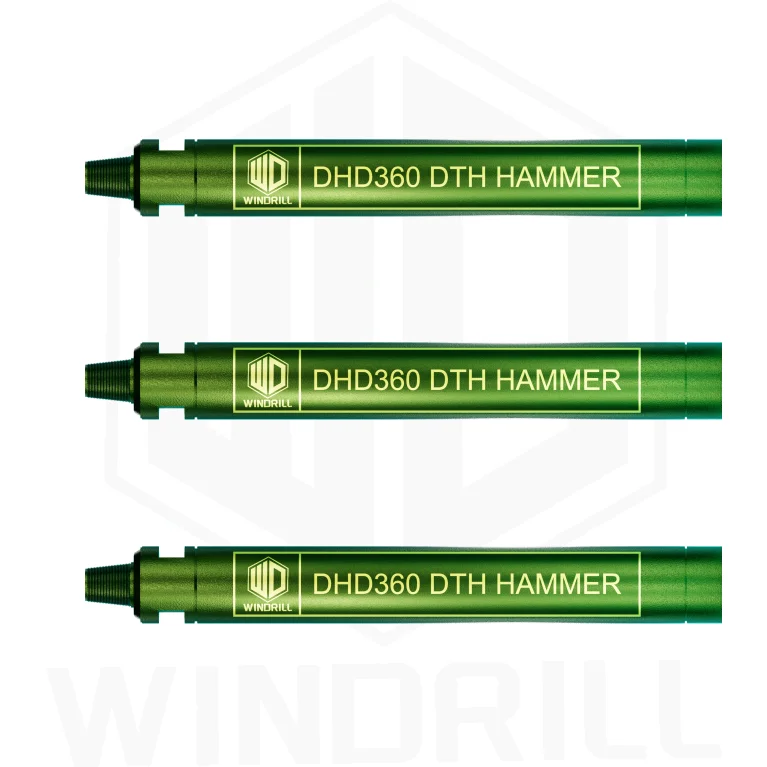

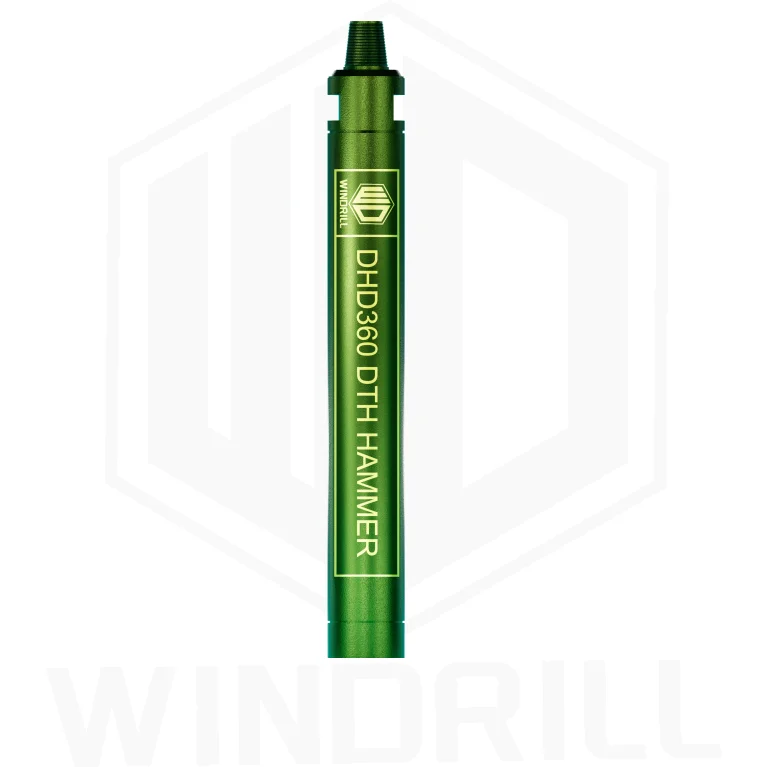

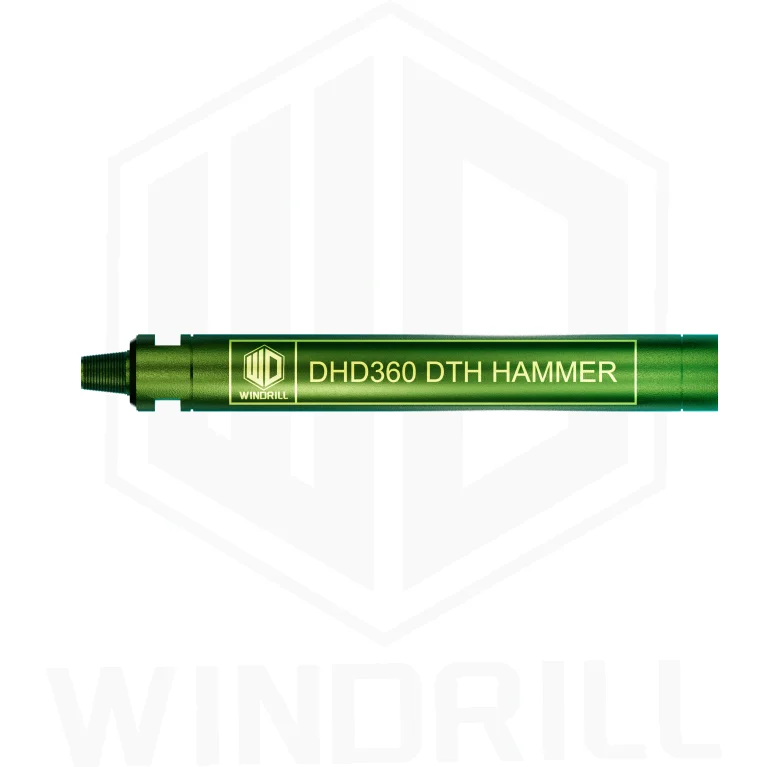

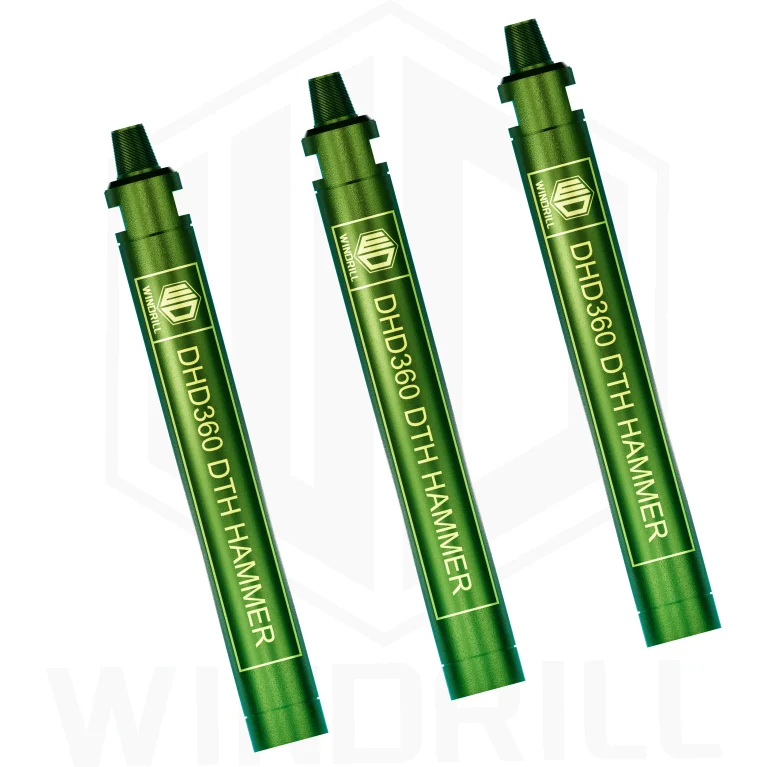

DHD360 6inch DTH hammers COP64 DHD360 SD6 QL60 MISSION6 High aire pressure DTH hammer

Product Overview

Description

 DHD360 DTH hammers high air pressure 6inch DTH hammer





DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling. Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs. Win Drill offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method. It's widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.



Advantages:

1. Easy service and maintenance designs reduces machine downtime.
2. Advanced hammer designs with high power and air efficiency increases productivity.

3.Tailored product offering covers all your applications and conditions.

4.Light and simple, easy to handle and support.

Length (without bit)	Weight(Without bit)	External diameter	Bit shank	Hole range	Connection thread
1248mm	100.5kg	Φ142mm	COP64	Φ152-Φ203mm	API 3-1/2" REG
Working pressure	Impact rate at 1.7Mpa	Recommended  rotation speed	Air consumption
			1Mpa	1.8Mpa	2.4Mpa
1-2.5Mpa	23Hz	25-30r/min	10m³/min	20m³/min	28.5m³/min
Length (without bit)	Weight(Without bit)	External diameter	Bit shank	Hole range	Connection thread
1248mm	100.5kg	Φ142mm	DHD360	Φ152-Φ203mm	API 3-1/2" REG
Working pressure	Impact rate at 1.7Mpa	Recommended  rotation speed	Air consumption
			1Mpa	1.8Mpa	2.4Mpa
1-2.5Mpa	23Hz	25-30r/min	10m³/min	20m³/min	28.5m³/min
Length (without bit)	Weight(Without bit)	External diameter	Bit shank	Hole range	Connection thread
1261mm	100kg	Φ142mm	SD6	Φ152-Φ203mm	API 3-1/2" REG
Working pressure	Impact rate at 1.7Mpa	Recommended  rotation speed	Air consumption
			1Mpa	1.8Mpa	2.4Mpa
1-2.5Mpa	23Hz	25-30r/min	10m³/min	20m³/min	28.5m³/min
Length (without bit)	Weight(Without bit)	External diameter	Bit shank	Hole range	Connection thread
1212mm	95kg	Φ148mm	QL60	Φ152-Φ203mm	API 3-1/2" REG
Working pressure	Impact rate at 1.7Mpa	Recommended  rotation speed	Air consumption
			1Mpa	1.8Mpa	2.4Mpa
1-2.5Mpa	23Hz	25-30r/min	10m³/min	20m³/min	28.5m³/min
Length (without bit)	Weight(Without bit)	External diameter	Bit shank	Hole range	Connection thread
1161mm	96.5kg	Φ148mm	MISSION60	Φ152-Φ203mm	API 3-1/2" REG
Working pressure	Impact rate at 1.7Mpa	Recommended  rotation speed	Air consumption
			1Mpa	1.8Mpa	2.4Mpa
1-2.5Mpa	23Hz	25-30r/min	10m³/min	20m³/min	28.5m³/min
