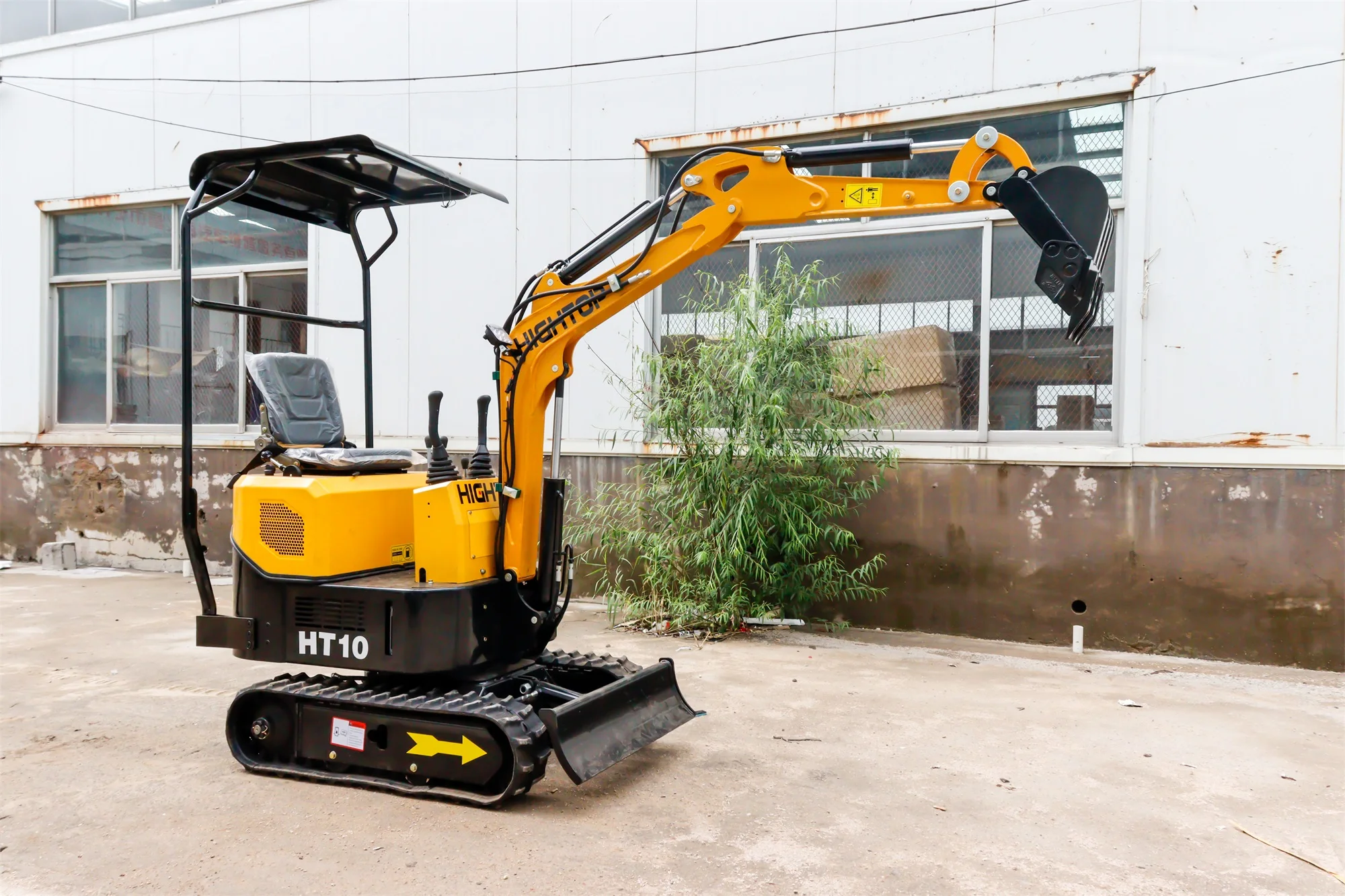

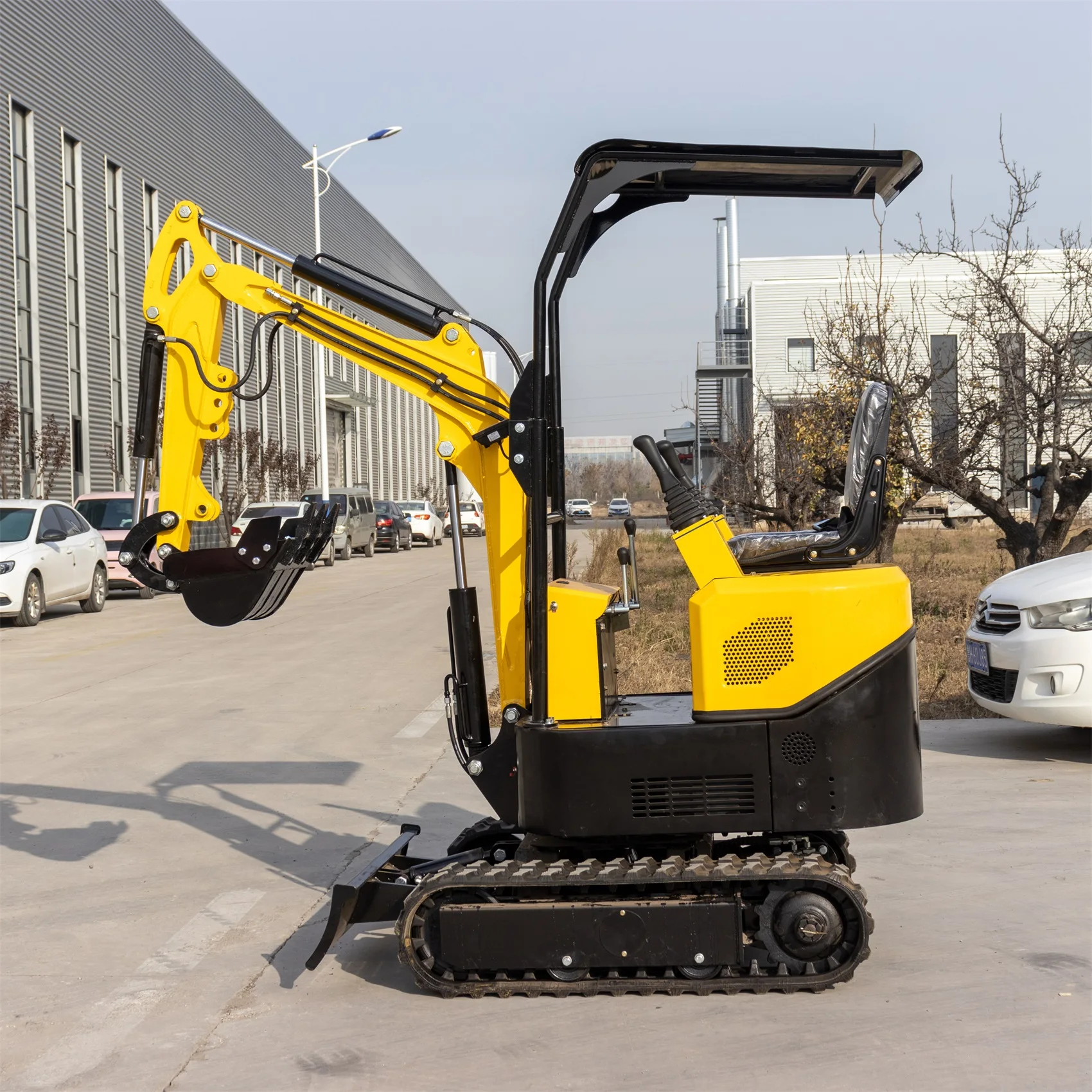

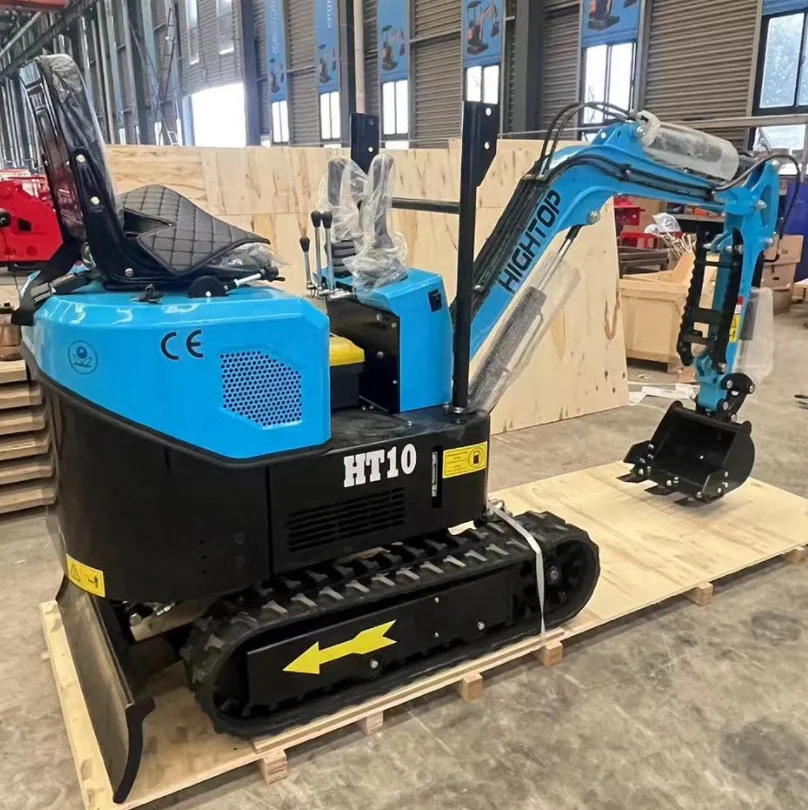

Hightop 1000kg 1T HT10C Diesel Engine Mini Crawer Excavator Small Digger Bagger Machine with Hydraulic Pilot Joystick Operation
- Category: >>>
- Supplier: SHANDONG REACT MACHINERY CO. LTD.
Share on (1600954130159):
Product Overview
Description
Product Description

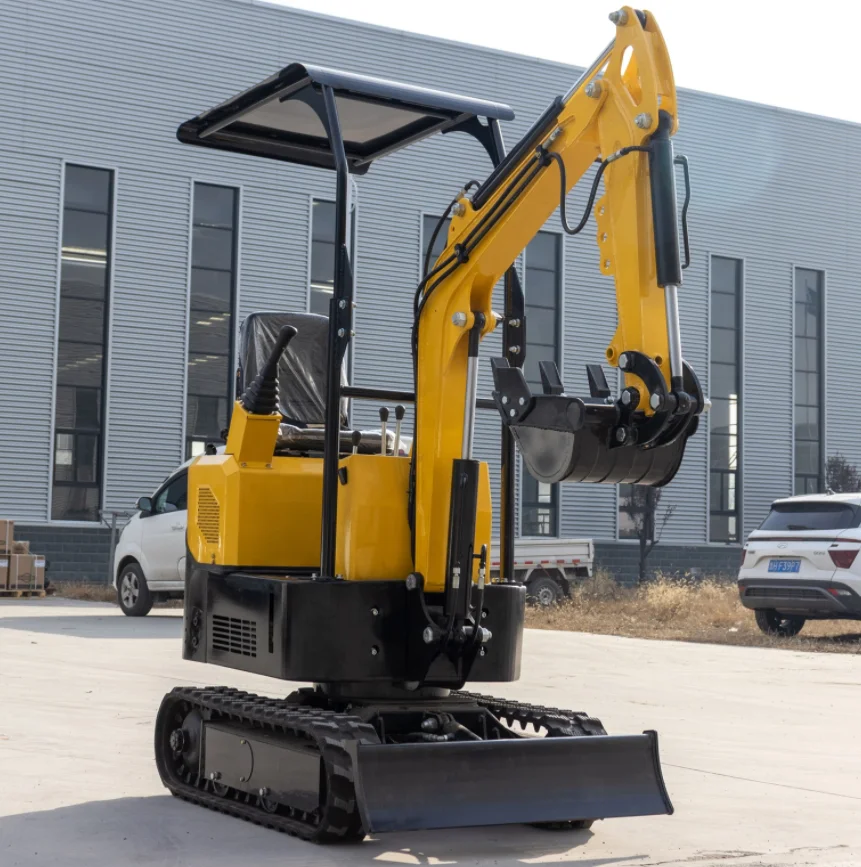

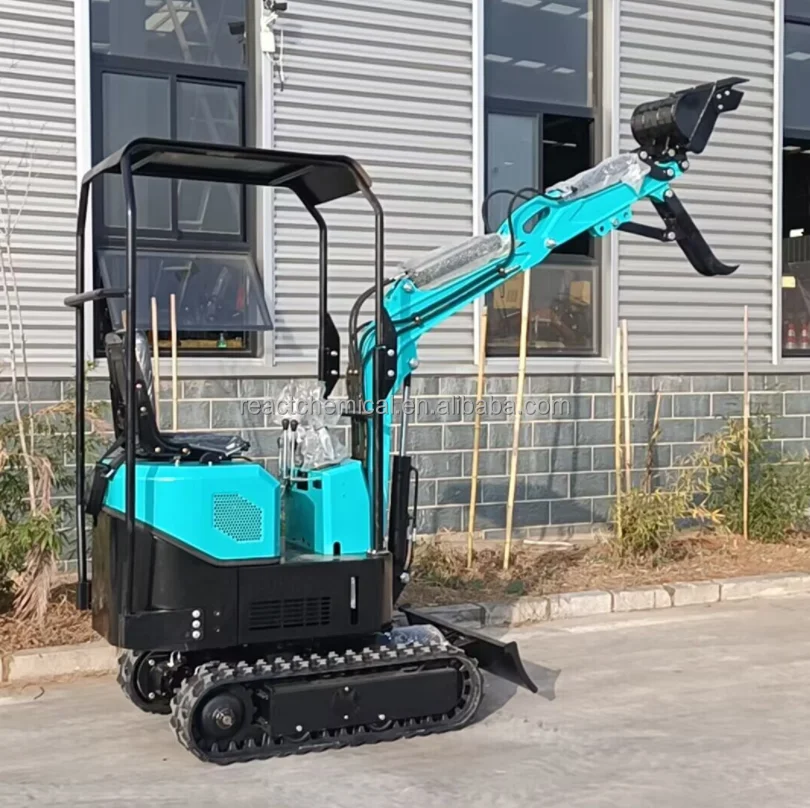

Hightop 1000kg 1T HT10C Diesel Engine Mini Crawer Excavator Small Digger Bagger Machine with Hydraulic Pilot Joystick Operation
![RSLGZ5K5{6_]H0LIYJX_B0P.png](http://sc03.alicdn.com/kf/Hcc996adf04c34bf6a6606e8fa1bc3be7b/248694068/Hcc996adf04c34bf6a6606e8fa1bc3be7b.png)

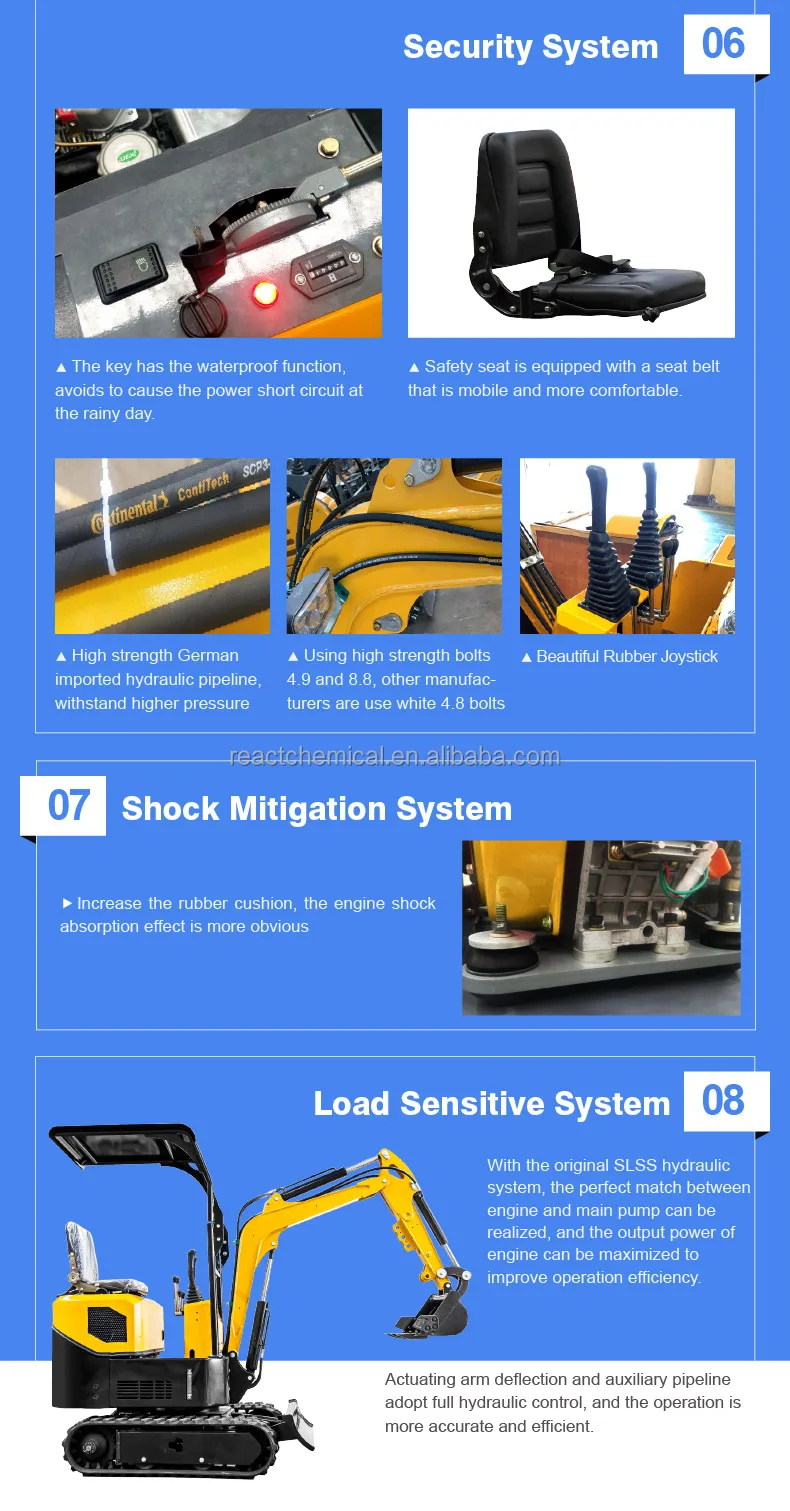

Product advantages
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in
pneumatic parts ,electric parts and operation parts.
3) Giving full consideration to reduce the working oil consumption, to obtain
maximum efficiency in all kinds of work site operation.

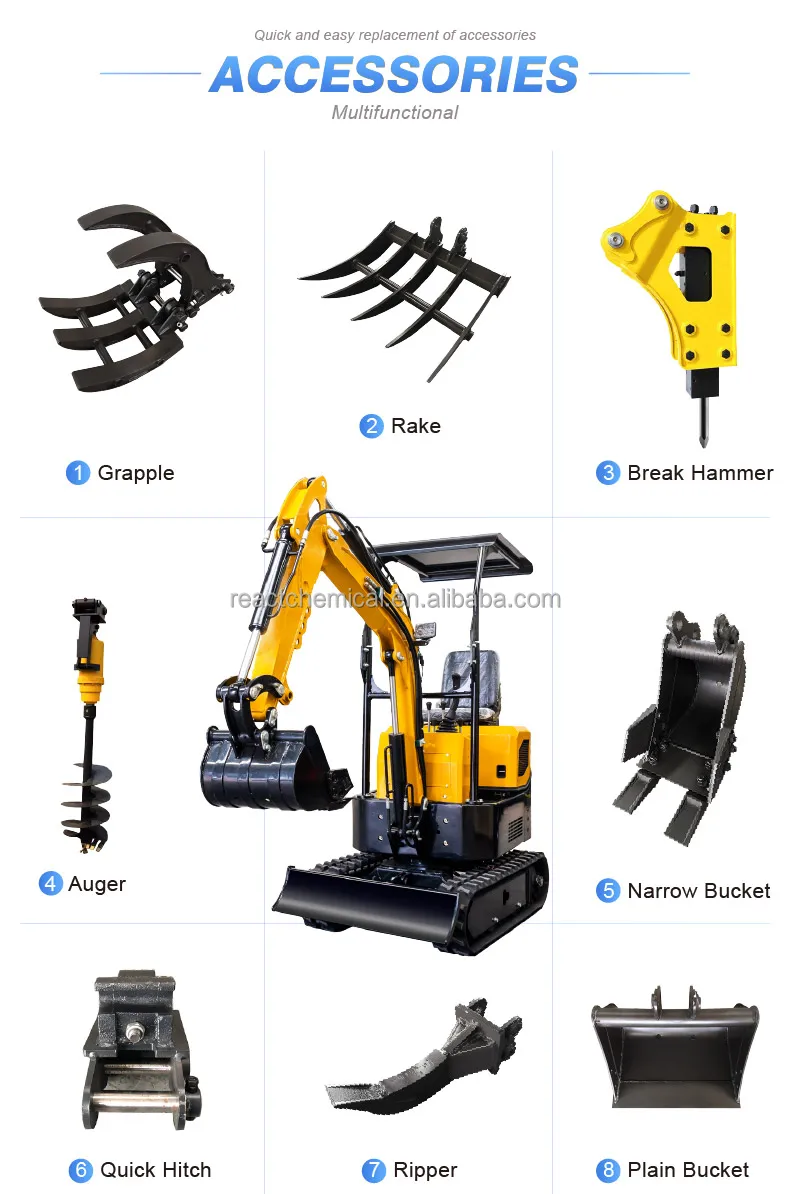

4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this
excavator, efficient and wide-range use.
5) Small invest, quick return.
6)We can install with EPA engine and Euro 5 engine.

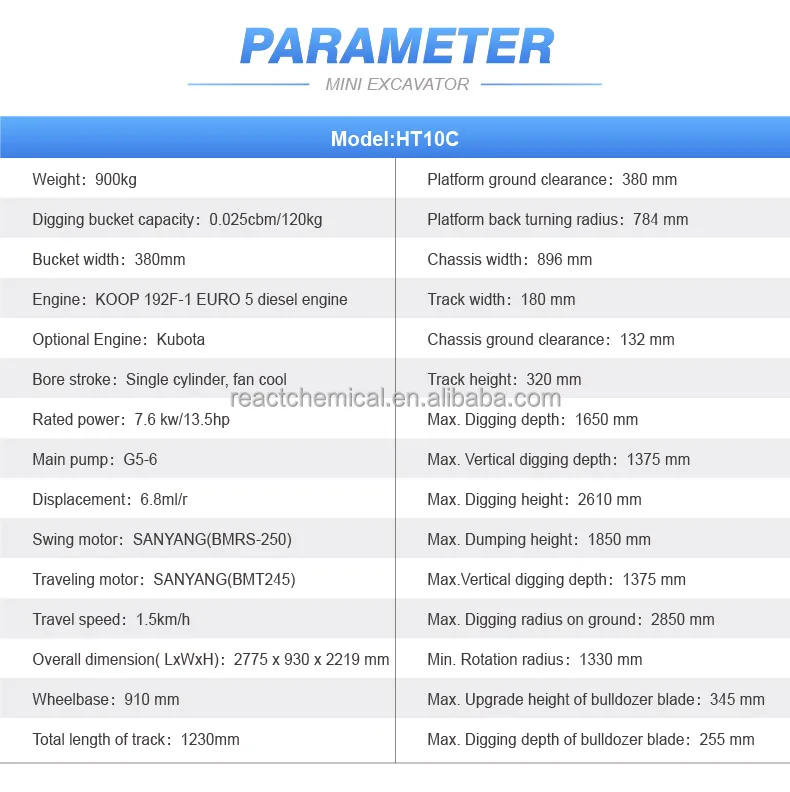

Parameters of mini excavator HT10-C
Model | HT-10C |
Weight | 1000kg |
Digging bucket capacity | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | KOOP(192F)
|
Optional Engine | BRIGGS & STRATTON YANMAR |
Bore stroke | Single cylinder, fan cool |
Rated power | 7kw/3000r/min
|
Main pump | G5-6 |
Displacement | 6.8ml/r |
Swing motor | SANYANG (BMRS-250) |
Traveling motor | SANYANG (BMT-245) |
Travel speed | 1.5km/h |
Main Demensions |
|
Overall dimension( LxWxH) | 2775 x 930 x 2219 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turming radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
Operating Range |
|
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rolation radus | 1330 mm |
Max. Upgrade height of bulldozer blade | 345mm |
Max. Digging depth a bulldozer blade | 255mm |
![2FKYEQ]KJ2K{JV~AQJT{PA.jpg](http://sc03.alicdn.com/kf/Hb1b72bb86d9f4796979de96f8a871b9f2/248694068/Hb1b72bb86d9f4796979de96f8a871b9f2.jpg)
