gypsum board machine/gypsum board making machines
US $7500-$12000
PVC ceiling board making machine PVC wall ceiling panel extruder making machine WPC wall panel line
- Category: >>>
- Supplier: Zhangjiagang Xinhe Machinery Co. Ltd.
Share on (1600954359485):
Product Overview
Description
Why Choose Us
Our service
24 Online Service
1.Machine running video
1.Machine running video
2.Watch our factory online
3.More service contact us
3.More service contact us
Successful machine Plant
Supply a running machine in your country or show you around , which you can see machine running directly.
Supply a running machine in your country or show you around , which you can see machine running directly.
Installation / Debug / Training
1.We will arrange seasoned technician for equipment installation, debug and test production.
1.We will arrange seasoned technician for equipment installation, debug and test production.
2.Our company offers technology training to the customer in his factory.
3.We promise that our goods are all new and not used
3.We promise that our goods are all new and not used
After-sales Service
1.After checking, we offer 12 months as a quality guarantee, offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
1.After checking, we offer 12 months as a quality guarantee, offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.After quality guarantee, we offer technical support and after-sales service.
Main Products Of Xinhe:
UPVC window and door profile production lineFeeding System
PVC edge band production line
PVC marble board production line
PS louver panel production line
PVC edge band production line with calender cooling
Vinyl siding panel production line
PVC fluted panel production line
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,
PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer machine
Plastic crusher &shredder
Hot and cooling PVC mixer for compounding
PVC edge band production line
PVC marble board production line
PS louver panel production line
PVC edge band production line with calender cooling
Vinyl siding panel production line
PVC fluted panel production line
PVC ceiling panel making machine
PVC wall panel production line
WPC wall panel production line
PVC marble sheet extrusion machine production line
Double color UV printing machine, transfer printing machine, lamiantion machines for PVC ceiling panel,wall panel,
PVC door panels
ASA composited PVC roof tile extrusion machine and production line
PVC profile extrusion machine and production line
PVC pipe extrusion machine and production line
PE PPR pipe extrusion machine and production line
PVC pulverizer machine
PE pulverizer machine
Plastic crusher &shredder
Hot and cooling PVC mixer for compounding
Products Description

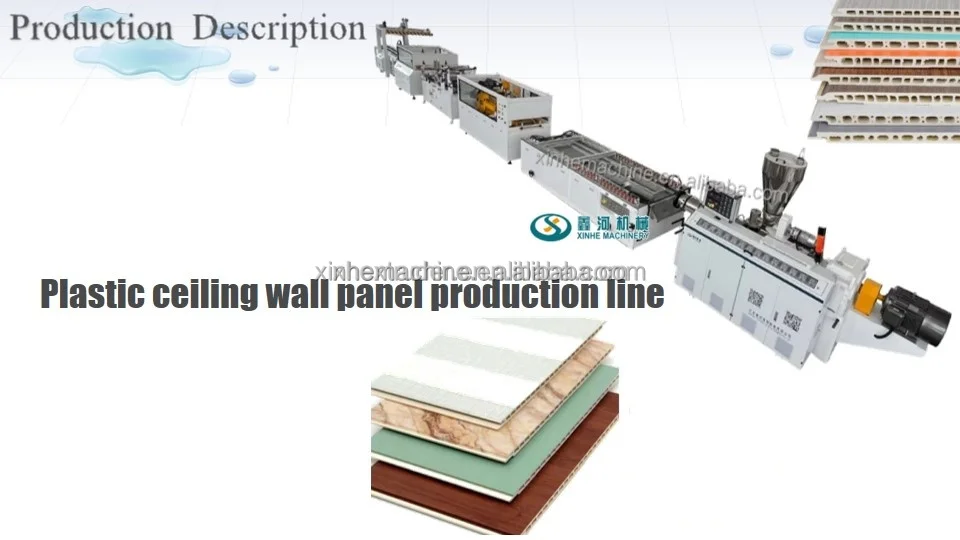

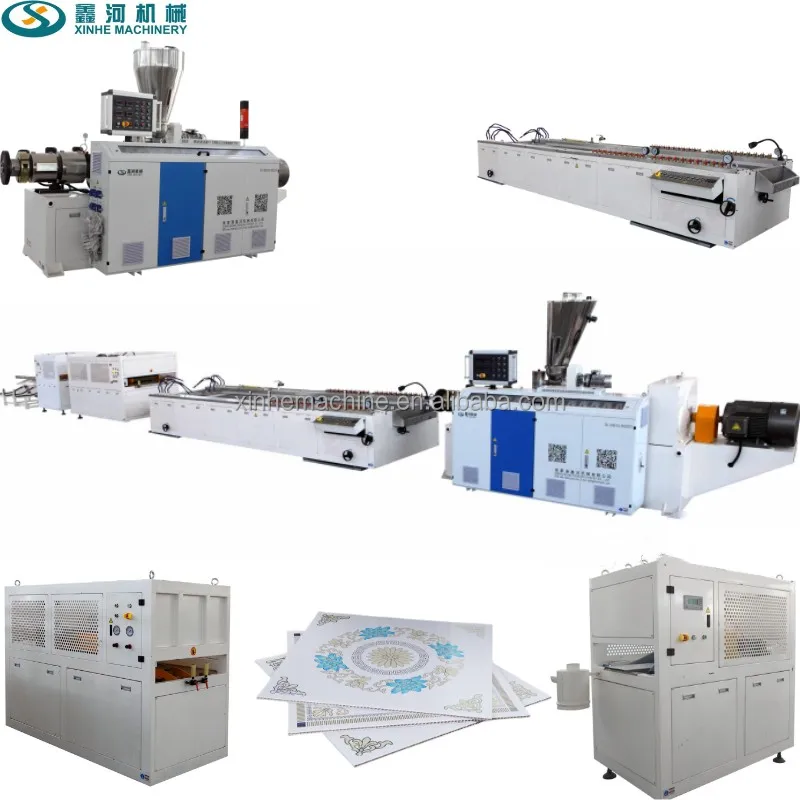

PVC wall panel production line is used to produce PVC wall panel with width normally from 200mm to 600mm with different section shape and height.The surface of PVC ceiling wall panel can be treated by double by hot stamping printing,or by lamination,which can make marble,wooden design on surface of product.
Details Images
PVC wall panel production line is used to produce PVC wall panel with width normally from 200mm to 600mm with different section shape and height.The surface of PVC ceiling wall panel can be treated by double by hot stamping printing,or by lamination,which can make marble,wooden design on surface of product.
In wall panel production line we use PVC or other plastics compounding with nature fiber powder as the raw material.Besides we use mixer, crusher, pulverizer, lamination machine, hot stamping machine, printer and so on.

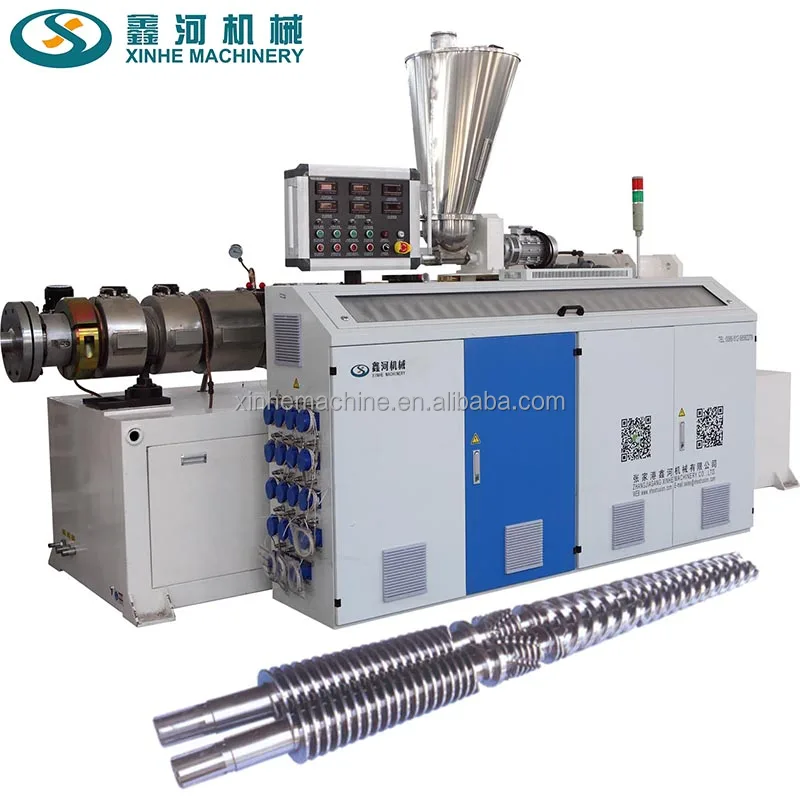

PVC WPC ceiling wall panel Extrusion System Name: SJZ65/132 Conical twin screw extruder Technical parameters:
a.Main motor 37kw/45KW Siemens/TECO Brand. b.Inverter:ABB/TECO
c.Screw barrel: 38CrMoAl, hardness HV950 or more , high-efficiency and long
service life.
service life.
d. Adopt Energy-saving heating ring can help customer save electricity cost
PVC WPC ceiling wall panel Mould Part Name: Extrusion and calibration mould Technical parameters:
a.According customer drawings and samples to design the Extrusion mould.
b.Complete set include extrusion die head, calibrator and cooling tank
c.Fine polishing of the cavity , lip and flowing channel.Vacuum forming mould: connect water for cooling the product

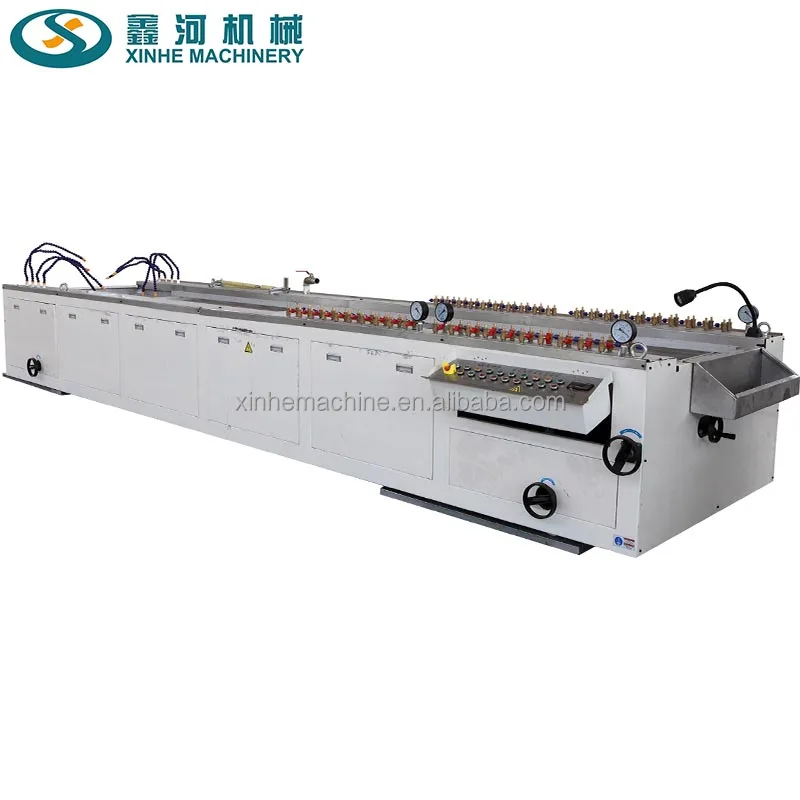

PVC WPC ceiling wall panel Calibration Forming Machine a. Independent operation panel for easy operation.
b.Include full set of vacuum and water pump
c.Length: 6000mmWidth: 1100mm Horizontal adjustment length: 80mm Vertical adjustment range:800mmVacuum
forming mould: connect water for cooling the product.
forming mould: connect water for cooling the product.

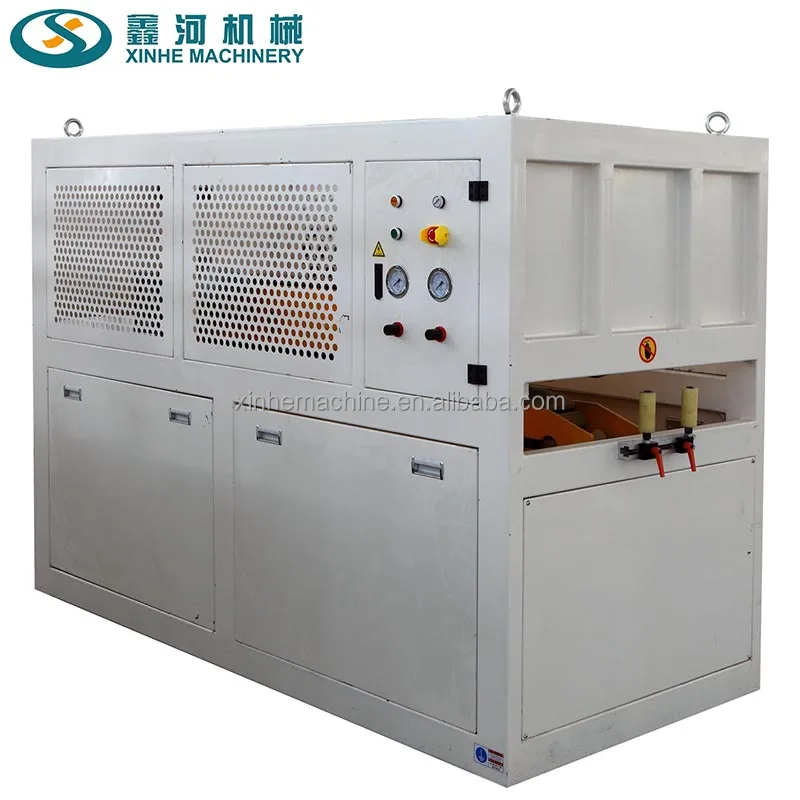

PVC WPC ceiling wall panel machine Name: Haul-off unit Technical parameters:
a.High quality rubber on the surface.
b.Pneumatic clamping.
c.Clamping speed:1-4.6 m/min.
d.Increase the diameter of shaft heads and bearings ensure stable operation of thick board.

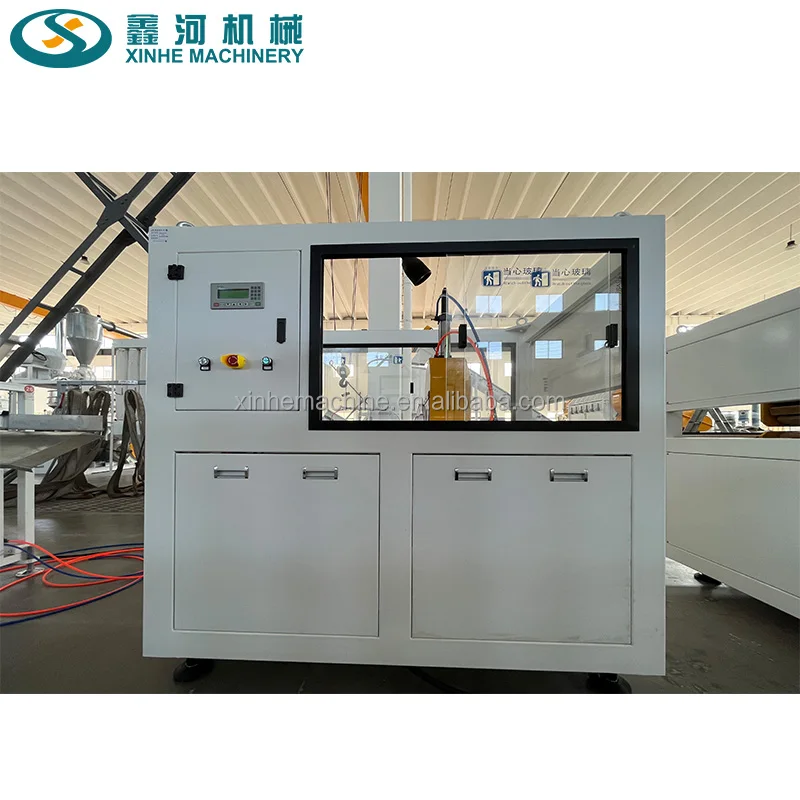

PVC WPC ceiling wall panel machine Name: Cutter Technical parameters:
a.Special positioning to ensure cutting accurecy.
b.Special knife structure, safe and stable
c.Cutting type: Pneumatic cutting.

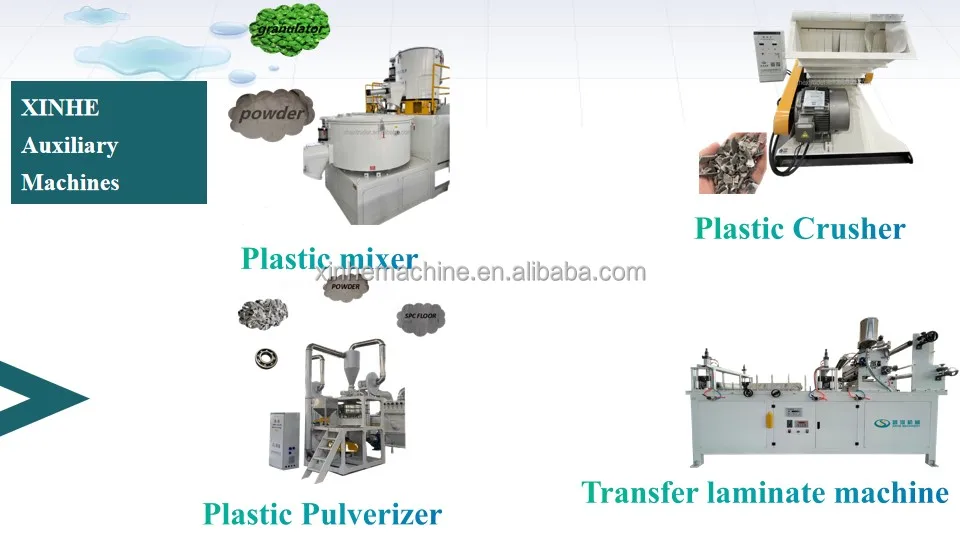

Besides plastic pvc wall panel production line making machine,we also need to use some recycling machines and mixer machines ,like crusher and pulverizers laminate machine.
Name | PVC WPC wall panel making machine |
Core Components | PLC.Engine,Bearing.Gearbox.Motor,Pressure vessel,Gear.Pump |
Production Capacity | 200kg per hour |
Placeof Origin | Jiangsu,China |
Power | 132kw |
Weight | 3000 kg |
Warranty | 1 Year |
Key Selling Points | Automatic |
Condition | New |
Application | Wpc/Pvc panel extrusion |
Automatic Grade | Automatic |
Brand Name | XINHE |
Voltage | 380v customized |
Dimension(L*W*H) | 35000*2000*2500mm |
Features | EXTRUDER |
ProductType | Pve wpc Profile Extrusion Machine |
Inverter | ABB/TECOBrand |
Final Product
Plastic PVC wall panel making machine can be used in Hotels, Commercial Buildings, Restaurants, etc.Plastic foam wall panels can not only make up for the disadvantages of traditional materials,but also prolong the service life and reduce the application cost of the panels.Besides it is more anti-water and anti-sound.
Product Parameters
Model | SZSZ65/132 | SZSZ65/132or80/1 56 | Downstream machine type |
Applicable Width | 250-300mm | 400-600mm | YF-300-600 |
Extruder | SJSZ53/128 | SJSZ65-132 | Max.profile width(mm) |
Capacity | >1200m/24 hours | >160m²/24hours | 300-600 |
Our Advantages
1.High speed PVC wall board production line, greatly decrease the labor cost and electricity cost and
manage cost.
2.For extruder Temperature Control system, Digital PLC control or Manual Temperature Control Meter Easy Operation,Reliable performance, High Extrusion Efficiency, Easy Maintenance.
3.Extruder speed and haul off speed controlled by ABB TECO frequency converter, saving power and easy adjusting speed.
4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level.
5.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product.
6.Lower power consumption,it can save 25-30% electrical power consumption .
7.With online hot stamping, easy operation, saving labour.
manage cost.
2.For extruder Temperature Control system, Digital PLC control or Manual Temperature Control Meter Easy Operation,Reliable performance, High Extrusion Efficiency, Easy Maintenance.
3.Extruder speed and haul off speed controlled by ABB TECO frequency converter, saving power and easy adjusting speed.
4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level.
5.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product.
6.Lower power consumption,it can save 25-30% electrical power consumption .
7.With online hot stamping, easy operation, saving labour.

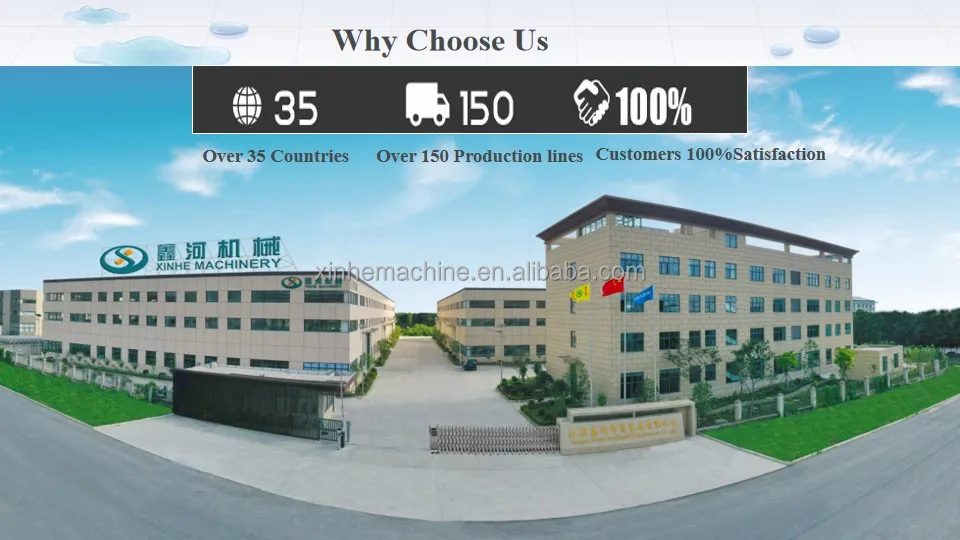

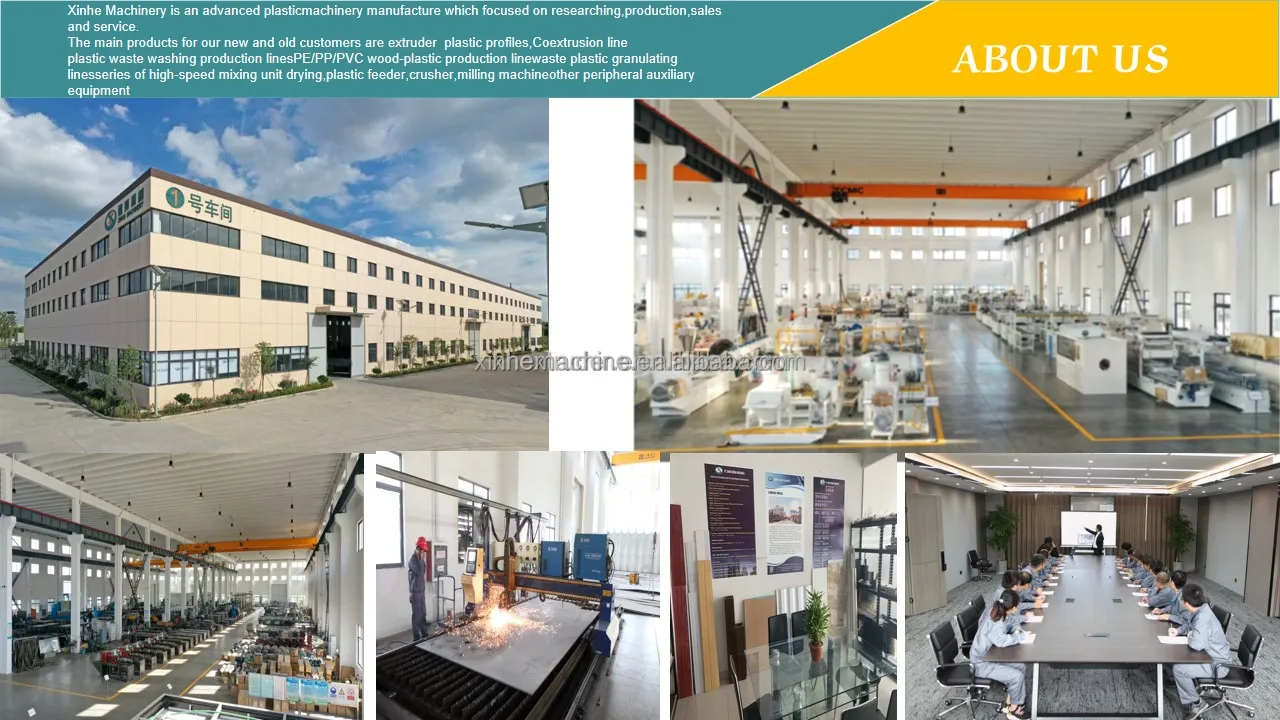

Company Profile
Jiangsu Xinhe Intelligent Equipment Located in an environmental,beautiful and rich City-Taizhou City,which is only 120 kilometers away from Shanghai ,so the traffic is very convenient.Xinhe Machinery is an advanced plastic machinery manufacture which focused on researching,production,sales and service.
The main products for our new and old customers are plastic extruder plastic profiles,pipes,plates and sheets extrusion line
plastic waste washing production lines PE/PP/PVC wood-plastic production line
waste plastic granulating lines series of high-speed mixing unit drying,plastic feeder,crusher,milling machine and other
peripheral auxiliary equipment.
The main products for our new and old customers are plastic extruder plastic profiles,pipes,plates and sheets extrusion line
plastic waste washing production lines PE/PP/PVC wood-plastic production line
waste plastic granulating lines series of high-speed mixing unit drying,plastic feeder,crusher,milling machine and other
peripheral auxiliary equipment.
