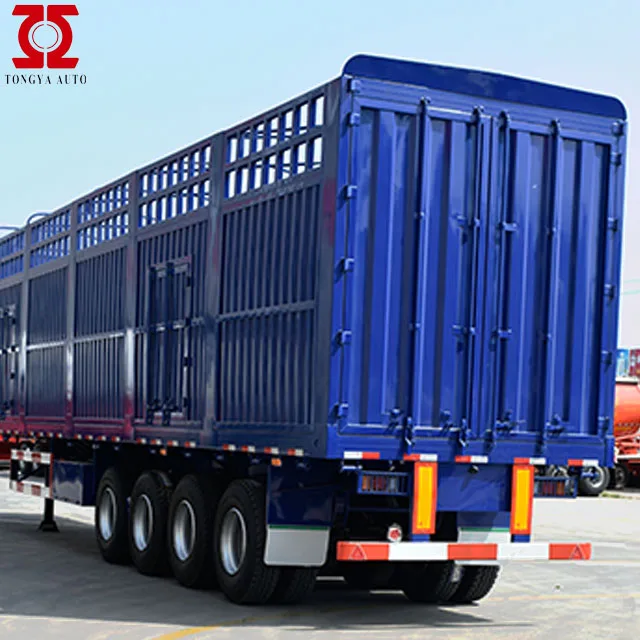

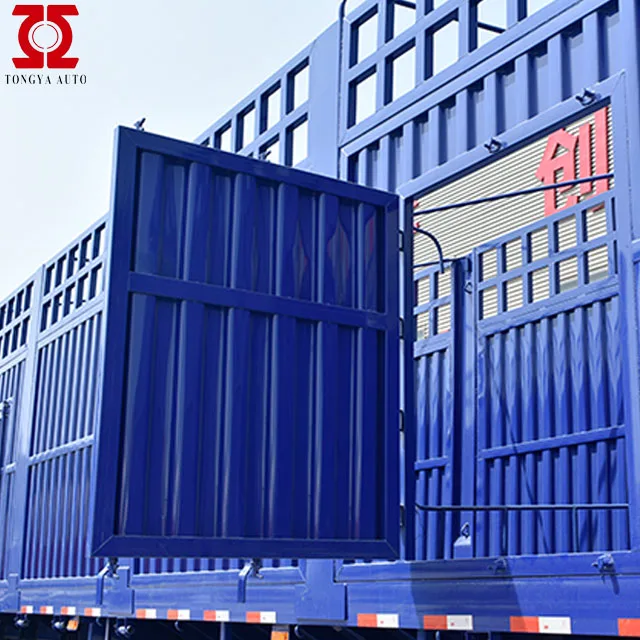

TONGYA Side Wall Open Truck Cargo transport Fence Semi Trailer
- Category: >>>
- Supplier: Tongya Automobile Co. Ltd.
Share on (1600954530861):
Product Overview
Description
Product Description

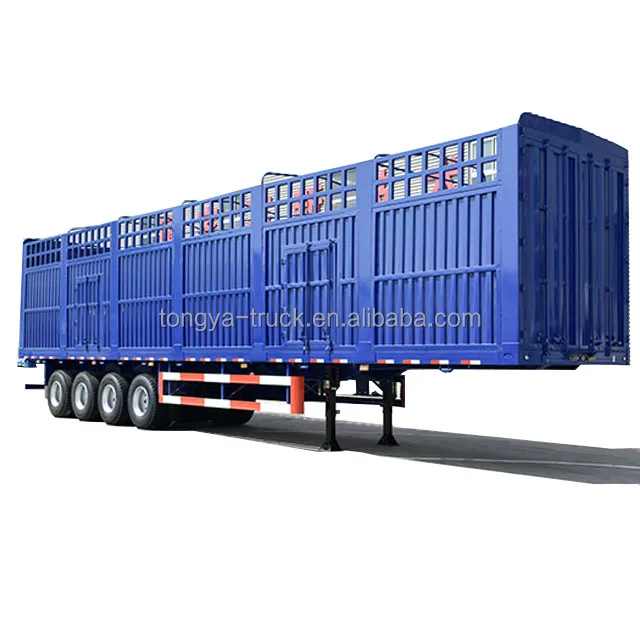

TONGYA Side Wall Open Truck Cargo transport Fence Semi Trailer
The side wall semi-trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.

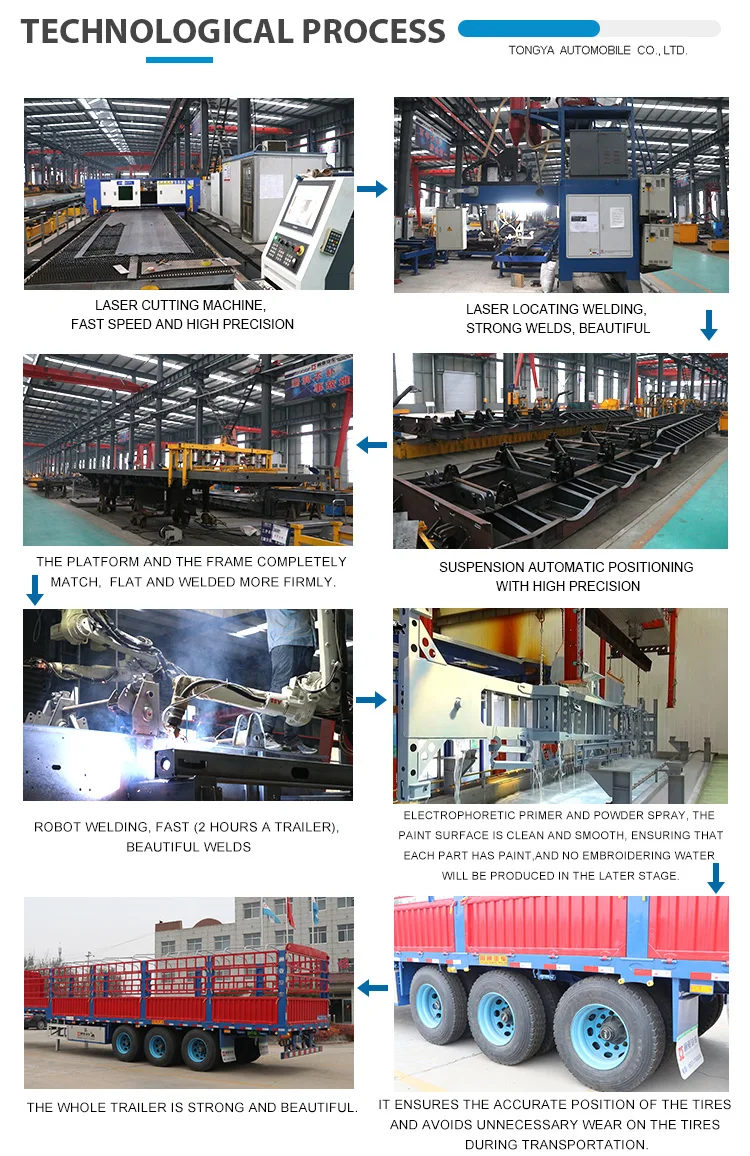

The height is 400-1200mm for your choose.Weld by automatic corrugated plate welding robot,the quality is good, the welded seam is beautiful, the side wall strong and durable.
Detailed Images

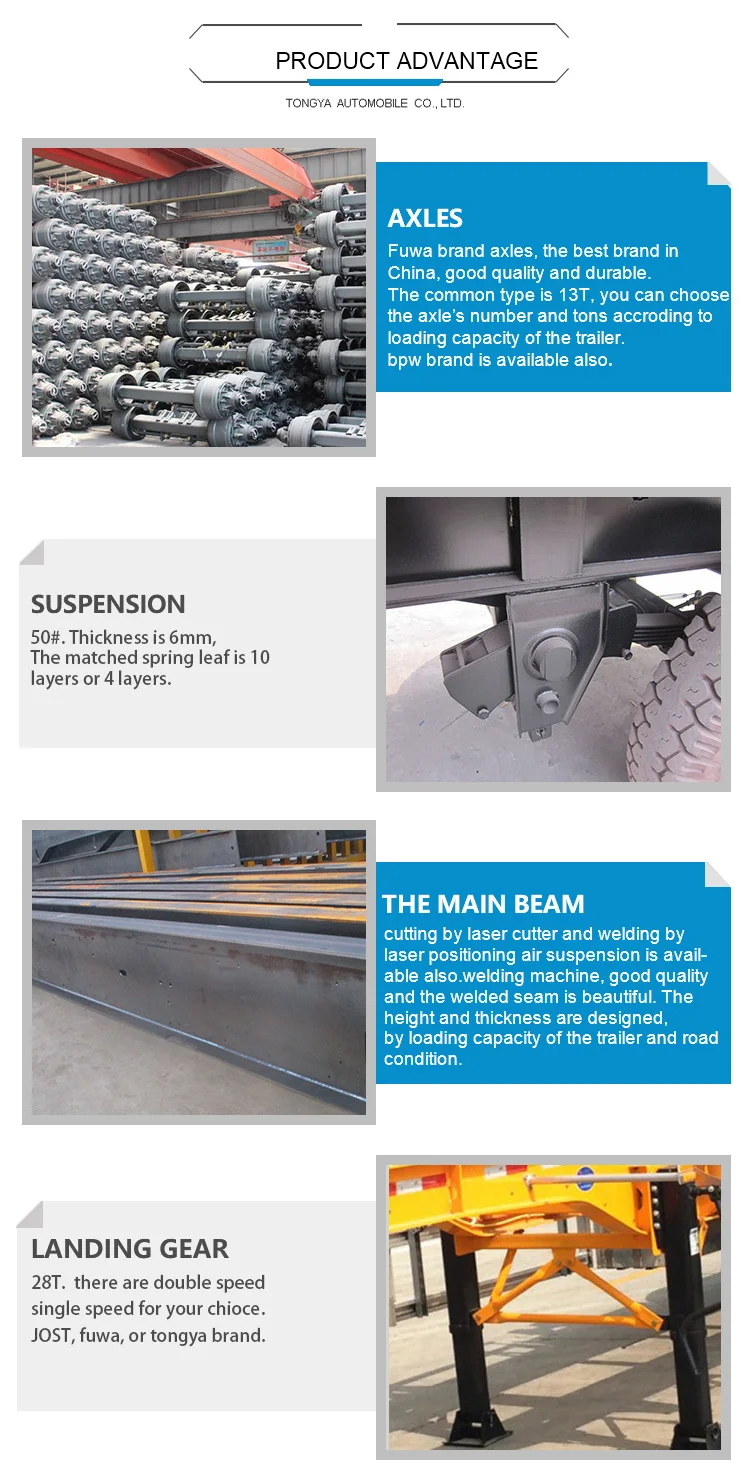

This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
Gross Weight | About 7.5 tons | ||||||
Outer side dimension(mm) | 13000 × 2500 × 2850 | ||||||
Loading Capacity (Ton) | ≤ 50T | ||||||

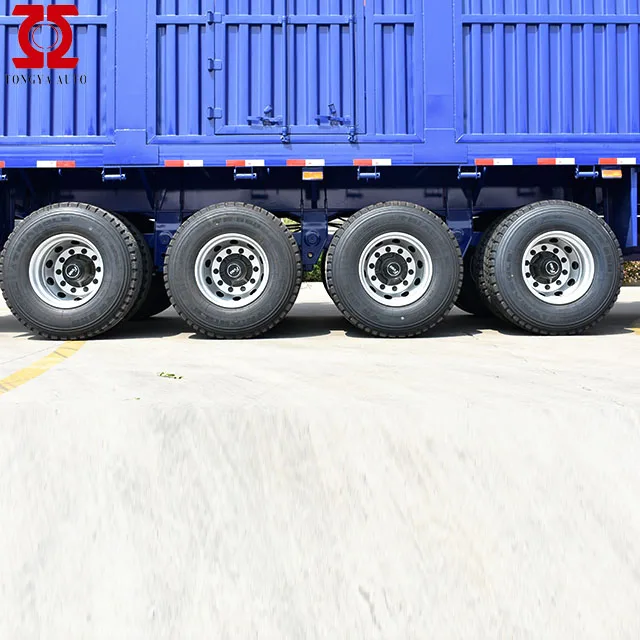

AXLES | 13 T /PER, 3axles FUWA Brand, | ||||||

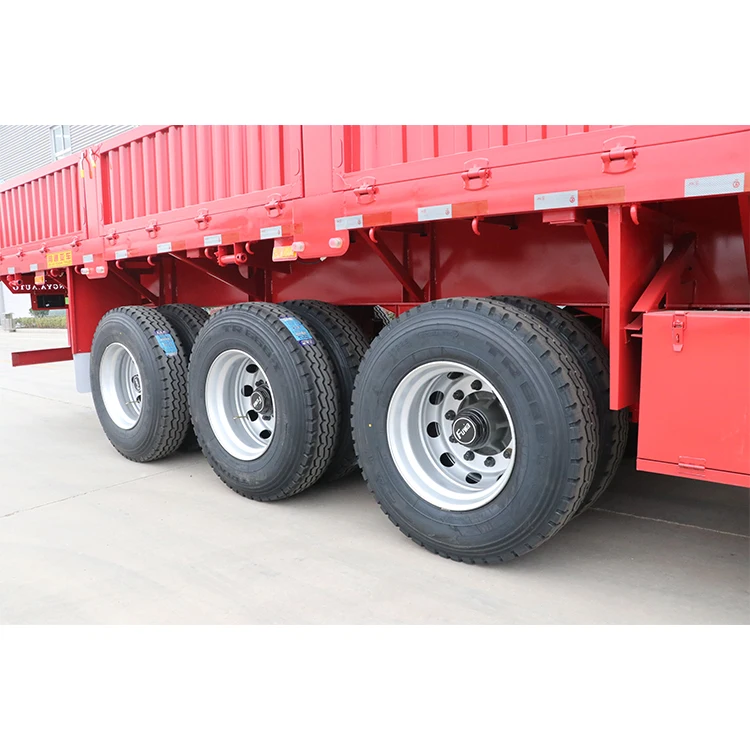

Tire | 12.00R22.5, 13pieces Triangle or double coin brand | ||||||
Rim | 9.00-22.5, 13pieces China Brand | ||||||

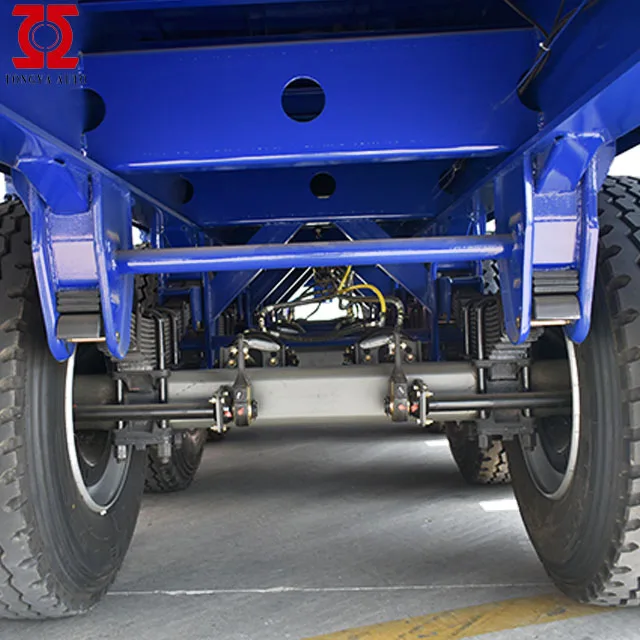

Suspension | Mechanical suspension (America Type) | ||||||
Spring leaf | 90(W)mm*13(Thickness)mm *10pices, heavy duty type | ||||||
King pin | JOST brand 2.0 or 3.5 inch bolts type | ||||||

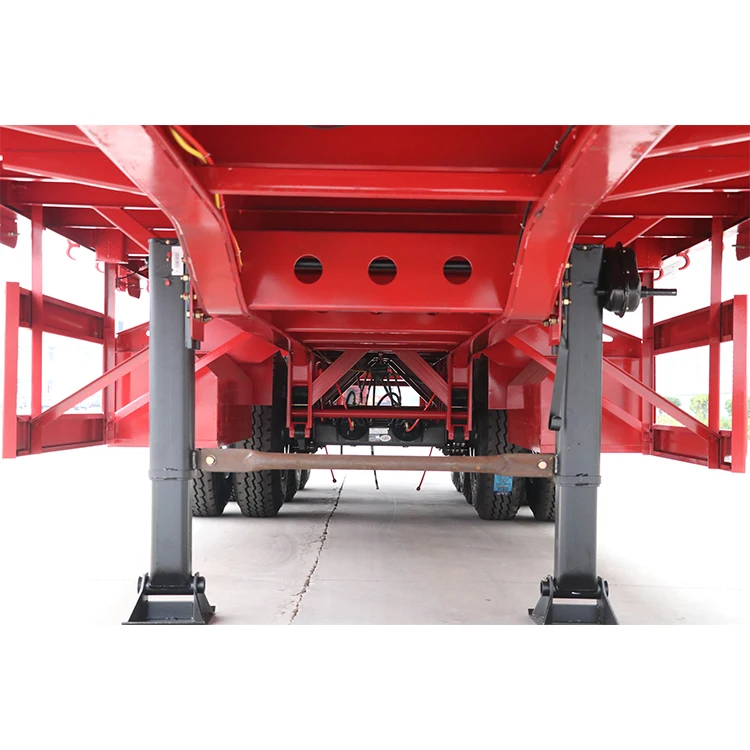

Support leg | TONGYA 28T or JOST A300C | ||||||
Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . | ||||||
Plateform | 3mm diamond plate steel | ||||||
Side beam | 16# channel steel | ||||||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank | ||||||
Fuel tank | 1000L | ||||||
Hooks | With | ||||||
Twist Locks | 12 pieces (Lifting type) | ||||||
Valve | WABCO valve | ||||||
ABS | Without | ||||||
Light | LED light | ||||||
Voltage | 24V | ||||||
Receptacle | 7 ways (7 wire harness) | ||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||||
Shipping Terms | Transport by RORO or 45FT container. | ||||||
