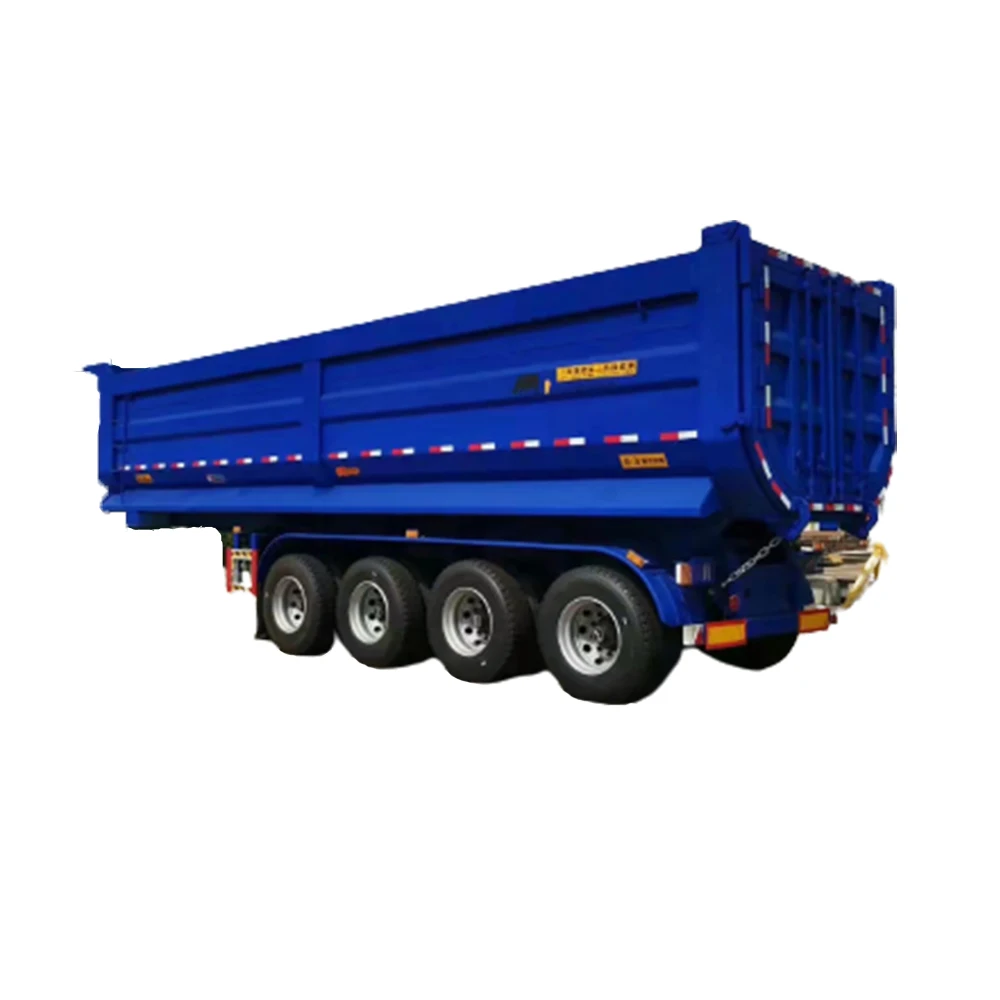

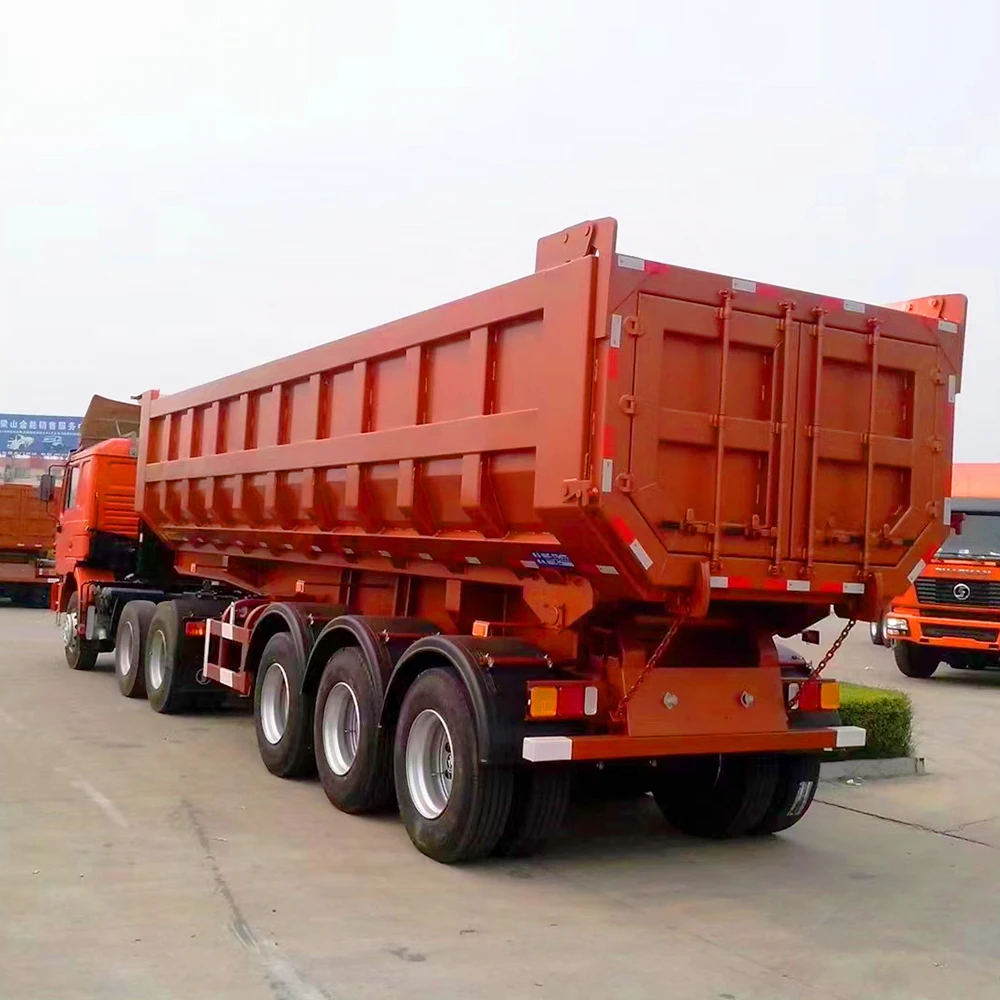

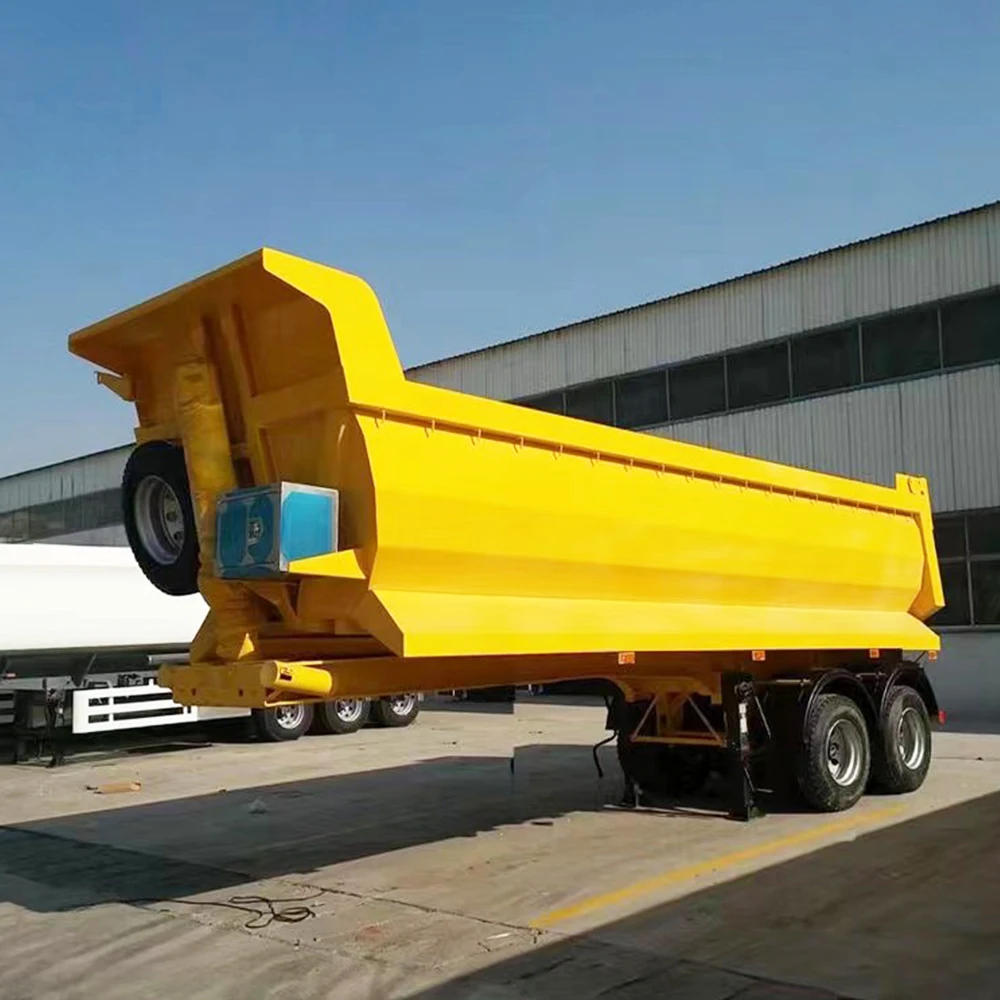

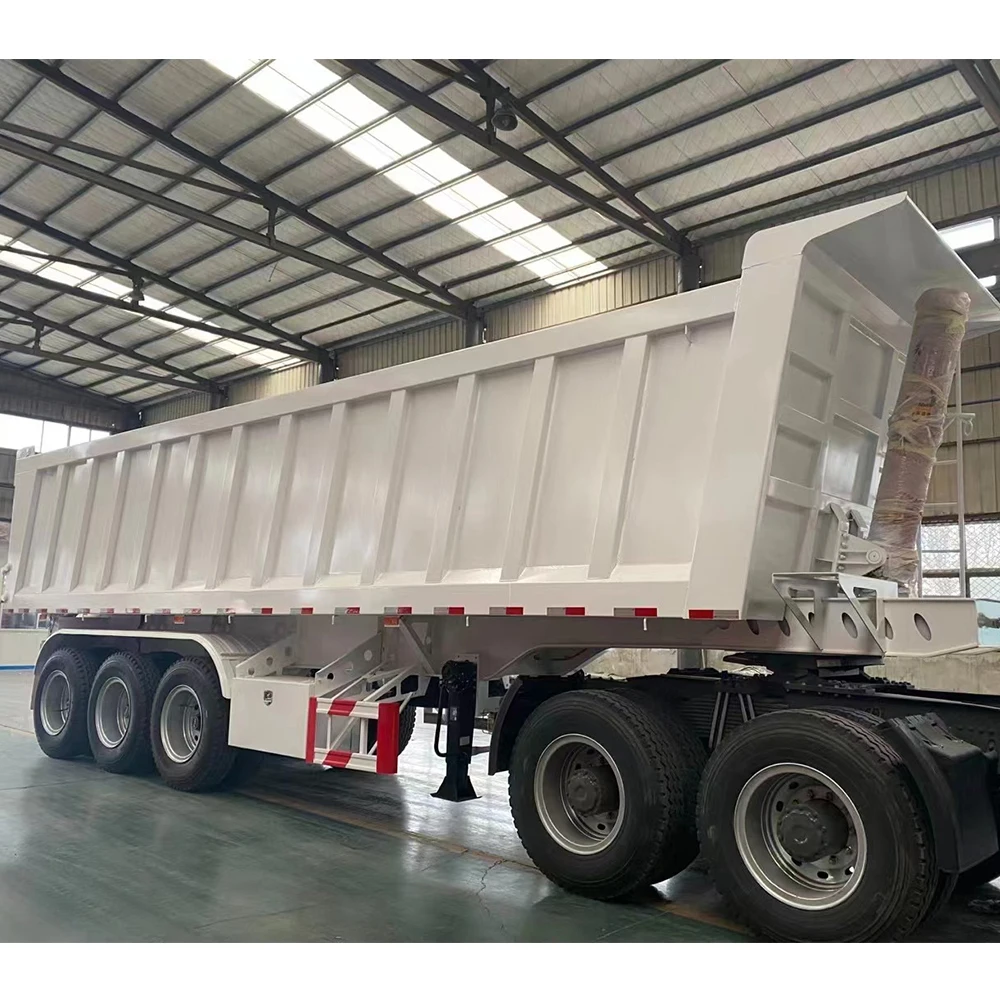

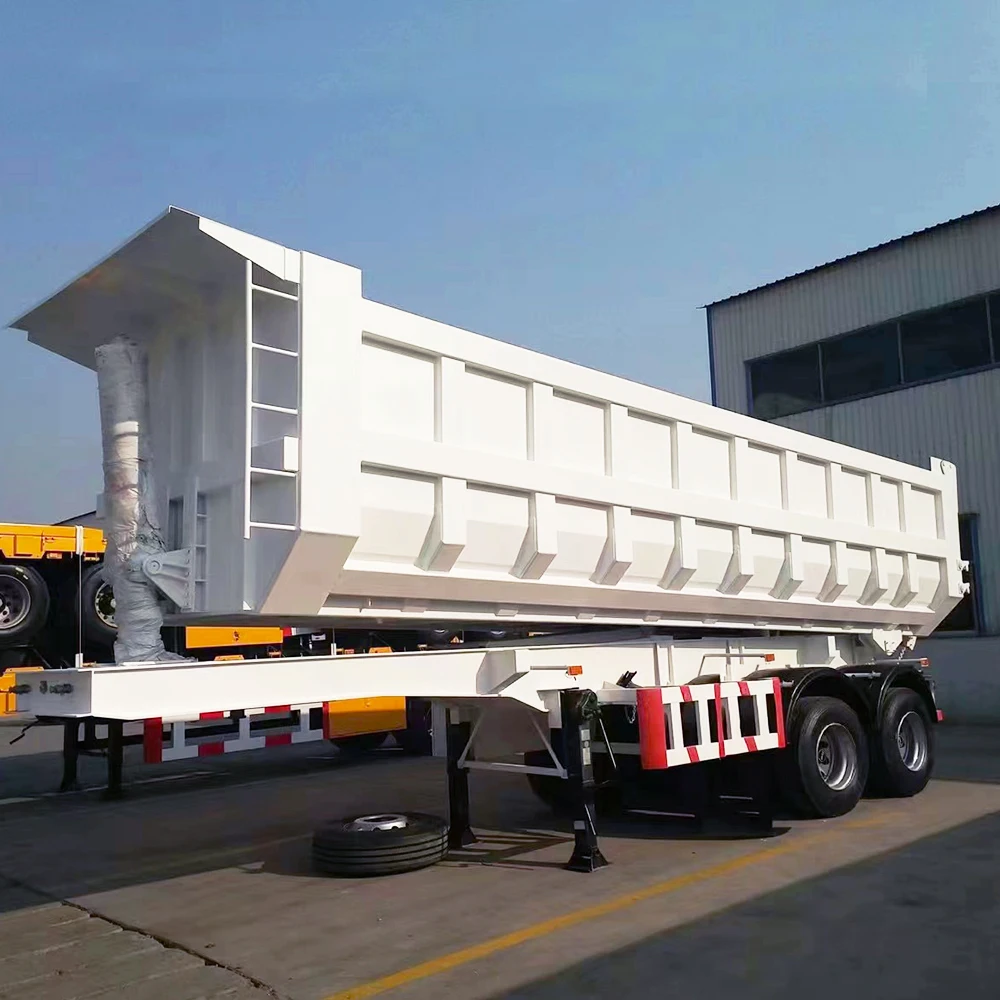

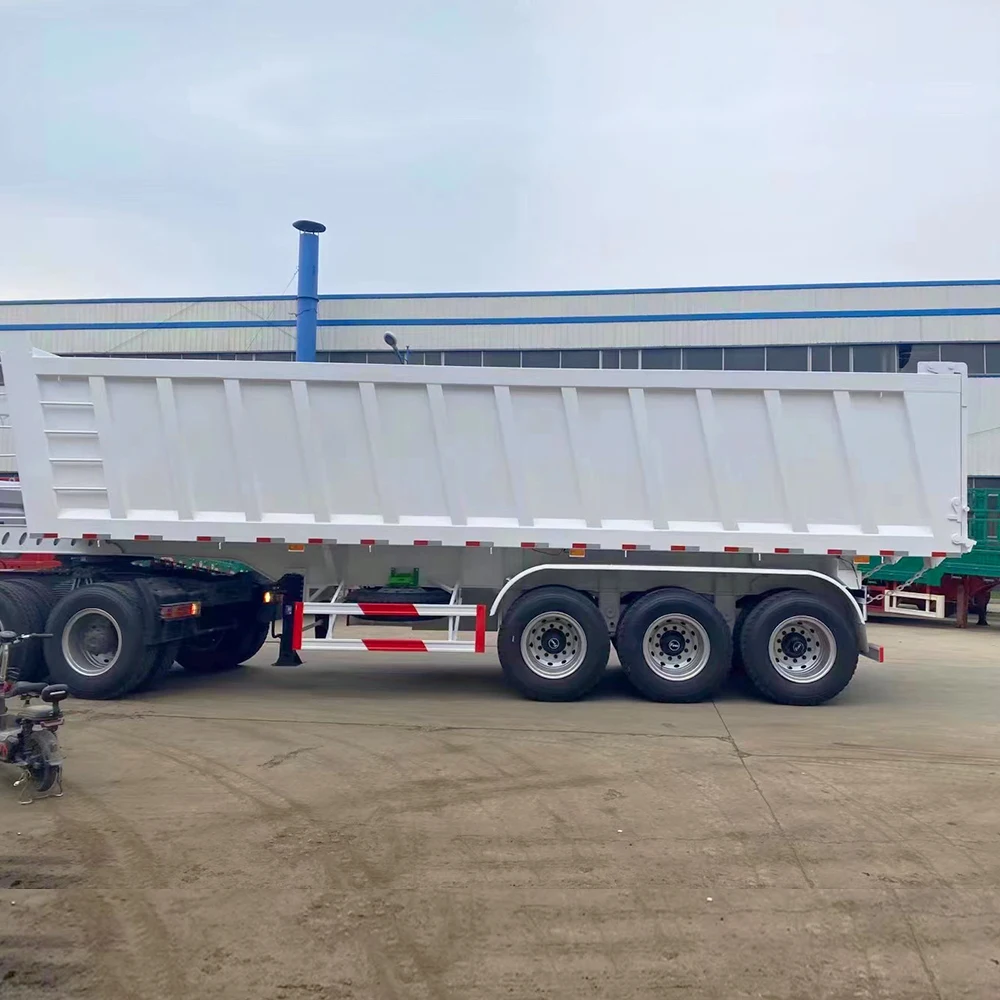

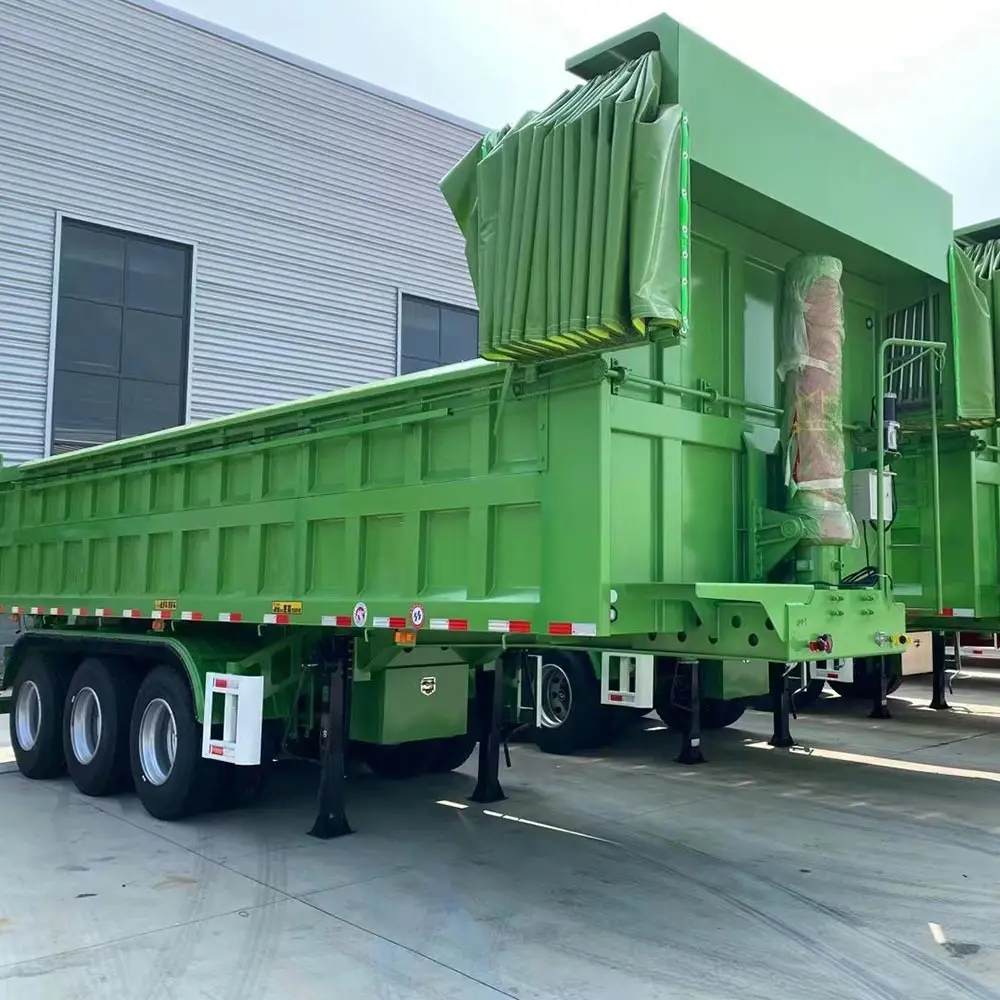

v type dump trailer 9 meters dump semi trailers hydraulic cylinder with pump dump trailer

Share on (1600955431151):


Price:$6,500.00-8,600.00

Quantity:


Product Overview

Description




Why Choose Us








1. Lighter weight with higher strength: Our steel contains molybdenum alloy and vanadium alloy, so the beam strength, toughness and low temperature impact yield strength are increased to 820MPa, the tensile strength is increased to 920MPa.

The weight of the trailer is reduced by 200kg, so it can carry more cargo when it is fully loaded, and save more fuel when it is empty.

2. Durability: Antimony alloy, nickel alloy and copper alloy are added to our steel, which has the advantages of acid resistance, sulfur resistance and corrosion resistance.
























3. Robustness: The front baffle is made of special steel, the yield strength is more than 1200MPa, and the impact resistance is more than 4 times that of ordinary steel.
























4. Advanced brake valve: Our valve can self-heating and will not reduce the braking effect due to cold weather, especially when the braking effect is very significant when going downhill; it can automatically drain and exhaust.























5. Top Axles: Fuwa and BPW.


















Products Description







Shenyang Three Horses Company can design and produce semi-trailers according to customer's need.
We use high-quality SH800 steel to increase strength and toughness and acid, sulfur and corrosion resistance.















Specifications





























































Dimension13000mm*2550mm*1600mm/1800mm/2000mm/2200mm
Vehicle Weight5.9-6.1T
Loading Capacity60T
King Pin90#/50#
Axle3*13T BPW/FUWA Axles
TireLONGMARCH 12R22.5
Main BeamT700L 8*10*5mm
Landing Gear28 Tons , Two speed manual operation
Suspension SystemLeaf spring suspension / Air suspension
Braking System6 pair Sorl ABS Kormee4S/3M
Electronic System
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box
2 tool box with a set of standard trailer tools
Spare Tire Frame
2








Quality Assurance

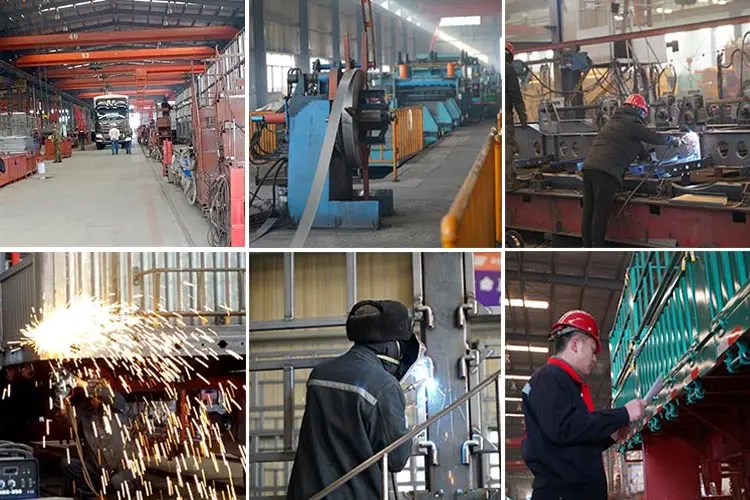

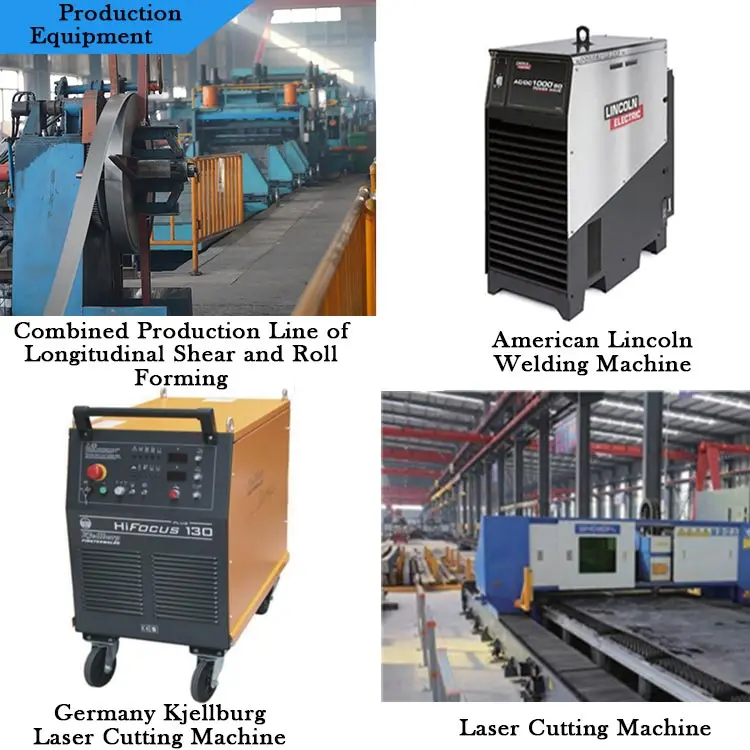

Our Factory

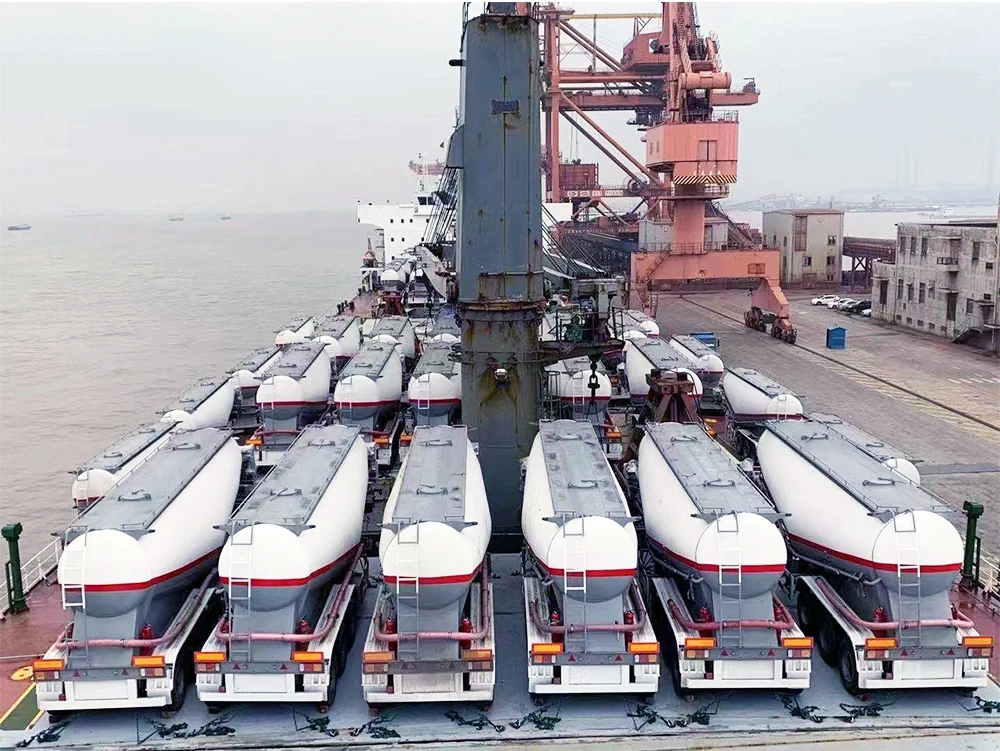

Shipping





Safety and Economic Shipping



Experienced teams choose the most suitable shipping way for different clients among containers, Roro and bulk shipment, balance safety and economic cost.































Company Profile









































Shenyang Three Horses Technology Co., Ltd is committed to building China's largest and highest-quality semi-trailer manufacturer. Headquartered in Liaoning Province, the base of China Northeast Heavy Industry, the company has a total investment of 420 million RMB . The production plant of 110,000 square meters has been built in first phase, with an annual production capacity of 30,000 semi-trailers. The new 360 acre factory is under construction in second phase. After completion, it can produce 50,000 semi-trailers annually. We have more than ten types of semi-trailers such as straight beam semi-trailers, gooseneck semi-trailers, drop-side semi-trailers, stake semi-trailers, skeleton semi-trailers, car carrier semi-trailers and centre axle semi-trailers.








FAQ







Q:How about payment?
A:30% T/T deposit, 70% T/T balanced before shipment.

Q:How about your delivery time?
A:Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Is OEM available?
A: Yes, we offer customized service according to your requests.

Q:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.

Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
