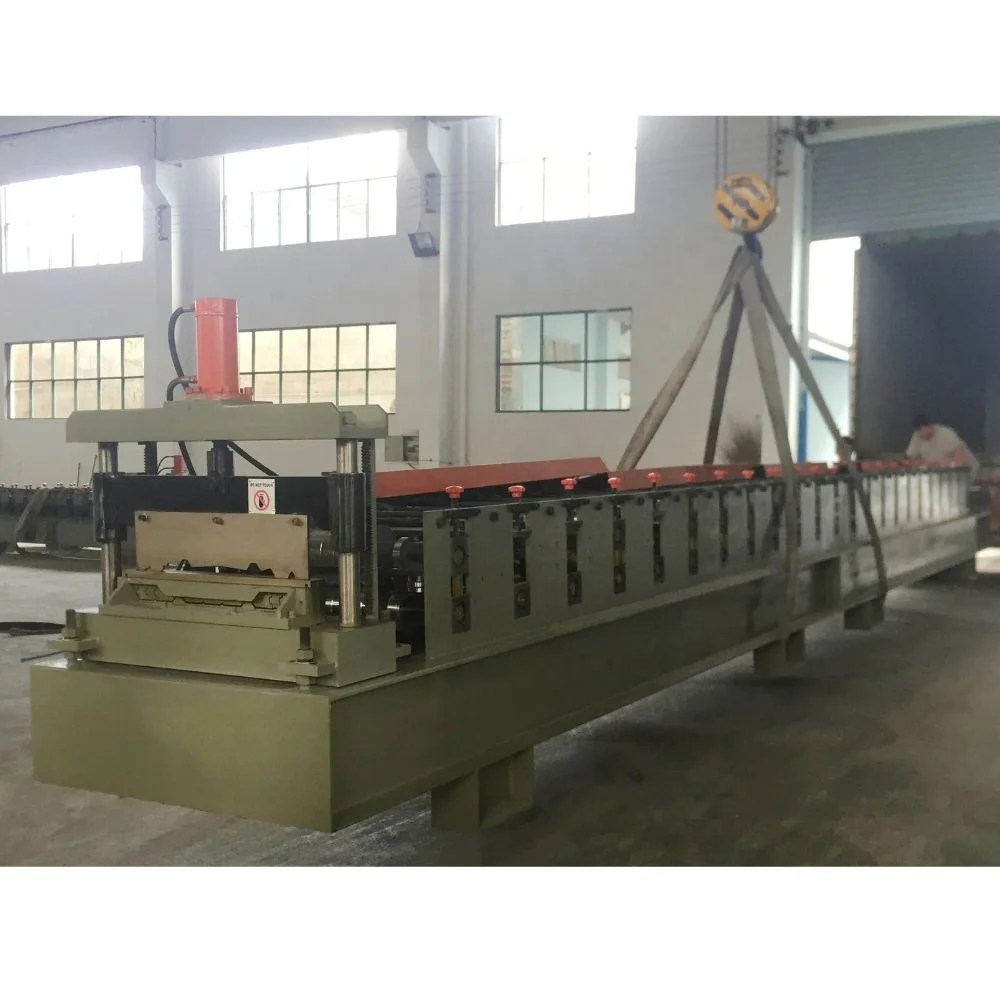

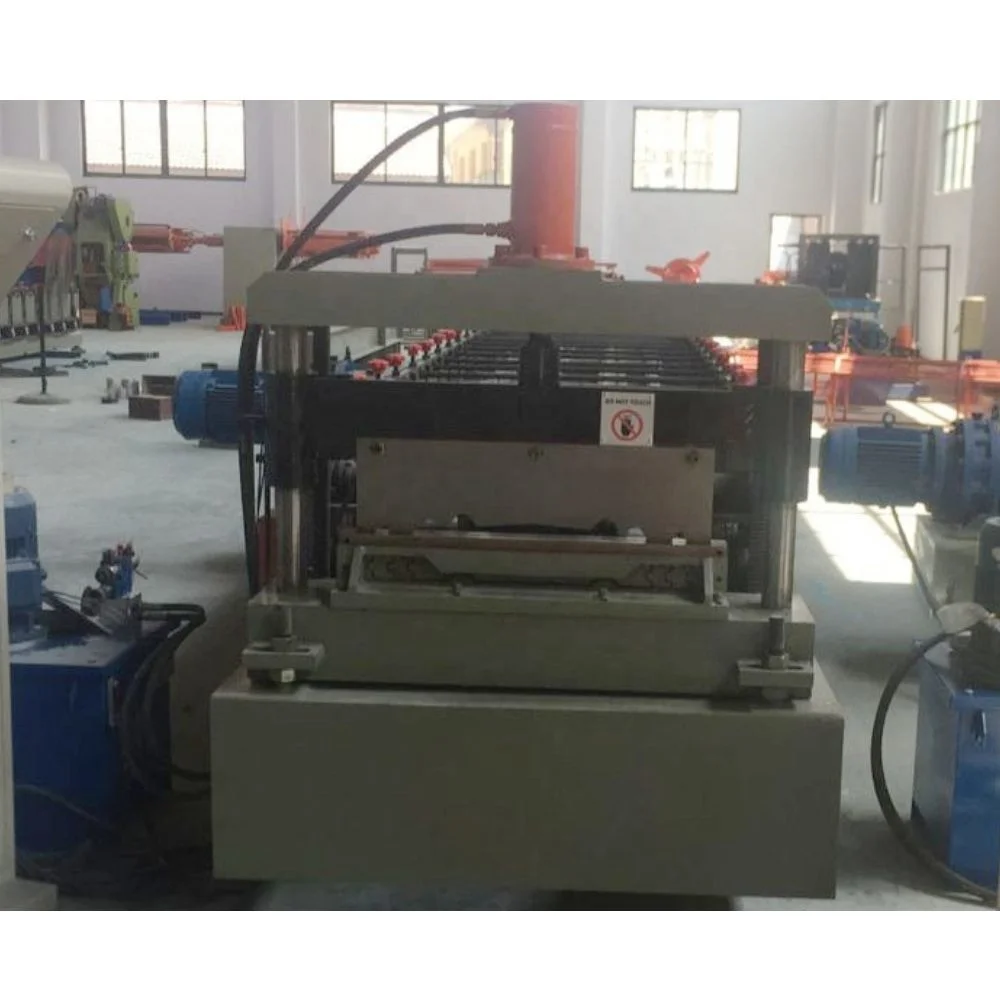

Gauge 24 Gauge 25 Width Auto Adjustable Galvanized Steel Commercial Sectional Garage Door Panel Roll Forming Machine
- Category: >>>
- Supplier: Sussman Machinery (wuxi) Co. Ltd.
Share on (1600963538017):
Product Overview
Description
Product Description
The 24 or 25 gauge non-insulated steel, deep ribbed, commercial sectional garage doors are a great alternative option that is durable and economical.
The width of the Sectional garage door panel can be adjustable, such as 450mm, 530mm 610mm.
Technical Data:
Items | Specifications | |
Material of coil | Material Thickness | 0.5mm galvanized coils |
Un Coiler | 5 tons manual | |
Forming system | Rolling Speed | About 10 meters /minute |
Roller Stations | About 28-32 stations | |
Roller Material | No.45 steel coated with chrome | |
Maim Motor Power | 7.5 kw | |
Motor cutting Power | 4 kw | |
Cutting system | Material Of Cutting | CR12mov with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Electrical control system | Electric Source | 220V, 60HZ,3 phase Also can satisfy Customer’s requirey |
Control System | PLC as list in the note | |
Weight | About 10 tons | |
Way Of Drive | 1.2 inch chain |
Machine List:
5 tons passive de-coiler | 1 set |
Hydraulic pre-cutting device | 1 set |
Main roll forming machine | 1 set |
PLC Control box | 1 unit |
Hydraulic station | 1 unit |
Output table | 2 units |
Spare part | 1 package |
Safety cover | 1 unit |

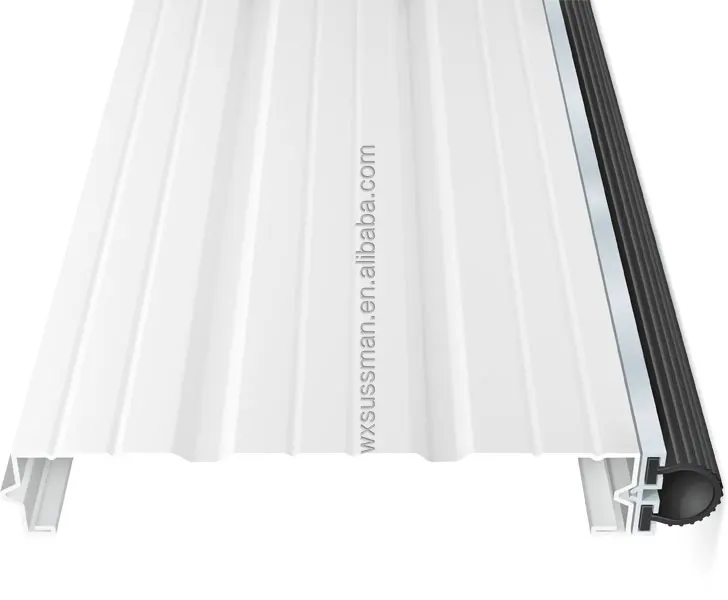

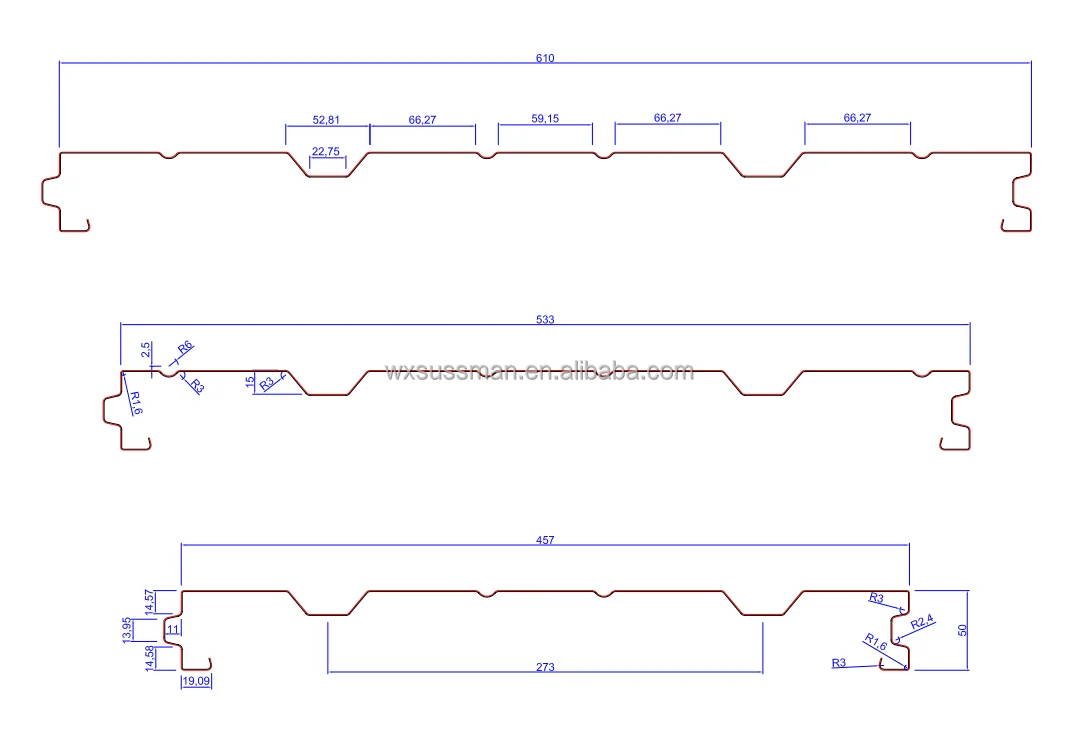

Profile Drawing:
Product Display

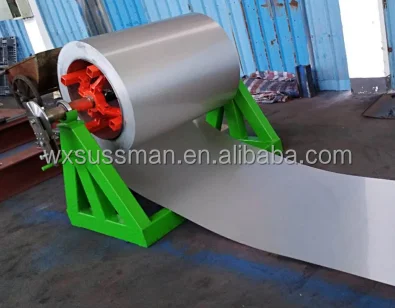

5Tons Passive Decoiler
inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm

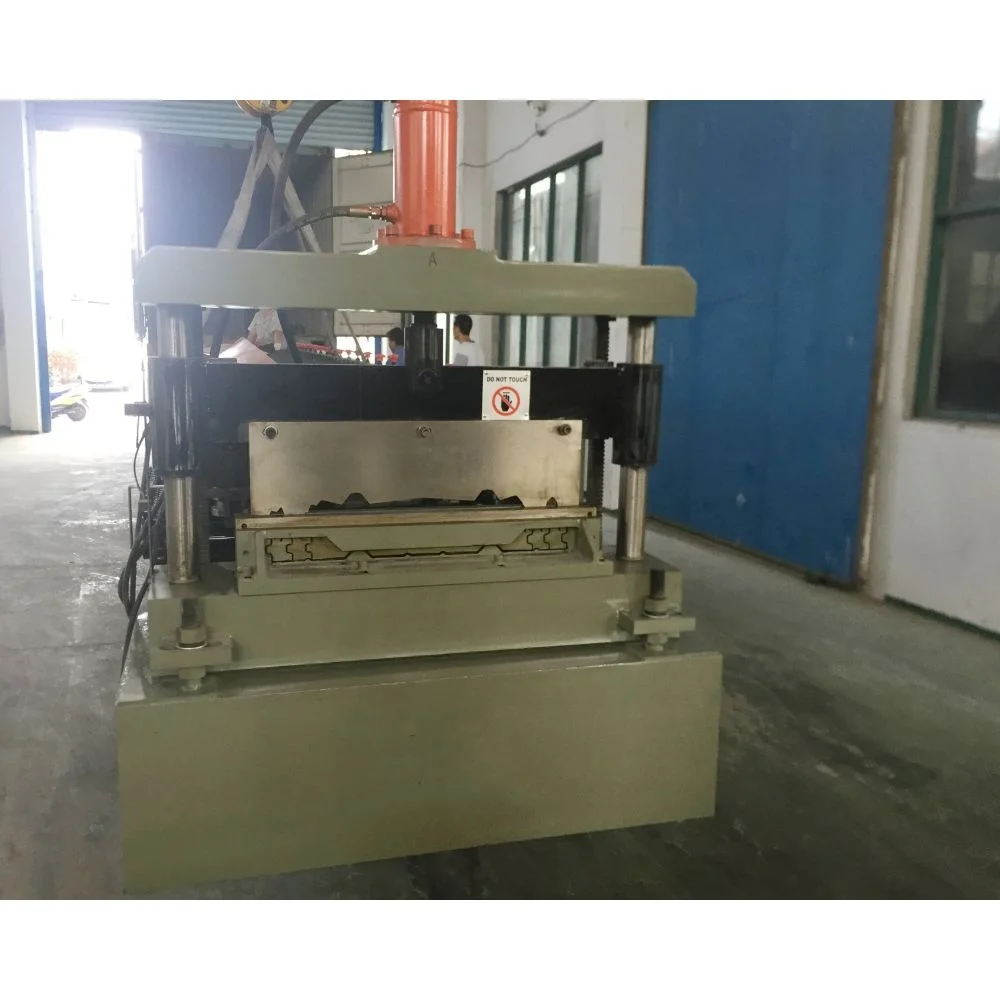

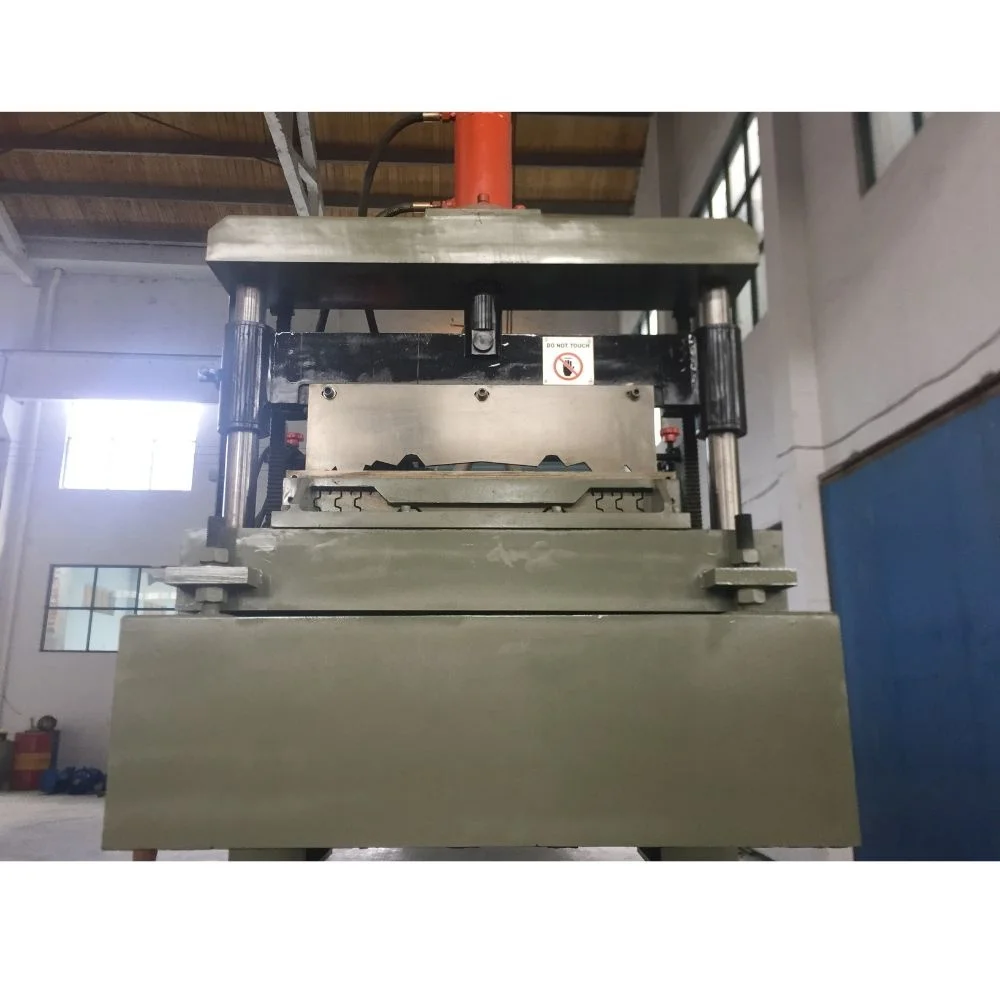

Feeding Guide & Hydraulic Pre-Cutting

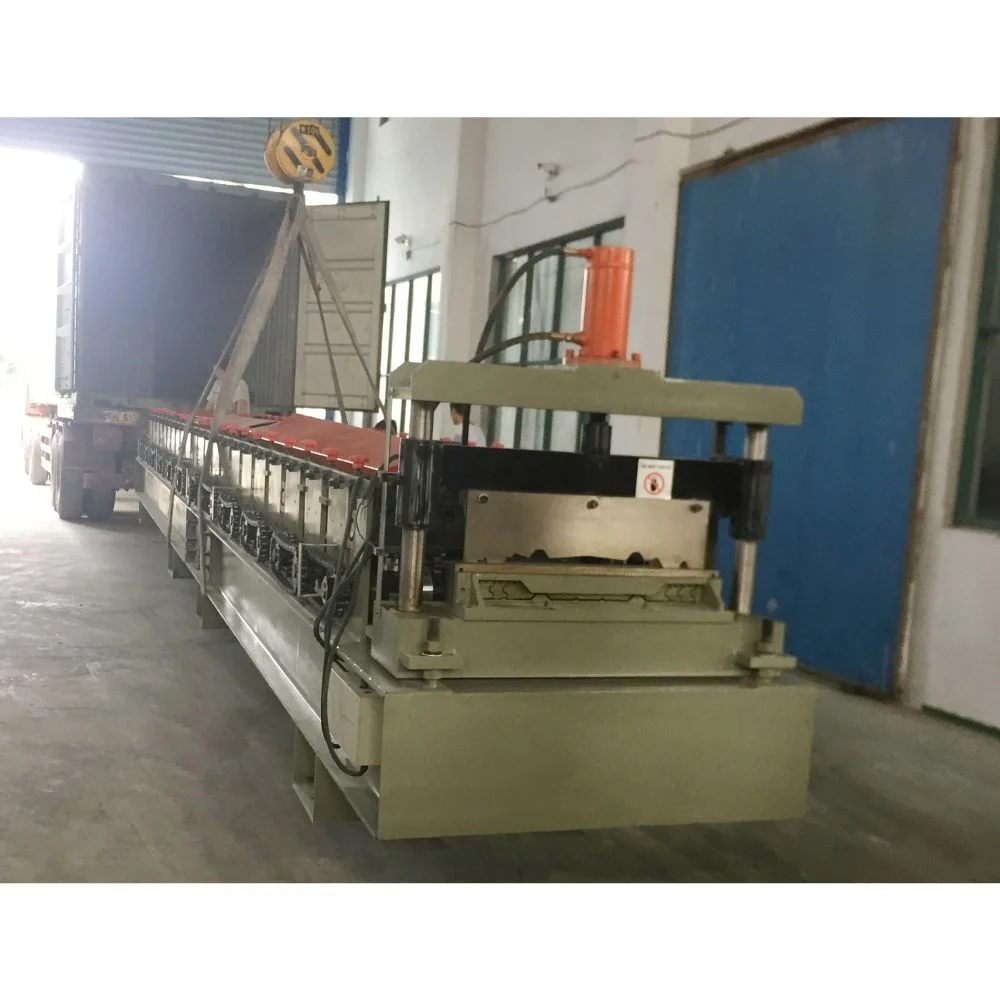

Main Roll Forming Machine
Thickness:1.5mm
Working speed:10 meters/min
Working speed:10 meters/min

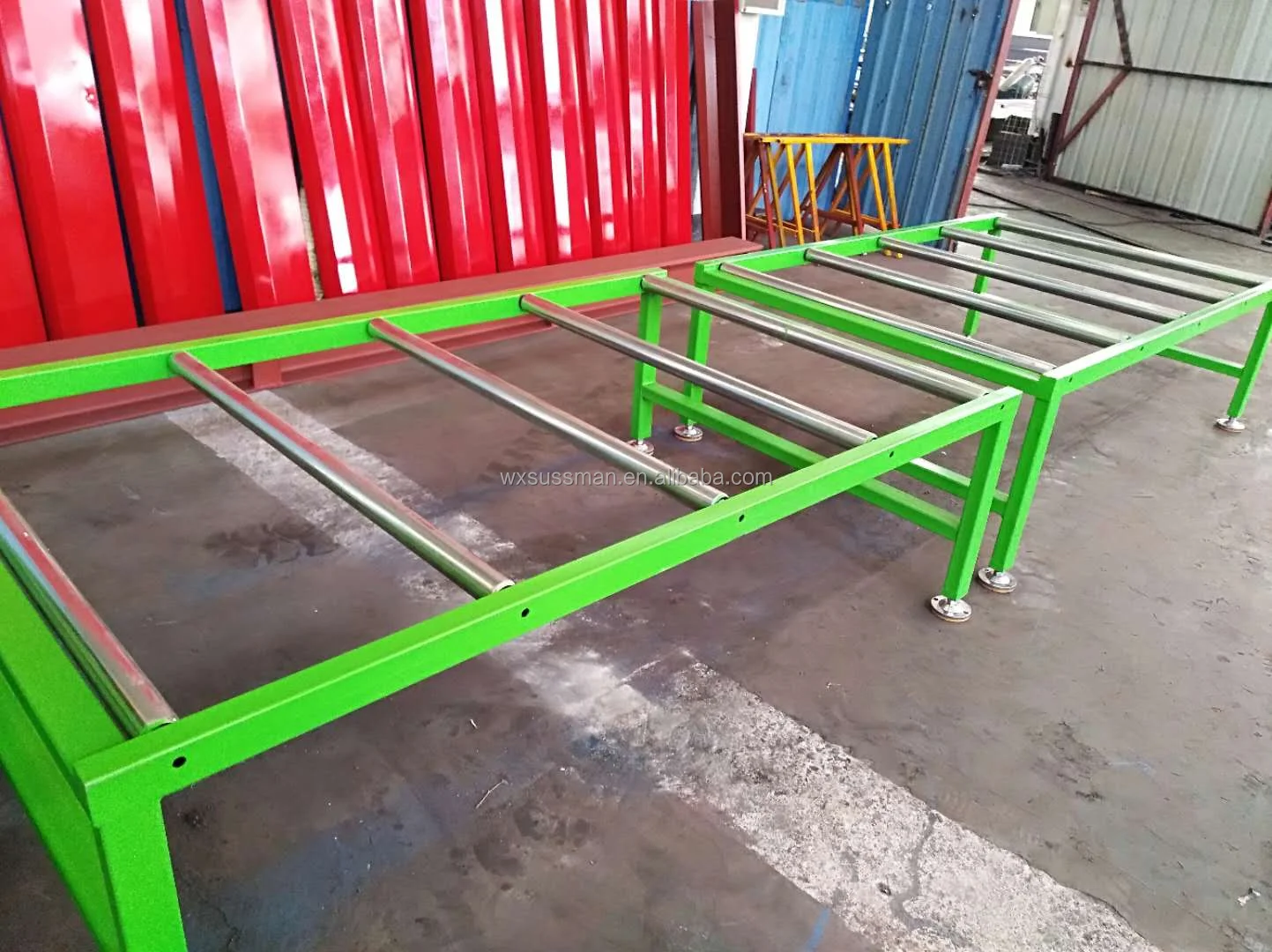

4 Meters Output Table
It adopts welded steel and supported roller to transmit the products.

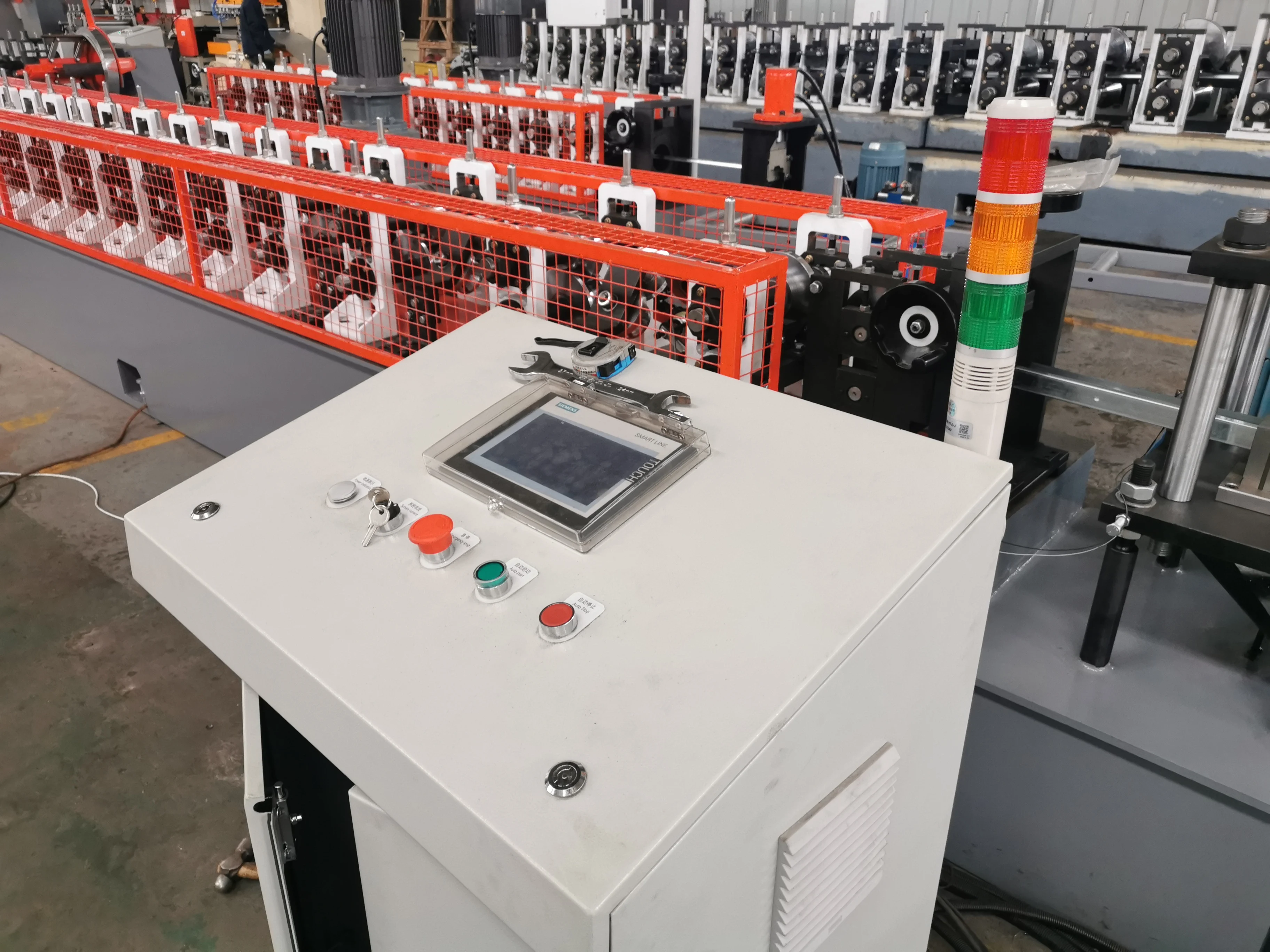

Control Box
* Power supplier: 220V, 60 Hz, 3Phase (adjusted with therequestment)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)

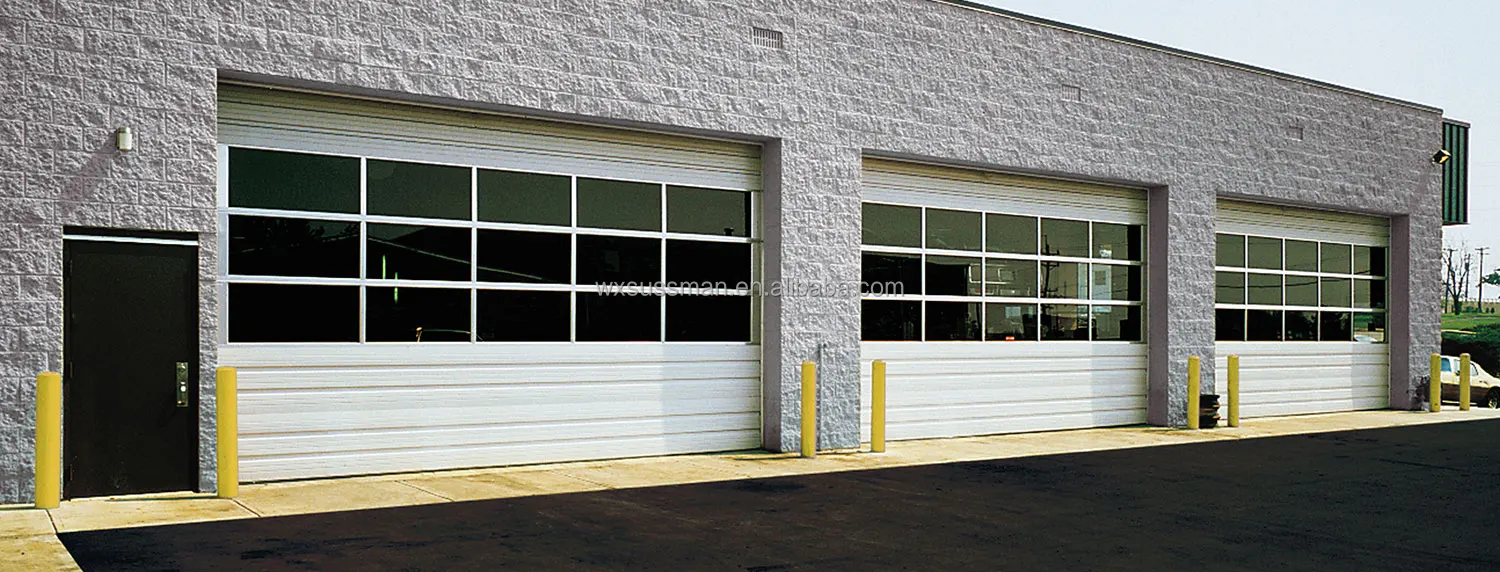

Application

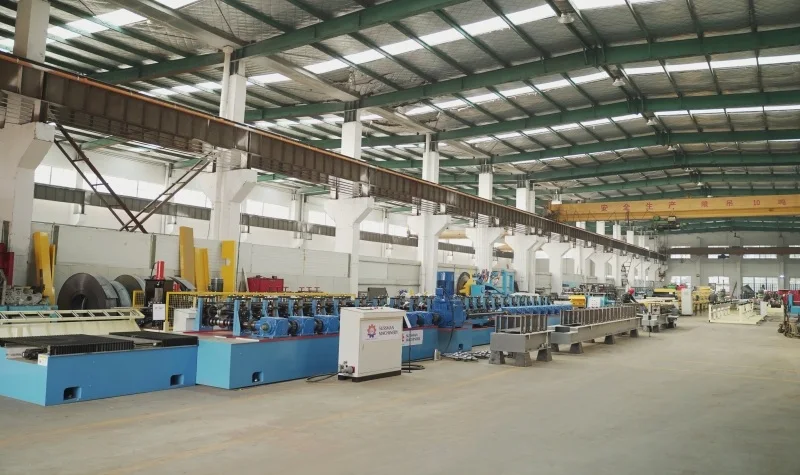

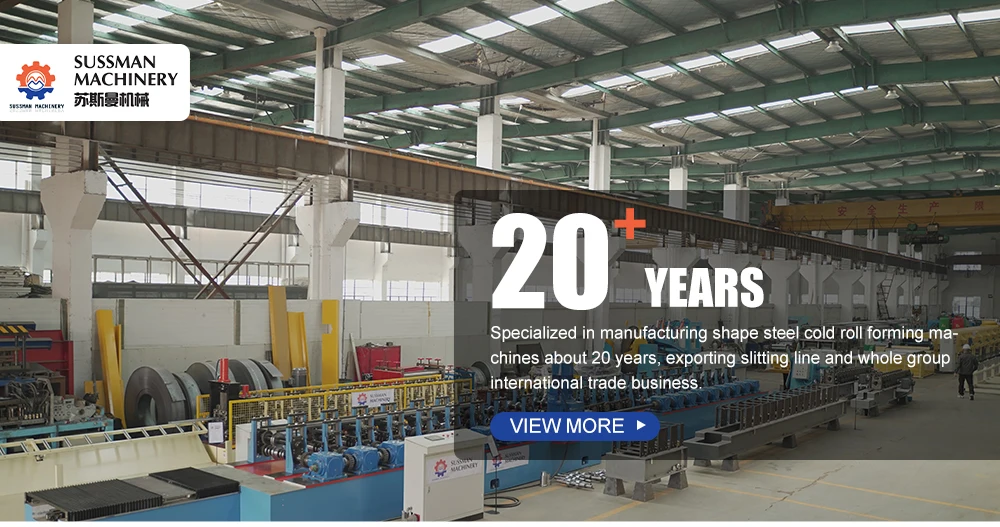

Company Information
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container

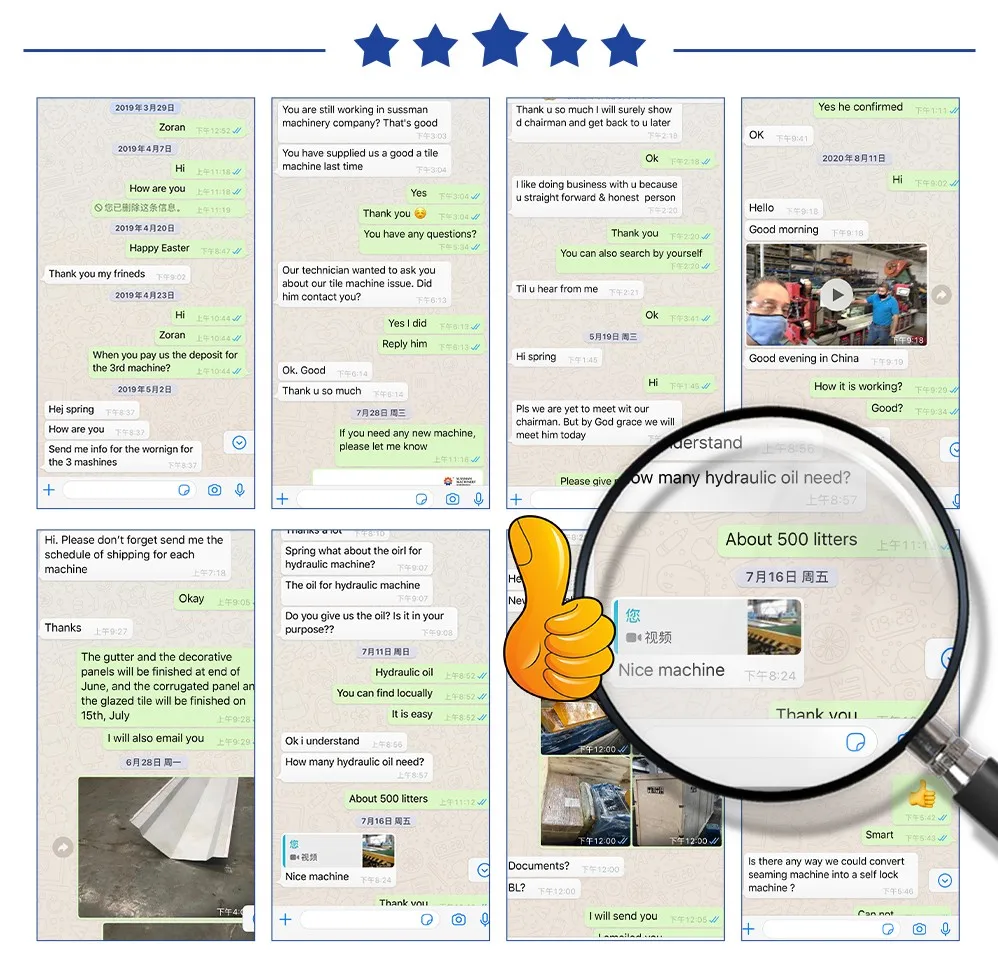

Our Customers
