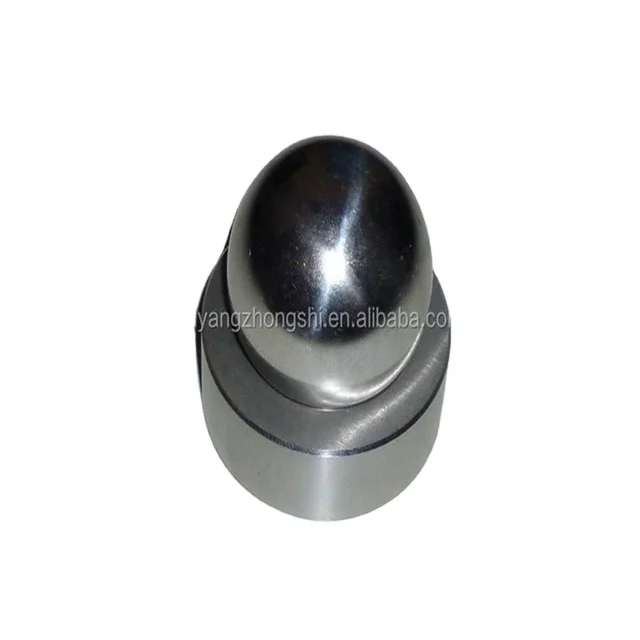

customized tungsten carbide valve seat ball for rod pump parts on sale with low price
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (1600966284668):
Product Overview
Description
Product Description

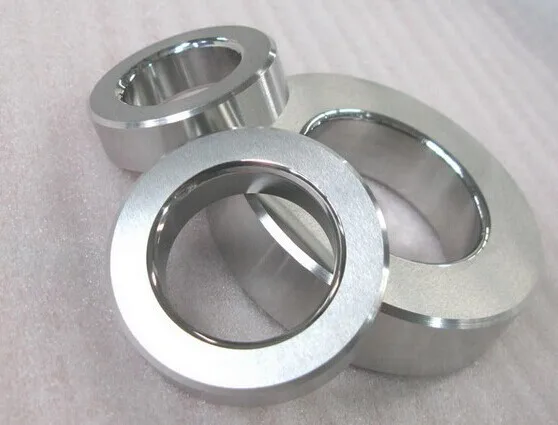

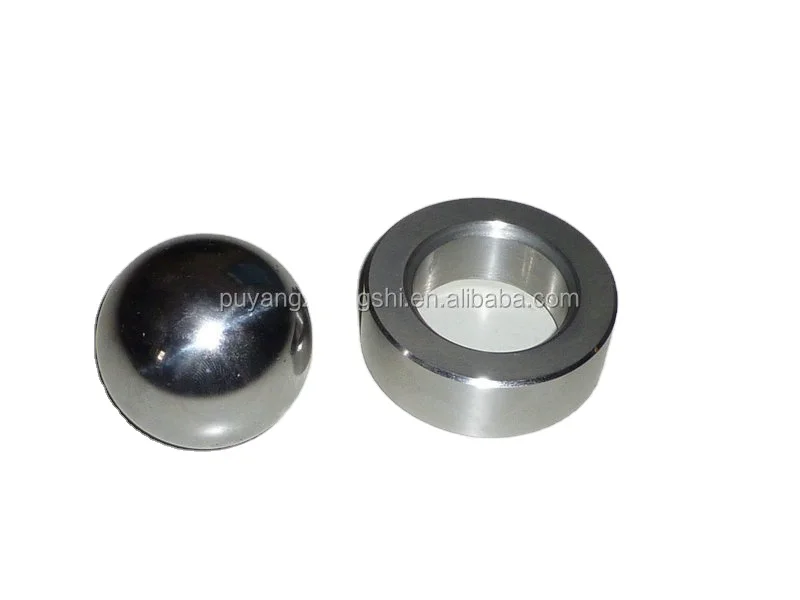

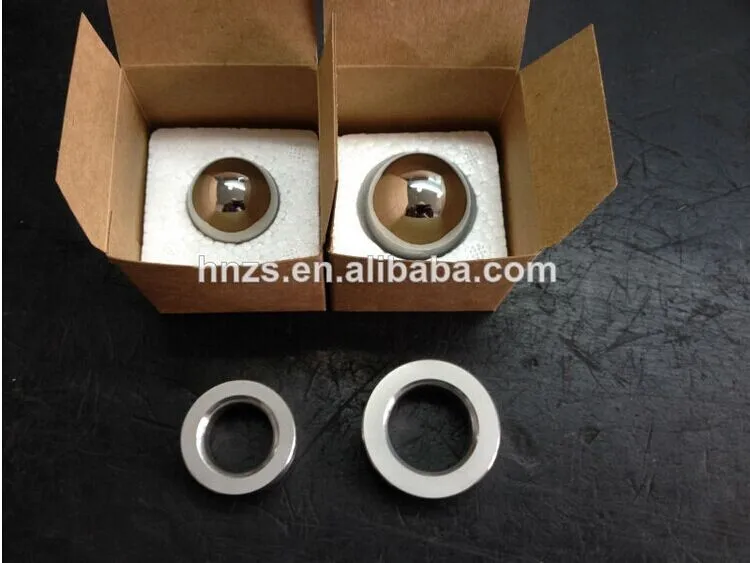

API Standard Cobalt Alloy Valve Seats and Valve Balls
• 1. Valve balls and valve seats are widely used in oil fields.
• 2. Valve Ball and Seat performance directly affects the use effect and service life of the sucker rod pumps.
• 3. Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of
contact.
Main Features
• 1. Material: Stainless steel; Cobalt Alloy, cast; Cobalt Alloy,Tungsten Carbide, Titanium Carbide .
• 2. Standard: API 11AX .
• 3. High resistance against corrosion and oxidation;
Specification
| CODE | INSTRUCTION | HARDNESS | MATERIAL |
| A1 | Stainless steel | Ball: HRC 58-65 | UNS 41000–UNS 44000 |
| Seat: HRC 52-56 | 9Cr18Mo & 6 Cr18Mo | ||
| B1 | Cobalt alloy casting | Ball: HRC 56-63 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 50-56 | |||
| B2 | Cobalt alloy, powder metallurgy | Ball: HRC 53-60 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 51-57 | |||
| C1 | Tungsten carbide | Ball: HRA 88-89 | Tungsten with cobalt adhesive |
| Seat: HRA 88-89.5 | |||
| C3 | Titanium carbon compounds | Ball: HRA 89-90.5 | Tungsten and titanium with cobalt adhesive carbon compounds |
| Seat: HRA 89-90.5 |
| API NO. | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| Valve Seat | 1-1/16" | 1-1/4" | 1-1/2" | 1-3/4" | 2" | 2-1/4" | 2-3/4" | 3-3/4" |
| Valve Ball | 5/8" | 3/4" | 15/16" | 1-1/8" | 1-1/4" | 1-3/8" | 1-11/16" | 2-1/4" |

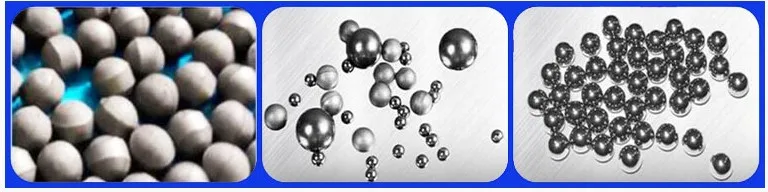

Raw Material

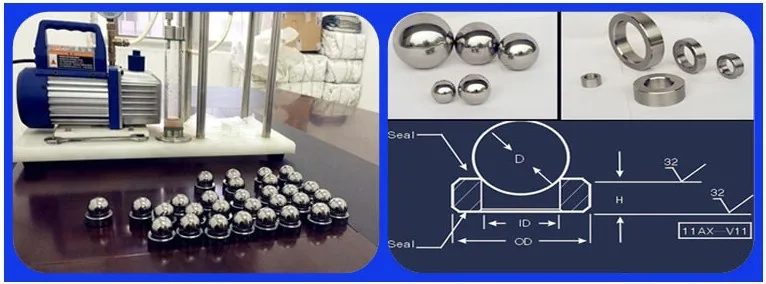

Inspection

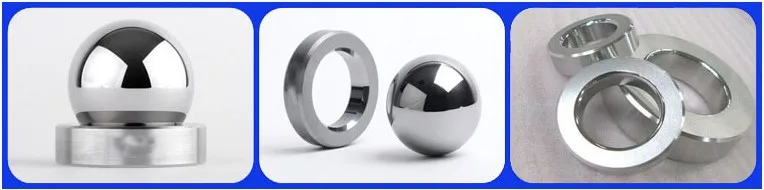

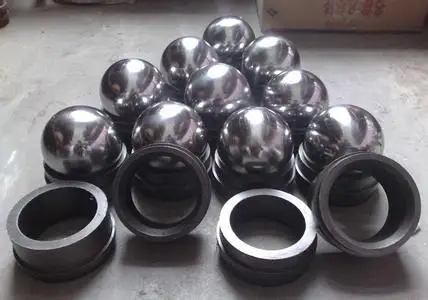

Finished Product
Usage
Packaging & Shipping
Company Information

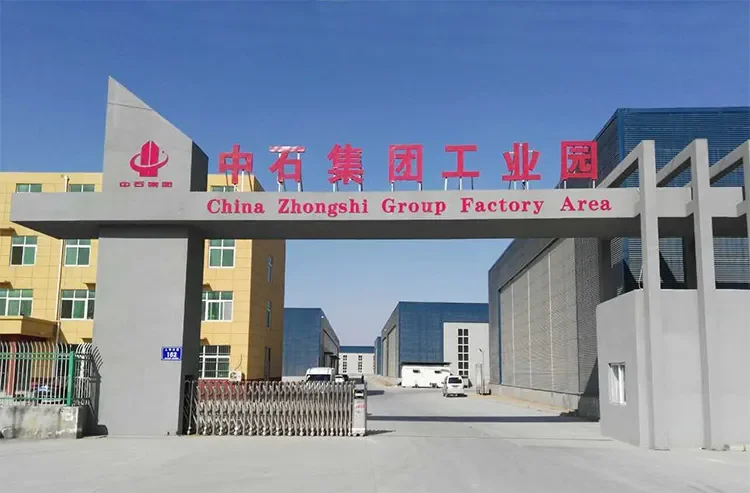

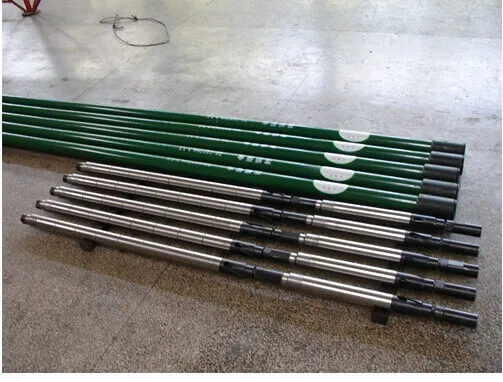

Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oilfeild machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
Certifications

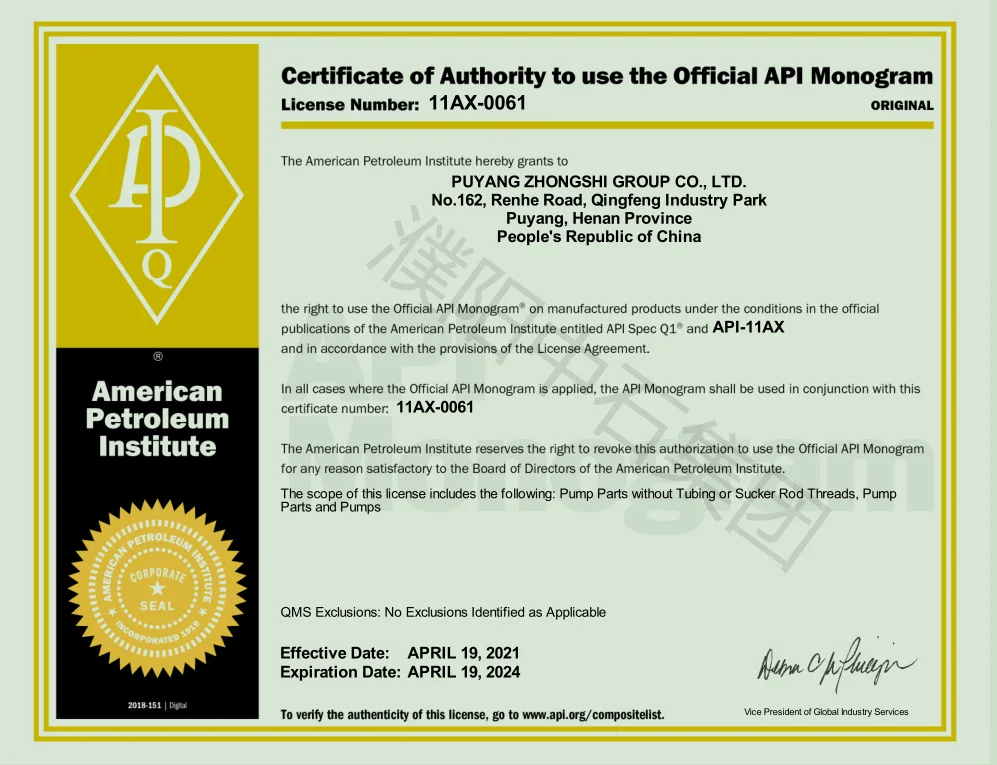

· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
