YRO RSD UL1741 Solar Module Level Rapid Shutdown device Emergency Button Switch Firefighter safety switch PLC type Safe fire
- Category: >>>
- Supplier: Yueqing Yirui Electric Appliance Co. Ltd.
Share on (1600968618089):
Product Overview
Description
Product Description

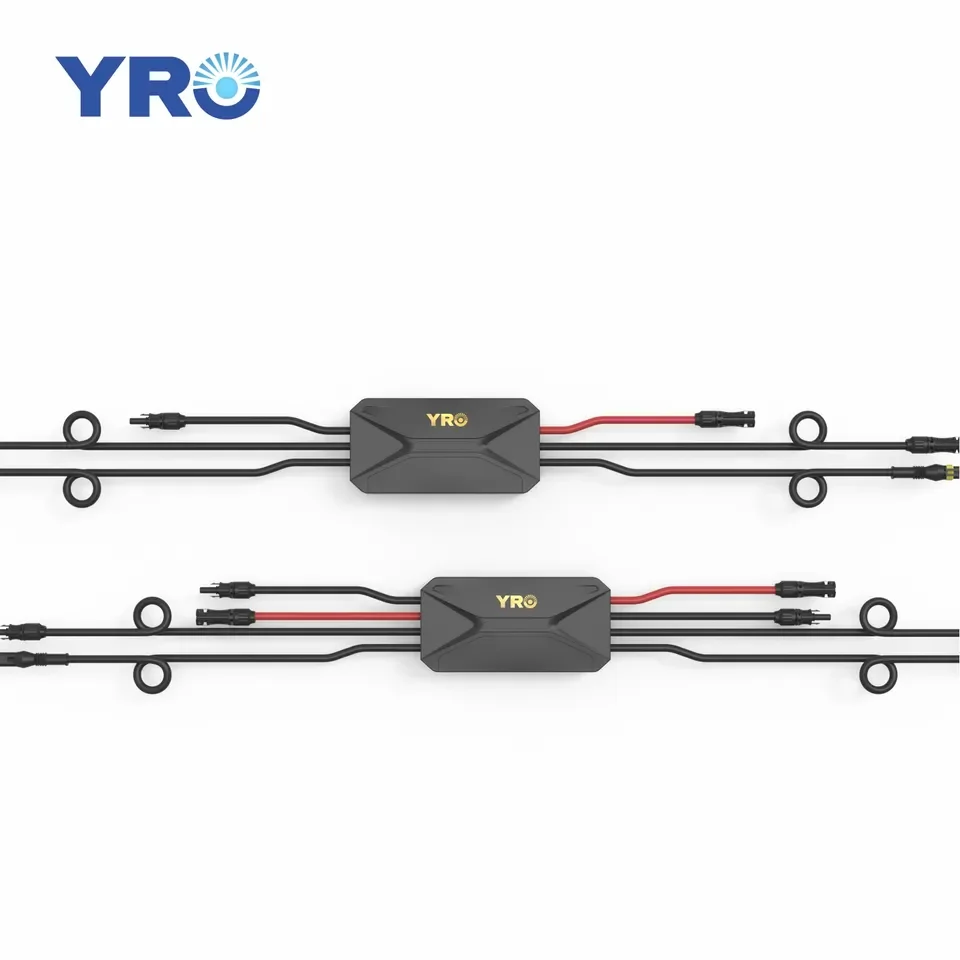

YRSD-1P/2P Solar Panel Rapid Shutdown
● Module Level Rapid Shutdown ● Manual Shutdown by Button Switch
● Automatic Shutdown on AC Power Loss
● Over Tempcerature Automatic Shutdown
● Compatible with Most String Inverters and Panels

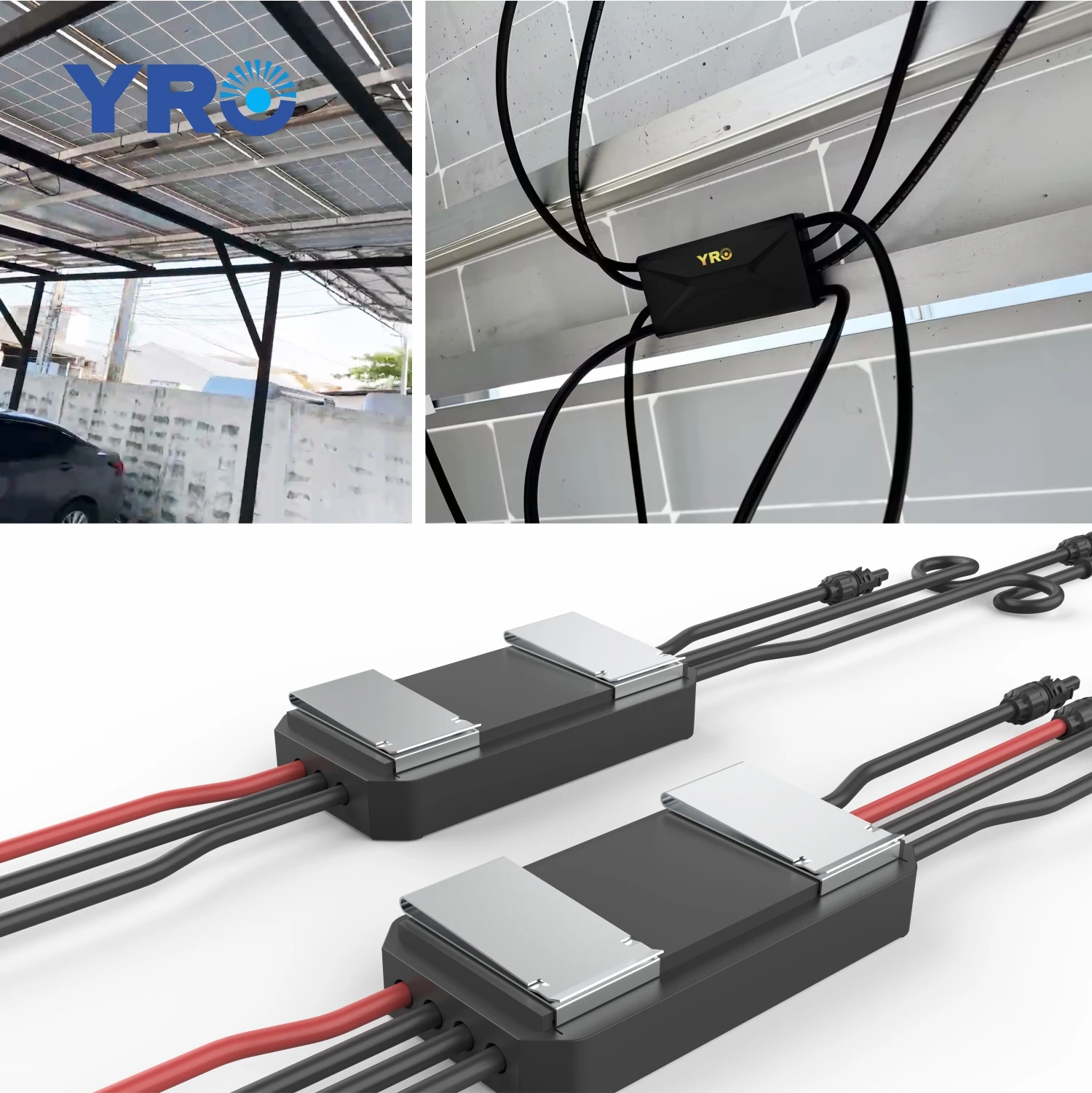

YRSD-1P/2P is a module level rapid shutdown device offers fire safety for solar rooftop and building ,remains the rapid shutdown
function period the solar PV system whole working life.
Emergency button switch is required to initiate the rapid shutdown operating, as a trigger place on the ground and easier to
reach.
The communication cable on the rapid shutdown device should be connected in series and wire to the button switch.
● Automatic Shutdown on AC Power Loss
● Over Tempcerature Automatic Shutdown
● Compatible with Most String Inverters and Panels
YRSD-1P/2P is a module level rapid shutdown device offers fire safety for solar rooftop and building ,remains the rapid shutdown
function period the solar PV system whole working life.
Emergency button switch is required to initiate the rapid shutdown operating, as a trigger place on the ground and easier to
reach.
The communication cable on the rapid shutdown device should be connected in series and wire to the button switch.
Specification

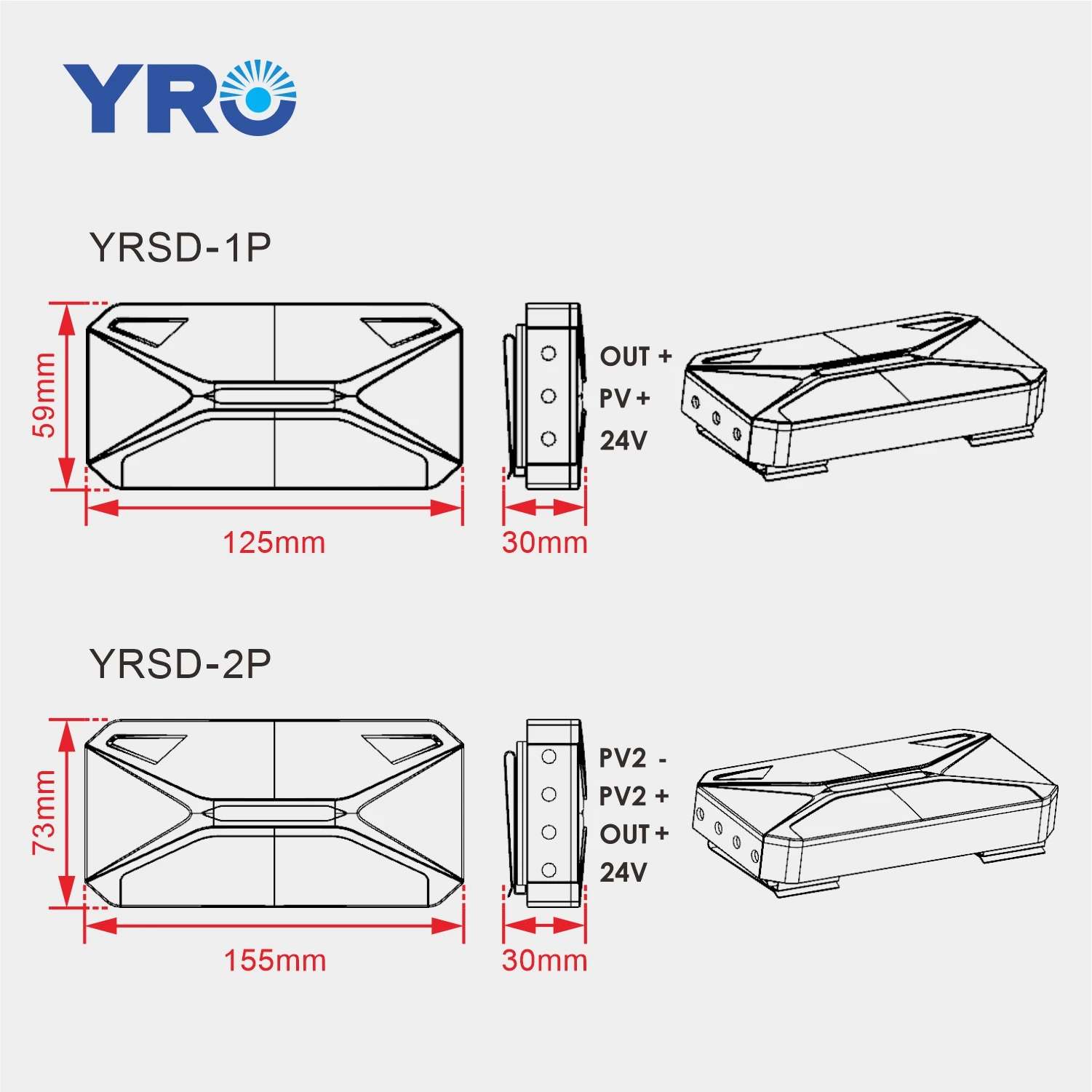

Model No. | YRSD-1P/2P | |||
Maximum input Voltage | 120V Single Panel Or 60V per Panel (Two Panels In Series) | |||
Maximum Input Current | 18A | 25A | ||
Maximum Power | 2160W in total | 3000W in total | ||
PV Input and Output Cables | 4.0mm²（12AWG）Cables+MC4 Connectors | |||
PV Input Cable Length | 180mm | |||
PV Output Cable Length | 1800mm | |||
IP Protection | IP68 | |||
Weight | 1000g | |||
Operatin Temperature | -40℃ to- +85℃ | |||
Ambient Operating Temperature | -40℃ to- +55℃ | |||
Standards Compliance | EN61646 EN 61000,EN 61215 IEC 60716 draft C(NH3 resistant) | |||

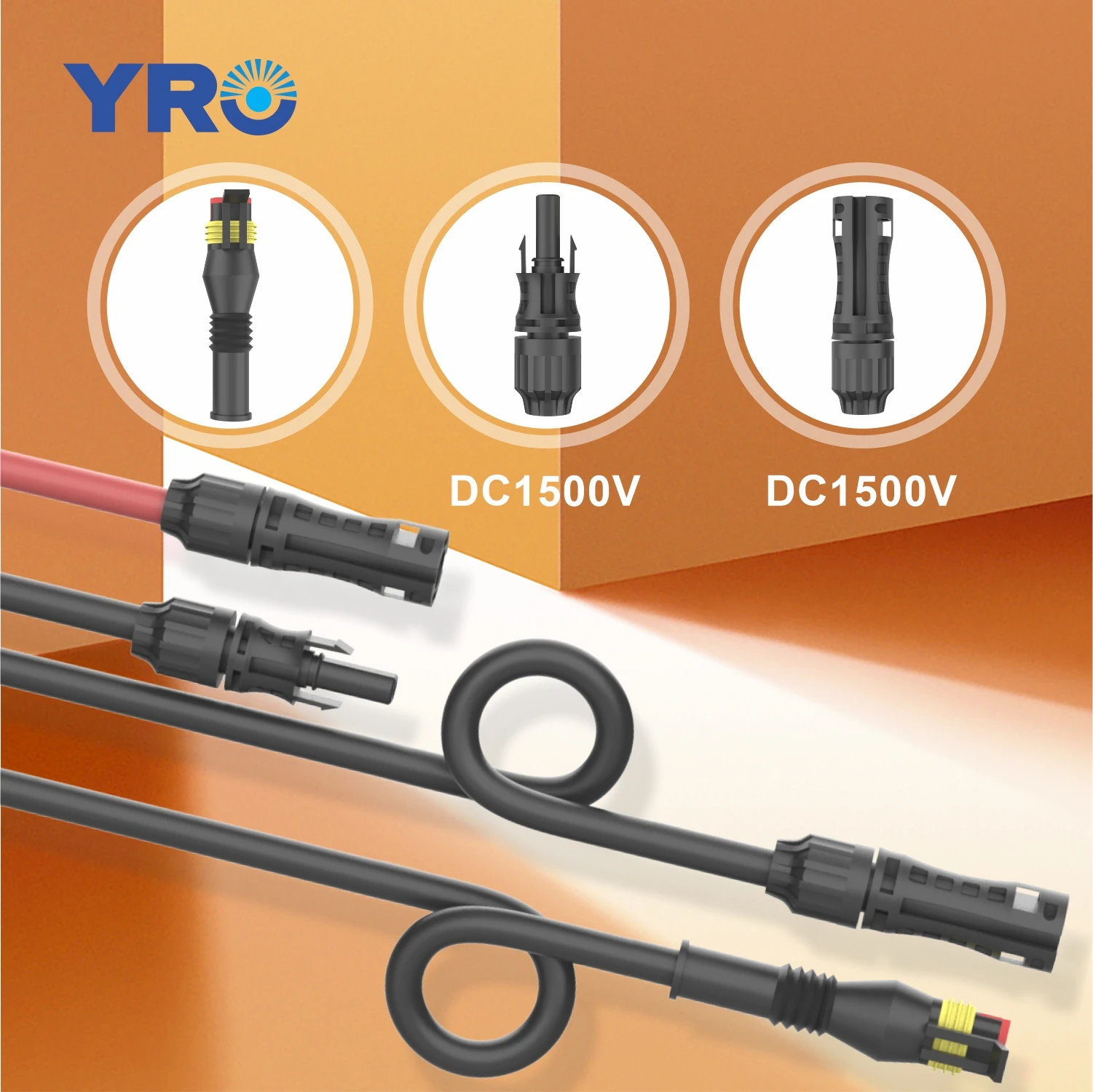

PV Connectors: | Staubi MC4(standard),Jinko and QC connectors for option | |||
DC Power Supply for each RSD | ||||
Voltage Range | 14V-28V | |||
Maximum Current | 15mA | |||
Maximum Power | 0.2W | |||
Power Supply Cables(Signal Cable) | 2×0.823mm² （18AWG）Signal Cables + Signal Connectors | |||
Power Supply Cables Length | 1800mm | |||
Warranty | 5 Years | |||
Weight | 750g | |||
Packing & Delivery
Company Profile
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
A: Reply will be sent in 24hours.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
