Automatic garage door infrared beam sensor
US $9.00-$9.50
300/400/500/600 kg New design Auto Car Door Door Motor / Electric Garage Door Motor/ Rolling Door Motor
- Category: >>>
- Supplier: Zhangzhou Orsenar Electronics Co. Ltd.Zhangzhou Ltd.
Share on (1600969138904):
Product Overview
Description
Product Description
Single Phase Motor
Type | Power Supply (V) | Rated Power (W) | Rated Current (A) | Lighting Force (KG) | Output Torque (N.m) | Output Rotate Speed | Max Raising Height (M) | Short-Term Ration (min) |
AC200 | 220V 50Hz | 150 | 2.5 | 300 | 168 | 4.7 | 6 | 8 |
AC300 | 220V 50Hz | 200 | 2.5 | 300 | 168 | 5.5 | 6 | 8 |
AC500 | 220V 50Hz | 370 | 3.5 | 500 | 345 | 5.9 | 6 | 8 |
AC600 | 220V 50Hz | 370 | 3.5 | 600 | 412 | 5.2 | 6 | 8 |
AC800 | 220V 50Hz | 400 | 4 | 800 | 650 | 4.1 | 10 | 8 |
AC1000 | 220V 50Hz | 800 | 5.8 | 1000 | 810 | 4.2 | 14 | 8 |
AC1300 | 220V 50Hz | 800 | 5.8 | 1300 | 1050 | 3.8 | 14 | 8 |
AC1500 | 220V 50Hz | 1200 | 7.5 | 1500 | 1220 | 3.8 | 14 | 8 |
Three Phase Motor
Type | Power Supply (V) | Rated Power (W) | Rated Current (A) | Lighting Force (KG) | Output Torque (N.m) | Output Rotate Speed | Max Raising Height (M) | Short-Term Ration (min) |
AC600-3P | 380V 50Hz | 250 | 1.0 | 600 | 412 | 5.2 | 6 | 8 |
AC1000-3P | 380V 50Hz | 400 | 1.5 | 1000 | 810 | 4.2 | 14 | 15 |
AC1300-3P | 380V 50Hz | 400 | 1.5 | 1300 | 1050 | 3.8 | 14 | 15 |
AC1500-3P | 380V 50Hz | 600 | 2.5 | 1500 | 1220 | 3.8 | 14 | 15 |
AC2000-3P | 380V 50Hz | 1200 | 4.5 | 2000 | 2450 | 3.6 | 16 | 15 |
Product Features
1) Press the rolling door button, power will be driven, allowing the shutters to open and close safely. Positioning of the
mechanism must be in an accurate and reliable position.
2) When the power is off, use either the hand chain that is elevating the rolling door or the hand lever that is beside the
mechanism to close the shutters. This will cause the shutters to lower to the ground.
3) The motor of the mechanism features overheating protection.
4) The rolling door includes a remote function, which allows the device to be contolled from up to 10 meters. If the mechanism is
positioned in an awkward spot, then the remote will only be able to function from a distance of less than 5 millimeters.
5) The transmission design of the mechanism has a reasonable design, although the gear will not be easy to use as it uses advanced
technology to operate the system. On the other hand the mechanism is durable and has little to no noise while in operation.
6) The Rolling door features a constant speed function. which is positioned 10 millimeters from the device.
7) The motor that starts the mechanism has some torque. The Electric Roller shutters are meant to operate for a short period of
time. Use of the electric rollers must only be up to or less than 5 Minutes.
8) The mechanism incorporates anti-theft devices such as a radio and an easy to use remote.
mechanism must be in an accurate and reliable position.
2) When the power is off, use either the hand chain that is elevating the rolling door or the hand lever that is beside the
mechanism to close the shutters. This will cause the shutters to lower to the ground.
3) The motor of the mechanism features overheating protection.
4) The rolling door includes a remote function, which allows the device to be contolled from up to 10 meters. If the mechanism is
positioned in an awkward spot, then the remote will only be able to function from a distance of less than 5 millimeters.
5) The transmission design of the mechanism has a reasonable design, although the gear will not be easy to use as it uses advanced
technology to operate the system. On the other hand the mechanism is durable and has little to no noise while in operation.
6) The Rolling door features a constant speed function. which is positioned 10 millimeters from the device.
7) The motor that starts the mechanism has some torque. The Electric Roller shutters are meant to operate for a short period of
time. Use of the electric rollers must only be up to or less than 5 Minutes.
8) The mechanism incorporates anti-theft devices such as a radio and an easy to use remote.

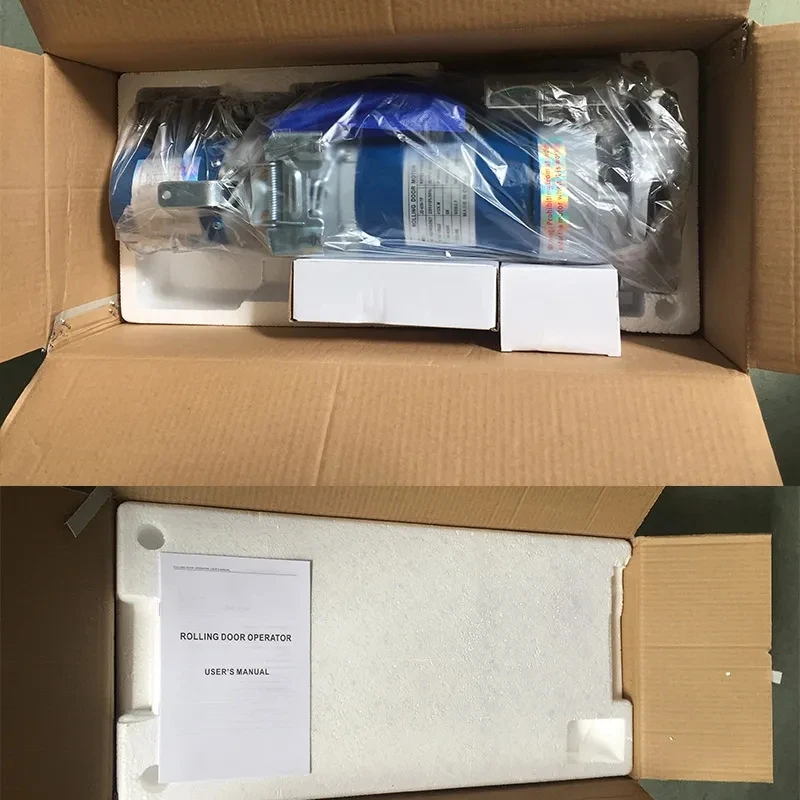

Product packaging
Company Profile
Orsenar is an international and comprehensive company specializing in the integration of rolling door motor, sliding gate opener, swing gate opener and smart control system, electronic intelligent products R&D, production, sales and brand operation. The controller use microelectronic technology, intelligent, strong reliability, high stability and multiple functions. And our products are popular in Southeast Asia, Europe, South America and Africa.
