Stone Countertop Curved Edge Cutting Machine 4 Axis Stone Cutter 5 Axis Bridge Saw Cnc For Processing Flooring And Wall Tiles
- Category: >>>
- Supplier: Shandong Blue Elephant Cnc Machinery Co. Ltd.
Share on (1600969288296):
Product Overview
Description
Products Description
Stone Countertop Curved Edge Cutting Machine 4 Axis Stone Cutter 5 Axis Bridge Saw Cnc For Processing Flooring And Wall Tiles

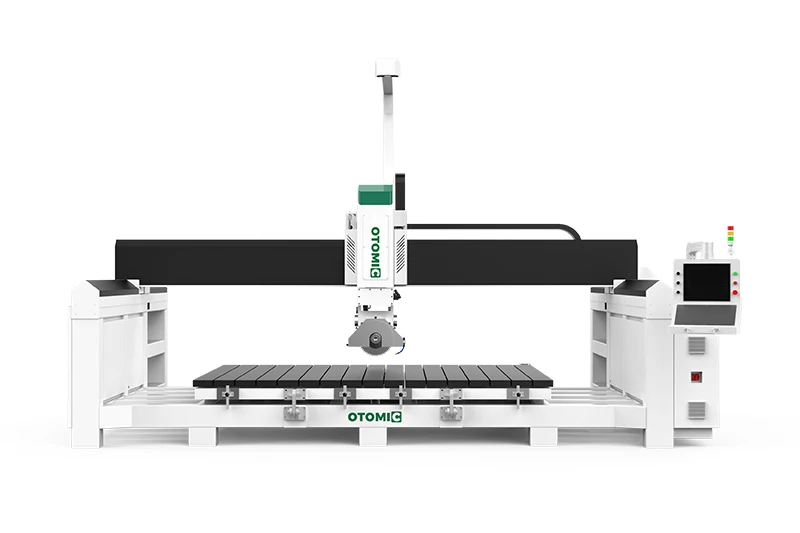

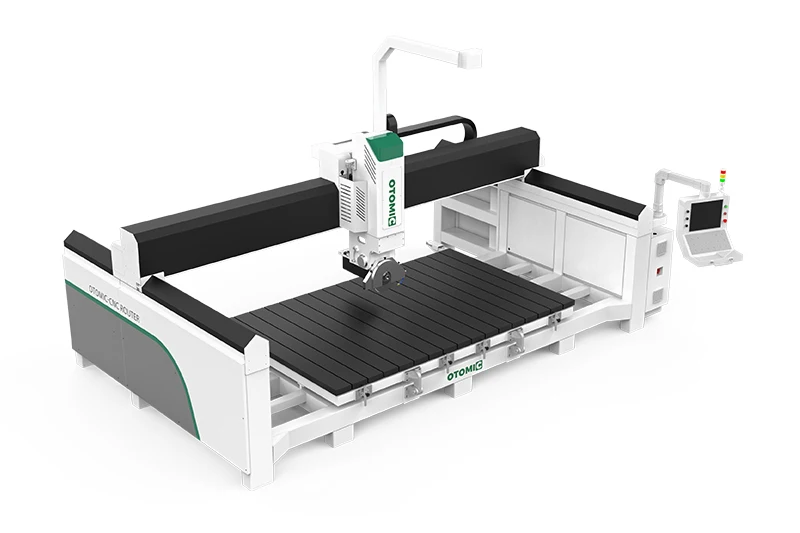

Blue Elephant 4 axis bridge cutting saw is equipped with infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it is equipped with an air cooling spindle to better engrave stone patterns. So it is also known as 4+1 bridge saw machine for stone. And the Blue Elephant customized CNC control system will realize high-quality and precise cutting.
1. The bridge saw head can be tilted 0° or 45° for stone chamfering and cutting.
2. The bridge saw table is tilted at 85° to facilitate loading and unloading.
3. The main core components adopt international first-line brands such as Schneider, which is more stable.
4. One-piece structure guarantees small footprint and easy installation and movement.
5. Equipped with a top camera, it can automatically typeset and position stone slabes. 6. The extra air cooling spindle can easily realize stone engraving with fast speed and high precision.
Product Paramenters
Working travel | 3 axis | 3200*2000*200mm | |
C axis | ±360° | ||
A axis | 0/45° | ||
Moving speed | Xaxis 30m/min ;Yaxis 30m/min ;Zaxis 20m/min | ||
Servo motor | X axis、Y axis | 2KW HANYU absolute value servo motor | |
Guide rail | Z axis | 2KW HANYU absolute value servo motor（with brake） | |
Rack | C axis | 1KW HANYU absolute value servo motor | |
Worktable | Structure | squared timber | |
Saw | Size | 3200×2000mm | |
Reducer | Flip angle | 0-85° | |
Saw motor | Reverse weight | 800KG | |
saw blade | Size | 360mm | |
Maximum thickness | 60mm | ||
Screw | Z axis | 3210 | |
Reducer | X/Y axis SHIMPO reducer | ||
Saw blade motor | 15KW Saw blade motor (2930r/min) | ||
Inverter | 18.5KW Fuling inverter | ||
Controller | Blue Elephant customized control system（CAM software） | ||
Low-voltage apparatus | Schneider | ||
Air Pressure | 0.6-0.8Mpa | ||
Voltage | 380V/3P/50HZ | ||
Machine size | 5.85m×4.5m×3.6m | ||
Machine weight | 3.5t | ||
Electronic Components
Using the standard components with CE certification, such as Germany Schneider company.
Guide Rail
Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.
Motor and Driver
Japan YASKAWA Servo motors & drivers from Japan, which ensurs the machine's stronger strength and high accuracy.
Spindle
5.5 kw mechanical main spindle, which is durable and has a strong power.
SYNTEC Control System
This machine adopts Taiwan SYNTEC control system.
With an open PLC program, customers can plan according to processing needs.
With an open PLC program, customers can plan according to processing needs.
Tool Magazine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Recommend Products

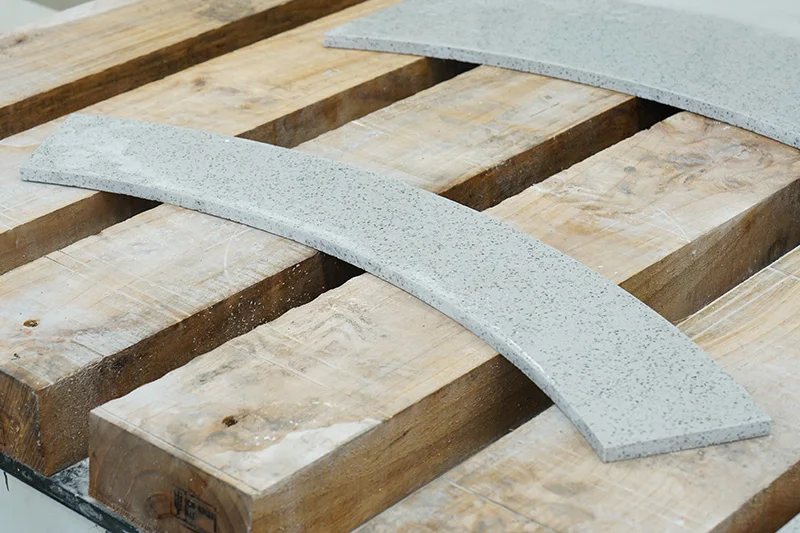

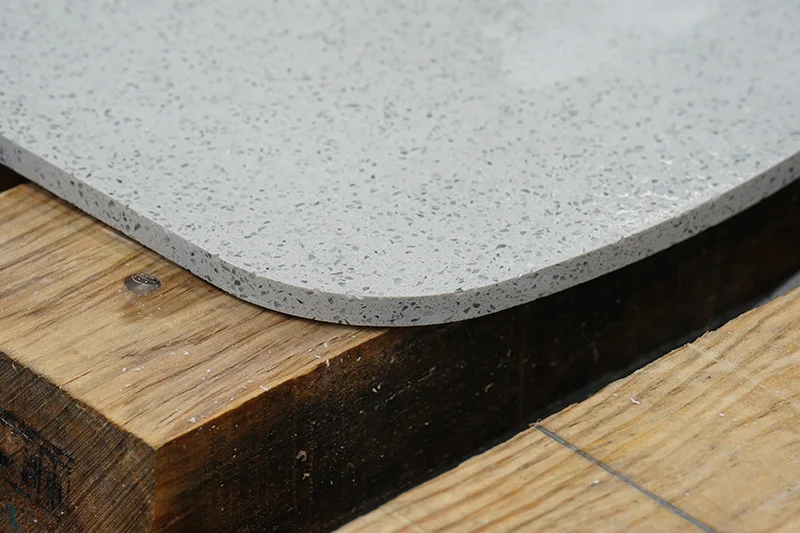

Sample & Application

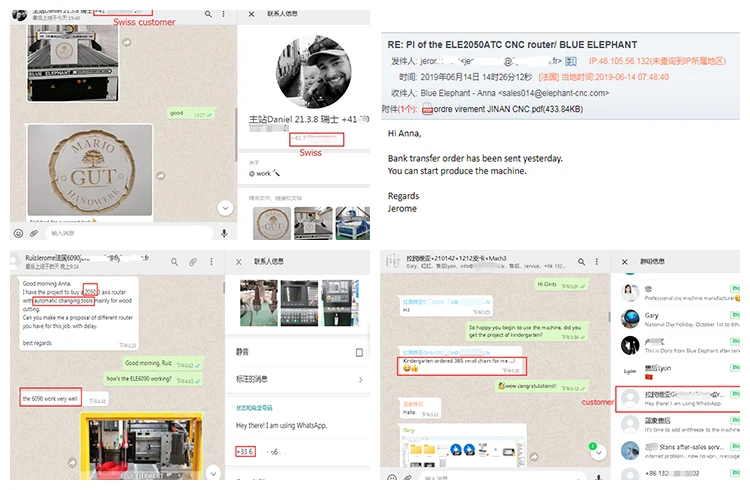

Customer Feedback
Company Information
Exhibition
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
