Product Overview
Description

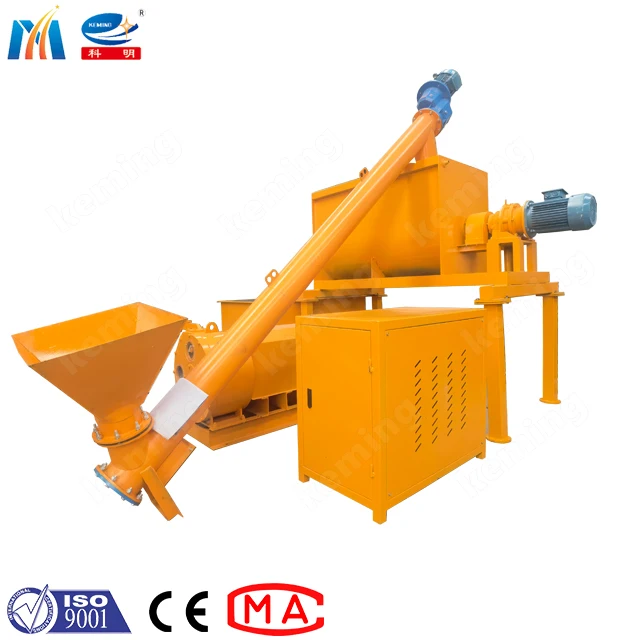

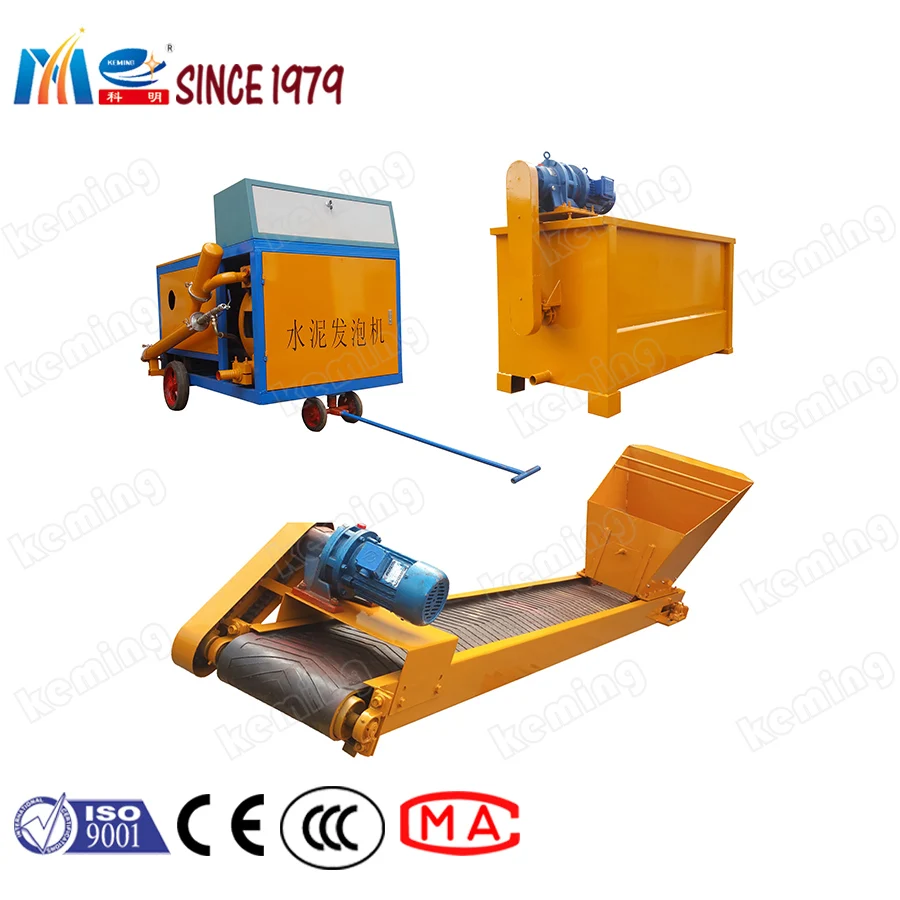

KFP-50-20A Foam Concrete Machine
Product Description
Foam Concrete Machine Features:
1.KFP series Concrete Foaming Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system into one machine.
2.The machine shell is made of high strength and precious steel plate and painted at high temperature of 280℃, ensuring long service life.
3.Small size,light weight, convenient transport and loading.
4.Automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
5.Frequency converter control of main pump, and digital display of delivery output.
6.Even and steady output of cement slurry, uniform density of foam concrete, stable quality.
7.Delivery system adopts the most advanced hose pumping system, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
8.The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
9.Professional technician team, excellent after-sales service, perfect technical guide.
Foam Concrete Machine Application:
1.Take cement and coal ash as raw material to make foam concrete.
2.Insulating layer, bedding course, floor heating, filling projects of foam concrete roofing.
3.Other products of foam concrete.
Technical Parameters:
Items | Unit | KFP-65-40A Foam concrete machine |
Rated voltage | V | 380 |
Main motor | KW | 7.5/11 |
Output | M3/h | 35 |
Vertical delivery dist. | m | 120 |
Horizontal delivery dist | m | 600 |
Partical size | mm | 10 |
Output pressure | Mpa | 1.5 |
Dimensions(L*W*H) | mm | 1800*1200*1500 |
Main machine weight | Kg | 1300 |
Mixer dimensions | mm | 1600*800*1300 |
Mixer weight | Kg | 150 |
Model | Capacity m3/h | Pressure MPa | Power KW | Delivery distance m |
KFP32 | 1~5 | 1,1 | 4 | 30/10 |
KFP50 | 1~8 | 3,1.5 | 5.5 | 100/50 |
KFP70 | 1~10 | 3,1.5 | 7.5 | 200/70 |
KFP100 | 1~15 | 3,1.5 | 7.5 | 300/100 |
KFP-65-20A | 10~12 | 1.5 | 7.5 | 100/20 |
KFP-65-40A | 10~12 | 1.5,3 | 7.5 | 200/40 |
KFP-76-20A | 18~20 | 1.5 | 11 | 100/20 |
KFP-76-40A | 18~20 | 1.5,4 | 11 | 200/40 |
KFP120 | 1~25 | 3,1.5 | 11 | 300/120 |
KFP150 | 1~30 | 4,2 | 11 | 300/120 |
KFP-90-20A | 38~40 | 1.5 | 15 | 100/20 |
KFP-90-40A | 38~40 | 1.5,5 | 15 | 200/40 |
KFP180 | 1~40 | 5,2 | 15 | 100/20 |
KFP200 | 1~50 | 5,2.5 | 15 | 100/20 |

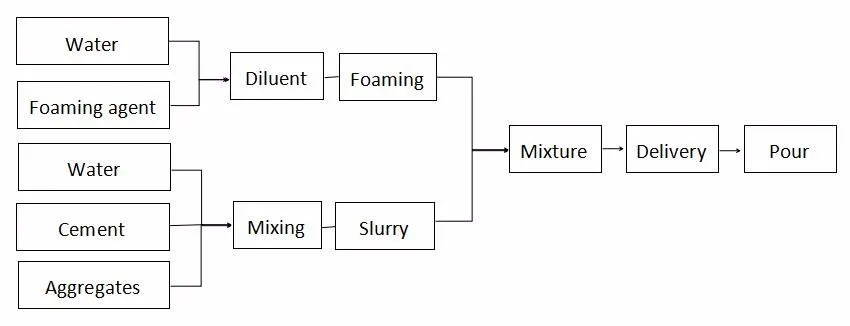

Working principle:

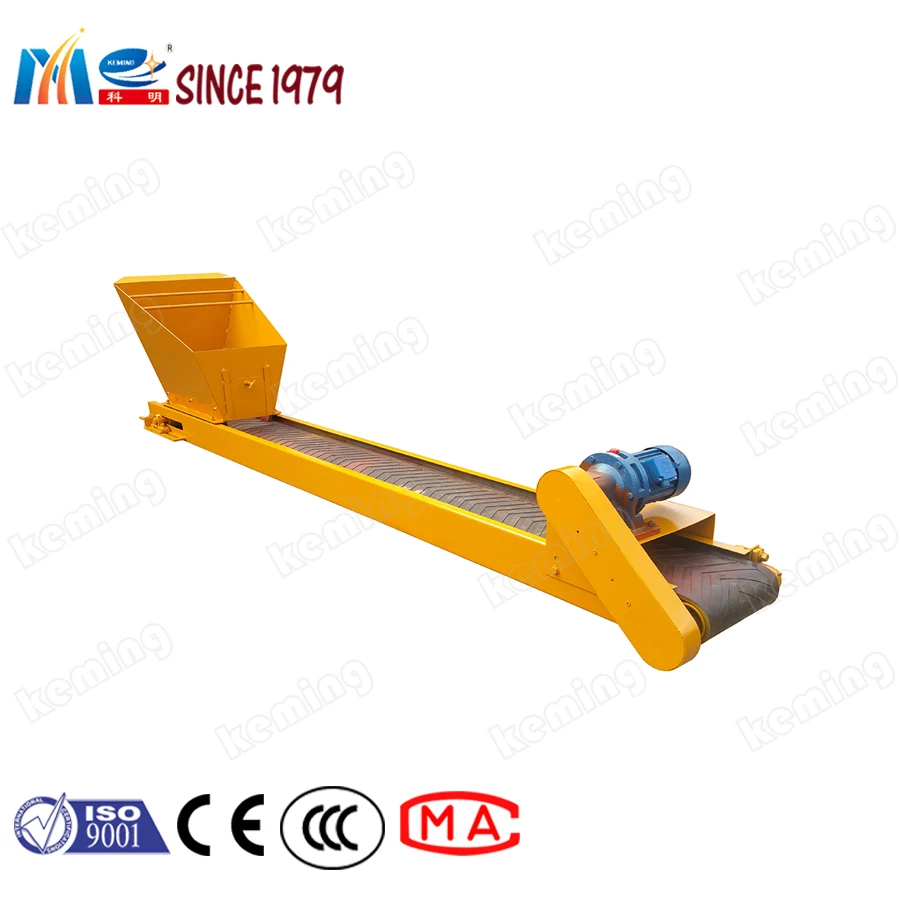

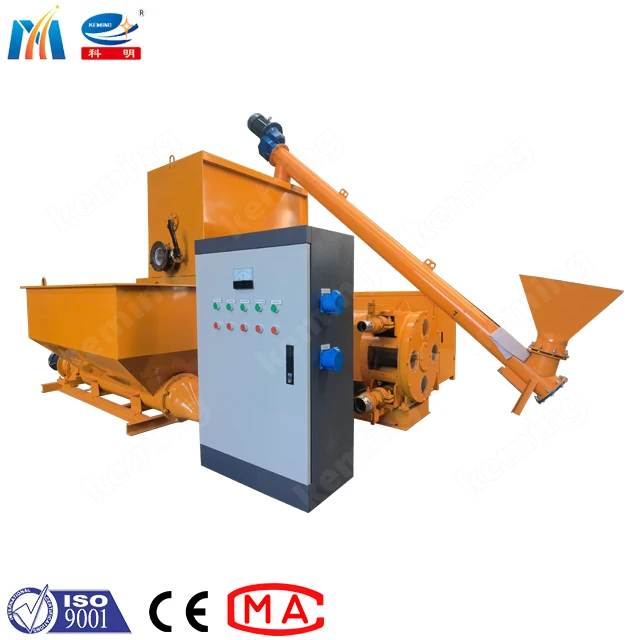

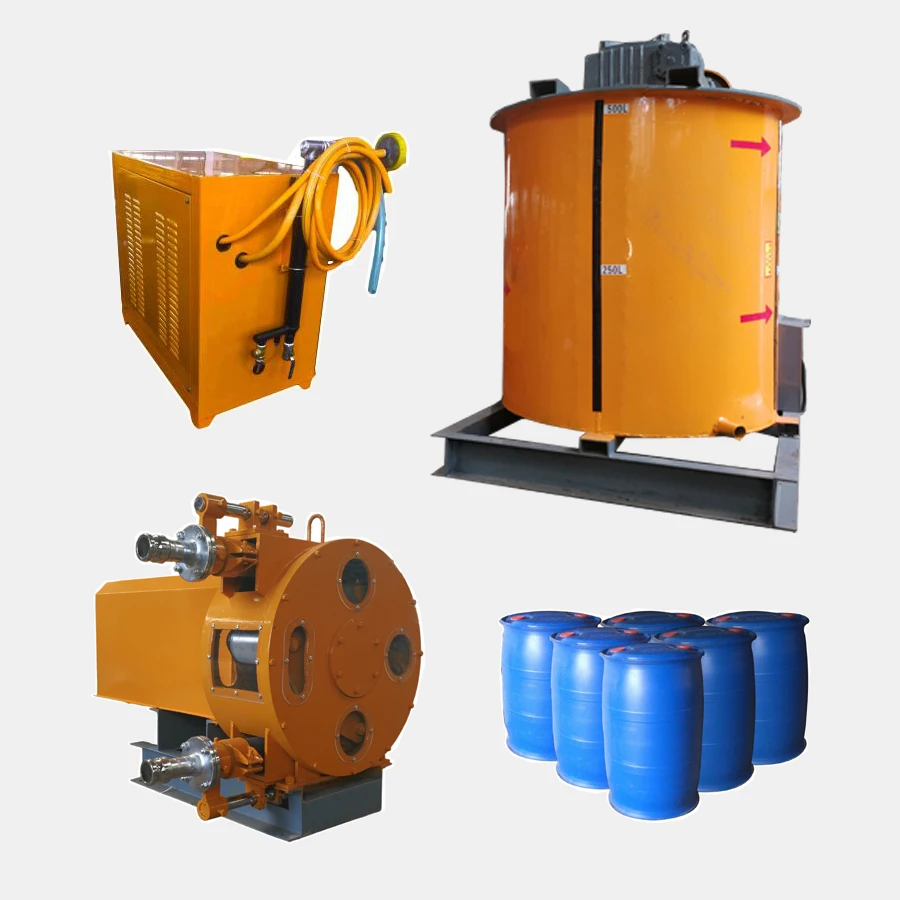

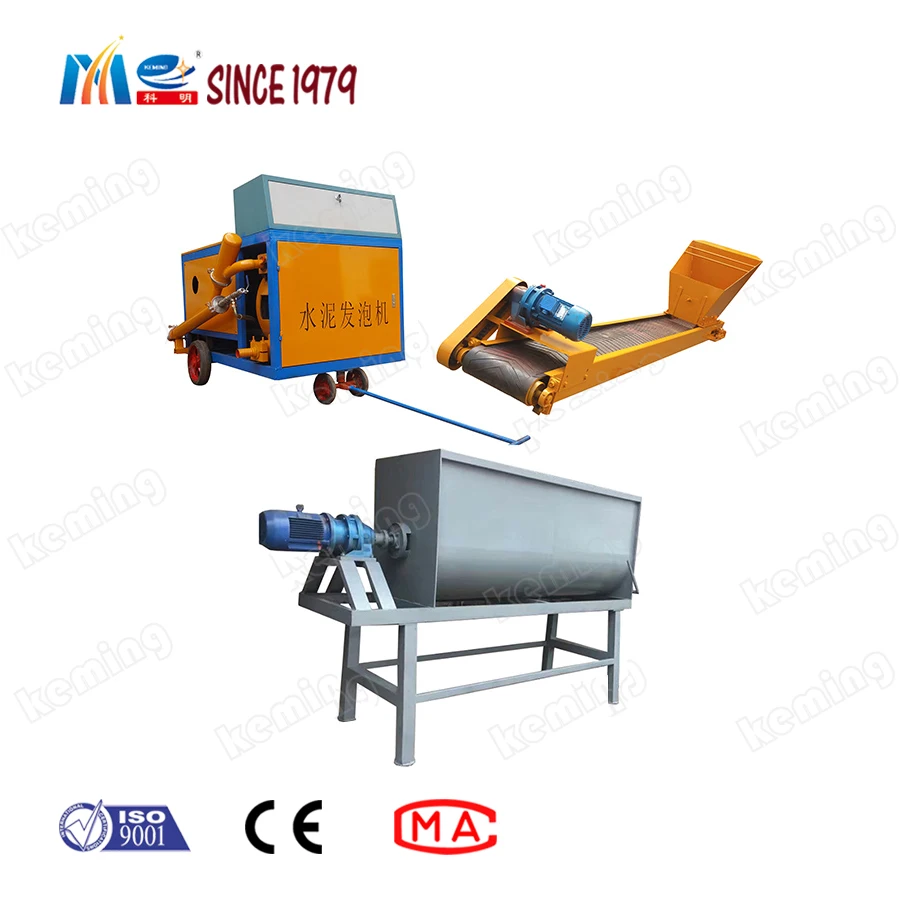

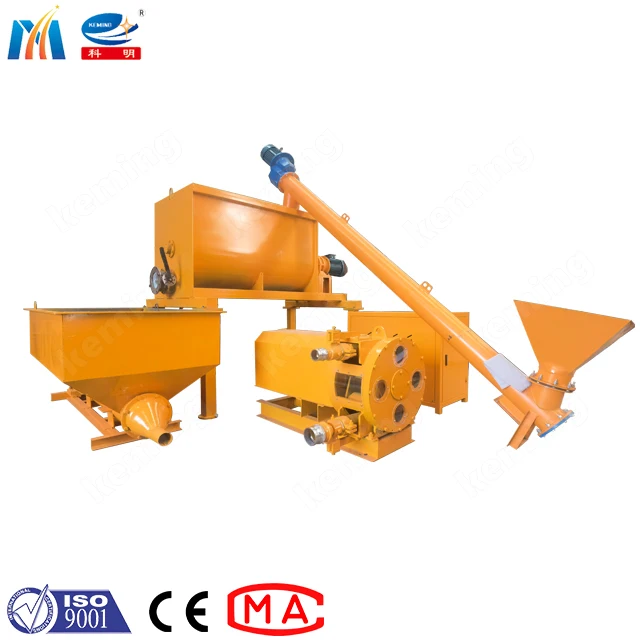

Machine Details:

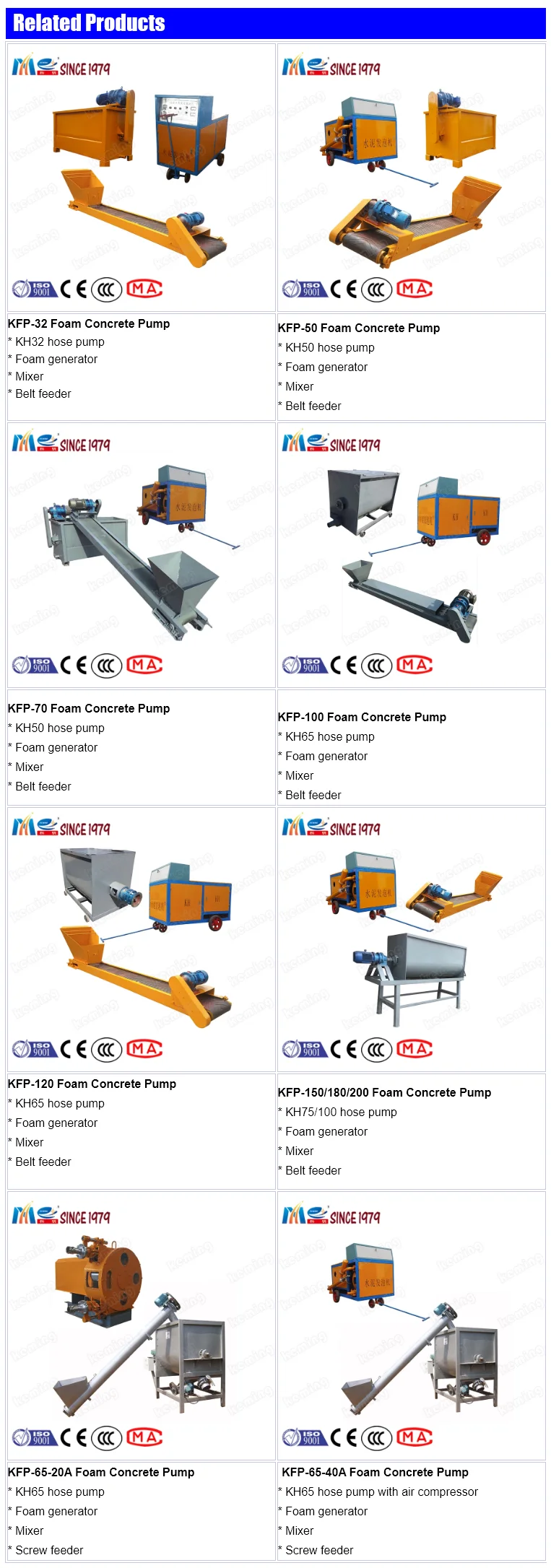

Related Products-F
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements:
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.

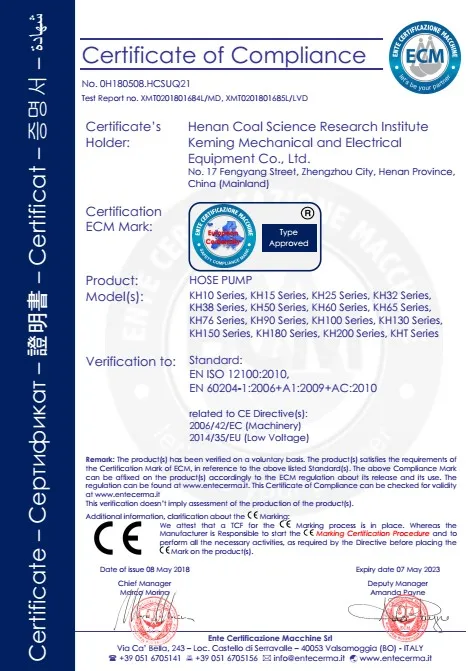

Certifications
FAQ
---Foam Concrete Pump. Cement Foaming Machine
1. Q: Which model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: cement, cement&sand, or other materials
- Capacity (-m3/h) :
- Max aggregate size (-mm) :
- Volume weight (-kg/m3) :
- Delivery distance (horizontally / vertically) :
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, some parts may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
