ZOOMLION Crawler Excavator ZE215E 10 With 1CBM Bucket Capacity
- Category: >>>
- Supplier: Cruking Engineering Equipment (xiamen) Co. Ltd.
Share on (1600972162947):
Product Overview
Description
ZOOMLION Crawler Excavator ZE215E-10 With 1CBM Bucket Capacity
Contact Way
Products Description
* Energy saving and high efficiency
Accurate electro mechanical-hydraulic integration control matching four work modes.
The flow of main pump can be automatically adjustable to realize the flow proportion control of actuators and reduce power loss of pump flow.
Boasting fuel consumption reduction and high operation efficiency, it also enjoys optimum performance.
* Reliable work equipment
Strengthened boom and stick, design service life is more than 12,000 hours.
Large-profile high-tensile structure, support adopts castings and forgings, bucket booth plate adopts high-tensile and wear-resistant steel.
* Stable performance
Equipped engine to ensure strong power output and less pollution. The newly designed hydraulic system makes the power of engine and main pump reach the optimal state.
* Robust and durable undercarriage
Heavy-duty undercarriage, design service life is more than 15000 hours. Carrier roller with track roller form, superior load bearing capacity.
* Convenient operation
Advanced valve control system, gentle cushioning device during operation, achieving more coordinated movements.
Long control levers, wholly new electronic control system and operating interface.
Accurate electro mechanical-hydraulic integration control matching four work modes.
The flow of main pump can be automatically adjustable to realize the flow proportion control of actuators and reduce power loss of pump flow.
Boasting fuel consumption reduction and high operation efficiency, it also enjoys optimum performance.
* Reliable work equipment
Strengthened boom and stick, design service life is more than 12,000 hours.
Large-profile high-tensile structure, support adopts castings and forgings, bucket booth plate adopts high-tensile and wear-resistant steel.
* Stable performance
Equipped engine to ensure strong power output and less pollution. The newly designed hydraulic system makes the power of engine and main pump reach the optimal state.
* Robust and durable undercarriage
Heavy-duty undercarriage, design service life is more than 15000 hours. Carrier roller with track roller form, superior load bearing capacity.
* Convenient operation
Advanced valve control system, gentle cushioning device during operation, achieving more coordinated movements.
Long control levers, wholly new electronic control system and operating interface.
Product Paramenters
Items | Units | ZE215E | ZE215E ACE | ||
Basic Technical Data | Operating Weight | kg | 21500 | 21680 | |
Standard Capacity | m³ | 1.0 | 1.0 | ||
Slewing Speed | r/min | 11.5 | 11.5 | ||
Traveling Speed(high/low) | km/h | 5.5/3.3 | 5.5/3.3 | ||
Max. Drawbar Pull | kN | 192 | 192 | ||
Digging Force of Bucket | kN | 157 | 157 | ||
Digging Force of Stick | kN | 110 | 110 | ||
Engine | Engine Manufacturer | / | ISUZU | ||
Engine Model | / | 6BTAA5.9 | CC-6BG1TRP | ||
Rated Power | kW/rpm | 112/1950 | 128.5/2100 | ||
Displacement | L | 5.9 | 6.49 | ||
Emission Standard | / | EU Stage II | EU Stage II | ||
Dimensions | Length | mm | 9555 | 9555 | |
Width | mm | 2800 | 2800 | ||
Height | mm | 3085 | 3085 | ||
Tail Slewing Radius | mm | 2840 | 2840 | ||
Track Gauge | mm | 2200 | 2200 | ||
Length of Track On Ground | mm | 3380 | 3380 | ||
Operating Range | Max. Digging Radius | mm | 9830 | 9830 | |
Max. Digging Reach | mm | 9650 | 9650 | ||
Max. Digging Depth | mm | 6610 | 6610 | ||
Max. Digging Height | mm | 9615 | 9615 | ||
Max. Dumping Height | mm | 6785 | 6785 | ||

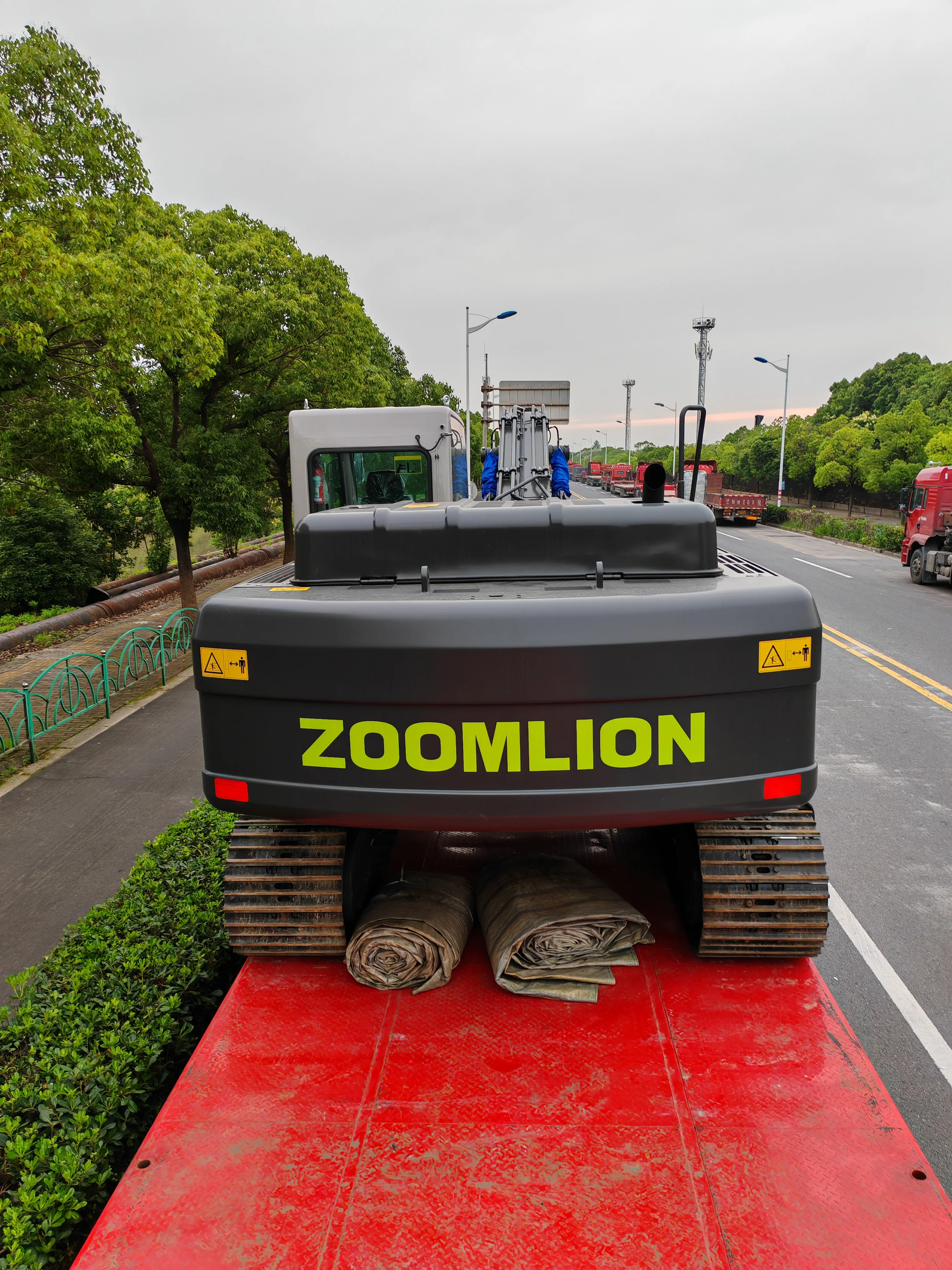

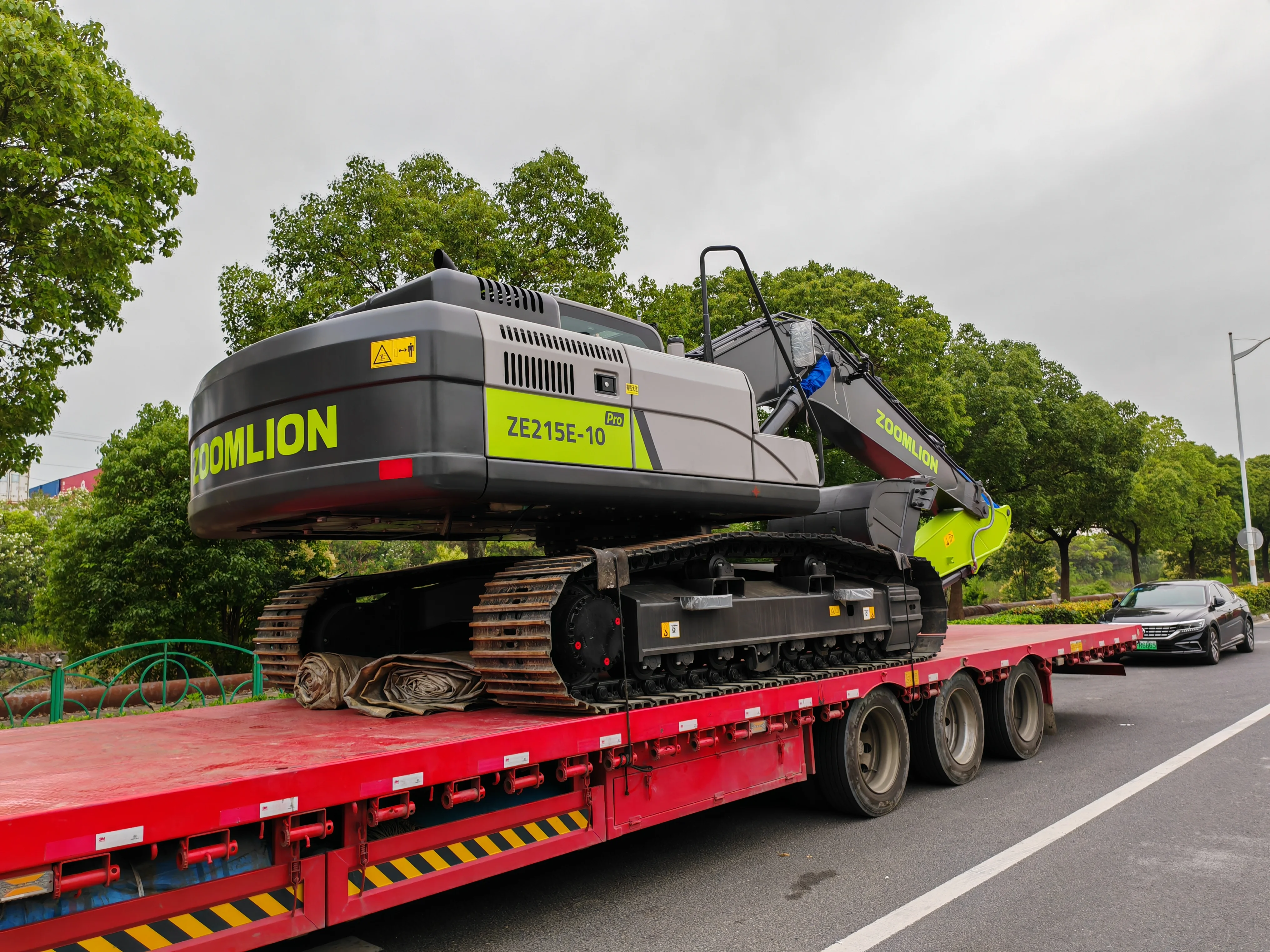

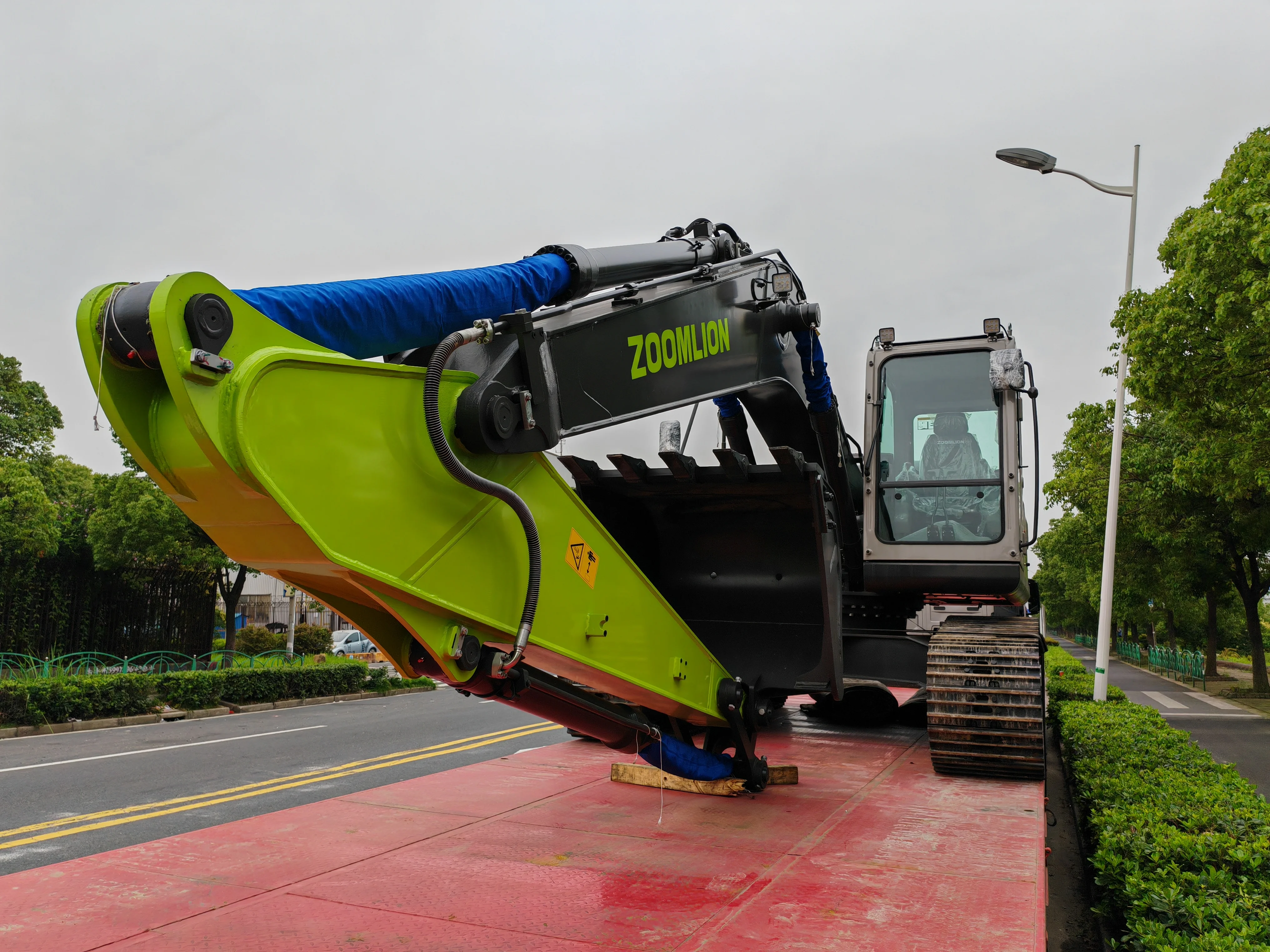

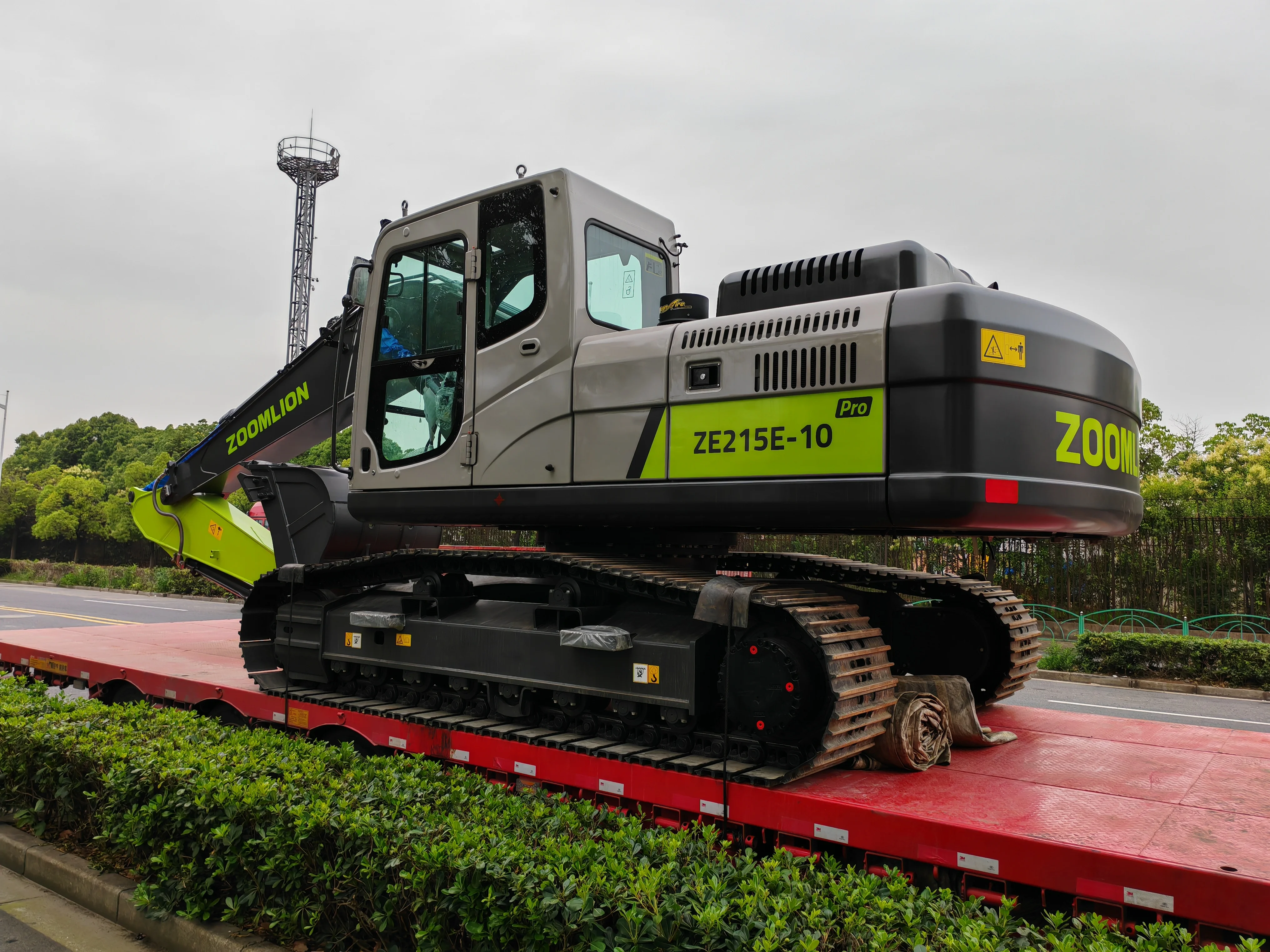

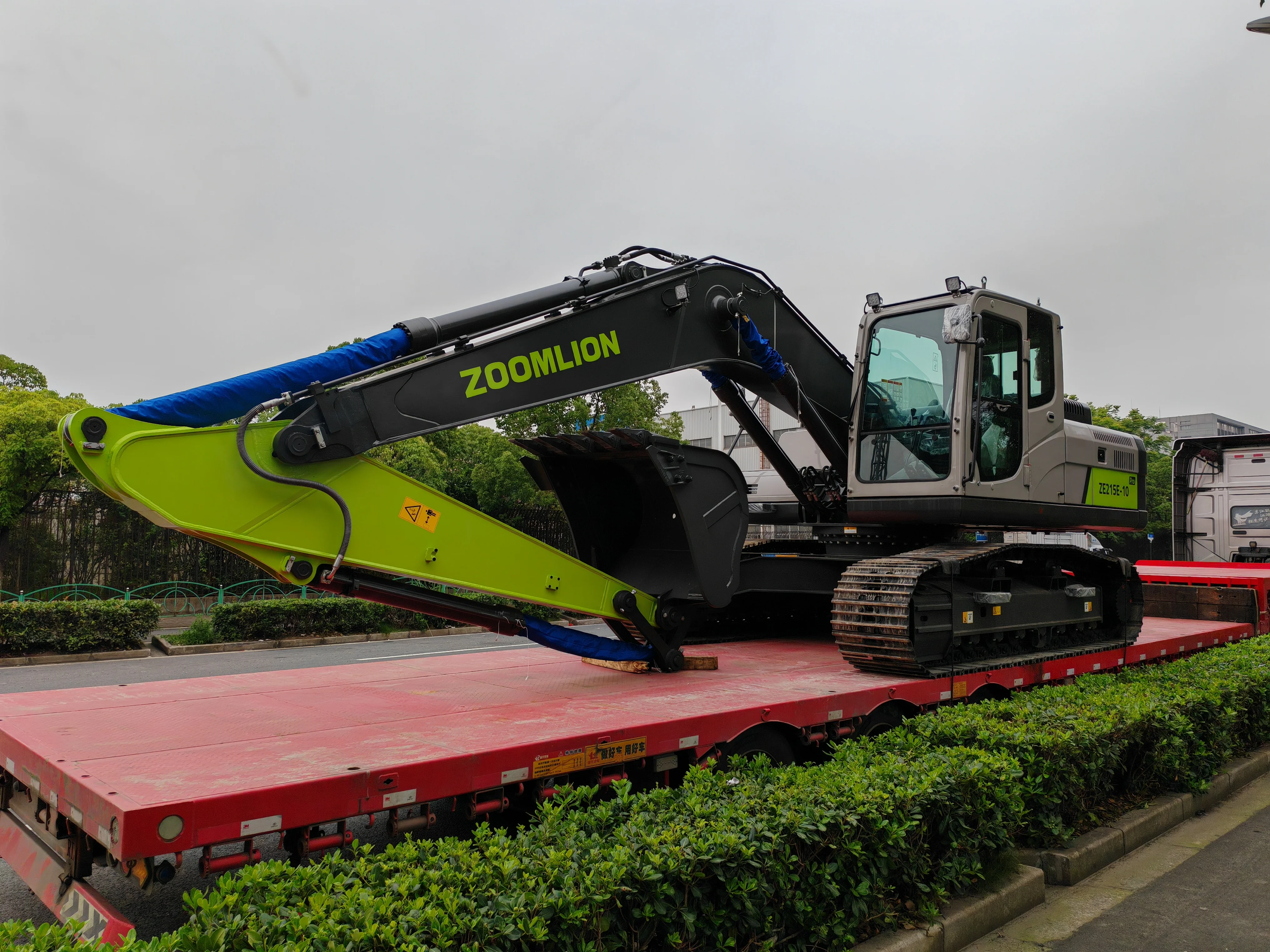

Details Images
