JNZ decking support risers adjustable decking supports roof deck pedestal system
- Category: >>>
- Supplier: Jiangxi Taurus Technology Co. Ltd.Jiangxi Ltd.
Share on (1600973142263):
Product Overview
Description
Product Description
We offer a fully adjustable pedestal that allows you to easily lift the floor without the need for support posts. Choose the suitable pedestal format and take into account its adjustable height, selected beam thickness and slab thickness to achieve the ideal laying height.
Product Name | Adjustable Plastic Pedestal Floor Pedestal | ||||||
Material | 98%polypropylene(PP), 2% additives,such as polyethylene(PE),ultraviolet light absorber(UV),black masterbatch etc | ||||||
Matching Accessories | Slope corrector, rubber pad. | ||||||
Application | Patio, roof garden, yard, balcony, ect. | ||||||
Accept OEM | Yes, we accecp OEM. | ||||||
Adjustment range: 19-70mm
Load-bearing range: 1100-1500kg
Load-bearing range: 1100-1500kg
Base diameter: 200mm
Head diameter: 150mm
Adjustment range: 75-1360mm
Load-bearing range: 1200-2500kg
Base diameter: 200mm
Head diameter: 150mm
Head diameter: 150mm
Adjustment range: 90-260mm
Load-bearing range: 1500-2000kg
Base diameter: 200mm
Head diameter: 150mm
Base diameter: 200mm
Head diameter: 150mm
Feature:
Protection: They protect the underlying structure, ensuring the deck's durability and preventing wear and tear.
Drainage: They promote efficient water drainage, reducing the risk of water damage and prolonging the life of the decking.
Air Circulation: They facilitate air circulation beneath the deck, preventing moisture buildup and promoting a healthier deck environment.
Air Circulation: They facilitate air circulation beneath the deck, preventing moisture buildup and promoting a healthier deck environment.
Available styles of joist cradle:
Suitable for 40mm width joist
Use with TA-U pedestal
Suitable for 60mm width joist
Use with TA-U pedestal
Suitable for 30mm-100mm width joist
Use with TA-U pedestal
Suitable for 50-70mm or 60-80mm width joist
Use with TA-U pedestal
Suitable for 50-70mm width joist
Use with TA-R, TA-NR, TA-A, TA-T pedestal
Suitable for 40mm width joist
Use with TA-R, TA-NR, TA-A, TA-T pedestal
Compared with traditional crafts
traditional crafts
---The construction time is long and it is easy to form slight height differences.
---Brickwork is fixed and susceptible to weather effects
---Material is bulky
---Difficult for later maintenance
---Easily damage water quality and environment
adjustable decking pedestal
---The construction and installation is simple, takes a short time, and is easy to adjust the height difference.
---Low cost and not affected by weather
---Material is lightweight
---Easy to inspect, clean and maintain
---Not easy to damage the water quality environment
Works with wood joists, composite joists, aluminum joists and more
Available accessories of pedestals:
Slope Corrector
It supports 0%-5% slope adjustment. By using it, slightly sloping ground can be adjusted to a flat surface.
Rubber Pad
Made of rubber, it has anti-slip, shock absorption and sound insulation functions, enhances support stability and protects ground materials.

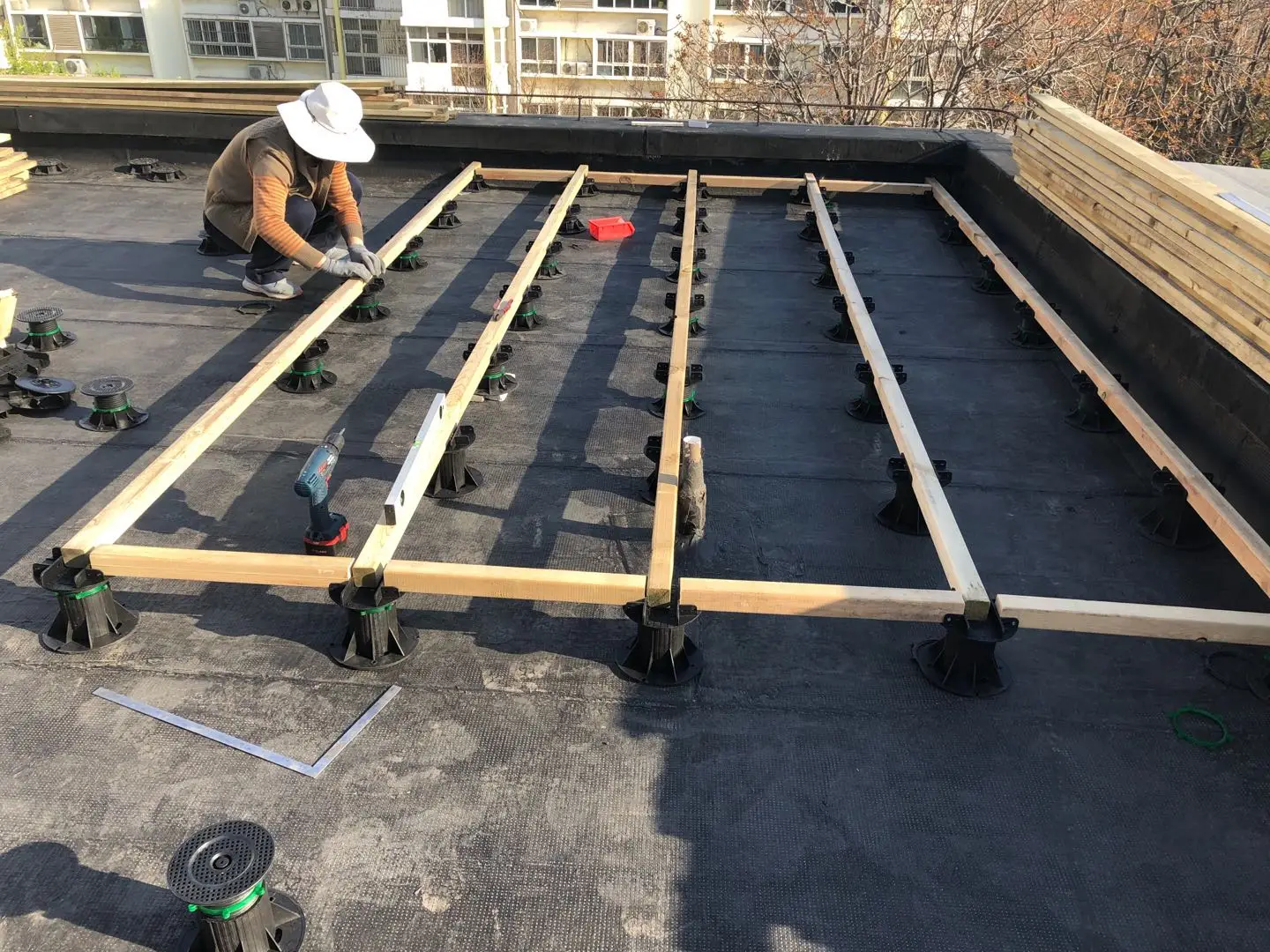

Installation

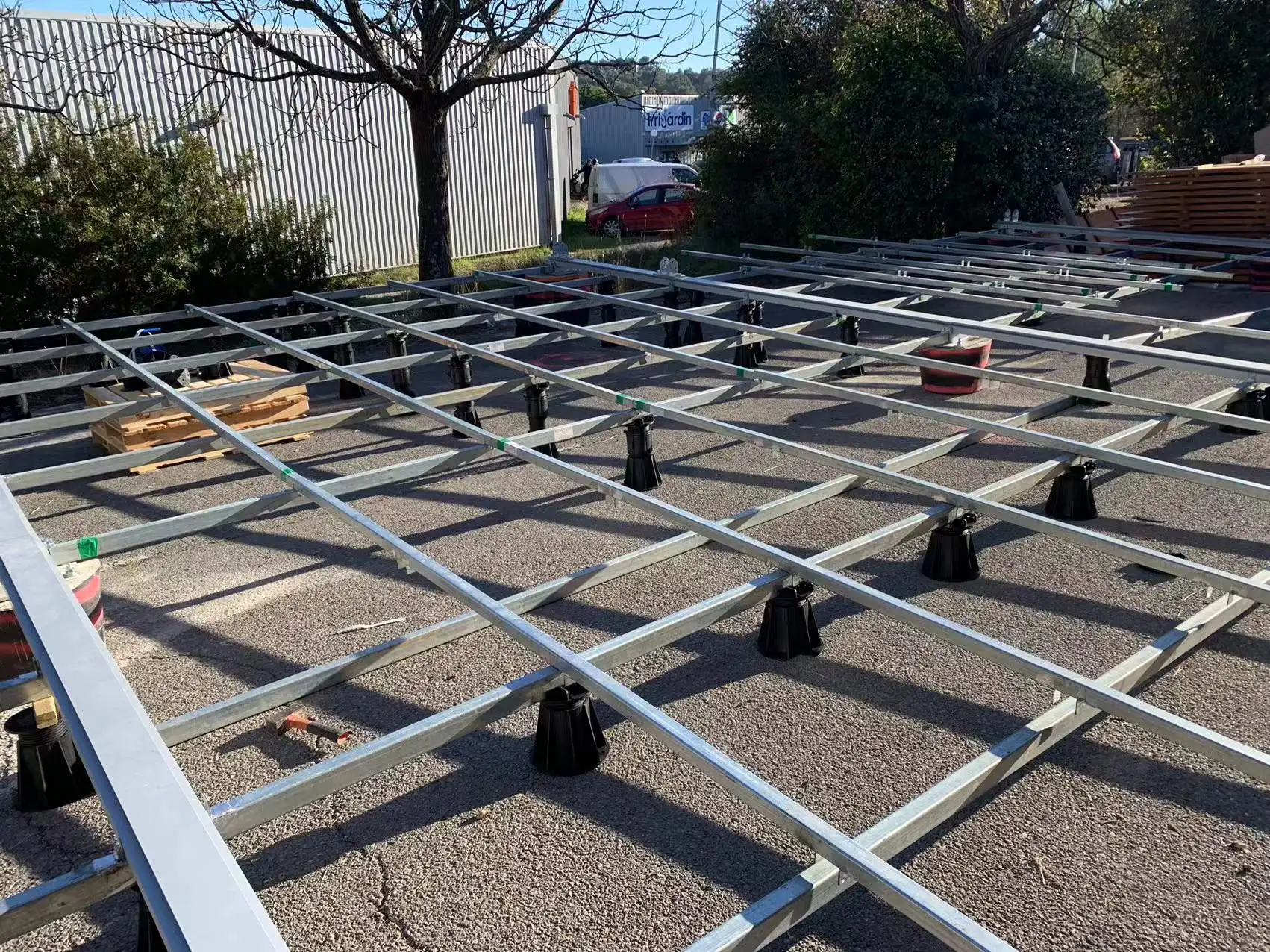

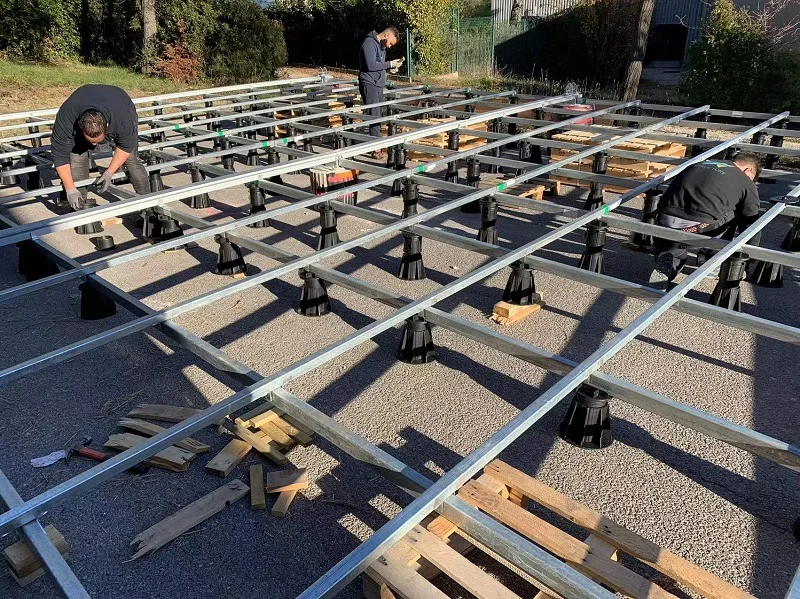

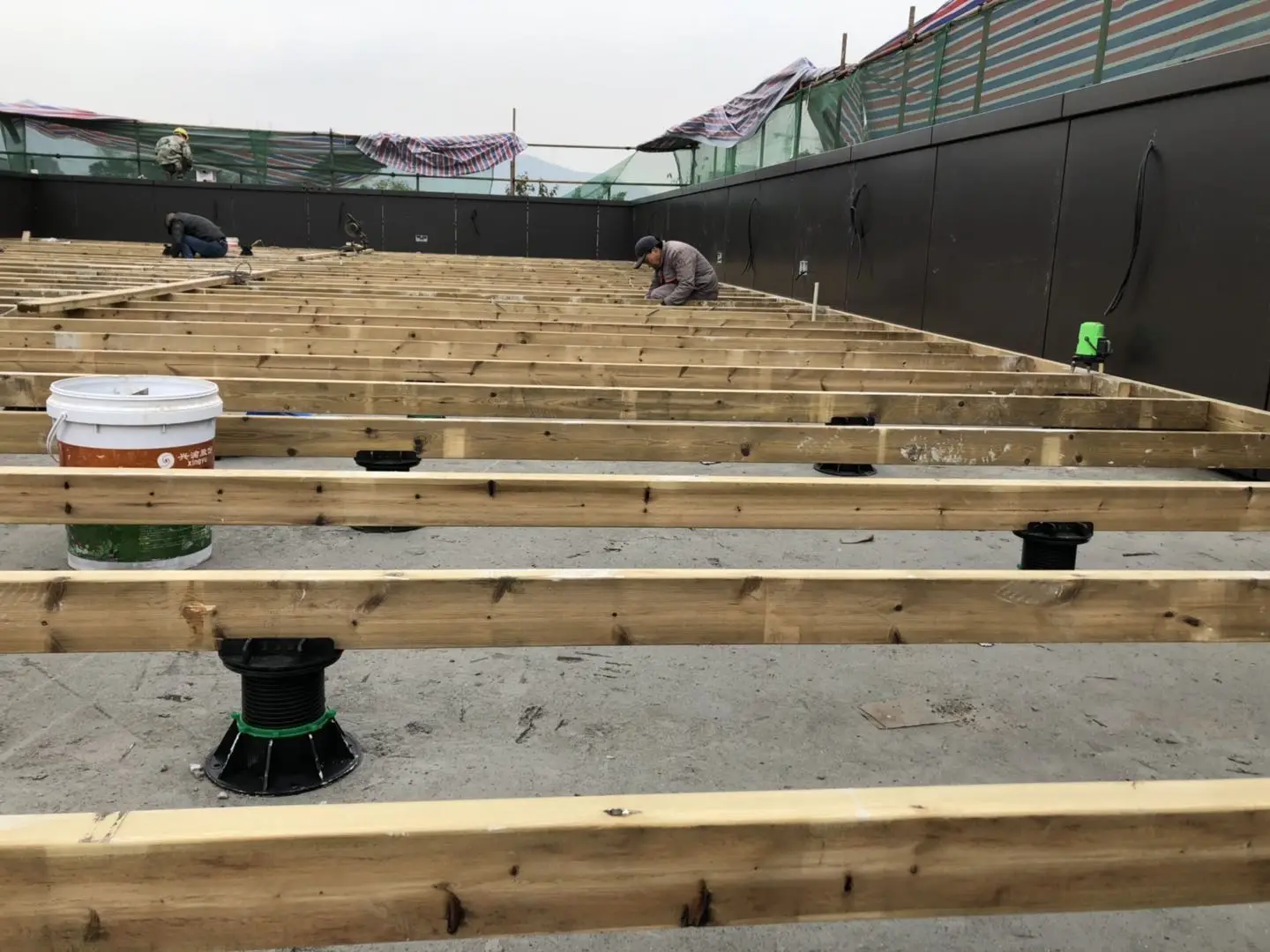

1. Create a grid layout by placing pedestals in a linear fashion at the edge of the paved area. The spacing of pedestals depends on the type of joist used (250-300 mm for wooden joists, 400-500 mm for metal joists).
2. Position joists on the pedestals, ensuring they are at right angles to the desired plank direction. Adjust joist height using pedestal bases and ensure joists are level.
3. Secure the joists to the pedestal's joist cradle.
4. Support butt joints with pedestals and use joist cradles for fixed connections between connecting joists, enhancing structural support.
5. Lay the deck onto the support frame, securing it to the joists with screws, row by row.
2. Position joists on the pedestals, ensuring they are at right angles to the desired plank direction. Adjust joist height using pedestal bases and ensure joists are level.
3. Secure the joists to the pedestal's joist cradle.
4. Support butt joints with pedestals and use joist cradles for fixed connections between connecting joists, enhancing structural support.
5. Lay the deck onto the support frame, securing it to the joists with screws, row by row.

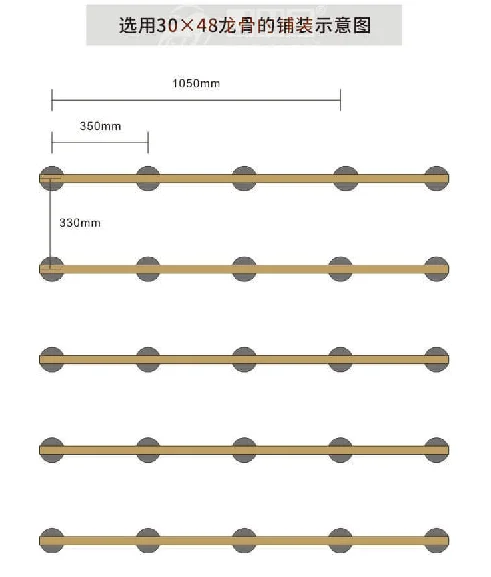

How do I calculate the number of decking pedestals needed?
Generally speaking, it is recommended to place wooden joists at a distance of about 35cm.
It is recommended that metal joists be placed at a distance of 40-50cm.
Related Products
Spacer Tabs
There are several thickness options available: 2, 3, 4, 5, 8, and 10mm. The “lugs” height is 15mm.
Shim
Made from rubber, with a thickness of 1.5-2mm, it is primarily used for slip resistance

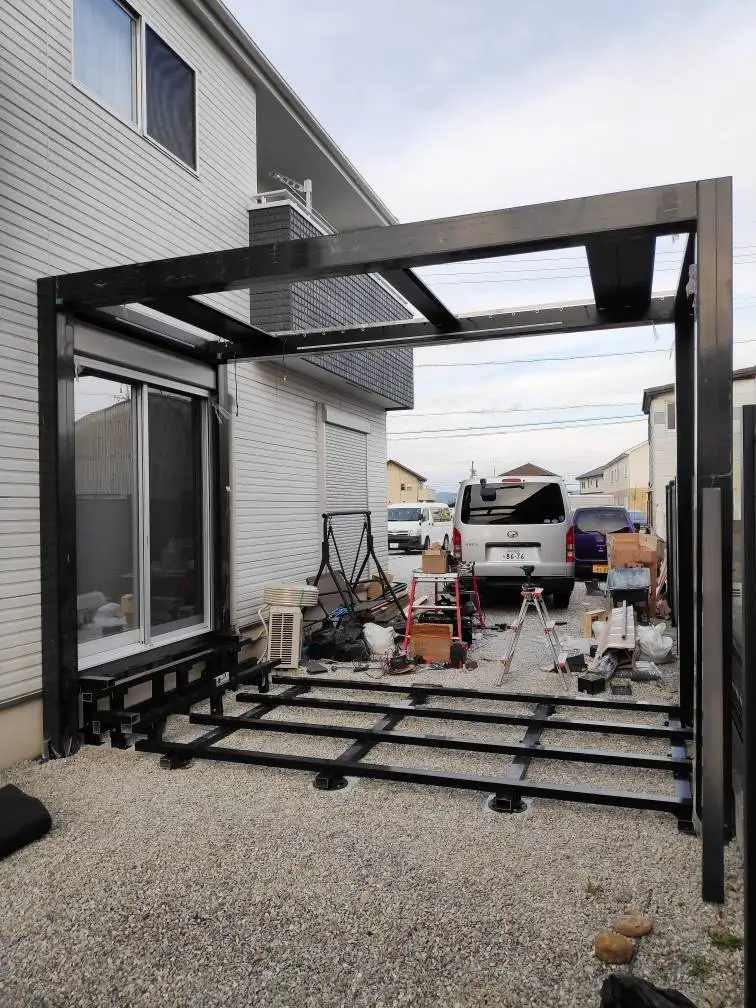

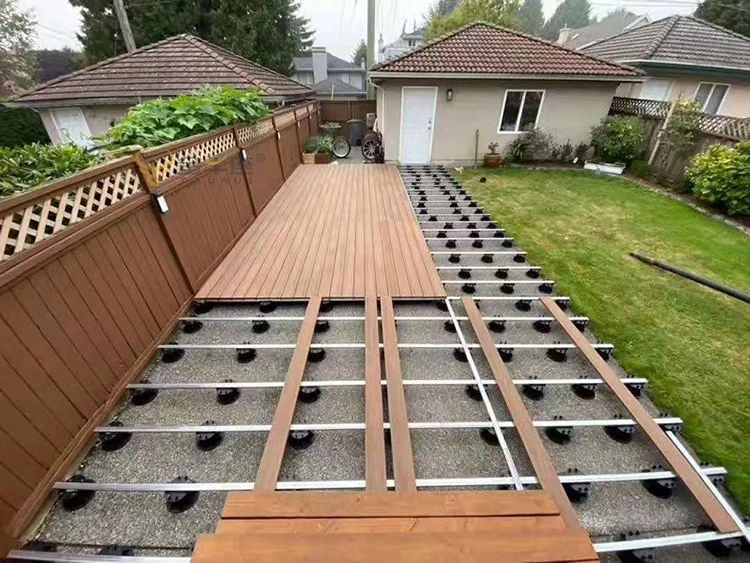

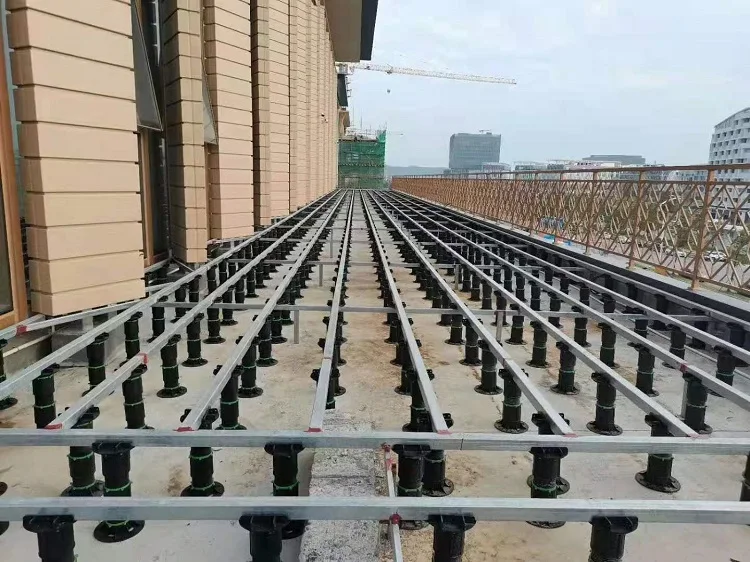

Project
They are suitable for yards, patios, terraces, corridors, and more, capable of leveling uneven floors, protecting terrace
surfaces, enhancing drainage and air circulation, and reducing the impact of water pooling to achieve a flat, stable, and
long-lasting result.
surfaces, enhancing drainage and air circulation, and reducing the impact of water pooling to achieve a flat, stable, and
long-lasting result.
Why Choose Us

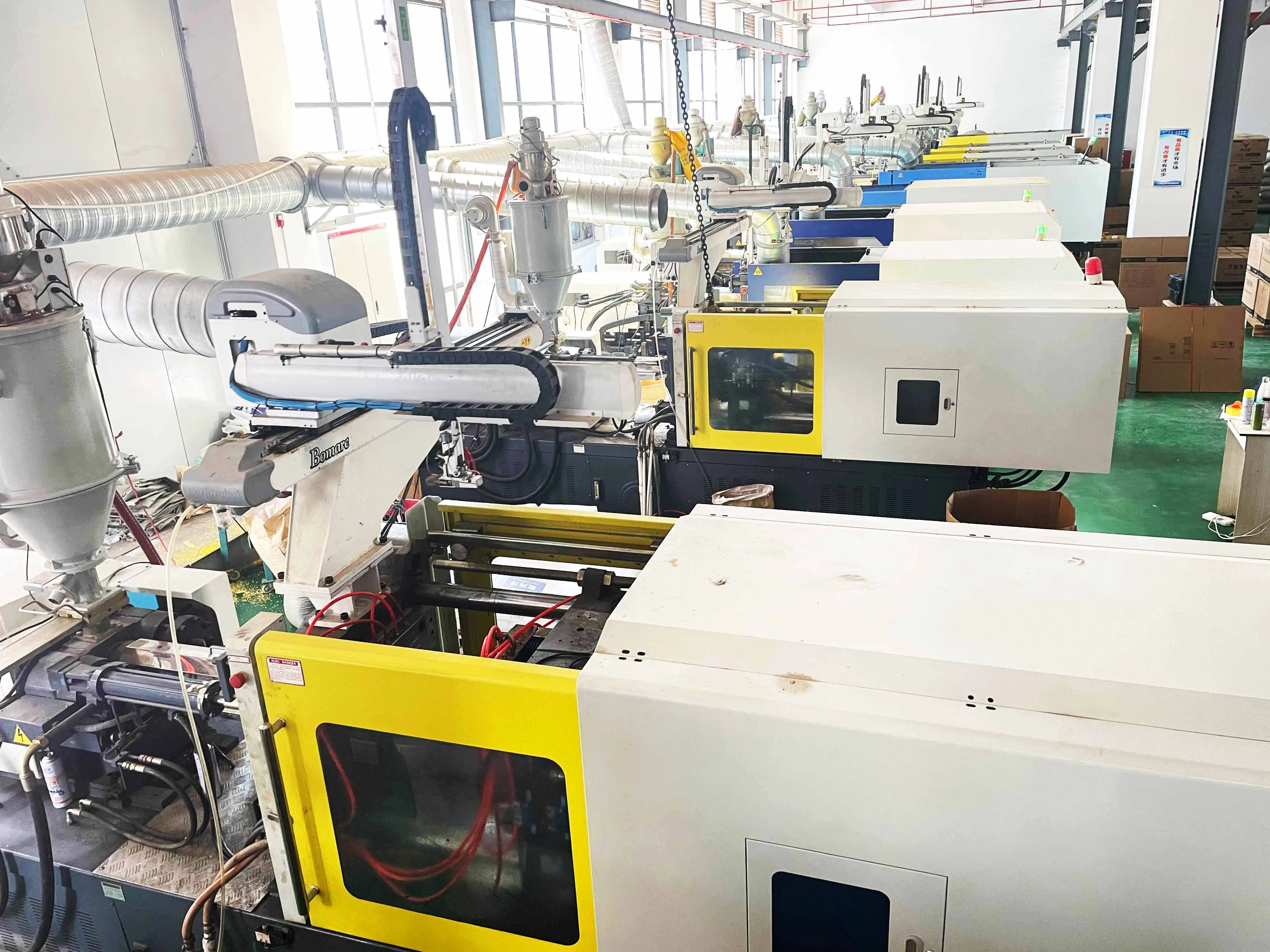

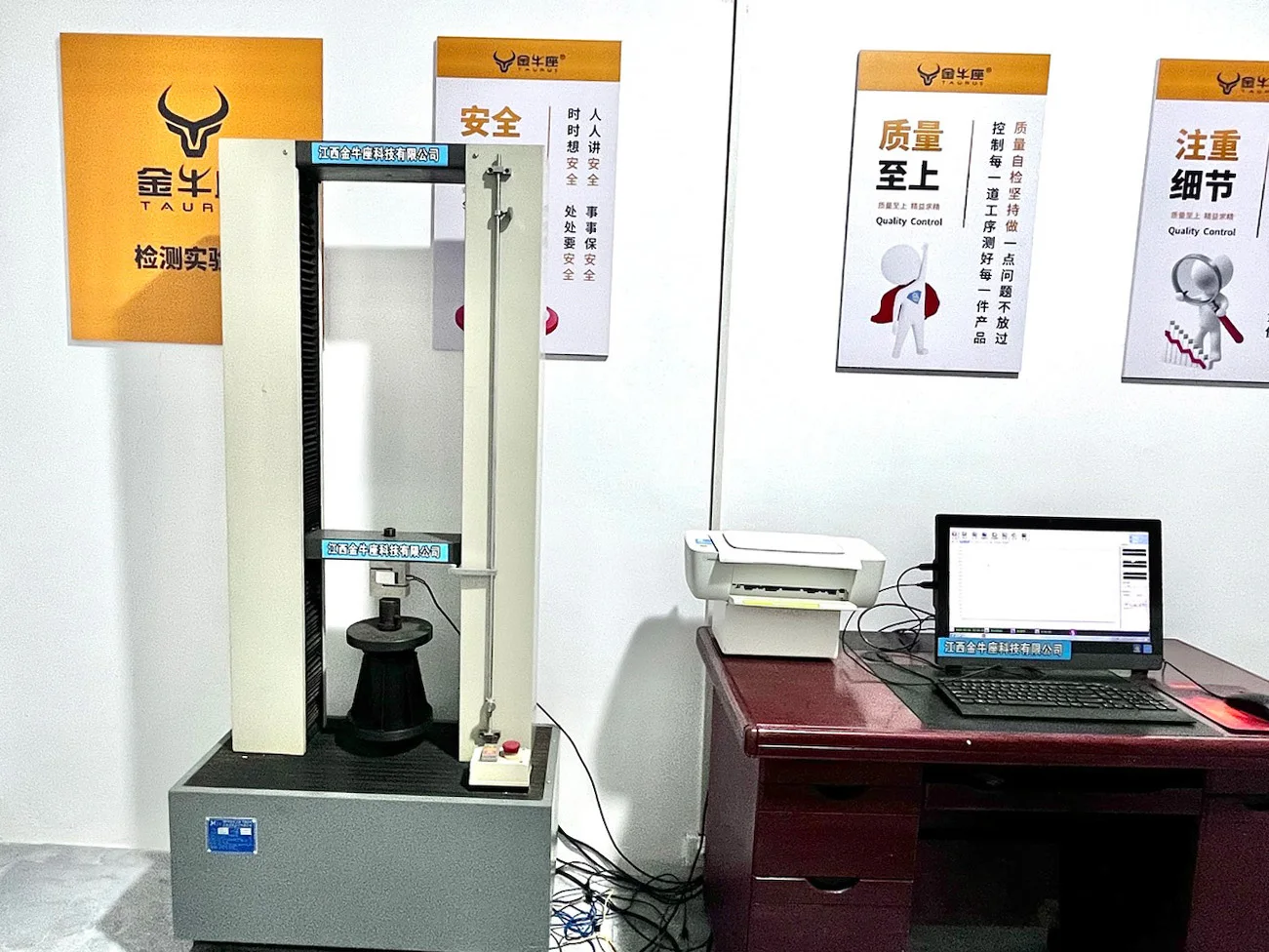

We have a factory of more than 15,000 square meters, more than 60 production machines, large-scale inventory, and professional load-bearing testing equipment to ensure high-quality products and the ability to ship quickly. Customer reviews confirm efficientservice.
We can arrange the shipment of goods as follows: 3-10 days for shipments less than 20GP, 15-20 days for 20GP shipments, and 20-30 days for 40GP shipments.
We are committed to the development and expansion of the global market. We have participated in many large-scale exhibitions overseas, such as Japan and Italy. We will continue to participate in more exhibitions in the future to let overseas countries know us and trust us.
