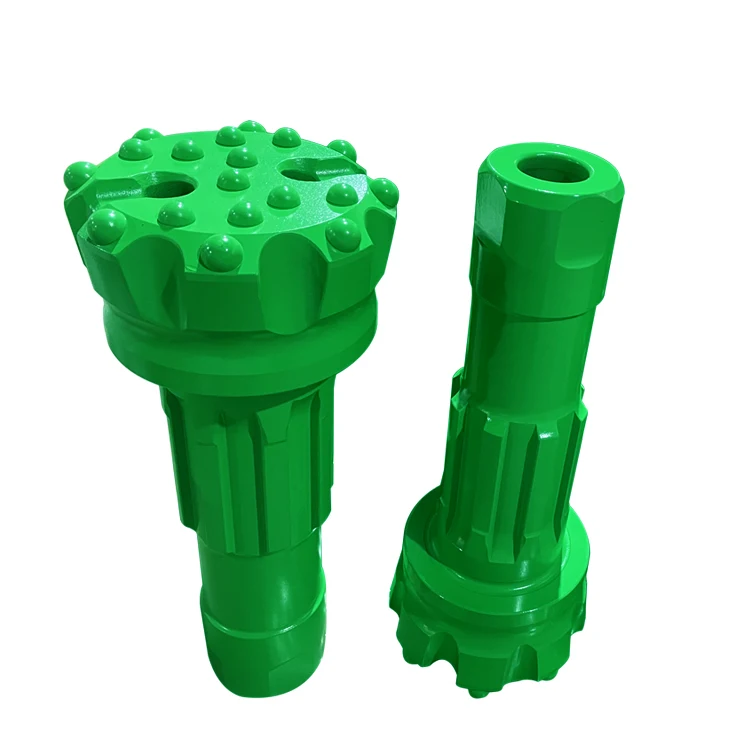

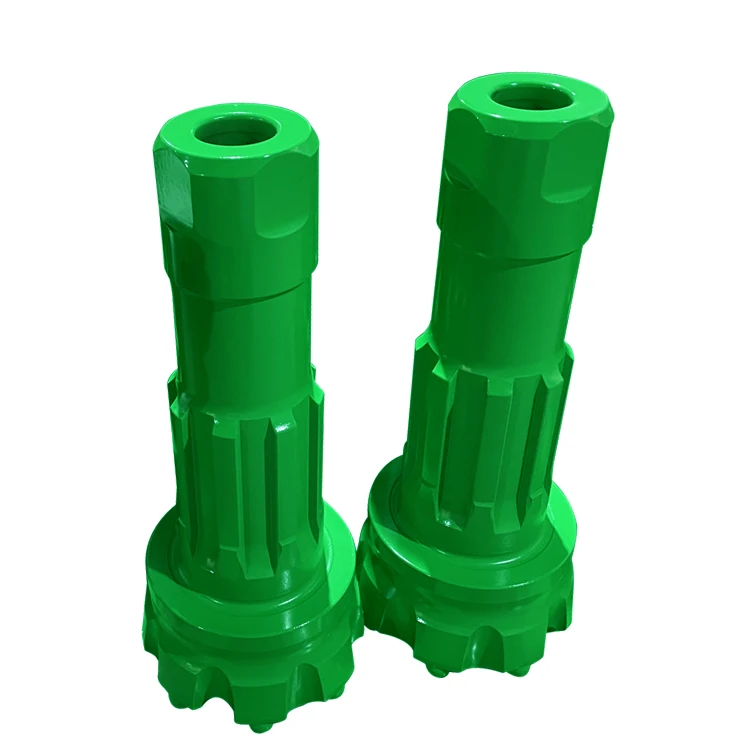

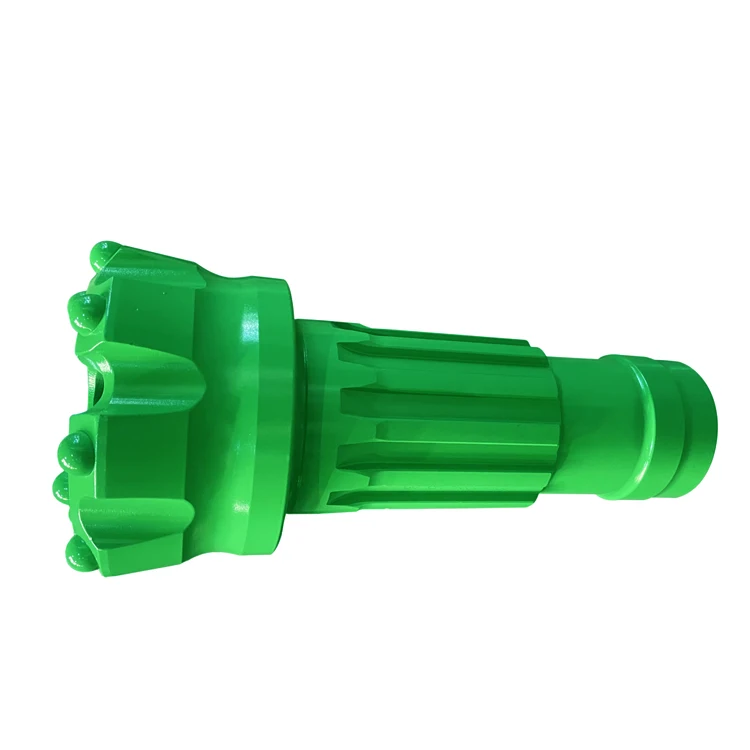

QL60 165 High Air Pressure Mining Rock Drill DTH Hammers Bits for Tunneling
- Category: >>>
- Supplier: Ksq Technologies (beijing) Co. Ltd.
Share on (1600976992035):
Product Overview
Description
Specification

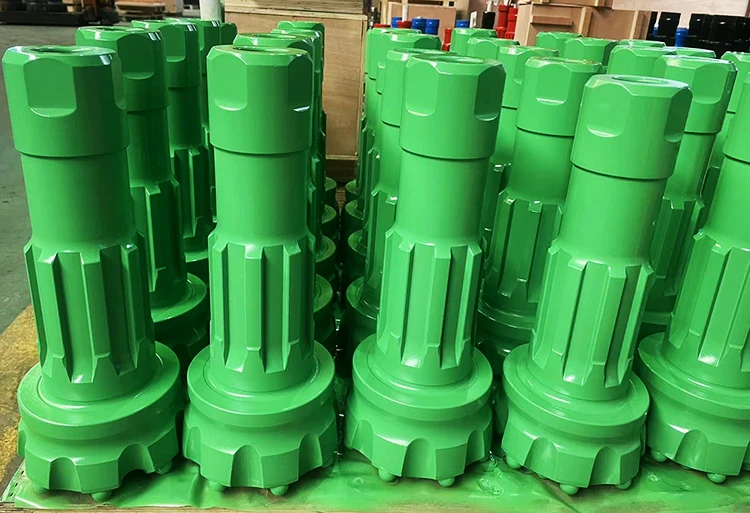

Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
Color: Green,Blue or Based on Customer requirements
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
Color: Green,Blue or Based on Customer requirements

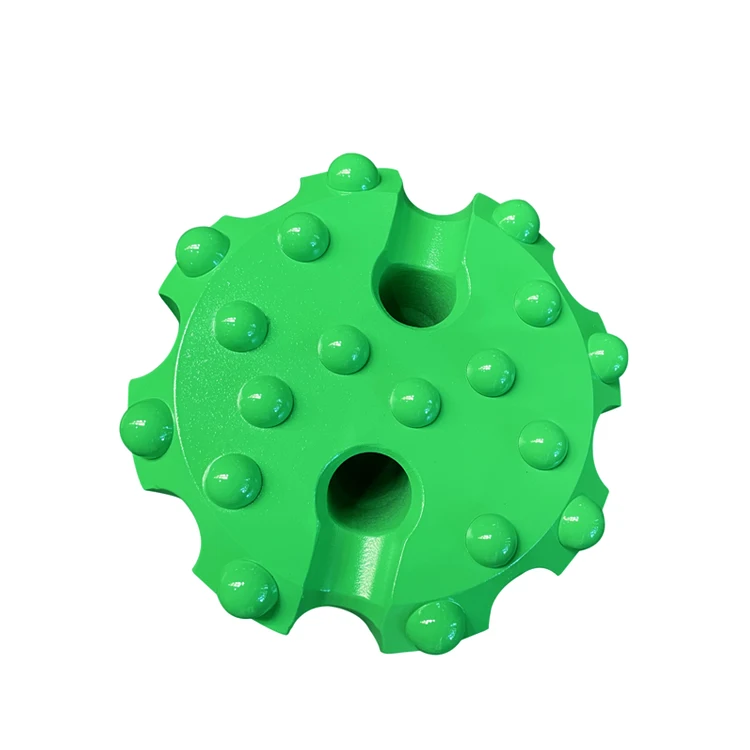

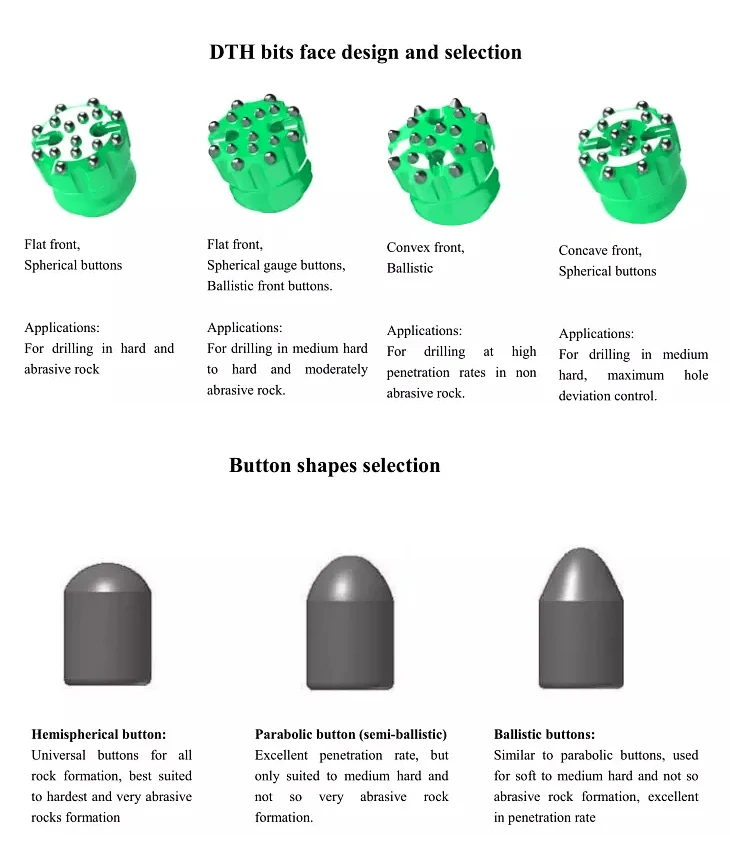

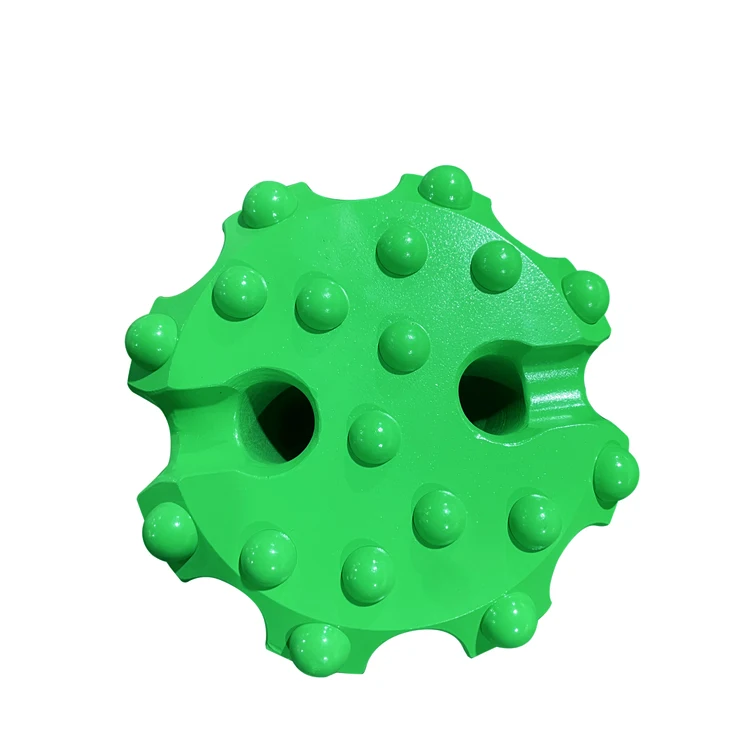

dth rock drill bits have four kinds of button type.
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground
Application Range
It is suitable for drilling water wells, geothermal wells, short micropiles, medium mini-type grouting hole of building, damand harbour project.
Product Code and Brief Description | Flushing Holes | Diameter (mm) | Weight (kg) | Gauge Buttons ( No.x mm) | Front Buttons ( No. x mm) | DTH Hammer |
DTH65PQ | 1 | 68 - 72 | 1.5 | 4 x12 | 3 x 12 | DTH65 |
DTH75PQ | 3 | 75 - 77 | 2.4 | 5 x 12 | 3 x 12 | DTH70 |
DTH76PQ | 2 | 76 - 78 | 2.5 | 5 x 12 | 3 x 12 | DTH76 |
DTH76-78 | 2 | 78 - 82 | 2.6 | 5 x 12 | 3 x 12 | DTH76 |
DTH80PQ | 3 | 82 - 84 | 3 | 5 x 12 | 6 x 12 | DTH80, DTH80X |
DTH90A | 3 | 90 - 95 | 3.6 | 6 x 14 | 4 x 12 | DTH80, DTH80X |
DTH80XD-90 | 3 | 90 - 95 | 3.4 | 6 x 12 | 4 x 12 | DTH80XD |
DTH80-II-80 | 3 | 80 - 82 | 3 | 5 x 12 | 4 x 12 | DTH80-II |
DTH90B | 3 | 90 - 95 | 3.8 | 6 x 14 | 4 x 12 | DTH90, DTH90-I |
DTH90T1 | 2 | 90 - 95 | 3.6 | 6 x 14 | 1x12,3x12 (Spherical) | DTH90, DTH90-I |
DTH90T2 | 2 | 90 - 95 | 3.8 | 6 x 14 (Spherical) | 4 x 12 (Spherical) | DTH90, DTH90-I |
DTH90T3J | 3 | 90 - 95 | 3.6 | 6 x 14 (Ballistic) | 4 x 12 (Ballistic) | DTH90, DTH90-I |
About-Us

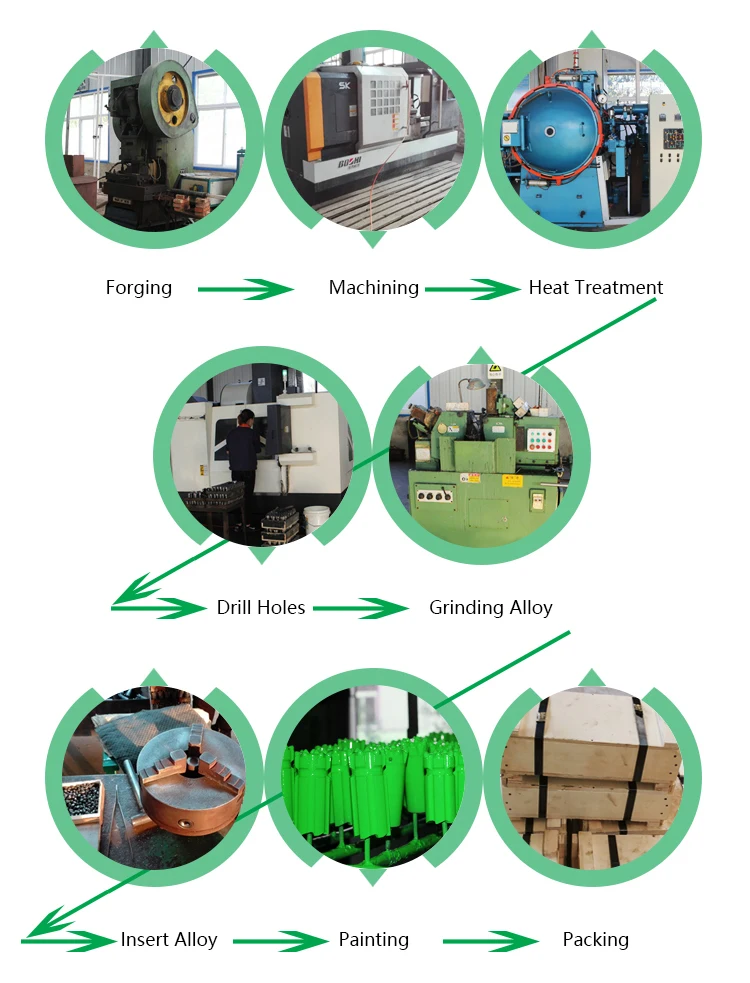

Manufacturing proces

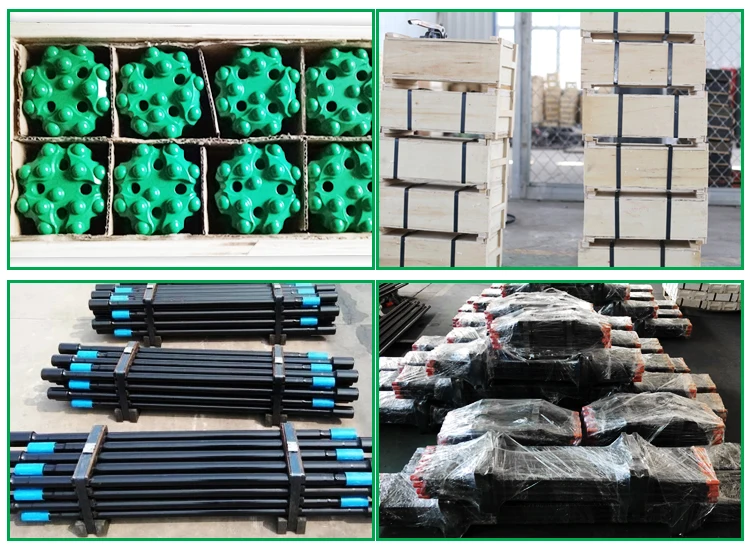

Packaging

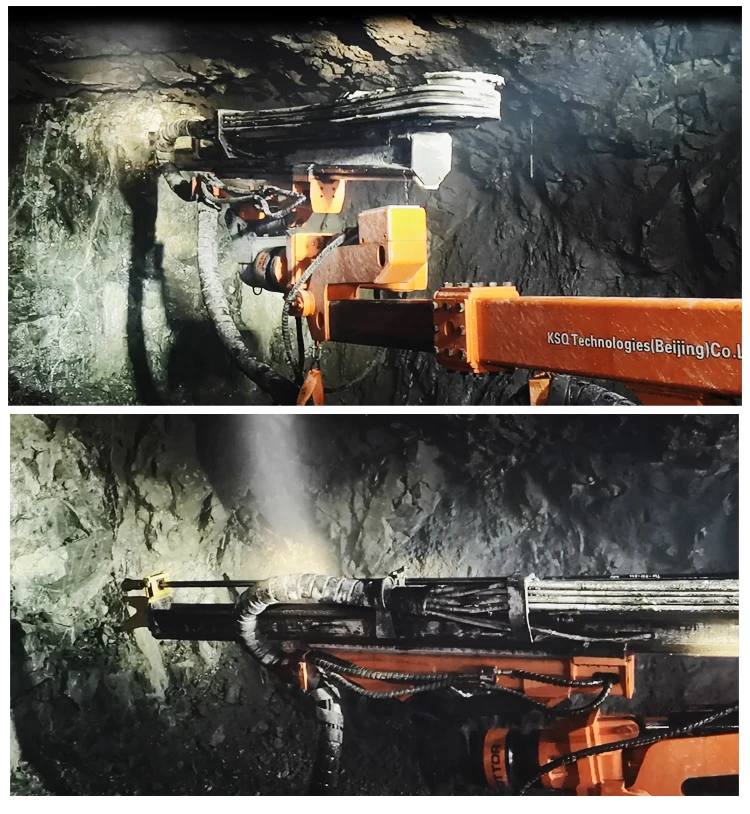

Applications

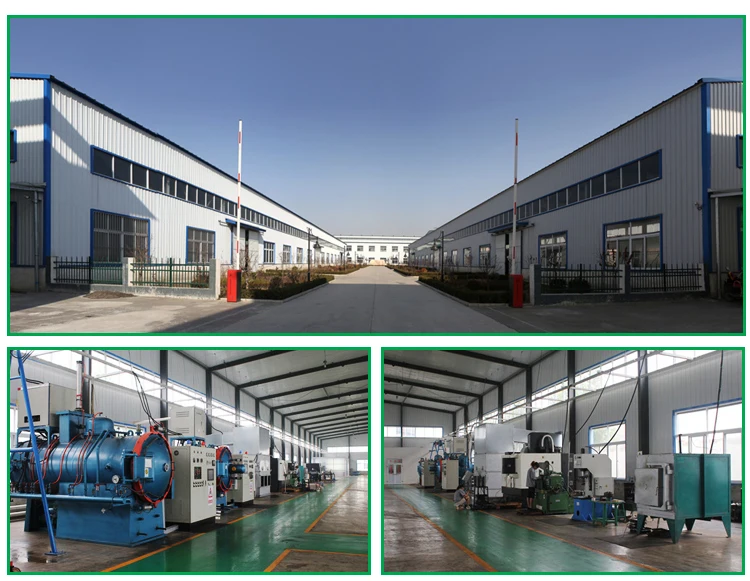

Factory
