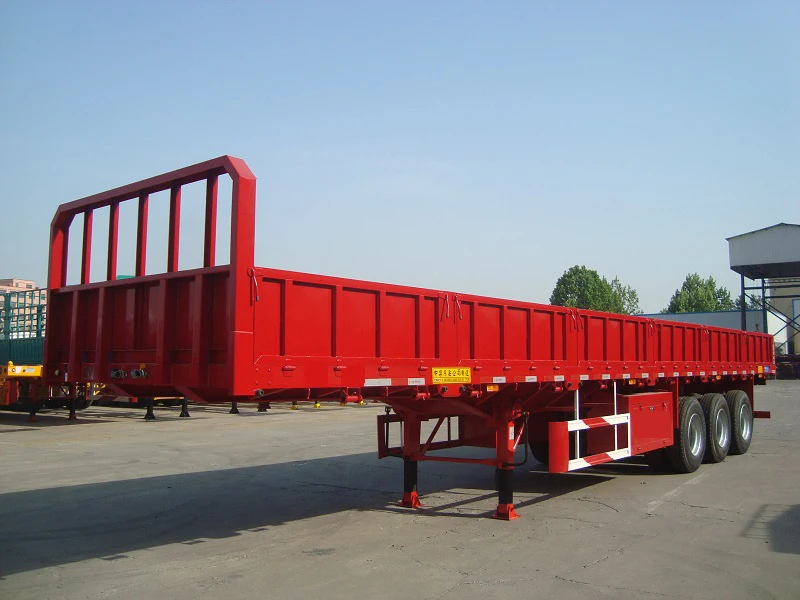

Vehicle Master Three Axles Side Wall Trailer Stake Fence Cargo Semi Trailer Semi Truck Trailer
- Category: >>>
- Supplier: Shandong Haoyue Vehicle Co. Ltd.
Share on (1600977610124):
Product Overview
Description

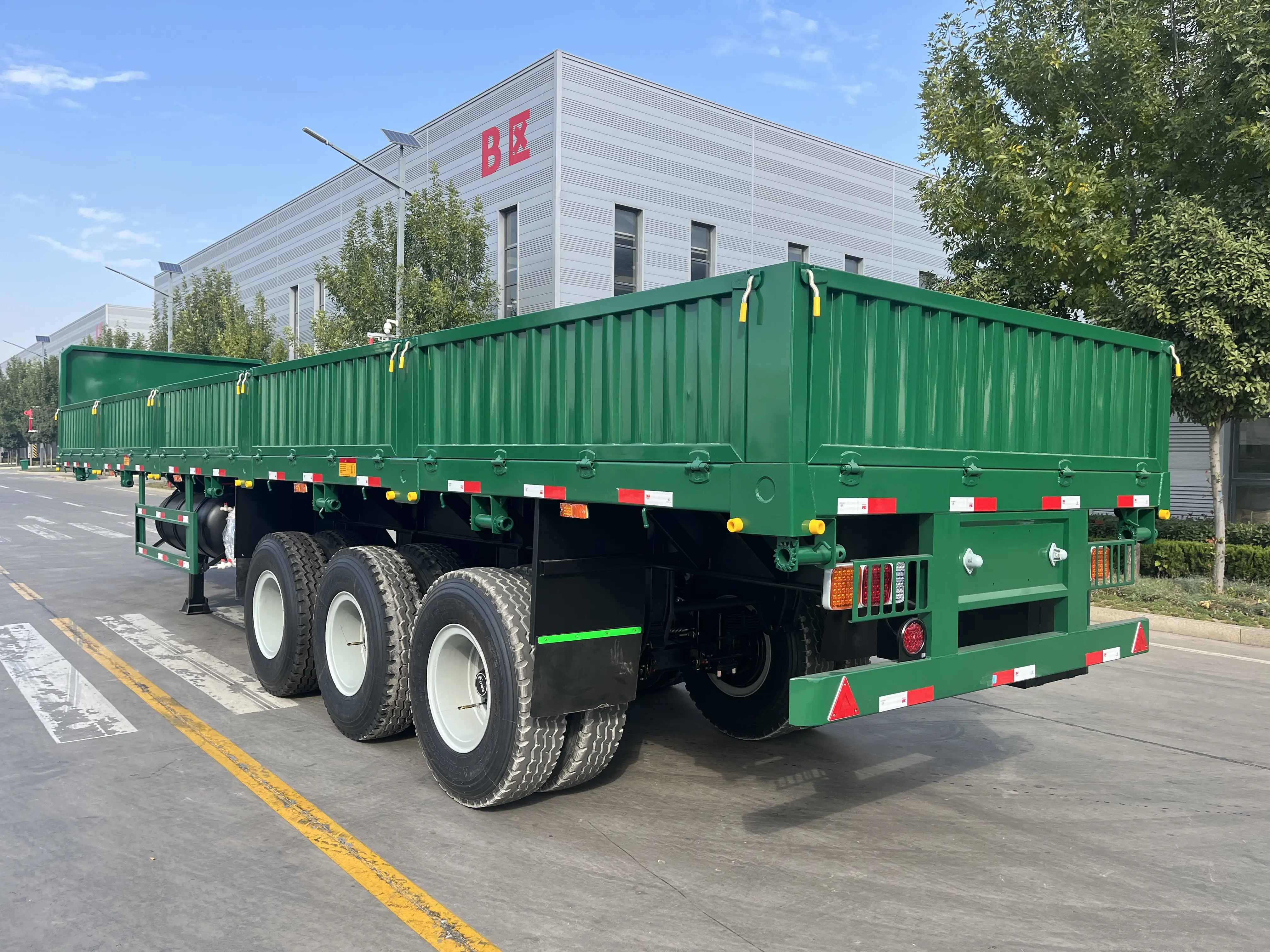

Product picture

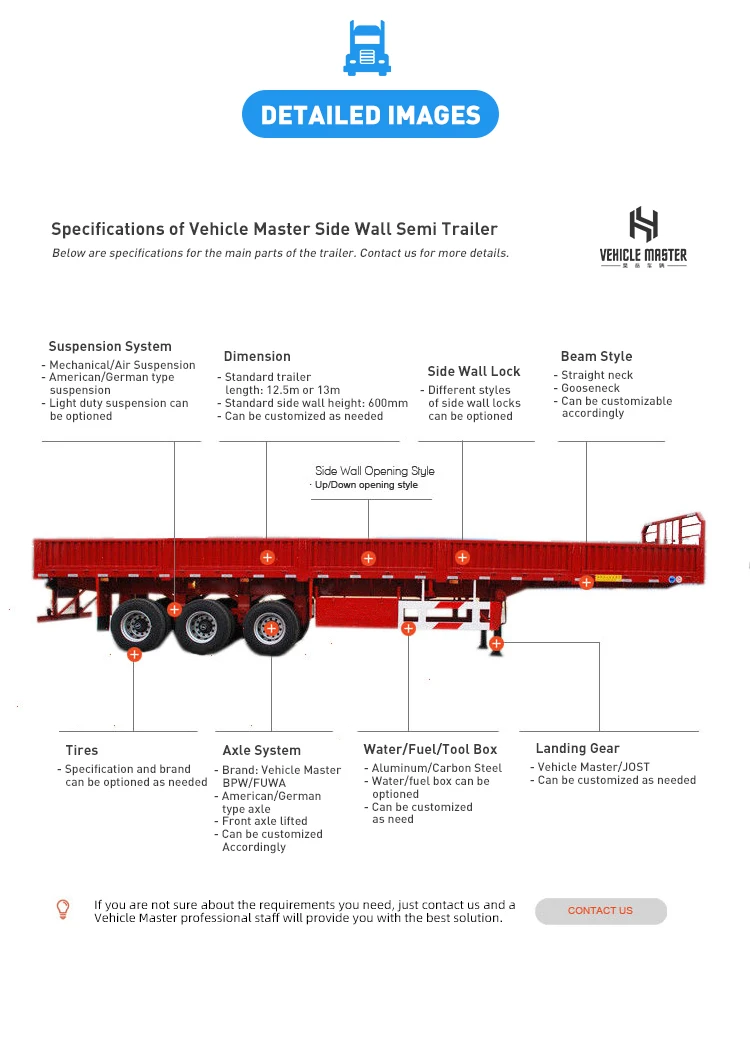

Detailed Images
Specifications
2 Axles | 3 Axles | 4 Axles | ||
Brand: Vehicle Master | Brand: Vehicle Master | Brand: Vehicle Master | ||
Loading Capacity: 30-60T | Loading Capacity: 30-80T | Loading Capacity: 40-100T | ||
Gooseneck Type: Optional | Gooseneck Type: Optional | Gooseneck Type: Optional | ||
Main Beam | ||||
Material: Q345/T700 | Main Beam Material: Q345/T700 | Main Beam Material: Q345/T700 | ||
Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 18mm | ||
Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 12mm | ||
Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 20mm | ||
Main Beam Height: 500mm | Main Beam Height: 500mm | Main Beam Height: 500mm | ||
Product Size | ||||
L*W: 13000mm*2550mm | L*W: 13000mm*2550mm | L*W: 13000mm*2550mm | ||
Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm | ||
Axle | ||||
2 Axles *13 Ton VEHICLE MASTER/FUWA/BPW/Other | 3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 4 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | ||
Tire | ||||
12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand | 12R22.5 (12 Pieces) Linglong/Triangle/Double Coin/ Bridgestone/Other Brand | 12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/ Bridgestone/Other Brand | ||
Rim | ||||
9.00*22.5 (8 Pieces) Steel/Aluminum | 9.0*22.5 (12 Pieces) Steel/Aluminum | 9.00*22.5 (16 Pieces) Steel/Aluminum | ||
Leaf Spring | ||||
90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | ||
King Pin | ||||
#50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand | ||
Landing Gear | ||||
28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | ||
Vehicle Painting | ||||
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting | ||

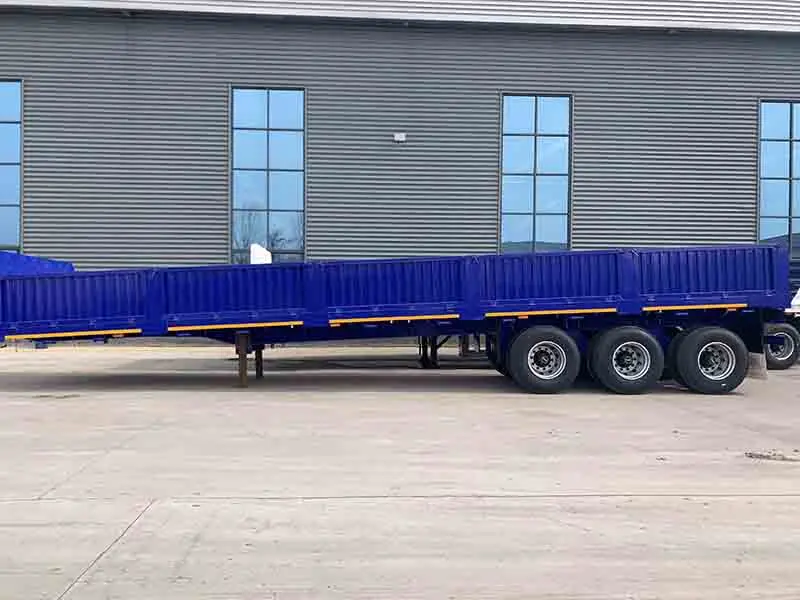

Product Details
After-sales service and warranty
Company Introduction
Vehicle Master
Since 1980s Brand VEHICLE MASTER was created, Whole Staff Begin to Think of truck trailer transportation, Through Almost 40 Years R&D, production and practice, Finally become famous Manufacturer and supplier of truck trailer. Vehicles Production Base over 40years of development and accumulation. The leading products including Container semi trailer, low bed semi trailer, fuel tank semi trailer, side wall semi trailer, cargo semi trailer, fence semi trailer, box semi trailer, tipper semi trailer, car carrier semi trailer and all types special purpose semi trailer. Sinotruk Shacman CC brands truck tractor, dump truck other truck series together with all spare parts, such as axles, landing gear, springs, suspension, etc.

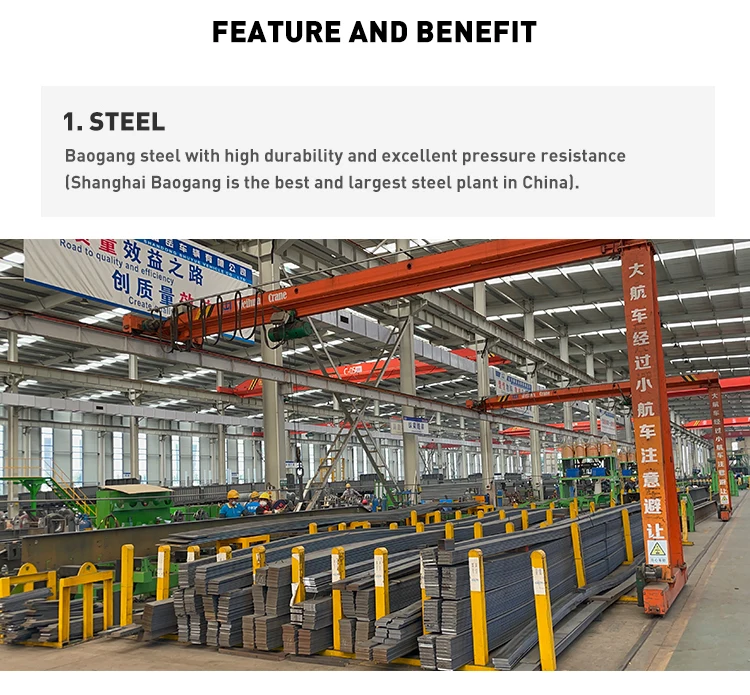

Feature and Benefit
