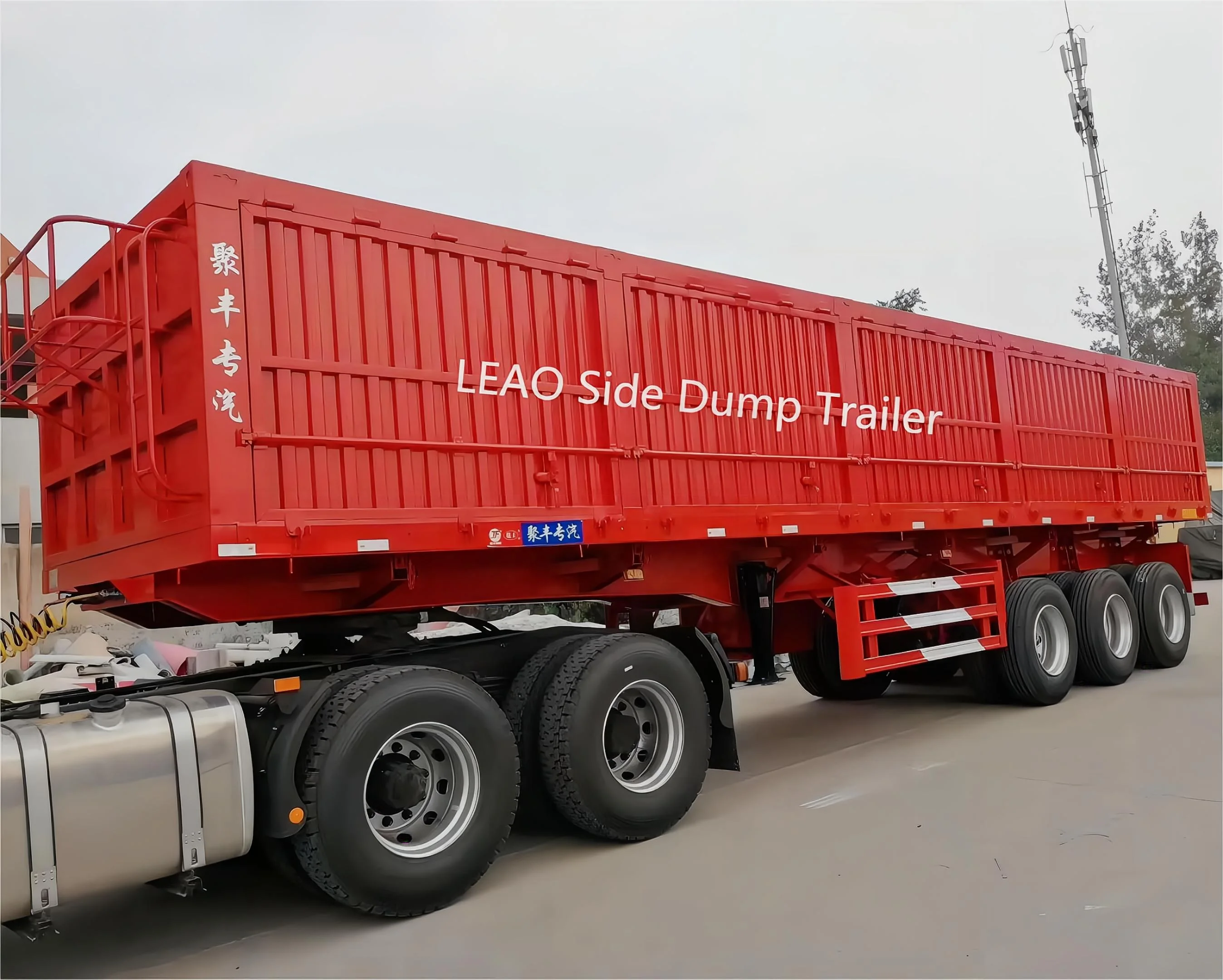

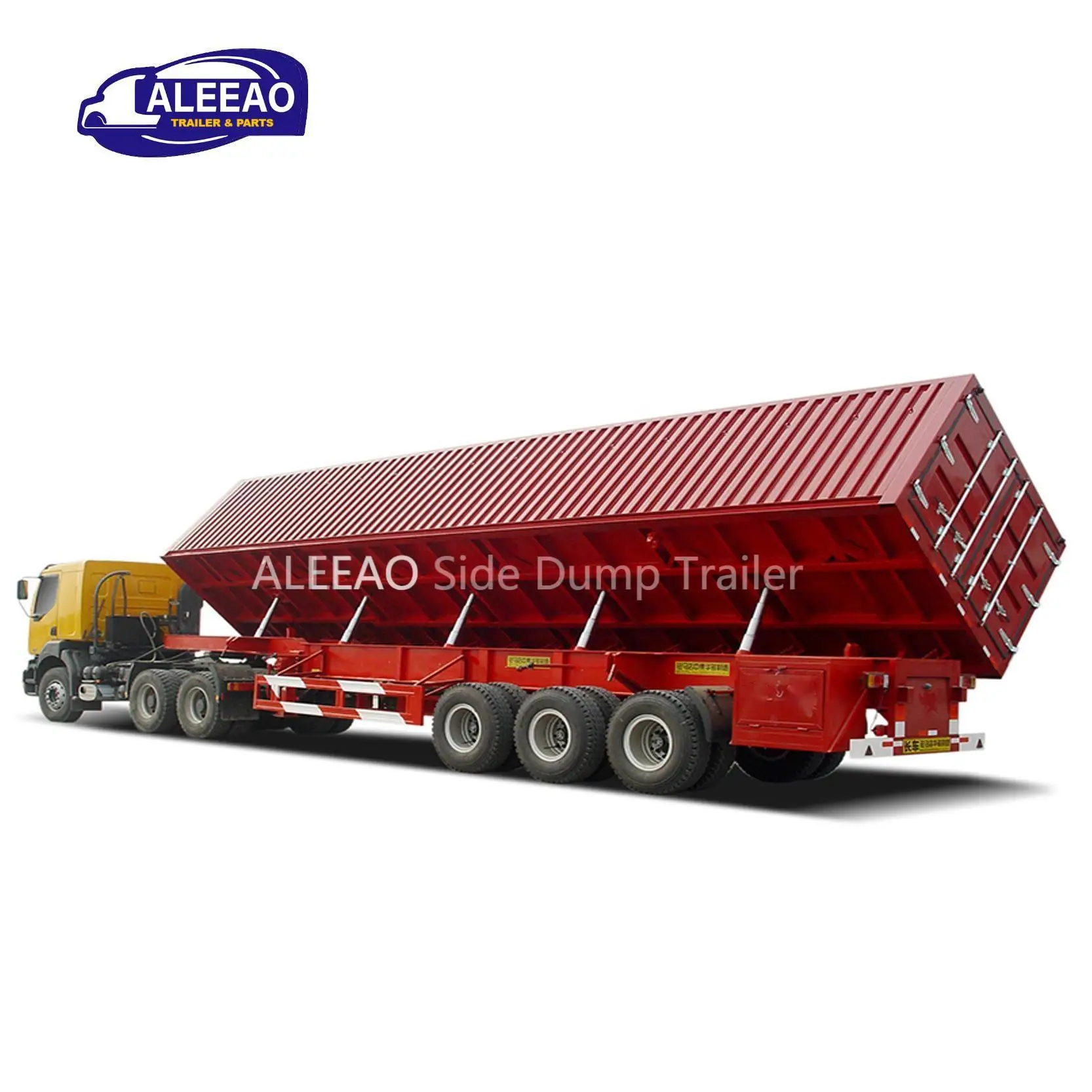

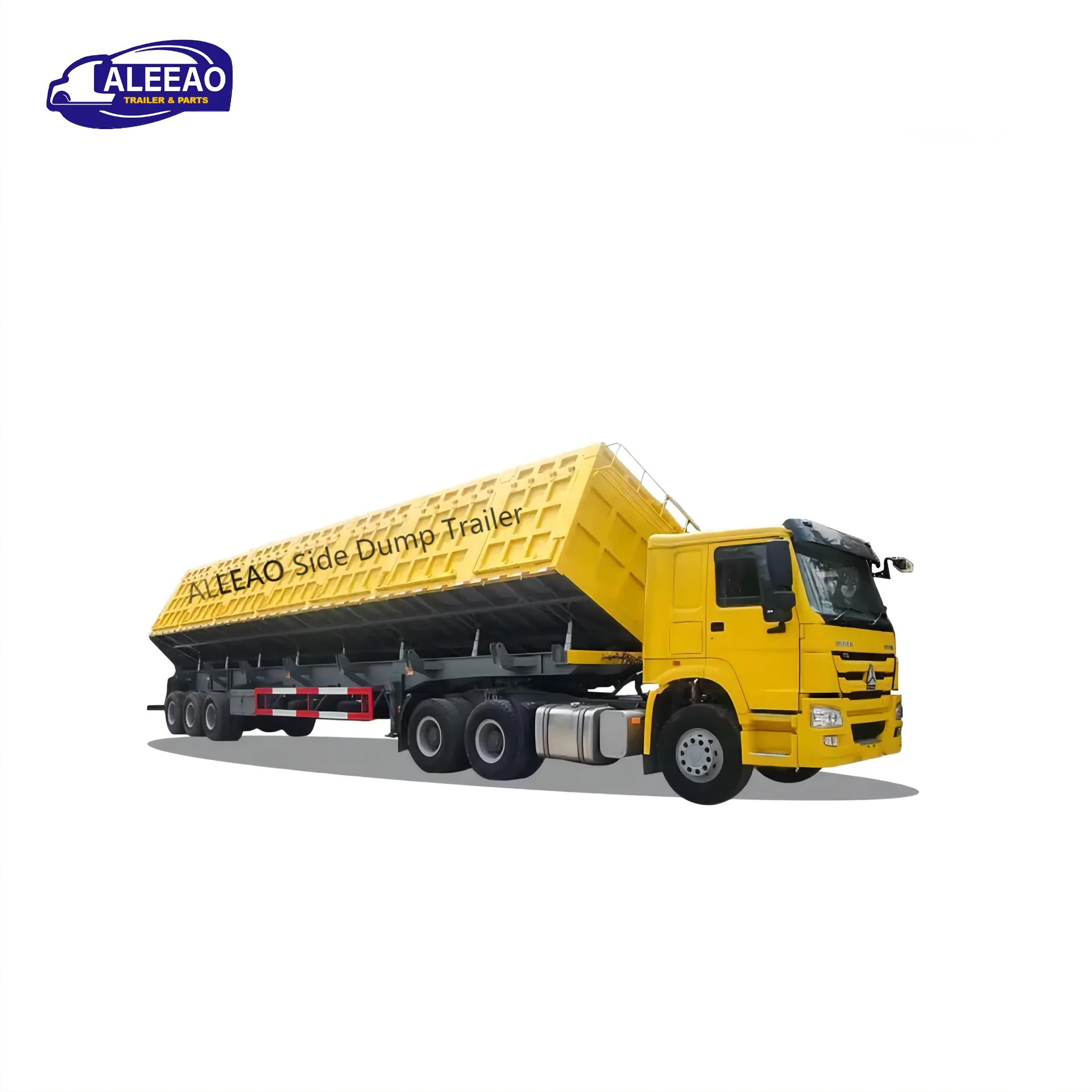

ALEEAO Tri Axles 50 Tons Side Tipping Dump Truck Trailer With Hydraulic Lift For Cargo Transport
- Category: >>>
- Supplier: Liangshan Leao Machinery Co. Ltd.
Share on (1600977754094):
Product Overview
Description
Specification
LOOK AT HERE FIRST
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if necessary.

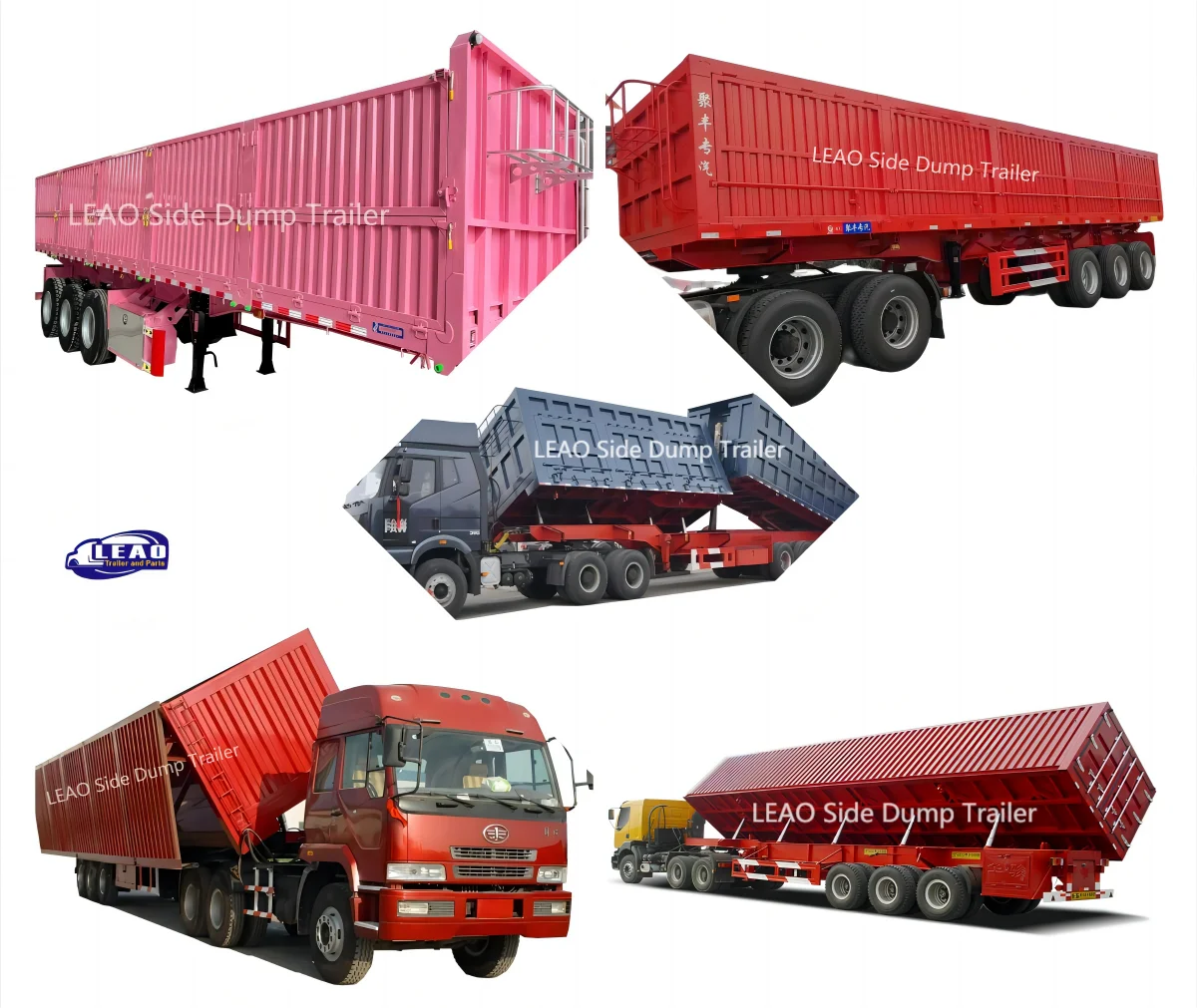

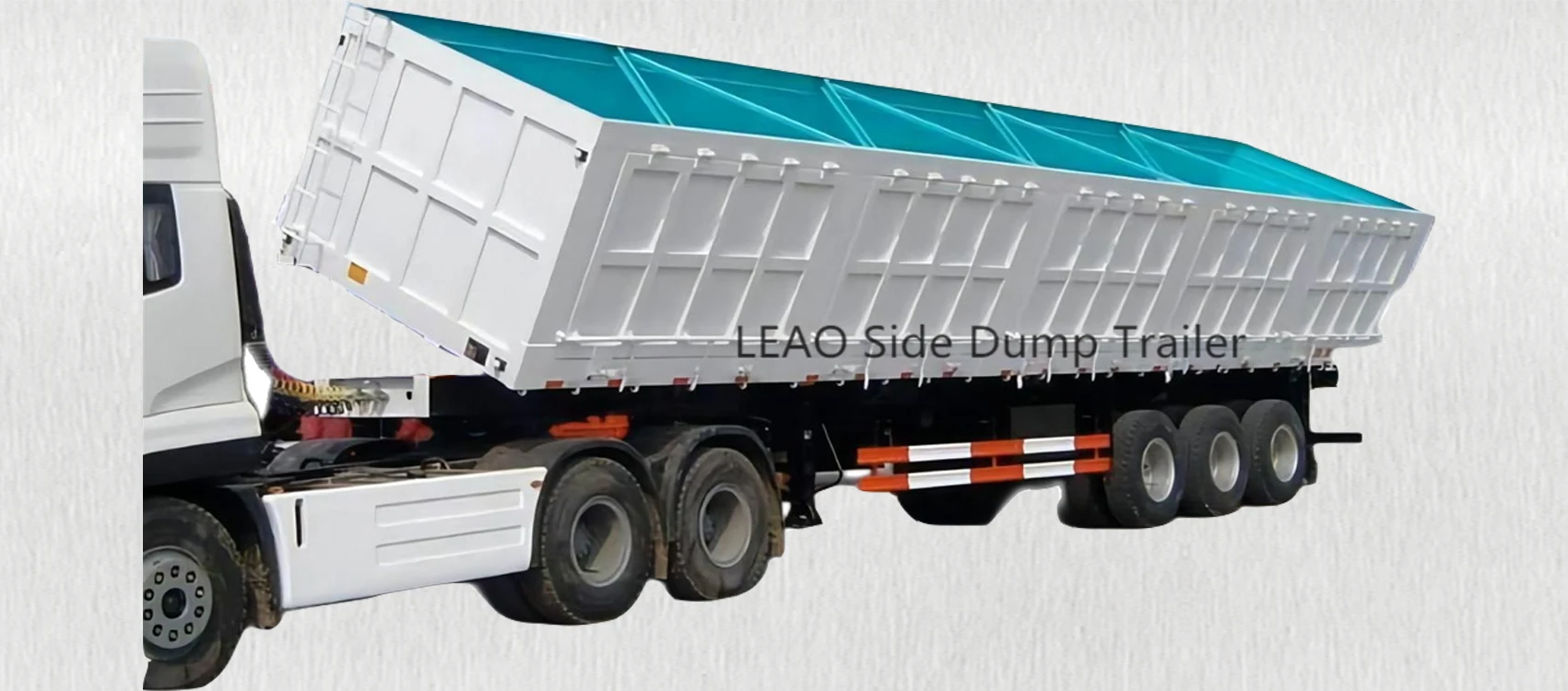

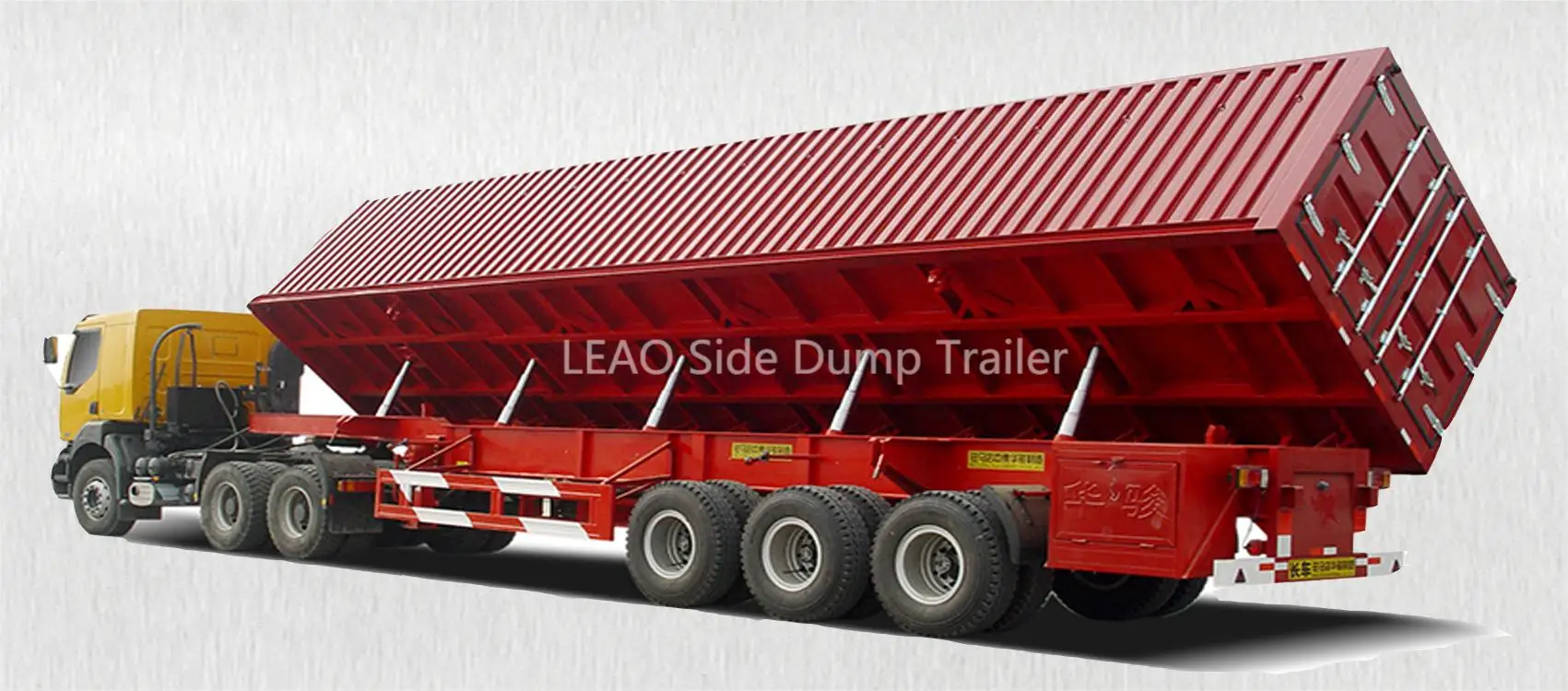

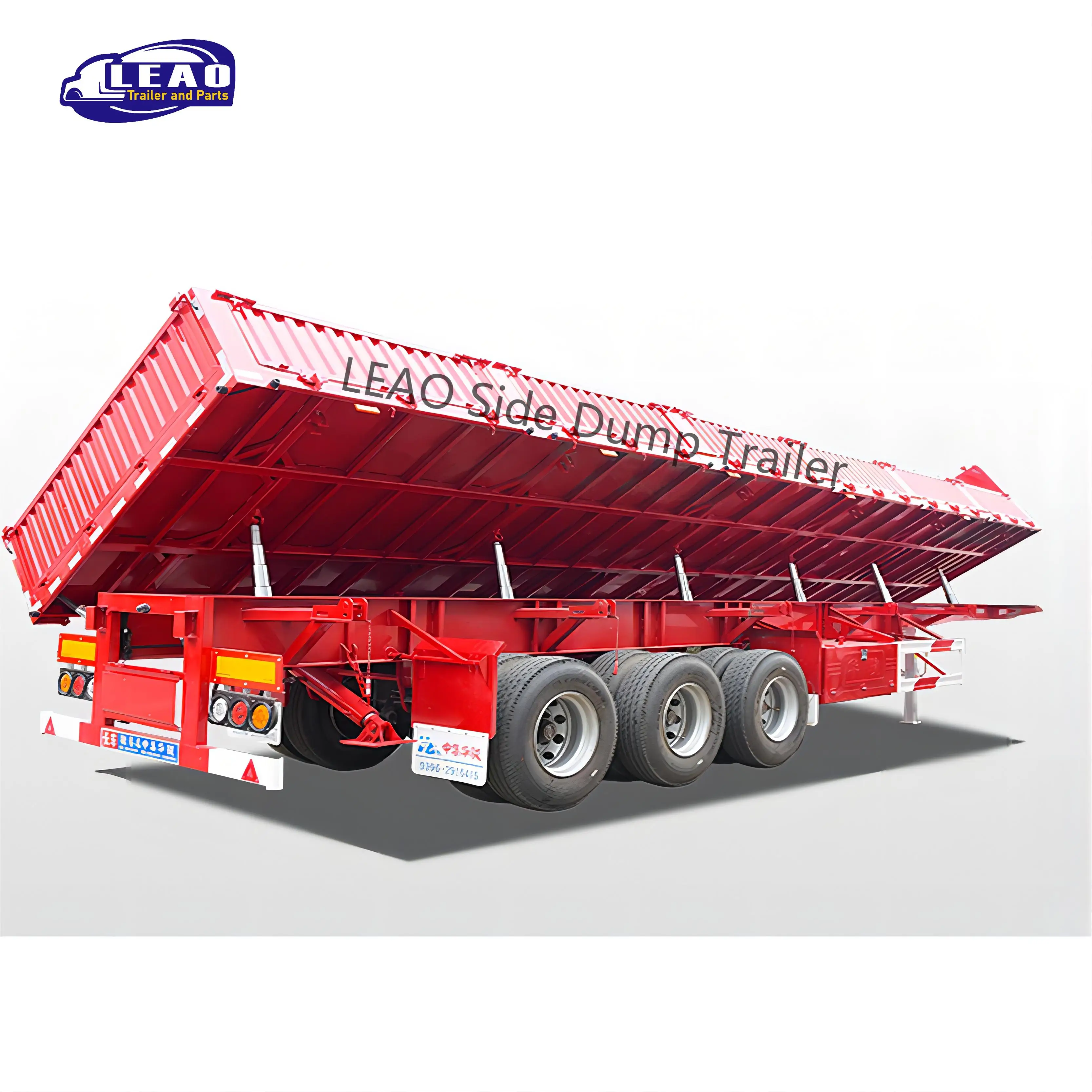

LEAO Side Dump Tipping Semi Trailer
Items | Side Dump semi trailer 50Ton | Side Dump semi trailer 70Ton | |
Loading Capacity | 40-50 tons | 50-70 -100tons | |
Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle | |
Tyre | 12 pieces, 12.00R20 | 16 pieces, 12.00R20 | |
Dimensions(LxWxH) | 11000 to 13000mm x 2500 x 3300mm | ||
Tare weight | 10 tons to 12 tons | ||
Axle spacing | 1310mm | ||
Rims | 8.5-20, 9.0-20 | ||
Suspension System | Leaf spring suspension / air suspension | ||
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | ||
Main Beam | Height 500mm Q345 | ||
Chassis | upper 14mm, lower 16mm. Mid web 12mm | ||
Dump Box Thickness | Bottom 8mm Side 6mm | ||
Hydraulic Cylinder | Strong "5+1" oil cylinder | ||
Kingpin | 2’ or 3.5’ interchangeable | ||
Landing Gear | 28 Tons , Two speed manual operation | ||
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | ||
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | ||
Tool Box | One tool box with a set of standard trailer tools | ||
Spare Tyre Carrier | One piece or two pieces | ||

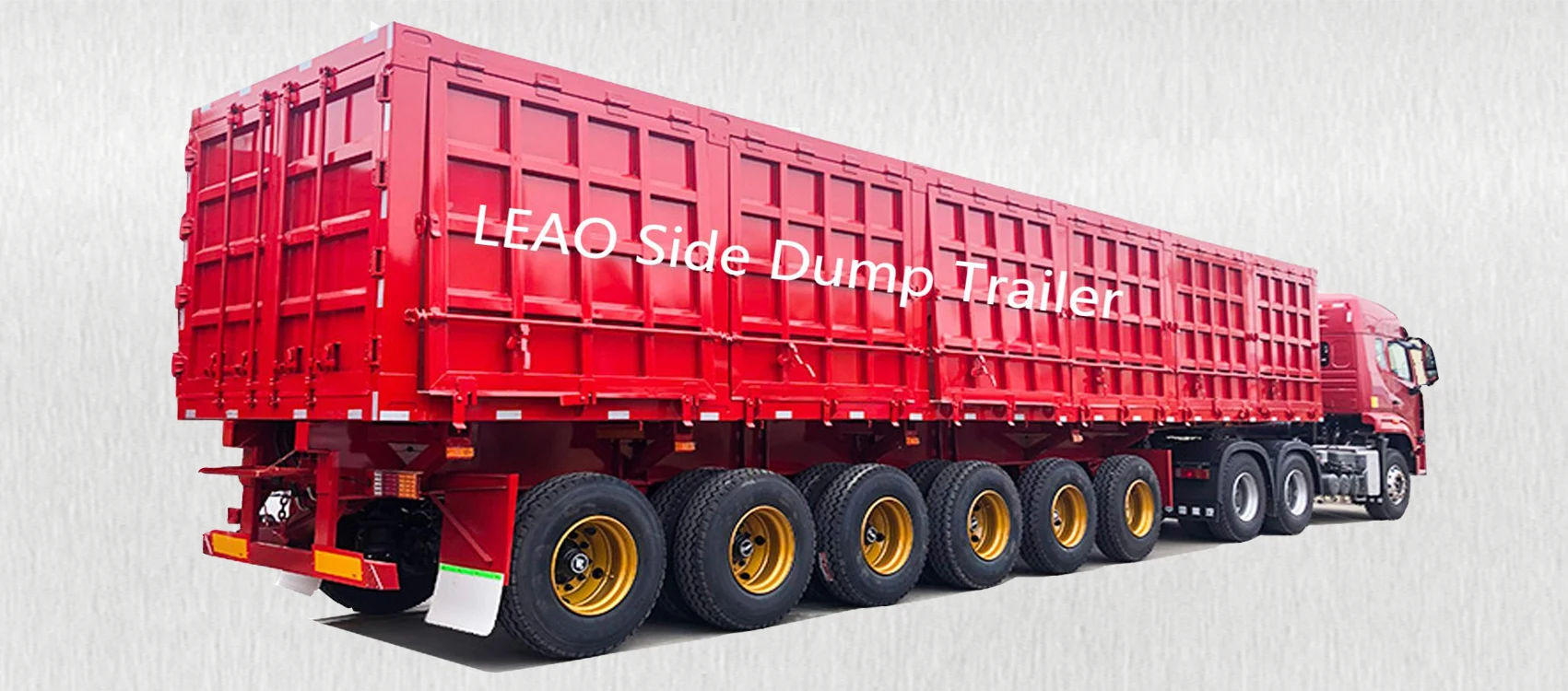

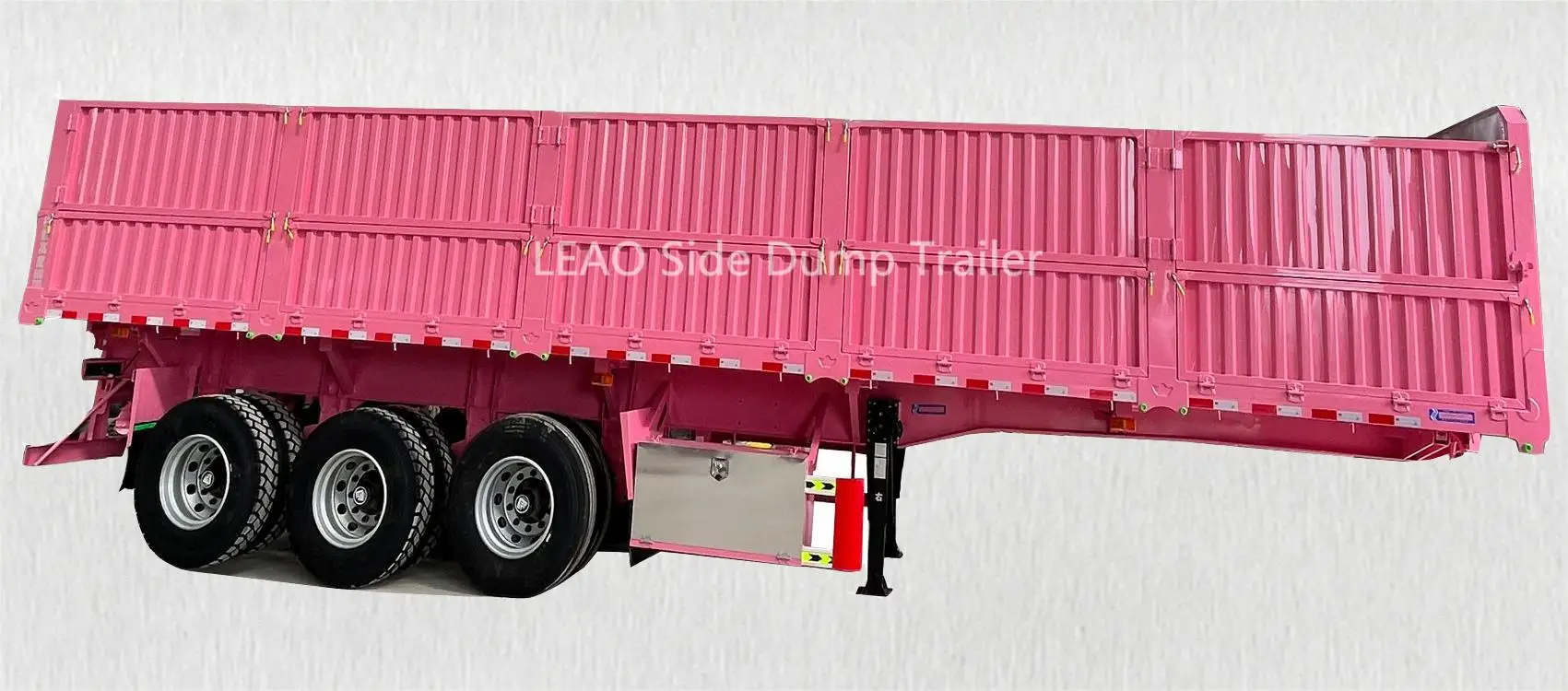

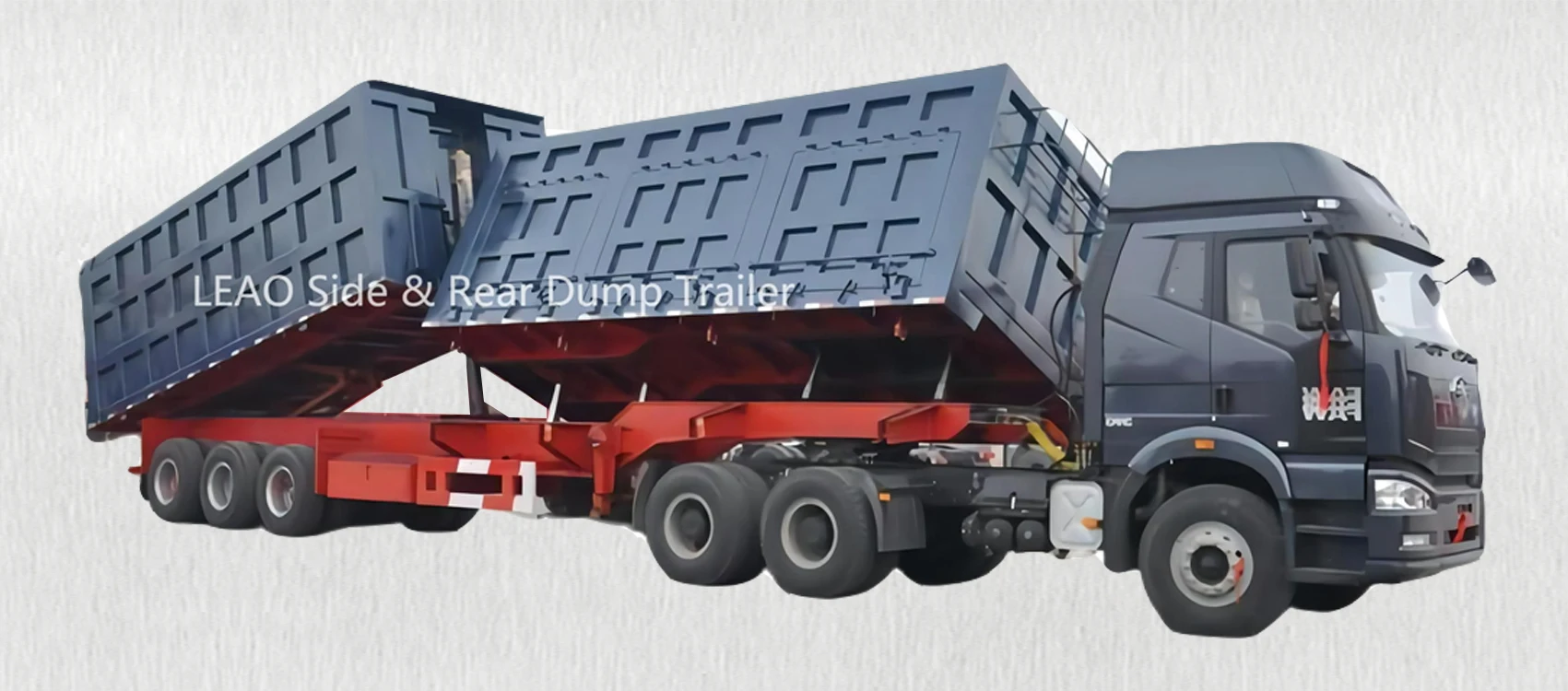

Product Display

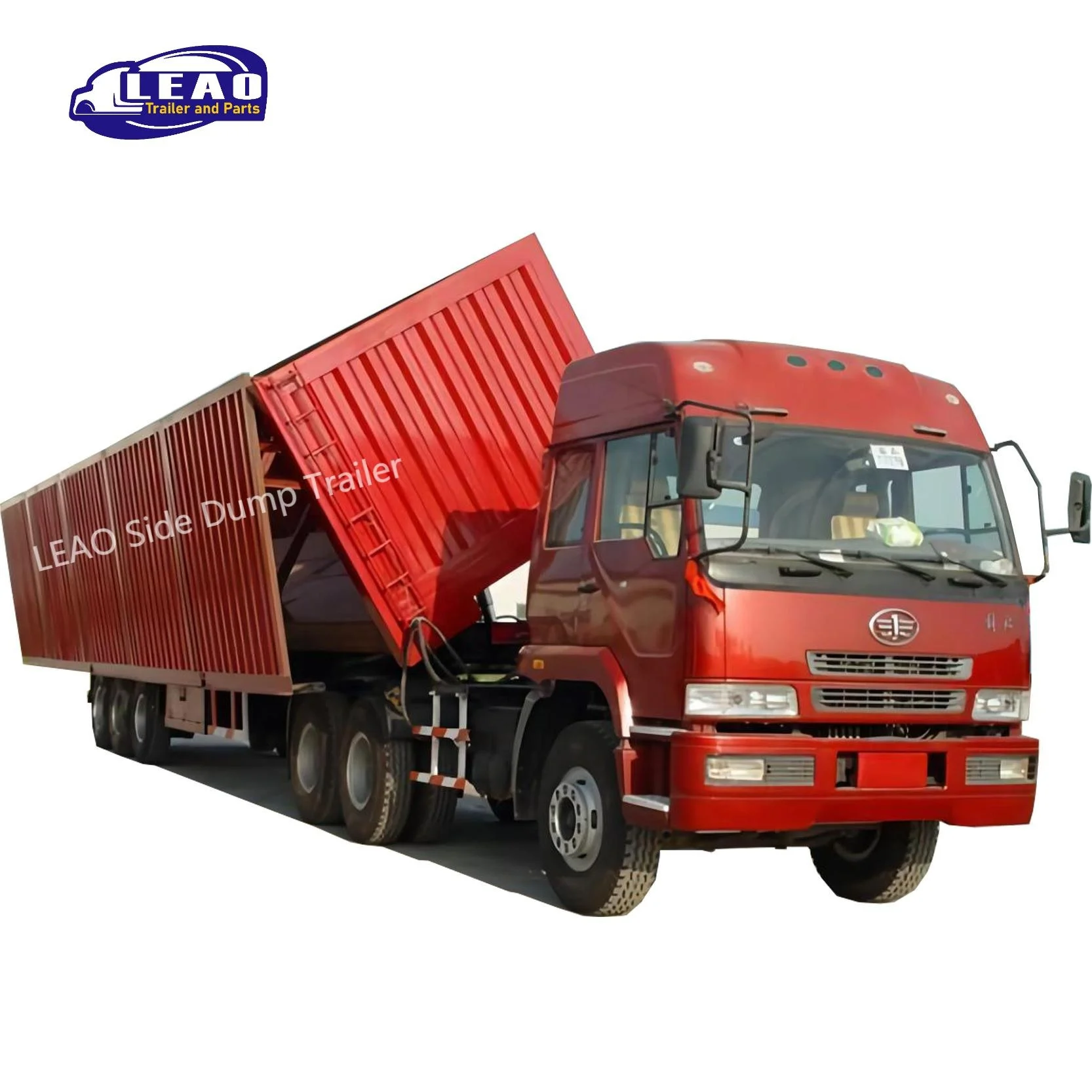

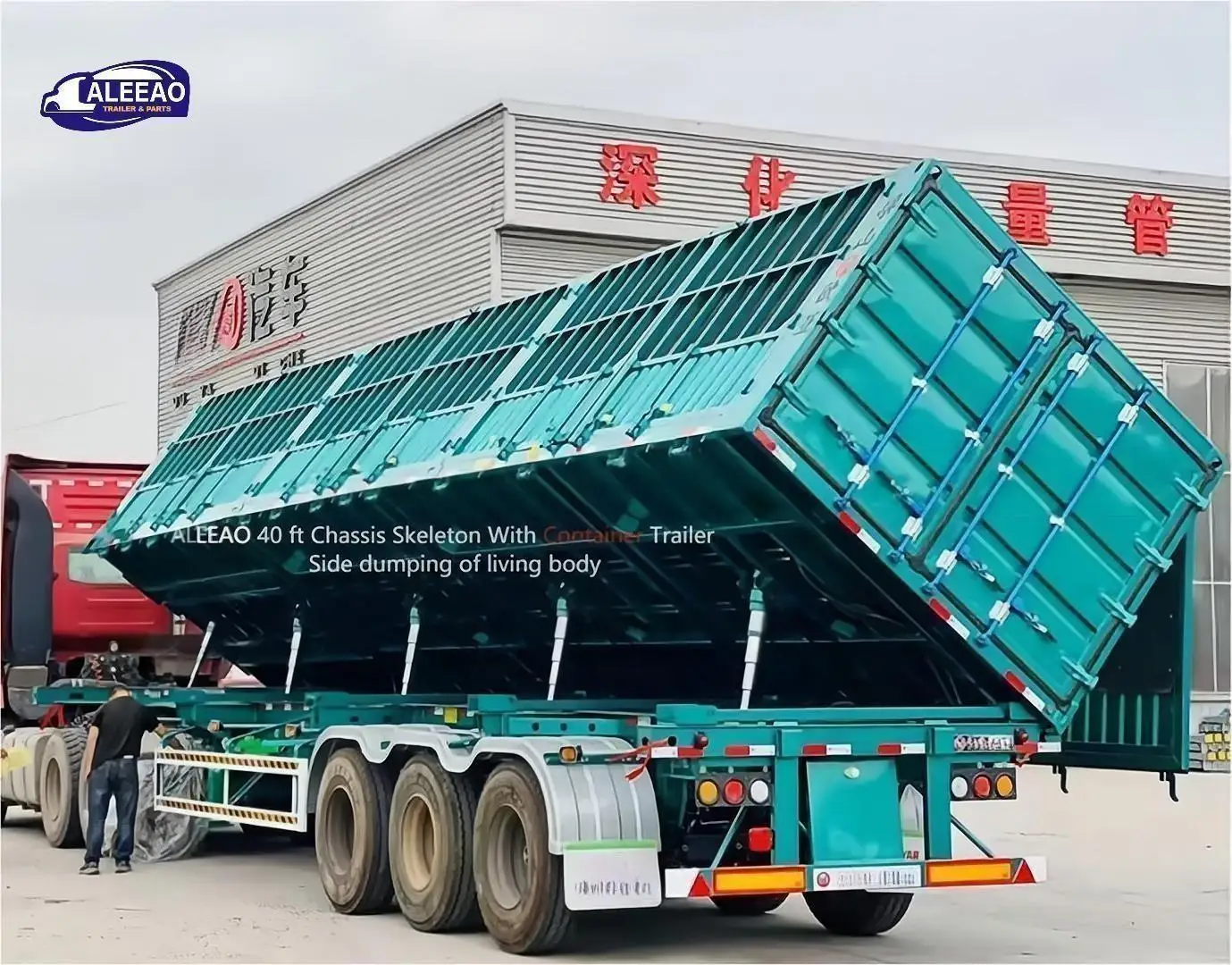

1.The LEAO side tipper is an alternative to the rear tipper. This type of dump truck trailer allows you to unload your cargo from the side. However, you can still use it to transport solid construction materials such as sand and rocks.
2.LEAO side dump truck uses a hydraulic pump, hydraulic motor and a dump bucket on one side. The remaining side gives you the option to open and lock it during work operations
3.This design is designed to allow side dumping for a reason. Where there is not enough room, you may be forced to do a side dump.
4.In this case, LEAO side dumper trailer can be used for lateral unloading. It helps to save space. Thick steel plates are also placed there to prevent possible damage on trailers with weak steel plates.
5.Unlike the rear dumper, LEAO side dumper is suitable for loads with a small rest angle. However, a side tipper can carry more cargo than a rear tipper.
Details Images
Strong "5+1" oil cylinder

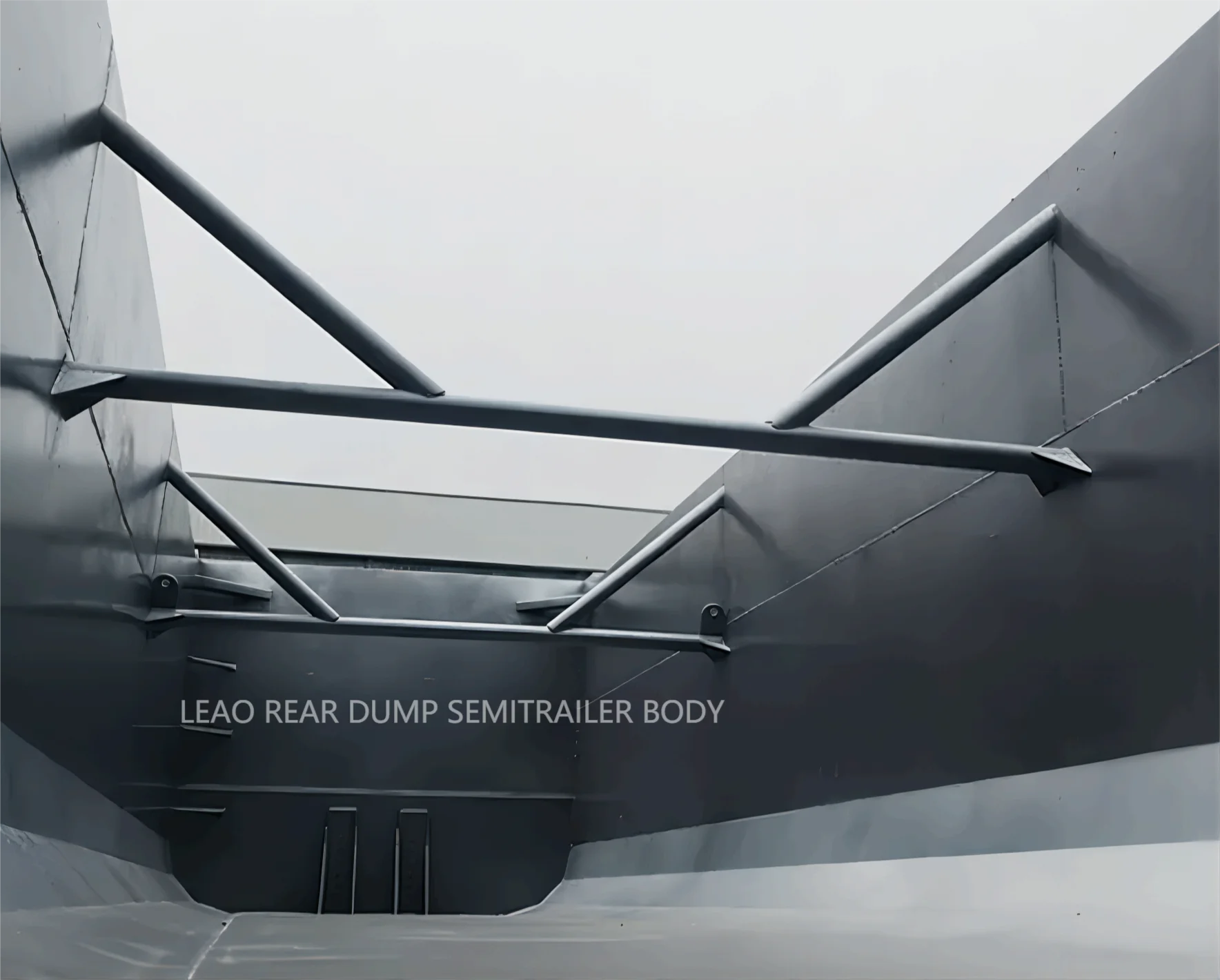

Sufficient Cargo space.Full thickness special steel, stronger carrying capacity.
Abrasion-resistant material box, T700 high tension beam, tare weight lighter 2000kg than normal material tipper, longer service time and lower fuel consumption.

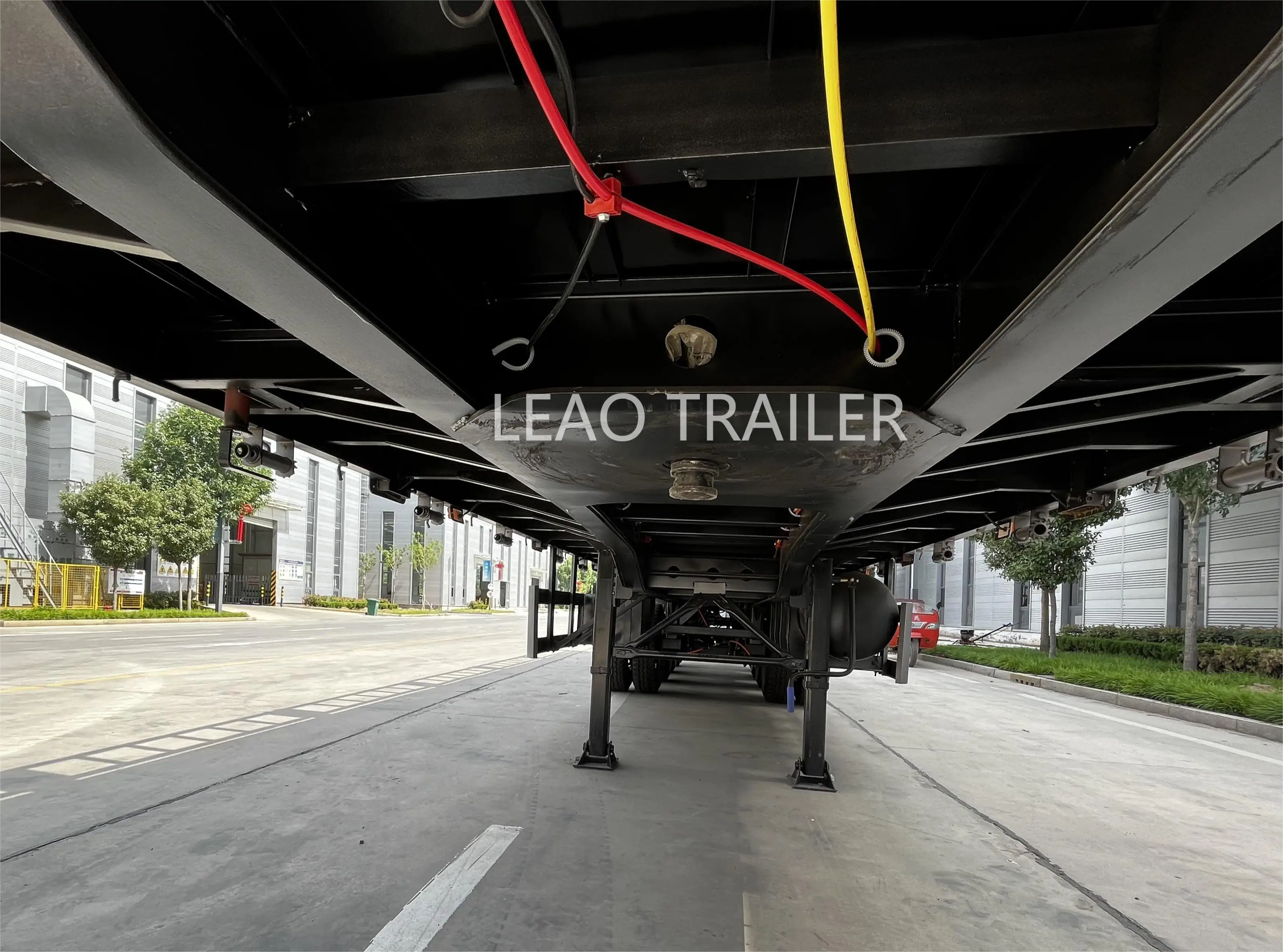

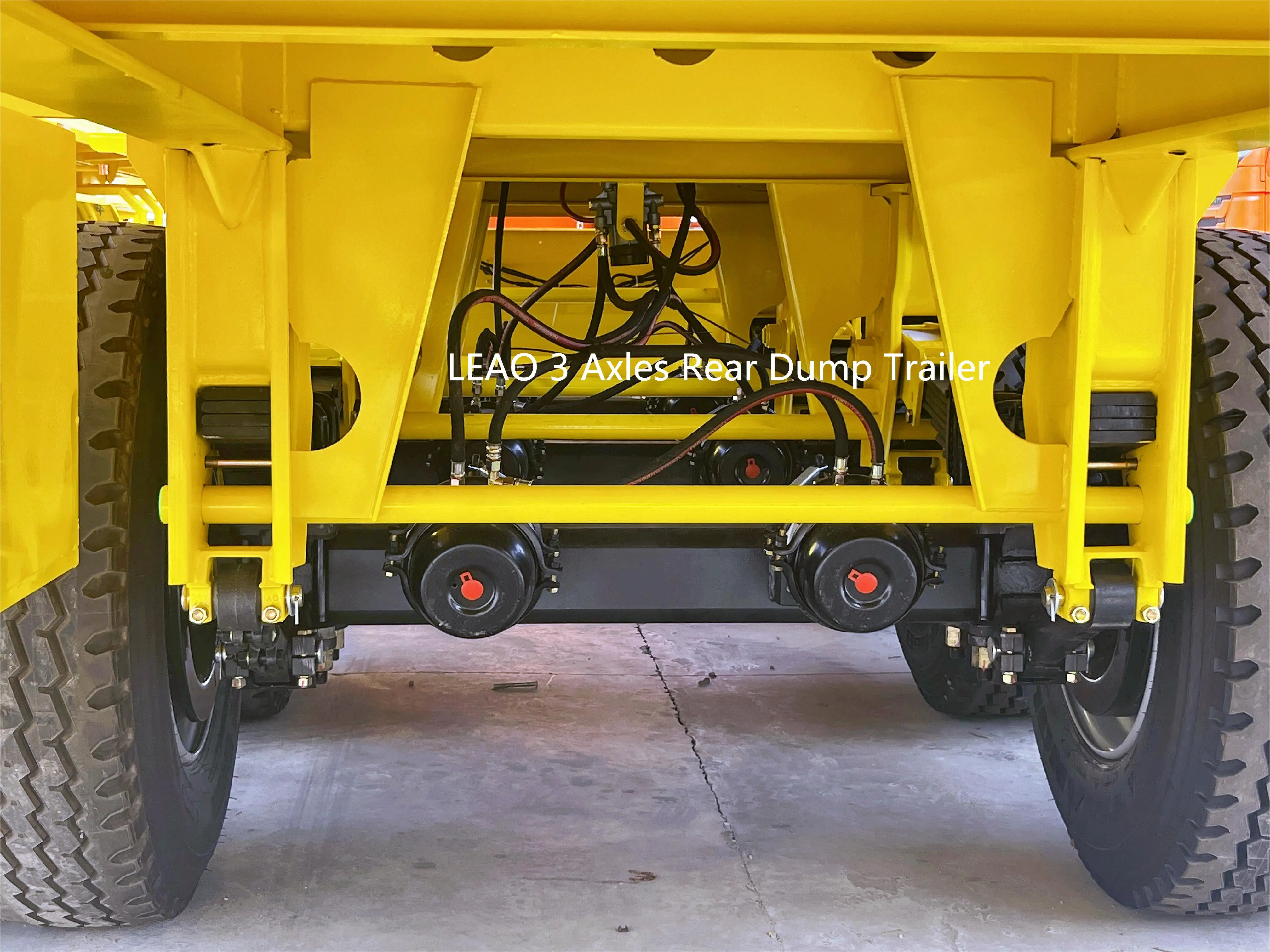

From the point of view of safety, the vehicle with the air brake system needs both the service brake and the parking brake, so it must be equipped with a double-chamber air chamber.

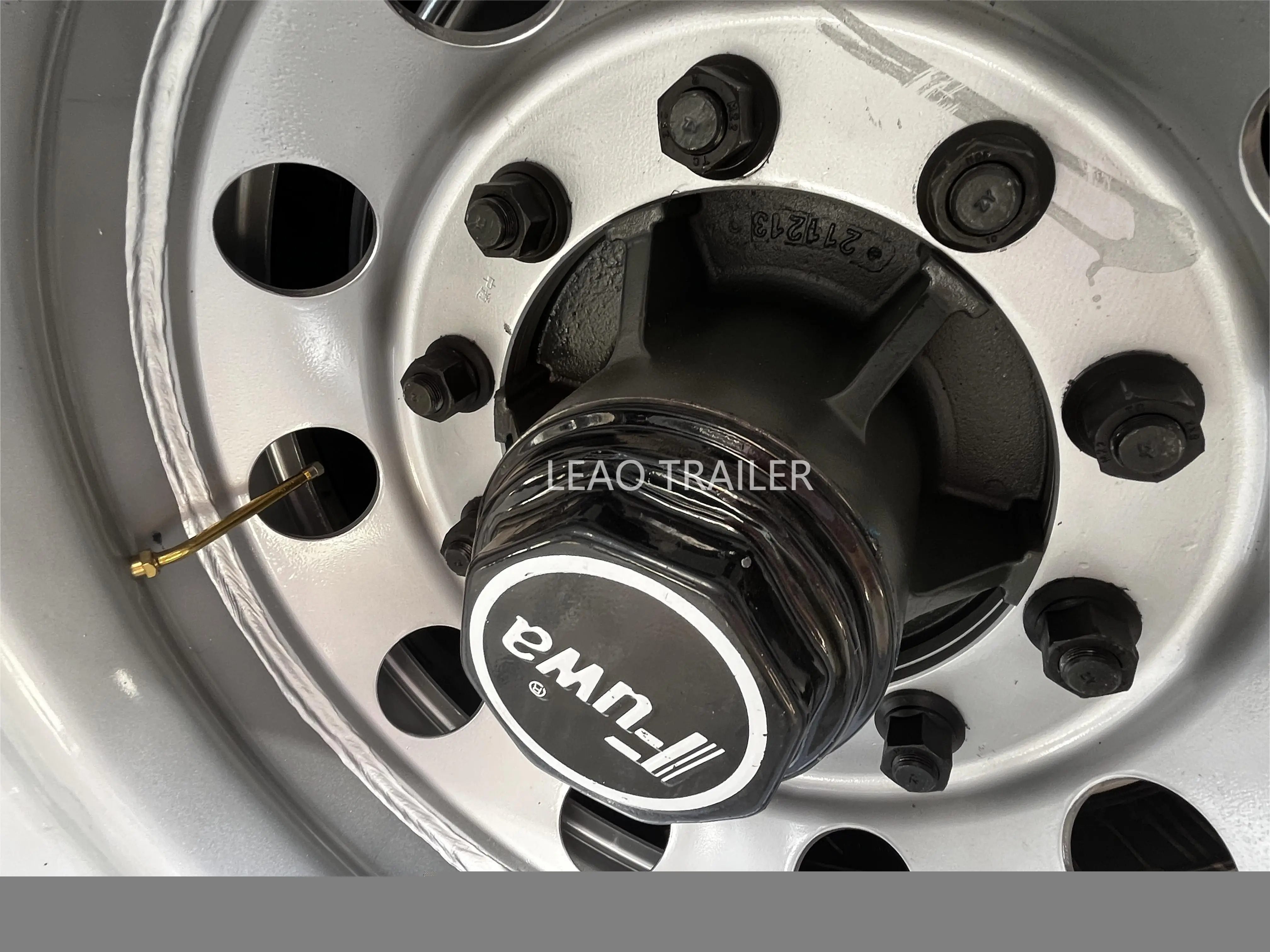

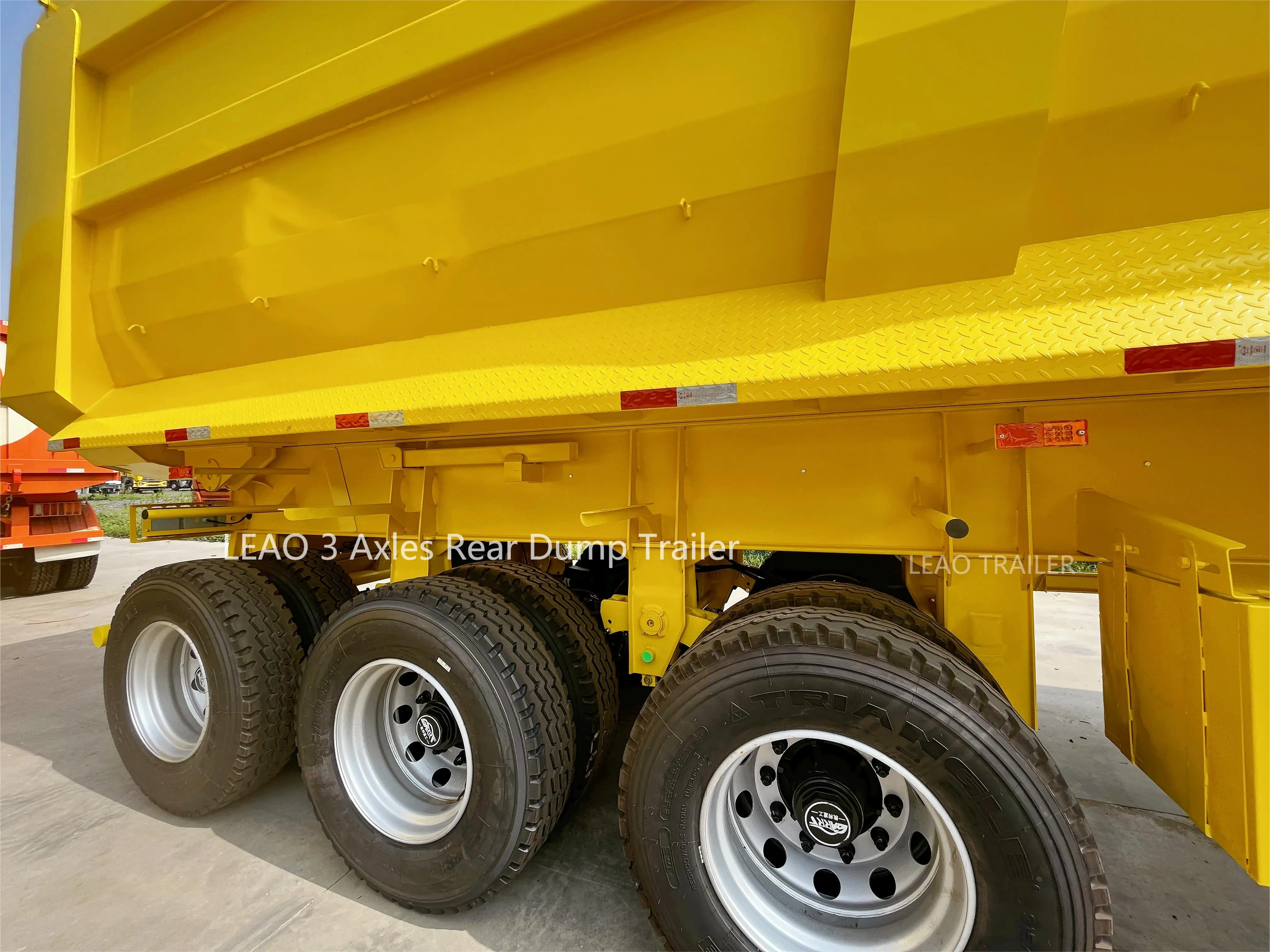

LEAO/BPW/FUWA Axle
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.

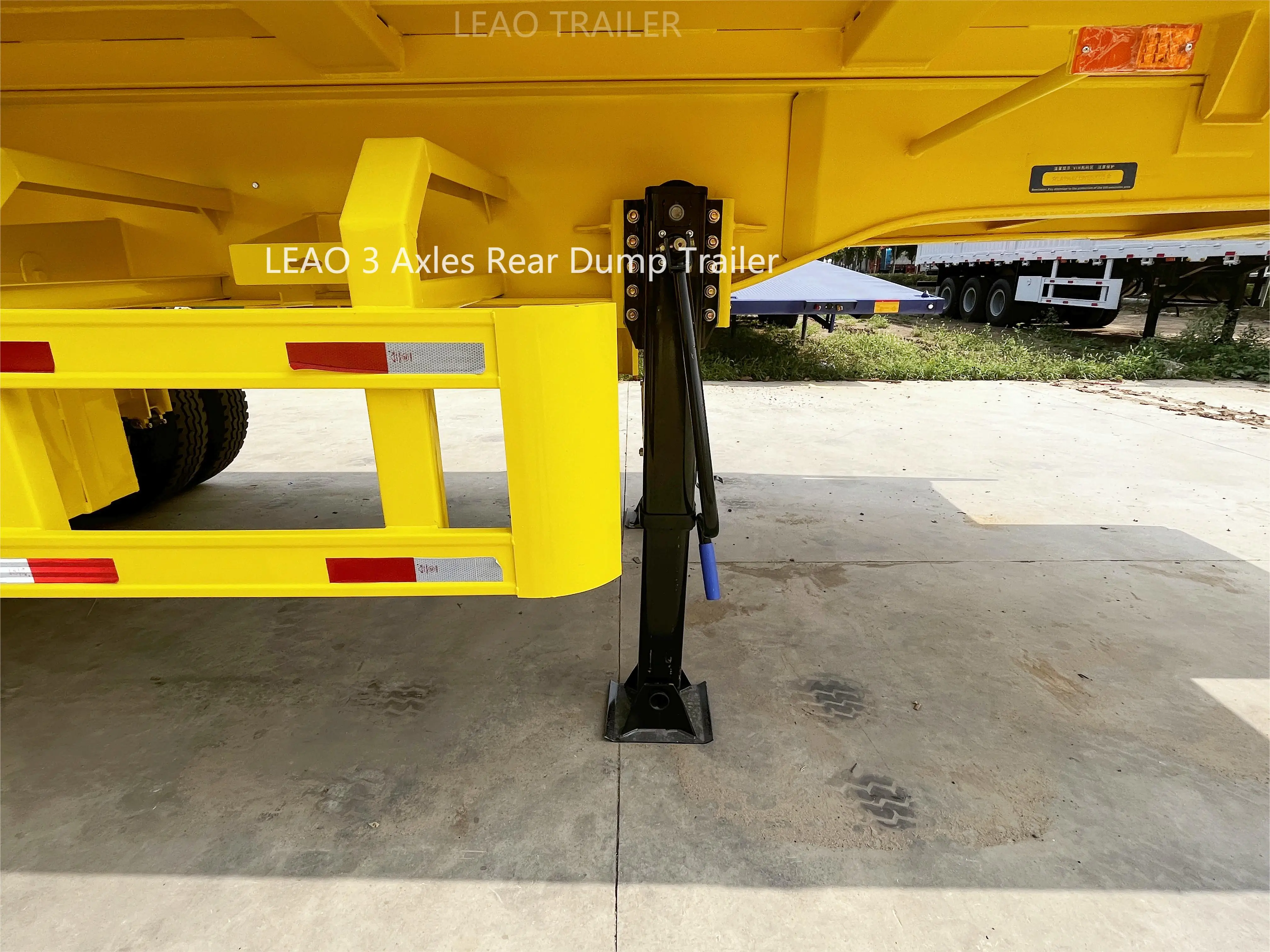

LEAO/JOST Landing Gear.Self R&D LEAO Aluminum or Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low temperature premlum chassis lube rated for service from -30°C~120°C.
LEAO/ Double-Coin/ LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.

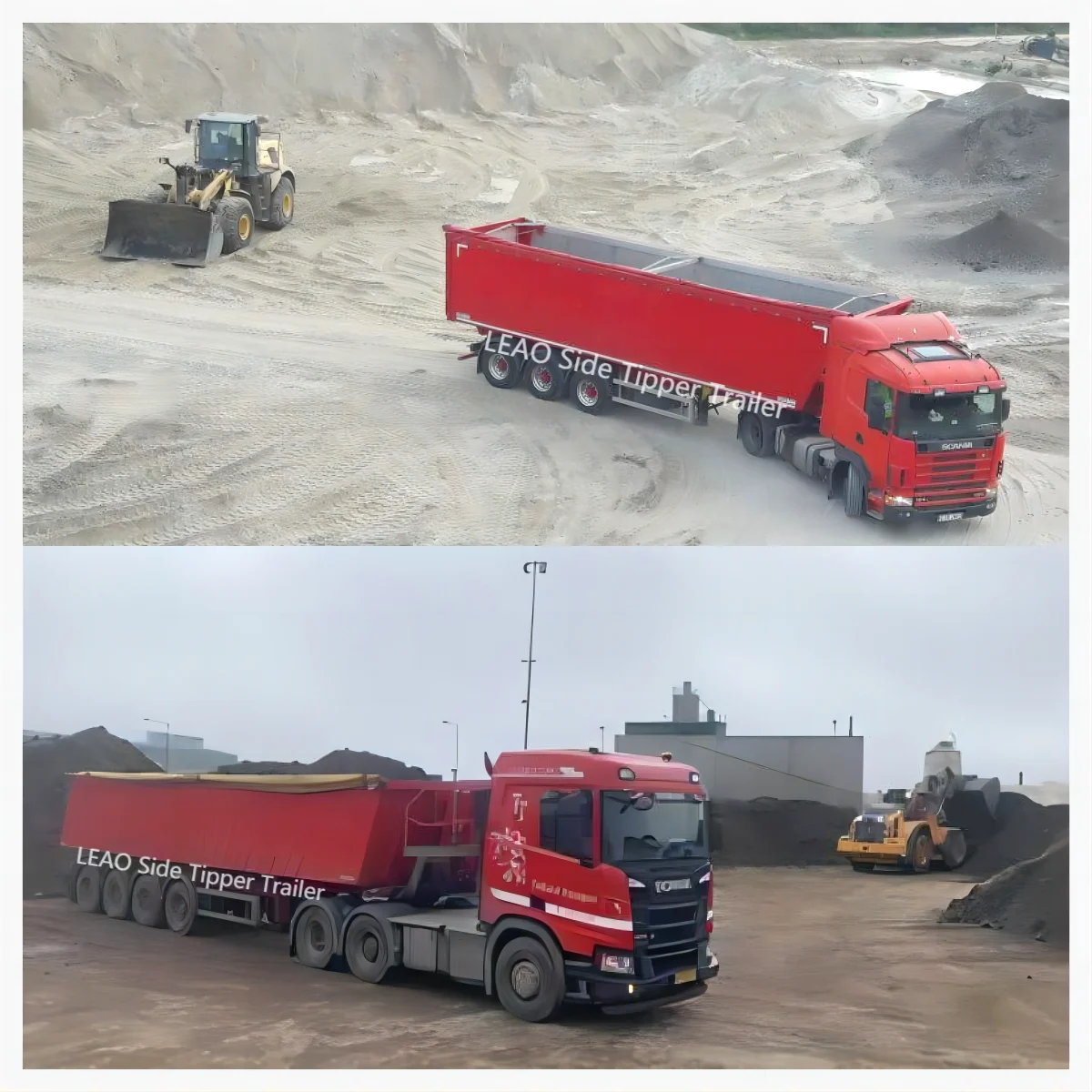

Product Application

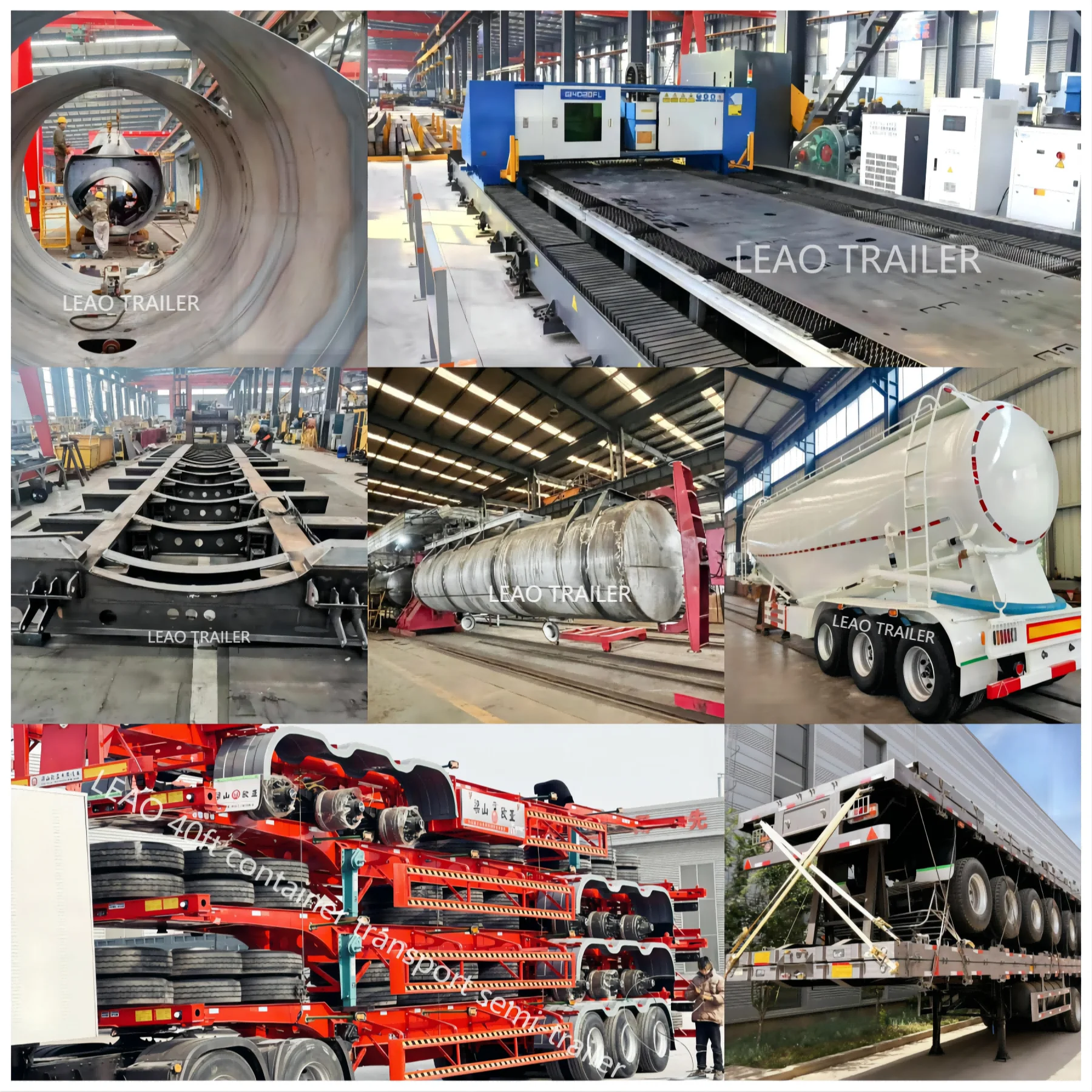

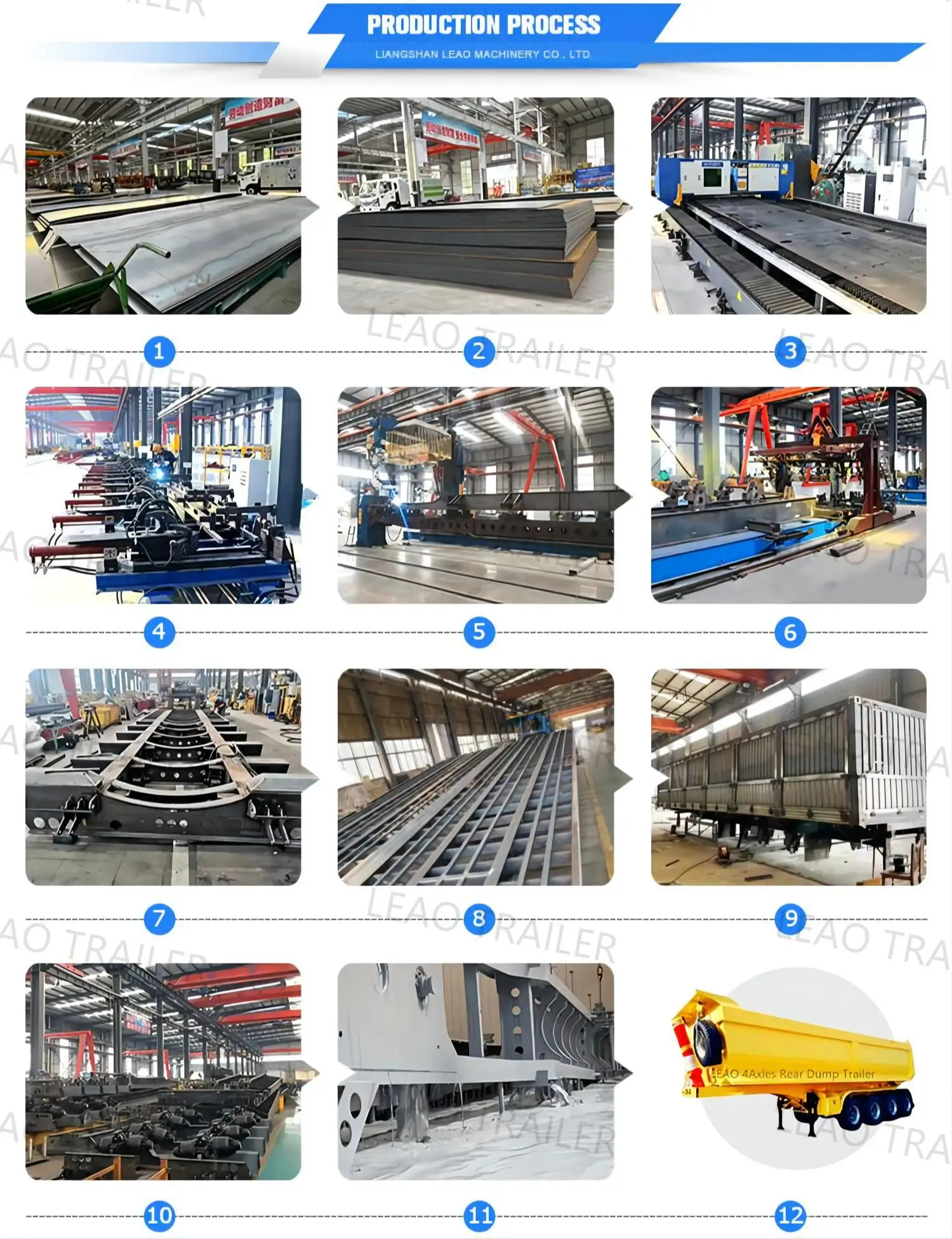

Production Process
Packaging & Shipping
Company Profile
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
