API Oilfield Downhole Fishing Tool Releasing Spear for Oil and Gas
- Category: >>>
- Supplier: Orchid Energy Co. Ltd.
Share on (1600994841126):
Product Overview
Description
Products Description

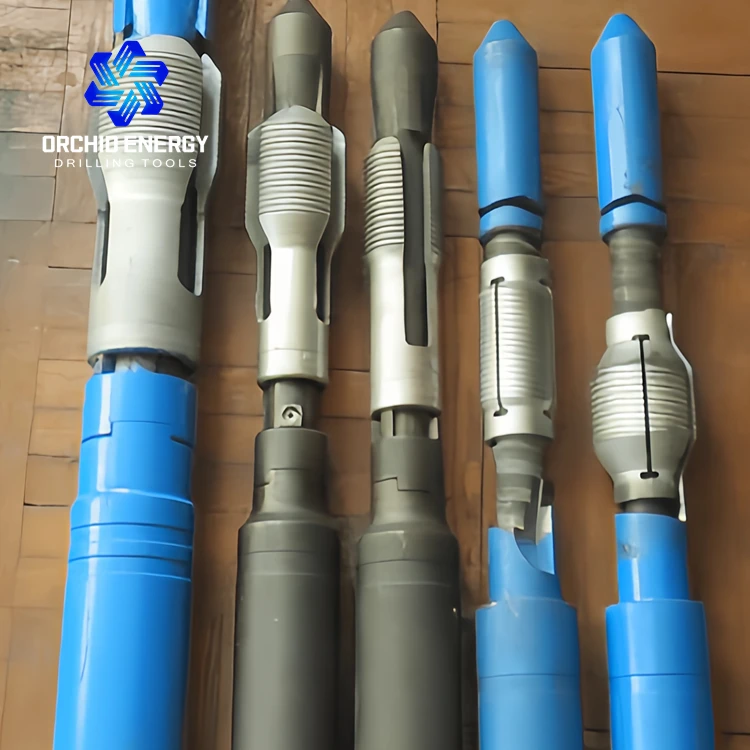

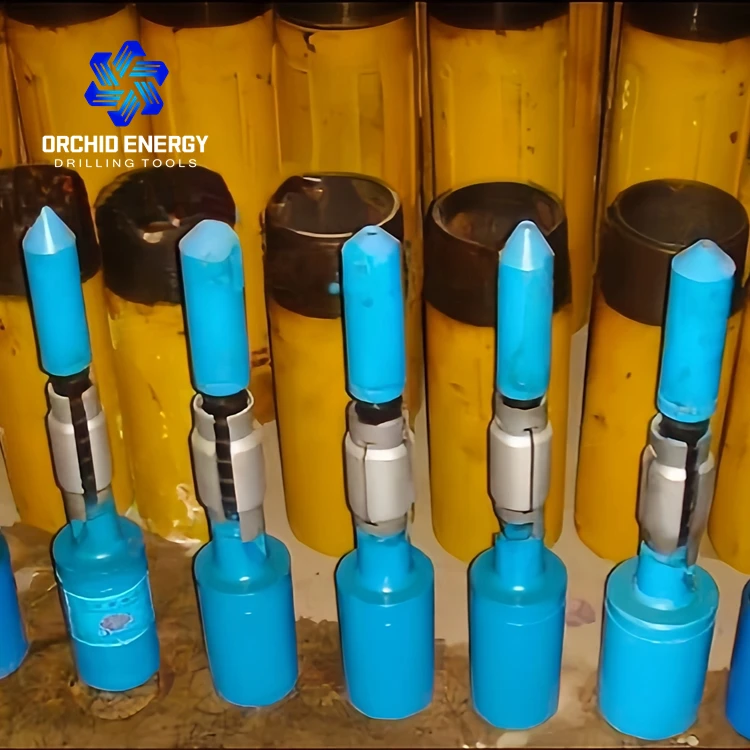

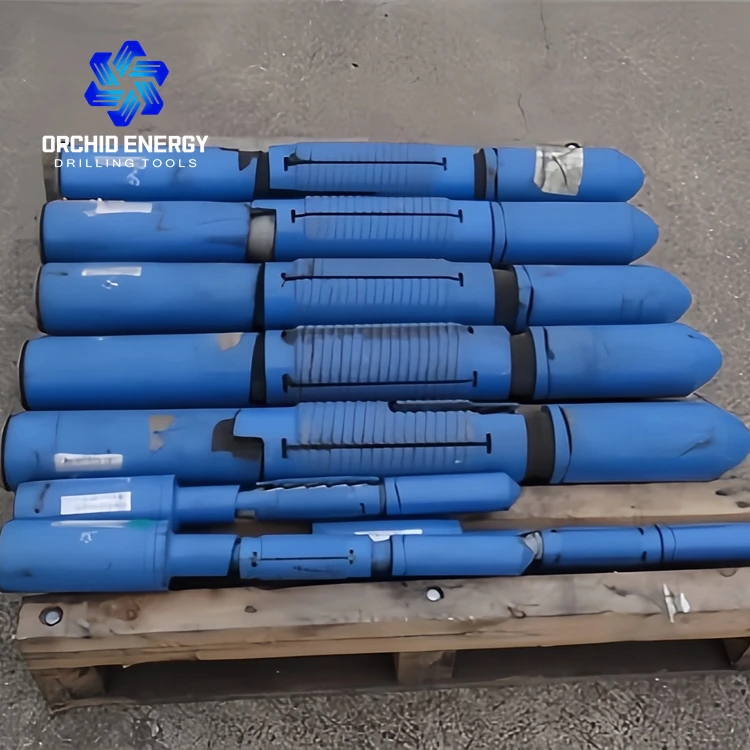

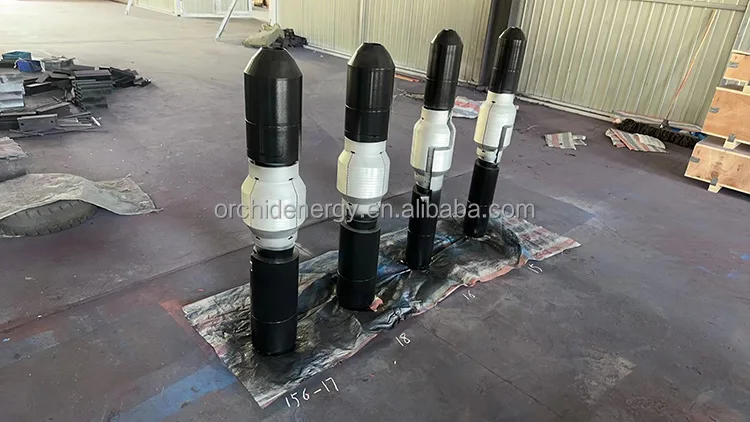

LM-T releasing spear is one of fishing tools to fishing internally. It is mainly used to catch drill pipe, casing, tubing and other tubular junks during oil and gas well repairing. It can be used with other tools such as casing cutter, jars. If the fish is struck, releasing the spear and lifting the drilling tools.

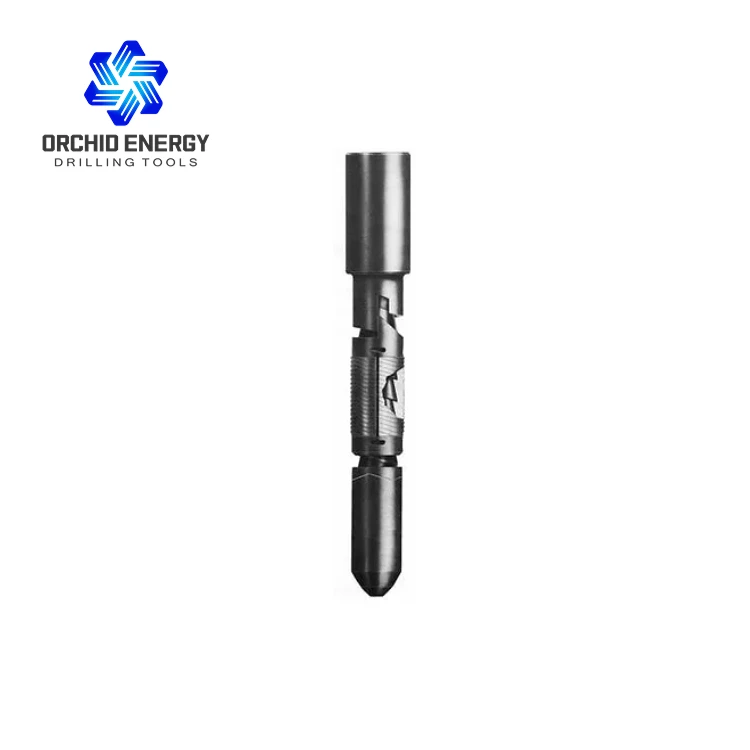

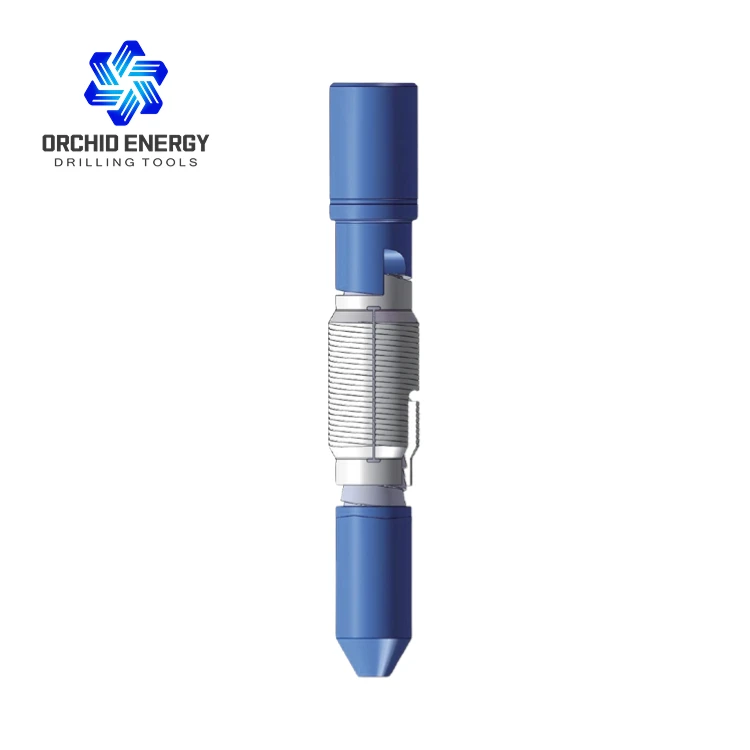

The releasing spear consists of a mandrel, grapple, releasing ring and a bull nose nut. The mandrel could be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish.

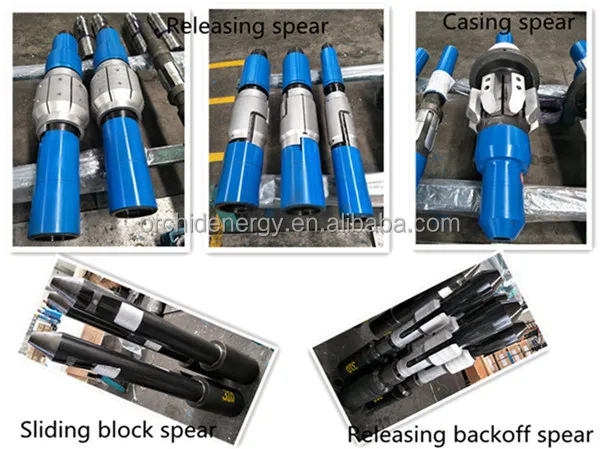

Different Oilfield Used Spears:
1. Releasing spear.
2. Casing spear.
3. Sliding block spear.
4. Releasing back-off spear.

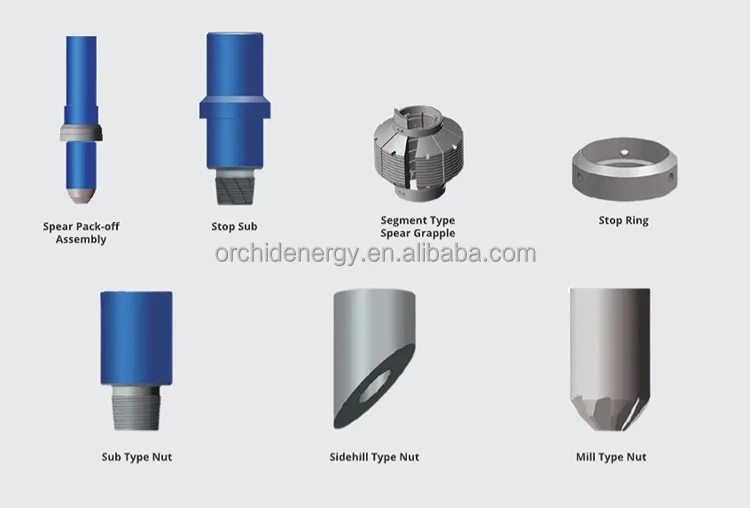

Accessories of Releasing Spear

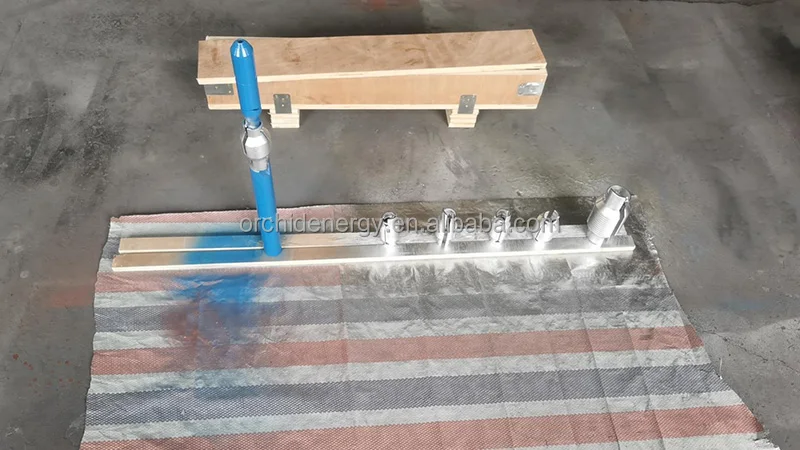

Orchid Energy could supply not only overall unit but also accessories of releasing spear as listed below:
1. Spear pack-off assembly.
2. Stop sub.

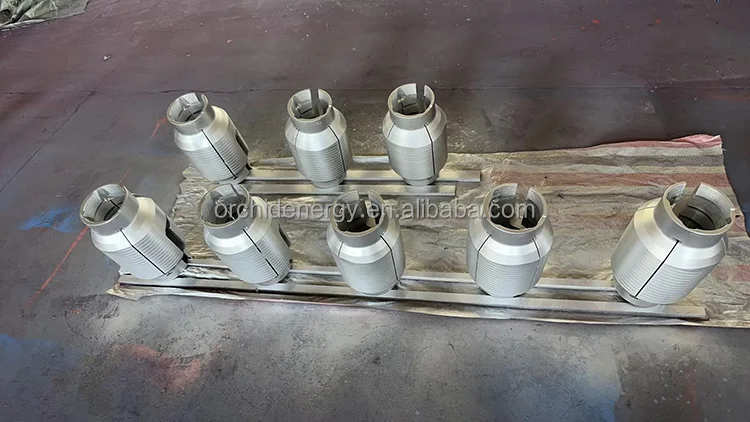

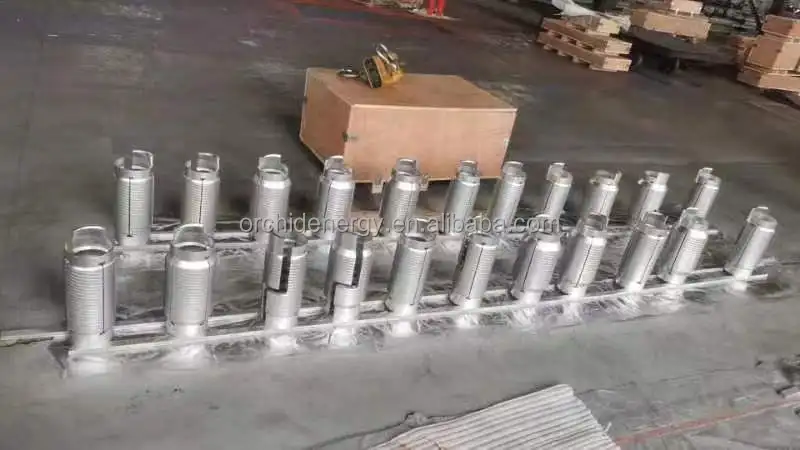

3. Segment type spear grapple.
4. Stop ring.
5. Nut (sub/sidehill/mill type optional)
Specification
Model | Mandrel O.D (mm) | Catch size (mm) | ThreadConn. | Allowed Load (KN) |
LM-T60 | 89 | 47.4-51.8 | NC26 | 270 |
LM-T73 | 105 | 57.4-62 | NC31 | 380 |
LM-T89 | 121 | 70-77.8 | NC38 | 650 |
LM-T102 | 121 | 82-90.1 | NC38 | 800 |
LM-T114 | 121 | 92.4-103.9 | NC38 | 1000 |
LM-T127 | 162 | 102-115.8 | NC50 | 1300 |
LM-T140 | 162 | 118.6-127.3 | NC50 | 1500 |
LM-T168 | 162 | 140-153.7 | NC50 | 2200 |
LM-T178 | 162 | 150.4-166.1 | NC50 | 2200 |
LM-T194 | 165 | 168.3-178.5 | NC50 | 2300 |
LM-T219 | 203 | 190.8-205.7 | 6 5/8 REG | 2300 |
LM-T245 | 203 | 216.8-228.7 | 6 5/8 REG | 2500 |
LM-T273 | 203 | 240-258.9 | 6 5/8 REG | 2500 |
LM-T340 | 203 | 313.6-323 | 6 5/8 REG | 2500 |
Recommended for You
Packaging and Delivery
Factory & Workshop
Company Profile
Introduction
Orchid Energy Ltd. is a factory manufacturer of drilling tools with over 20 years' experience. Our core products include drilling motors, stabilizers, drill collars, mud pump and spare parts, as well as key components such as kellys, tubulars, drilling jars, fishing tools, and bearings according to customers' needs.
Orchid Energy has not only standard-sized products but also supports the customized production of products according to customers' requirements. In the two aspects of price and quality, Orchid Energy do not hesitate to choose to adhere to the premise of ensuring product quality, and then as far as possible to suppress the price of the product, because of this, the price of our products may not necessarily be the lowest in the industry, but we firmly believe that the time will help us win more praise from our customers.
Contact Us
You can contact us through the online chatting of alibaba, meanwhile, other ways are also available as following:
FAQ
Are you a factory manufacturer?
Yes, we are a factory manufacturer with dual production capacity and quality assurance. We have our own technical R&D engineers and production workshops, providing customers with high-quality and affordable tools and equipment related to the petroleum industry.
What's your process for handling my inquiry?
First, we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
How can I pay for the order?
After you confirm our PI, we will request you to pay. T/T, L/C, D/P, Western Union are the most usual ways we are using. We could discuss other payment method convenient for you.
How about your after-sales service?
When you need after-sales service, please contact our sales manager and make it clear, our after-sales support team will be involved into the case until the problem be solved. There are two common types of after-sales requirements:
1) Related to this batch of goods: You have a series of questions about the operation, maintenance, and upkeep of the product, most of which are clearly stated in the product manual. If you still have questions, you can contact our sales manager.
2)Non-relate to this batch of goods: The project cannot proceed normally due to the lack of other software and hardware, which is not caused by our products. We can provide you with all feasible assistance in this process.
