3000 mm 4500 mm Forged HDD drill pipe S135 Material 60 mm 73 mm 83 mm 88.9 mm NC23 NC26 NC31 Thread
- Category: >>>
- Supplier: Shandong Yikuang Drilling Technology Co. Ltd.
Share on (1600994908714):
Product Overview
Description
Product Description
114mm, 127mm, 76mm, 89mm, 102mm, Water Drill Pipe for Sales, Water Well Drill Rod, DTH Drill Pipe, Drill Pipe
Water Well Drill Rod, DTH Drill Pipe for Sales6water Well Drill Rod, DTH Drill Pipe for Sales 38mm
Miningwell API 2 3/8 If 89mm 114mm Water Well Drill Rod API Reg API If Thread DTH Drill Pipe for Sale
Water Well Drill Pipe 76mm 89mm 102mm 114mm Down The Hole Water Well Drill Pipe for Sale
China Manufacturer 2 3/8" Water Well Drill Pipe for Sale
Good Reputation DTH Drill Pipe 89mm Water Well DTH Drill Pipes Drill Pipe for Sale

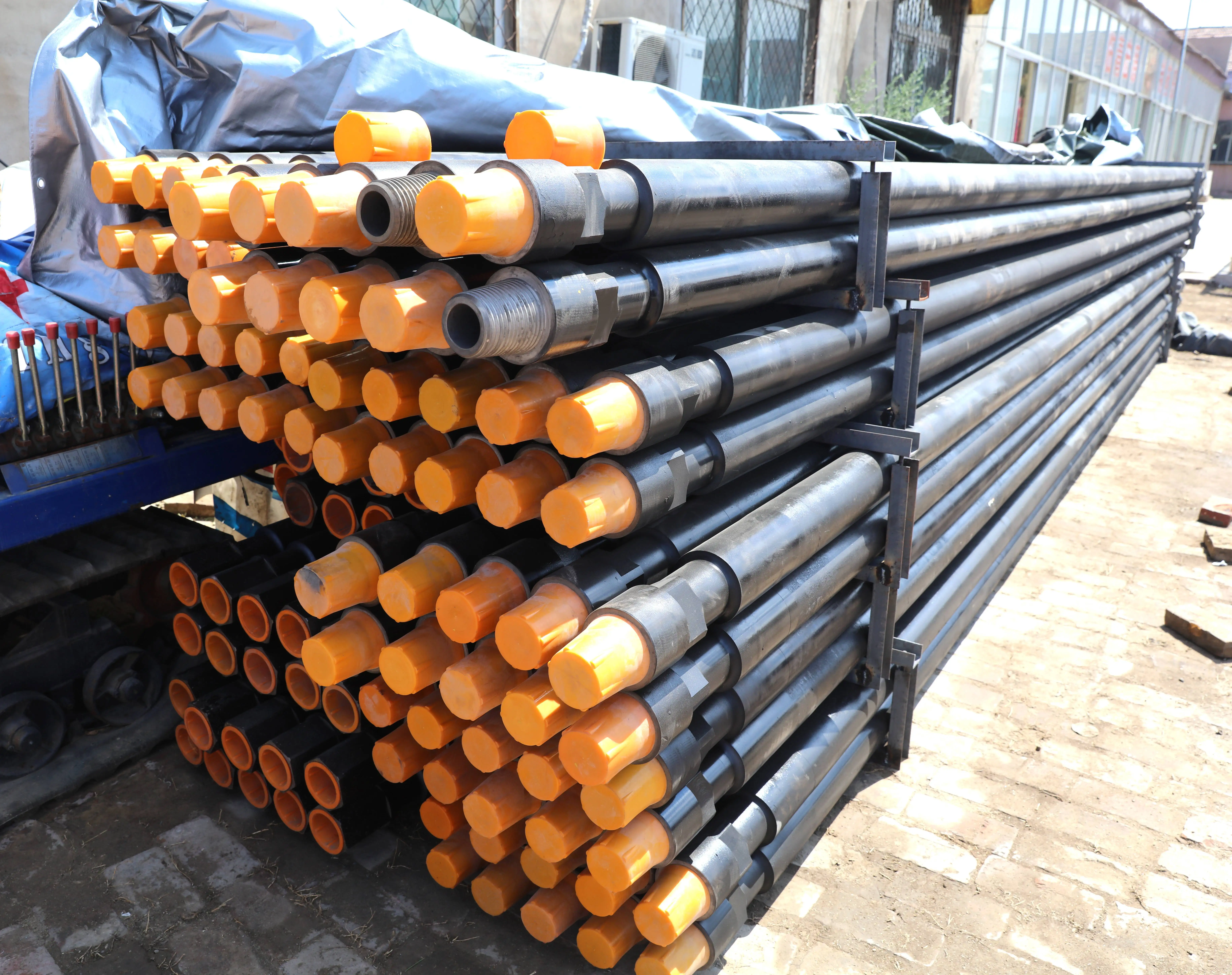

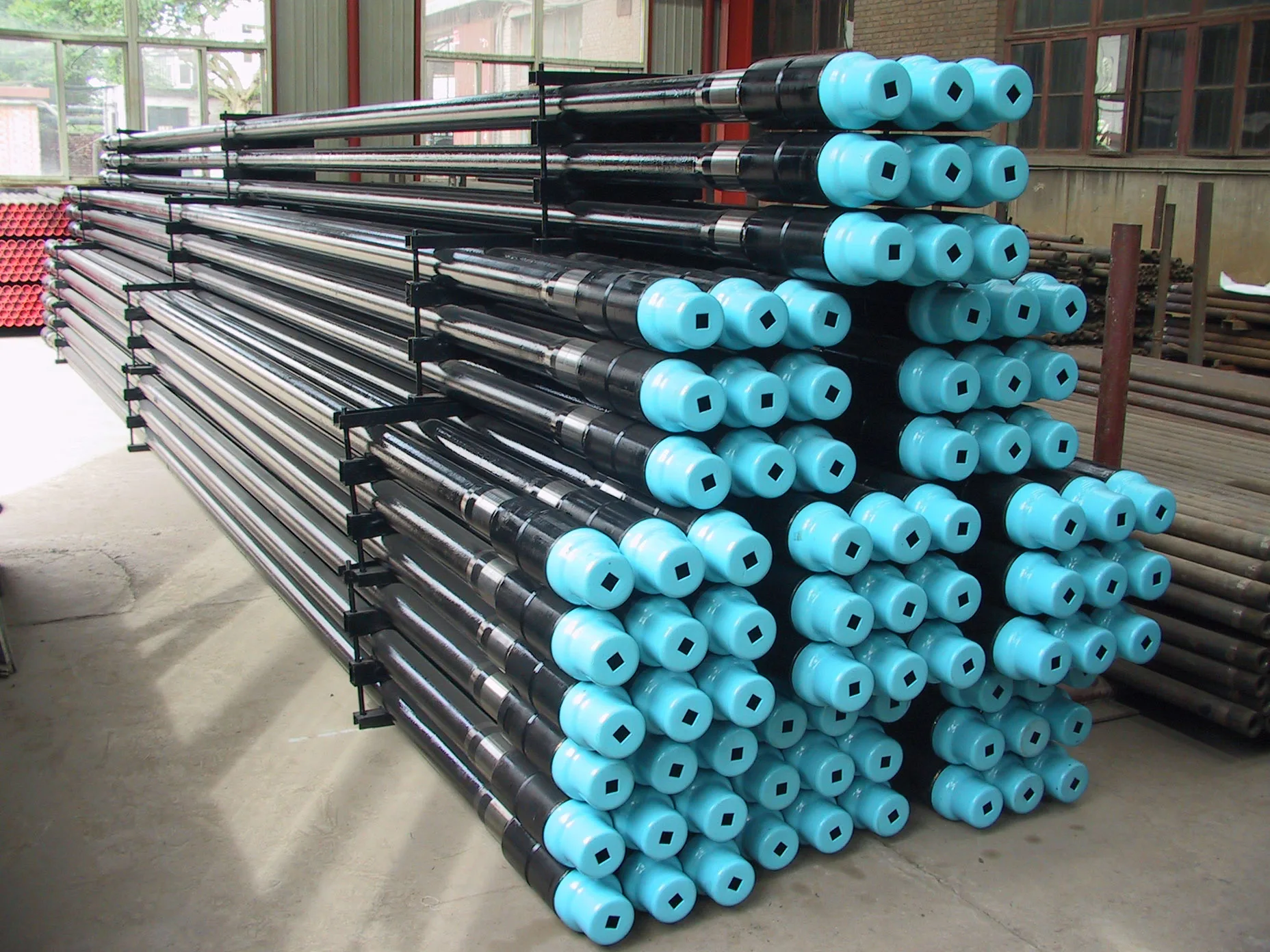

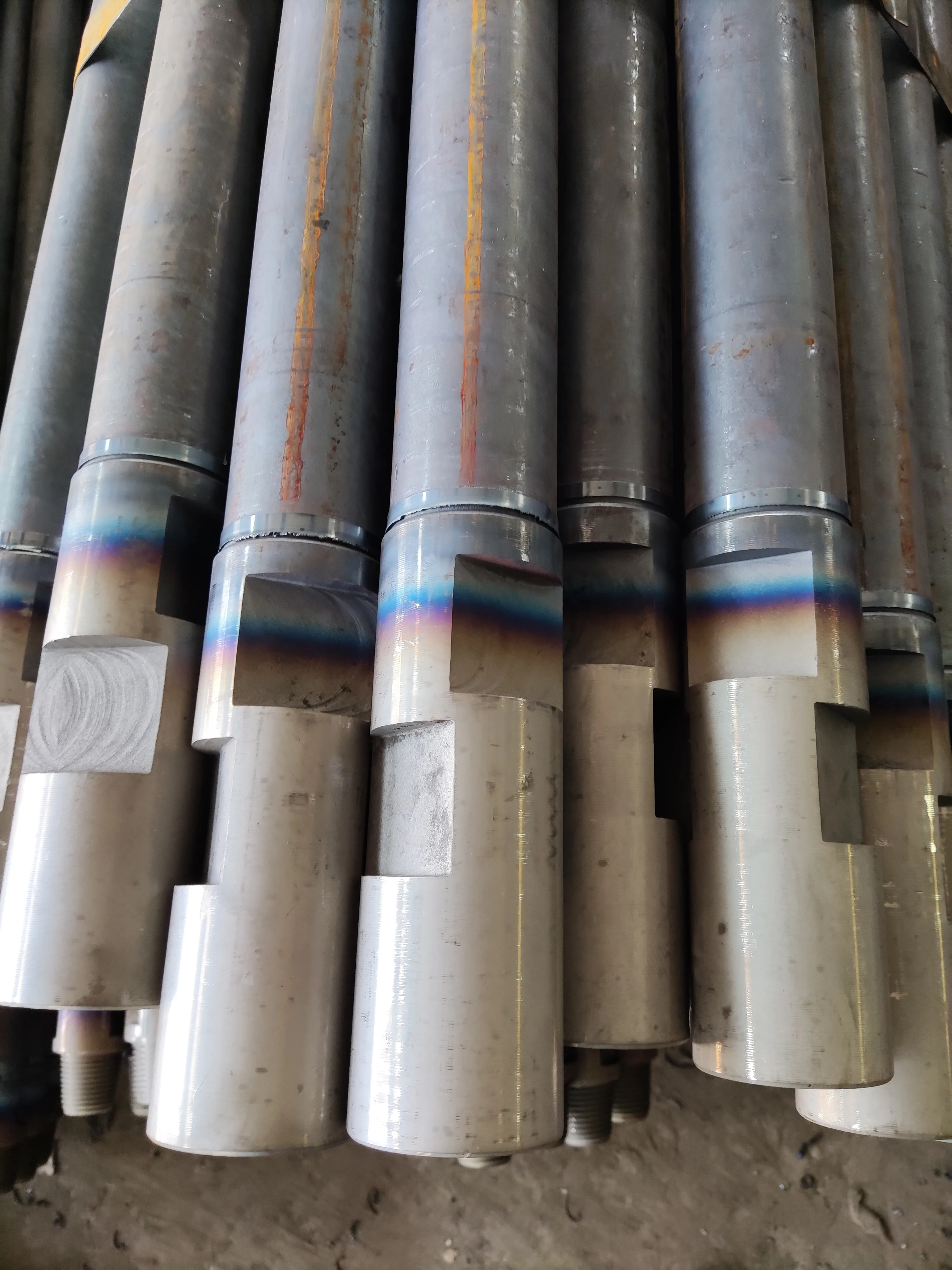

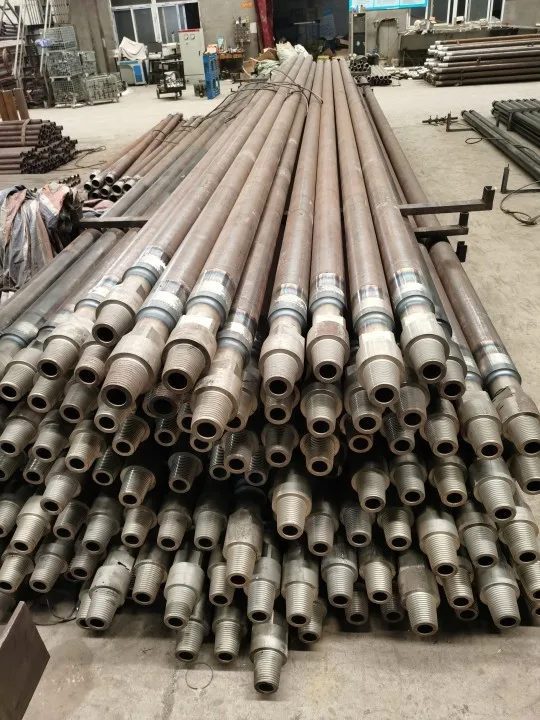

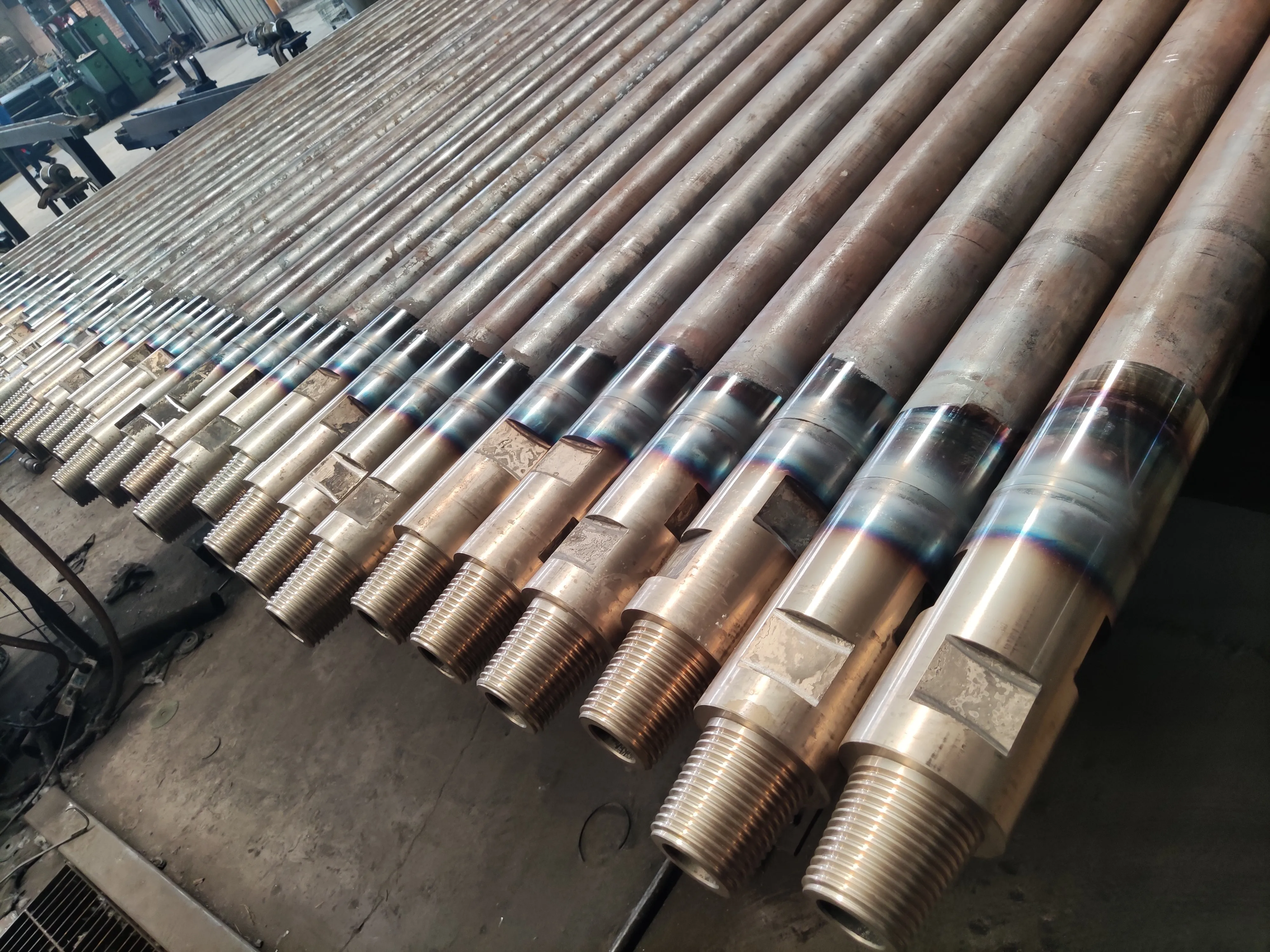

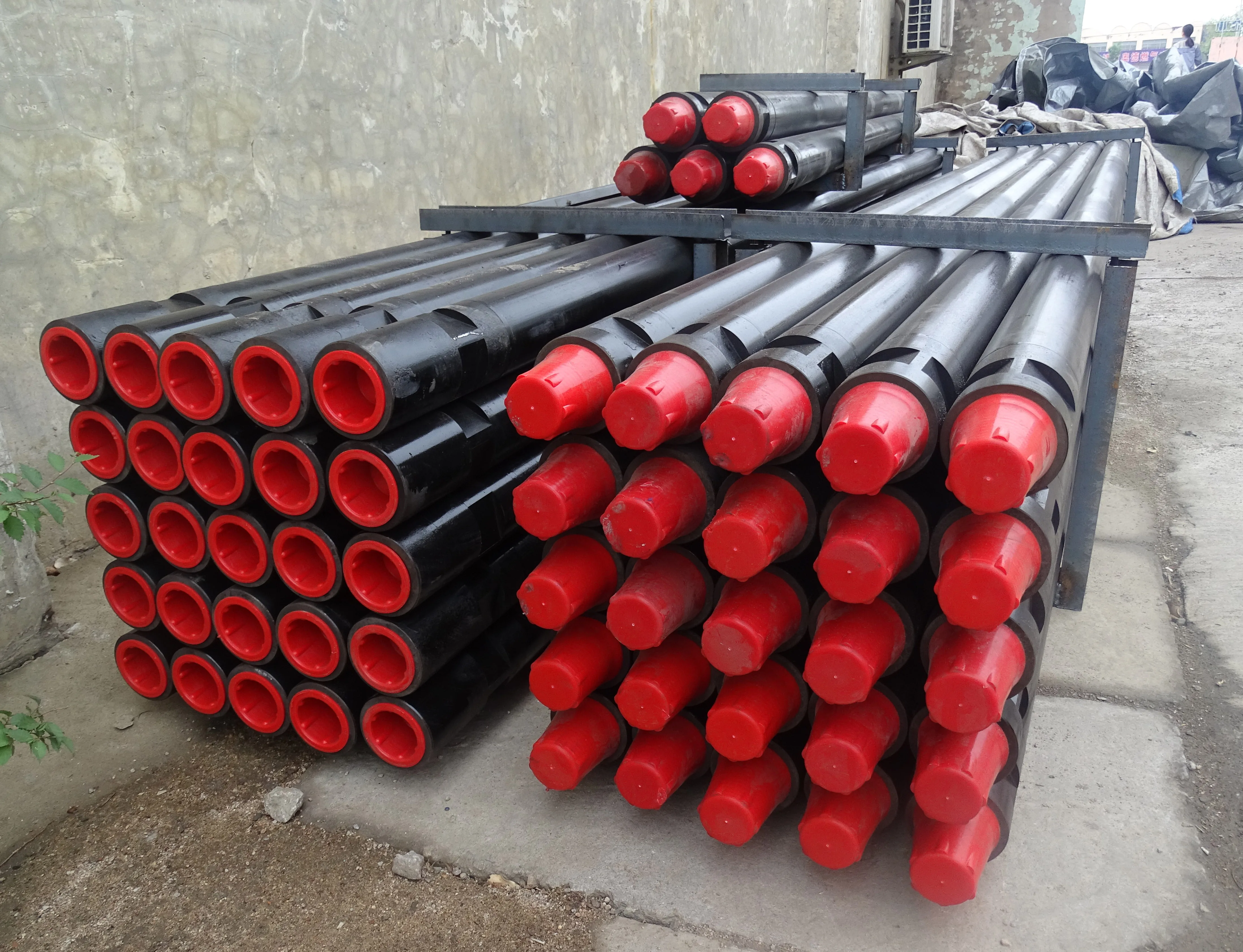

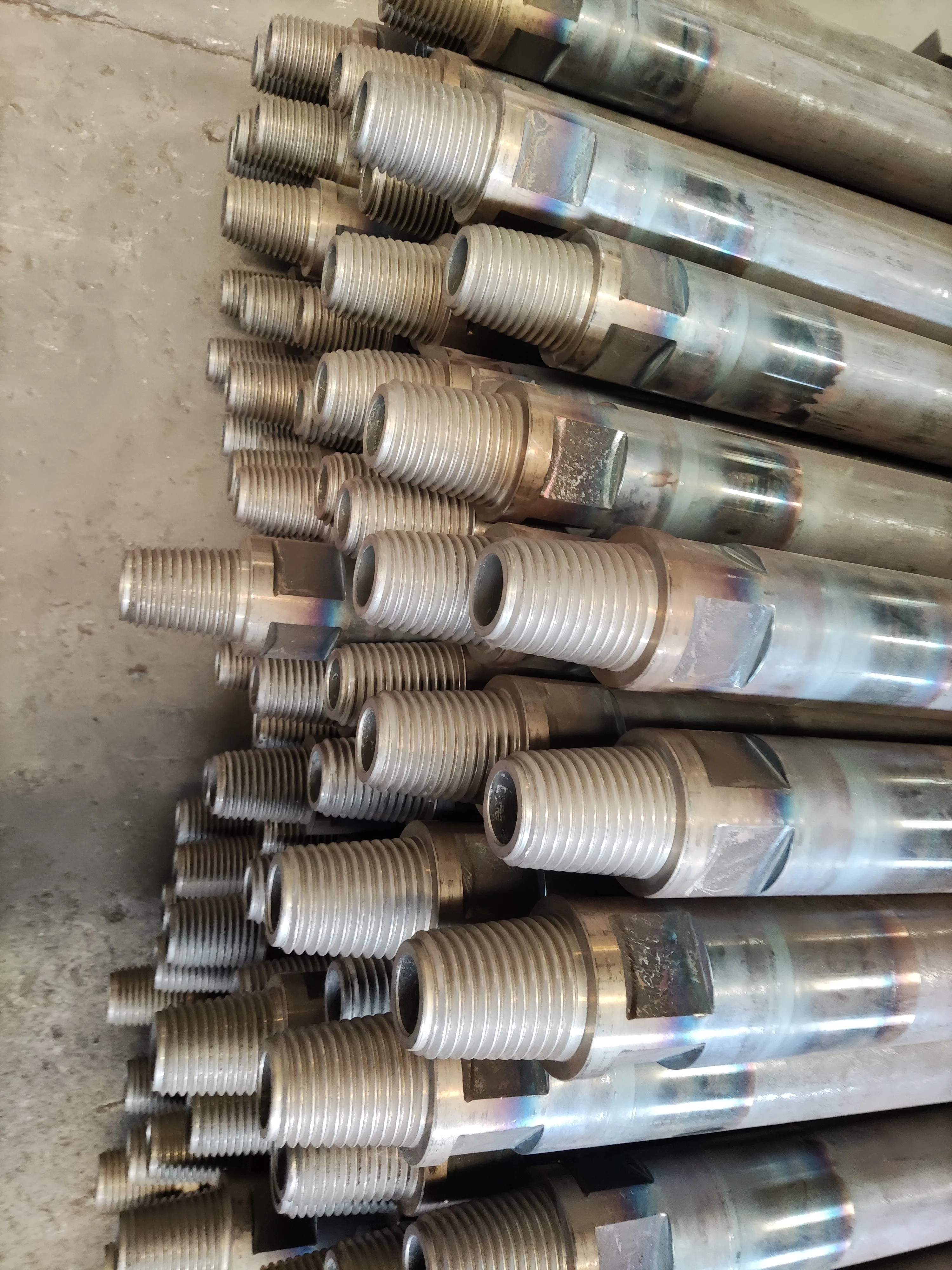

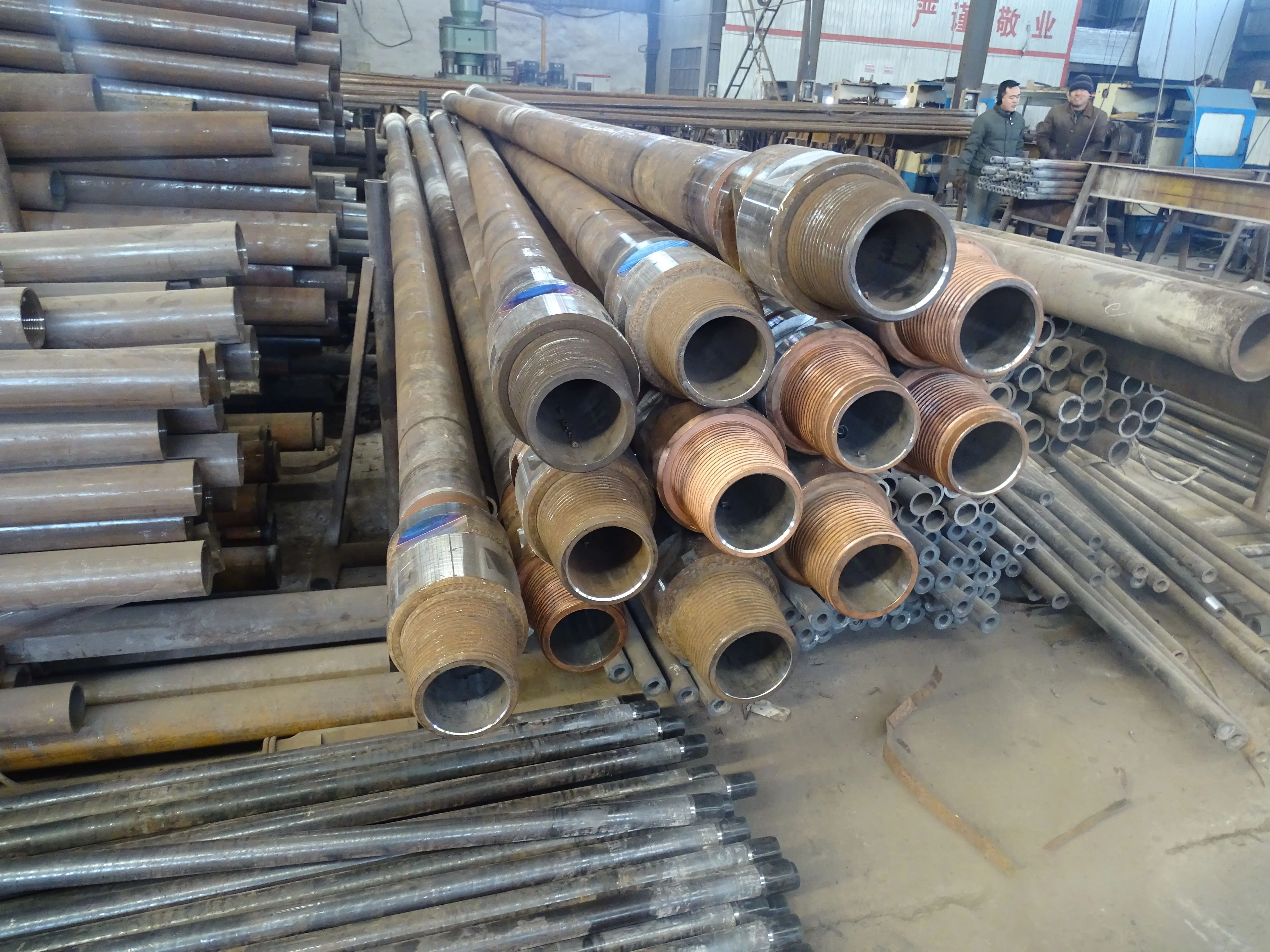

Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box
on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole
drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH
drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc.
According to customers request, from1000mmto6000mmlength of pipe are available.
on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole
drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH
drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc.
According to customers request, from1000mmto6000mmlength of pipe are available.
Specification
Diameter | Length | Connection | Wall thickness | ||||||
mm | inch | mm | Foot | mm | inch | ||||
50 | 1.969 | 500~3000 | 1.64~9.85 | As Request | 5~8 | 13/64~5/16 | |||
60 | 2 3/8 | 1000~4500 | 3 3/8~14 3/4 | T42*10*2 | 5~8 | 13/64~5/16 | |||
73 | 2 7/8 | 1000~4500 | 3 3/8~14 3/4 | API 2 3/8 REG | 5~8 | 13/64~5/16 | |||
76 | 3 | 1000~4500 | 3 3/8~14 3/4 | API 2 3/8 REG | 5~8 | 13/64~5/16 | |||
89 | 3 1/2 | 1000~7620 | 3 3/8~25 | API 2 3/8 REG/IF | 5~12 | 13/64~15/32 | |||
102 | 4 | 1000~9140 | 3 3/8~30 | API 2 3/8 REG, API 2 7/8 IF, API 3 1/2 REG | 6.5~20 | 1/4~25/32 | |||
108 | 4 1/4 | 1000~9140 | 3 3/8~30 | API 2 3/8 REG, API 2 7/8 IF, API 3 1/2 REG | 6.5~20 | 1/4~25/32 | |||
114 | 4 1/2 | 1000~10670 | 3 3/8~35 | API 2 7/8 IF, API 3 1/2 REG | 6.5~20 | 1/4~25/32 | |||
127 | 5 | 1000~10670 | 3 3/8~35 | API 3 1/2 REG | 8~20 | 5/16~25/32 | |||
133 | 5 1/4 | 1000~10670 | 3 3/8~35 | API 3 1/2 REG | 8~20 | 5/16~25/32 | |||
140 | 5 1/2 | 1000~10670 | 3 3/8~35 | API 3 1/2 REG | 10~22 | 25/64~7/8 | |||
146 | 5 3/4 | 1000~10670 | 3 3/8~35 | API 3 1/2 REG | 10~22 | 25/64~7/8 | |||
152 | 6 | 1000~10670 | 3 3/8~35 | API 4 1/2 REG | 10~22 | 25/64~7/8 | |||

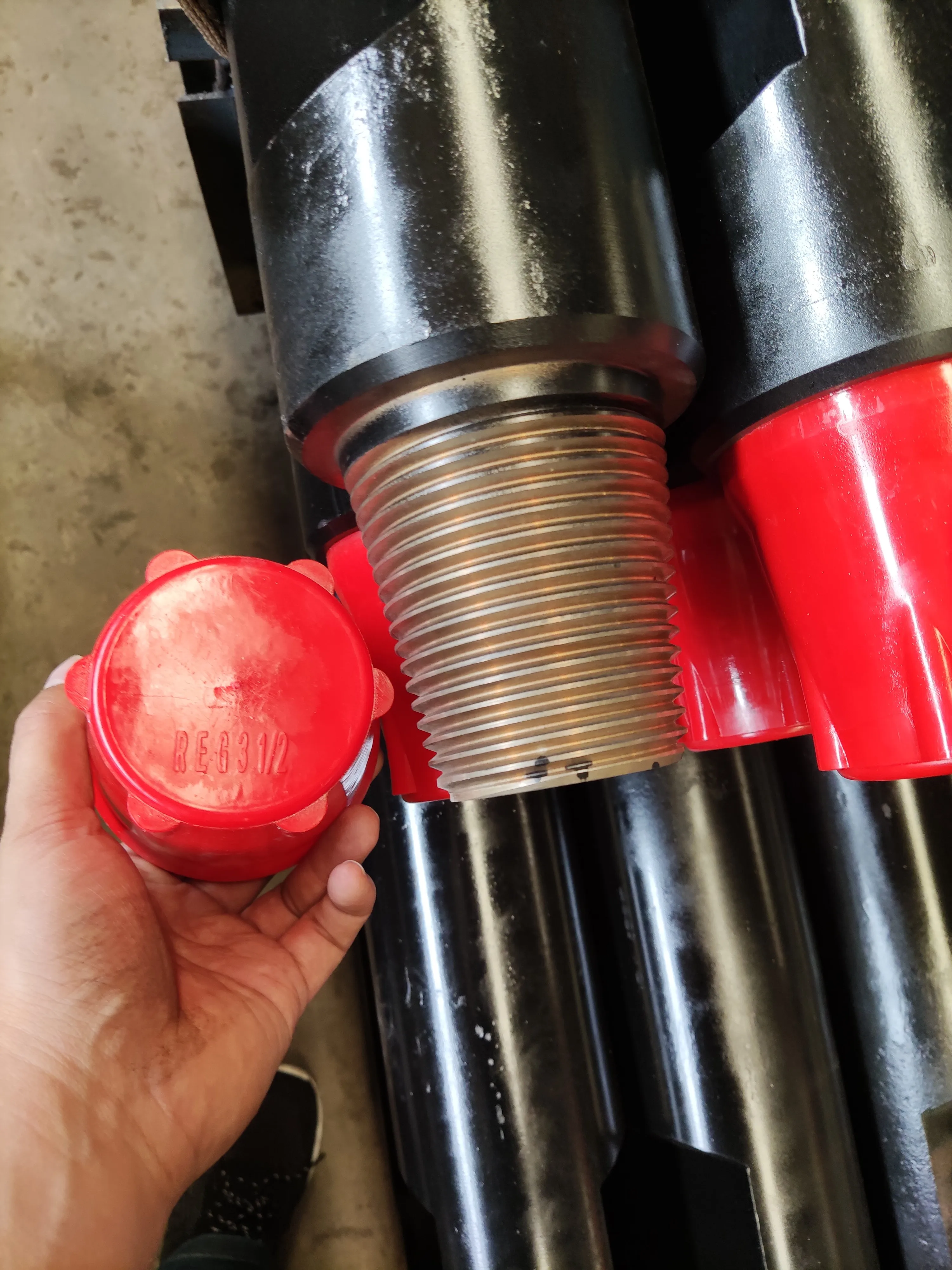

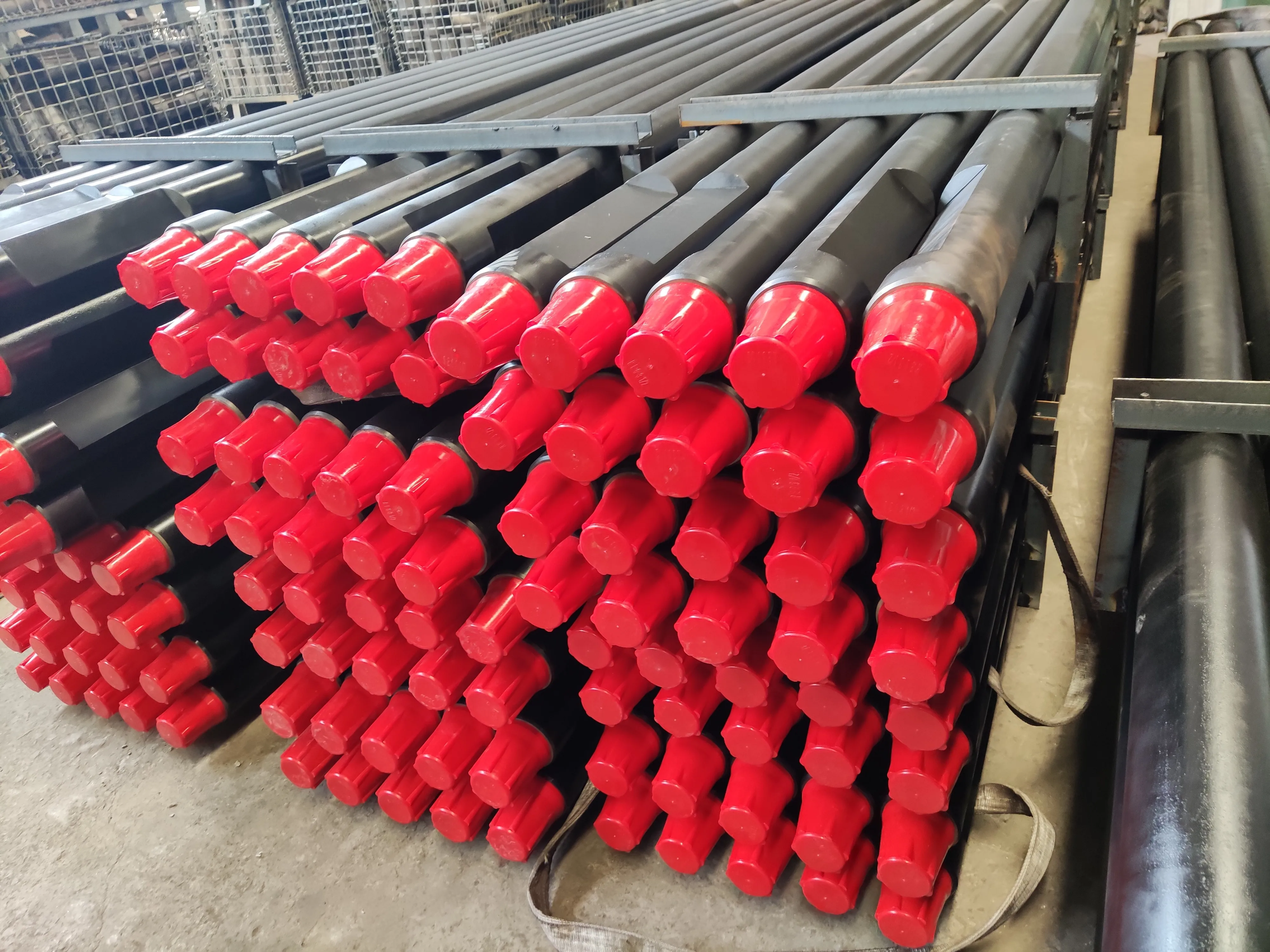

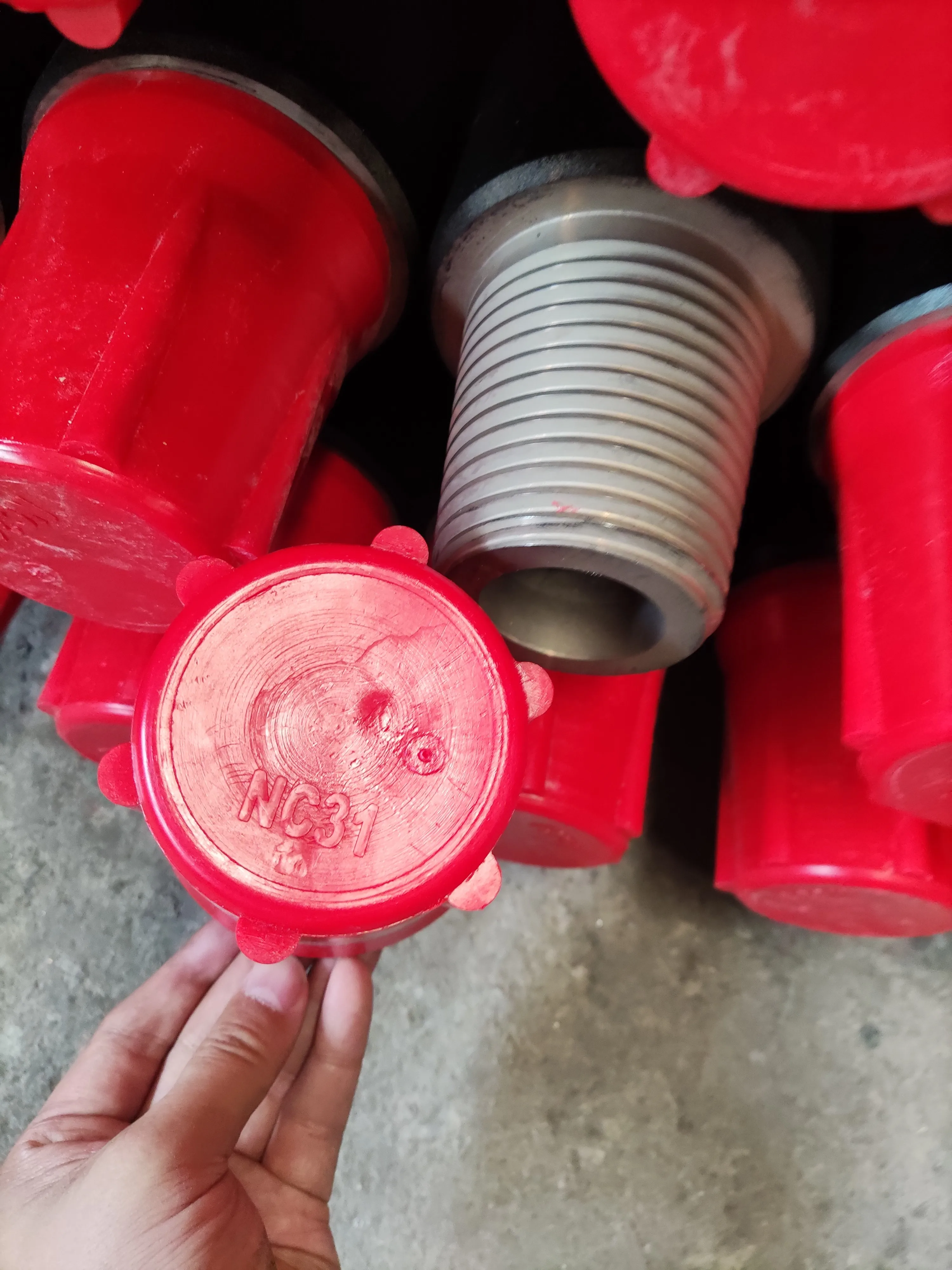

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Safe and reliable product quality, serving for mining, water well drilling, and pile foundation construction.
Exhibition

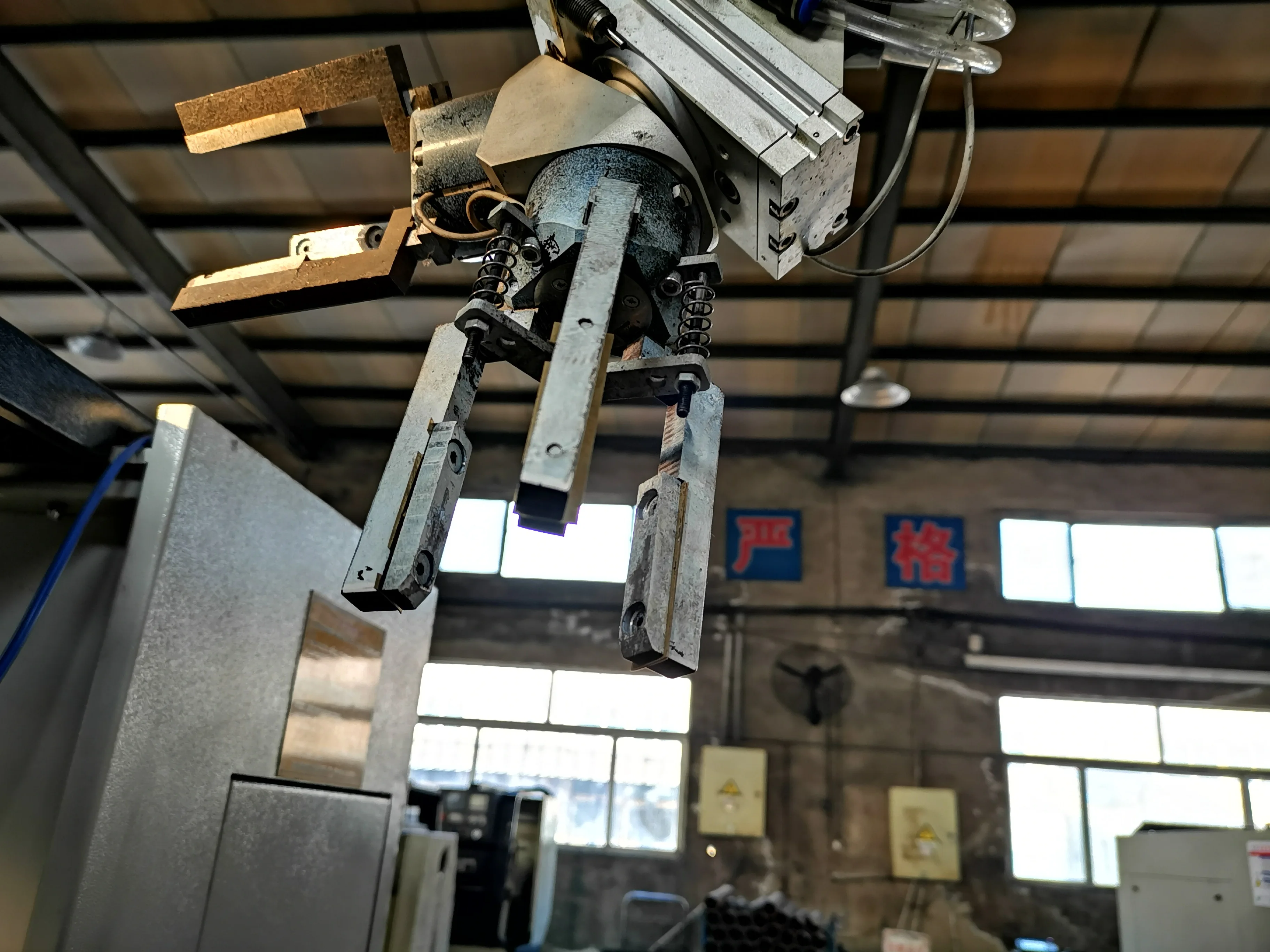

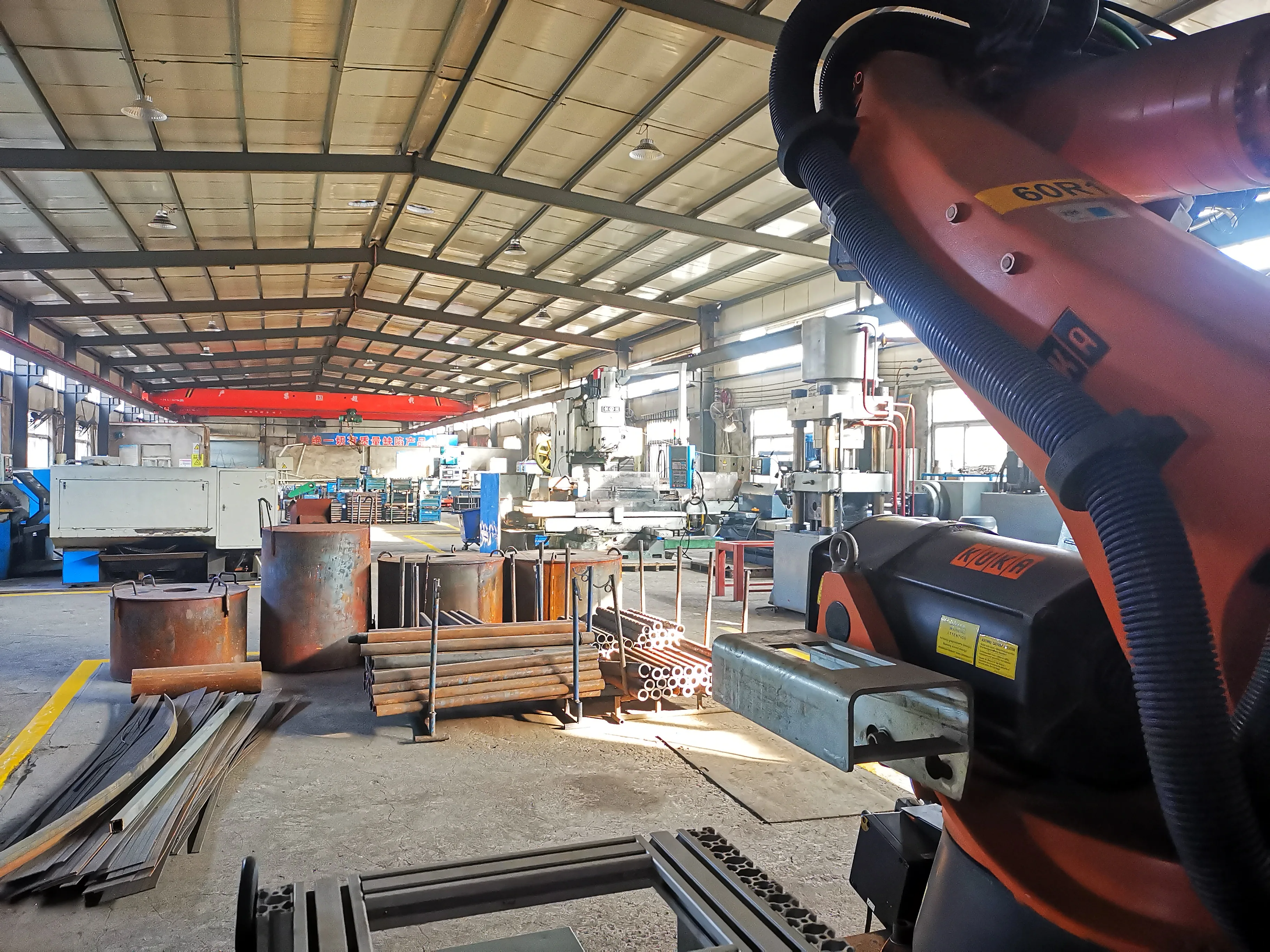

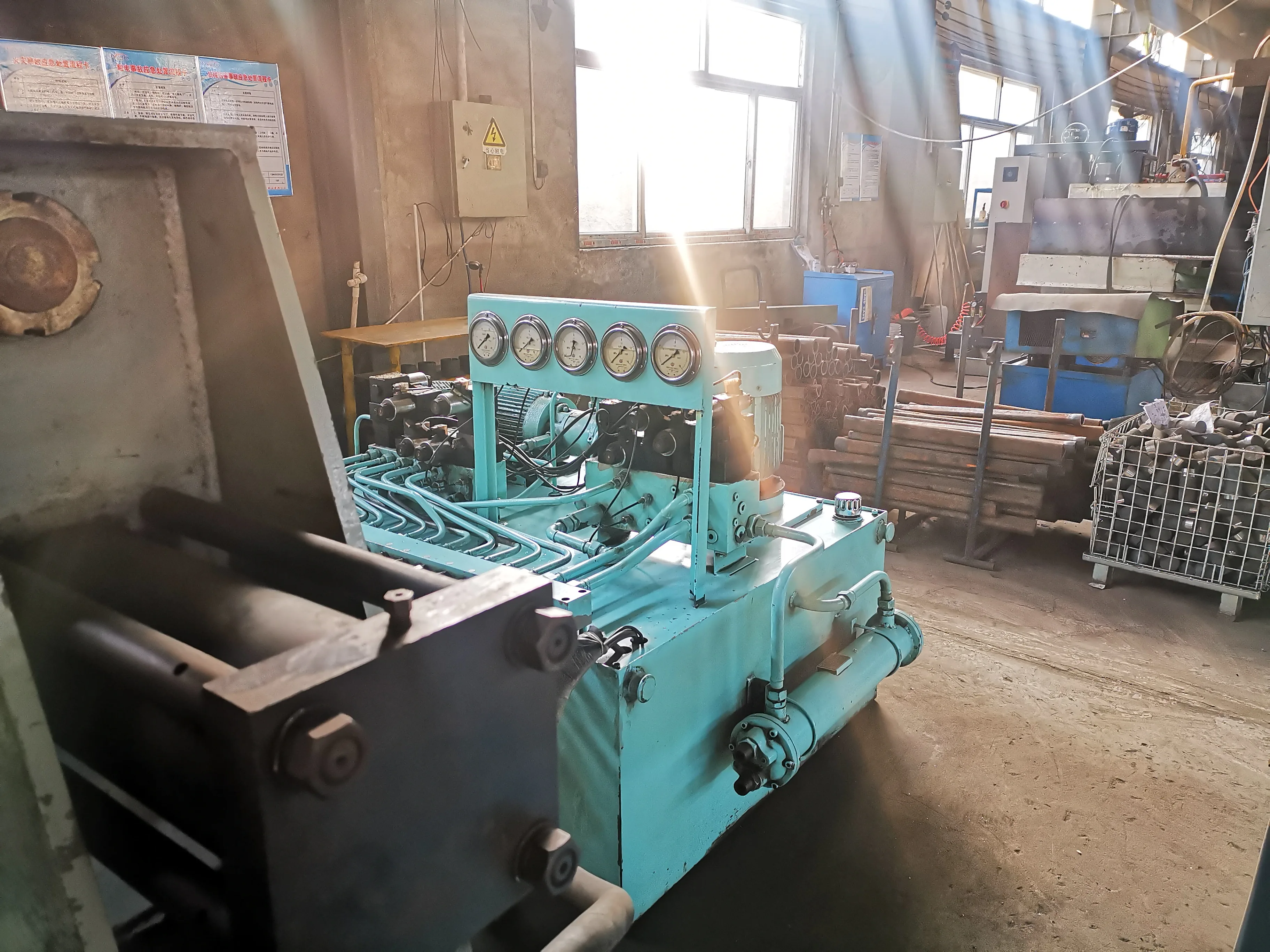

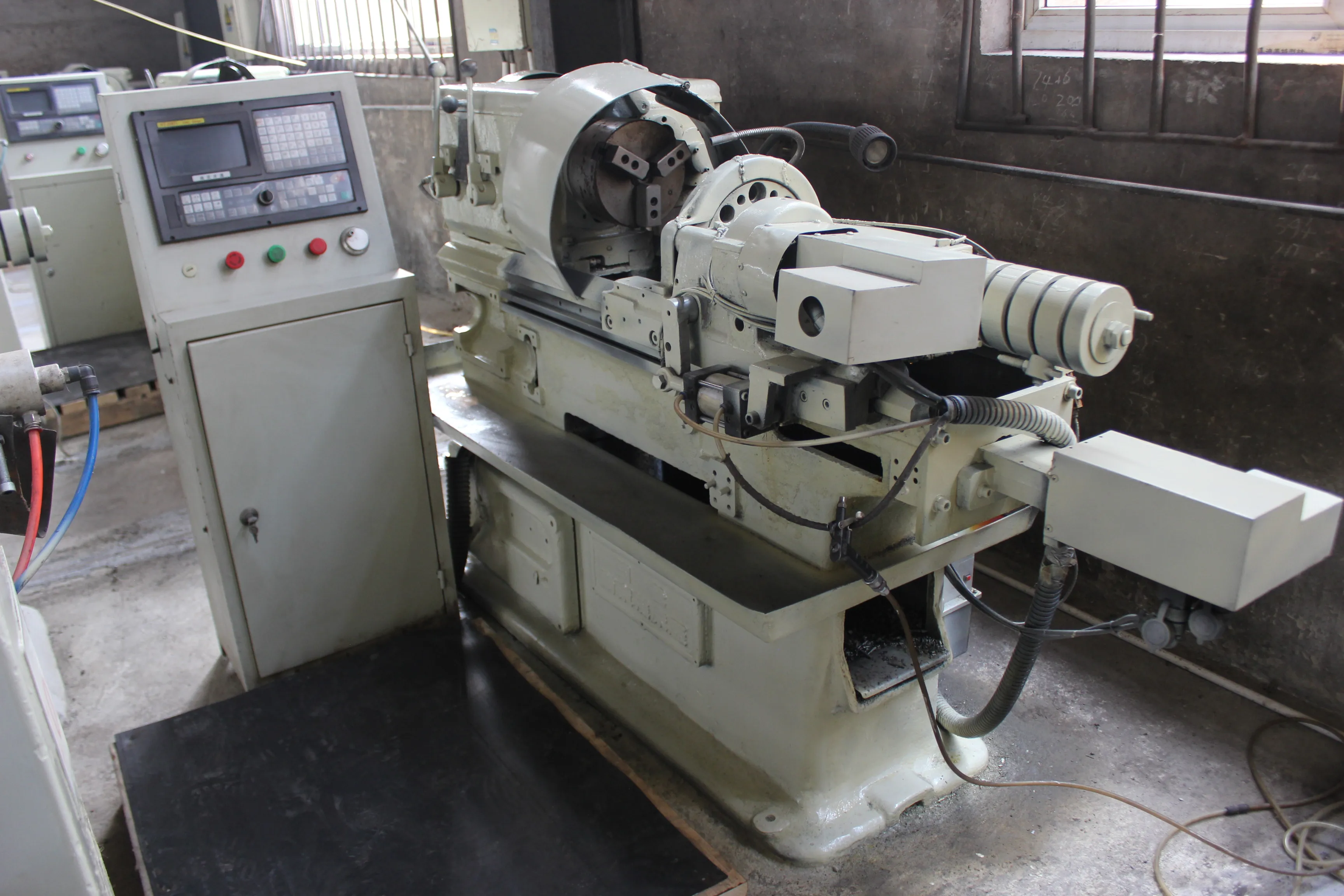

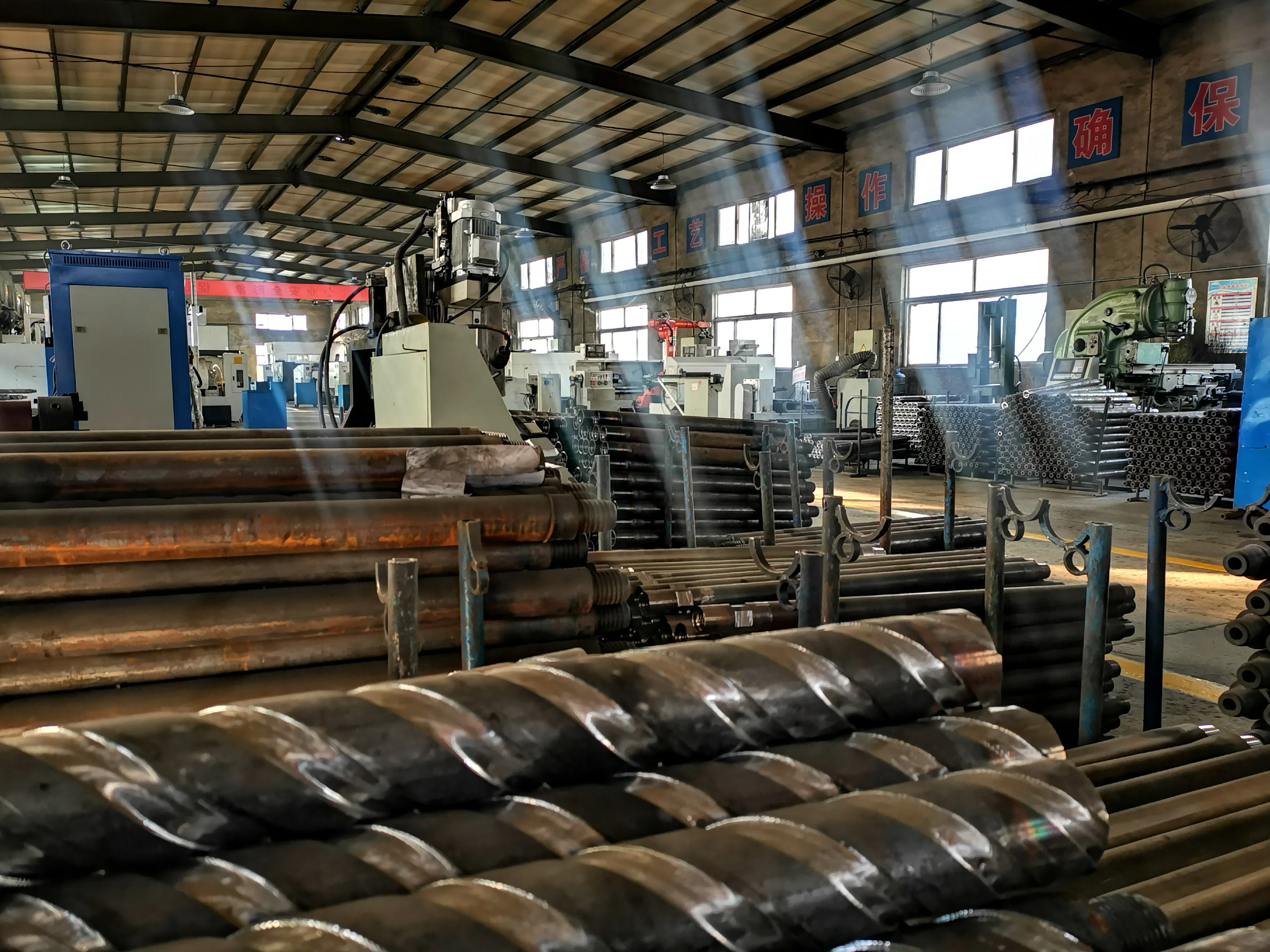

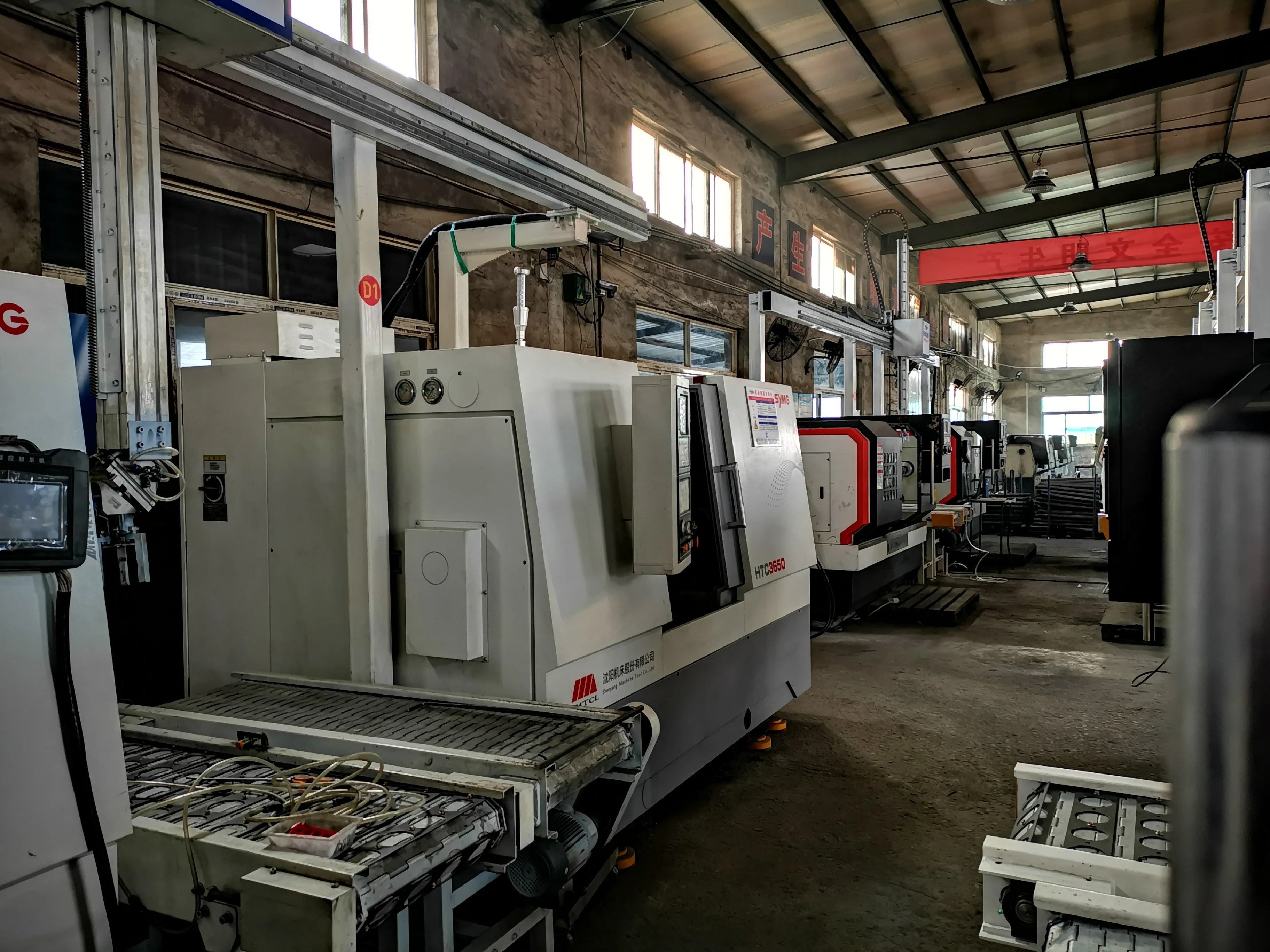

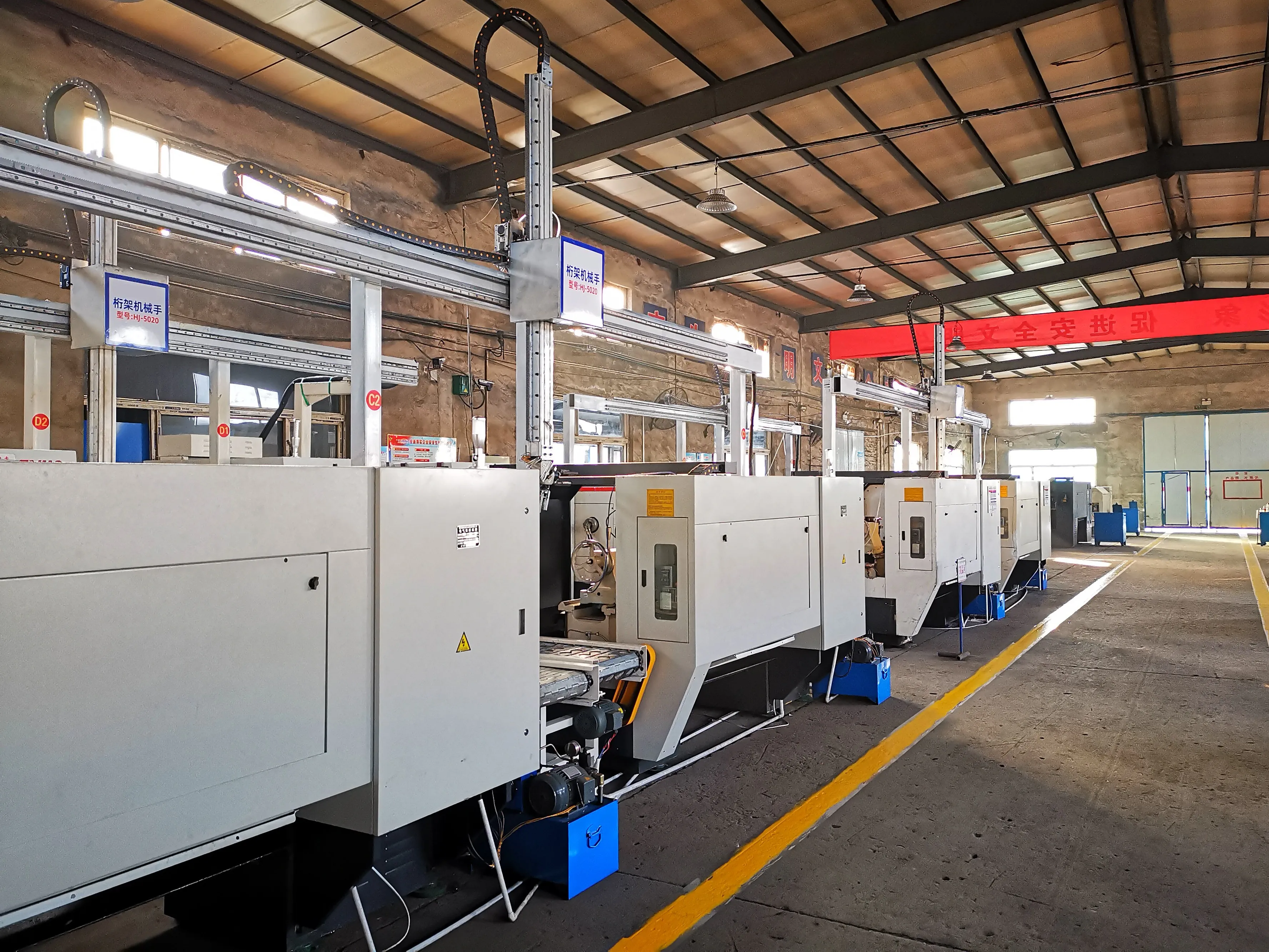

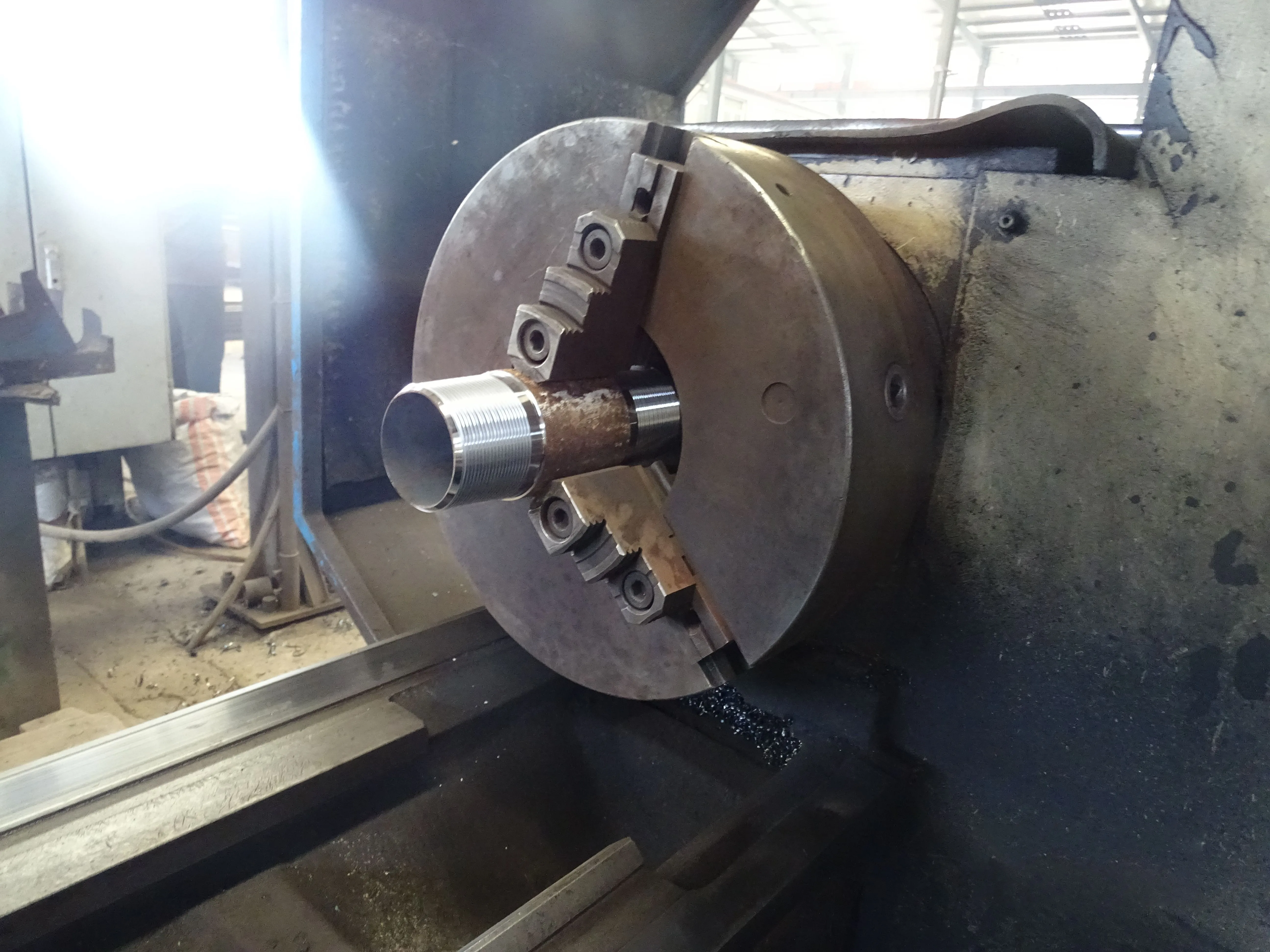

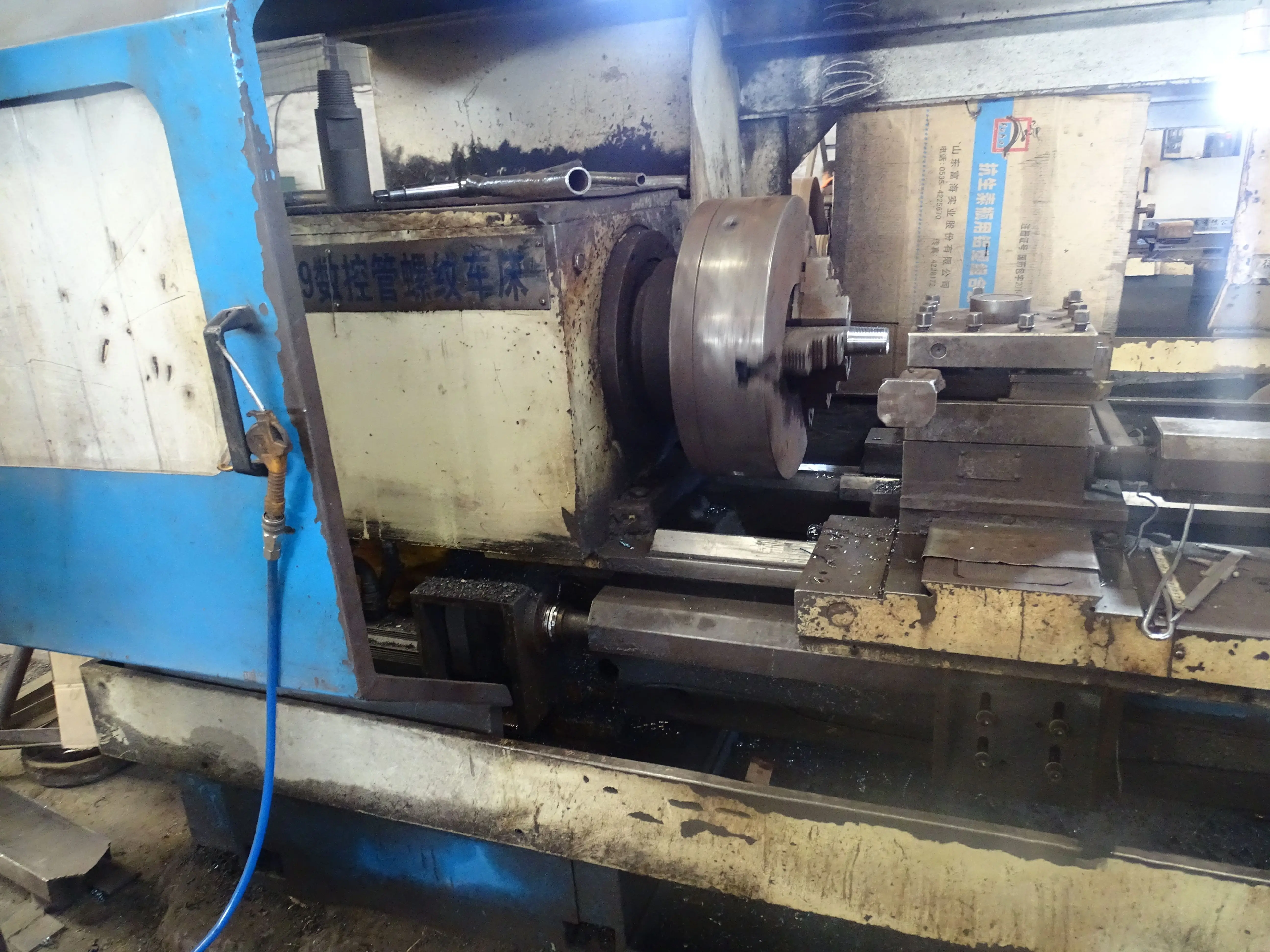

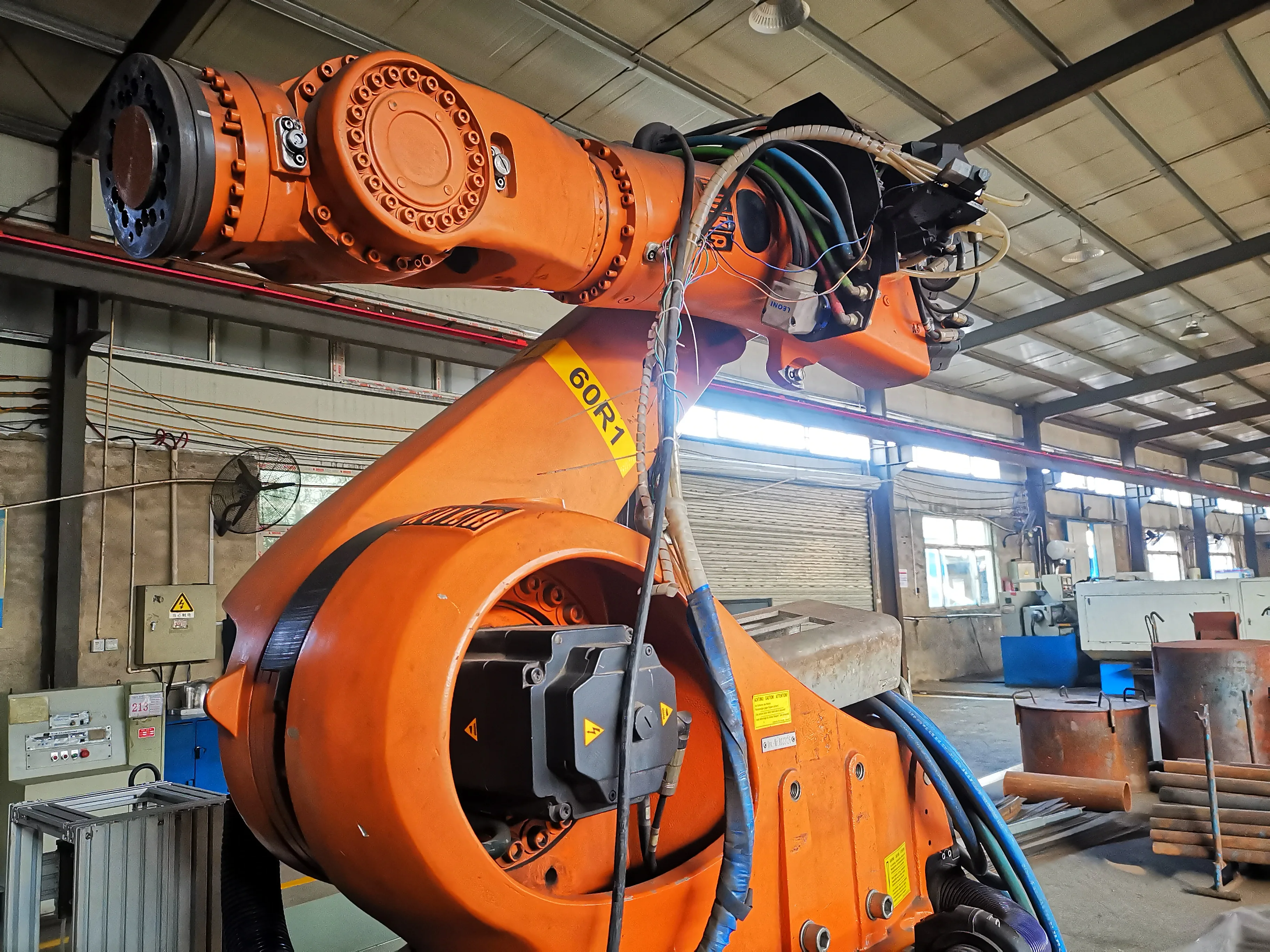

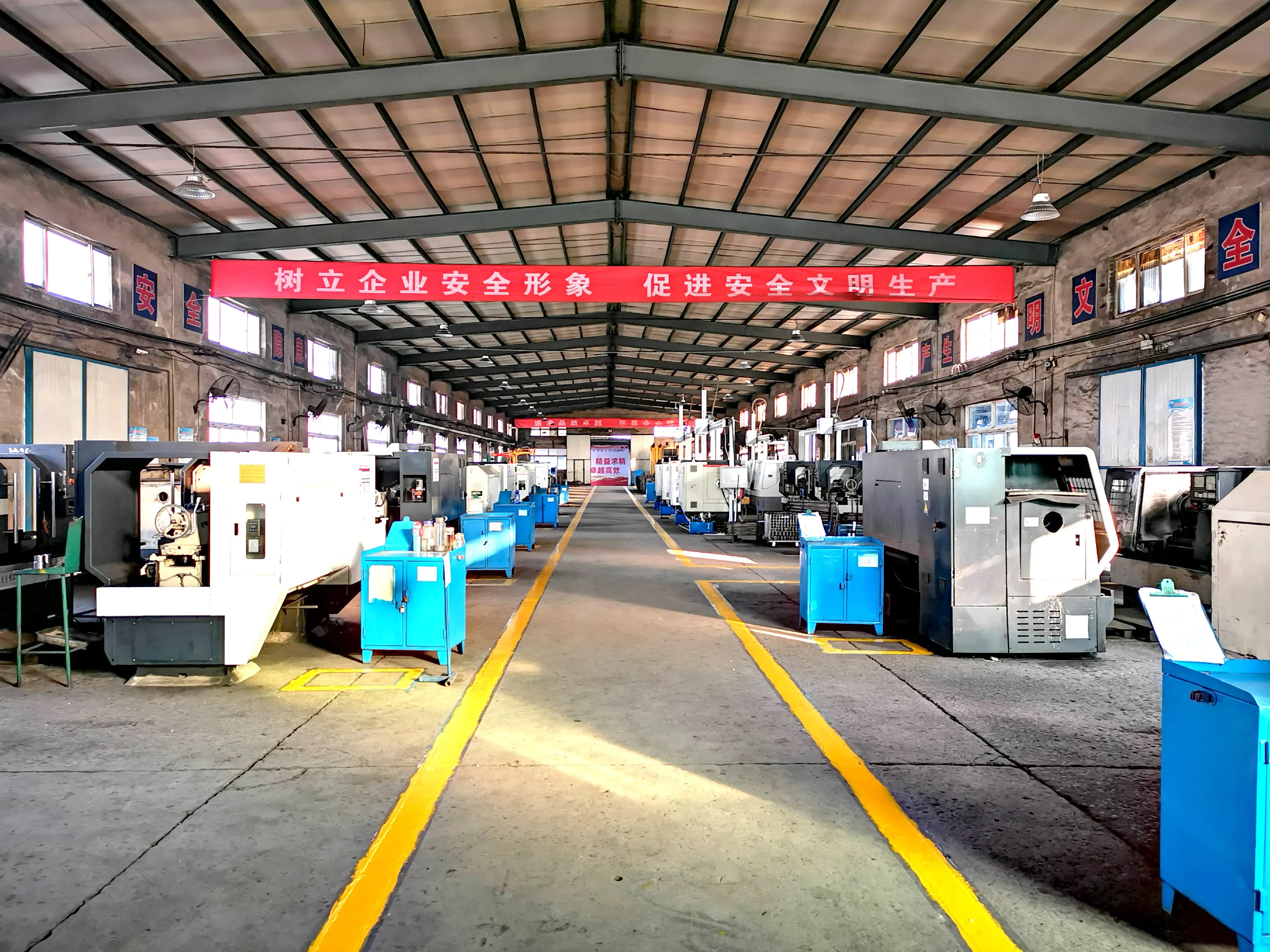

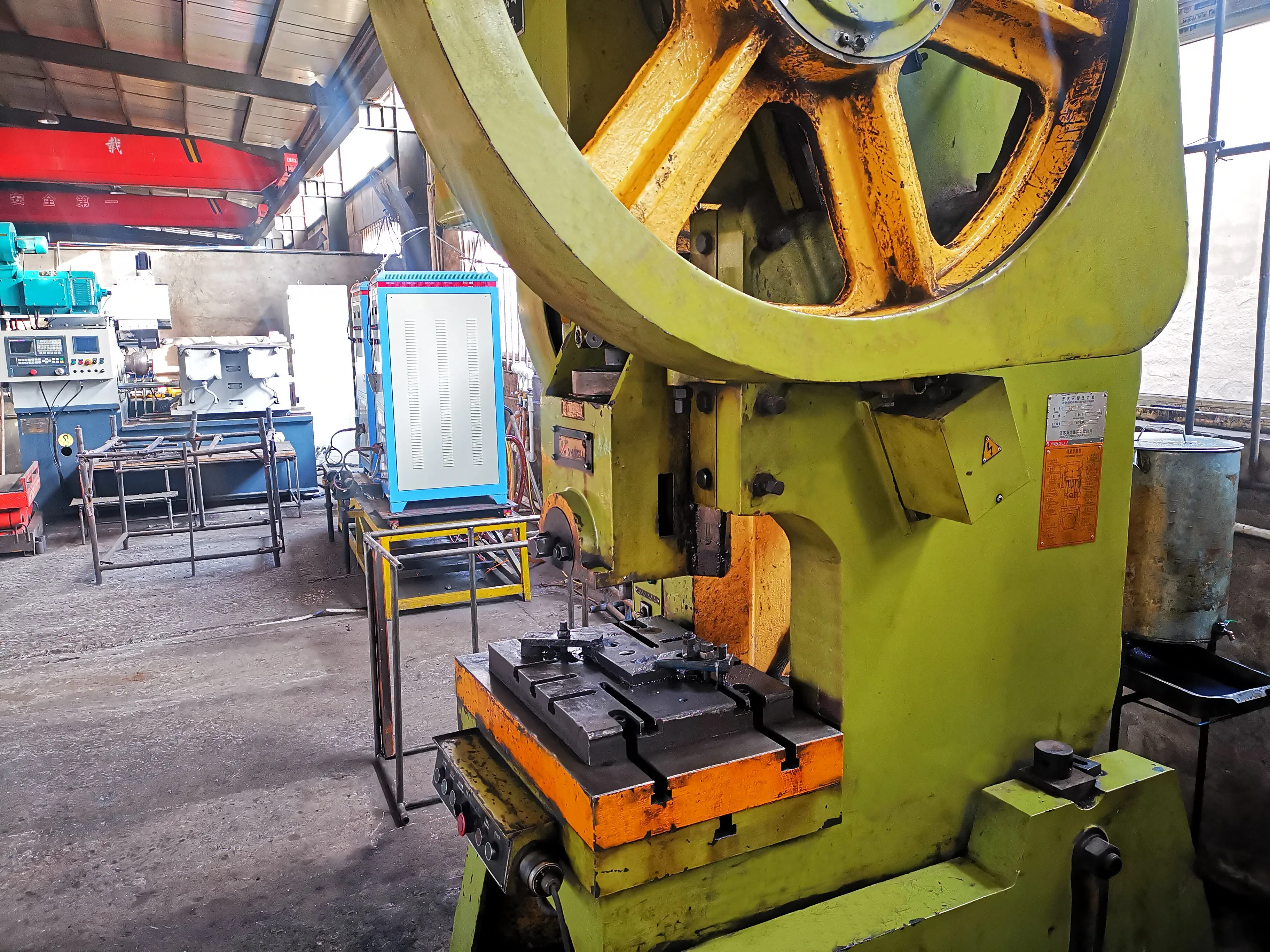

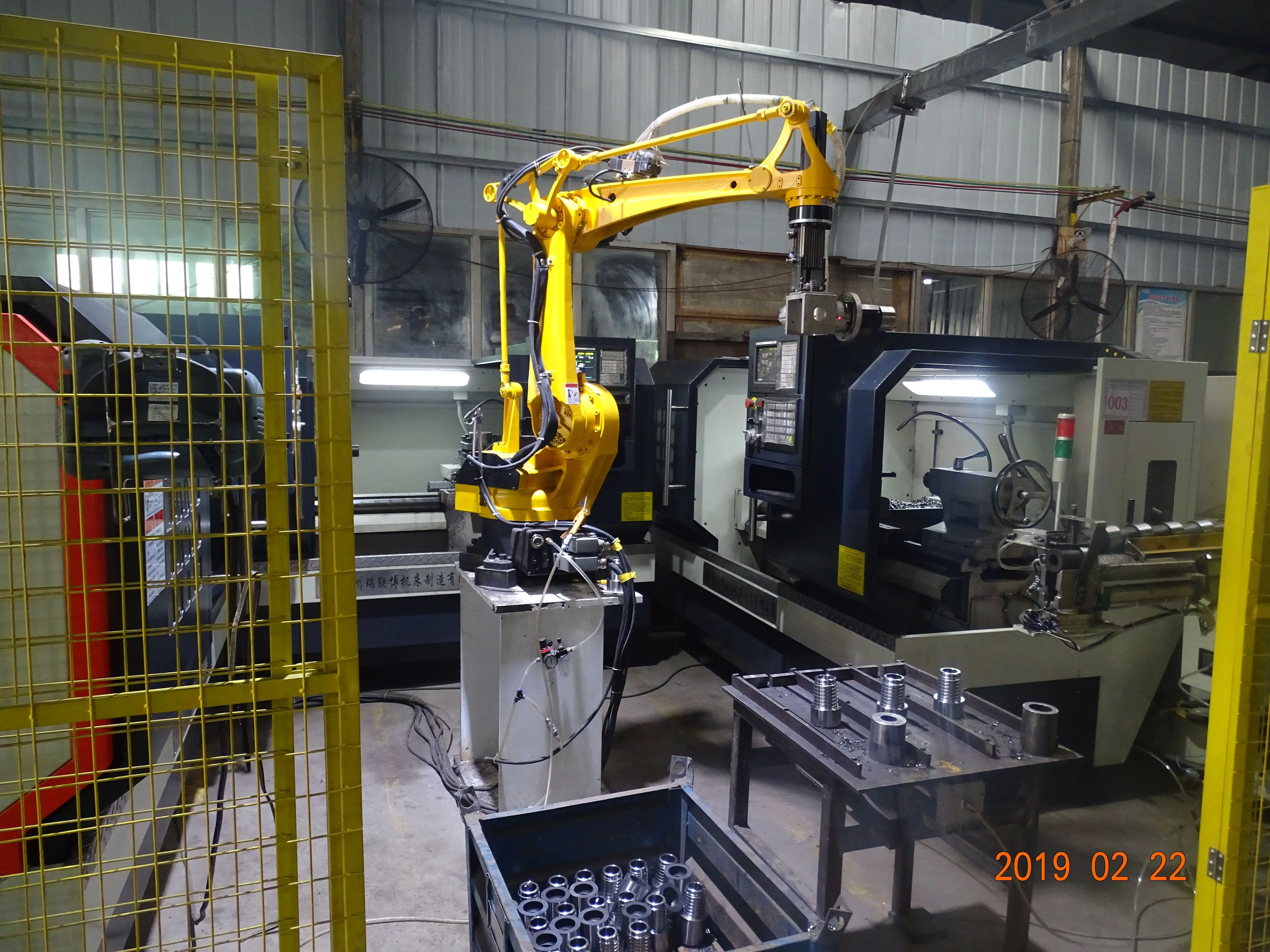

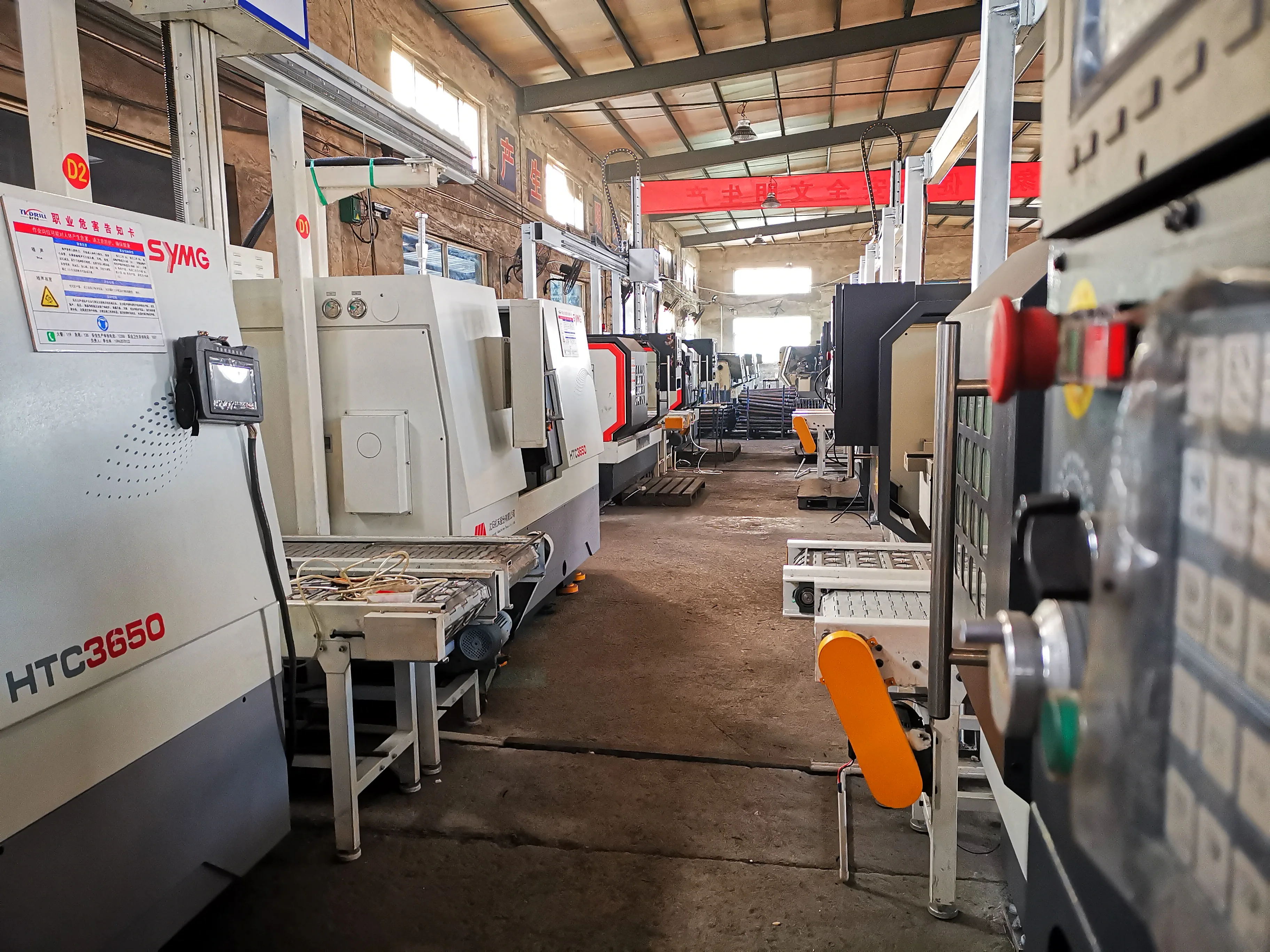

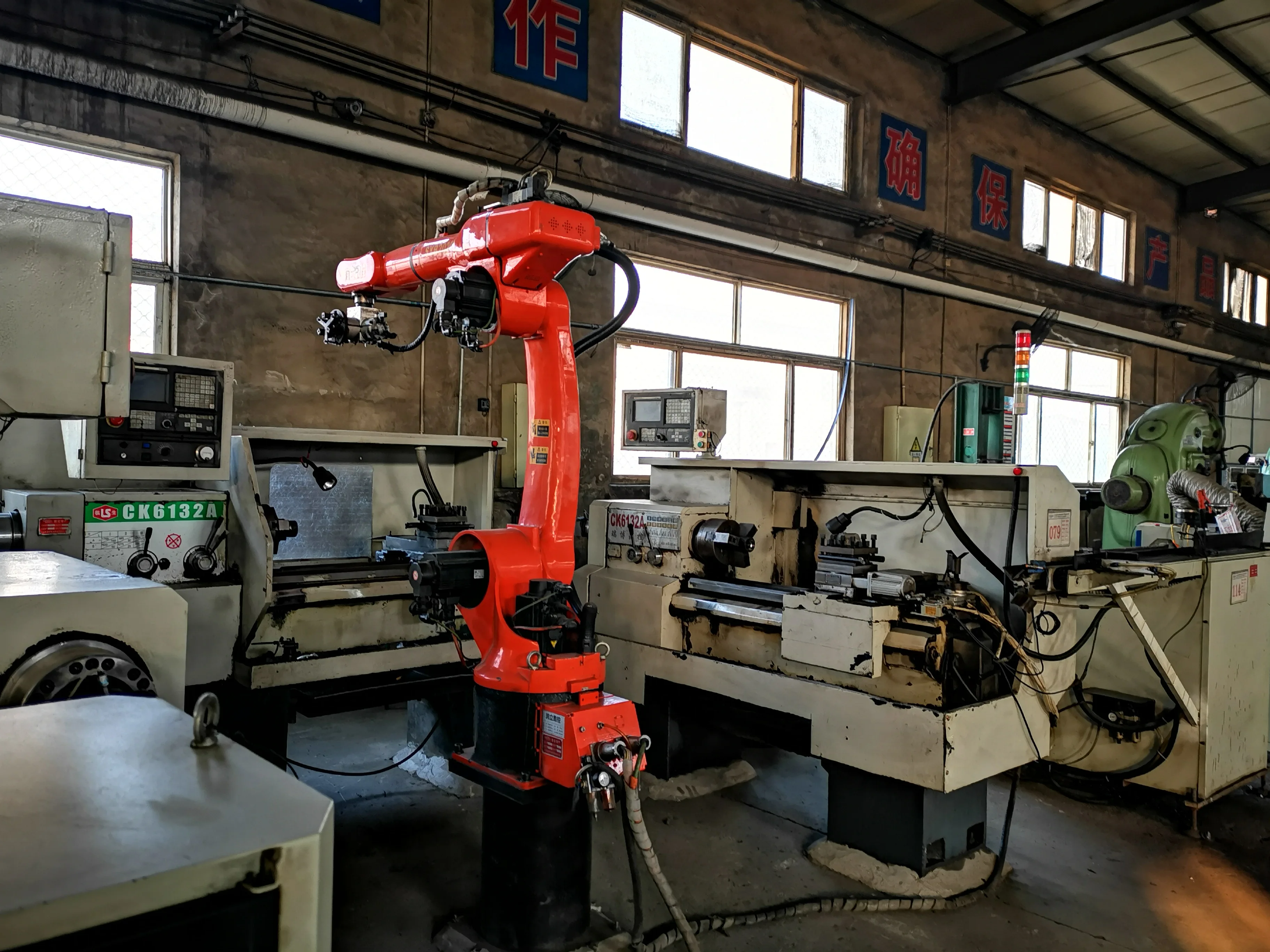

Factory real landscape
FAQ
FAQ:
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.They are used for mineral exploration,
geological drilling,
Q: How about the delivery terms?
A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept
goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in Linqing city, Shandong province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and
raw materials in strict procedure.
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.They are used for mineral exploration,
geological drilling,
Q: How about the delivery terms?
A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept
goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in Linqing city, Shandong province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and
raw materials in strict procedure.
