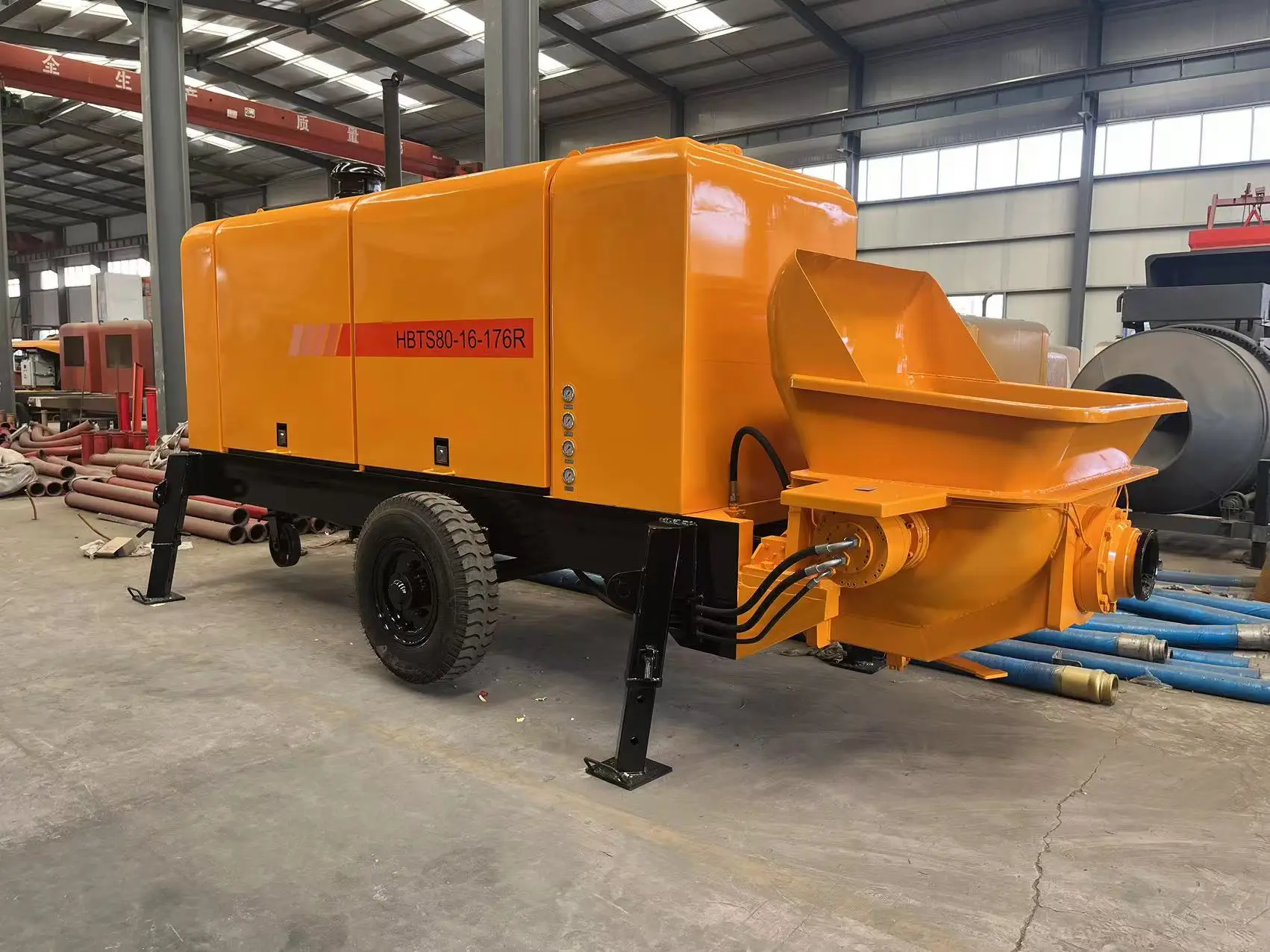

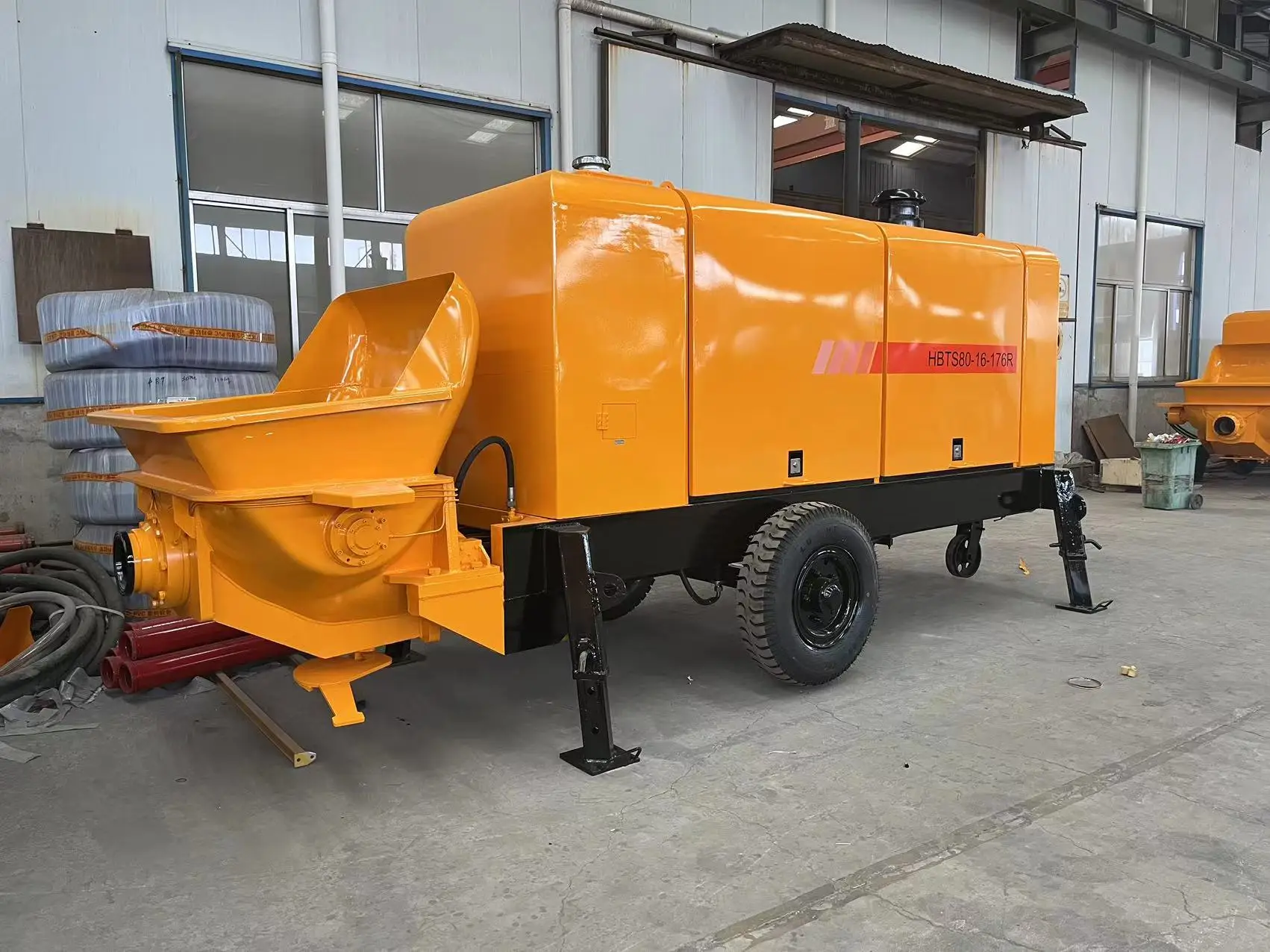

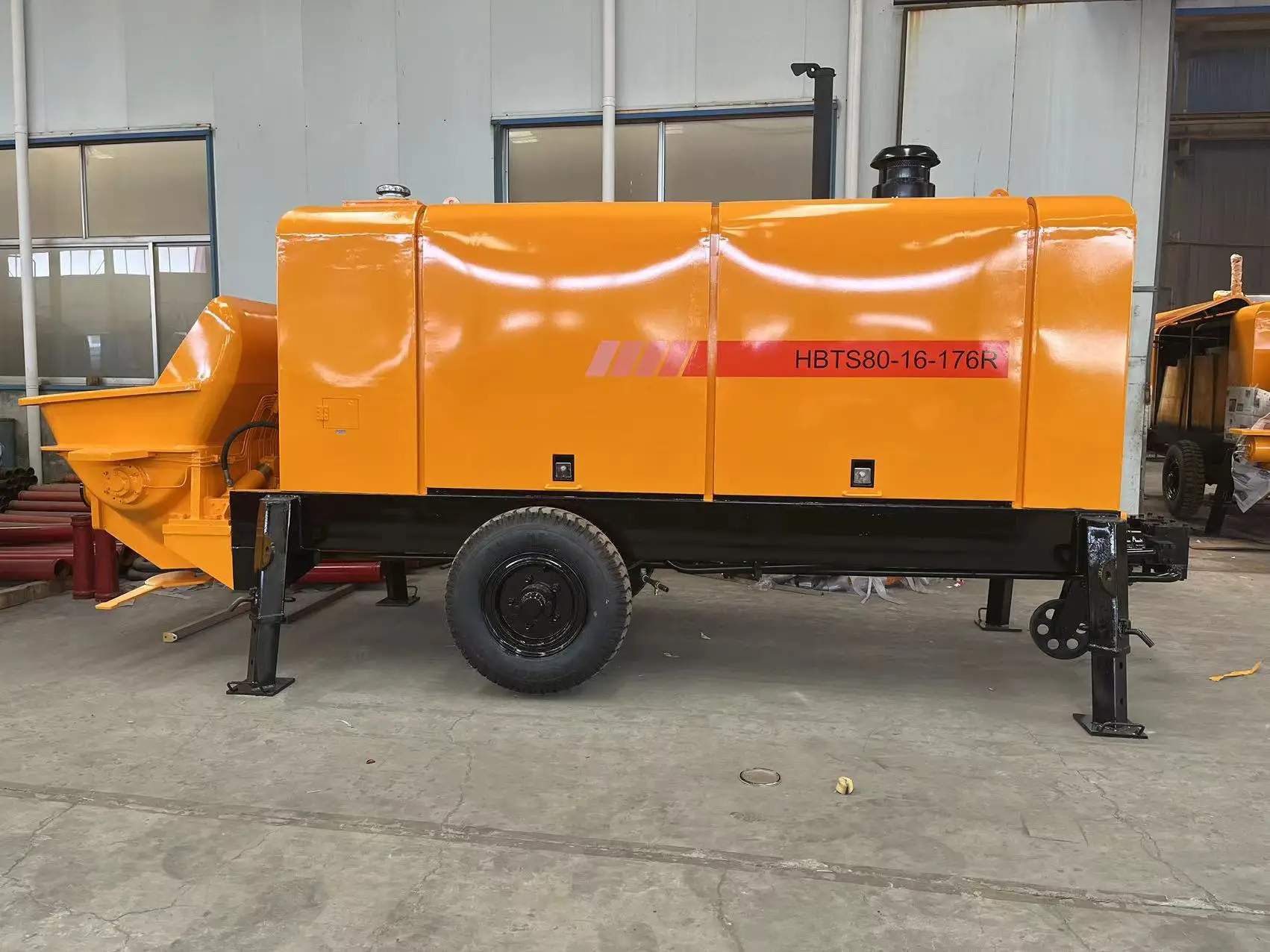

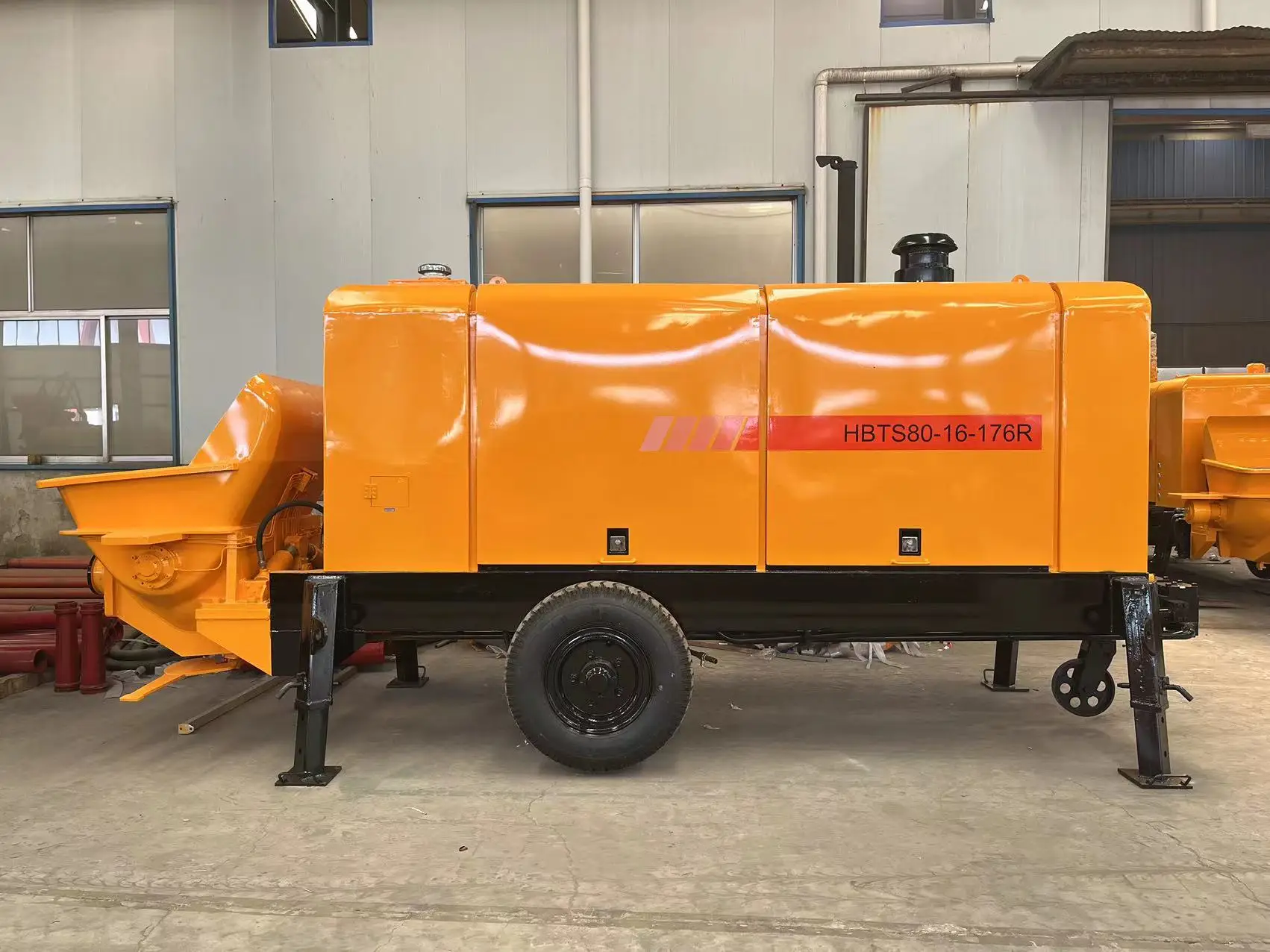

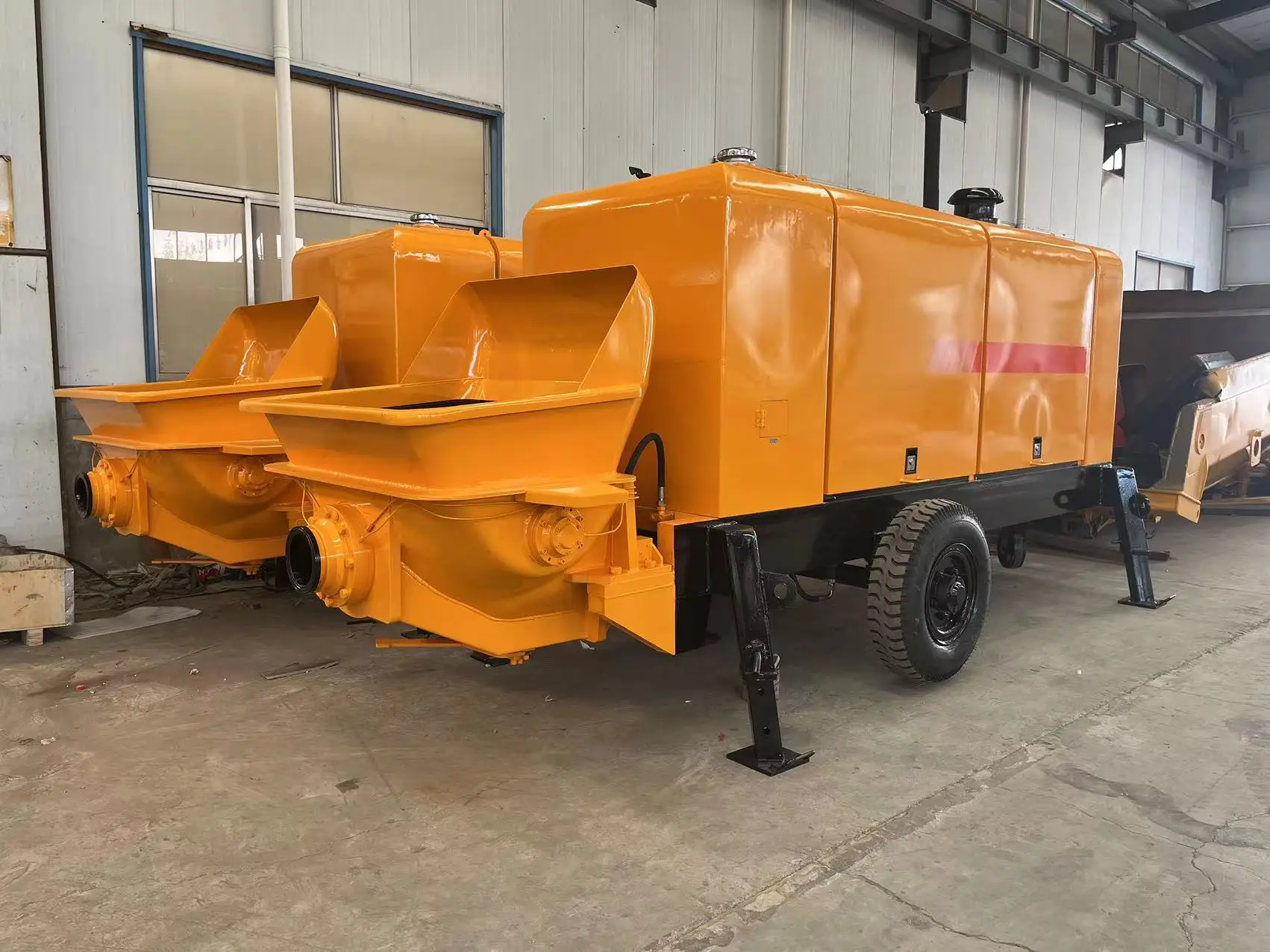

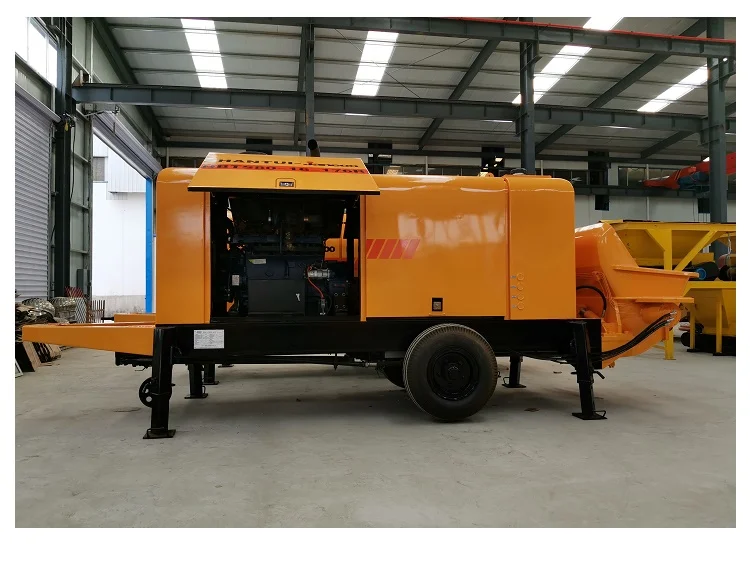

Concrete Machine MINLE Brand Cement Pump Trailer Mounted Diesel Concrete Pump Car HBTS80 16 176R exported to Indonesia

Product Overview

Description

Concrete Machine MINLE Brand Cement Pump Trailer Mounted Diesel Concrete Pump Car HBTS80-16-176R exported to Indonesia

contact:sara mao mobile/wechat/whatsapp:86-15866001919







 Product description Concrete Machine MINLE Brand Cement Pump Trailer Mounted Diesel Concrete Pump Car HBTS80-16-176R exported to Indonesia





1.Power system of concrete pump car

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted.

The main power could be adjusted by the user



2.Electronic control system of trailer mounted concrete pump

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

The control mode: manual operation and wireless remote control

Humanity and intelligent electronic control system optimizes the person-machine interface.8-digital pumping time accumulation timer provides exact data for the user, Automatic anti-pump function and optimized program design. Automatic trouble monitoring function.



3.Hydraulic system of concrete pump trailer

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.

A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete. The concrete is delivered freely.



4.Pumping system concrete pump trailer

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.



5.Lubrication System concrete pump trailer

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.



6.Cooling System of concrete pump trailer

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.



 Main Technical Parameters:Concrete Machine MINLE Brand Cement Pump Trailer Mounted Diesel Concrete Pump Car HBTS80-16-176R exported to Indonesia





Item	HBTS80-18-176R
Max Theoretical Concrete Output	85/46
(m³/h)
Max Concrete outlet Pressure	7/18
(Low/High pressure) (Mpa)
Concrete slump (mm)	120-230
Aggregate Size (mm)	pebble≤50  gravel≤40
Power (KW)	Diesel motor 176
Speed (r/min)	2300
Conveying Cylinder Diameter (mm)	150/1600
Concrete Cylinder Diameter (mm)	200/1600
High-Low Pressure Switch	yes
Oil Tank Capacity (L)	500
Hopper Capacity (m³)	0.8
Fuel Tank Capacity (L)	240
Filling Height (mm)	1400
Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m)	270/1200
Pipe Cleaning Mode	High pressure water washing
Overall Dimension (mm)	6052x2120x2260
Total Weight (kg)	6237
