Dawei Portable Digital X Ray Machine by Medical Device Manufacturer for Mammography and Diagnostic Imaging
- Category: >>>
- Supplier: Dawei Medical (Jiangsu) Co. Ltd.
Share on (1600997553148):
Product Overview
Description

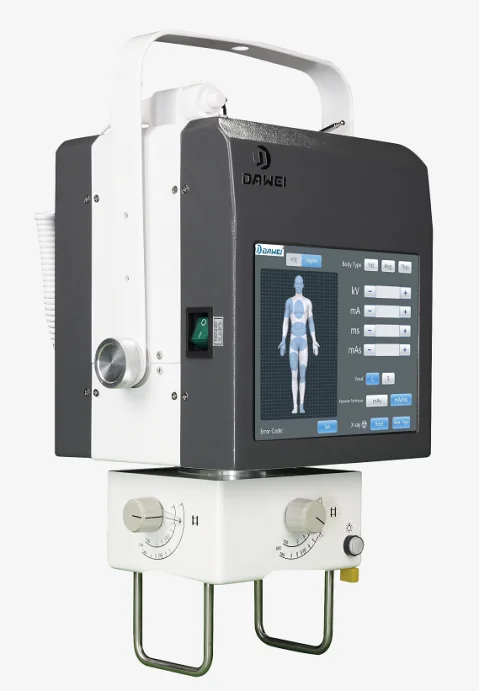

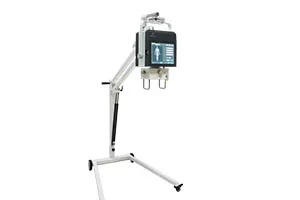

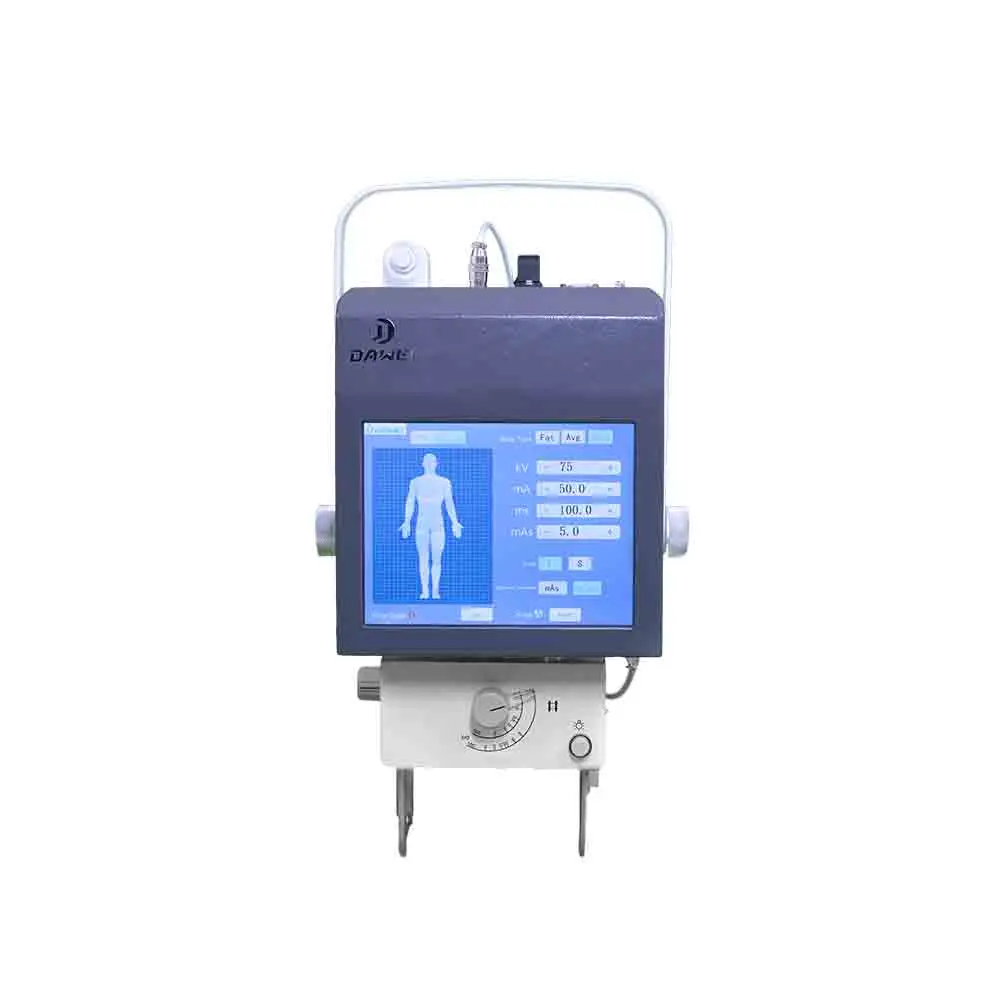

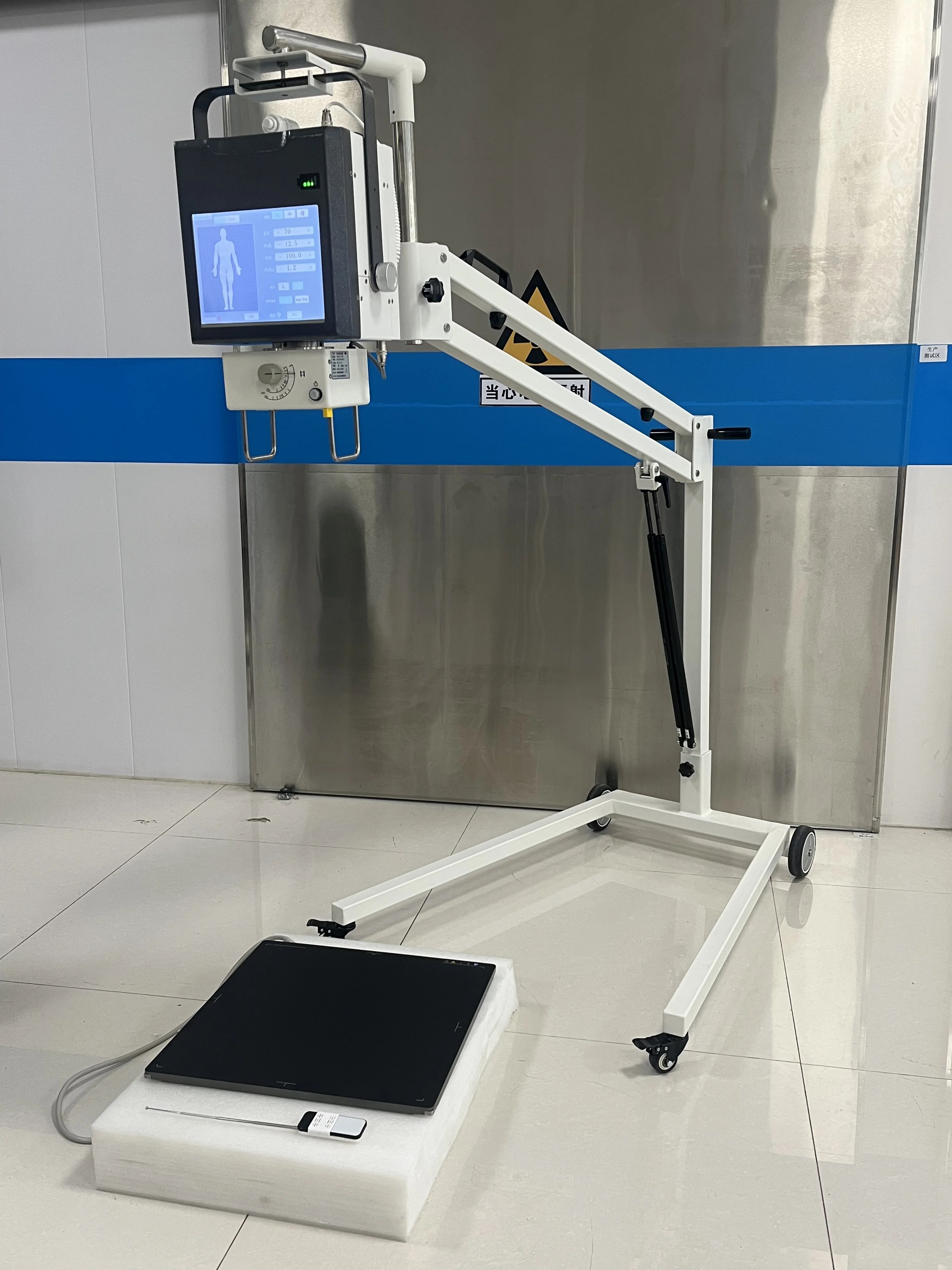

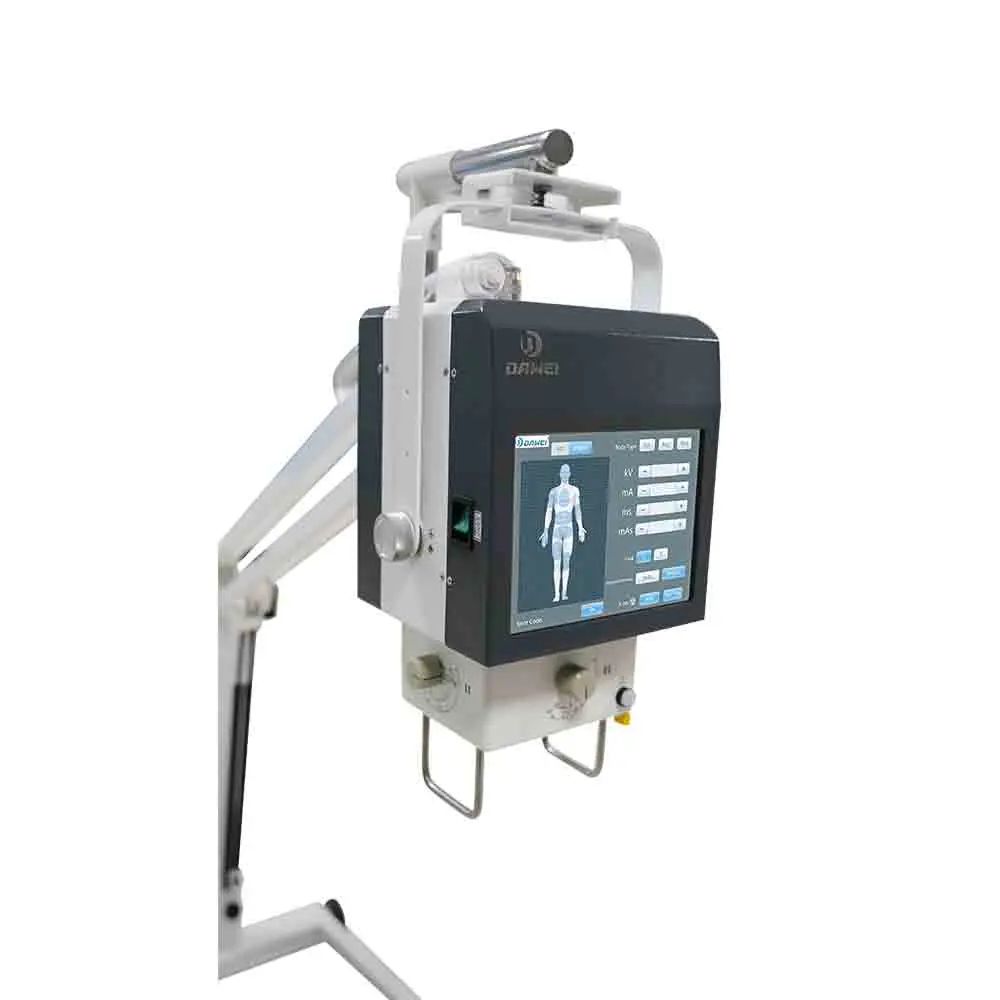

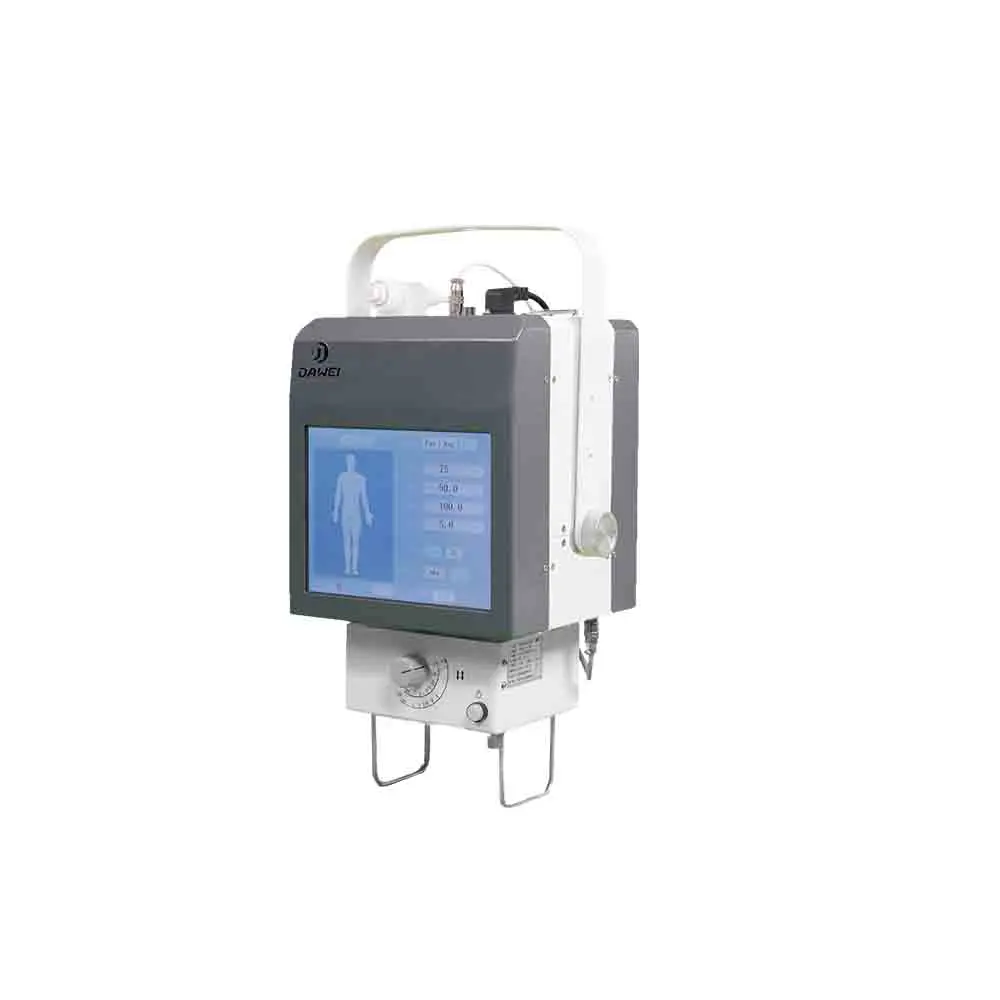

Dawei Portable Digital X-Ray Machine by Medical Device Manufacturer for Mammography and Diagnostic Imaging
Products Description
DR technology is used in hospital clinical imaging departments for X-ray examination of bones, lungs, chest, abdomen, head and other parts. Through DR technology, doctors can observe bones, organs, soft tissues and lesions, etc., so as to conduct accurate diagnosis and treatment.
Technical specifications
High voltage generator | X-ray source components | ||||||
Output power | 5KW | Nominal tube voltage | 40KV～125KV | ||||
Tube voltage range | 40～125kV | Focus | 0.6mm/1.8mm | ||||
Tube current range | 10mA ~ 100mA | Target angle | 15° | ||||
Maximum power | 5.3KW | Anode heat capacity | 30KJ | ||||
Power supply | 100-240V, 50Hz/60Hz | ||||||
Flat panel detector （wired as standard） | |||||||
Material | amorphous silicon | ||||||
Effective imaging area | 430mm x 430mm | ||||||
Acquisition matrix | 3072 x 3072 pixels | ||||||
Net weight of the detector | 3.75KG | ||||||
Working environment | 5-35℃, 10-75%RH | ||||||
Details Images
Cervical Imaging
Chest Imaging
Hip Imaging

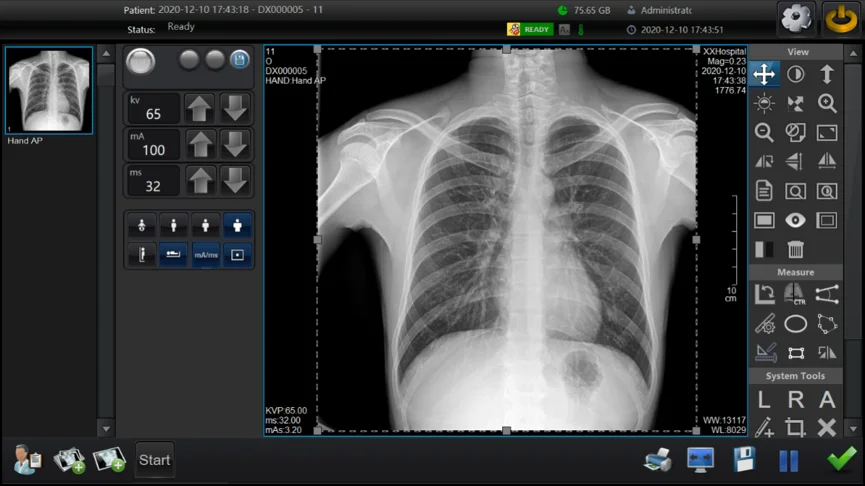

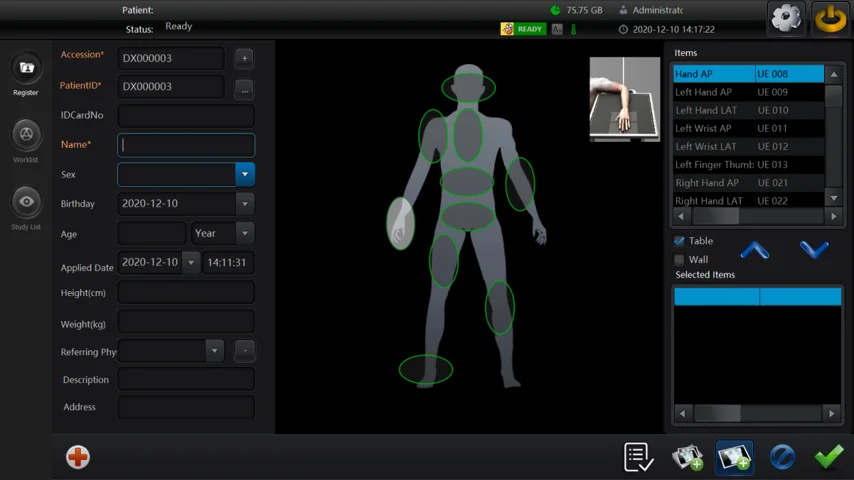

Software Processing System
1. Main controller: data processing, image display and image transmission, etc., equipped with the latest version of professional flat-panel image processing software.
2. Operating system: support multi-language operation interface.
3. Operation mode: mouse + keyboard.
2. Operating system: support multi-language operation interface.
3. Operation mode: mouse + keyboard.
4. DR function: It has the ability to perform post-processing according to the collection site, and carry out differentiated processing.
5. Image processing functions: X-ray light field confirmation, gamma curve grayscale correction, image sharpening processing, image display enhancement processing, can adjust brightness, contrast, edge enhancement, magnification, partial magnification, image can be up, down, left , Rotate right by 90/forward/reverse, image measurement, image cropping and other functions.
5. Image processing functions: X-ray light field confirmation, gamma curve grayscale correction, image sharpening processing, image display enhancement processing, can adjust brightness, contrast, edge enhancement, magnification, partial magnification, image can be up, down, left , Rotate right by 90/forward/reverse, image measurement, image cropping and other functions.
