China Brand New Asphalt Fuel Tank Semi Trailer 3 Axles Bitumen Tank Asphalt Bitumen Pitch Tanker Trailer Tar Tank Trailer
- Category: >>>
- Supplier: Qingdao Phillaya International Trading Co. Ltd.
Share on (1601000372611):
Product Overview
Description
Product Details

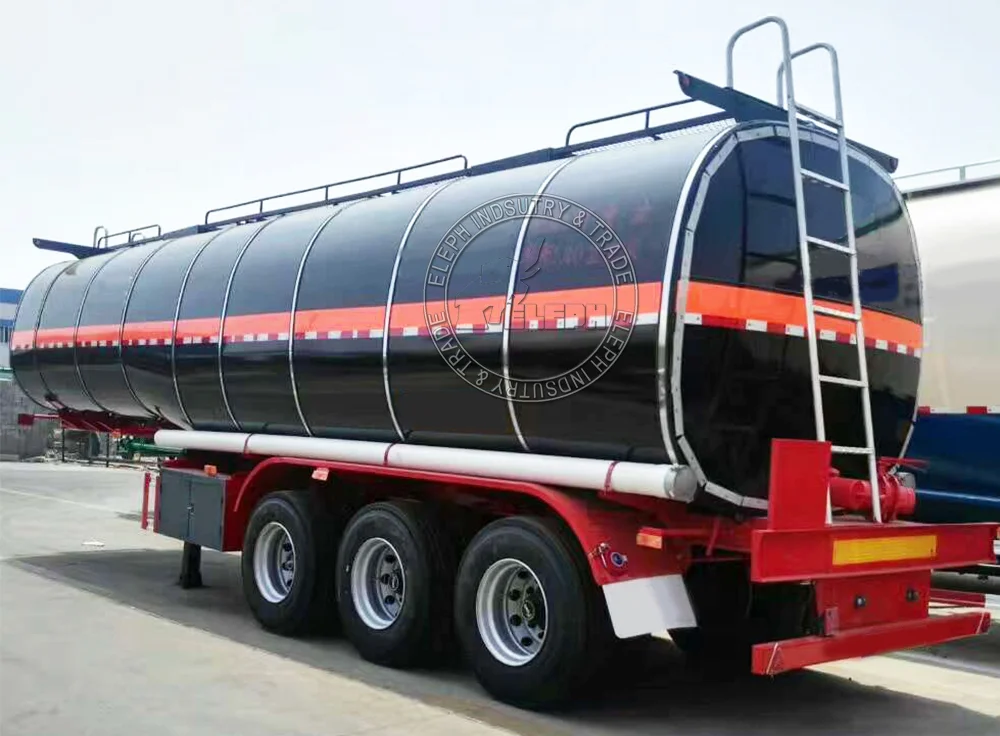

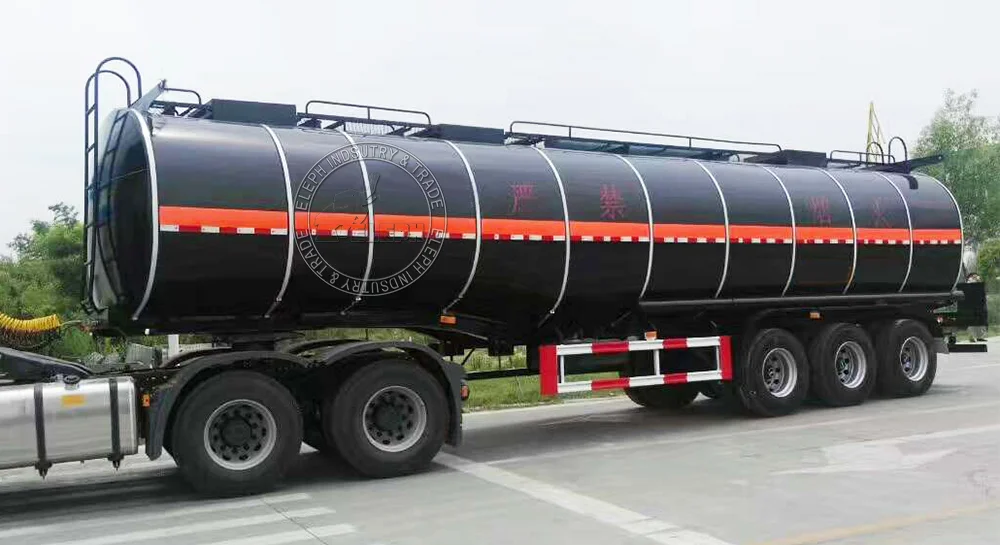

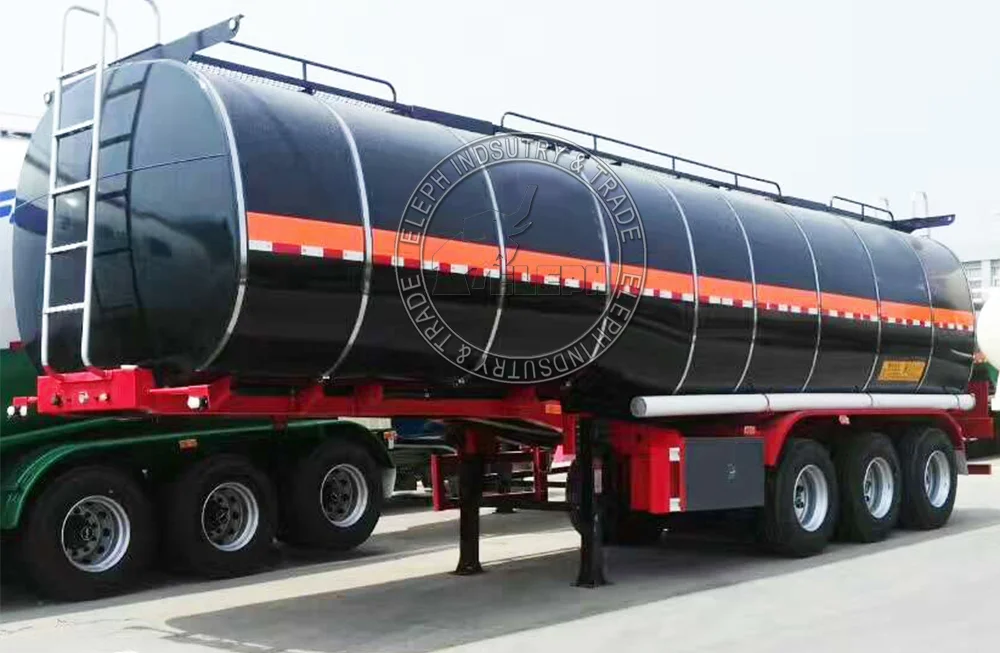

3 Axles 35CBM 42000L 45000Liters heating bitumen Asphalt sprayer tanker semi trailer Truck
Specification
Volume(CBM) | 50CBM (Size can be Accustomed) |
Medium | Bitumen |
Overall Dimension(L*W*H)(mm) | 12800*2500*3850 |
Shape of the tank body | Straight |
Tank body thickness | 5mm/Q235B |
Dish end thickness | 5mm/Q235B |
Baffle | 4mm/Q235B |
Dish end shape | Oval |
Compartment(piece) | One |
Manhole | Two(500mm in dimension) |
Discharge valve(piece) | Two |
Valve form | Ball vale |
Valve specification | 6” |
Insulation or not | Yes |
Running part | |
1,Axle number&specification:13T FUWA axle,3 pieces,with ABS | |
2,Suspension specification&number:Leaf spring 13*90*10 6 pieces | |
3,Kingpin:90# | |
4,Relay valve:Copy the American standard | |
5,Landing gears:20T | |
6,Tire specification&number:Brand Triangle 12R22.5,12 pieces | |
7,Rim specification&number:9.0*22.5,12 pieces | |
8,Break chamber:single/double/double,6 pieces | |
Electric System | |
1.Voltage: 24v 2.Receptacle: 7 ways (7 wire harness) 3.Tail lamp with turn signal, brake light & reflector, side lamp etc | |
Accessories |
|
1,Fire extinguishing | 8kg*2 pieces |
2,Tool box | One piece*1.5m |
3,Spare wheel carrier | One piece |

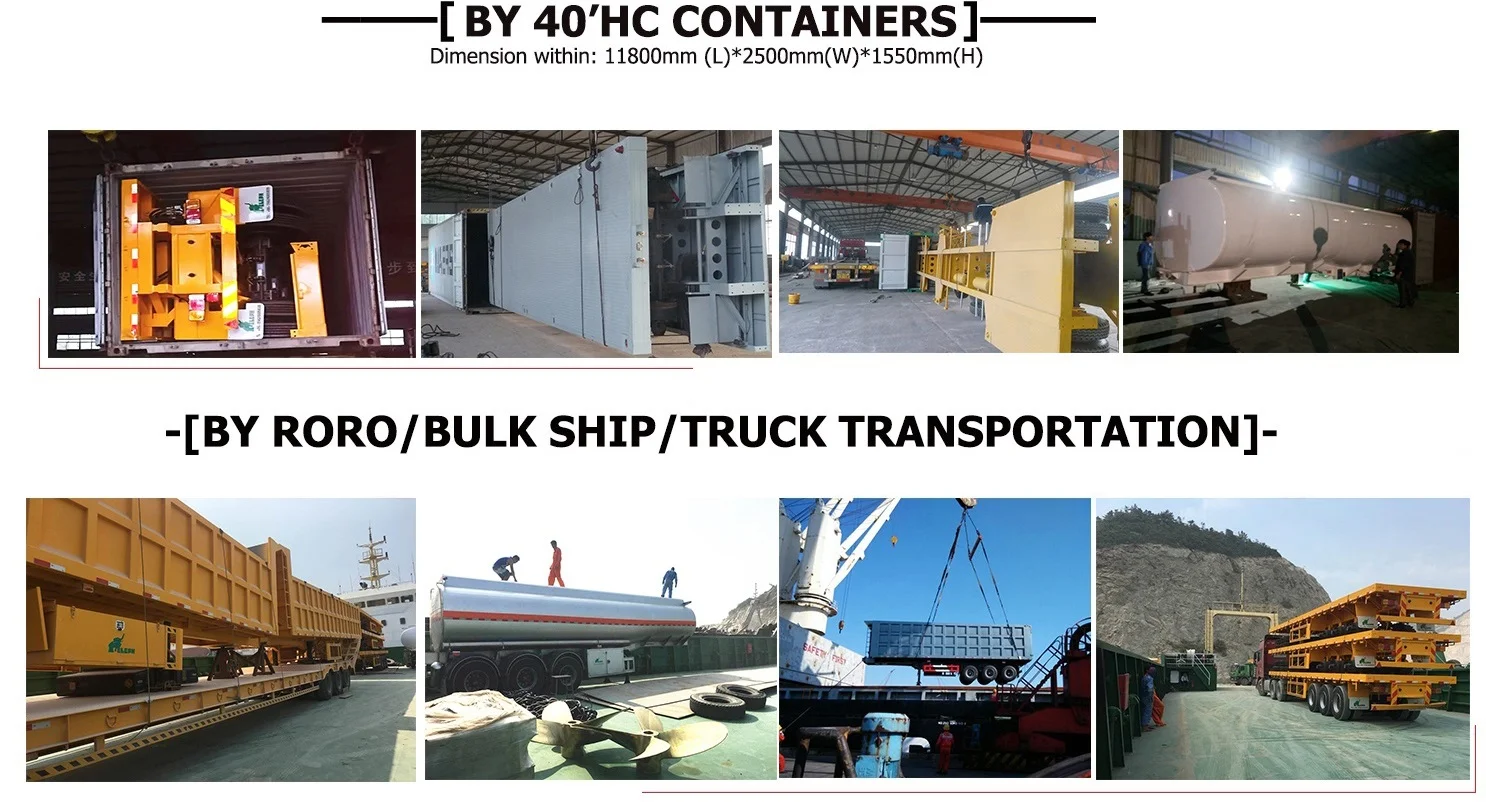

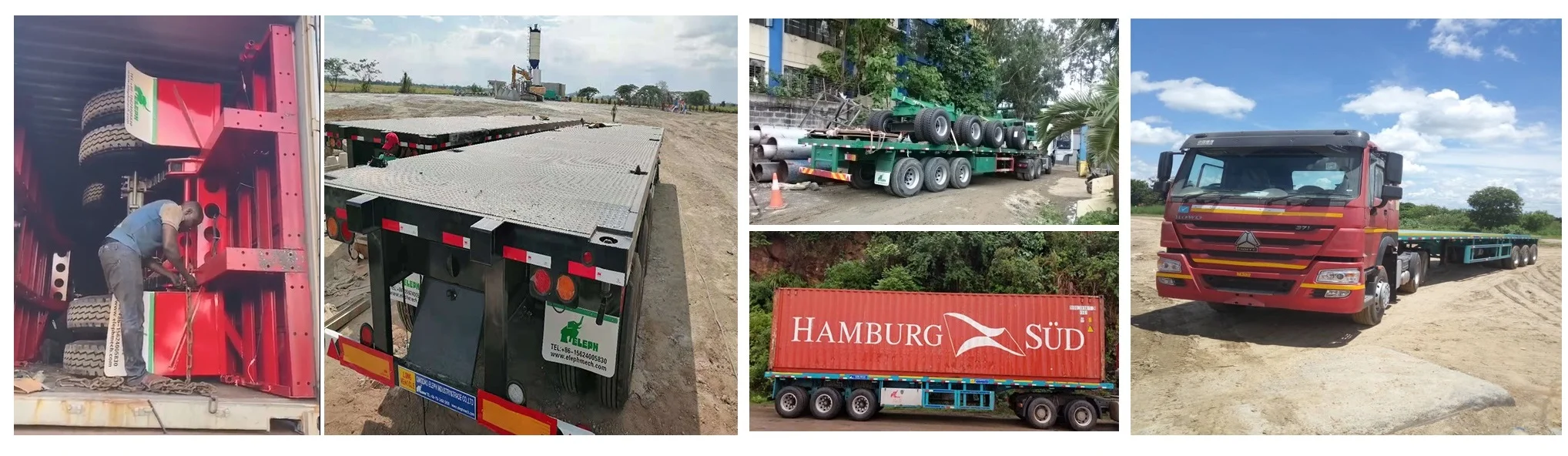

Packaging & Shipping

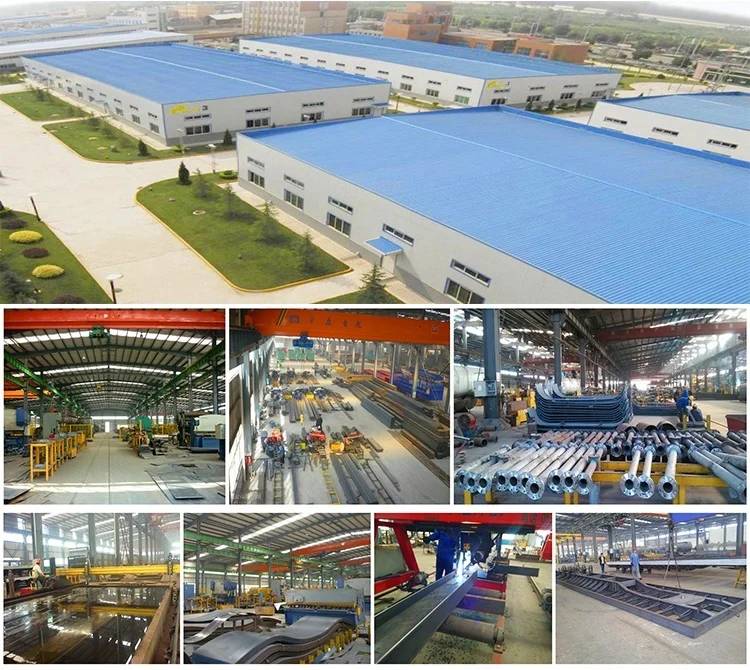

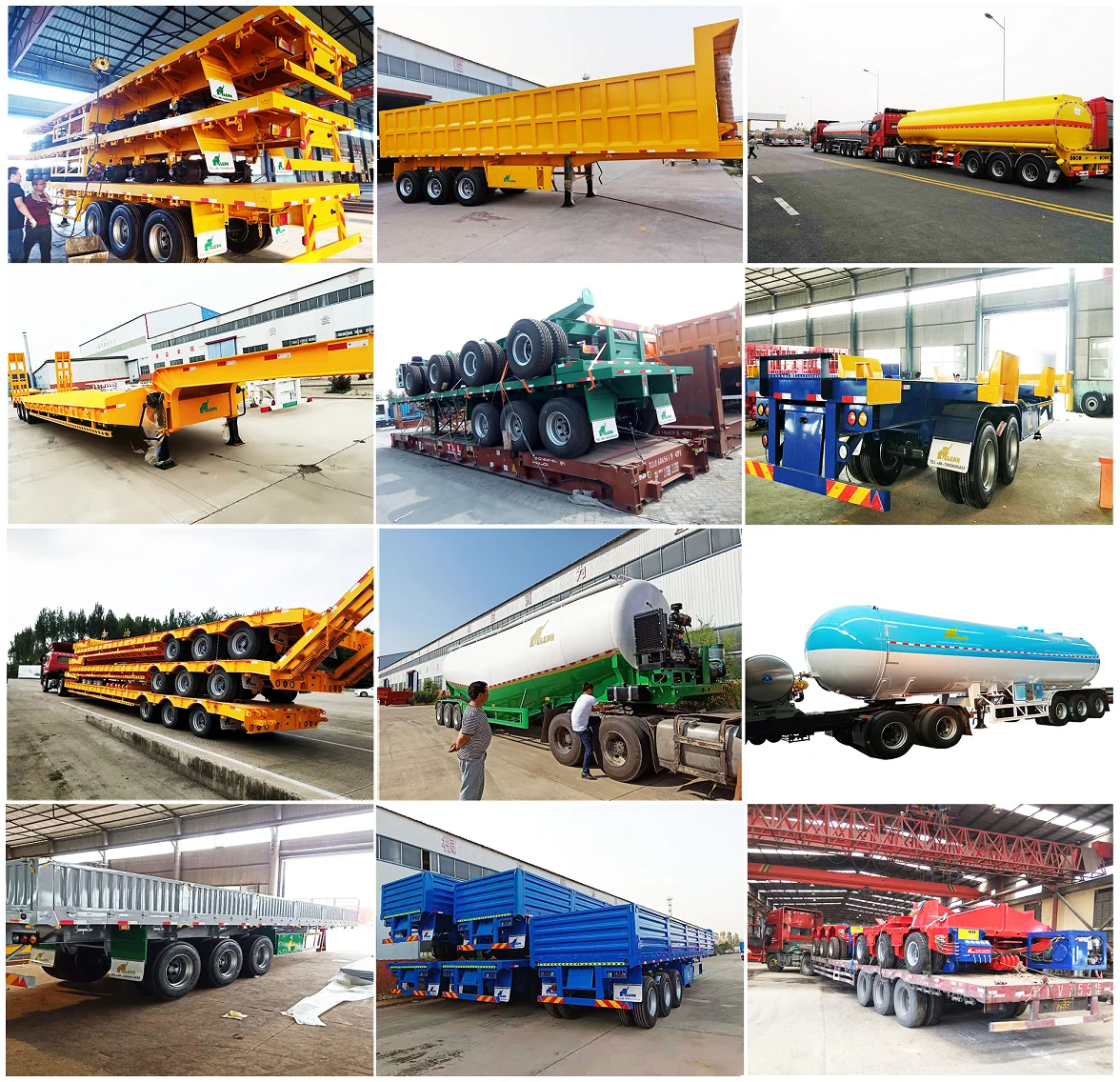

Company Information
Our Services
Exporting Cases
1. How To Buy From Us ? How to Pay?
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
