3 Axle 16m 13m 60 tons Cargo Transport Trailer Dry Van Box Side Curtain semi Trailer in Russia
- Category: >>>
- Supplier: Qingdao Luckin Vehicle Co. Ltd.
Share on (1601000868954):
Product Overview
Description
Product Overview

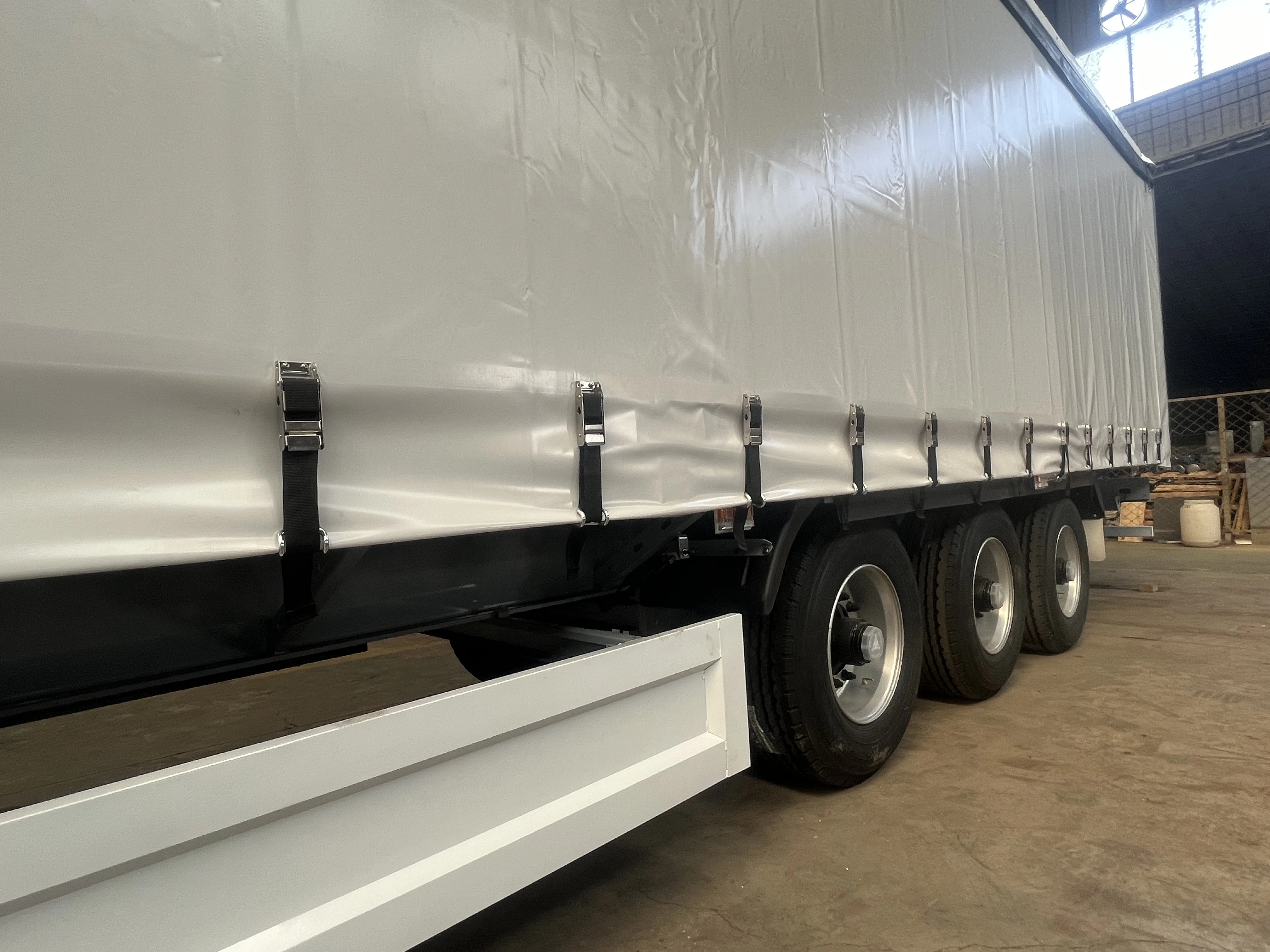

3 Axles Tri axle 13m 16m 17m 40t 50t lorry side curtain slider trailer truck semi trailer in Russia
1. Versatility: The 3 axles 16m lorry side curtain slider trailer truck semi trailer in Russia offers great versatility in terms of its usage. It can be used for various purposes such as transporting goods, equipment, or even livestock.
2. Increased cargo capacity: With a length of 16m, this semi trailer offers a larger cargo capacity compared to shorter trailers. This allows for the transportation of more goods in a single trip, reducing the number of trips required and increasing efficiency.
3. Enhanced safety and security: The side curtains of this semi trailer are made of durable and high-quality materials that provide excellent protection for the cargo. They are designed to withstand harsh weather conditions and offer resistance against theft or tampering. Additionally, the side curtain slider feature ensures that the cargo remains securely in place during transportation, minimizing the risk of damage.
2. Increased cargo capacity: With a length of 16m, this semi trailer offers a larger cargo capacity compared to shorter trailers. This allows for the transportation of more goods in a single trip, reducing the number of trips required and increasing efficiency.
3. Enhanced safety and security: The side curtains of this semi trailer are made of durable and high-quality materials that provide excellent protection for the cargo. They are designed to withstand harsh weather conditions and offer resistance against theft or tampering. Additionally, the side curtain slider feature ensures that the cargo remains securely in place during transportation, minimizing the risk of damage.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Product configuration | ||||||

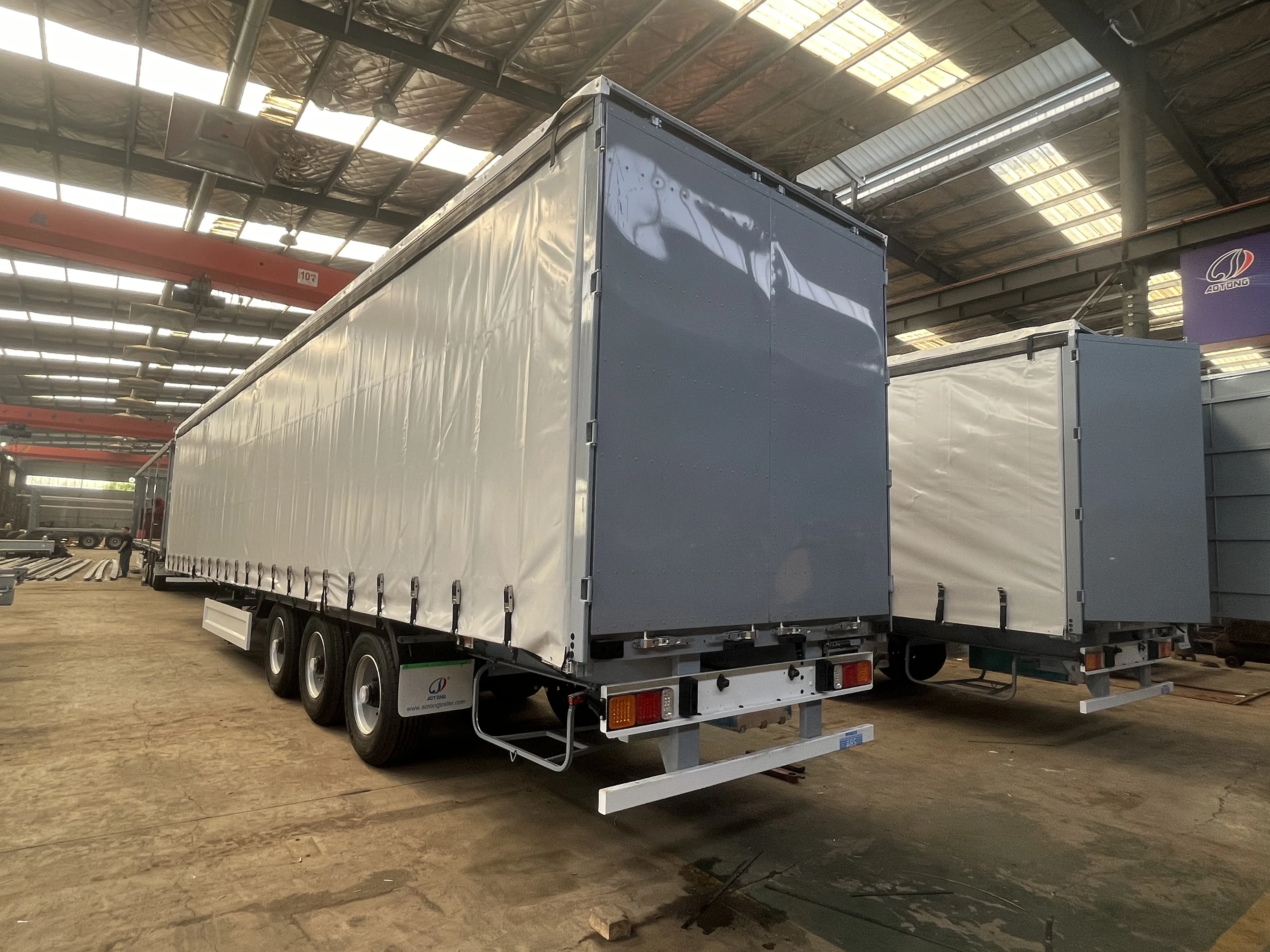

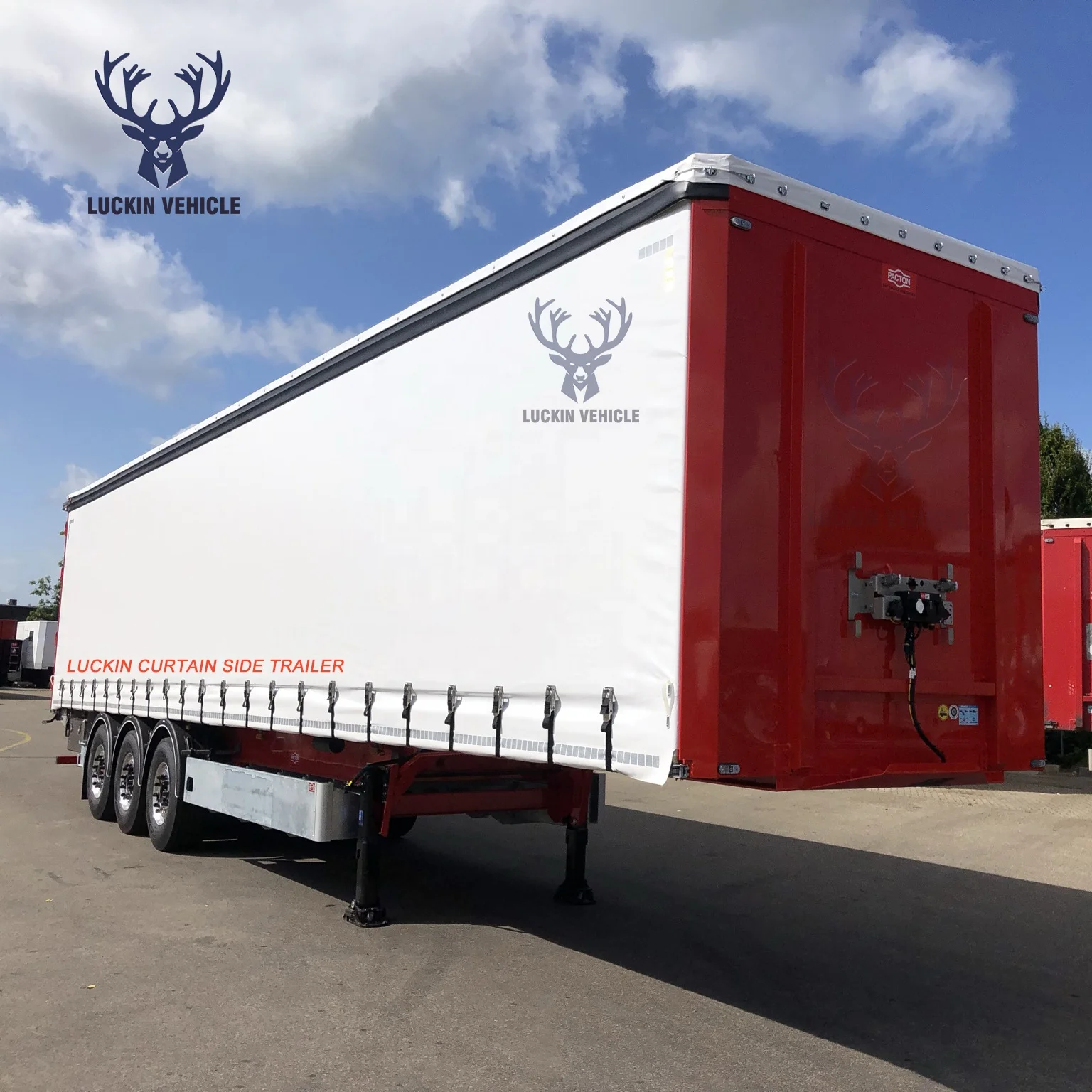

Name | Side curtain semi-trailer | |||||
Outside Dimension | 16455*2550*4000mm | |||||

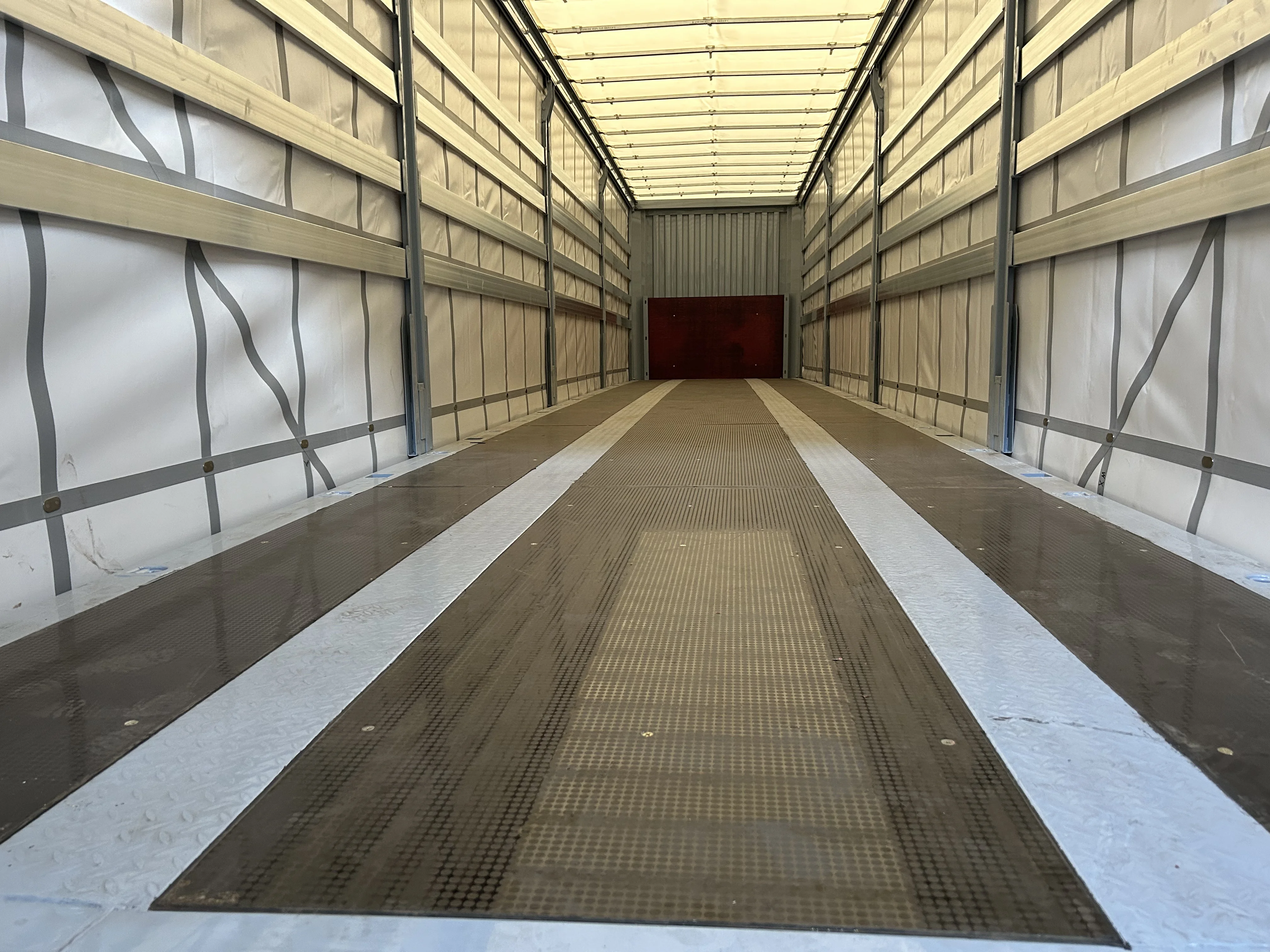

inside dimension | 16355*2480*26150mm | |||||
Certification | OTTC | |||||
Height of main stringer | 450mm | Top plate/bottom plate | 12/14mm | |||
Vertical plate | 8mm | front place | Steel (front: electrical gantry bracket) | |||

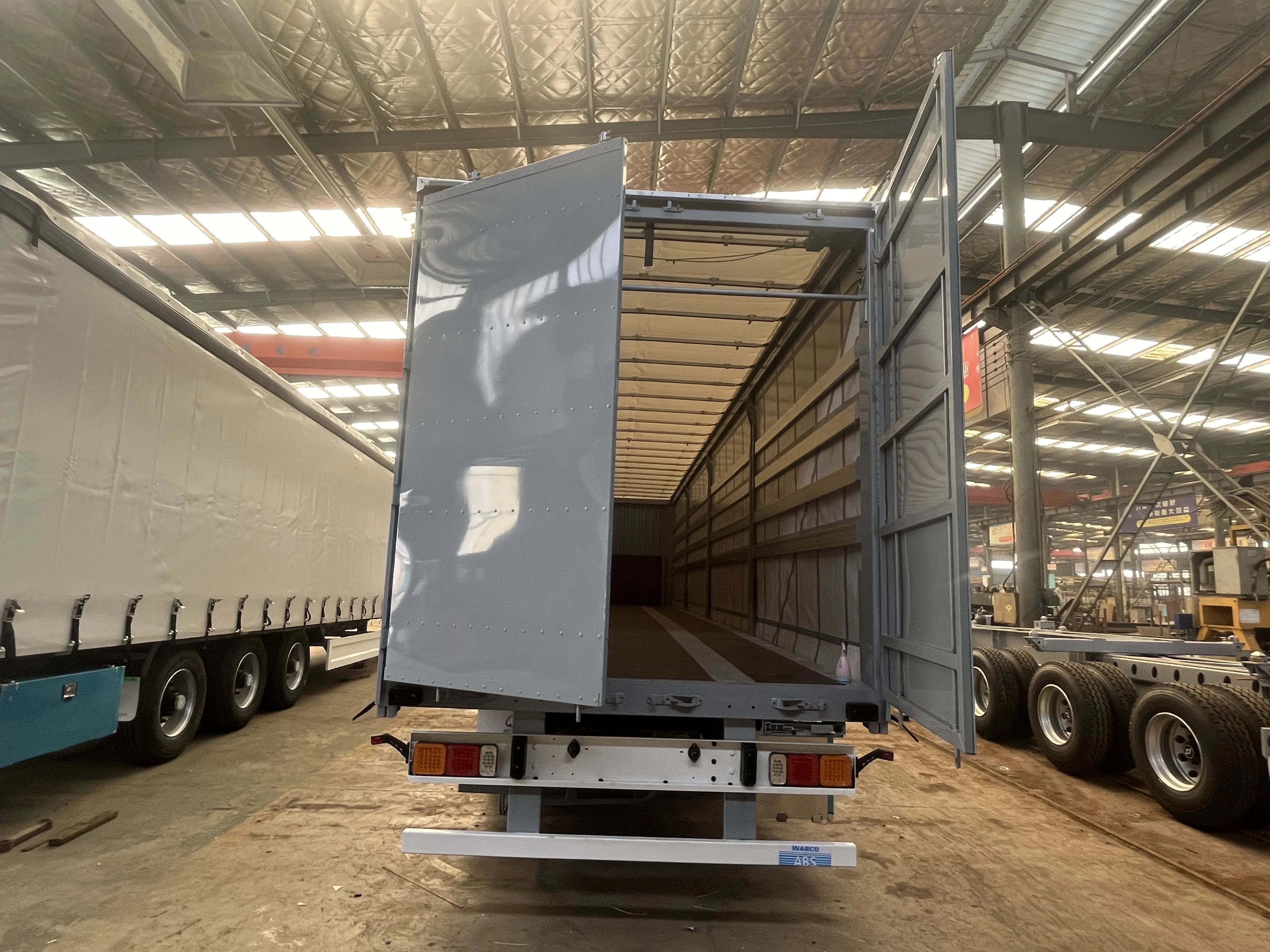

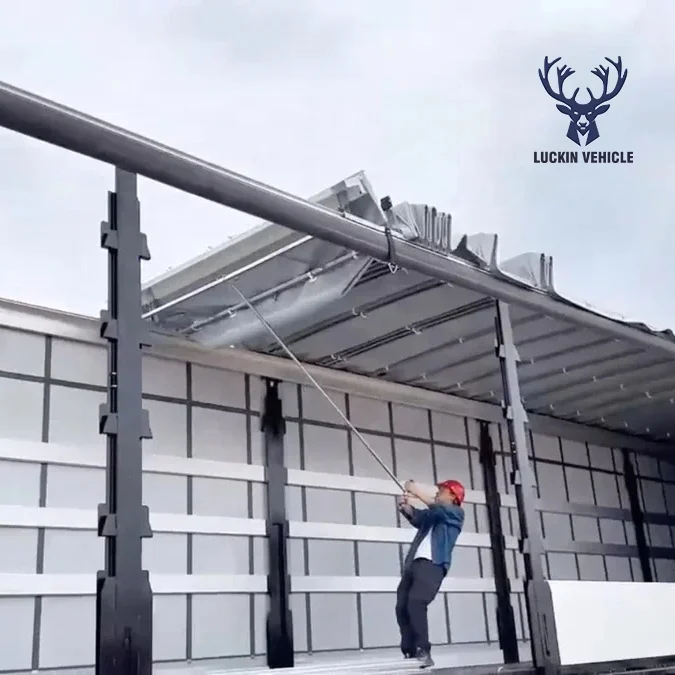

ceiling | Manual translation open and close, cord fabric 650g | back door | Aluminum alloy, double door (split in the middle) | |||
Axles | BPW/SAF 13T*3 first axle with lifting Disc/drum brake, ABS on two axes. Air suspension 3-axis German suspension | bottom plate | 28mmWaterproof phenolic flooring (double sided) | |||
Tires | Triangle 385/65R22.5*7pcs | Rim | aluminium alloy 11.75R22.5 7pcs | |||
landing gear | JOST AC400 ganged | The hook on the bottom plate | 28pcs | |||
King pin | JOST 50mm, bolt type | Tool box | 600mm aluminum toolbox ,1unit | |||

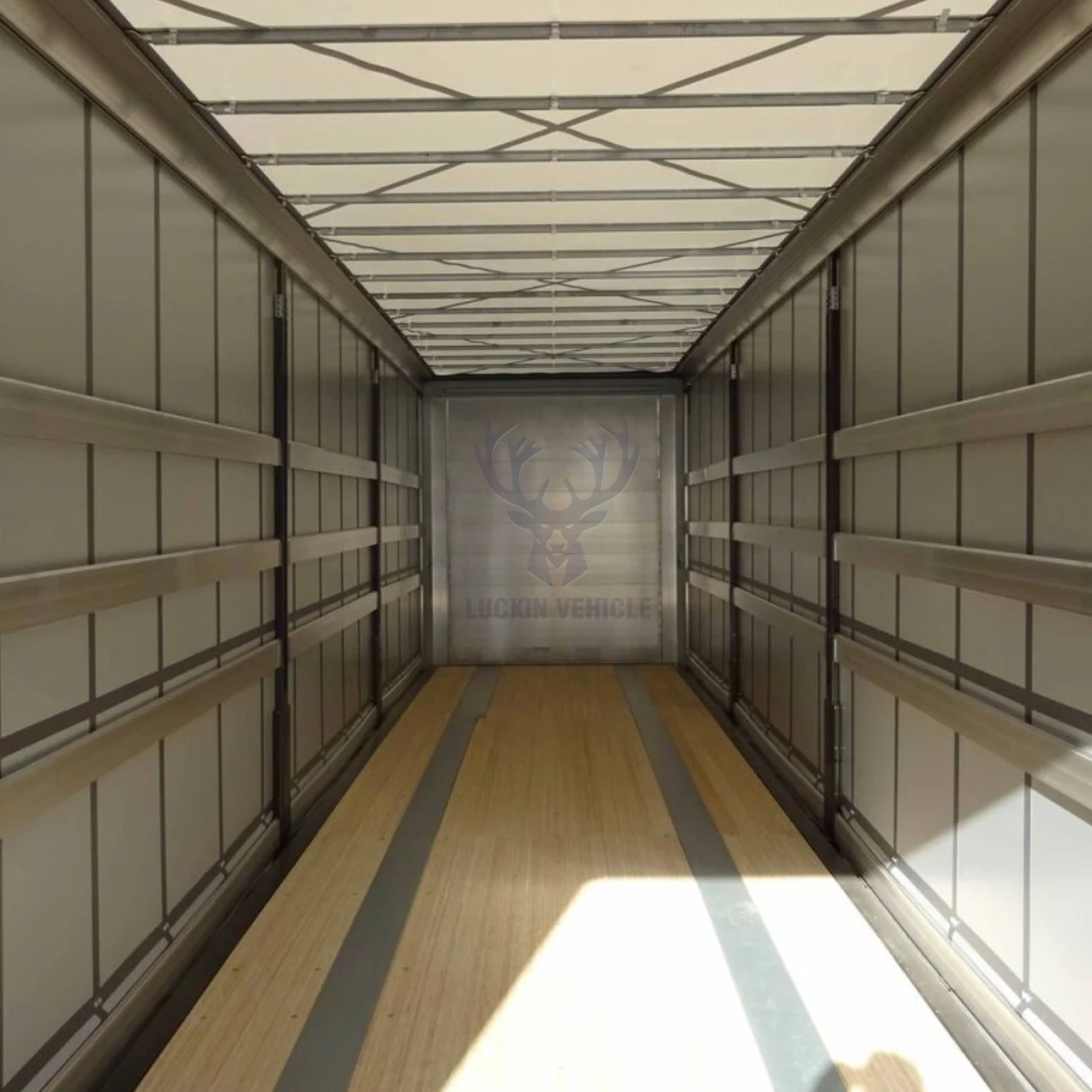

Column、 cross bar 、side board | Steel, column (3+3), 4+4 cross bars on both sides (120mm height each), mobile cross bars can be used to move down the bar plate | EBS | EBS,WABCO | |||
light | LED | spare wheel carrier | 2 units | |||
Air chamber | 6 doubles | Side curtain | Double side, cord fabric 900g | |||
Electric System | 24V，15-hole socket | Color | silver gray | |||
Note: 1. the weight of the vehicle is about 8 tons 2. the front electrical road gantry bracket (such as Russia) 3. side protection and rear protection: steel 4. relay valve 4 holes 5. 3 units gas cylinders | ||||||
Package & Transport
Company Information
Main Products
Our Certificate
FAQ
Q1. Are you a factory or trading company?
LUCKIN vehicle are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.
Q2. Why choose us? What difference from other suppliers?
LUCKIN Save your budget -- Manufacturer direct sale, no middleman.
LUCKIN Delivery guarantee -- 10-30 days after receiving the deposit.
LUCKIN Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
Our After-sales service -- Sales is not the purpose, our after-sales will be endless!
Q3. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q4. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.
LUCKIN vehicle are a comprehensive factory integrating product design, scientific research and development, production and sales. So we know what you're looking for. Welcome to our factory and production line at any time.
Q2. Why choose us? What difference from other suppliers?
LUCKIN Save your budget -- Manufacturer direct sale, no middleman.
LUCKIN Delivery guarantee -- 10-30 days after receiving the deposit.
LUCKIN Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
Our After-sales service -- Sales is not the purpose, our after-sales will be endless!
Q3. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q4. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.
