Product Overview
Description
Product Overview

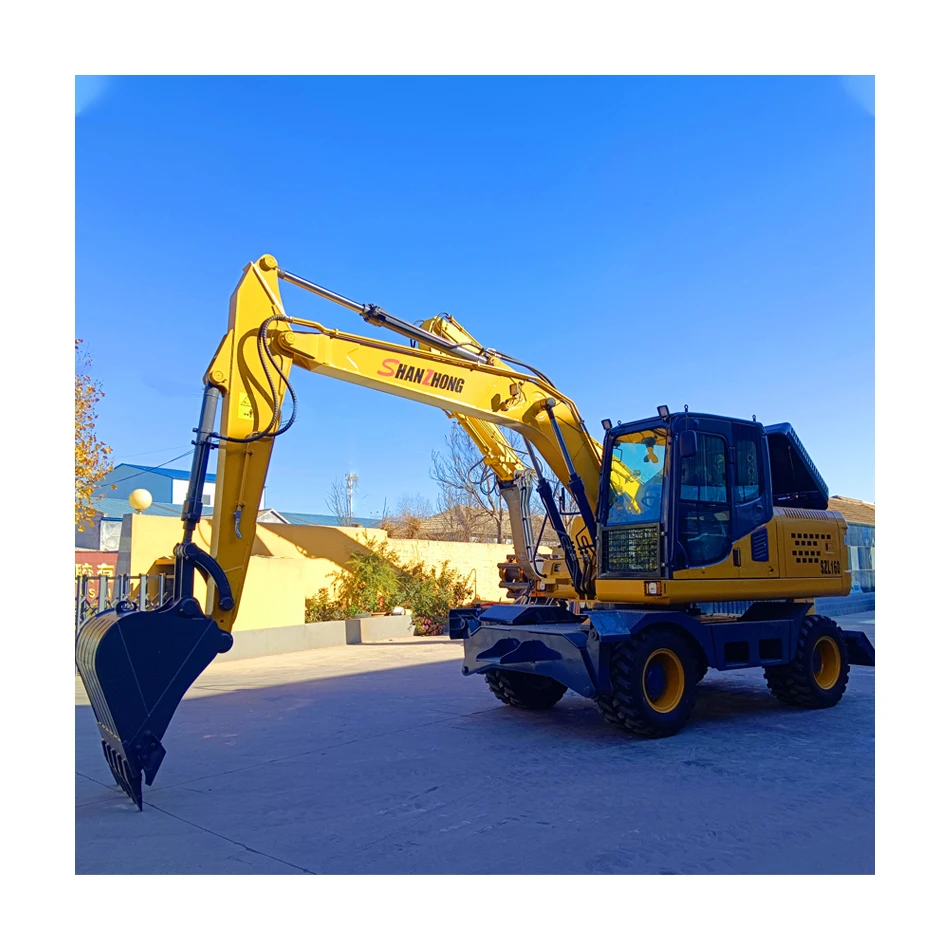

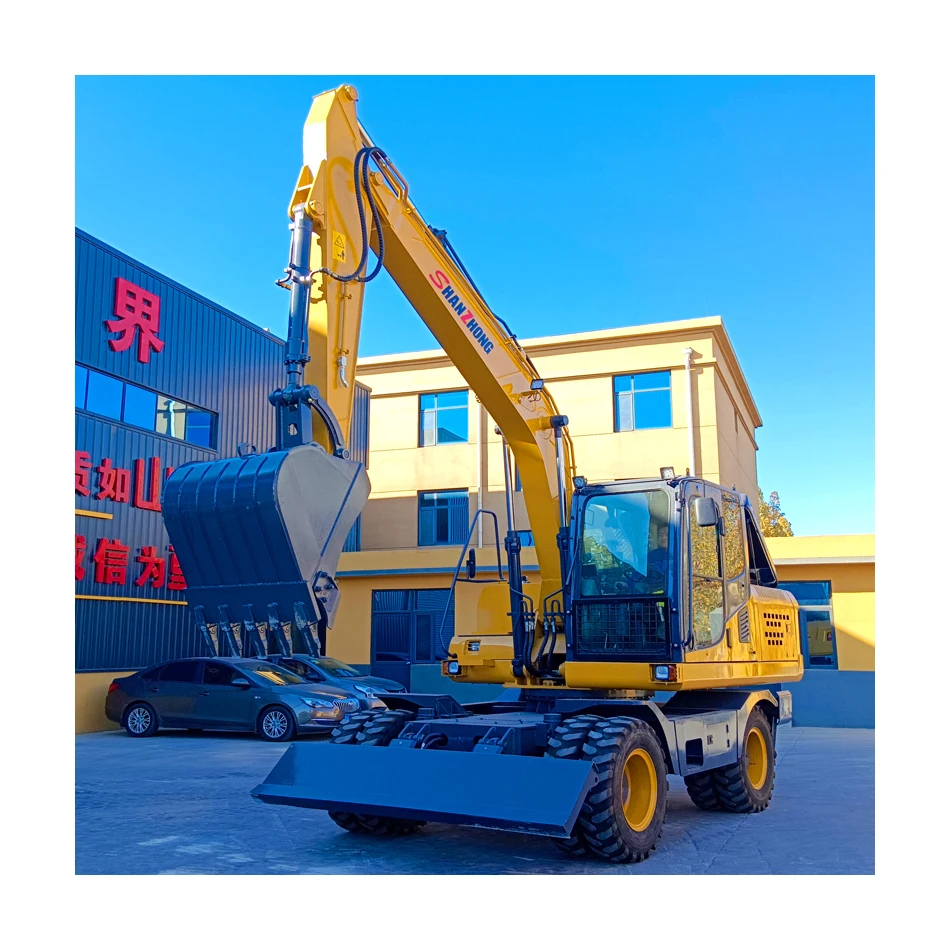

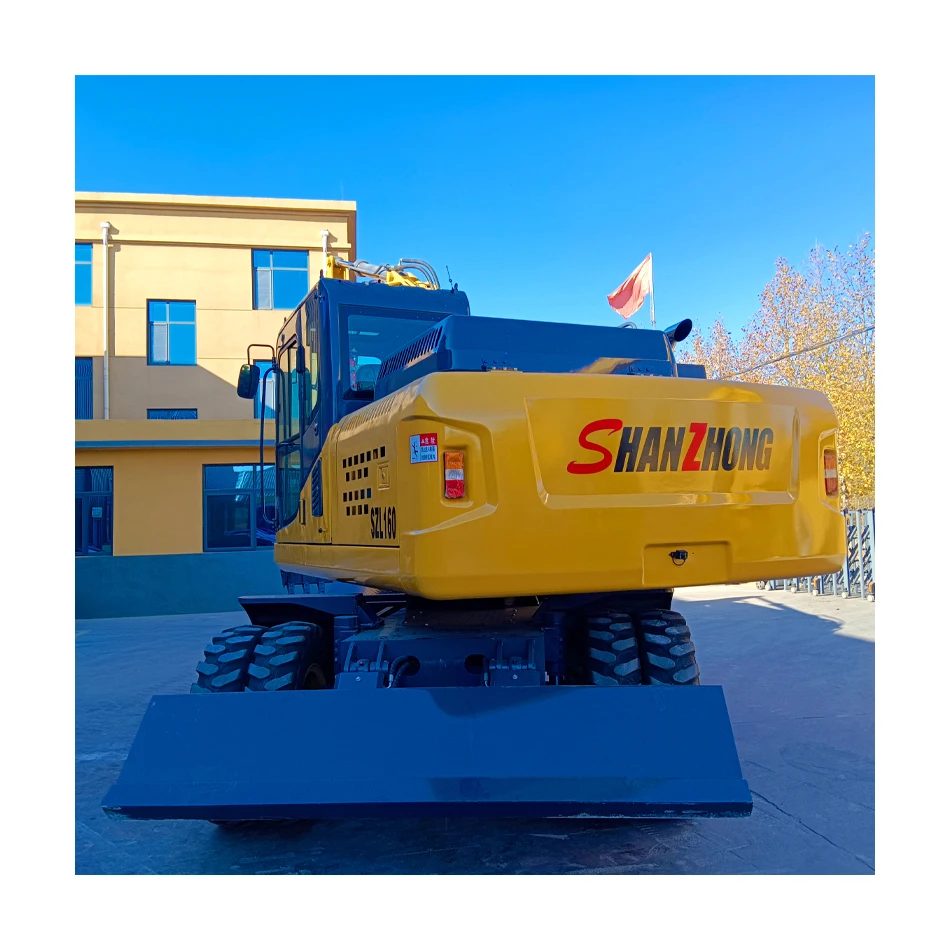

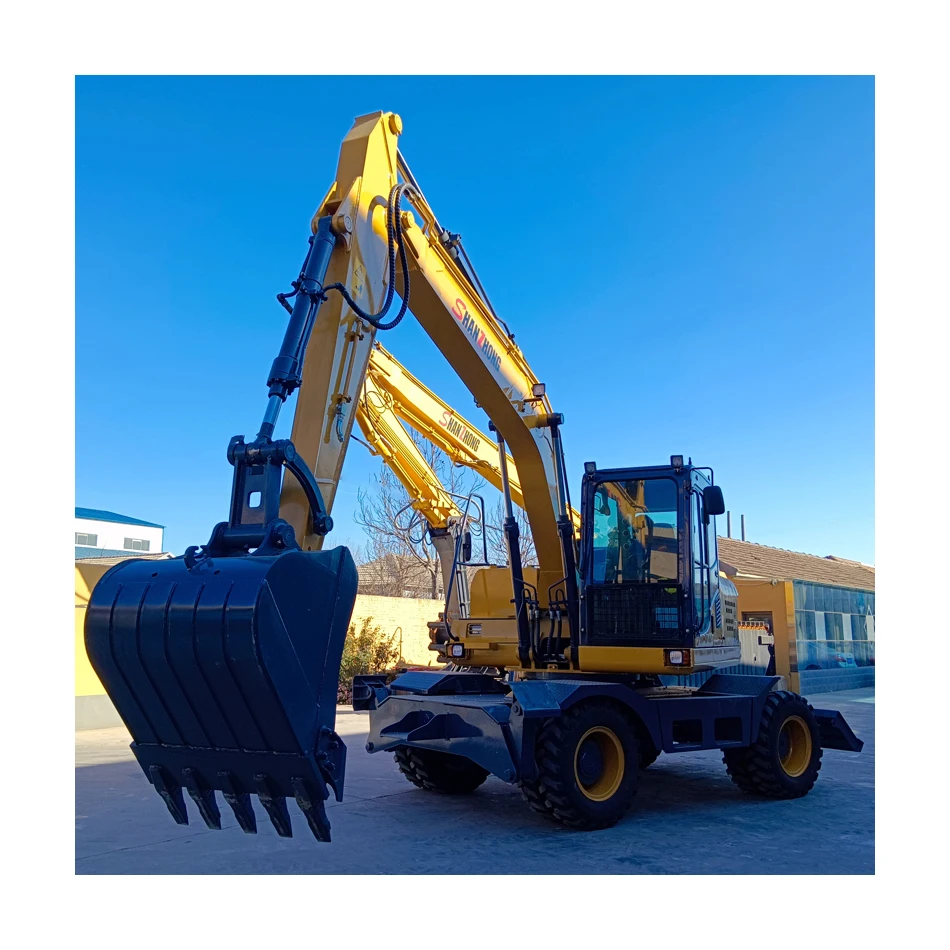

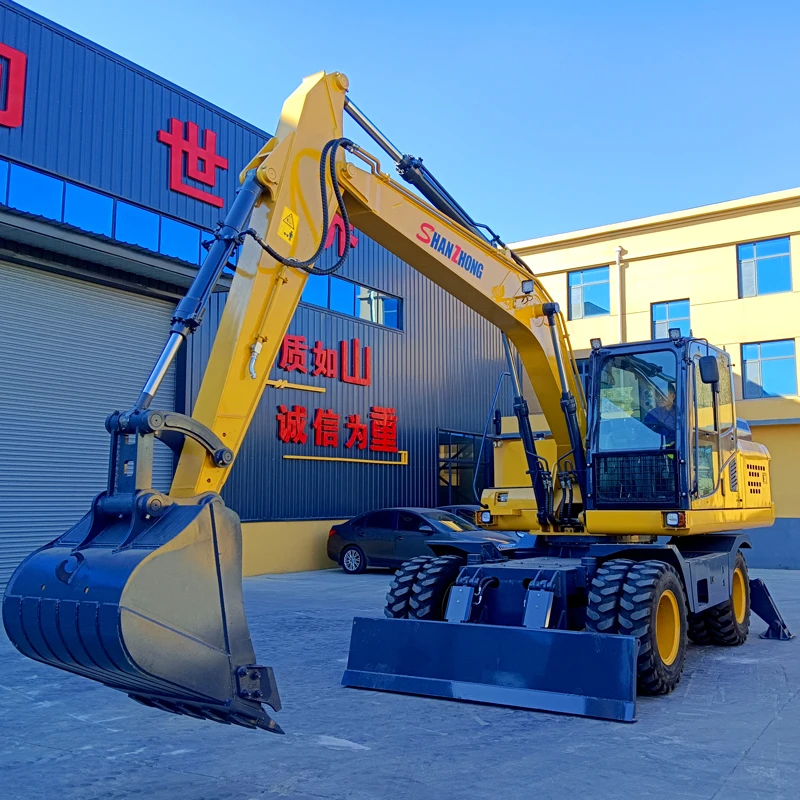

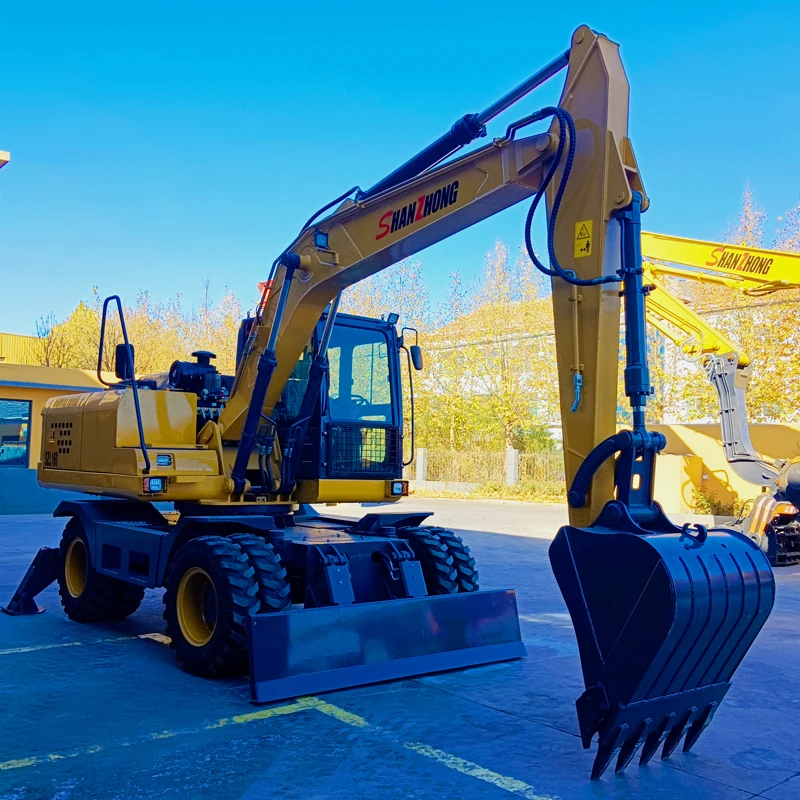

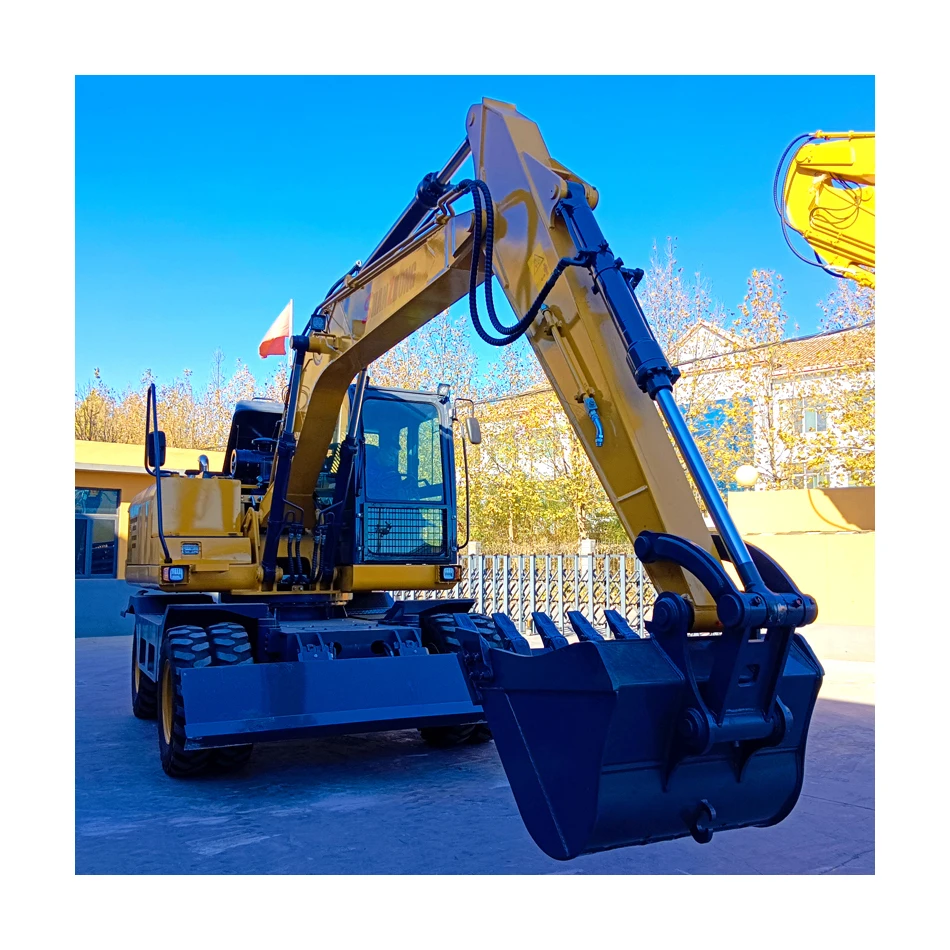

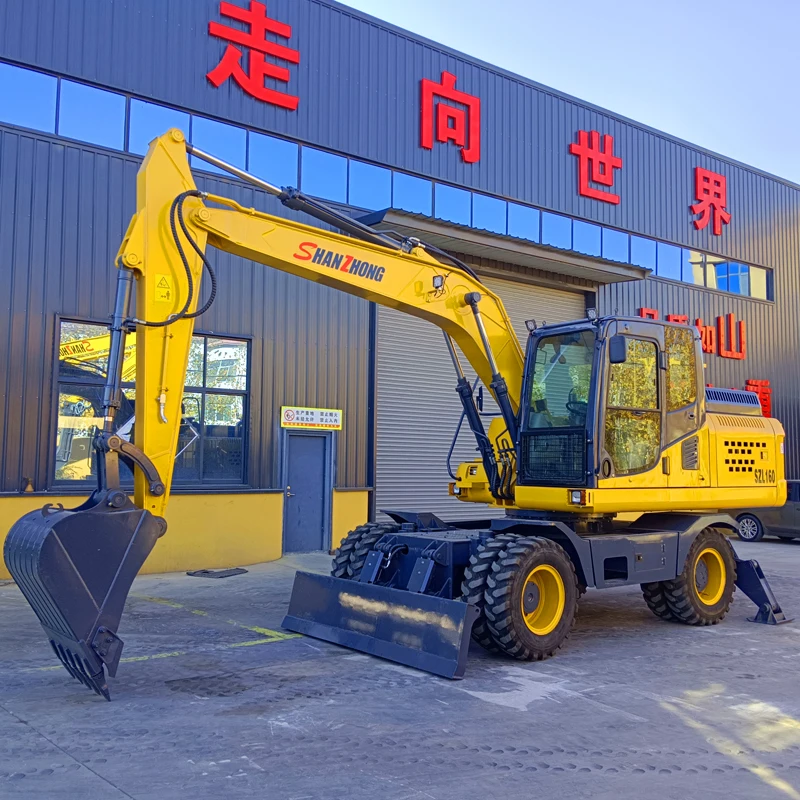

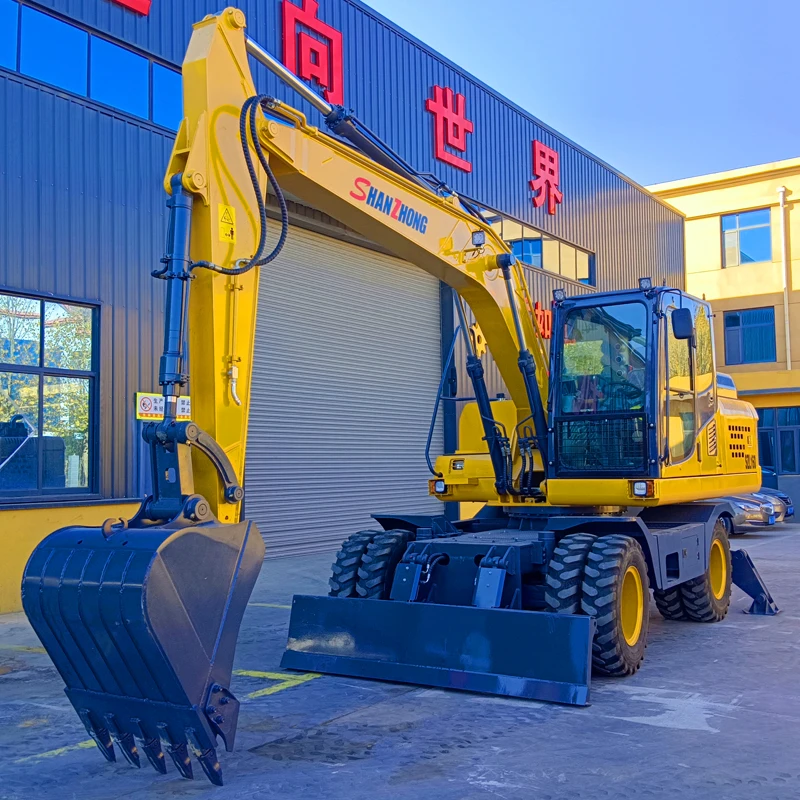

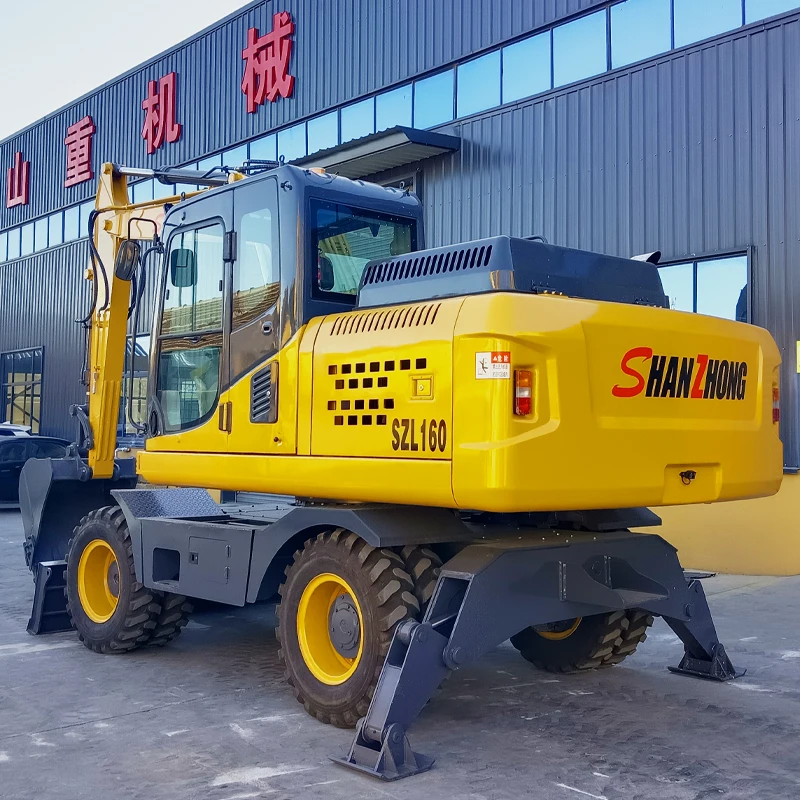

SZL160 16T wheel excavator
Shanzhong SZL160 wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions.The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
This machine has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
PRODUCT SPECIFICATIONS
No | Item | Data | No | Item | Data |
1 | shipping length | 7770mm | 12 | Max. Digging Radius | 8130mm |
2 | shipping height | 3255mm | 13 | Engine Power | 93/2200 (kw/rpm) Cummins |
3 | overall width | 2650mm | 14 | Hydraulic System Pressure | 32(MPa) |
4 | tyer type | 10.00-20 | 15 | Hydraulic System Flow | 2X126(L/min) |
5 | Radius, Swing Center to Rear End | 2400mm | 16 | Bucket Volume | 0.7 (m3) |
6 | wheelbase | 2670mm | 17 | Bucket Digging Force | 88(KN) |
7 | Steering Width | 2400mm | 18 | Arm Digging Force | 53(kN) |
8 | wheel tread | 2000mm | 19 | Gradeability | 35° |
9 | Max. Digging Height | 9115mm | 20 | Rotation Speed | 13-14 (r/min) |
10 | Max. Dumping Height | 6660mm | 21 | Travel Speed | 40(km/h) |
11 | Max. Digging Depth | 5050mm | 22 | Approximate Weight | 15500 (kg) |

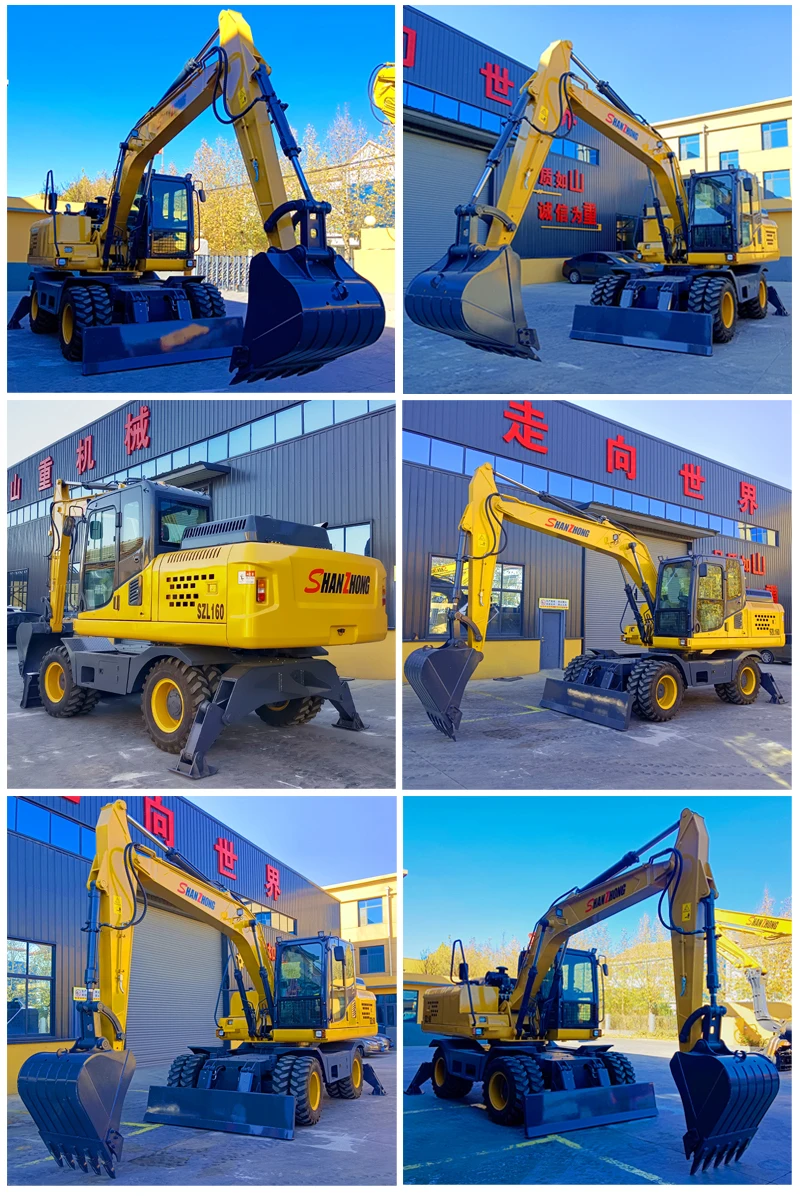

Product details
SIMILAR PRODUCTS
Company and factory
Company Profile
Yucheng Shanzhong Machinery co.,ltd is a professional manufacturer and trading enterprise,specialized in the export of wheel excavator ,crawler excavator,mini excavator ,wheel loader,backhoe loader,sugarcane grabber,steel grabber,wood grabber and all kinds of atttachments.
We have 15 years of experiences,Our products have been exported to more than 30 countries and regions.including: Russia and middle Asia, Afria, Southeas and South Asia, South America and so on.
Our company is located in Shandong Province which is a financial, trade and shipping center in china. All these give our company an obvious superiority in exporting, transportation and material flow.Professional and constantly innovation,professional producing line,every serious careful assembly workers,we ensure every machine that we produce has very reliable quality and stability.
We sincerely hope to work with more customers and friends from all over the world at different cooperation way ,we hope to build believe and win-win cooperation relationship with you.
We have 15 years of experiences,Our products have been exported to more than 30 countries and regions.including: Russia and middle Asia, Afria, Southeas and South Asia, South America and so on.
Our company is located in Shandong Province which is a financial, trade and shipping center in china. All these give our company an obvious superiority in exporting, transportation and material flow.Professional and constantly innovation,professional producing line,every serious careful assembly workers,we ensure every machine that we produce has very reliable quality and stability.
We sincerely hope to work with more customers and friends from all over the world at different cooperation way ,we hope to build believe and win-win cooperation relationship with you.

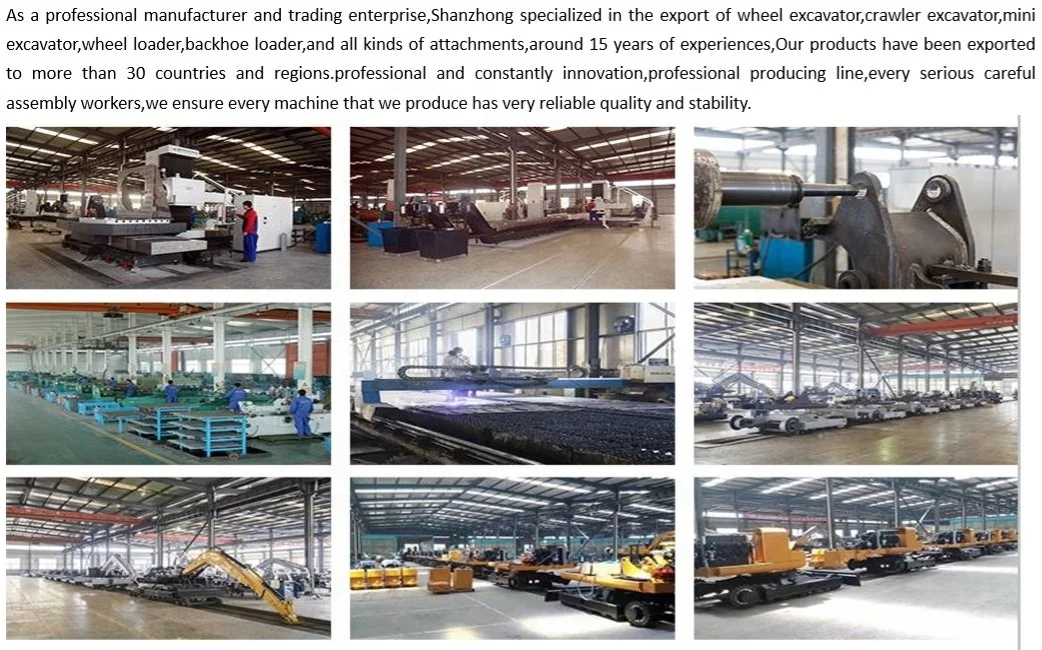

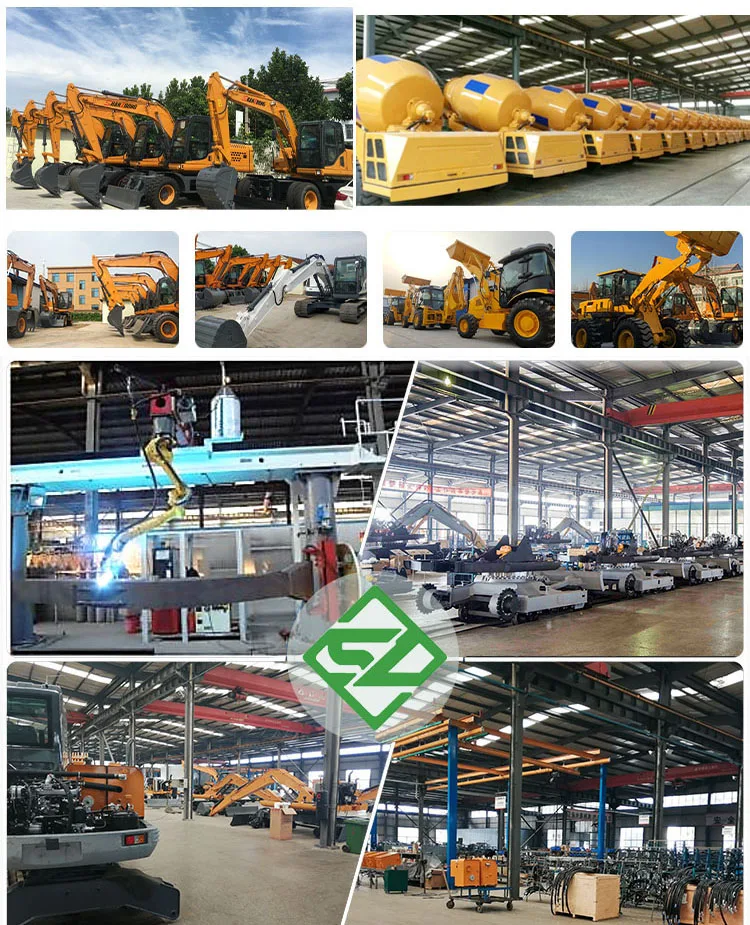

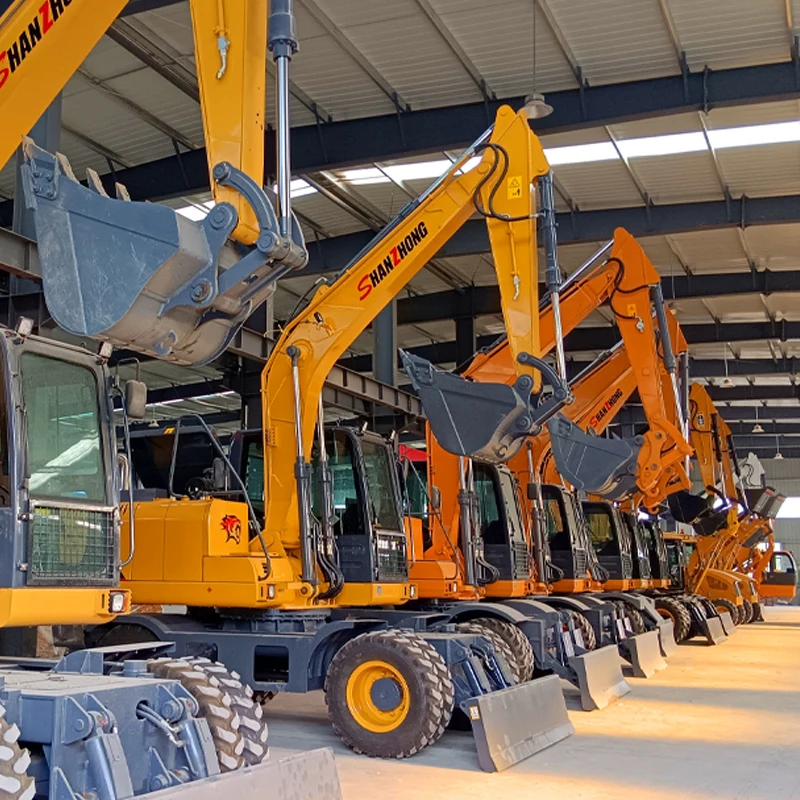

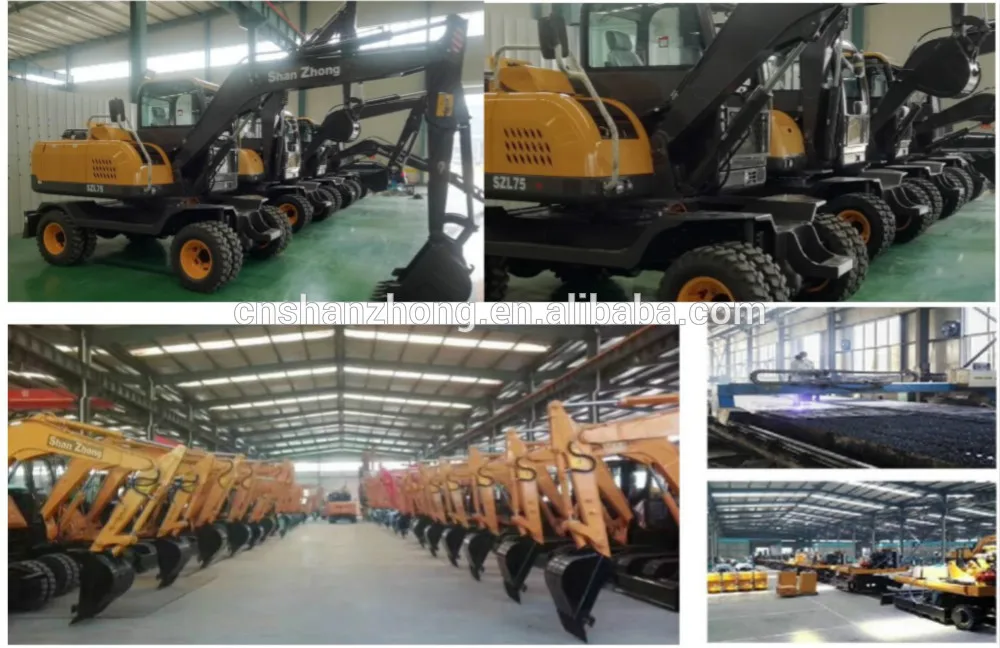

Factory Show
SALES AND SERVICE NETWORK
Successful Project
Project in construction site
Project in India
Project in Russia
Customer Photos
FAQ
Q1:Are u original manufacture?
A: Yes,We are an official leading manufacture in construction machinery in China and we have the whole series products u need.
A: Yes,We are an official leading manufacture in construction machinery in China and we have the whole series products u need.
Q2:What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
A: Normally we can work on T/T term or L/C term.
Q3:Which incoterms 2011 terms can we work?
A: Normally we work on FOB,CIF,CFR.
A: Normally we work on FOB,CIF,CFR.
Q4:What about the delivery time?
A: 7-30 days after receiving the deposit.
A: 7-30 days after receiving the deposit.
Q5:What about the warranty time?
A: 12 months after shipping or 2000 working hours.
A: 12 months after shipping or 2000 working hours.
Q6:What about the Minium order quantity?
A: The MOQ is 1 unit.
A: The MOQ is 1 unit.
