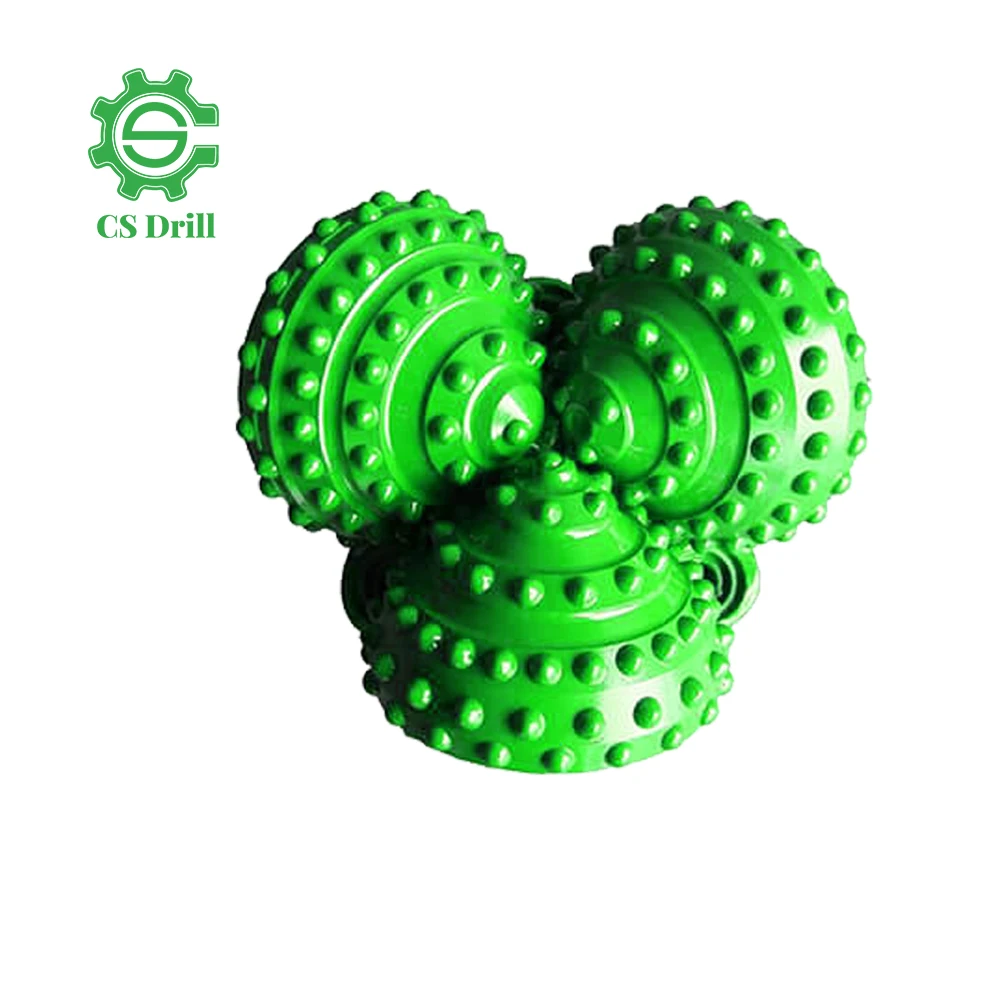

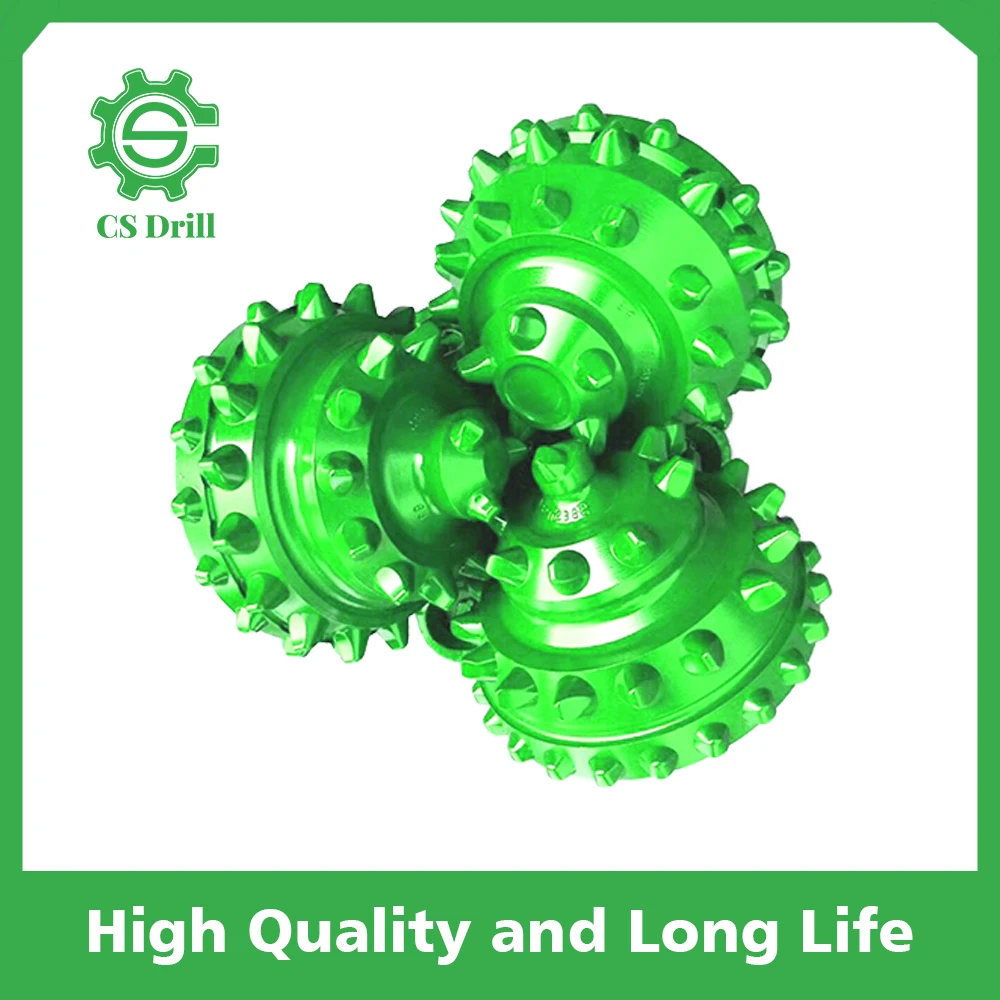

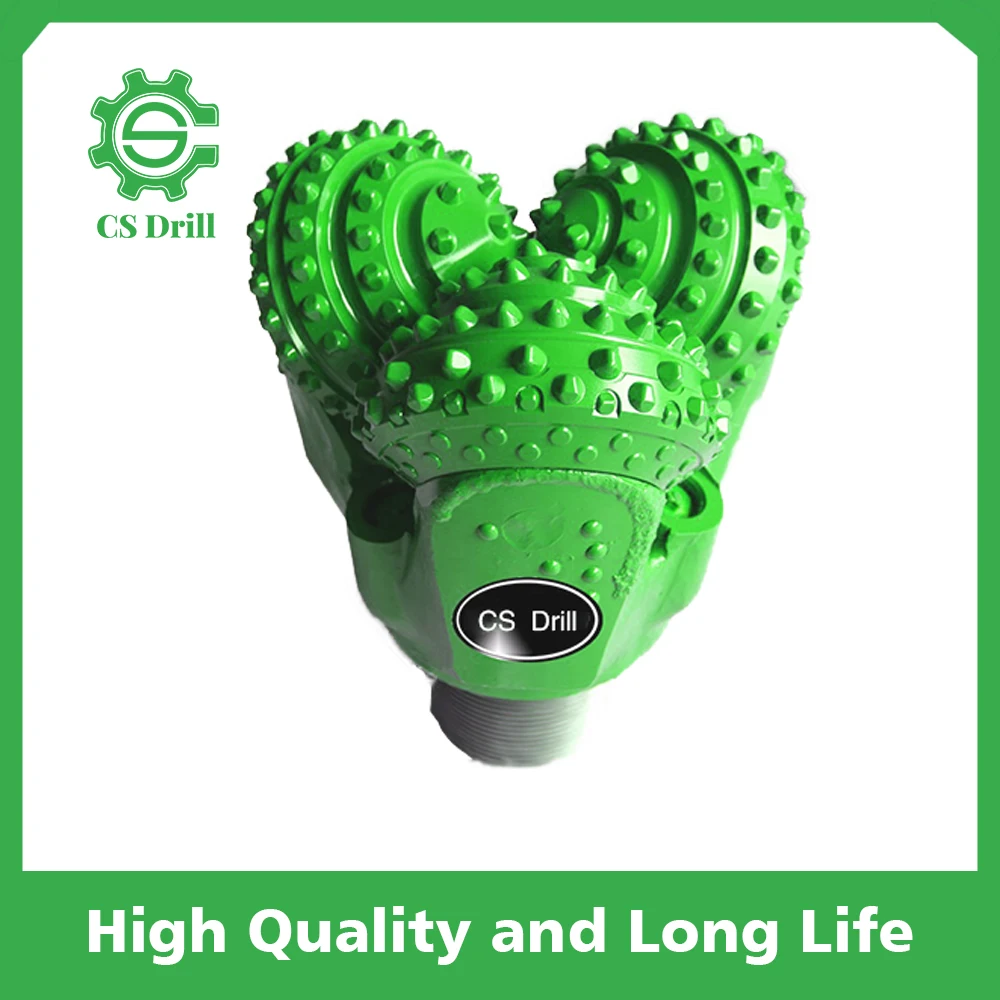

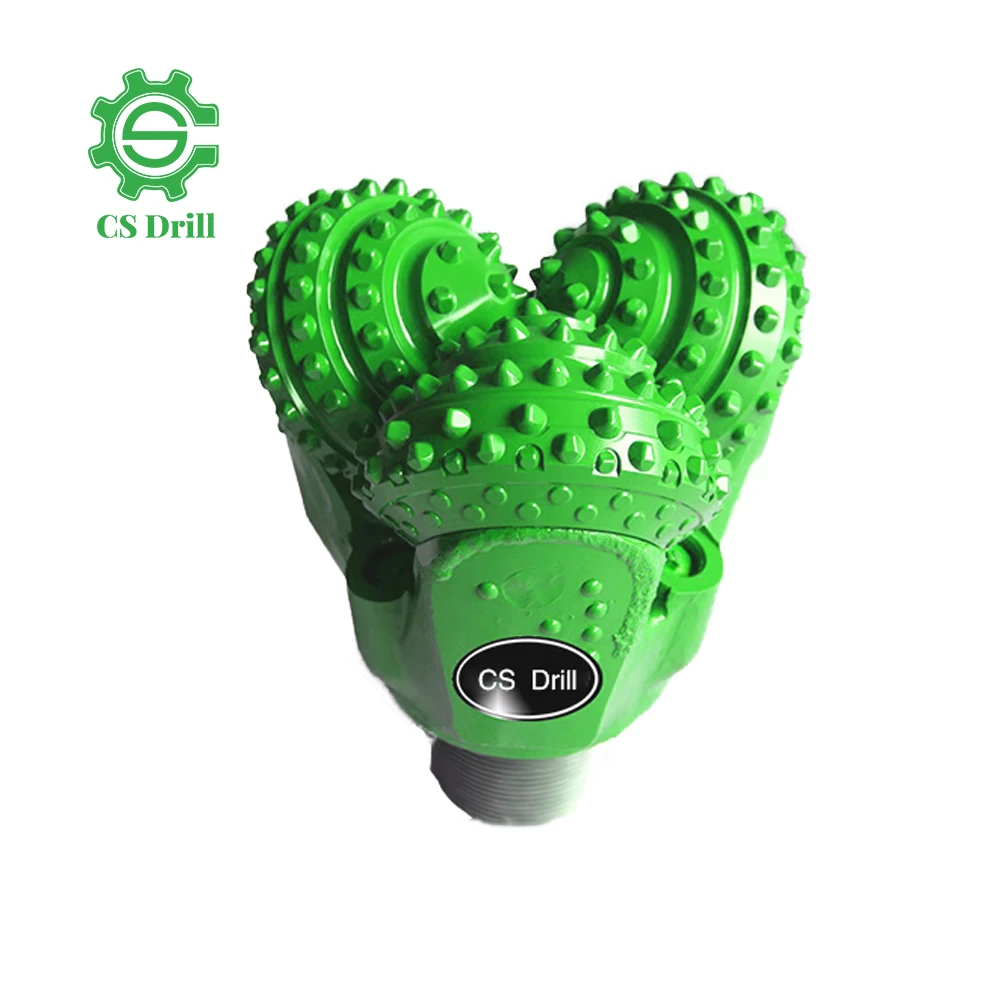

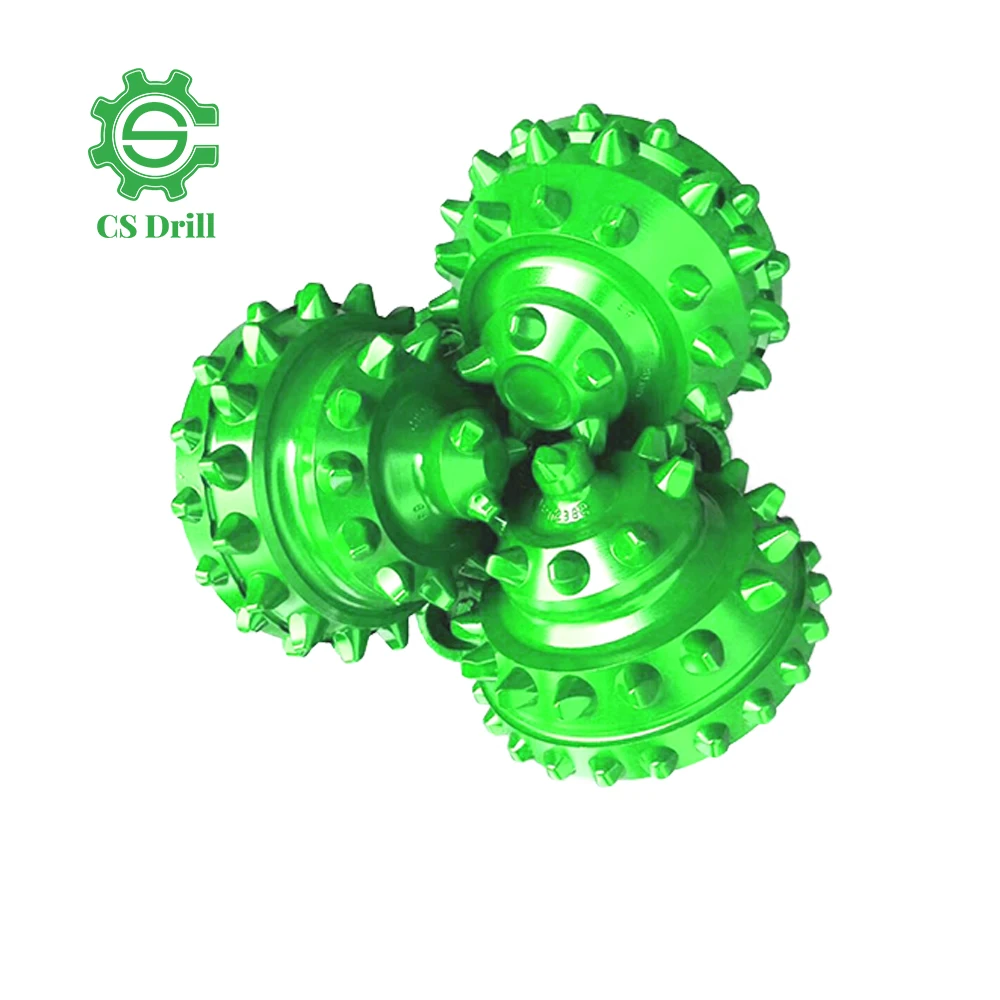

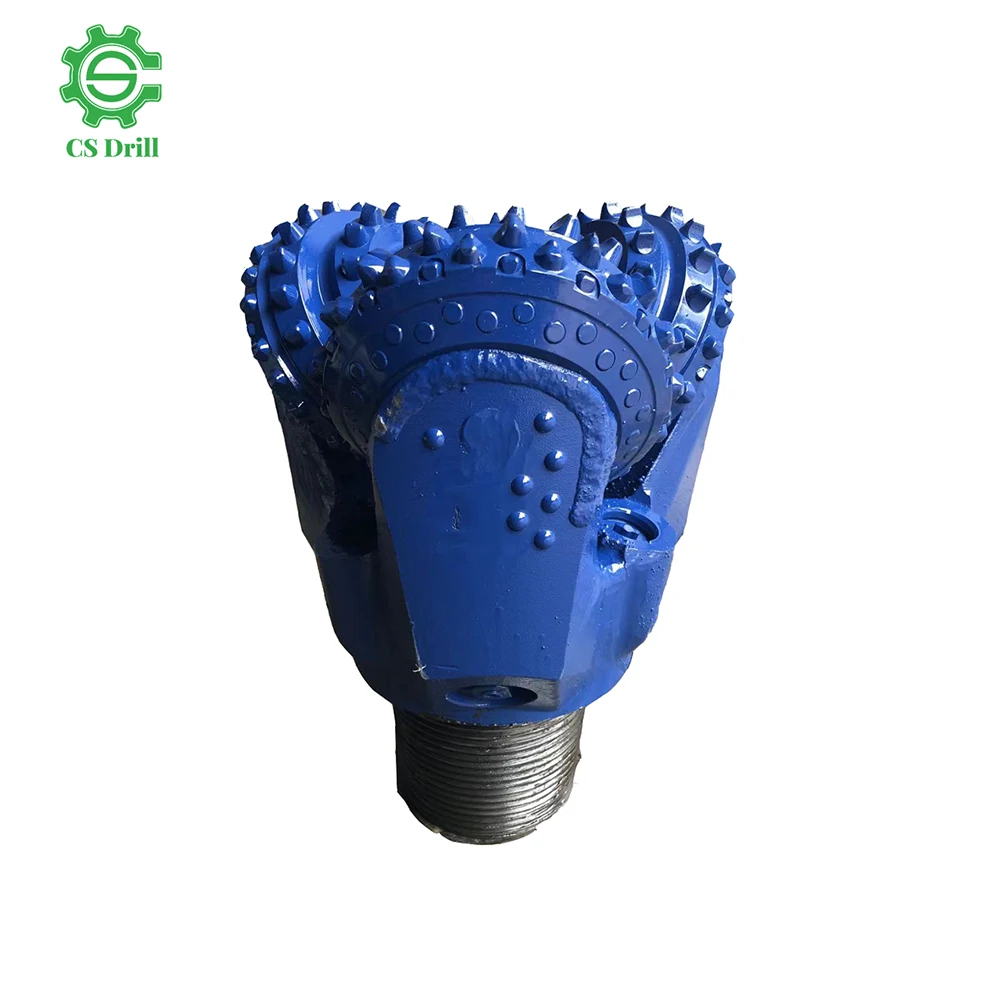

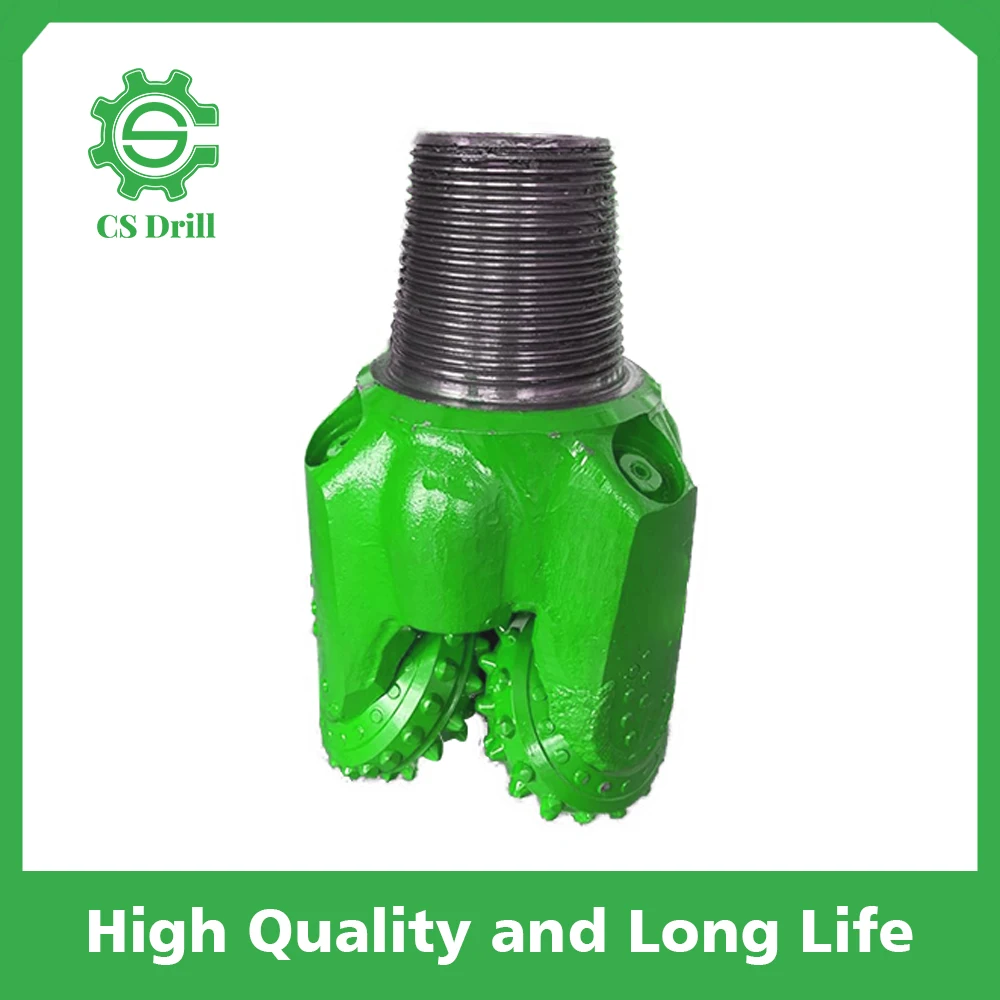

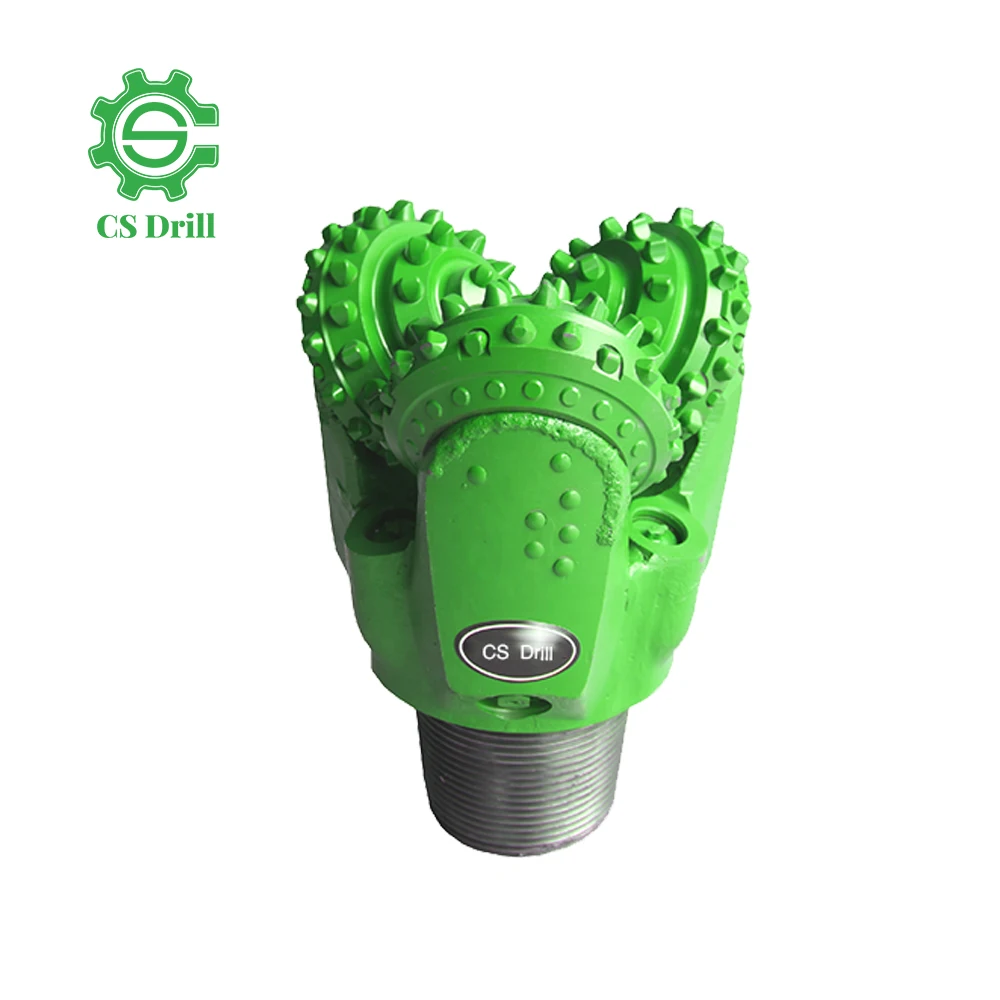

CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling
CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling

CSDRILL Factory TCL Tricone Roller Rock Bit 9/10/12 Tricone Drill Bit Price for Water Well Drilling

Share on (1601001578607):


Price:

Quantity:


Product Overview

Description



Product Description

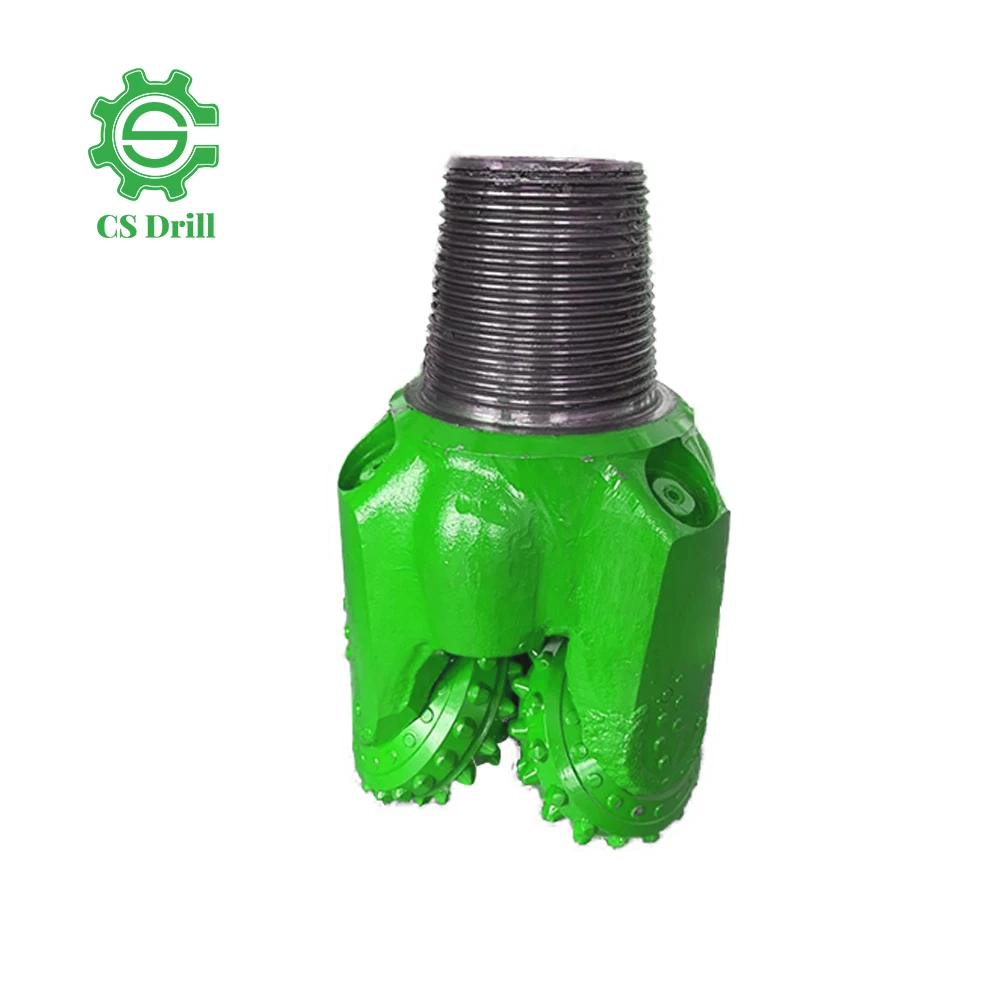

17 1/2" IADC 115 Steel Tooth Brocas Tci Bits De Pdc De Perforacione Minera Triconica Broca De pdc Tricono 8 1/4 Pulgadas




Product Name
17 1/2" IADC 115 Steel tooth bits
Size
17 1/2inches
Brand
CSdrill
Type
TCI tooth tricone bit
Bearing type
rubber sealed journal bearing
LBS.
83.8
WOB
0.35~1.05KN/mm
RPM
80~40r/min
Weight
100 KG
MOQ
1pcs





IADC
WOB
(KN/mm)
(Bit Dia)

RPM
(r/min)

Applicable Formation
116 117
0.35~0.8
150-80
Very soft formations with low compressive strength and high drillability ,such as clay ,mudstone,chalk,etc.
126 127
0.35~0.9
150-70
 Soft formations with low compressive strength and high drillability ,such as mudstone , gypsum, salt ,soft shale ,soft limestone, etc.
136 137
0.35~1.0
120-60
Soft to medium soft formation with low compressive strength and high drillability,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds etc.
216  217
0.4~1.0
100-60
Medium formation  with high compressive strength, such as abrasive shale,limestone,sandstone,dolomite,hard gypsum,marble , etc.
246 247
0.4~1.0
80-50
Medium hard formations with high compressive strength .such as abrasive shale,limestone,sandstone,dolomite, hard gypsum,marble,etc.
417 437 447

0.35~0.9

150-70
Very soft formations with low compressive strength and high drillability, such as mudstone , gypsum, salt ,soft shale ,soft limestone, etc.
517 527
0.35~1.0
140-60
Soft formations with low compressive strength and high drillability ,such as mudstone , gypsum, salt ,soft shale ,soft limestone,
etc.
537 547
0.45~1.0
120-50
Soft to medium formation with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,etc.
617 627
0.45~1.1
90-50
Medium hard formations with high compressive strength, such as hard shale,limestone,sandstone,dolomite,etc.
637
0.5~1.2
80-40
Hard formations with high compressive strength, such as sandstone,limestone,dolomite,hard gypsum,marble,etc.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.




Related Products




Contact us




Application


Where To Use
All our products are widely used in mining, tunneling, quarrying, construction, and civil engineering project.


Company Introduction






Certificate

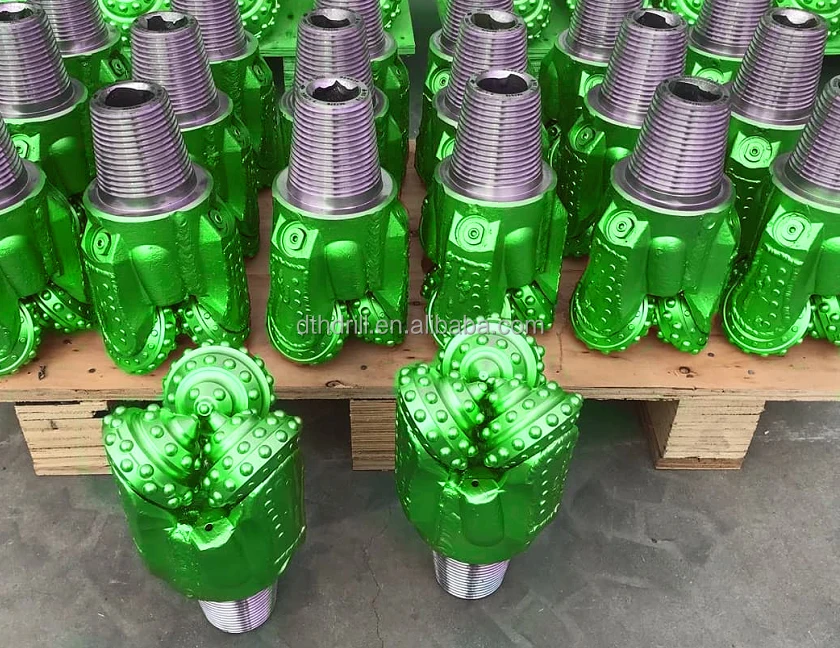

Packing&Shipping


Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation. Also we can customize package according to your special requests.






FAQ


1. Are you exact manufacturer or just trading company?
We are both,we have our own factory. And also have many long-relationship factories.

2.What is your minimum order quantity?
Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality。

3. Can you accept OEM & ODM?
Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly.
As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always in the material research and drawing design of drilling tools for 25 years.And he had designed the world’s biggest top hammer bit and DTH hammer bit, highly praised by the users.

4. How about Packing
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation.
Also, we can customize package according to your special requests.

5. How about the delivery time?
It depends, generally it takes about 15-25day. If have stocks, Usually only 5-10 days if in stock.

6. Can I have a visit to your factory before the order?
Sure, welcome, kindly contact us for address details and time schedule.
