Remote automatic pull or push arm swing door opener for indoor home

Share on (1601002009057):


Price:$130.00-160.00

Quantity:


Product Overview

Description



Product Description


Brand Name
chisung
Model Number
CSSDO-A3
Type
Swing door opener CSSDO-A3
Product name
Swing door opener
Power Supply
AC110V-220V±10%,50/60Hz ,
Door width
Min.660mm/Max.1300mm
Power
50W
Hold Open Time
1-30s Adjustable
Arm Direction
Pull Arm or Push Arm are available
Max open angle
105°
Max gate weight
120KGS
Environment Temperature
-20°C~+50°C
Product Dimension
518*95*80mm

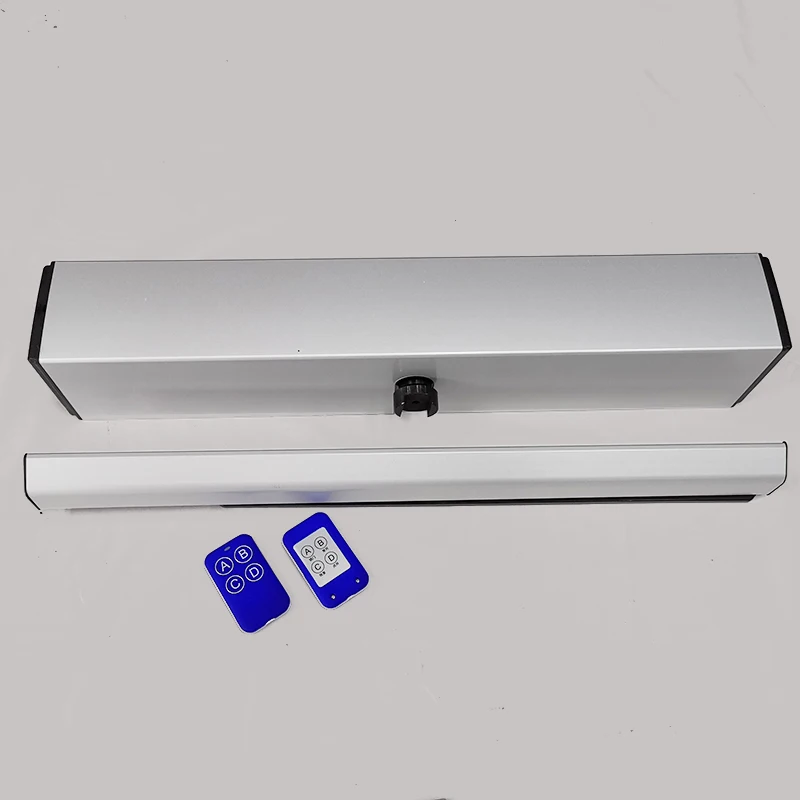

Product Display

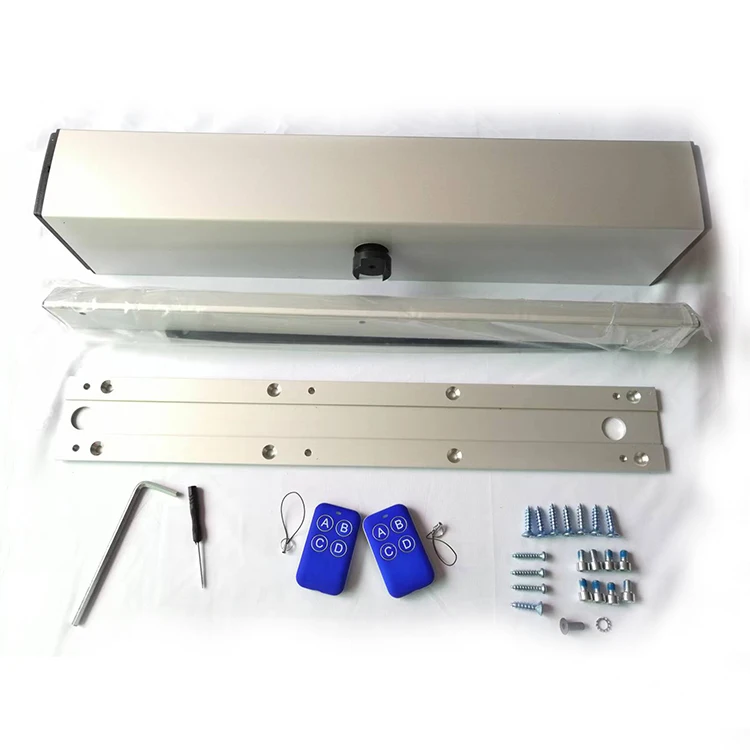

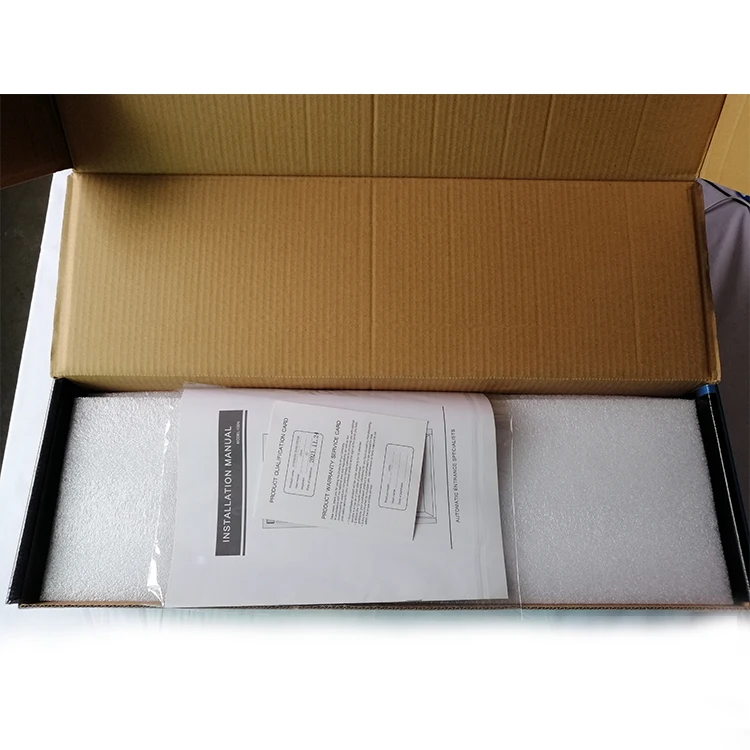

Packing list :
1 Set Swing door motor ;

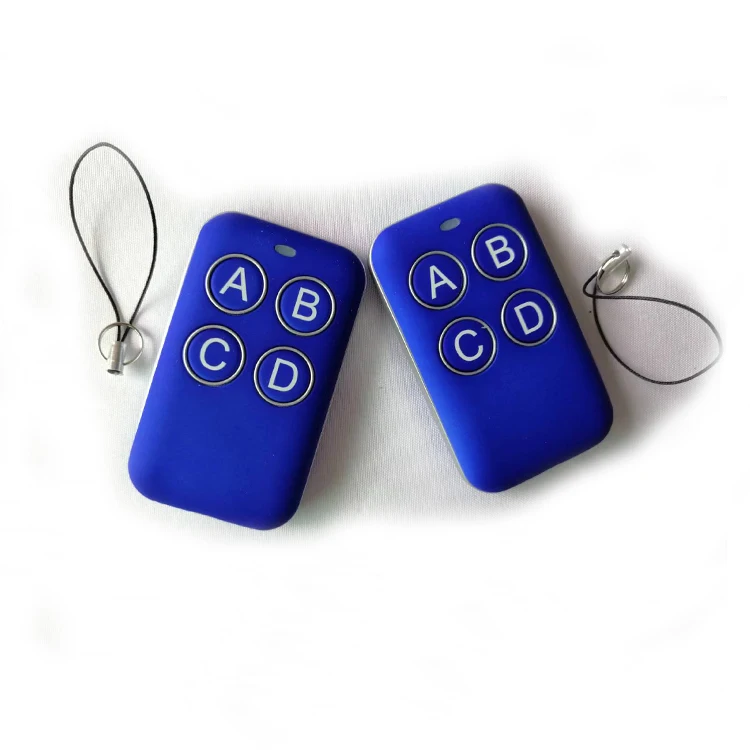

2 pcs remote keys .
1 pc L manual Keys ;
Other installation Part


Features&Functions


Features&Functions

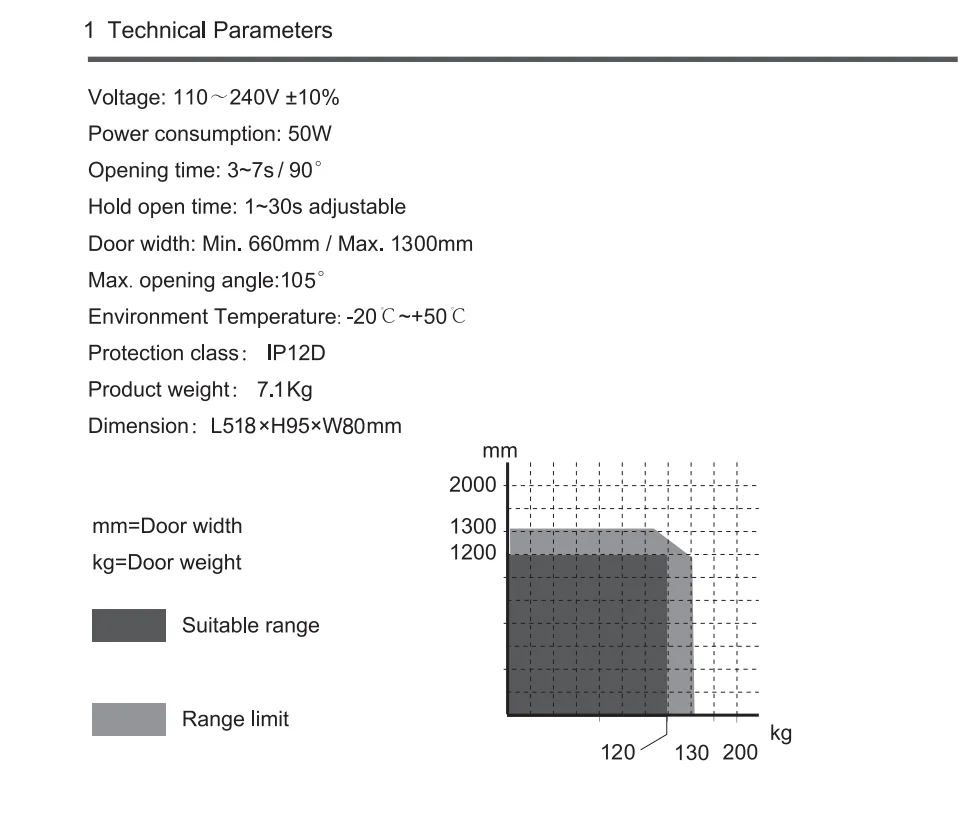

.Specifications
1. We have Push type or Pull type ; •Installation and maintenance are very easy. •Due to the strong gearbox, A3 has high
reliability and stable operation specially designed to drive arm.
•Built-in limit switch ,self-learning ability ,quick and easy installation react immediately to any obstacle also can sense wind
pressure.

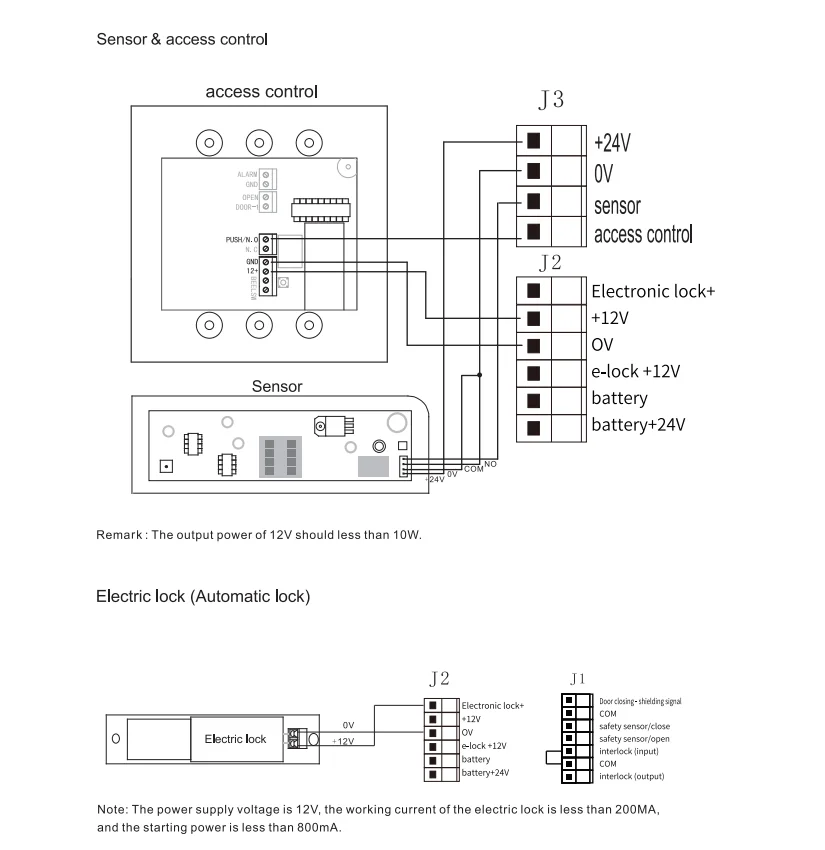

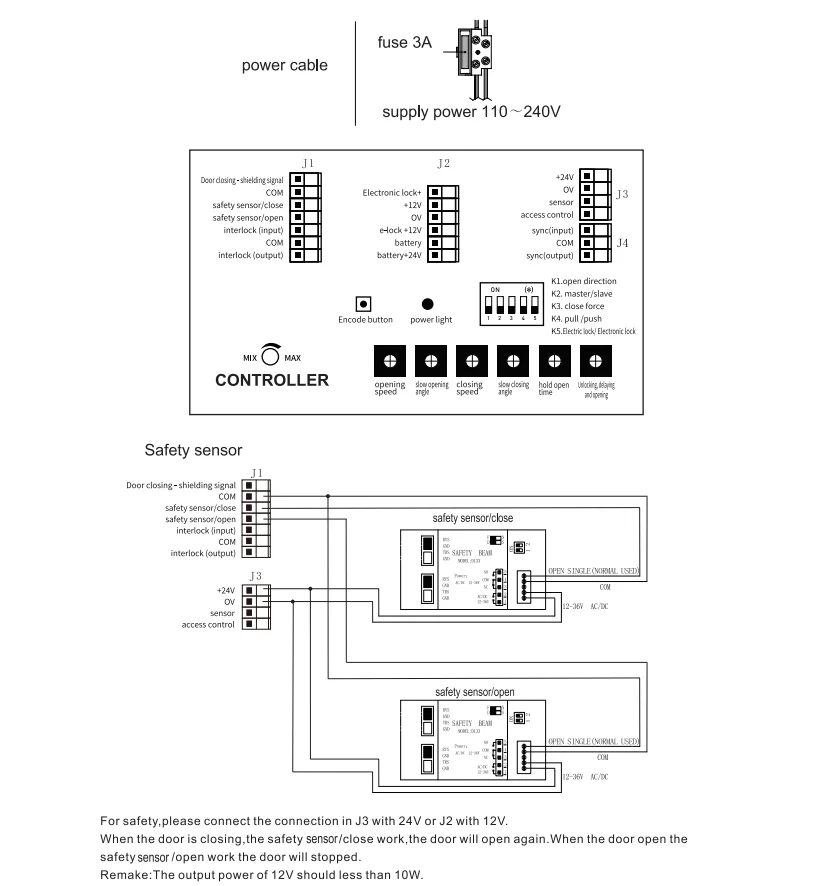

Installation Instructions
