Настройка одноосного многоосного прямолинейного модуля длиной 100 4000 мм

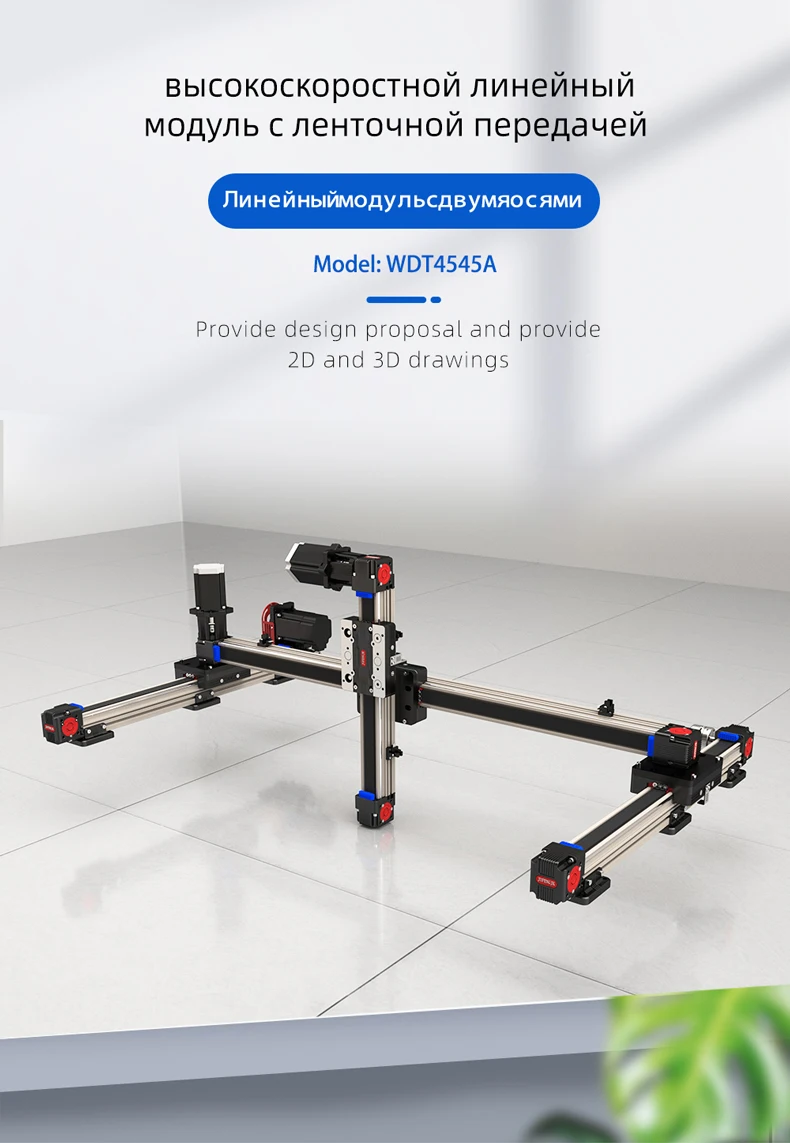

Product Overview

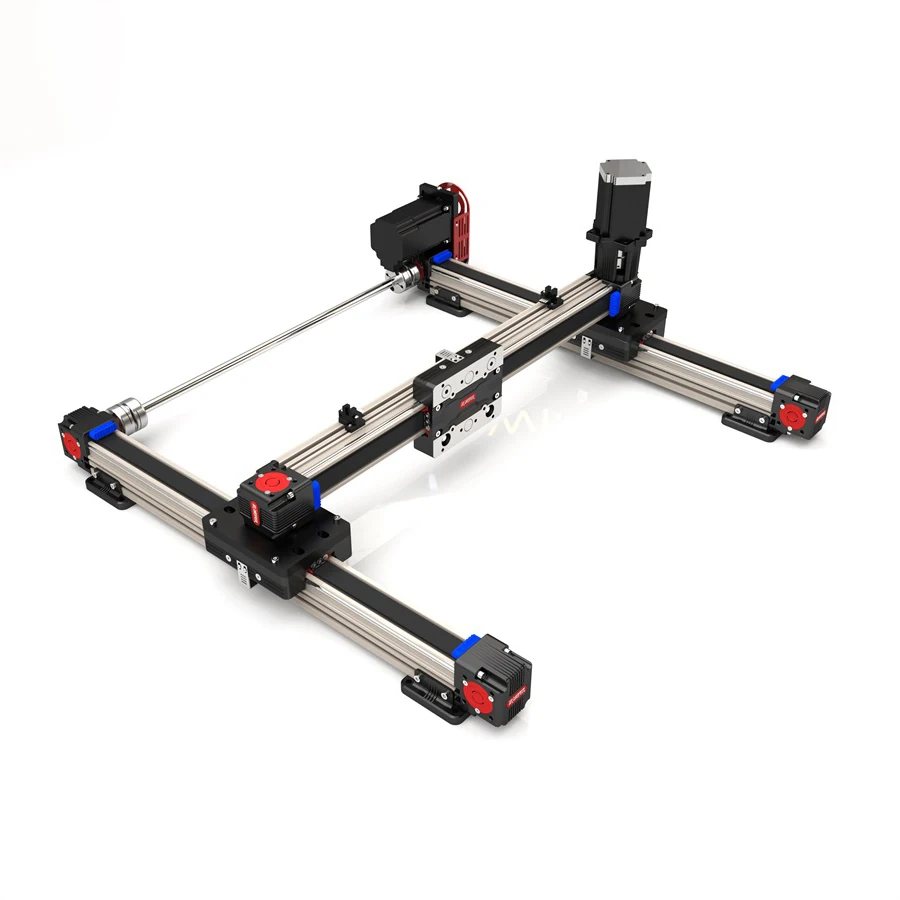

Description

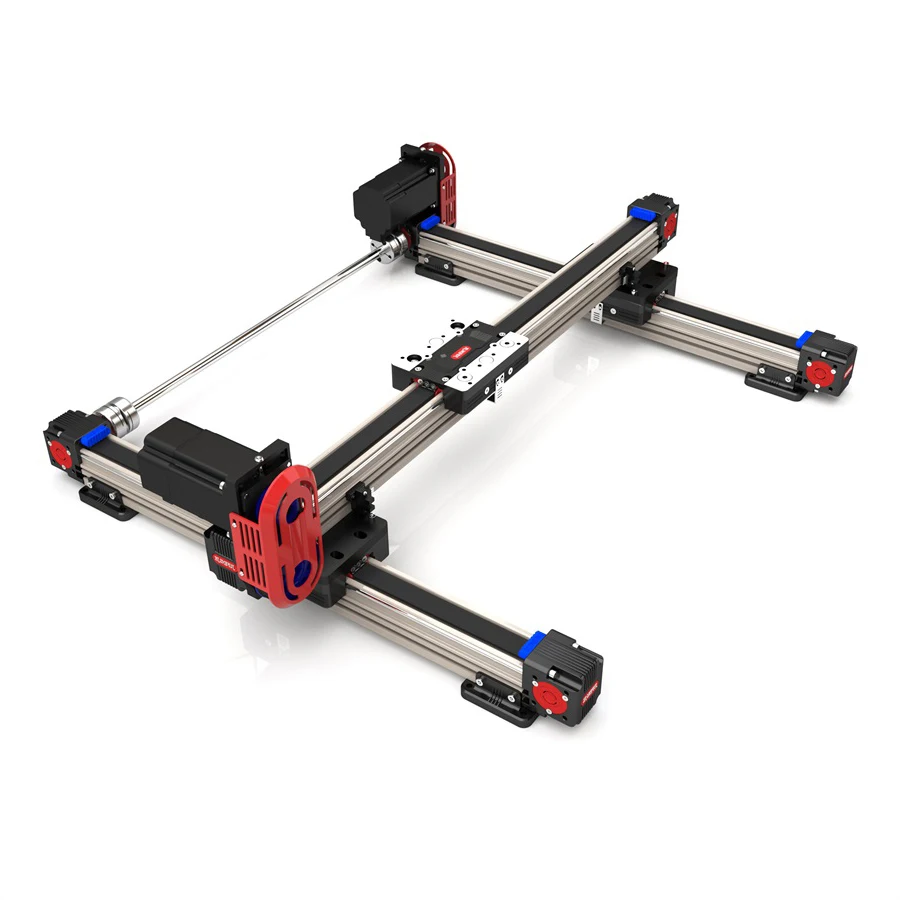

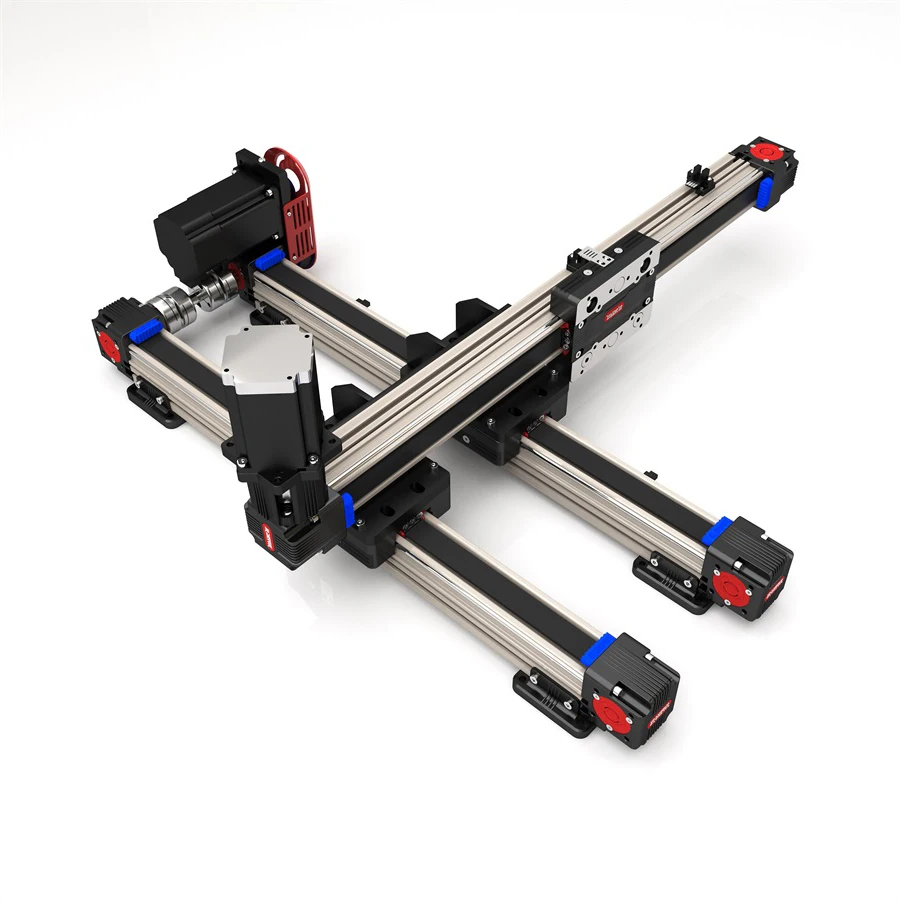

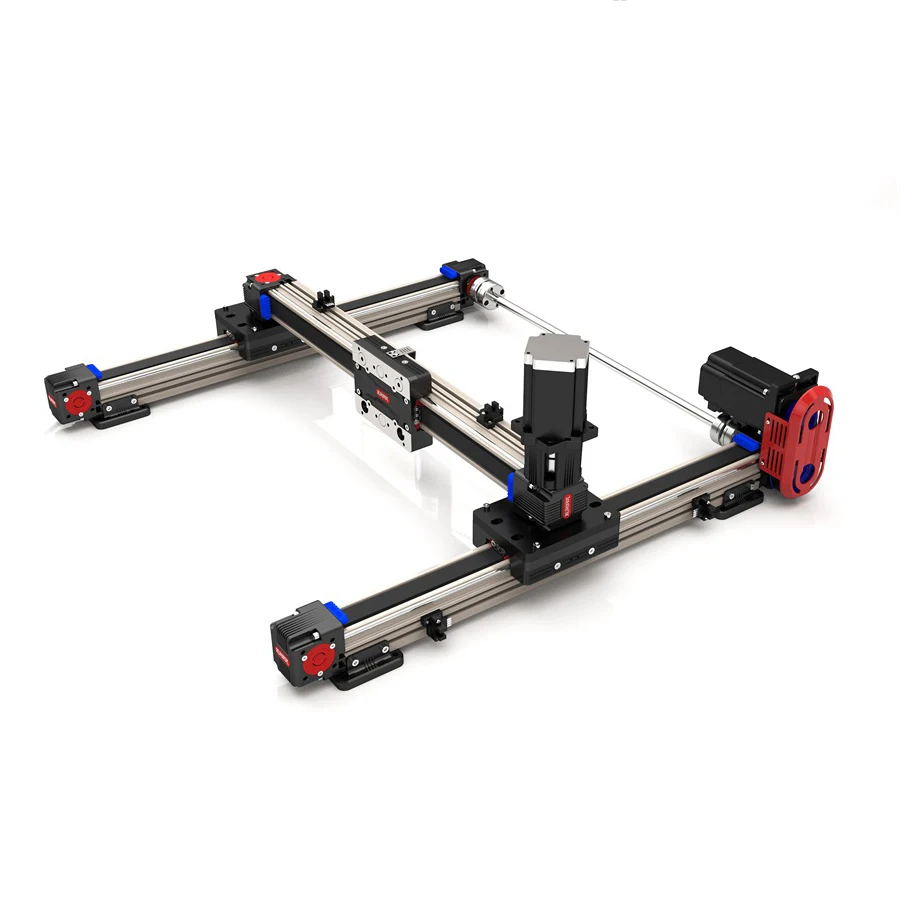

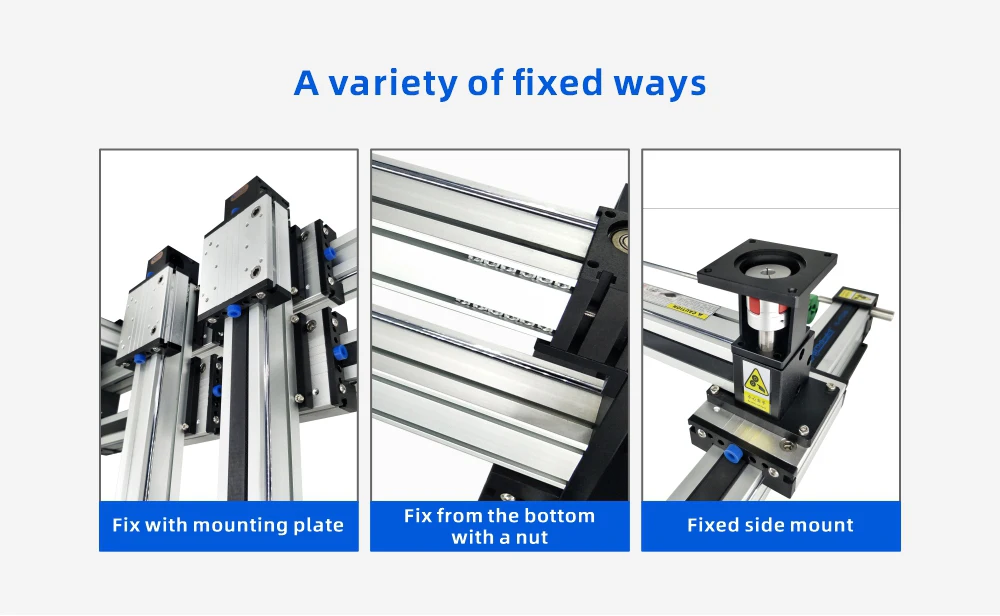

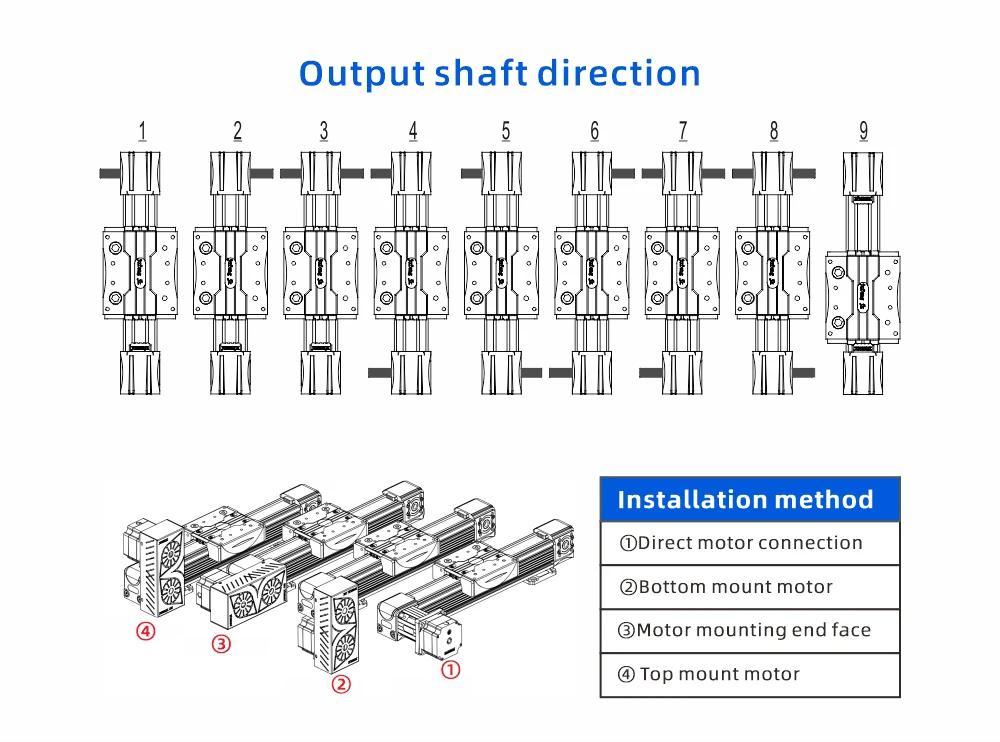

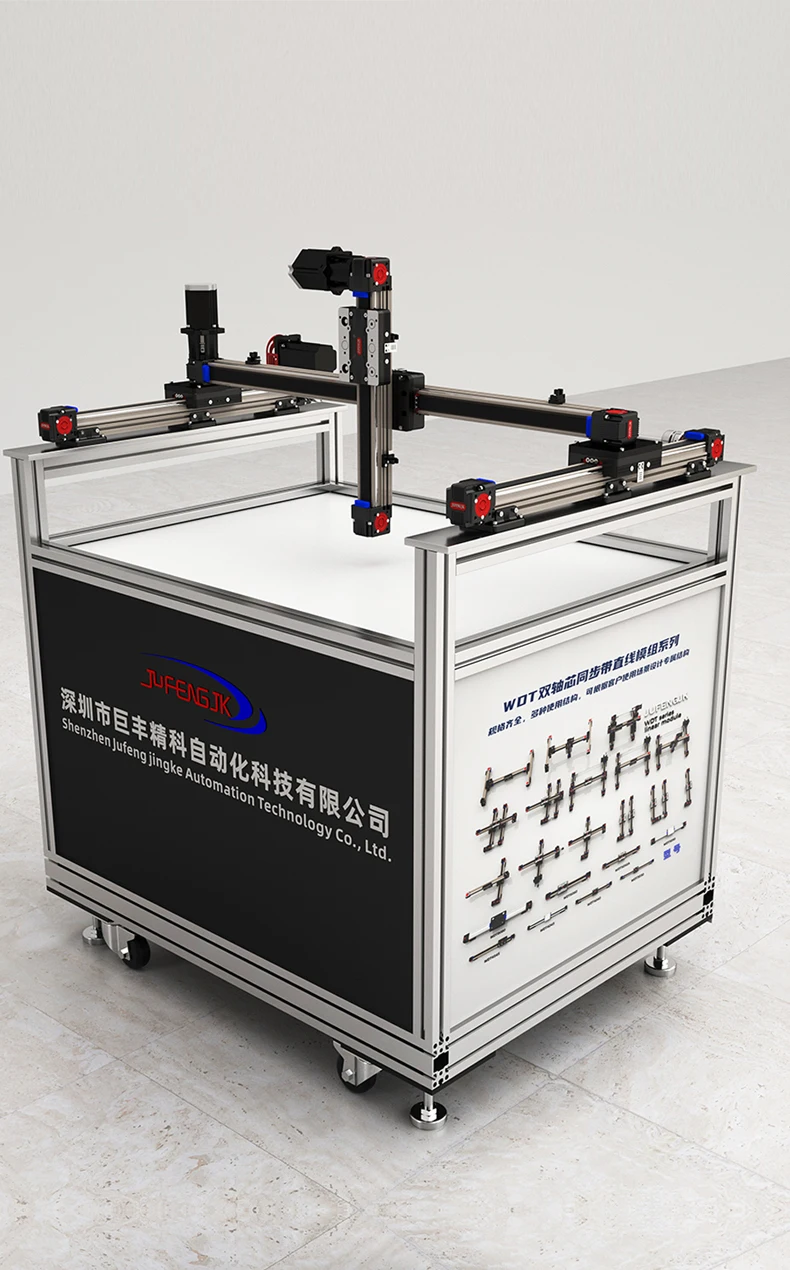

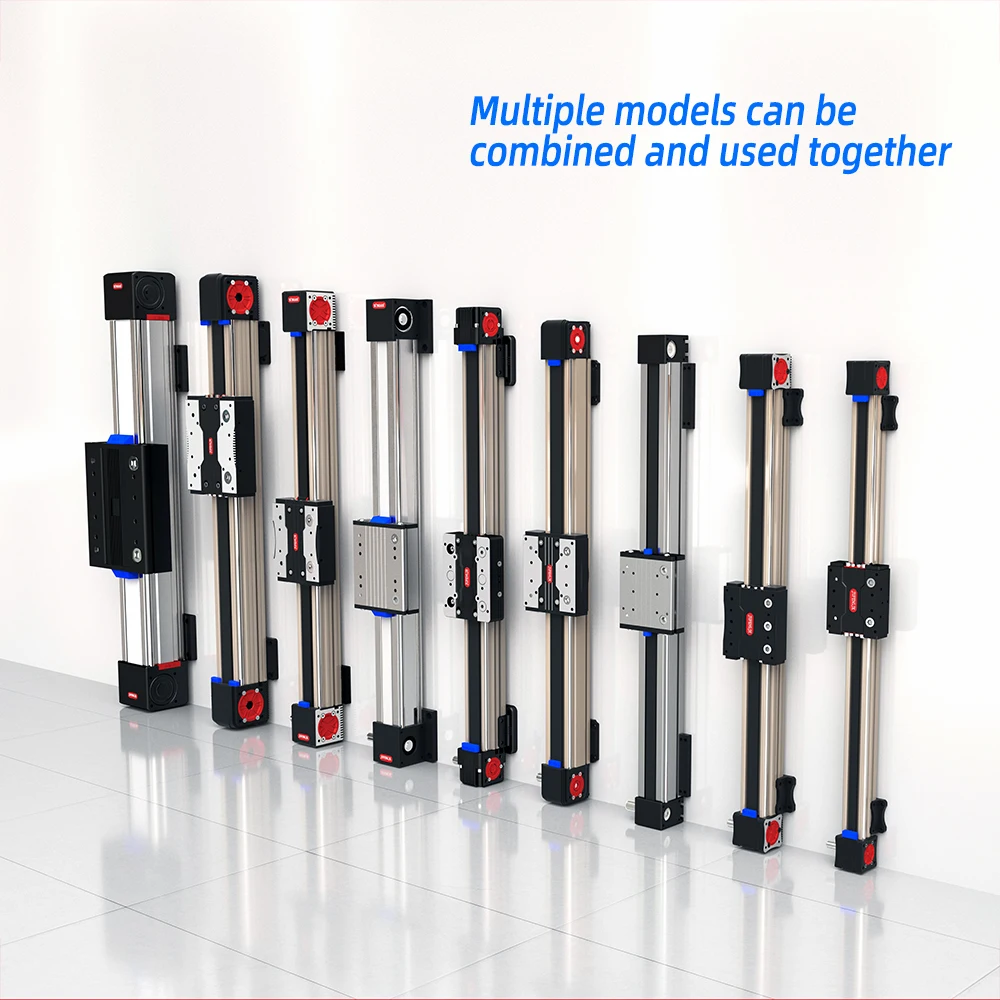

MM(mm)Two types of motion sliders are available, with the default option being four internal bearings. Alternatively, you can choose the six-bearing motion slider, which enhances the load capacity.By combining multiple usage structures, different types of motion operations can be achieved. The product also offers customized length structures and other services.

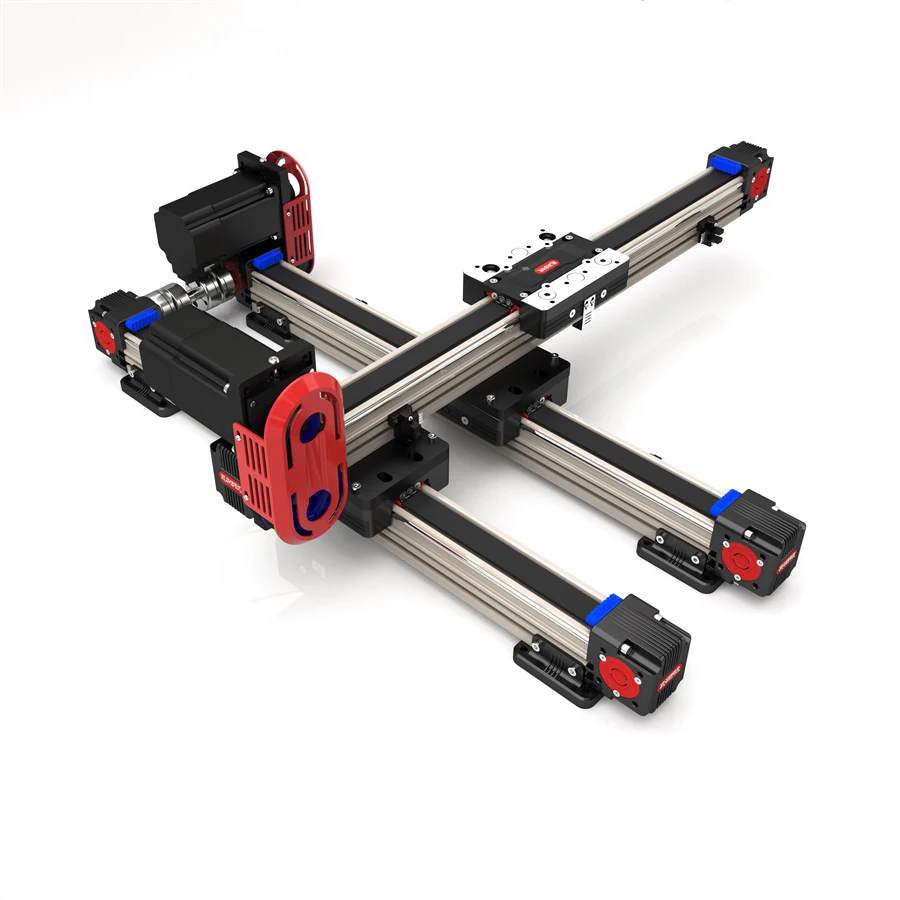

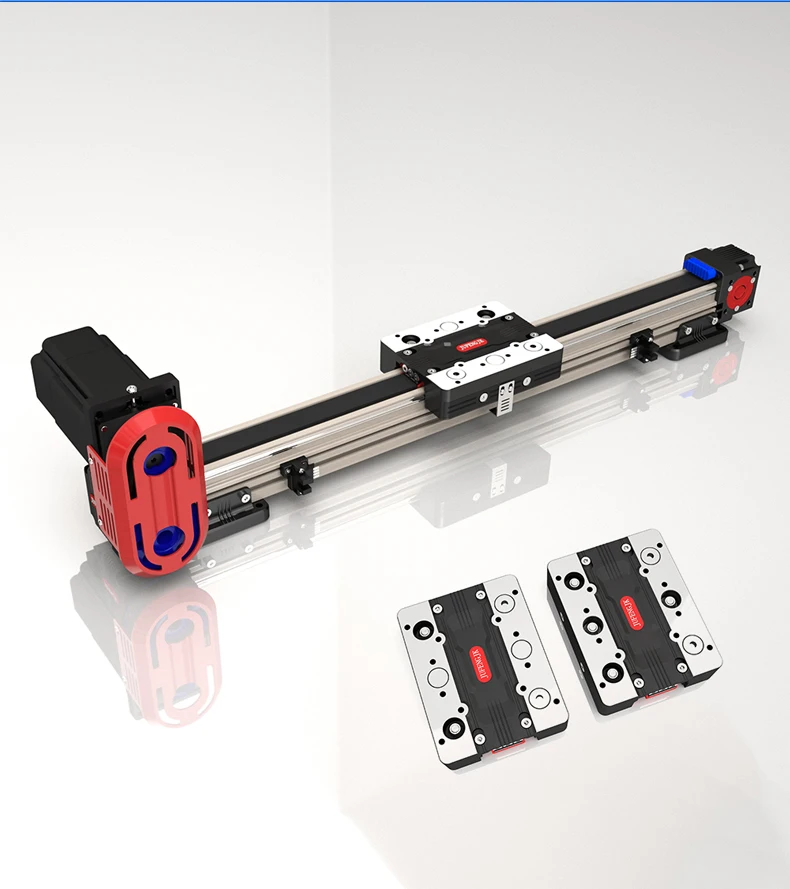

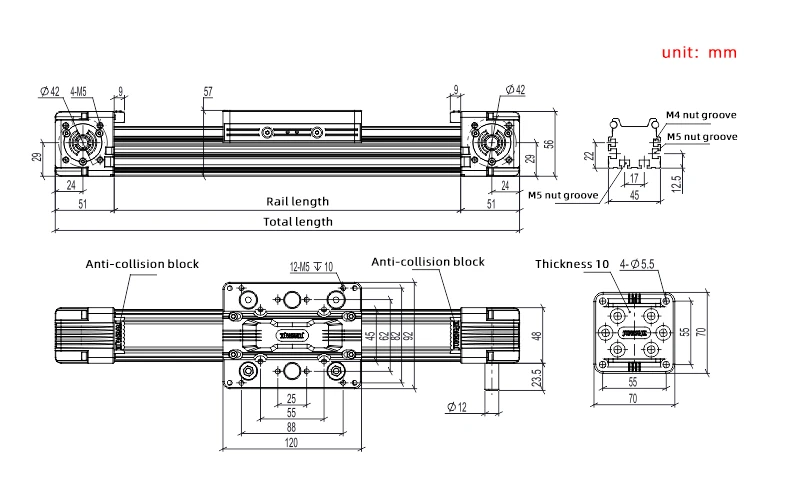

Guide rail (W* H)	45*45mm
Overall size (W * H)	92*57
Repetitive positioning accuracy	±0.05mm
Effective Travel	100-3900mm
Lead	75mm(The distance traveled by the motor after one revolution)
running speed	0-2500mm/s
Maximum horizontal load	12KG
Maximum vertical load	8kg
Optional motor	42/57/86 stepper motor 100W/400W/750W servo
work environment	-20℃~+60℃

Effective stroke(mm)	100	200	300	400	500	600	700	800	900
Total length(mm)	362	462	562	662	762	862	962	1062	1162
weight(KG)	1.56	1.81	2.06	2.31	2.56	2.81	3.06	3.31	3.81

model	Guide rail(W*H)	Overall size(W*H)	Effective stroke	lead	running speed	Maximum horizontal load	Maximum vertical load
WDT3030	30*30(mm)	68*40.8mm	50-3900mm	60mm	0~1500mm/s	≤3KG	≤1KG
WDT4040	40*40(mm)	76*51.8mm	50-3900mm	75mm	0~2000mm/s	≤6KG	≤3KG
WDT4045	40*45(mm)	83*58.5mm	50-3900mm	60/75mm	0~2000mm/s	≤8KG	≤3KG
WDT4545	45*45(mm)	94*58.5mm	50-3900mm	75mm	0~2000mm/s	≤12KG	≤5KG
WDT4545A	45*45(mm)	92*57mm	50-3900mm	75mm	0~2000mm/s	≤12KG	≤5KG
WDT5050	50*50(mm)	108*65mm	50-3900mm	100mm	0~2000mm/s	≤20KG	≤8KG
WDT5050A	50*50(mm)	108*67mm	50-3900mm	100mm	0~2500mm/s	≤20KG	≤8KG
WDT6060	60*60(mm)	130*79.5mm	50-5900mm	125mm	0~2500mm/s	≤35KG	≤12KG
WDT8080	80*80(mm)	175*107.5mm	50-5900mm	150mm	0~2500/s	≤60KG	≤20KG

We are a company dedicated to the manufacturing of linear modules for many years. With our experience and professional expertise, we provide high-quality services to our clients.



Linear modules can meet various needs of our customers in production and operational processes. Whether it is for high-efficient production lines, high-precision machining equipment, or strong logistics systems, we can customize solutions according to your requirements.



In our factory, we place great importance on quality control and technological innovation. We adopt advanced manufacturing techniques and implement quality management systems to pursue technological improvement and innovation to meet the ever-changing needs of our customers.



We also prioritize excellent after-sales service, offering remote technical guidance, video installation instructions, and more. If you are looking for a dependable manufacturer of linear modules that can provide diversified, high-quality, and customized services, please don't hesitate to contact us. We are committed to providing you with the best solutions and helping you achieve higher levels of production and operational efficiency!
