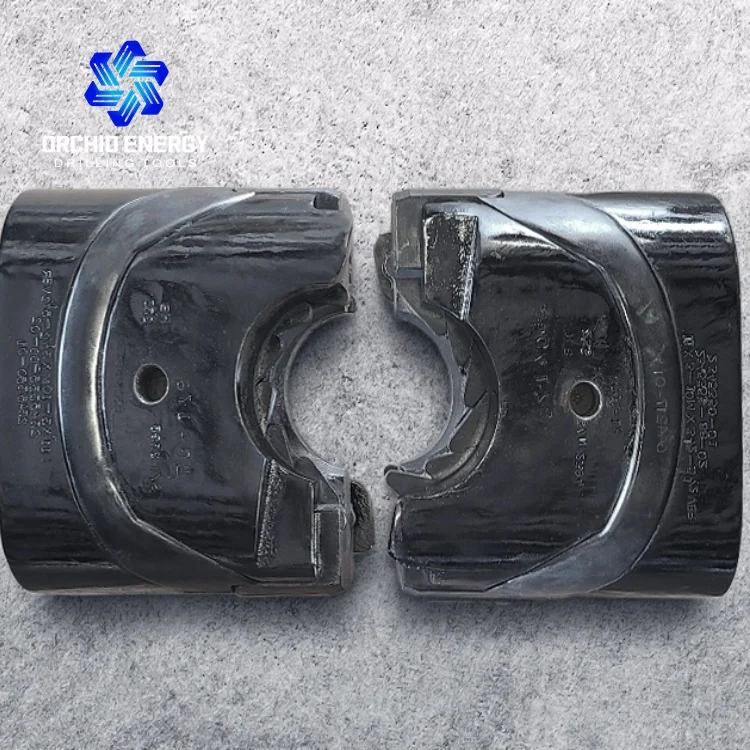

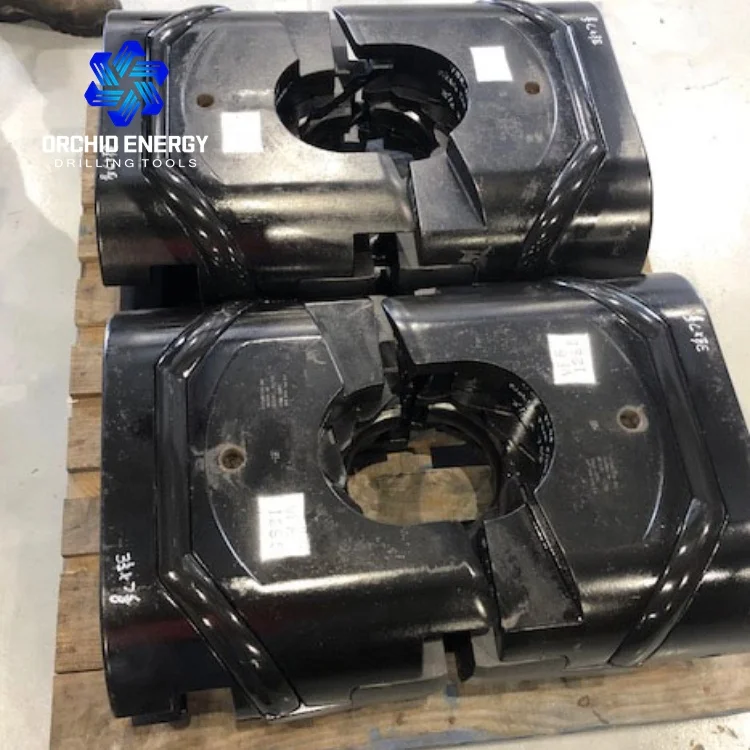

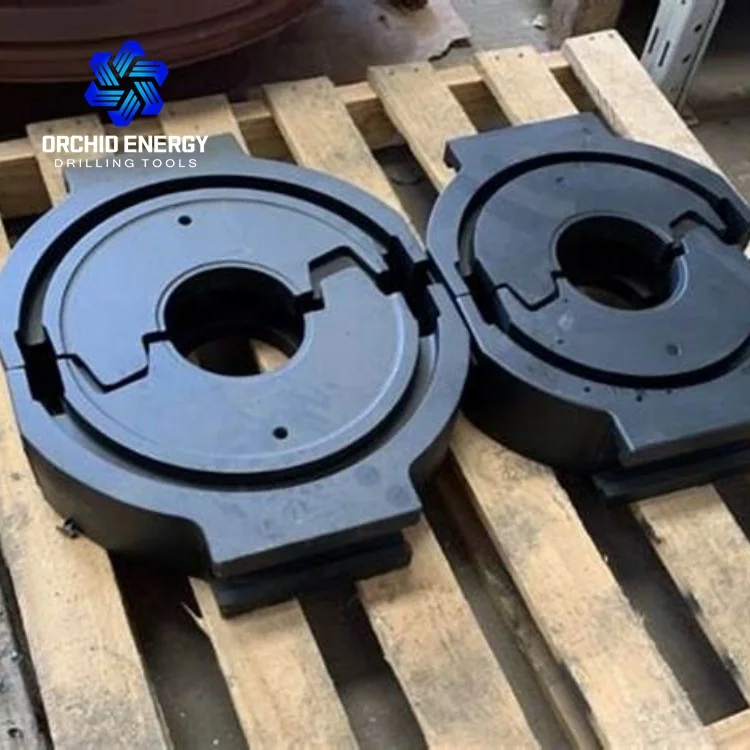

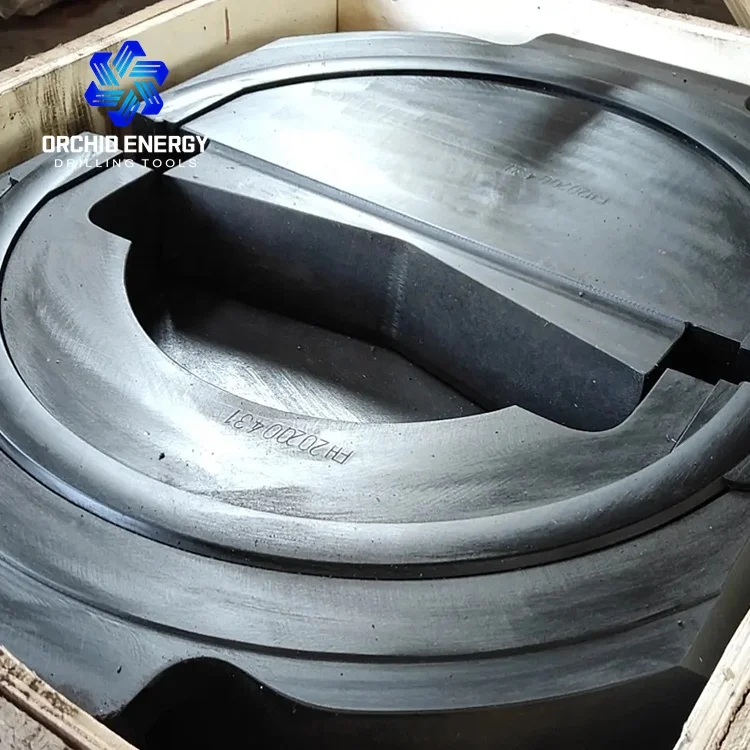

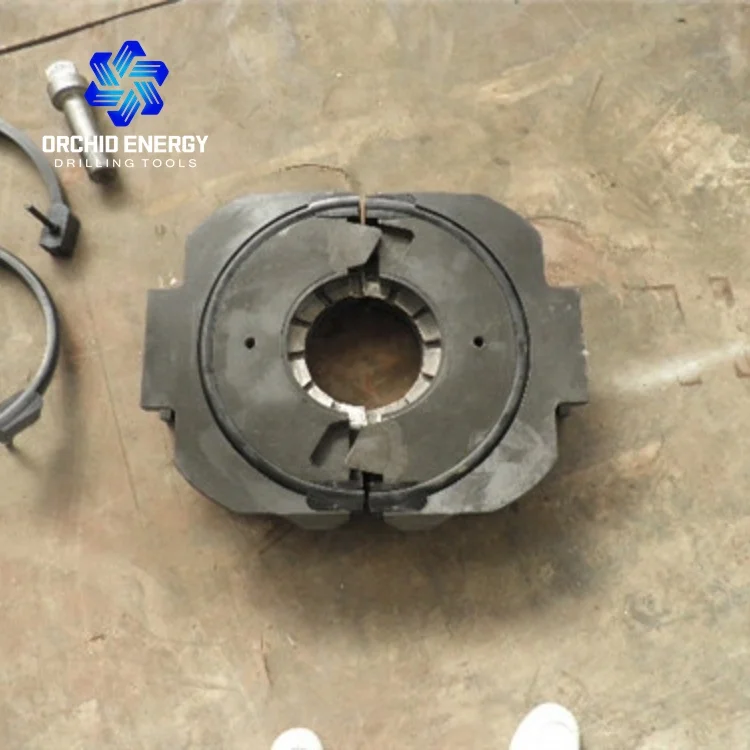

API 16A Variable Bore BOP Ram Oilfield Rubber Blowout Preventer Packer for Drilling Rig
- Category: >>>
- Supplier: Orchid Energy Co. Ltd.
Share on (1601003834579):
Product Overview
Description
Products Description
Variable bore rams, also known as variable bore blowout preventer (BOP) rams, are essential components used in blowout preventers to provide a versatile sealing solution for different pipe diameters. They are designed to seal off the wellbore and prevent the uncontrolled release of fluids during drilling, completion, and production operations in the oil and gas industry.
Working Principle
The primary function of variable bore rams is to provide a reliable seal around the pipe or casing in the blowout preventer. When activated, the rams move inward, creating a tight seal against the pipe, preventing the escape of well fluids. Variable bore rams allow for quick and easy adjustment to accommodate different pipe sizes, enhancing operational flexibility.

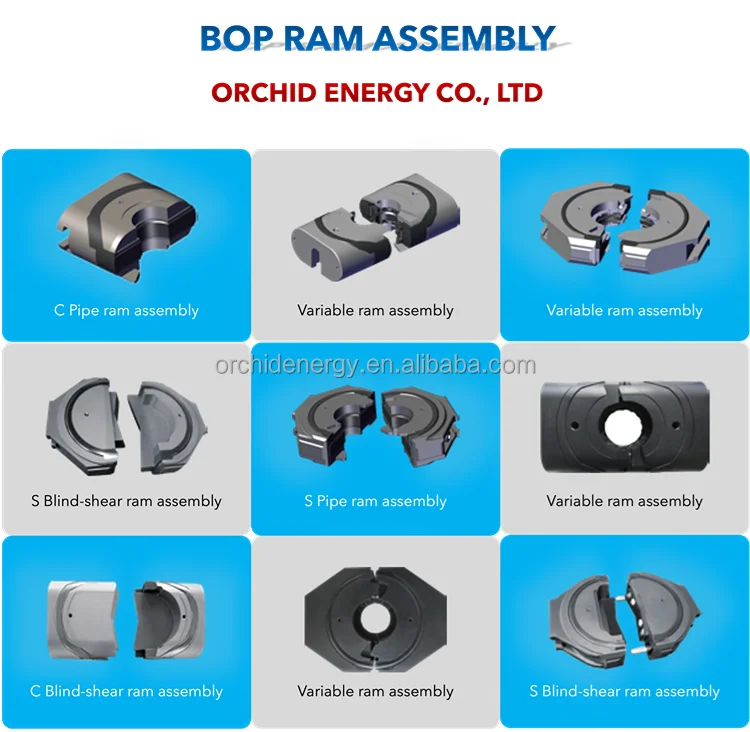

Product Structure
Key components and features of variable bore rams include:
1. Ram Cavities: The space within the blowout preventer where the rams are housed.
2. Ram Blocks: The movable components that form the sealing surfaces and create the seal around the pipe.
3. Hydraulic System: The hydraulic mechanism used to control the movement of the rams.
4. Sealing Elements: Typically made of durable elastomers, such as nitrile or hydrogenated nitrile butadiene rubber (HNBR), to ensure a reliable seal.
1. Ram Cavities: The space within the blowout preventer where the rams are housed.
2. Ram Blocks: The movable components that form the sealing surfaces and create the seal around the pipe.
3. Hydraulic System: The hydraulic mechanism used to control the movement of the rams.
4. Sealing Elements: Typically made of durable elastomers, such as nitrile or hydrogenated nitrile butadiene rubber (HNBR), to ensure a reliable seal.
Specification
Size (mm) | Size (in) | Size (mm) | Size (in) |
FH18-21 | 7 1/16” x 3,000 | FHZ18-70 | 7 1/16’’ x 10,000 |
FH18-35 | 7 1/16” x 5,000 | FHZ18-70/105 | 7 1/16’’ x 10,000 / 15,000 |
FH18-35/70 | 7 1/16” x 5,000 / 10,000 | FHZ28-35 | 11” x 5,000 |
FH23-21 | 9” x 3,000 | FHZ28-70 | 11” x 10,000 |
FH28-35 | 11” x 5,000 | FHZ28-70/105 | 11” x 10,000 / 15,000 |
FH28-35/70 | 11” x 5,000 / 10,000 | FHZ28-105 | 11’’ x 15,000 |
FH28-70 | 11” x 10,000 | FHZ28-105/140 | 11’’ x 15,000 / 20,000 |
FH28-70/105 | 11” x 10,000 / 15,000 | FHZ35-21 | 13 5/8” x 3,000 |
FH35-21 | 13 5/8” x 3,000 | FHZ53-21 | 20 3/4’’ x 3,000 |
FH35-35 | 13 5/8” x 5,000 | FHZ54-14 | 21 1/4” x 2,000 |
FH35-35/70 | 13 5/8” x 5,000 / 10,000 | FHZ75-3.5 | 29 1/2’’ x 500 |
FH35-70 | 13 5/8” x 10,000 | ||
FH35-70/105 | 13 5/8” x 10,000 / 15,000 |
