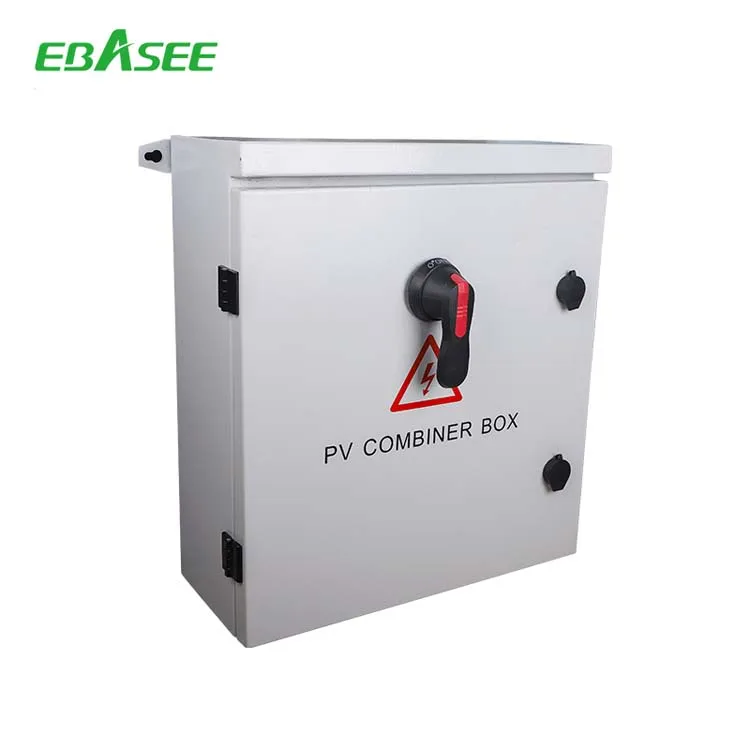

1000V DC Waterproof IP65 Metal Solar PV DC Combiner Box











































































































Technical Parameters



Name


BXPVZ-6/1


Ways(Loops)


4,6,8,10,12


System maximum DC voltage


1000


Protection level


IP65


Maximum input current per channel


1 5A


Output switch


DC circuit breaker
(standard)
DC rotary isolating switch
(optional)


Maximum number of input channels


6


Maximum output switching current


20A/32A


SMC4 waterproof connector


Standard


Number of inverter MPPT


N


Photovoltaic DC fuse


Standard


Number of output channels


1


Photovoltaic DC surge protector


Standard


Lightning protection


Monitoring module


Optional


Test category


I pole protection


Anti-reverse diode


Optional


Nominal discharge current


20kA


Box material


metal


Maximum discharge current


40kA


Installation method


Wall-mounted


Voltage protection level


3.8kV


Operating temperature


-25C~+55C


Maximum continuous operating voltage


1050V


Altitude


2000m


Number of poles


3P


Allow relative humidity


0~95%, no condensation


Structural features


Pluggable module



Function:

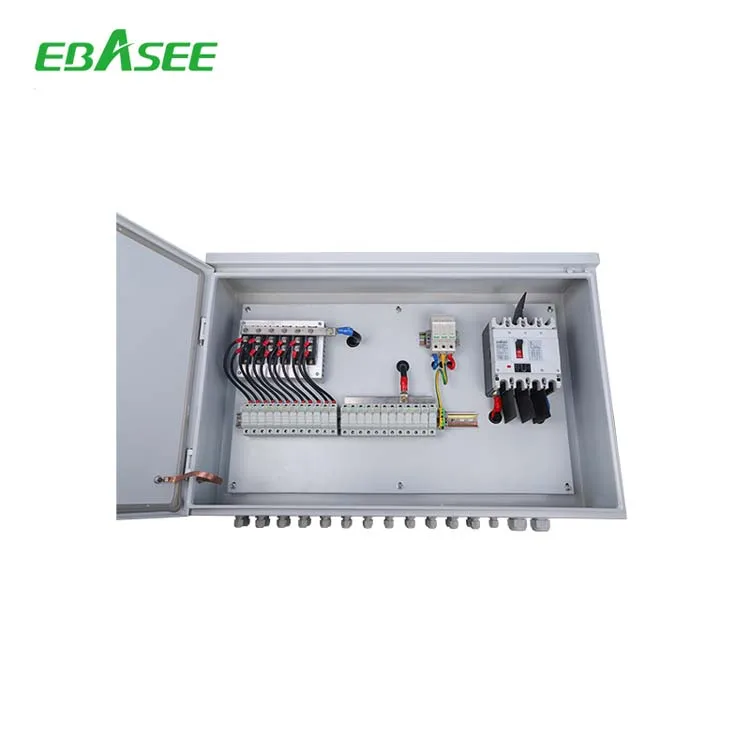

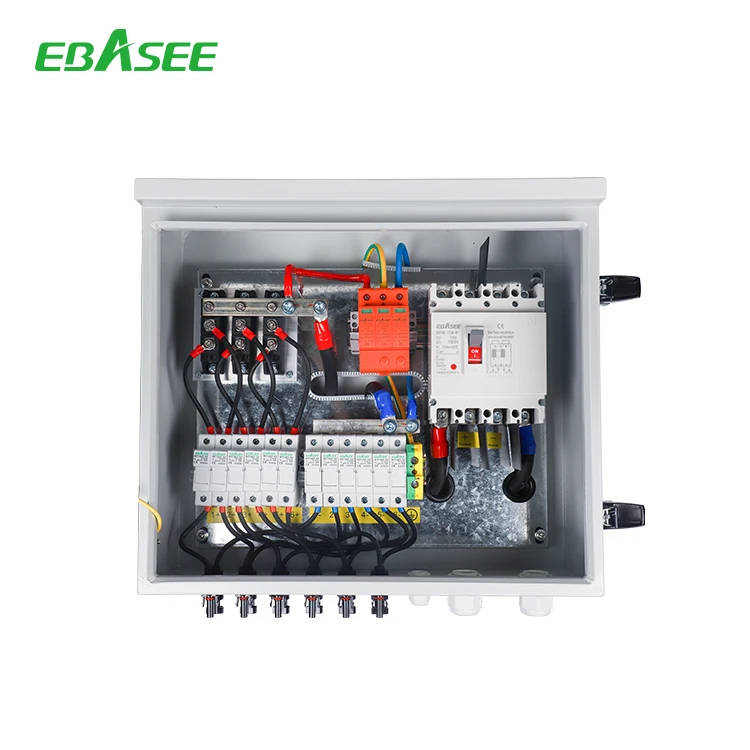

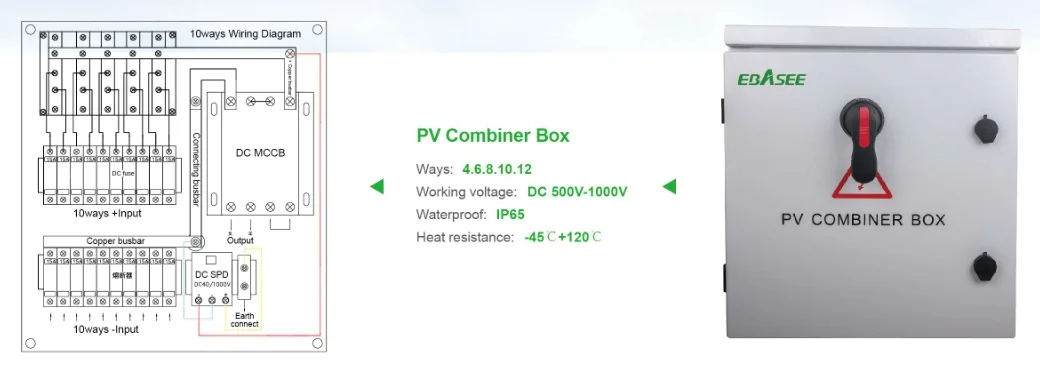

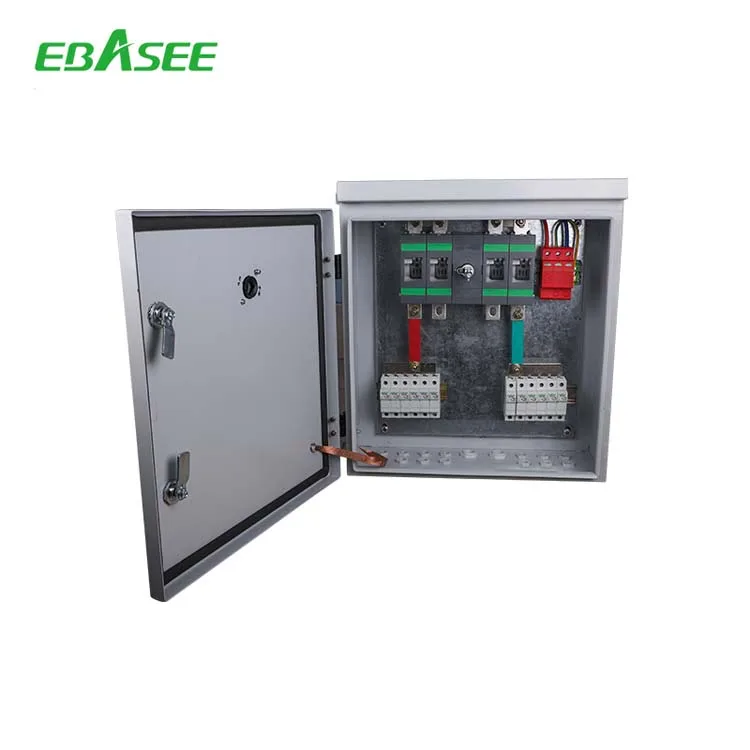

The BXPVZ lightning protection combiner box combines the DC input and sink of the 6-channel photovoltaic module string into one output, each line is equipped with a fuse, and the output is equipped with a lightning arrester and a circuit breaker, which greatly simplifies the DC power distribution cabinet and the reverse Input wiring for the transformer. Provide lightning protection, short circuit protection and grounding protection. The combiner box is divided Into two types. intelligent and non-intelligent. The intelligent lightning protection combiner box is equipped with a flow monitoring unit, which can monitor the current input by each photovoltaic cell string, the summed output voltage, the temperature inside the box, the state of the lightning arrester, and the state of the circuit breaker.
