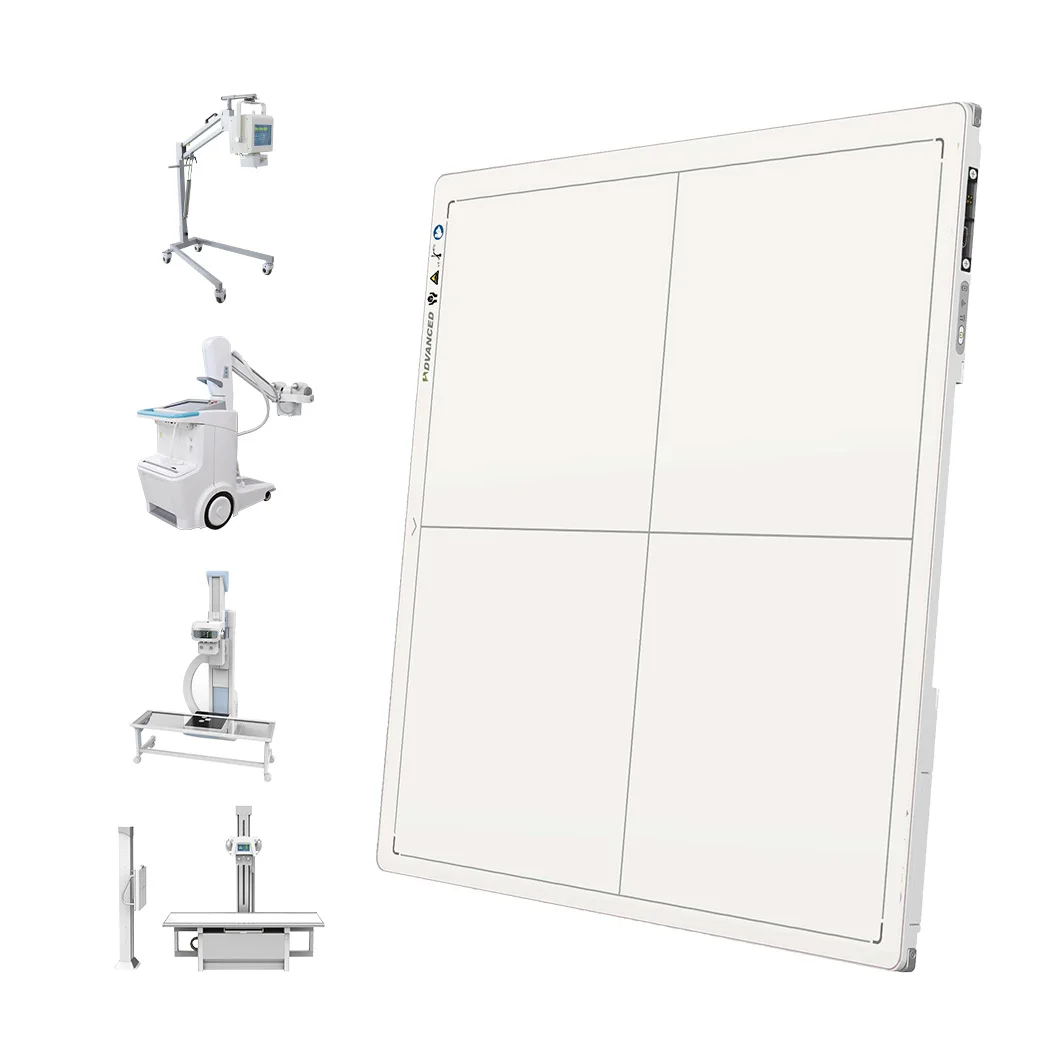

High Quality Portable Type Low Noise Aluminum Alloy X Ray Flat Panel Detector X Ray Machine
- Category: >>>
- Supplier: Hunan Zetop Medical Co. Ltd.
Share on (1601004897127):
Product Overview
Description
Hot Sale
Product Description

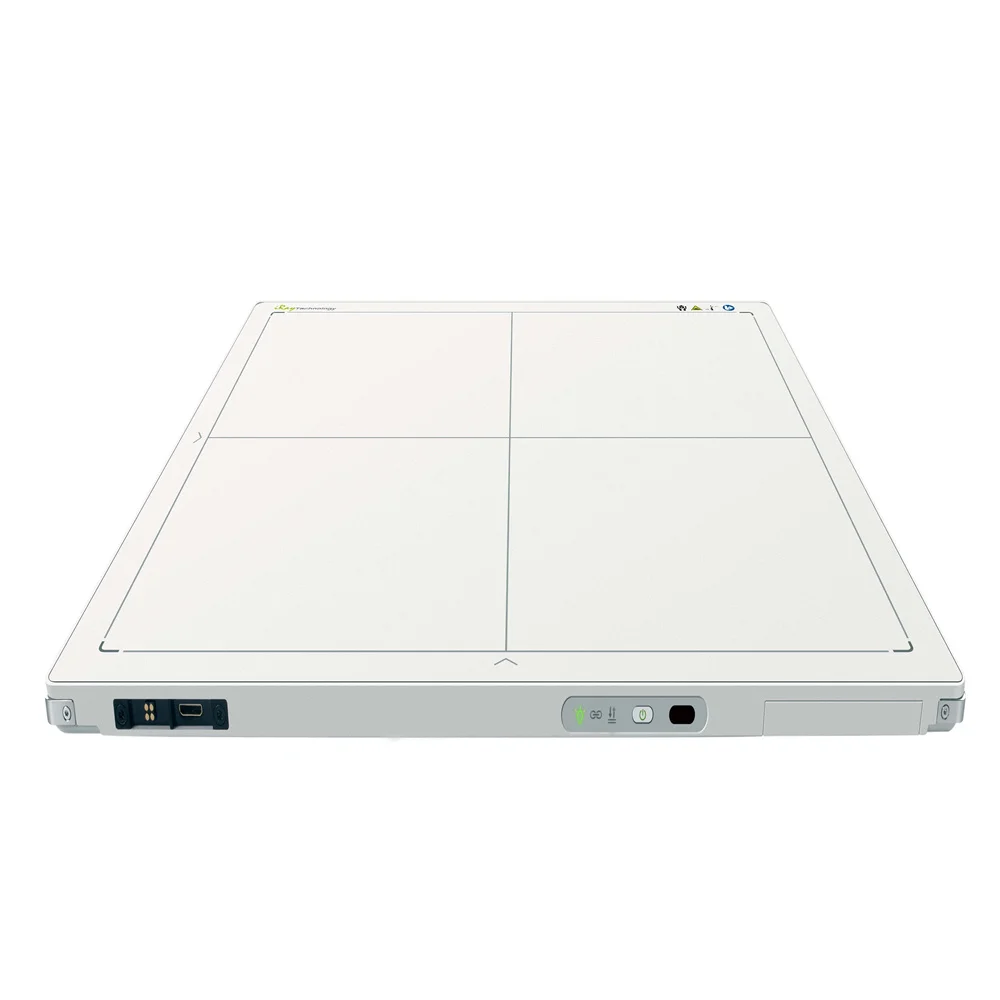

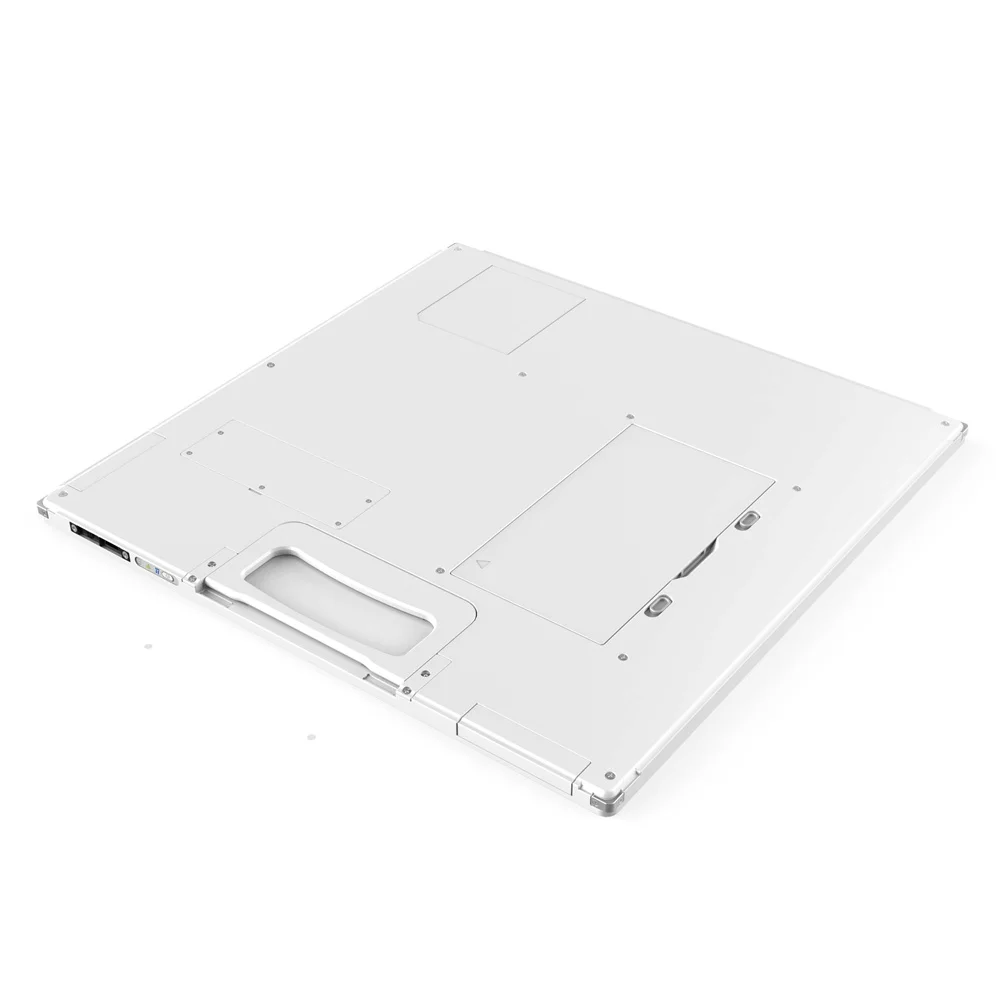

ZT-FPD-1717VN
Features
●Csl/a-Si TFT
ZT-FPD-1717VN is an a-Si FPD designed for real-time imaging. The 17×17-inch image sensor has direct deposition Csl, which provides excellent low-dose imaging at frame rates up to 30fps. It is a combination of dynamic and wireless detector with 139um pixel pitch design, which provides more solution for DRF products.
Features
●Csl/a-Si TFT
●17x17-inch imaging area with a 139 μm pixel pitch
●Support fluoroscopic application
●Support wireless radiography application
●Distortion-free imaging with high SNR
●5 fps in full resolution and 20 fps in 2x2, 30fps in 3x3
Specification
Detector Technology | Amorphous Silicon |
Scintillator | Csl |
Active Area (inch) | 17 x 17 |
Pixel Matrix | 3072 x 3072 |
Pixel Pitch (um) | 139 |
Spatial Resolution (lp/mm) | 3.6 |
AD Conversion (bit) | 16 |
Maximum Frame Rate (fps) | 5(1×1) 20(2×2) 30 (3×3) |
Data Interface | GigE |
Dimensions (mm) | 460 x 460 x 15 |
Weight (kg) | 4.6 |
Power Dissipation(W) | ≤25 |
Operating Temperature (°C) | 10~35 |
Storage & Transport Temperature with Package (°C) | -10~55 |
Operating Humidity (% RH) | 20~90(Non-Condensing) |
Storage & Transport Humidity with Package (% RH) | 10~90(Non-Condensing) |
RAD Mode Spec | Refer to ZT-FPD-1717V |
