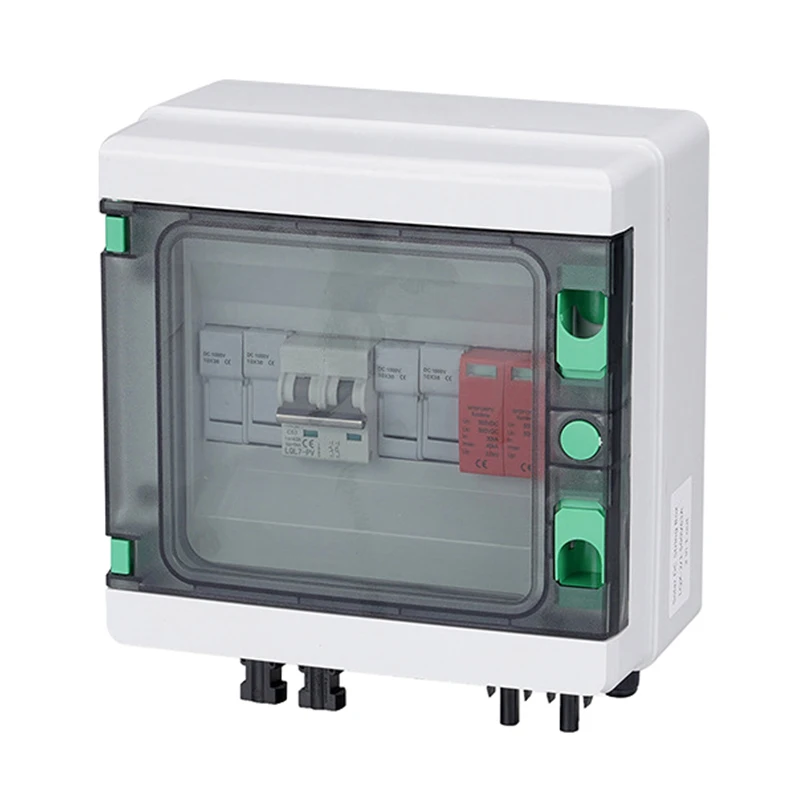

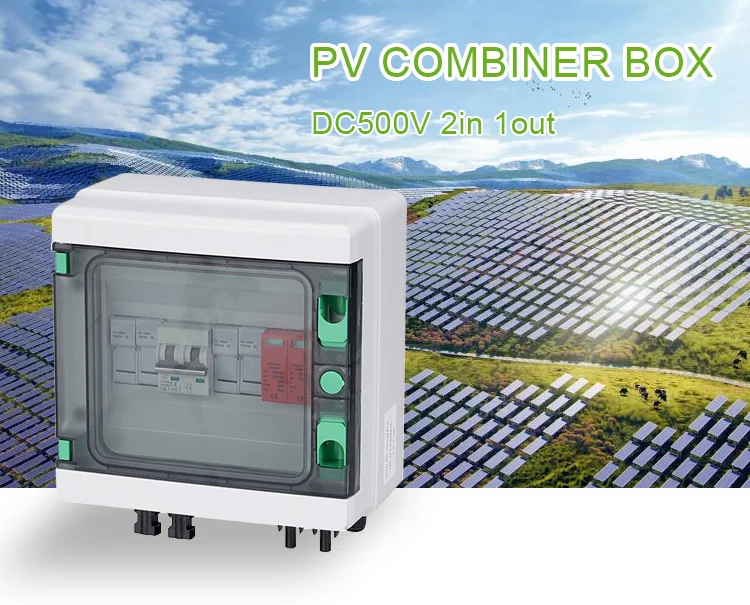

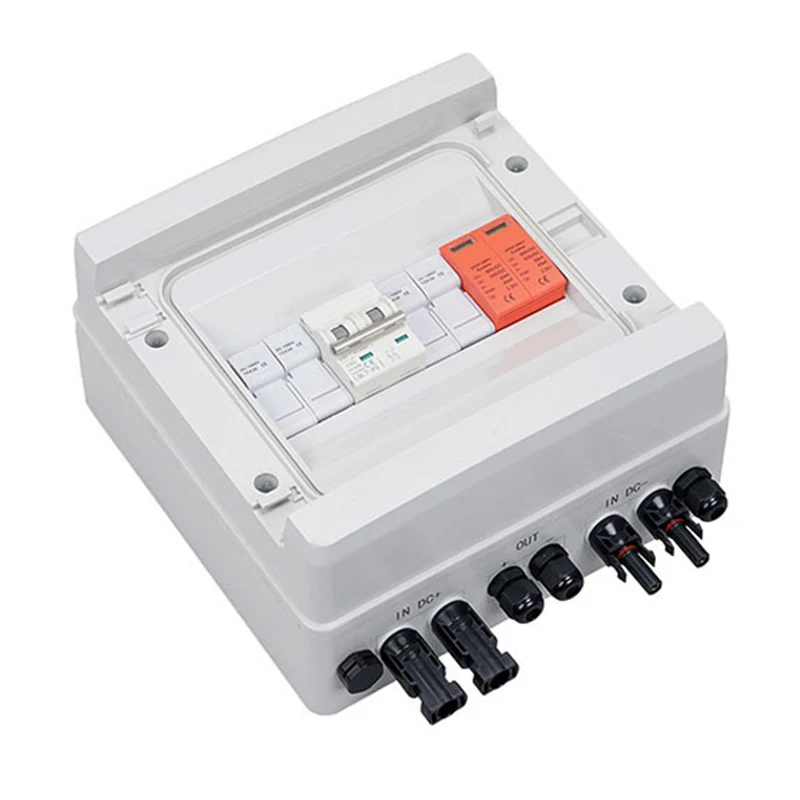

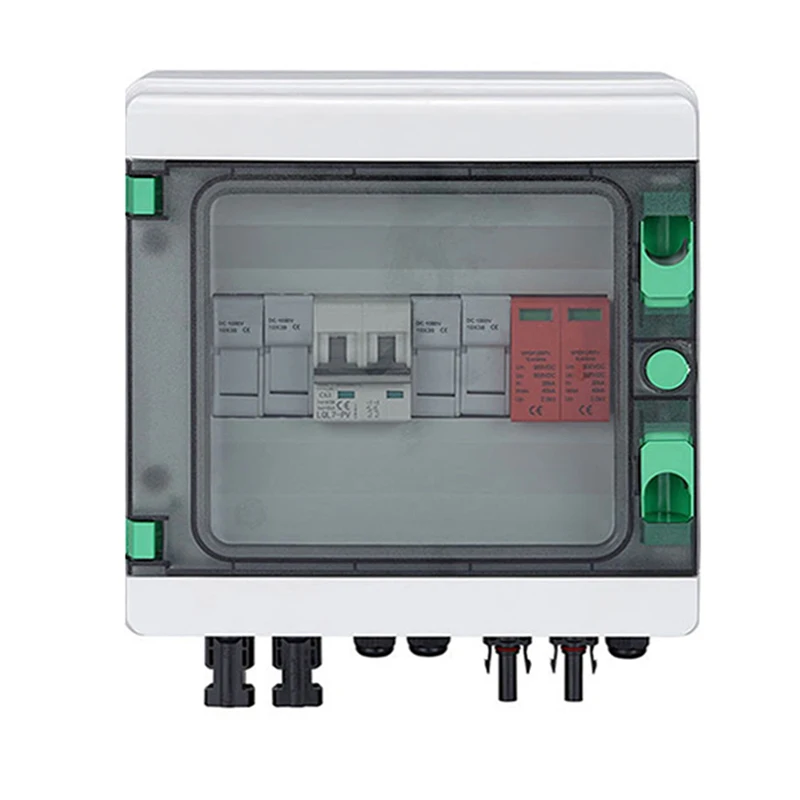

DC500V 2in 1out IP65 Outdoor Power Distribution Switch Box 2 in 1 Solar Array Combiner Box
- Category: >>>
- Supplier: Shanghai Sdo Energy Technology Co. Ltd.
Share on (1601005531314):
Product Overview
Description
Products Description
Parameter | ||
Input | 2way | |
Output | 1way | |
Maximum voltage | DC 500V | |
Maximum current | 30A | |
Operation temperature | -25~55℃ | |
Shell | 3P | |
Material | PC | |

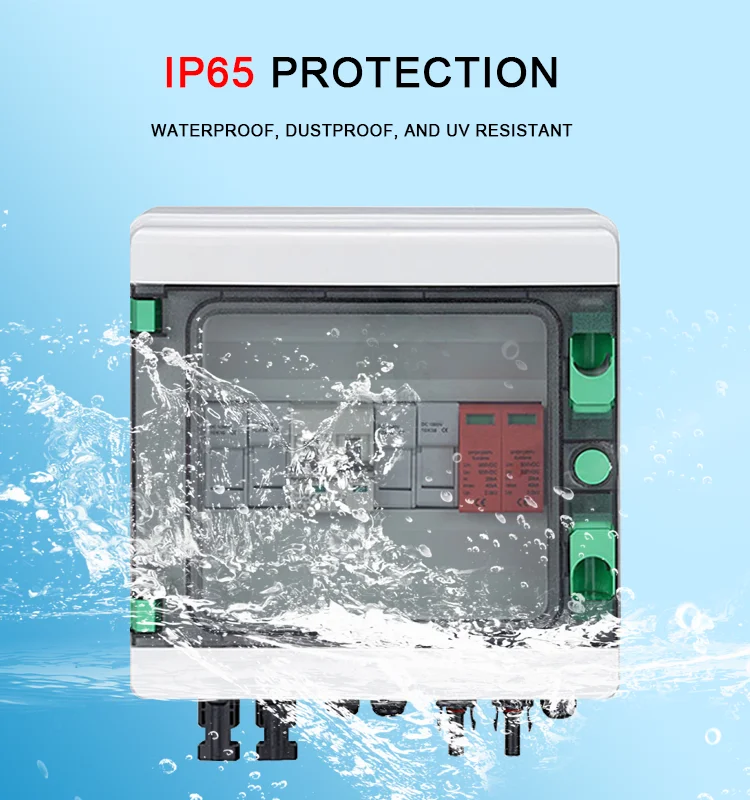

IP grade | IP65 | |
Impact resistance level | IK10 | |
Packing size | 255*223*140mm | |

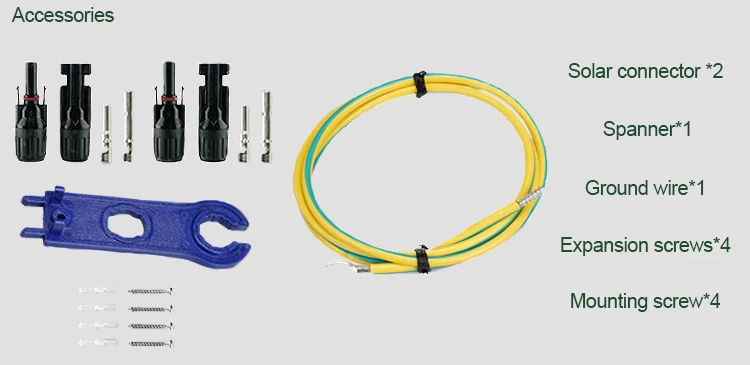

Connector | MC 4 compatibility | |

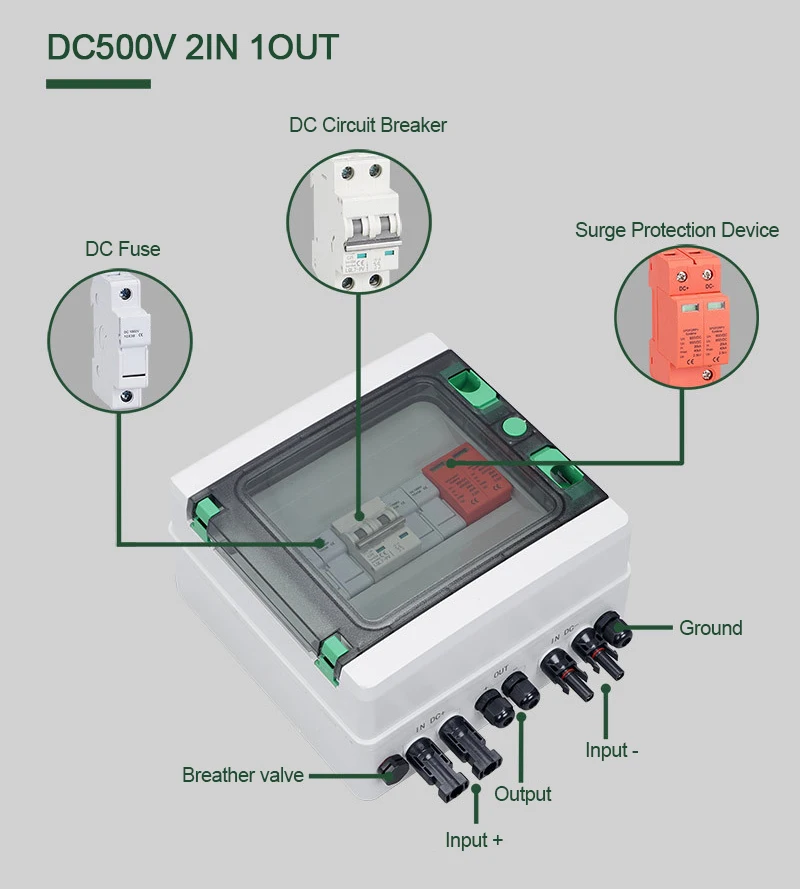

DC Circuit Breaker | ||
Rated insulation voltage | DC 500V | |
Rated current | 32A | |
Standard | IEC 60947-2 | |
Surge Protection Device | ||
Maximum voltage | DC 500V | |
Maximum discharge current | 20/40KA | |
Standard | IEC 61643-31 | |
DC Fuse | ||
Rated voltage | DC 1000V | |
Rated current | 15A | |
Fuse size | 10*38mm | |
Silicon sealing ring
Integrated sealing ring, reinforced sealing, high corrosion resistance, and increased waterproof effect.

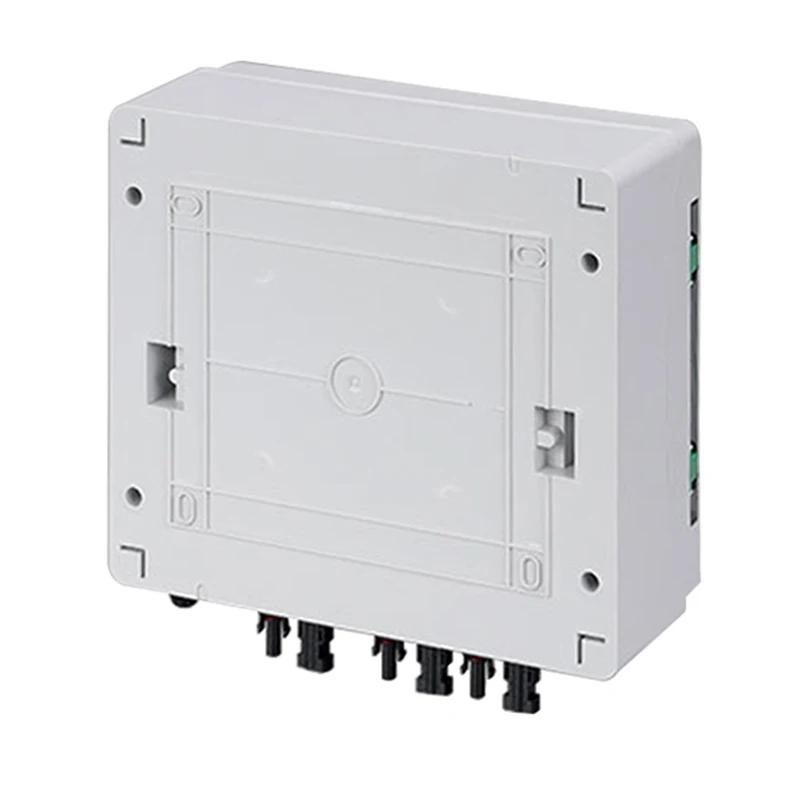

Four point punching for wall mounting
The material has good load-bearing capacity and is easy to install.
Buckle design
Humanized switch design, more convenient to use.

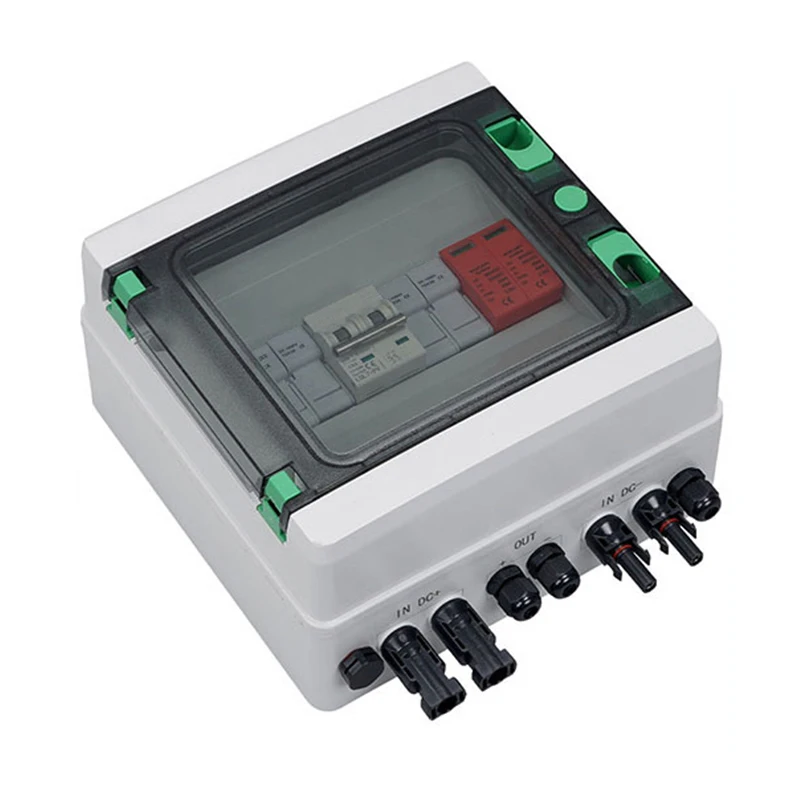

Transparent visible flip cover
Good sealing, waterproof, and leak proof.
Package | Size | Gross weight |
Inner carton | 255*223*140mm | 2kg |
Outer carton | 465*270*455mm | 13kg |
