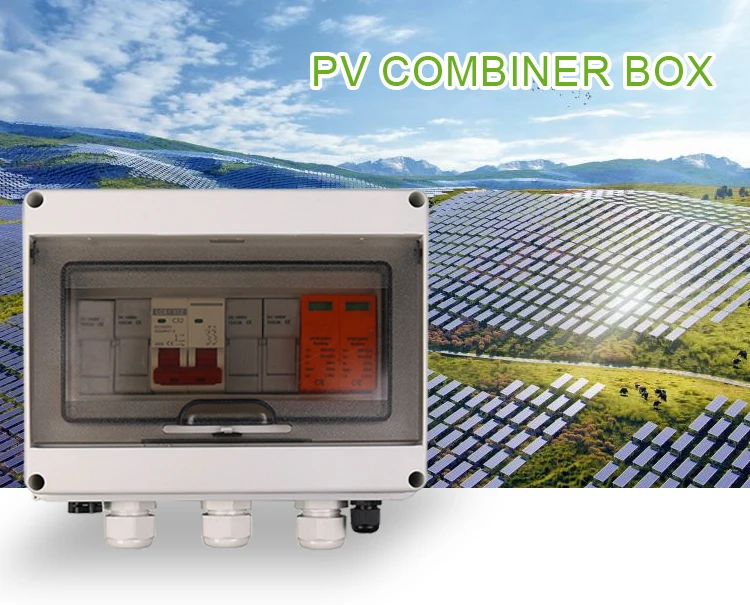

Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String
Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String

Customized 500V 1000V DC Solar Pv Combiner Box Circuit Breaker Box Solar Combiner Box 2 String 3 String 4 String

Share on (1601005594141):


Price:

Quantity:


Product Overview

Description





Products Description






Parameter
Input
2way
Output
1way
Maximum voltage
DC 500V
Maximum current
30A
Operation temperature
-25~55℃
Shell
3P
Material
PC
IP grade
IP65
Impact resistance level
IK10
Size
210*200*130mm

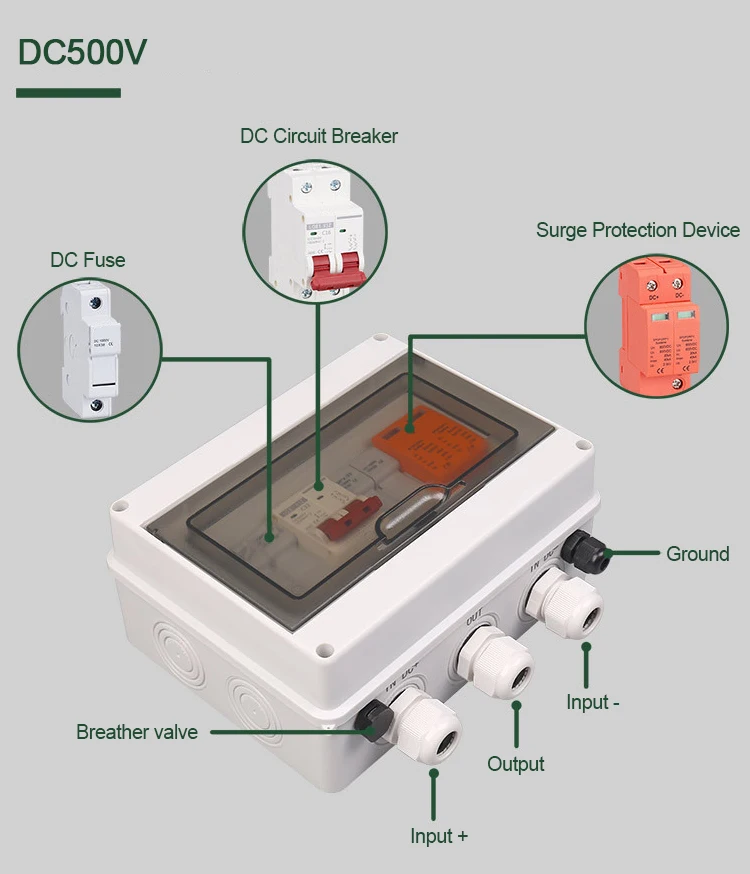

DC Circuit Breaker
Rated insulation voltage
DC 500V
Rated current
32A
Standard
IEC 60947-2
Surge Protection Device
Maximum voltage
DC 500V
Maximum discharge current
20/40KA
Standard
IEC 61643-31
DC Fuse
Rated voltage
DC 1000V
Rated current
15A
Fuse size
10*38mm




Silicon sealing ring
Integrated sealing ring, reinforced sealing, high corrosion resistance, and increased waterproof effect.
Four point punching for wall mounting
The material has good load-bearing capacity and is easy to install.


Buckle design
Humanized switch design, more convenient to use.

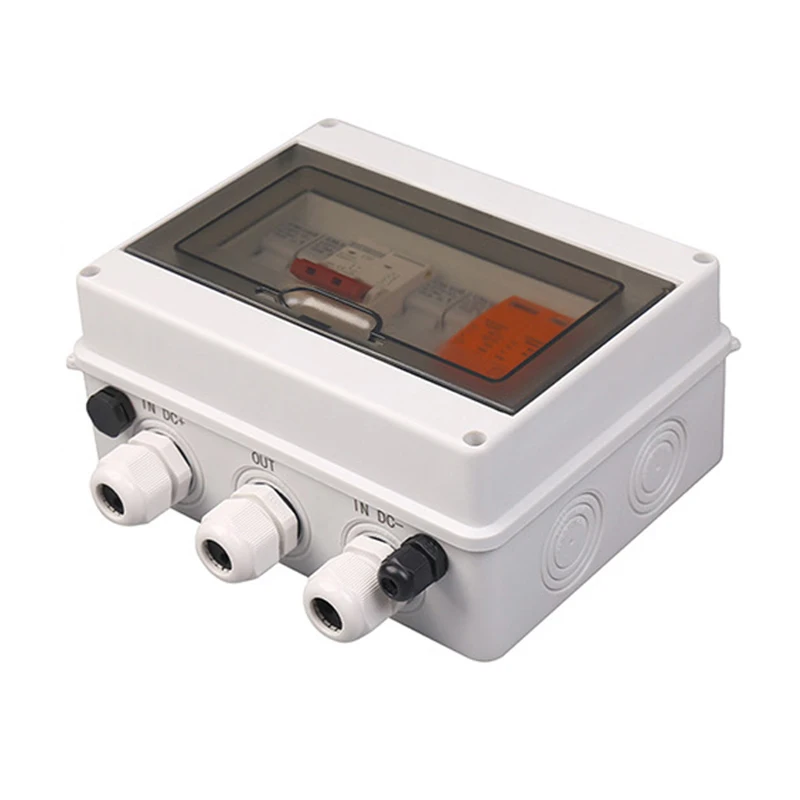

Transparent visible flip cover
Good sealing, waterproof, and leak proof.
