Product Overview
Description
Product Description

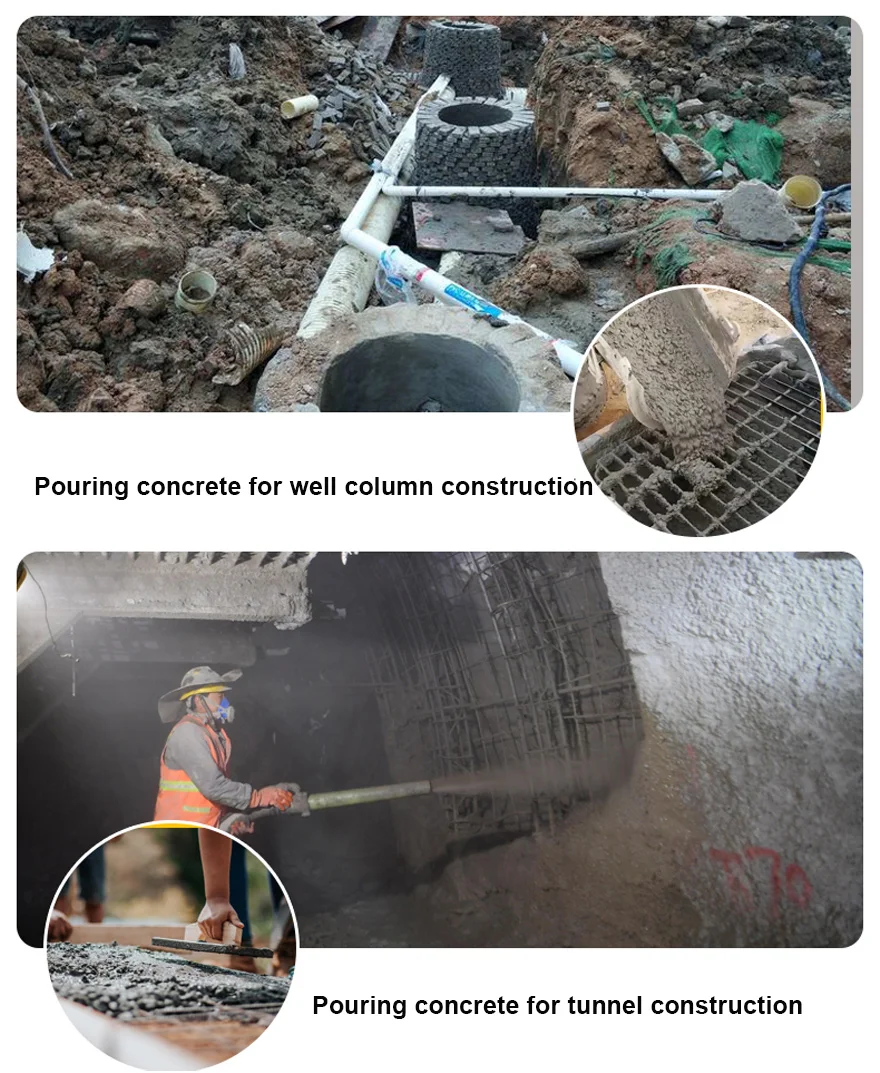

High- floor cement mortar pump is a fluid mixture conveying equipment, not only used for wet-mixed mortar pumping and wall plastering in high- floor buildings construction, but also for support lining construction in ground heating project, tunnels,mines and other underground engineering. The machines could pump 20mm-40mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction.
We have a variety of models for you to choose from, according to the distance to be conveyed, we recommend the most suitable model for you.

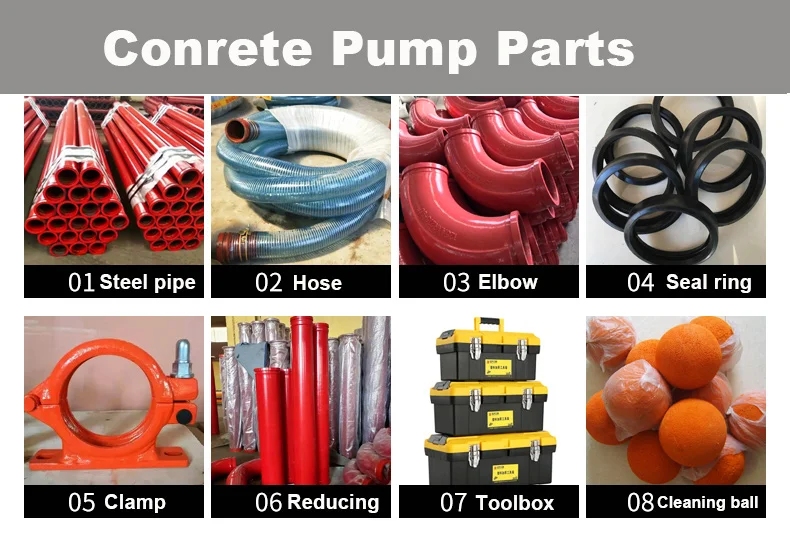

We will have all the spare parts for the pump ready for you. To ensure the normal use of the machine, we also provide after-sales service to send spare parts!
Product Details
Operation Panel：
Clear display, equipped with exhaust fan to adjust the temperature and humidity of the equipment.
Brand Motor：
High power, strong power and stable performance.
Hydraulic Stirring：
Save time and worry, and adjust your hand.
Large-caliber Discharge Port：

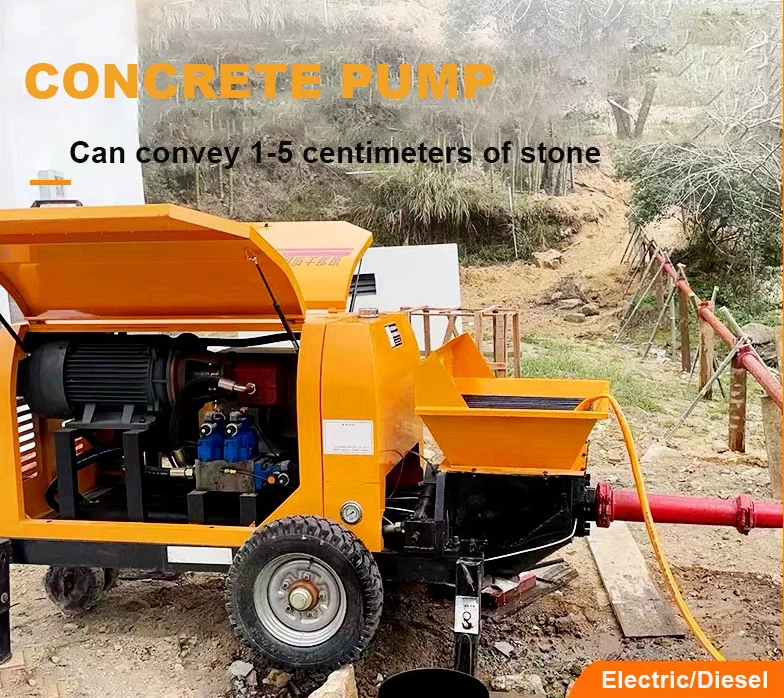

Cast steel material, strong and wear-re sistant, can pass through large stones.
Imported Hydraulic Solenoid Valve：
High quality, durable, effectively improve work efficiency.
Specialized Pressure Gauge：
High accuracy, easy to master, not easy to make mistakes and improve work efficiency.
Product Parameters
Performance index | HBT40E | HBT40C | HBT50 | HBT6013 | HBT8016 | HBT8018 |
Theoretical transport capacity (m/h) | 24 | 30 | 51/30 | 81/48 | 82/49 | 80/44 |
Concrete conveying pressure (MPa) | 10 | 8 | 11.8/7 | 13/7.5 | 16/9 | 18/10 |
Maximum conveying distance (m) vertical/horizontal | 140/500 | 120/400 | 160/600 | 150/600 | 160/700 | 180/800 |
Main motor power (kW) | 45 | 45 | 55 | 90 | 110 | 110 |
Main oil pump displacement (ml/r) | 112 | 112 | 140 | 112DT | 140DT | 260 |
Cylinder diameter× stroke of conveying cylinder (mm×mm) | 160×1000 | 180×1000 | 180×1300 | 200×1650 | 200×1650 | 200×1650 |
Main cylinder bore× stroke (mm×mm) | 100×1000 | 100×1000 | 110×1300 | 125×1650 | 140×1650 | 150×1650 |
High and low voltage switching | without | without | have | have | have | have |
Loading hopper volume (m) | 0.6 | 0.6 | 0.7 | 0.8 | 0.8 | 0.8 |
Maximum aggregate particle size (mm) | 40 | 40 | 40 | 50 | 50 | 50 |
Inner diameter of discharge port (mm) | 125 | 150 | 150 | 180 | 180 | 180 |
Feeding height (mm) | 1250 | 1250 | 1300 | 1450 | 1450 | 1450 |
Length× width× height (mm) | 4200×1750×1600 | 4200×1750×1600 | 4600×1750×1600 | 5950×2000×2000 | 5950×2000×2000 | 5950×2000×2000 |
Main engine mass (kg) | 2500 | 2800 | 3000 | 5700 | 6200 | 6500 |

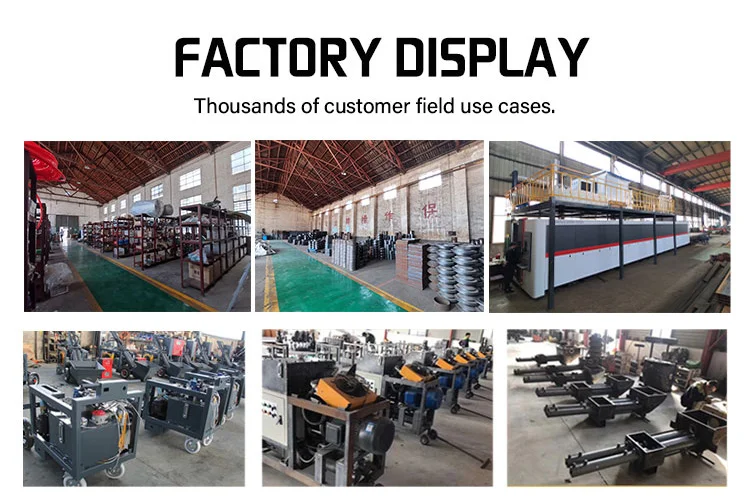

Company Profile
