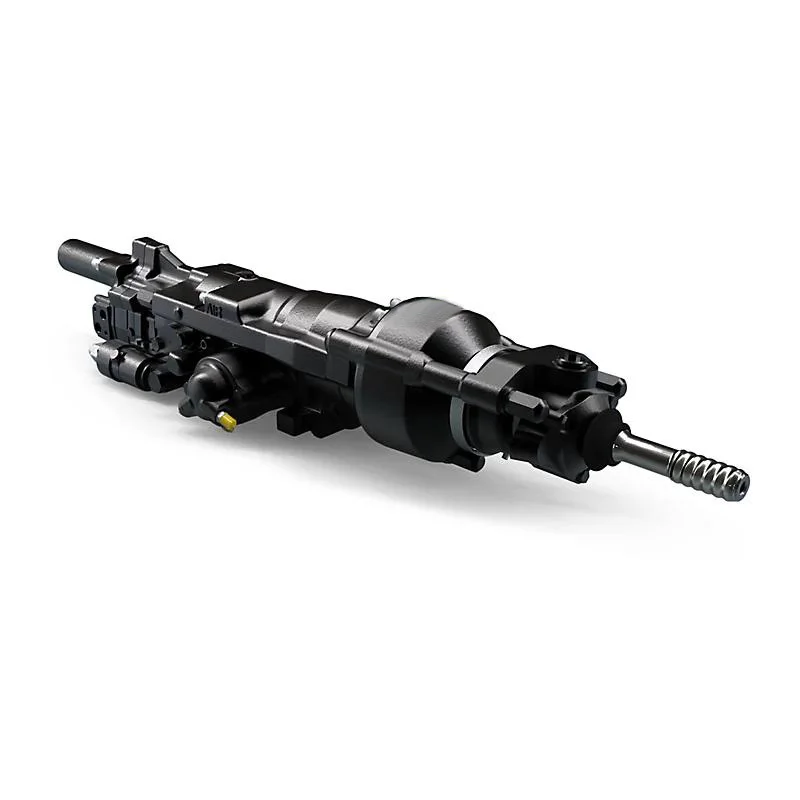

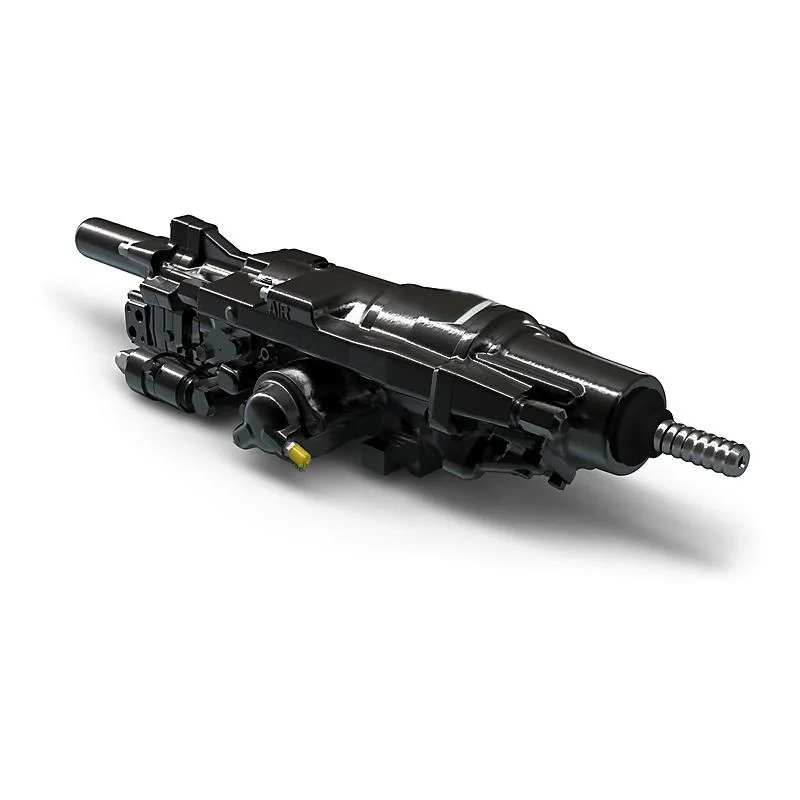

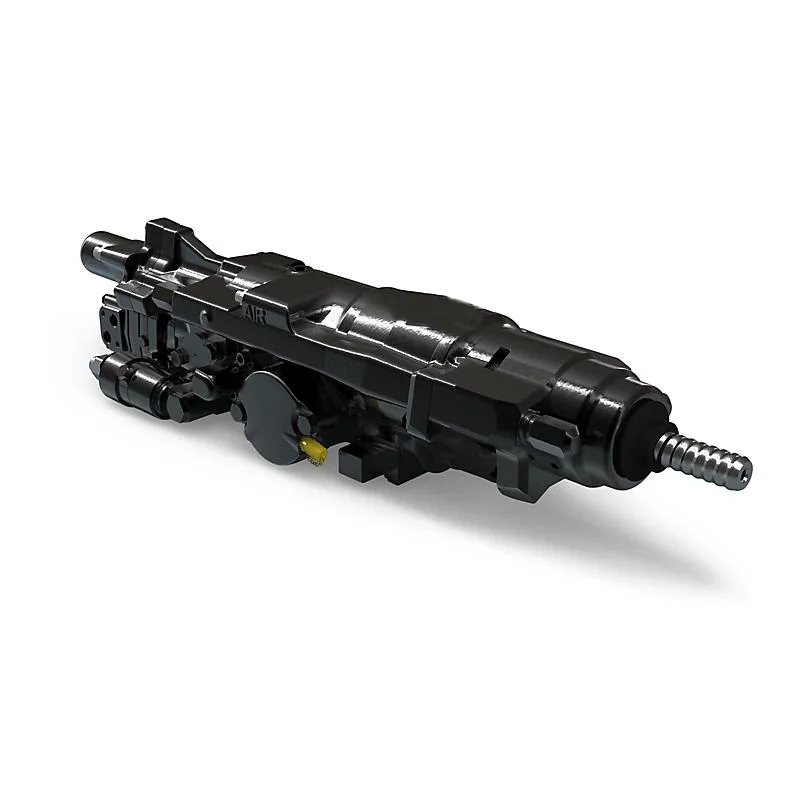

COP 1838 18 kW Hydraulic Rock Drill Rock Drilling Machine 24 hp Hydraulic Drifter
- Category: >>>
- Supplier: Chongqing Ug Heavy Machinery Co. Ltd.
Share on (1601008479891):
Product Overview
Description
Product Description
Specification
Weight (KG) | 170 |
Type | Rock Drill |
Use | Underground Mining |
Product name | 18 kW Hydraulic Rock Drill Rock Drilling Machine Hydraulic Drifter |
Hole diameter | 1 1/2 inch - 3 1/2 inch |
Power rating | 18 kW |
Application | For underground applications |
Input system | Hydraulic |
Flow rate | 75 - 92 l/min (2.6 - 3.2 cfm) |
Impact frequency | 60 Hz |
Input power to rock dril | 31 kW (41.6 hp) |
Flushing water pressure | 25 bar (362.6 psi) |
Lubricating air consumption at 2 bar | 5 l/s (10.6 cfm) |
Flushing water consumption | 40 - 120 l/min (1.4 - 4.3 cfm) |
Length without shank adapter | 1 008 mm (3 ft 3.6 inch) |
Width including connectors | 251 mm (9.9 inch) |
Height | 223 mm (8.8 inch) |
Company Profile
With more than 30 years experience in underground heavy machinery, Chongqing Ug Heavy Machinery Co., Ltd. focuses on the aftermarket of mine drilling rigs, and is an enterprise capable of sales, maintenance and remanufacturing, application technology training, leasing, and operation services of rock drilling rigs. Cooperating with kinds of world-renowned brands , we not only provide sales, leasing, maintenance, and training services for underground drilling rigs, shotcrete machine, surface drilling rigs, underground loaders(lhd) and underground trucks, but also provide spare parts accessories and consumables, such as rock drills, drill bits, drill pipes, shanks adapter, etc.
