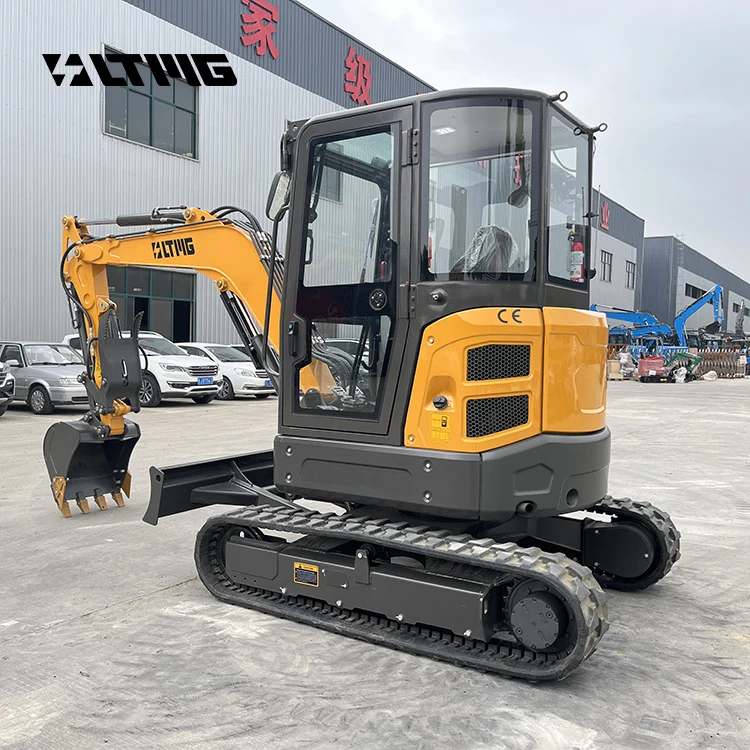

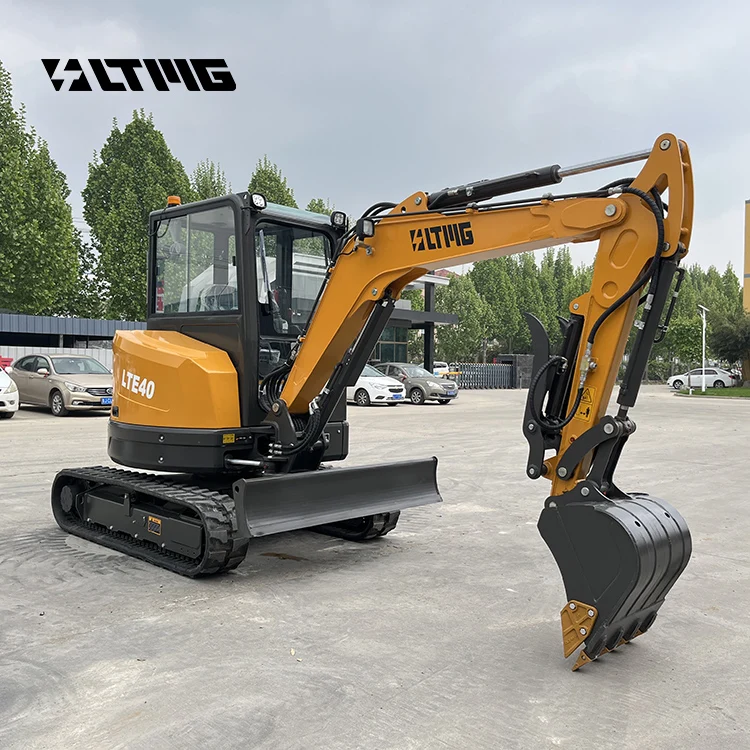

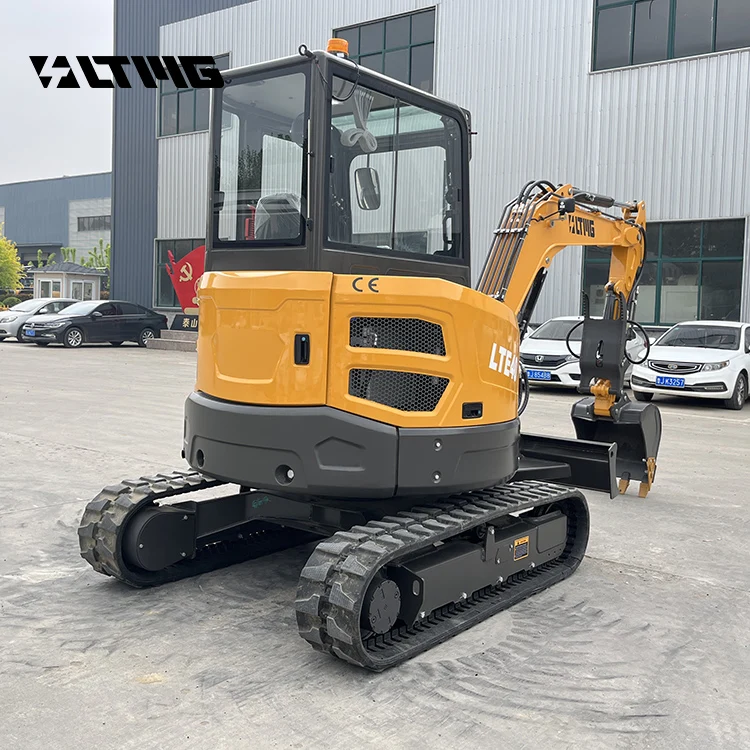

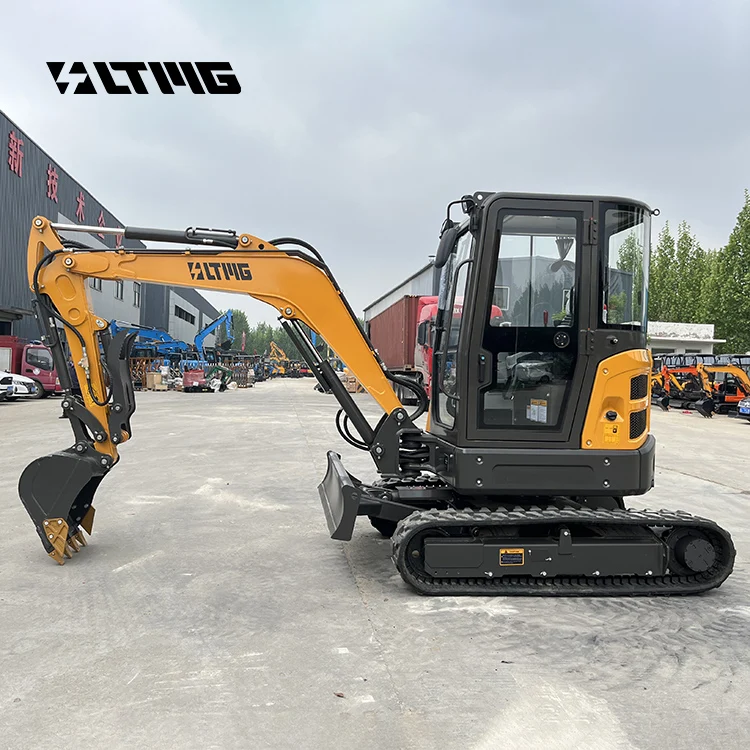

Hot sales LTMG 3.5Ton 4Ton Crawler Excavator with EPA/Euro5 engine
- Category: >>>
- Supplier: Xiamen LTMG Machinery Co. Ltd.
Share on (1601009129494):
Product Overview
Description
Advantages

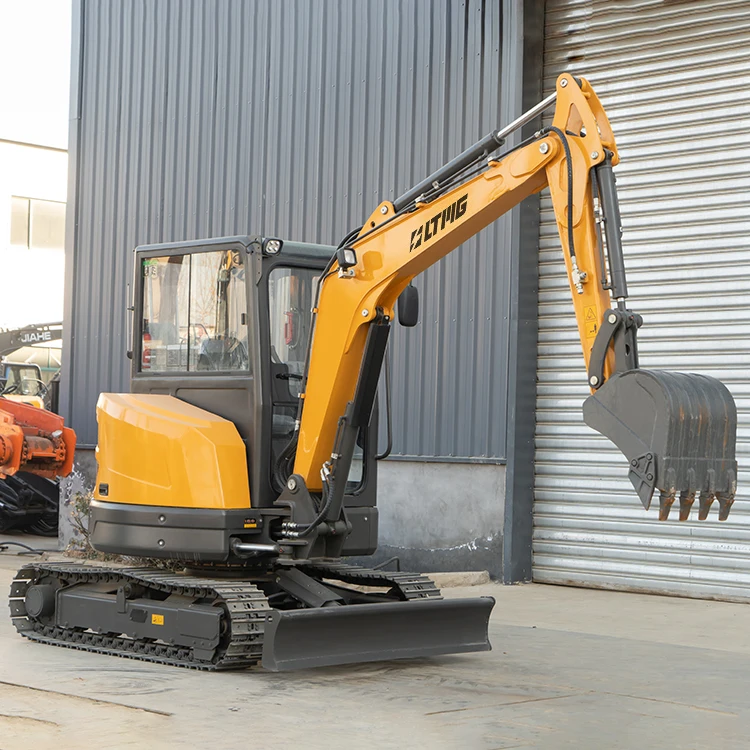

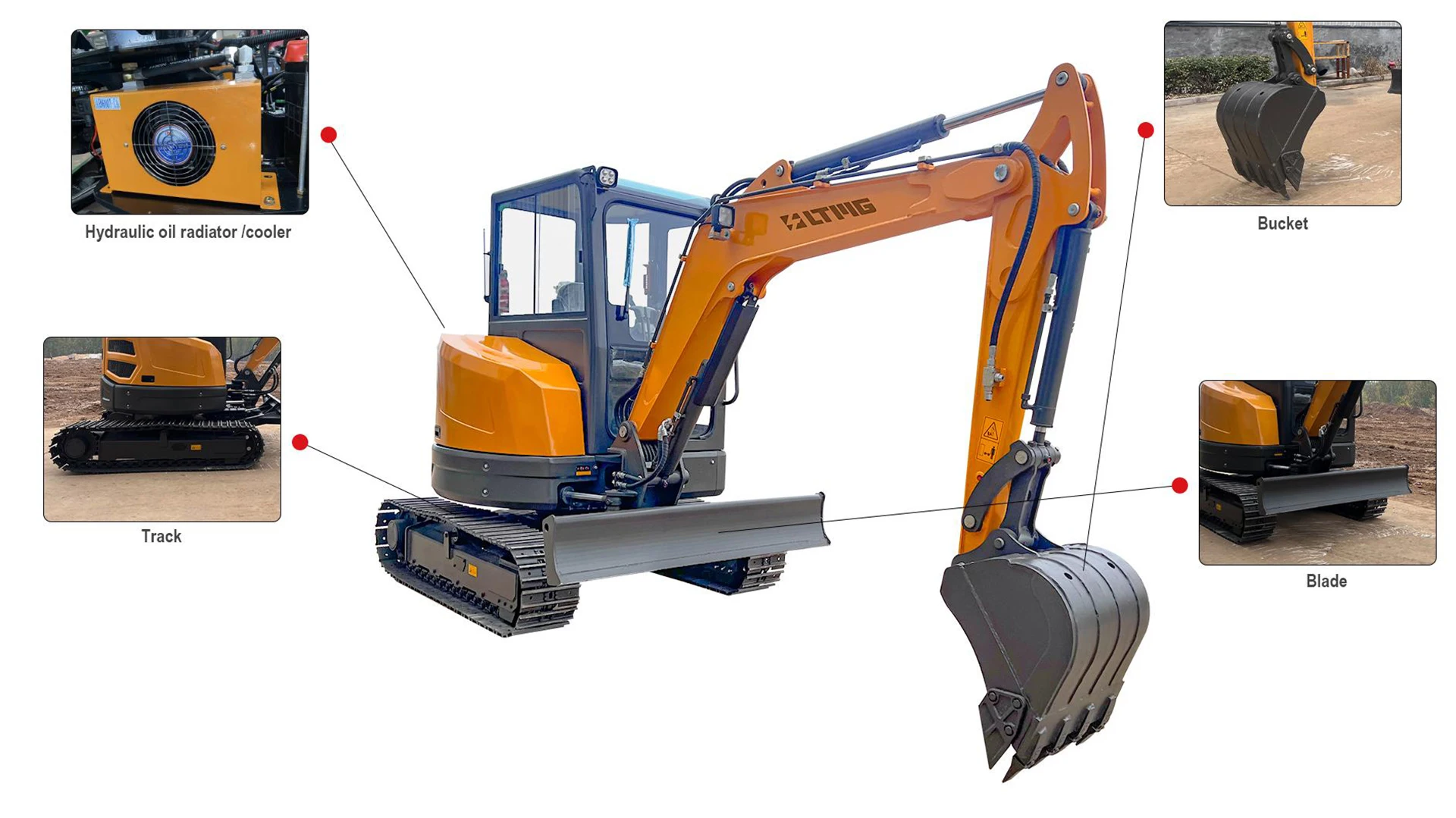

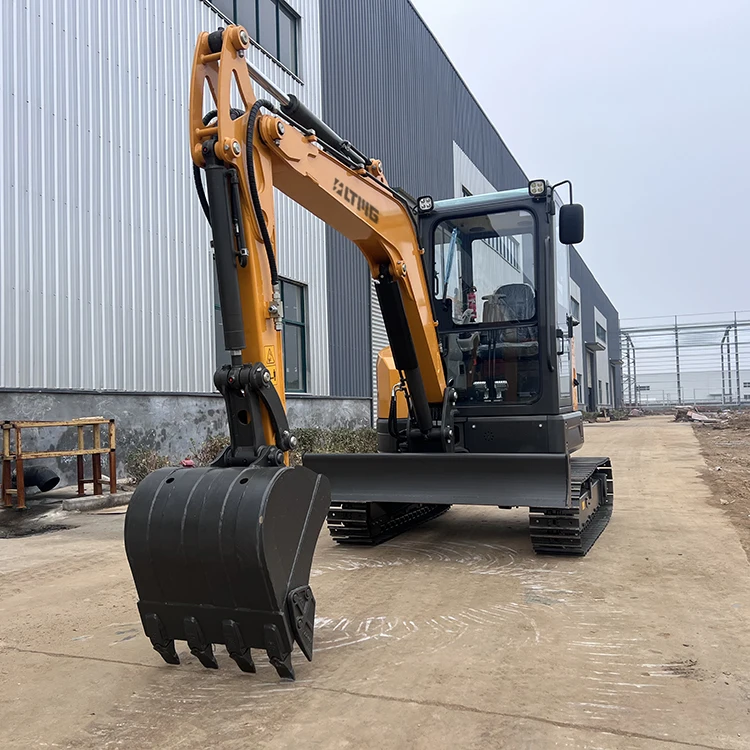

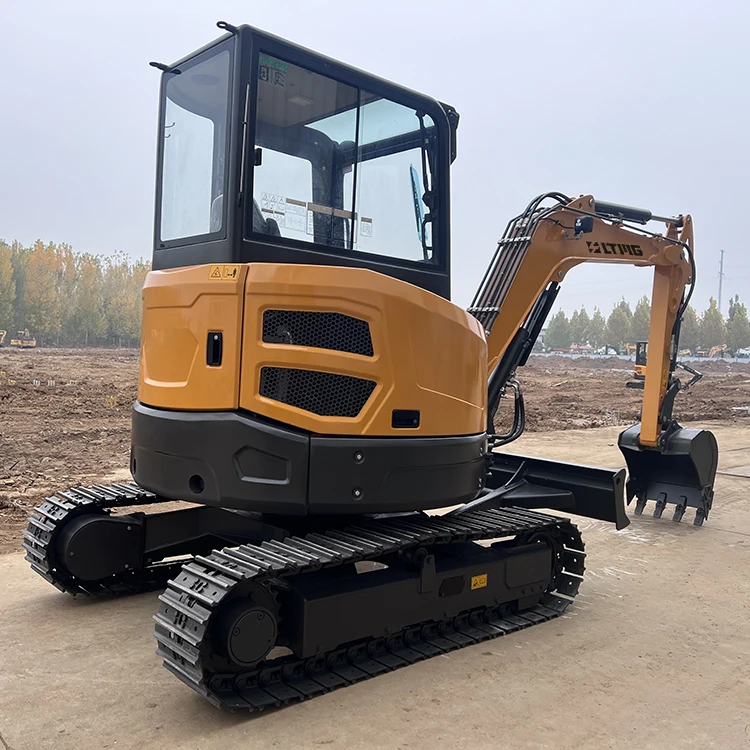

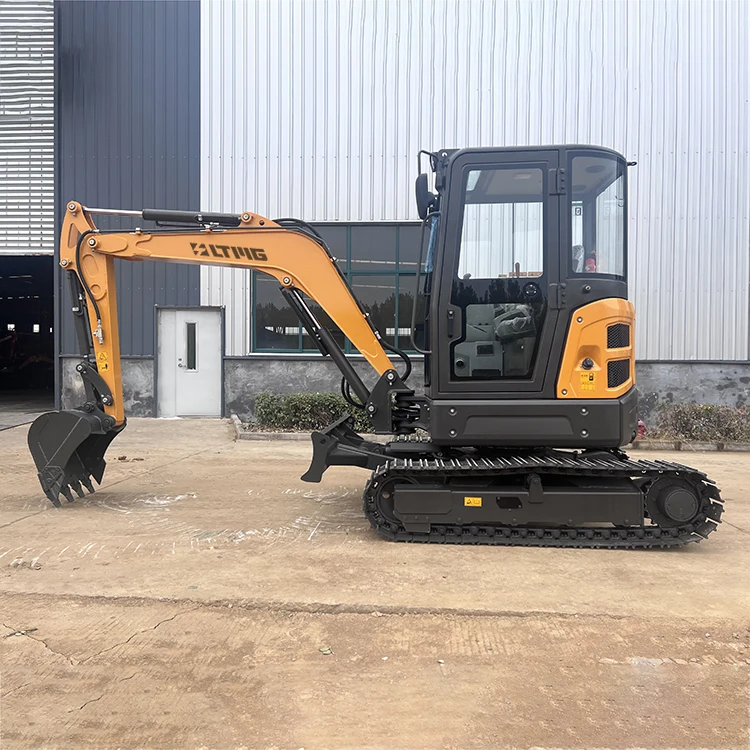

LTMG 3.5 TON Crawl excavator
1. with excellent work efficiency and excellent cost-effective;2. the standard configuration bulldozer can be flat site, earth backfill, increase machine stability;
3. simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding;
4. with mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved;
Products Specifications
Crawler excavator parameters | ||||
Model | LTE35 | |||
Engine | ||||
Model | Kubota D1703 18.5KW/2200rpm | |||
Max. Turque | 97.4N.m/1500RPM | |||
Type | In-line, water cooled, Mechanical pump, normally aspirated | |||
Displacement | 1.647L | |||
No. of cylinder | 4 | |||
Main Performance | ||||
Swing Speed | r/min | 0-11 | ||
Traveling Speed(high/low) | km/H | 4.4/2.4km/h | ||
Grade ability | ° | 58% | ||
Max. Bucket Digging Force | kN | 30.4 | ||
Arm Digging Force | kN | 18.2 | ||
Ground Pressure | Kpa | 32 | ||
Hydraulic system pressure | Mpa | 22.5 | ||
Machine Weight | KG | 3810 | ||
Boom Length | Mm | 2535 | ||
Arm Length | Mm | 1400 | ||
Fuel Tank capacity | L | 42 | ||
Hydraulic Tank capacity | L | 48.5 | ||
Engine oil capacity | L | 7 | ||
Carrier roller(each side) | 1 | |||
Supporting roller(each side) | 4 | |||
Overall Dimensions | ||||
Overall Length | mm | 4915 | ||
Overall Width | mm | 1720 | ||
Overall Height | mm | 2525 | ||
Mini Ground clearance | mm | 295 | ||
Track width | mm | 300 | ||
Axle base(Track length on ground) | mm | 1670 | ||
Length of track | mm | 2154 | ||
Track Gauge | Mm | 1420 | ||
Swing radius at tail | Mm | 860 | ||
Swing radius at front | Mm | 2538 | ||
Height of blade | Mm | 350 | ||
Operation parameters | ||||
Bucket Capacity | m3 | 0.12 | ||
Max. Digging Radius | mm | 5480 | ||
Max. Digging Depth | mm | 3208 | ||
Max. Digging Height | mm | 4800 | ||
Max. Dumping Height | mm | 3406 | ||
Max. vertical digging depth | mm | 3208 | ||
ODM/OEM

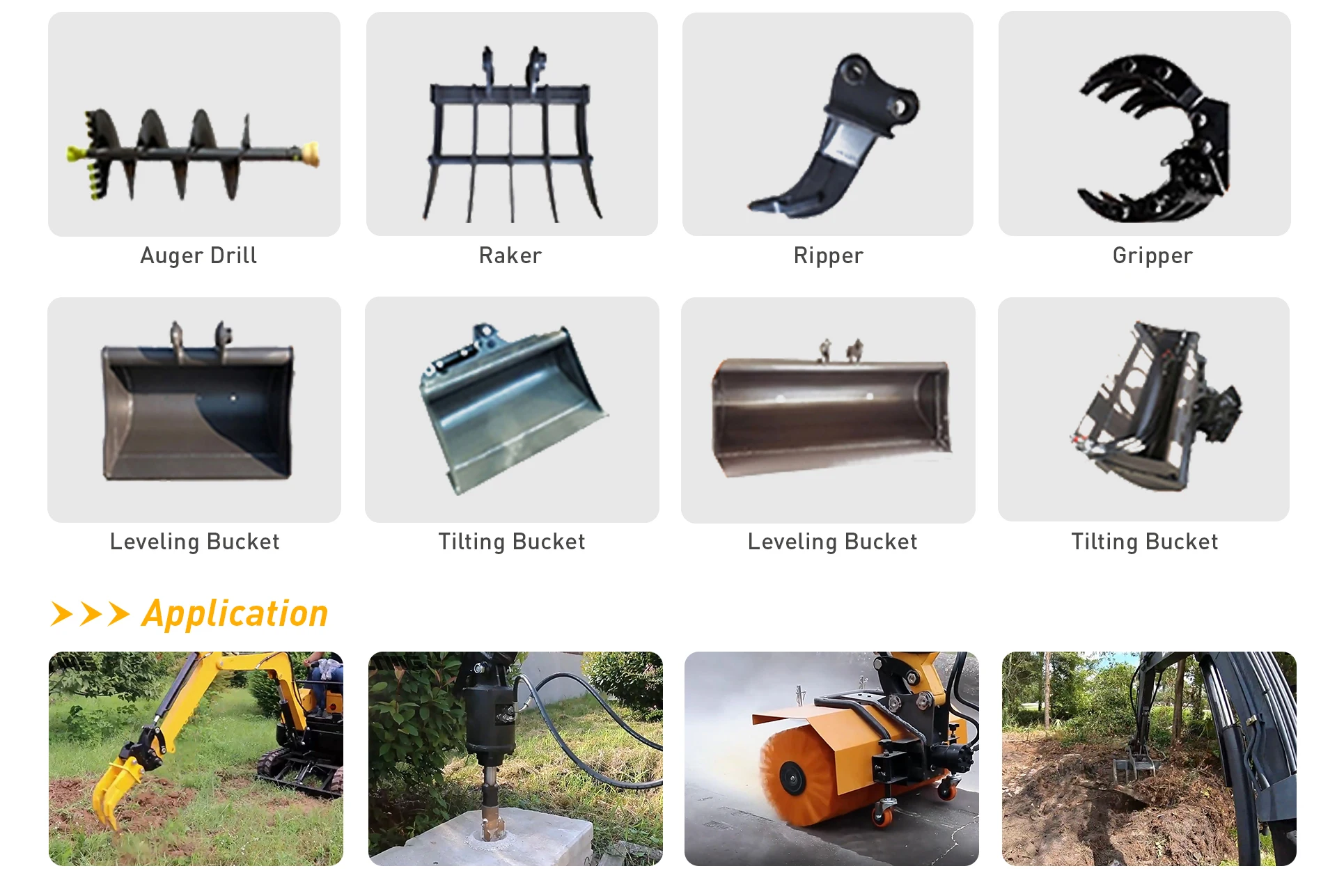

Optional Attachment
Packaging and Shipping
Company Profile
Certifications

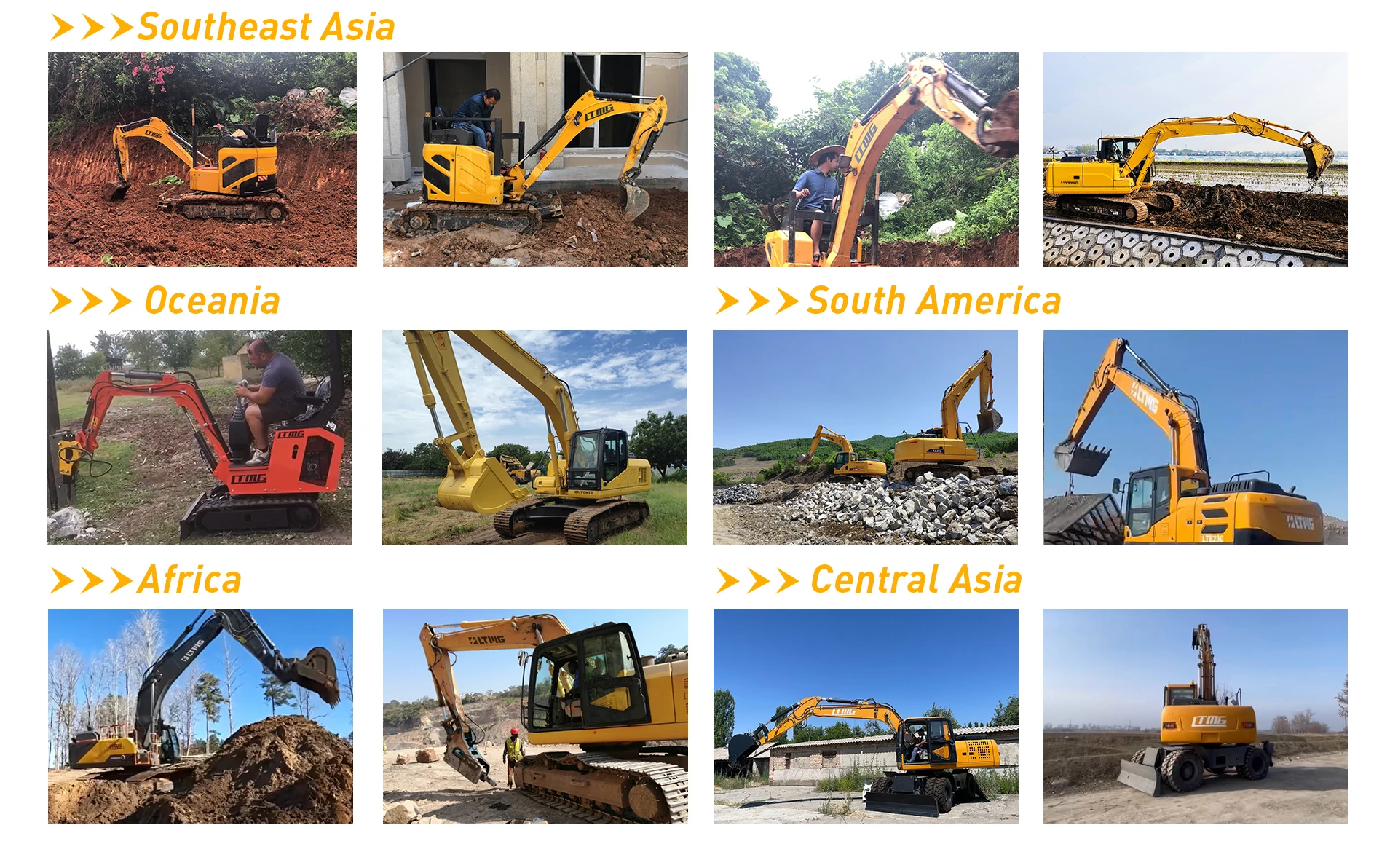

Customer Sharing
Recommend Products
FAQ
1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On 30%T/T term down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On 30%T/T term down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
