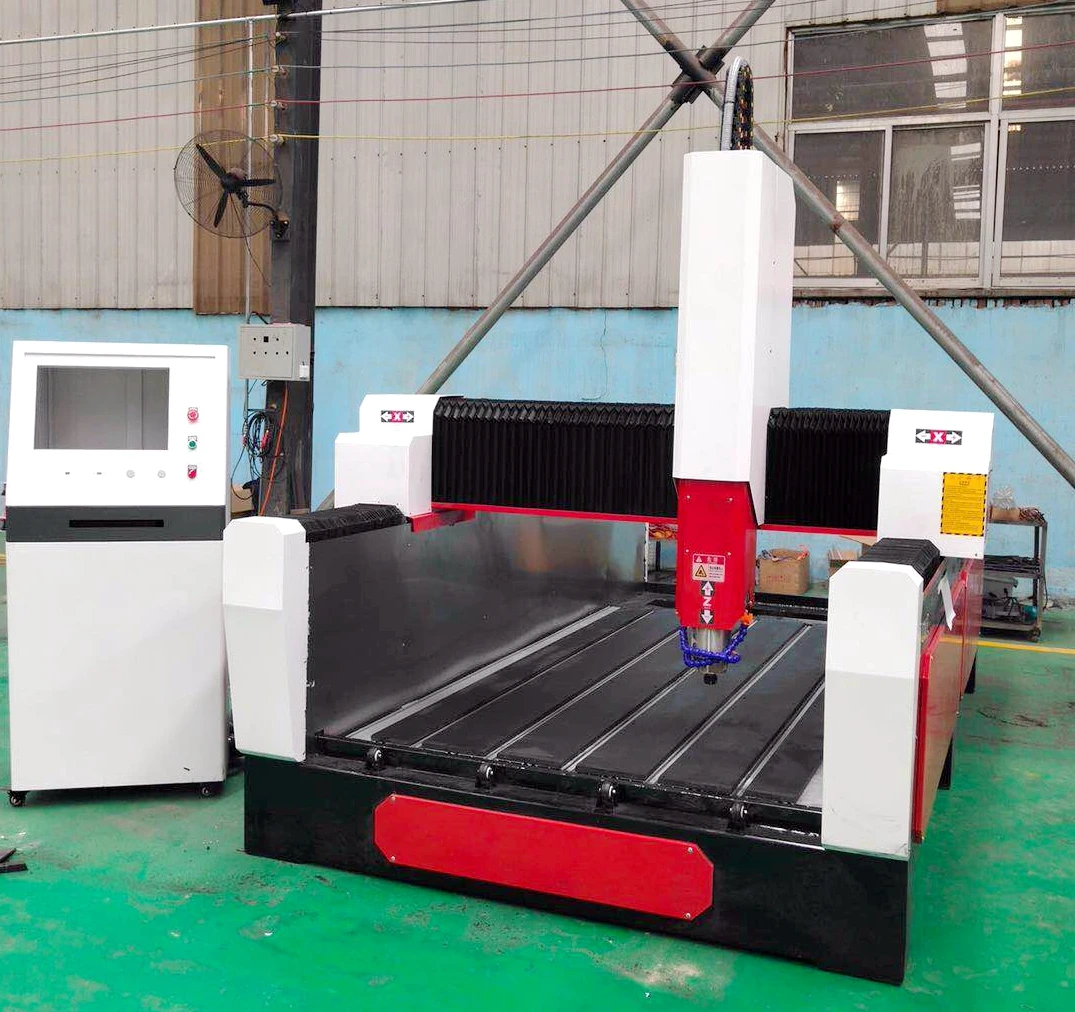

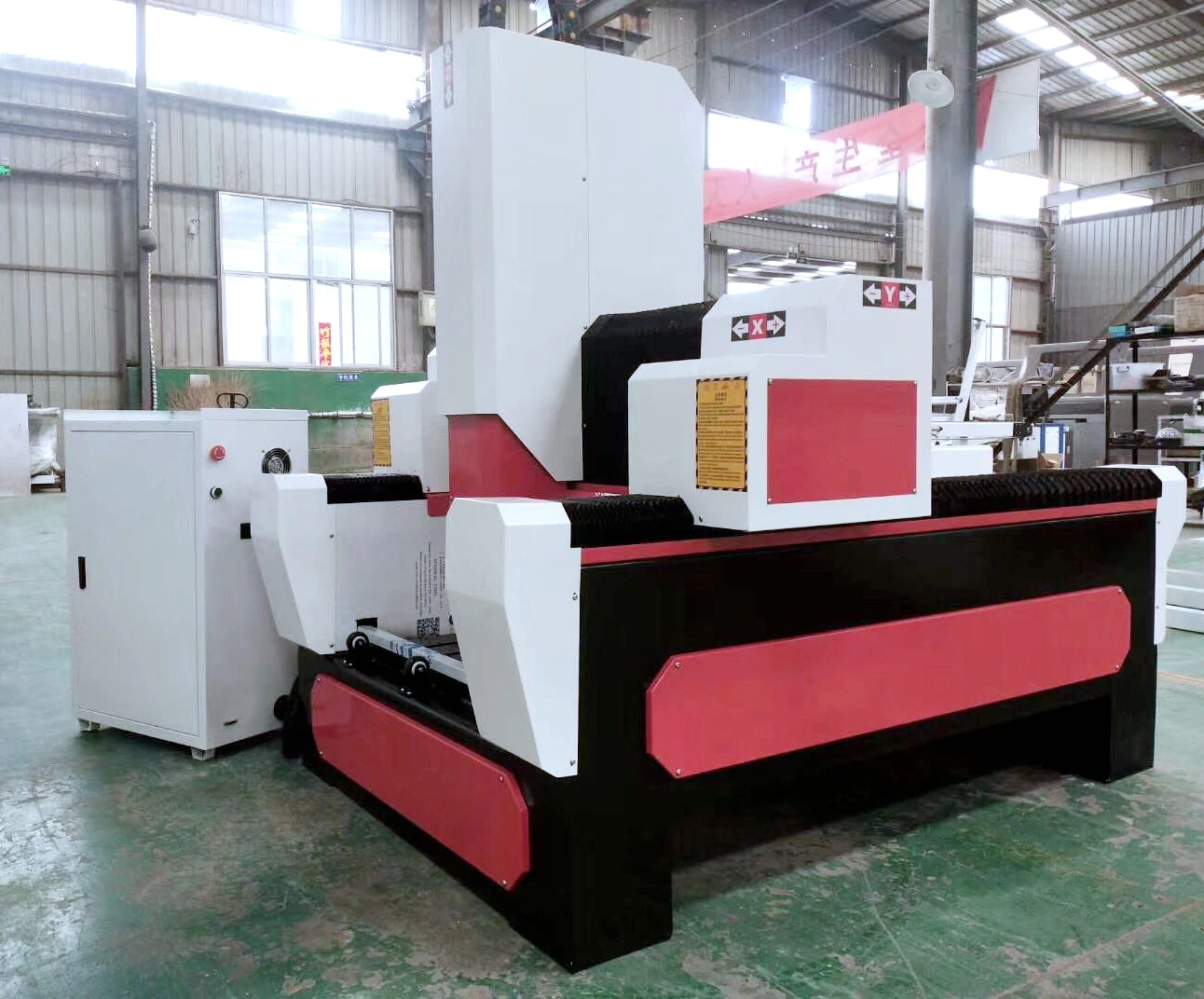

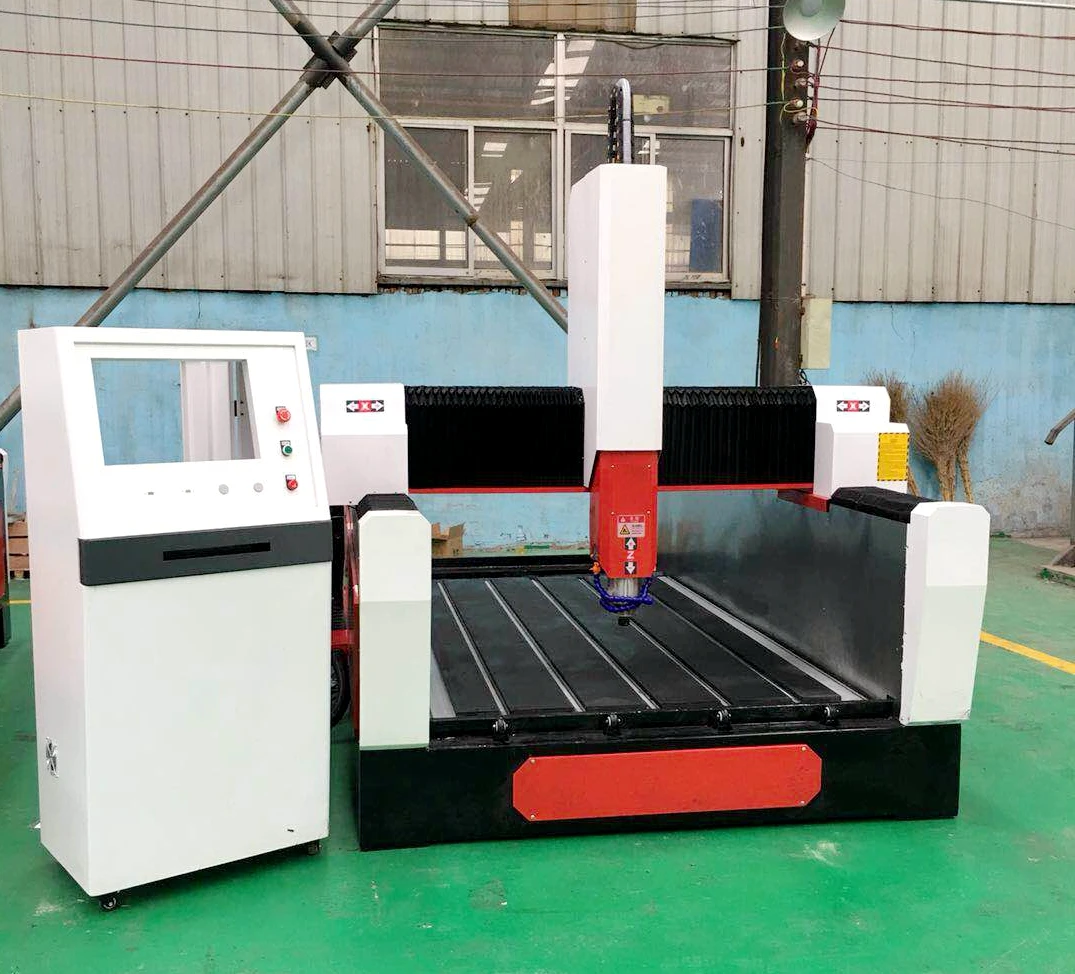

CA 1325 Stone CNC engraving machine router for stone
- Category: >>>
- Supplier: Jinan Camel CNC Machinery Co. Ltd.
Share on (1601009465010):
Product Overview
Description

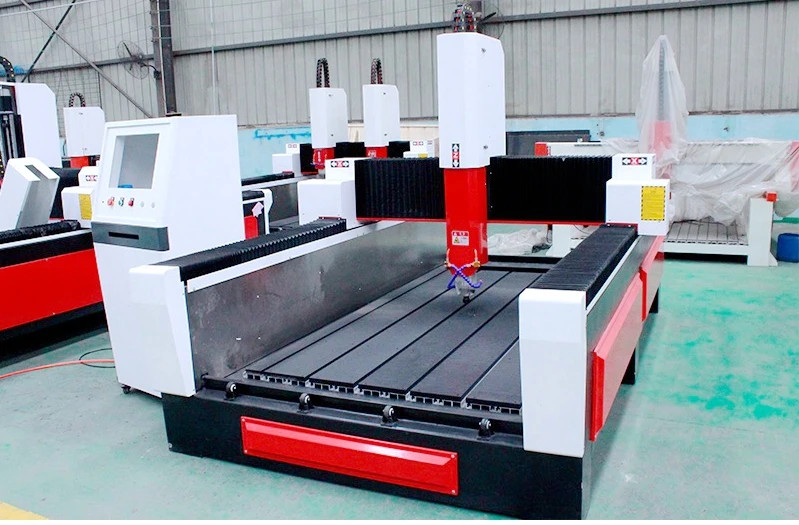

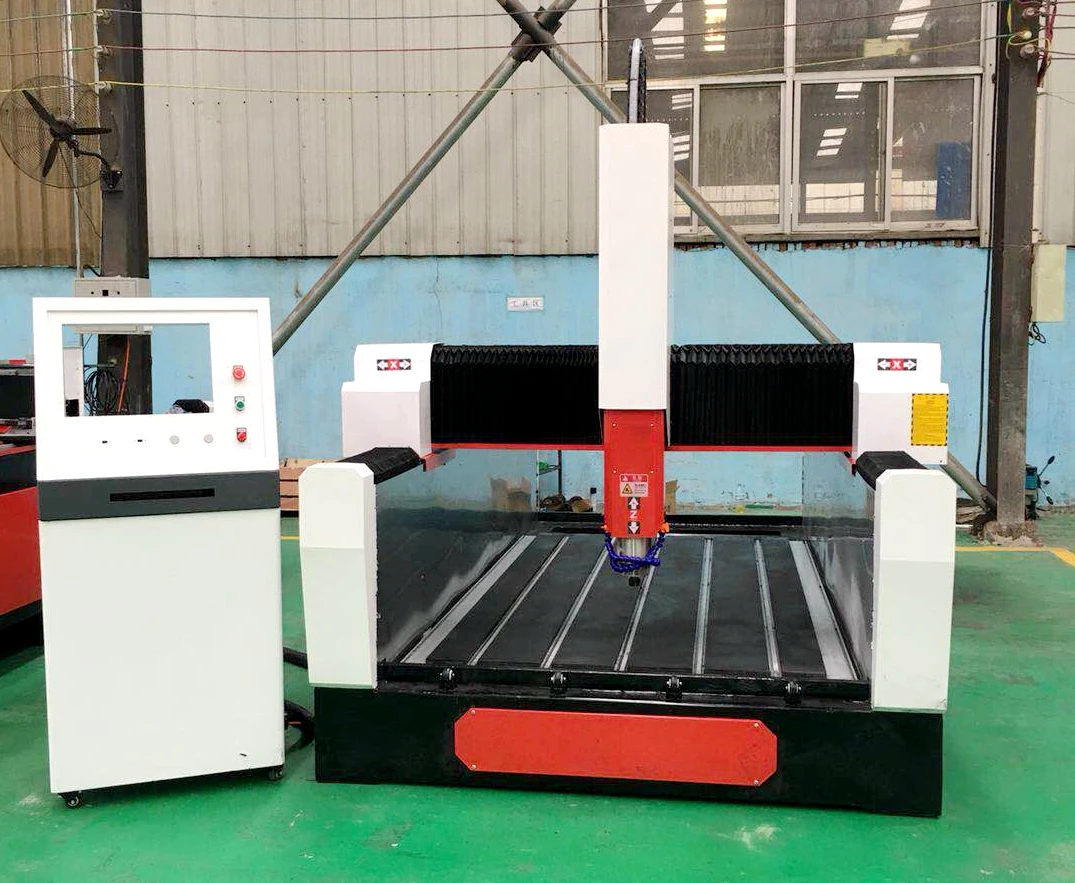

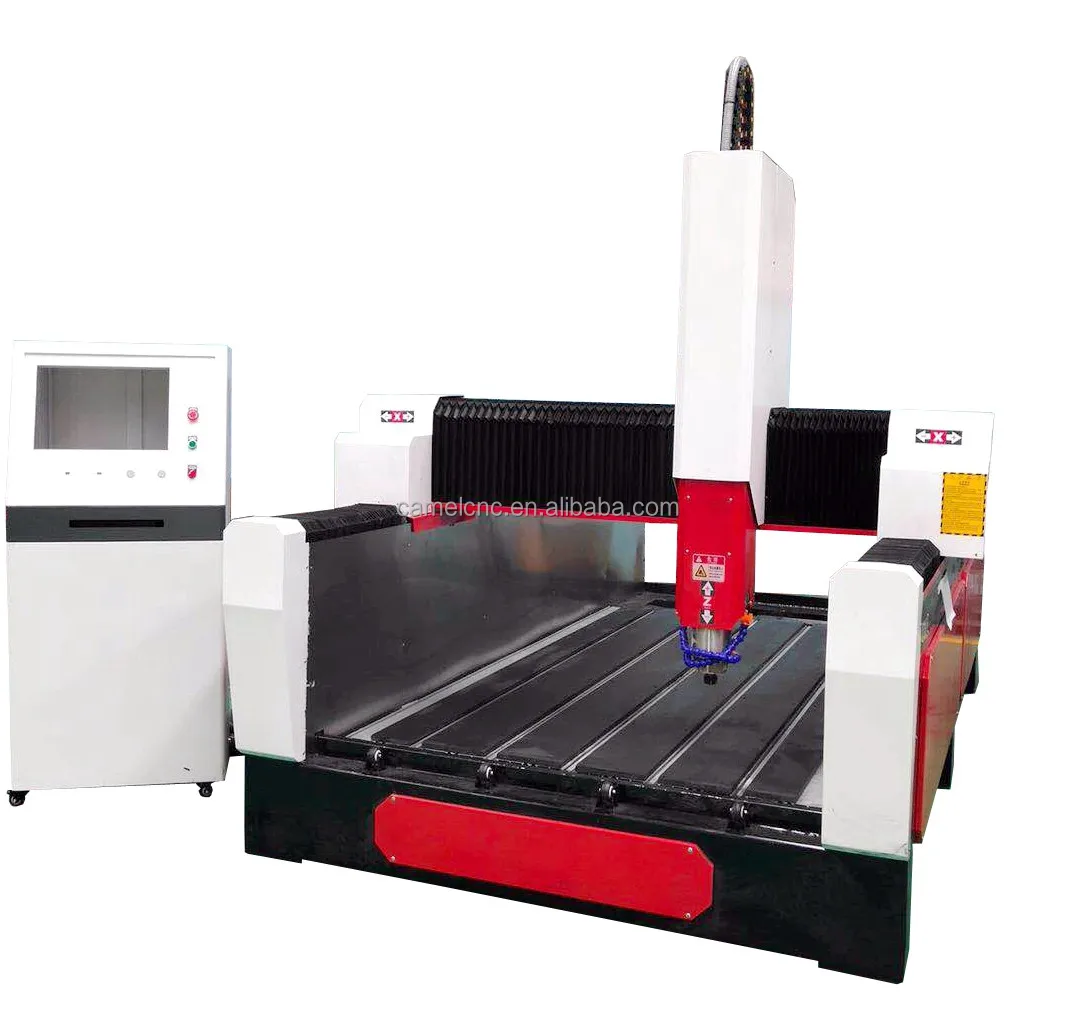

CA-1325 Stone CNC engraving machine router for stone
Specification of stone cnc router
1.Profiled steel welded lathe bed, stabilizing treated under high temperature ensures minimum distortion, excellent rigidity and vigorous strength.
2..High precision ball screw transmission ensures high accuracy, fast speed and strong power.
3.Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
4.Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
5.Configured with water tank and automatic cooling water supply system.
6.Overall dust-proof and water-proof design protects all moving parts of machine.
2..High precision ball screw transmission ensures high accuracy, fast speed and strong power.
3.Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
4.Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
5.Configured with water tank and automatic cooling water supply system.
6.Overall dust-proof and water-proof design protects all moving parts of machine.
Applicable of stone cnc router
3D engraving, line engraving, cutting, edge inversing, drilling on natural marble, granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.
Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.
Metal working: nonferrous metals like aluminum, brass and etc.
Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.
Metal working: nonferrous metals like aluminum, brass and etc.
Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
Technical Parameter of stone cnc router
CA-6090 | CA-0915 | CA-1318 | CA-1325 | |
Working Area(xyz) | 600*900*200mm | 900*1500*300mm | 1300*1800*300mm | 1300*2500*500mm |
MaxEngraving Speed | 12000mm/min | 15000mm/min | 15000mm/min | 15000mm/min |
Reposition Accuracy | <0.05/300mm | <0.05/300mm | <0.05/300mm | <0.05/300mm |
Working Dictate | G code | G code | G code | G code |
Spindle | 1.5/2.2 kw/3.0kw | 3.0 kw/5.5KW | 3.0 kw/5.5KW | 7.5KW |
Tool Diameter | ∮3.175,∮6,∮12.7 | ∮3.175,∮6,∮12.7 | ∮3.175,∮6,∮12.7 | ∮3.175,∮6,∮12.7 |
X,Y,ZGuideRail | Square Linear Rail | Square Linear Rail | Square Linear Rail | Square Linear Rail |
Transmission | XYPrecise ball screw | XYPrecise Rack Gear | XYPrecise Rack Gear | XYPrecise Rack Gear |
Z Ball Screw | Z Ball Screw | Z Ball Screw | Z Ball Screw | |
Control System | NC-STUDIO/DSP | NC-STUDIO/DSP | NC-STUDIO/DSP | NC-STUDIO/DSP |
Main configuration of stone CNC router
5.5kw spindle
5.5KW inverter
Independent control cabient
Stepper motor and drive
luation systembric

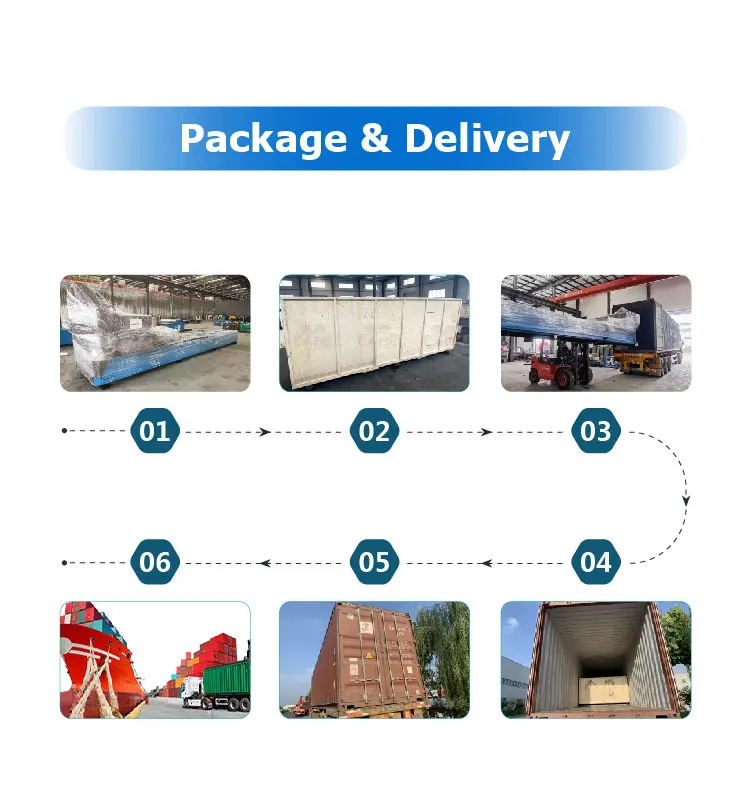

Package
Transportation&Service
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dustproof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information

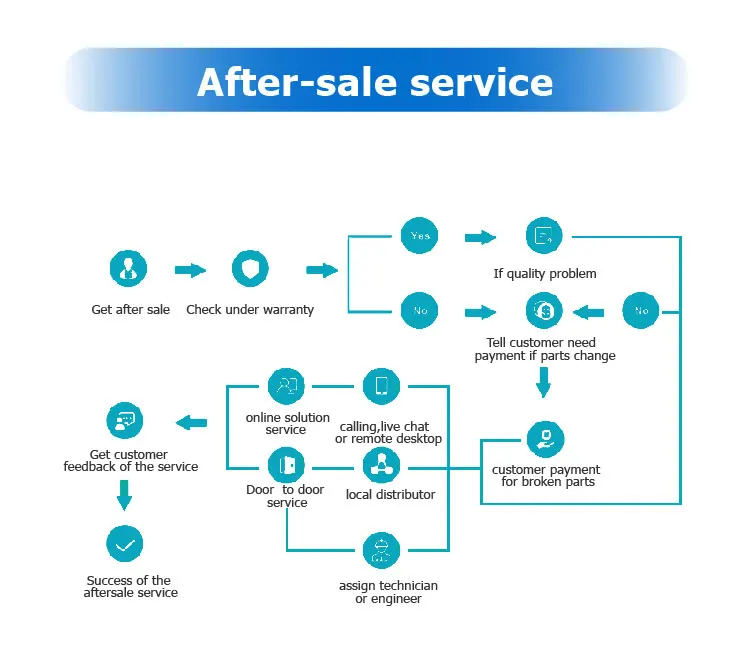

CAMEL CNC provides three types of After-Sales service:
Hot-line support,Email-support,and On-Site Machine installation
Hot-line support,Email-support,and On-Site Machine installation
You could choose any type for your convenience details as below:
1 After receiving machine clients could install in guide of video and instructions provided
2 lf you have any question during installation or operation,we will assist via Skype, Whatsapp, Teamviewer or other tools online
until clients can operate machine skilfully
3 If client needs,we could provide sample drawings for testing
4 lf clients need on-site installation and training we will charge $200 per day as well as round train costs for sending
technician and local Accommodation or you could contact your sales manager for discussing details
5 Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert
back to our company functional departments to improve our machines or service
1 After receiving machine clients could install in guide of video and instructions provided
2 lf you have any question during installation or operation,we will assist via Skype, Whatsapp, Teamviewer or other tools online
until clients can operate machine skilfully
3 If client needs,we could provide sample drawings for testing
4 lf clients need on-site installation and training we will charge $200 per day as well as round train costs for sending
technician and local Accommodation or you could contact your sales manager for discussing details
5 Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert
back to our company functional departments to improve our machines or service

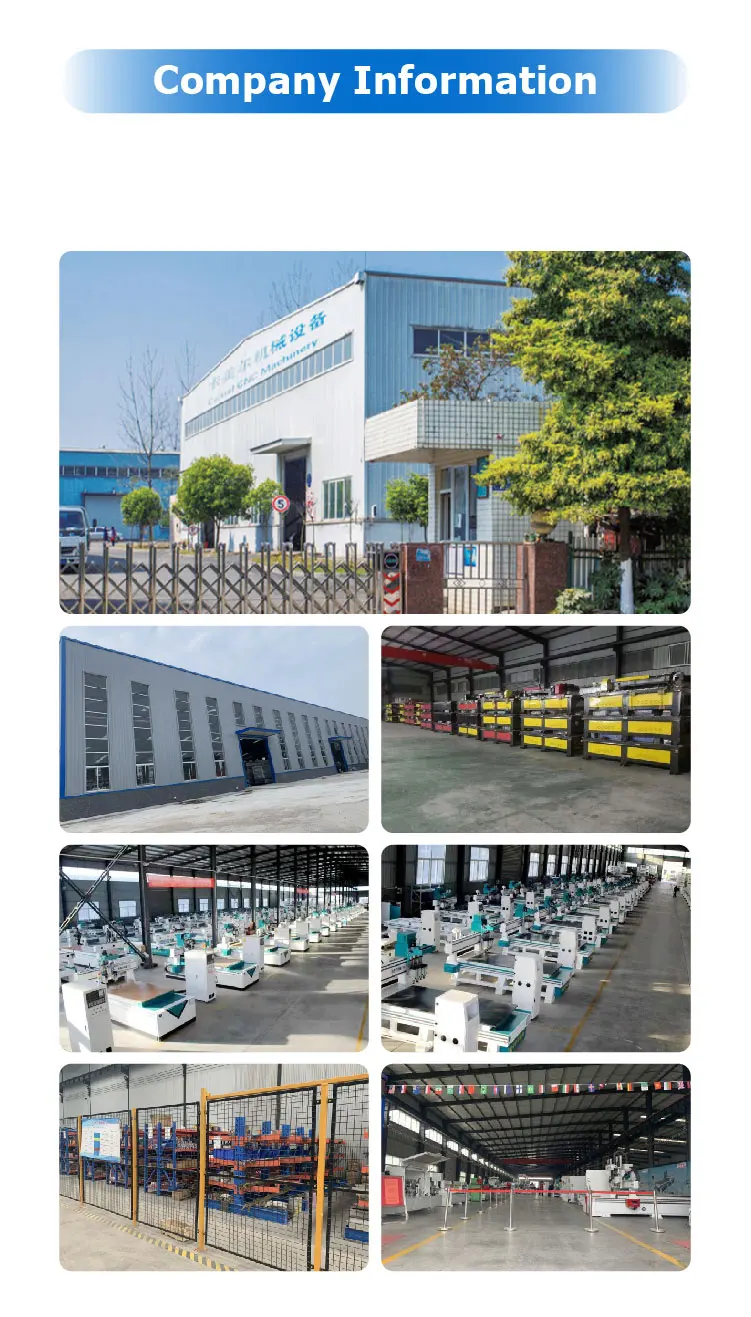

Company Information
Jinan Camel CNC Machinery Co., Ltd
Jinan Camel CNC Machinery Co., Ltd. locates in Jinan City, Shandong Province where is the hometown of CNC machines, our company is an enterprise specializing in marketing and R&D of laser cutting machine, CNC router, plasma cutting machine, panel furniture production line, CNC wood lathe etc, especially on fiber laser cutting machine which used for metal industry, at present we have developed 10,000w, 20,000w, 30,000w big power for thick metal cutting, it with stable and rapid cutting performance which already got a leading position in the laser cutting machine industry.
Our people includes professional sales personnel, technical engineers, after-sales service personnel etc. our transport scope has completed air ,land and sea transport chain. Adhering to a professional, serious and responsible attitude, we insist on "only build superior machines". Now Camel CNC machines have obtained C E certification and S G S organization on-site inspection. Committing to providing customers with high quality products, competitive prices and excellent services.
For years' development, our efforts bring us stable customers from home and abroad. Our machines have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. With superior performance to price ratio, high quality and perfect after-sales service, now our production facilities occupies China's forefront in development and expansion and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
Our people includes professional sales personnel, technical engineers, after-sales service personnel etc. our transport scope has completed air ,land and sea transport chain. Adhering to a professional, serious and responsible attitude, we insist on "only build superior machines". Now Camel CNC machines have obtained C E certification and S G S organization on-site inspection. Committing to providing customers with high quality products, competitive prices and excellent services.
For years' development, our efforts bring us stable customers from home and abroad. Our machines have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. With superior performance to price ratio, high quality and perfect after-sales service, now our production facilities occupies China's forefront in development and expansion and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
