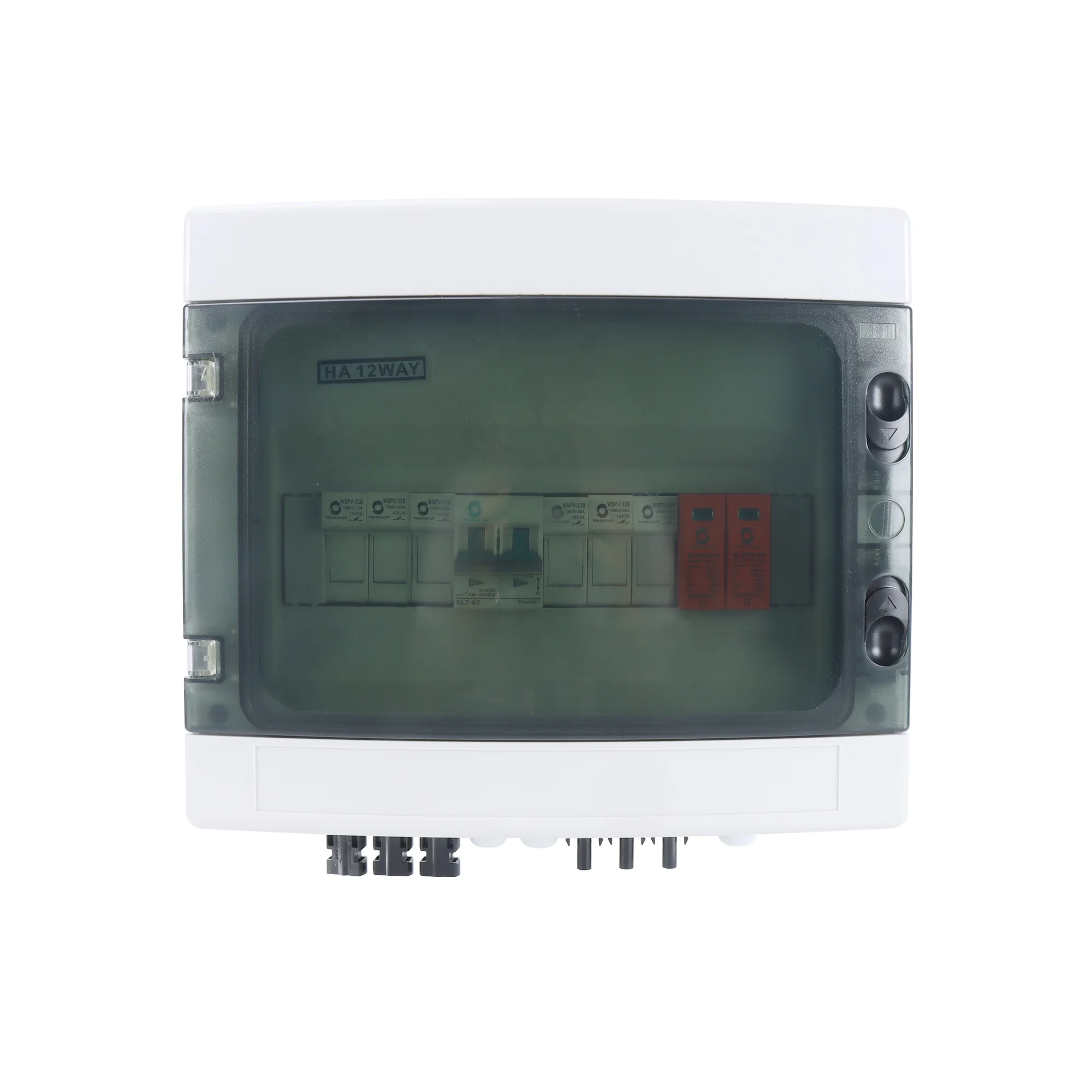

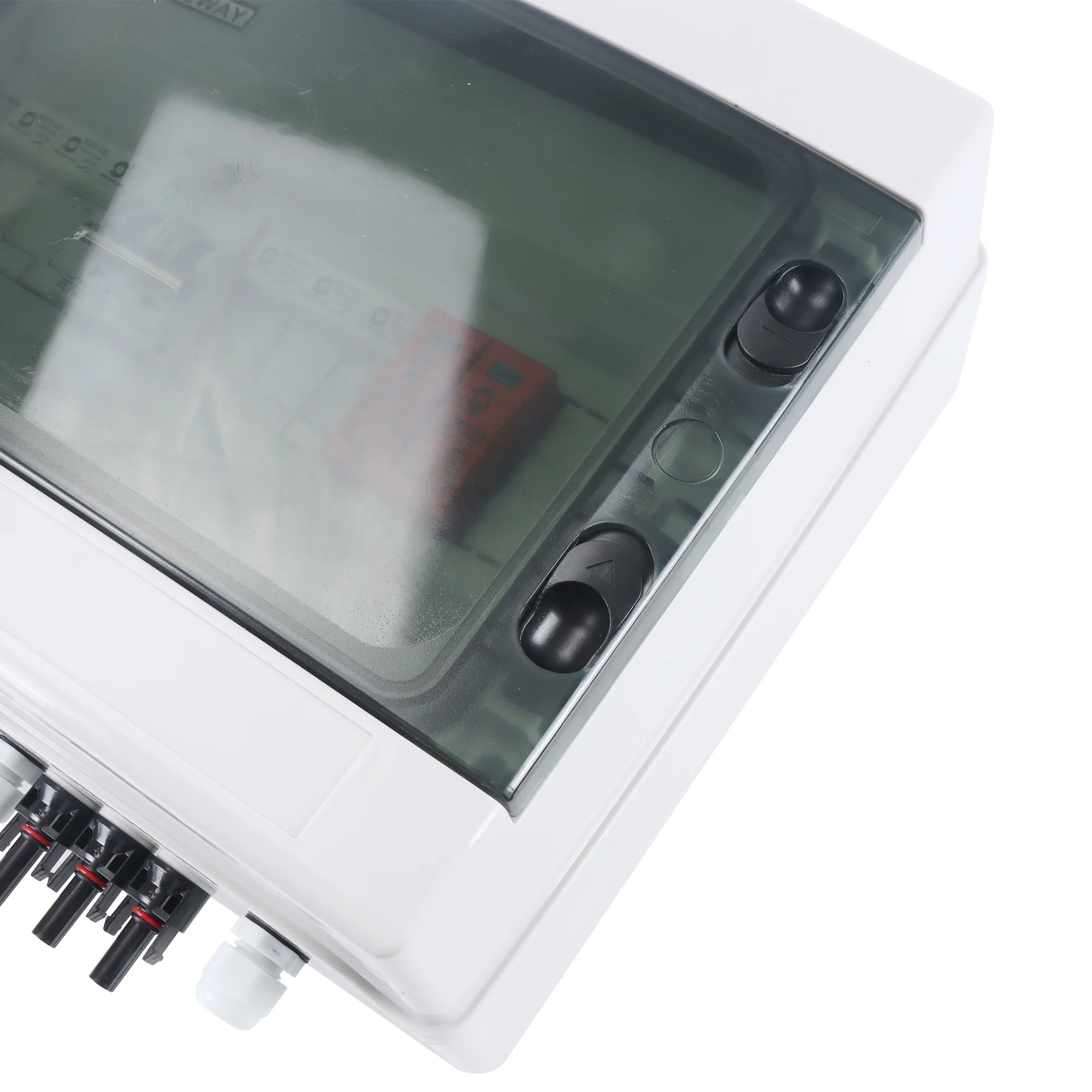

CE WSDB PV3/1 IP65 3 IN 1 OUT 3 Strings Ways 16A 15A 20A 25A 32A 500V 600V 800V DC Solar PV Array Power Combiner Box
- Category: >>>
- Supplier: Yueqing Xianglang Electric Co. Ltd.
Share on (1601010471508):
Product Overview
Description
Product Description
SOLAR BOX Application
Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.
Model No | WSDB-PV3/1 (500V) | DC Circuit Breaker | XL7-63 |

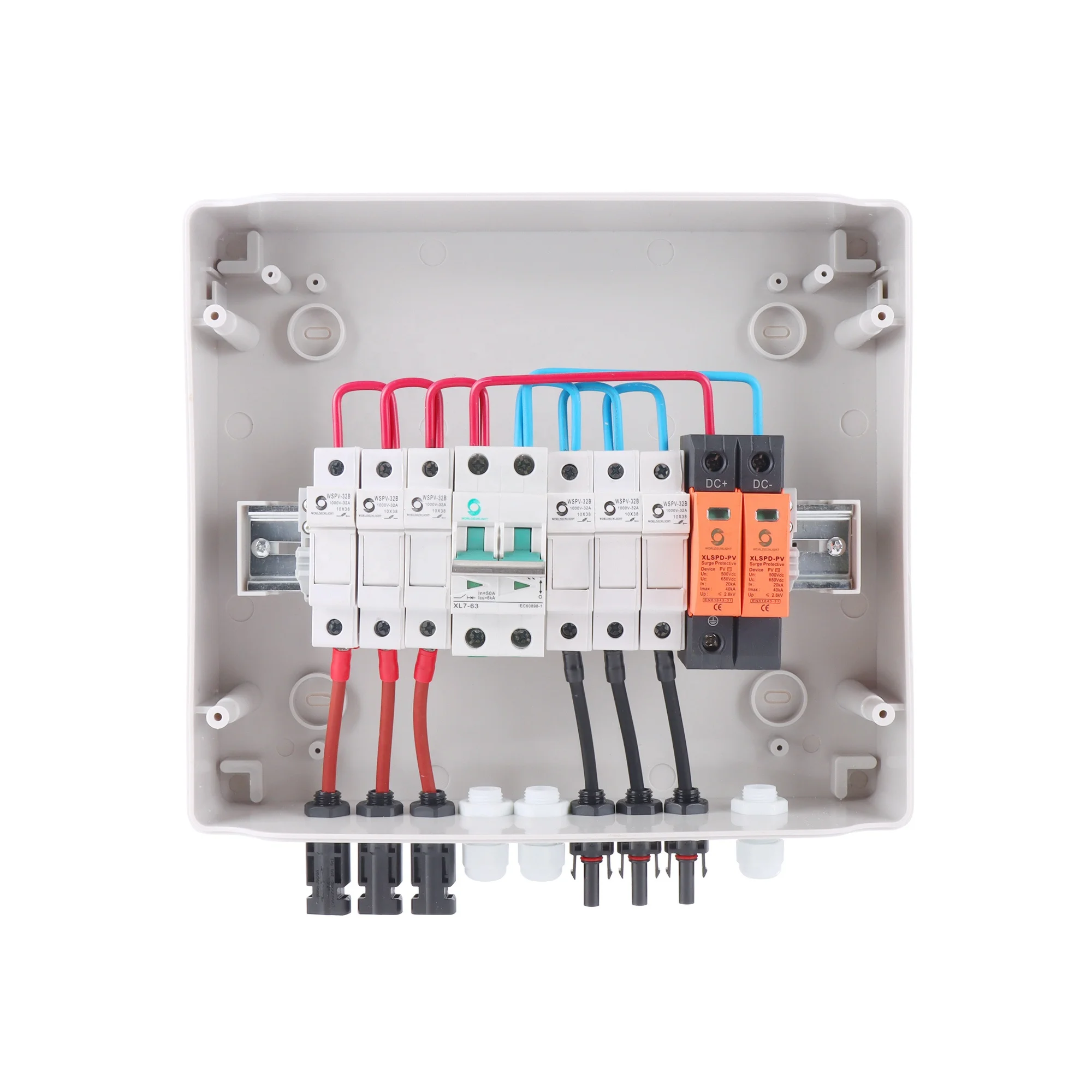

Include | 6 Pcs Fuse + 2p 500v MCB+ 2p 500v SPD +WSHA Distribution box+solar connector +Cable Gland+Wiring（Support customization） | Rated lnsulation Voltage | 500V |
Input | 3 strings | Rated Current | 50A |
Output | 1 strings | Standard Compliance with | IEC60947-2 |
Maximum Voltage | 500v | Certification | CE,TUV,CB,IEC |
Maximum Current Input | 16A | Poles | 2P |
Maximum Current Output | 50A | Certification | CE,TUV,CB |

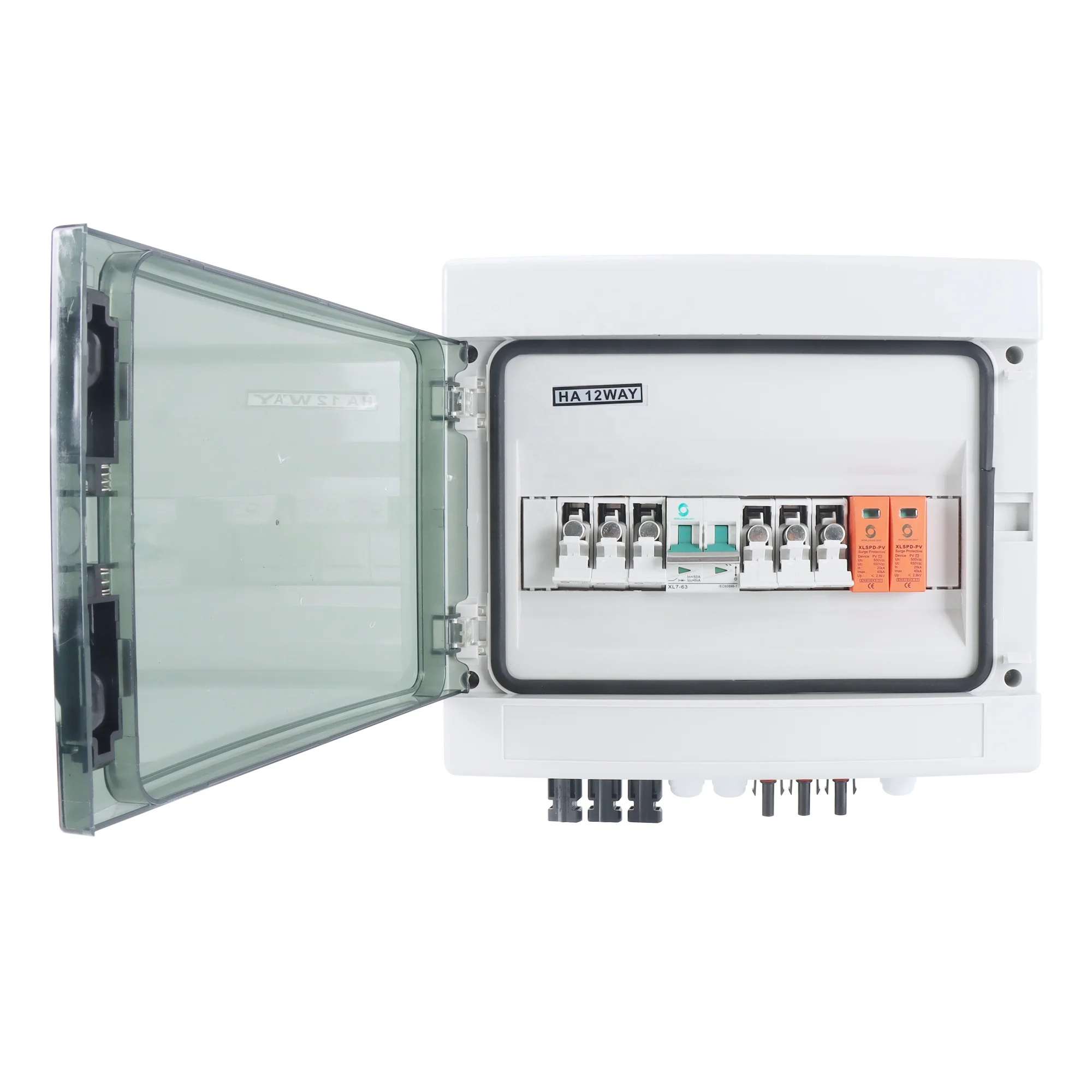

Enclosure | WSHA-12WAY | DC fuse holder | WSPV-32B |
Material Type | PC BODY ABS COVER | Rated Working Voltage | 1000v |
Degree of Protection | IP65 | Fuse Link | 10x38mm 16A |
Degree of Resistance to lmpacts | IK10 | Certification | CE,TUV,CB |
Dimension (WxHxD) | 250*195*110 mm | ||

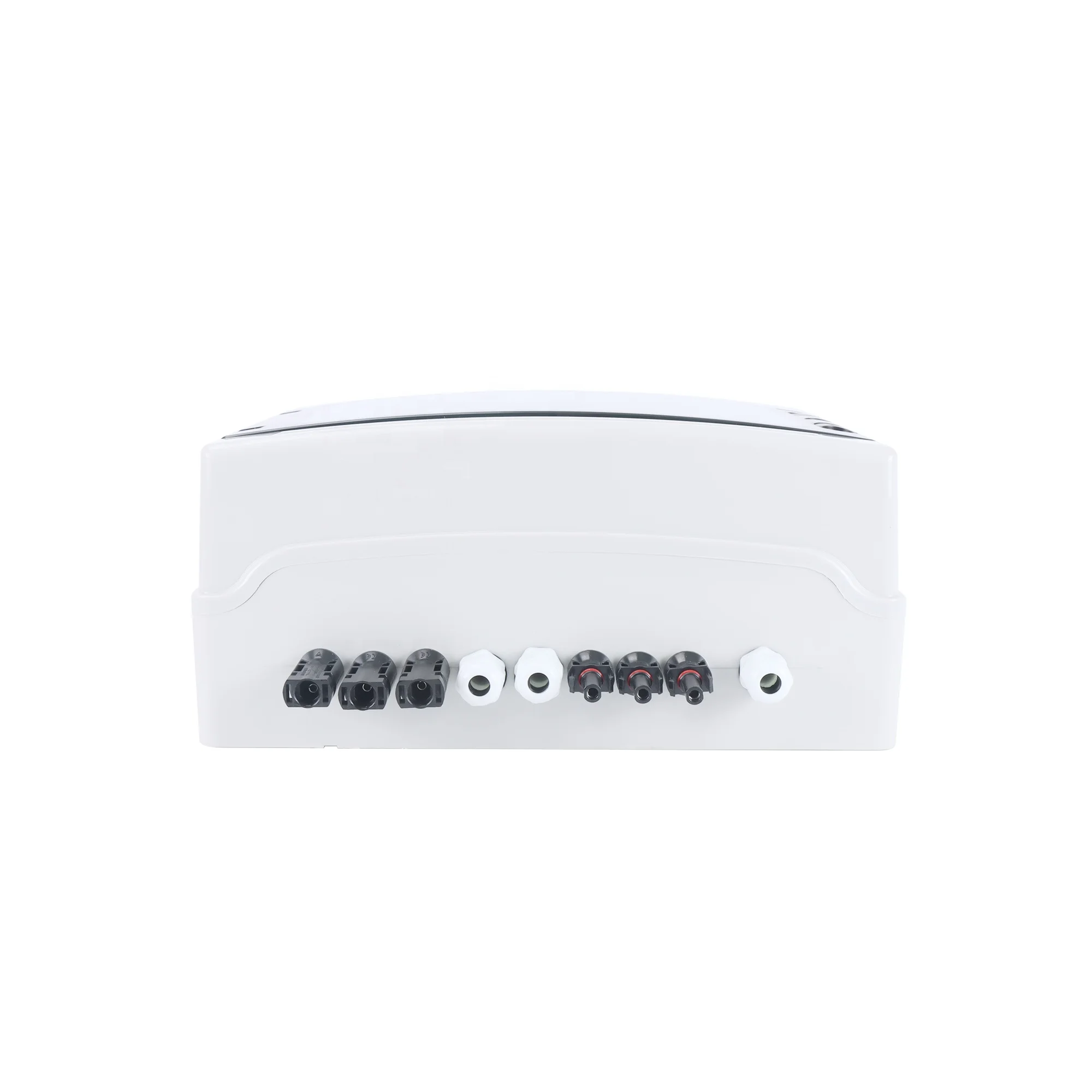

Cable input Entry | Solar Connector 2.5-6mm2 | ||
Output Cable Gland | PG9 2.5-16mm2 | ||
Certification | CE | ||
DC Surge Arrester | XISPD-PV | Environment | |
Max Operation Voltage(Ucpv) | 500v | Operating Temperature | -25°C~+55°C |
Standard Compliance with | EN61643-3 | Humidity | 0-95%,no condensation Mechanical parameter |
Nominal discharge current | 20kA | ||
Maximum discharge current | 40kA | Altitude | 2000M |
Voltage protection level | 2.8KV | Installation | Wall Mounting |
Poles | 2P | ||
Certification | TUV,CE |
