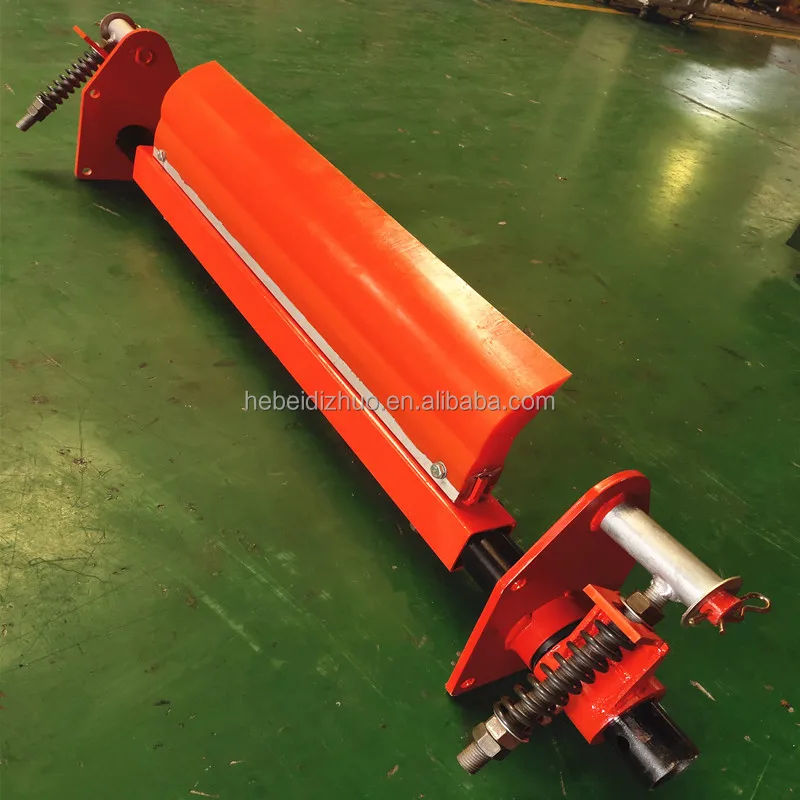

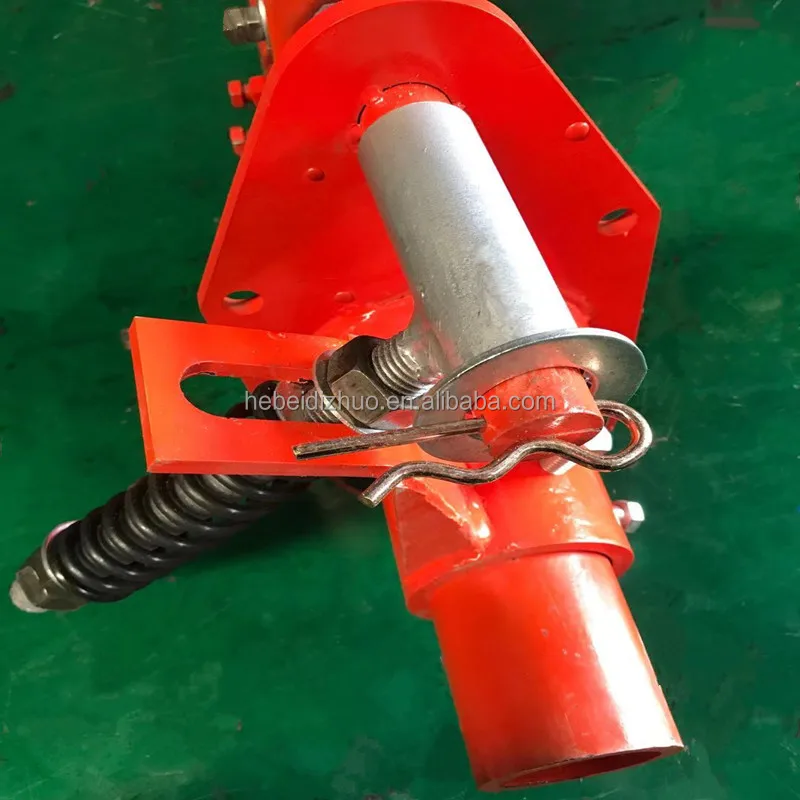

hot sale wear resistance primary belt scraper conveyor belt scraper coal mining belt cleaner
- Category: >>>
- Supplier: Hebei Dizhuo Rubber And Plastic Products Co. Ltd.
Share on (1601010916599):
Product Overview
Description
Product Parameters
Products Description
The materials conveyed by the conveyor belt often have certain viscosity, and some of them adhere to the working surface of the conveyor belt during the conveying process, which cannot be unloaded during unloading. At this time, the adhered materials enter the empty section below and stick to the idler.Sticking materials to the idler will increase the probability of materials entering the idler shell, which will increase the radial and axial load on the bearing seat and make the bearing wear rapidly. Material on the roller shell will tear and roughen the surface glue of the conveyor belt, which will accelerate the wear and destruction of the conveyor belt. If the adherend enters the tail redirection roller, it will stick on the roller surface, and the more it sticks, the greater the adhesive force, resulting in the deviation of the conveyor belt, increasing the wear of the conveyor belt and causing serious accidents. The residual materials on the conveyor belt will also increase the friction force on the roller, and sometimes cause the tear of the adhesive on the conveyor belt and the rubber coating of the roller.
The sweeper scraper blade produced by our company with polyurethane elastomer composite material is suitable for material cleaning under various working conditions, and has the characteristics of flat and smooth end face, good streamline, large extensibility, low friction coefficient, corrosion resistance, fracture resistance and no damage to belts (especially steel cable belts).Practice has proved that the wear resistance is higher than that of alloy blades. After the installation of sweeper, it can effectively clean the adhesion on the roller surface and conveyor belt bottom surface, prevent the conveyor belt from wandering, prolong the service life of conveyor belt and accessories, prevent accidents, etc. It is widely used in belt conveyors in metallurgy, mines, docks, power plants, ports and other fields.
First-class belt sweeper | ||||||||
Hardness of cutter head | 85-90shoreA | |||||||
Working temperature | 40-71℃ | |||||||
Adapted belt speed | 2~6m／s | |||||||
Adapted belt width | 200-2200mm | |||||||

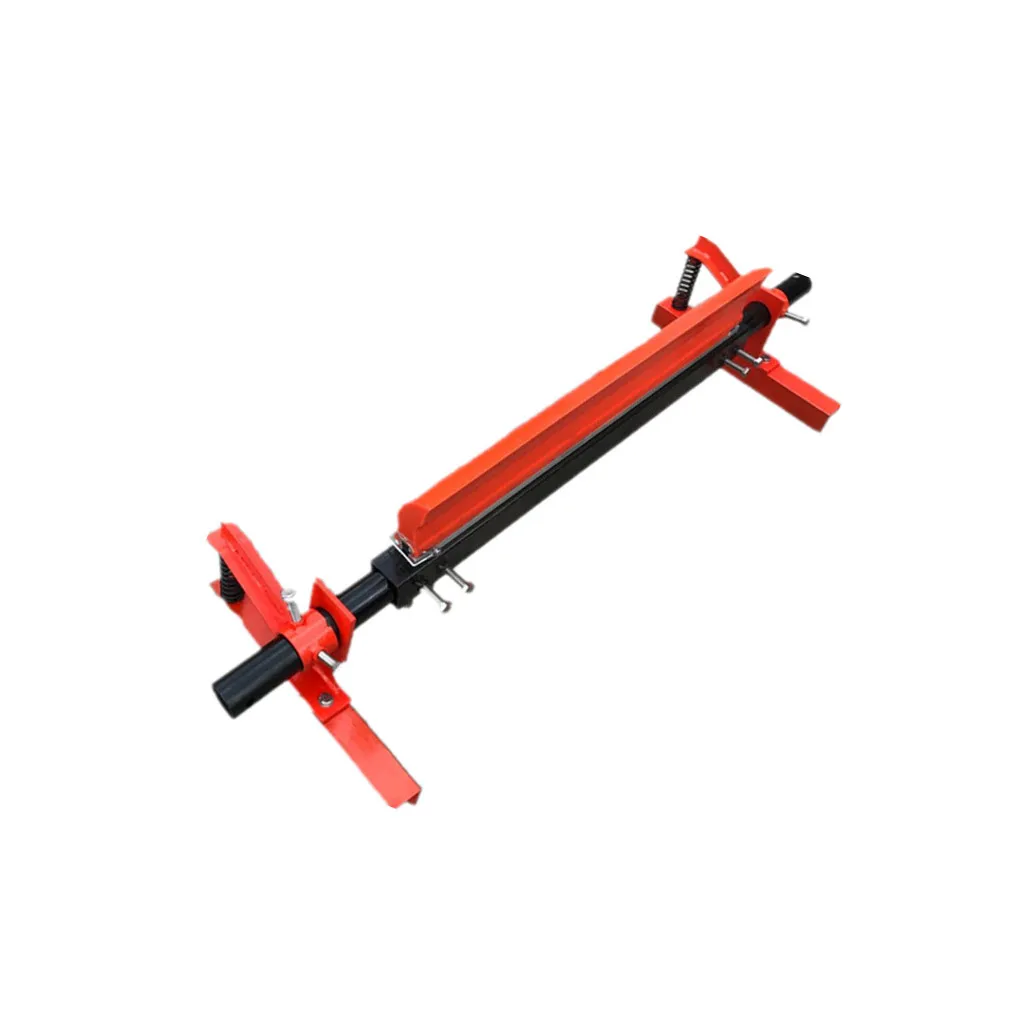

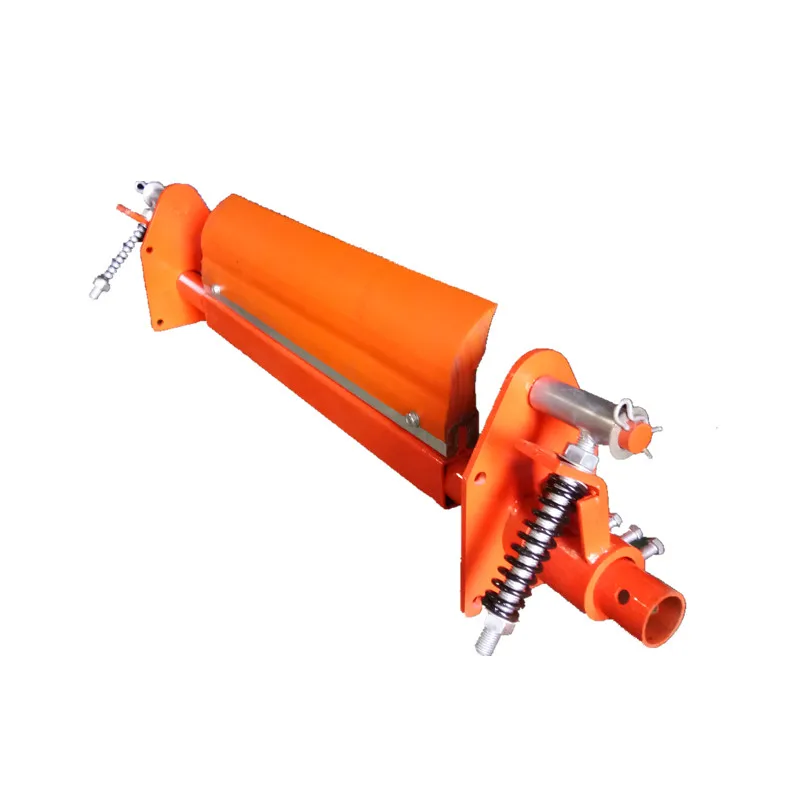

The first-class belt sweeper is used at the front end of the belt roller, and the sweeper scraper at the head is mainly made of polyurethane, which mainly cleans large particles of materials. The cutter head is attached to the roller belt, which makes it easier to play the role of sweeper. | ||||||||

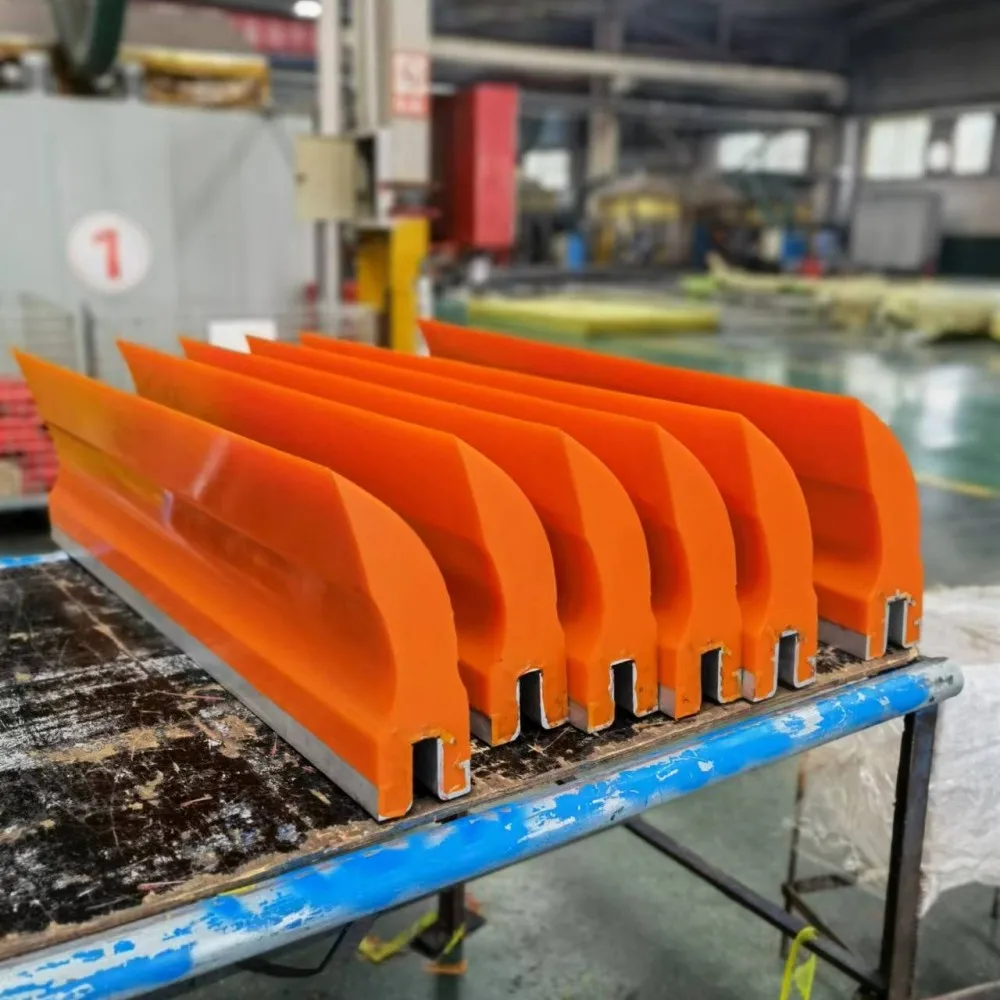

High wear-resistant polyurethane cutter head
High wear-resistant polyurethane cutter head is divided into light and heavy types, and sweeper bracket can be customized according to drawings
Ordinary polyurethane cutter head
Conventional polyurethane cutters are available in red and orange, and other colors can be customized.
Special first-class belt sweeper

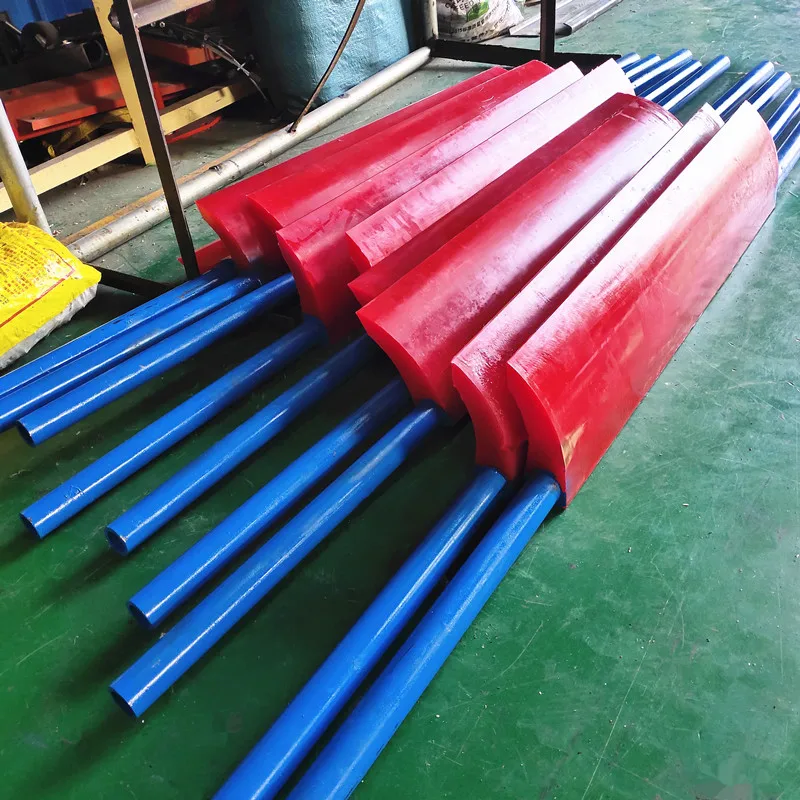

This kind of sweeper scraper and round pipe are connected together and cannot be separated.
Secondary belt sweeper | ||||||||
Hardness of cutter head | 85-90shoreA | |||||||
Working temperature | 40-71℃ | |||||||
Adapted belt speed | 2~6m／s | |||||||
Adapted belt width | 200-2200mm | |||||||

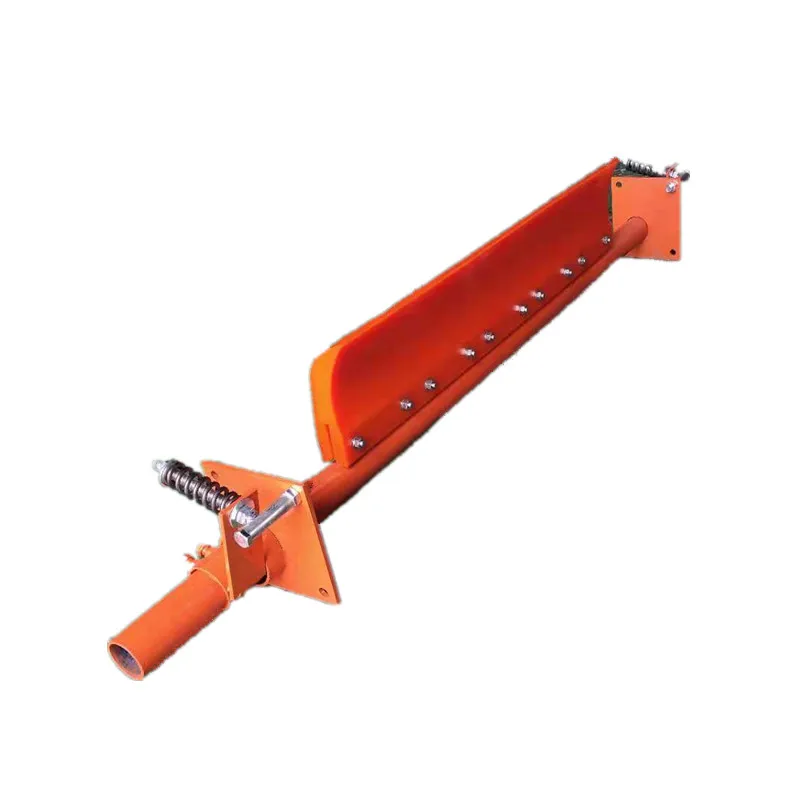

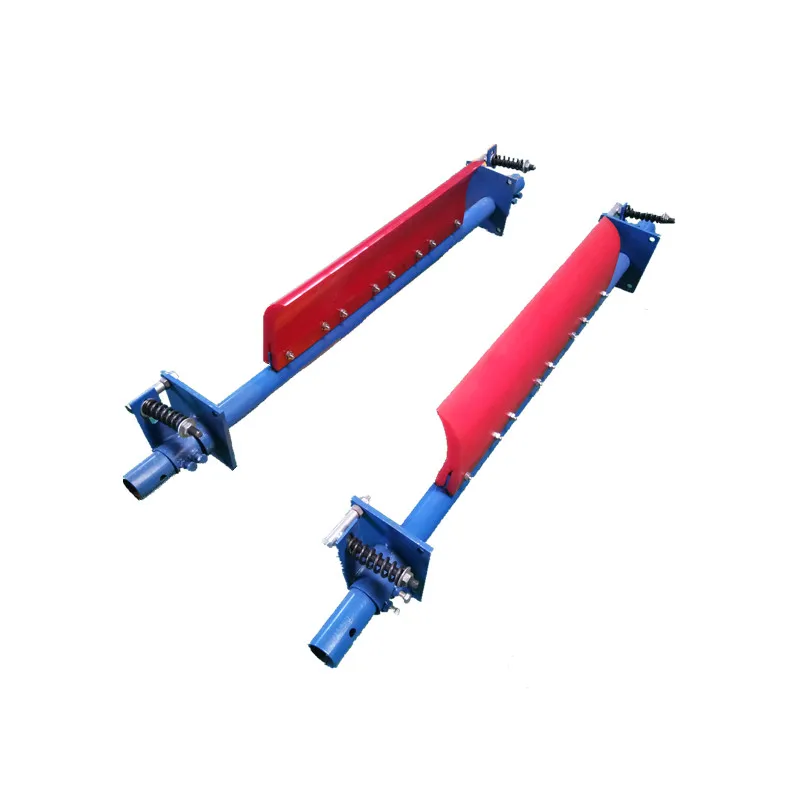

The second sweeper is made of polyurethane and alloy, which mainly cleans the fine adhesive materials at the stable position of the belt. These two materials are mainly selected according to the customer's working conditions. For example, the customer's belt adopts hot and cold vulcanized joints, and both of them can be selected. If it is a mechanical joint, only the scraper made of polyurethane can be selected, because the alloy cutter head is easy to scratch the belt, causing damage to the mechanical joint and increasing the maintenance cost. If the humidity in the cleaning condition is too high and the belt is a hot-cold vulcanized joint, it is recommended to use alloy sweeper, because the application effect of polyurethane sweeper is easily affected if the moisture is too high. | ||||||||
High wear-resistant polyurethane cutter head
High wear-resistant polyurethane cutter head with longer service life, and the bracket can be customized according to the drawing.
Conventional polyurethane secondary cutter head
The conventional polyurethane secondary cutter head is 150 mm high， and its color is red or orange. Other colors can be customized.
First-grade alloy sweeper
Secondary alloy sweeper
Tail belt sweeper | ||||||||
Hardness of cutter head | 85-90shoreA | |||||||
Working temperature | 40-71℃ | |||||||
Adapted belt speed | 2~4.5m／s | |||||||
Adapted belt width | 500-2200mm | |||||||
The tail belt sweeper is universally applicable for non working surface of belts.The special design of the suspension installation don not increase any pressure on non working surface so that protect belts and pulley from damage.It also has excellent cleaning performance.Tail belt sweeper is suitable for conveyor belts with cold and hot vulcanized joints and mechanical joints.There are two types of tail belt sweeper: V-type plough and diagonal scraper. | ||||||||

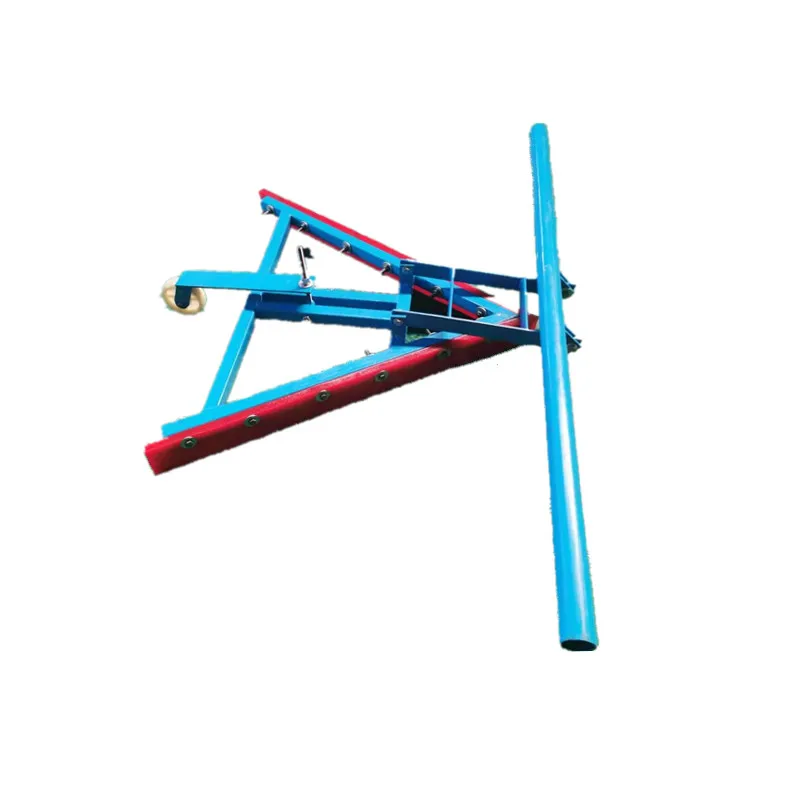

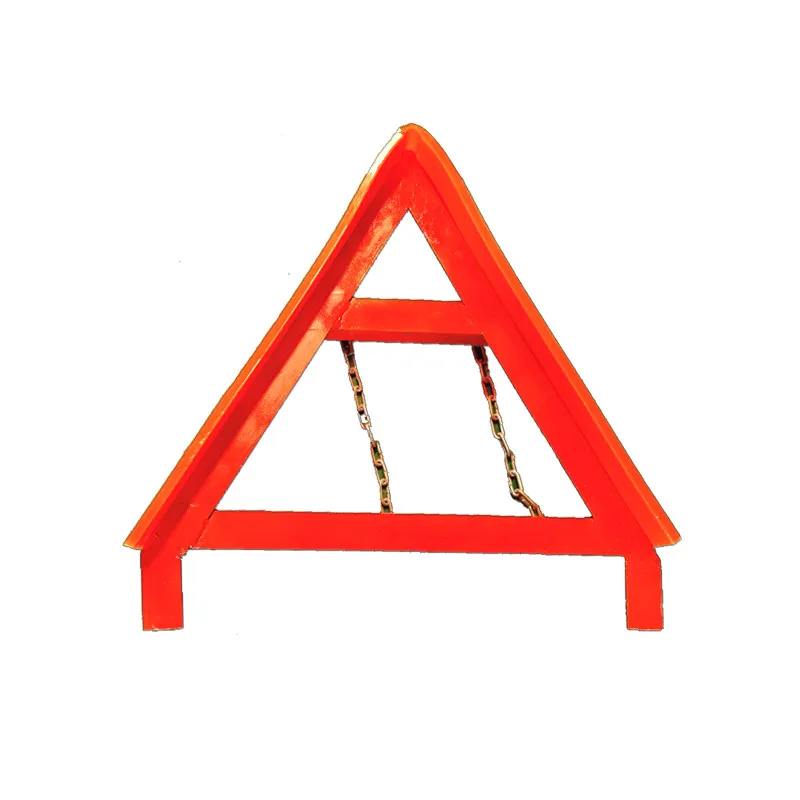

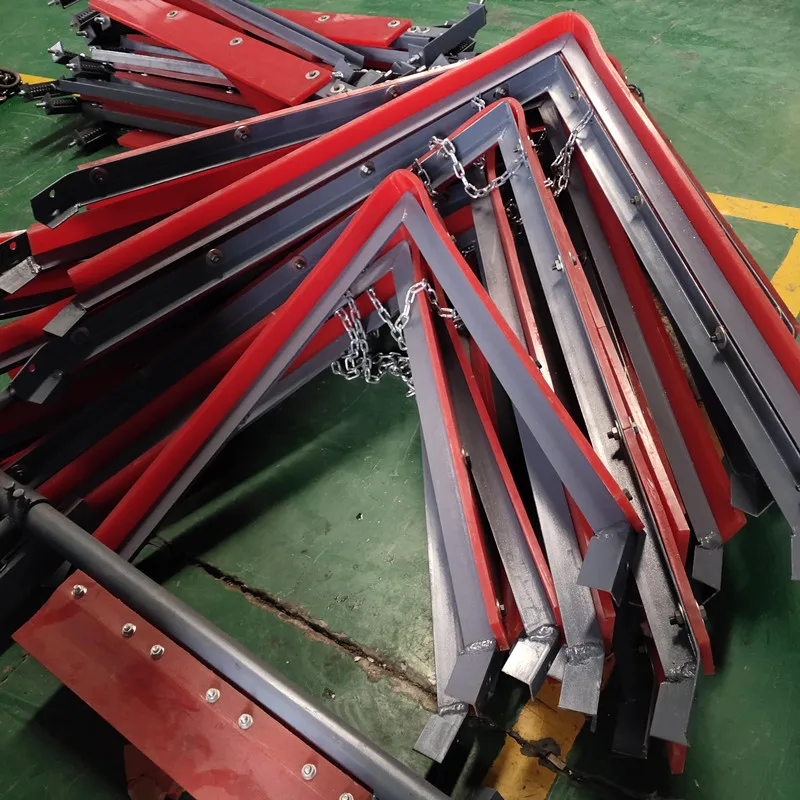

V-type plough
V-type plough is suitable for unidirectional conveyor belt.
Diagonal scraper is also known as one-line sweeper.It is suitable for bidirectional conveyor belt.
