DPJ3500 Marble Stone Cutting Machine Vertical and Horizontal Stone Machinery for Efficient Marble Processing
- Category: >>>
- Supplier: Laizhou Oriental Machinery Co. Ltd.
Share on (1601013478065):
Product Overview
Description

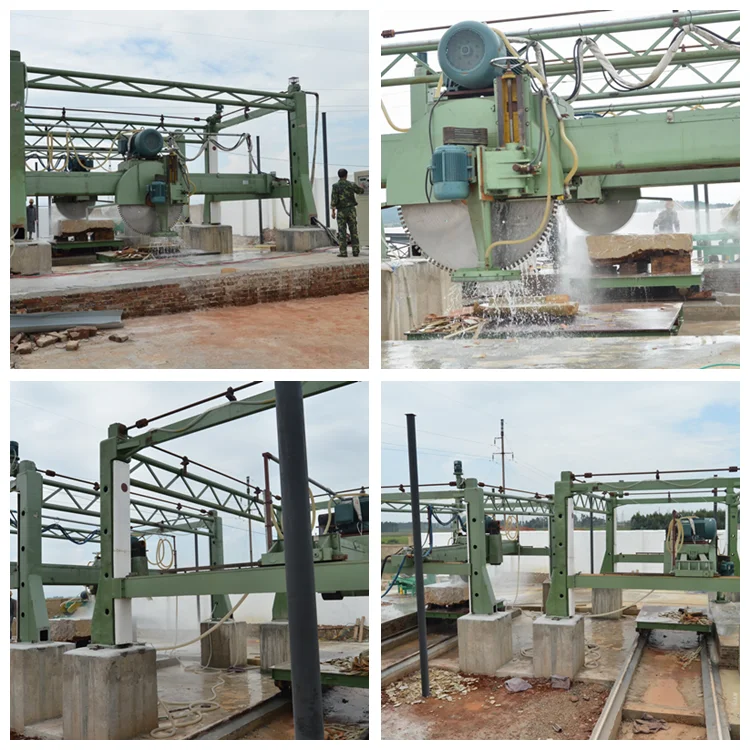

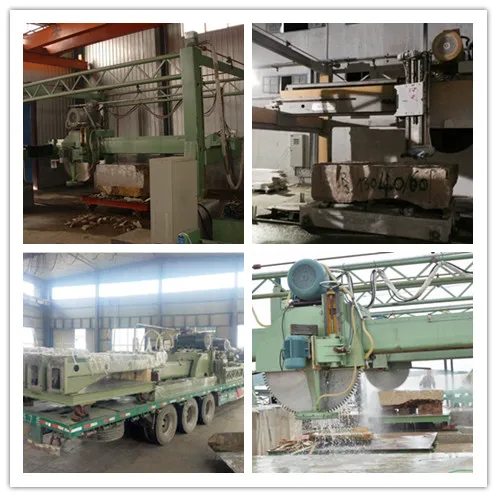

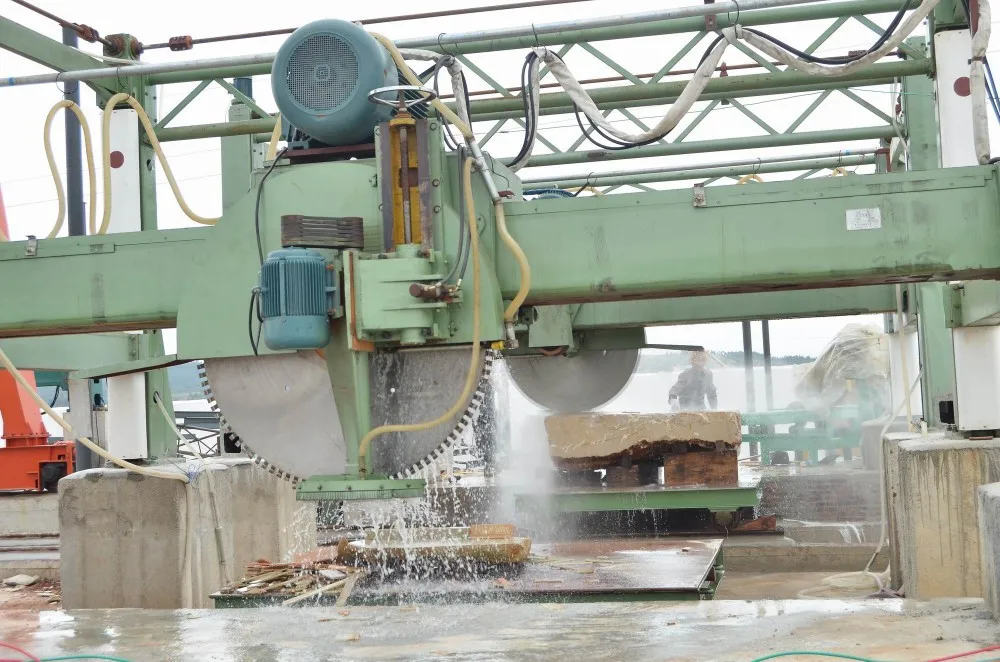

Product Show
Product Paramenters
Features
90kw premium main motor
11kw horizontal motor
Total install power: 119kw
Programmable auto electrical control system
Hydraulic transmission
High quality electrical element
Cast iron solid frame
25years' stone machinery experience

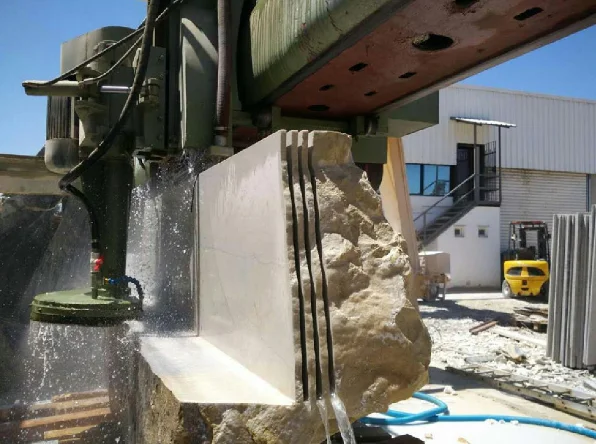

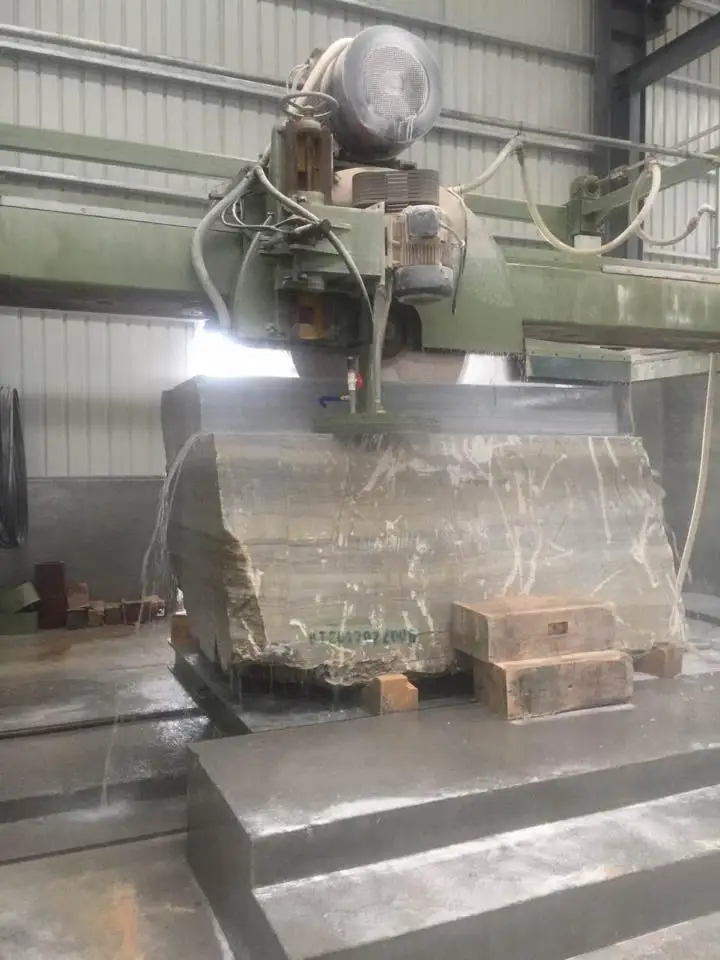

DPJ3500 Auto vertical and horizontal marble slice cutting saw for production line
DPJ3500 is the main machinery for marble slab production line. It cuts rough marble into slabs with certain thickness by using programmable full-automatic electrical control system and hydraulic transmission It with four columns is built for the processing of marble blocks from which one can obtain strips in various sizes and thicknesses for the production of marble tiles for floors and walls, steps, jambs and other products for the building industry.
The machine is composed by four carrying columns made solid by four cast iron cross beams.
The machine is composed by four carrying columns made solid by four cast iron cross beams.
It is the most popular equipment for processing marble. Featuring reliable performance and high cutting efficiency.
Voltage | 380v-3phase,50hz |
Power motor for vertical disc | 90kw |
Power motor for horizontal disc | 11kw |
Power motor for bridge up-down stroke | 3kw |
Power motor for hydraulic station | 5.5kw |
Power motor for trolley truck displacement | 2.2kw |
Dia.of vertical blade | 900-1600mm |
Dia.of horizontal blade | 450-600mm |
Elevating speed of bridge stand | 180mm/min |
Cutting speed | 0-8000mm/min |
Thickness of slice slab | 8-140mm |
Productivity | 120㎡/8hrs |
Size of trolley truck | 2500x2100mm |
Dimension of block | 3200x2400x2300mm |
Overall dimension | 7100x5500x5160mm |
Total gross weight | 18000kgs |

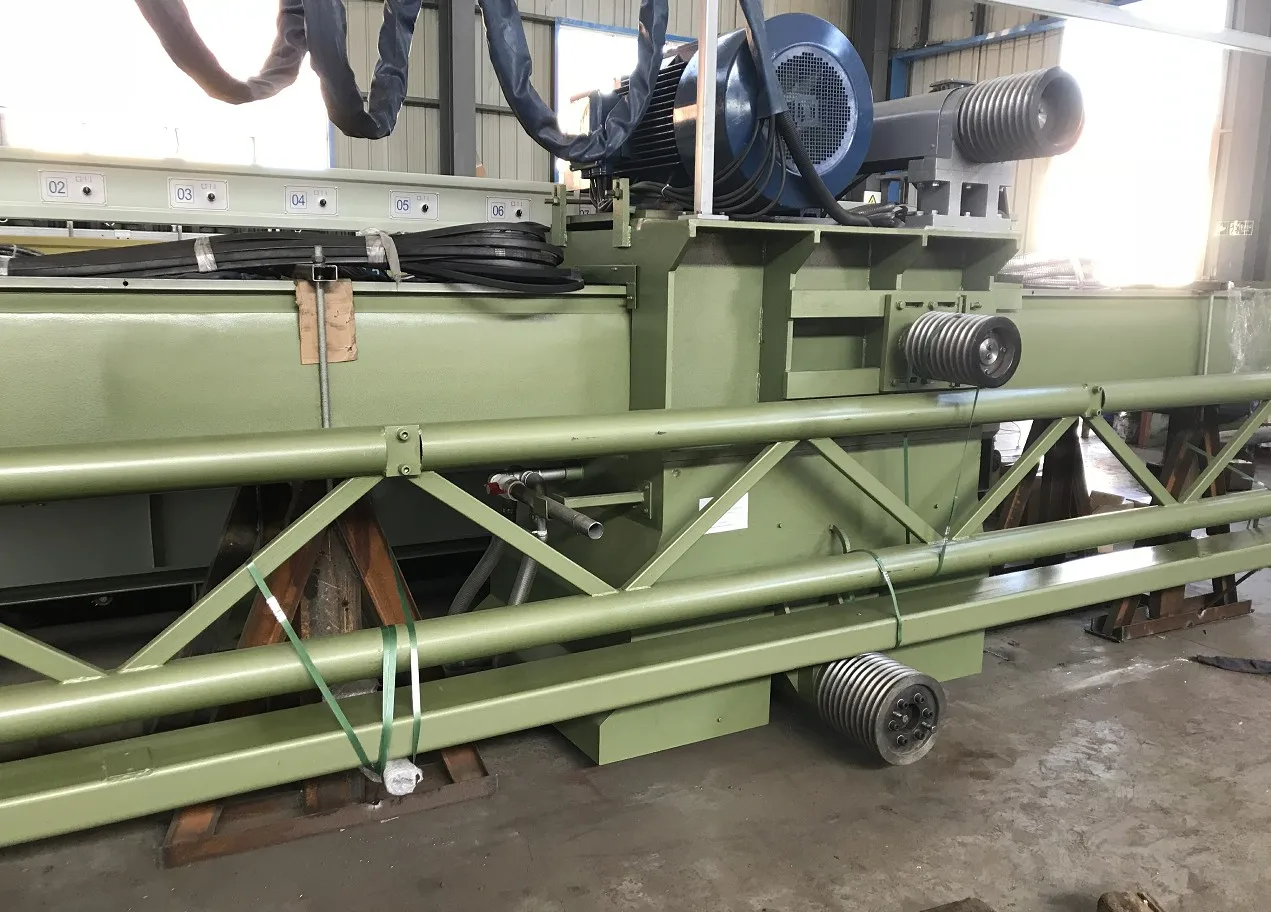

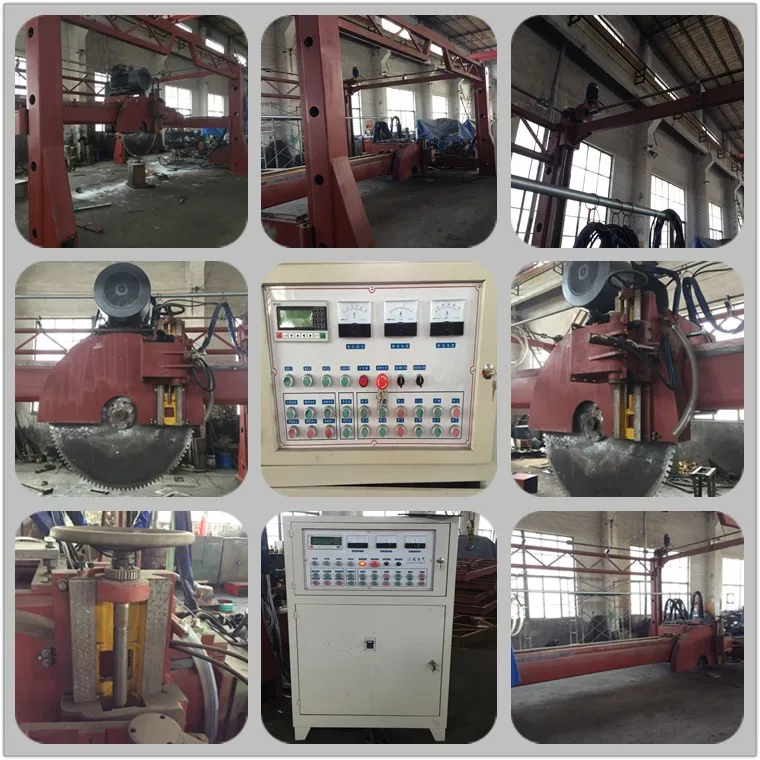

Details Images

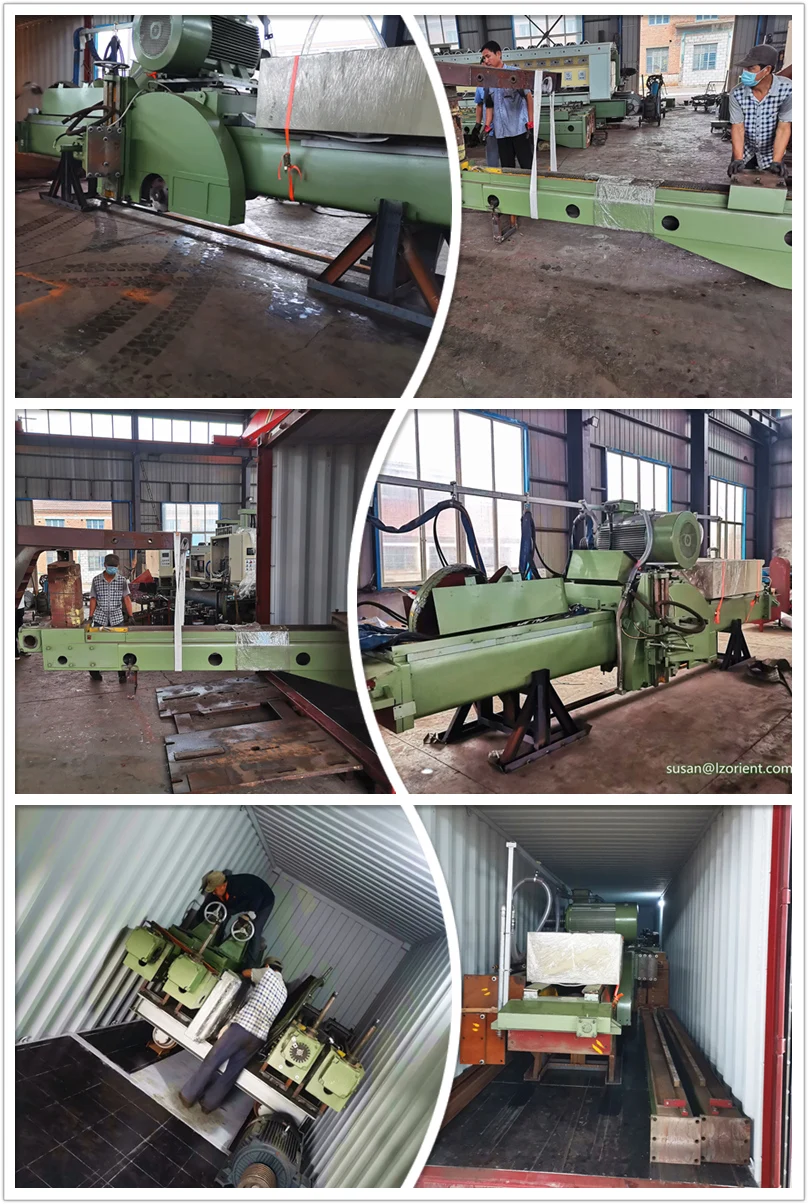

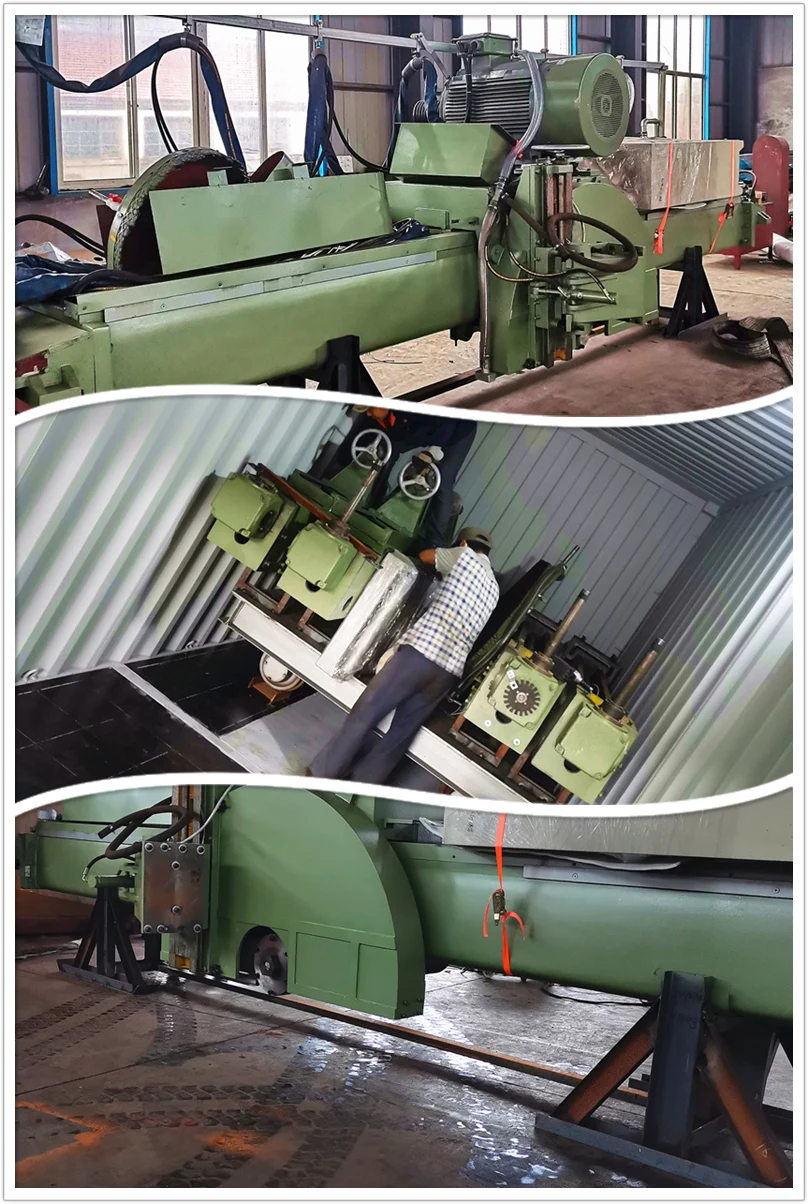

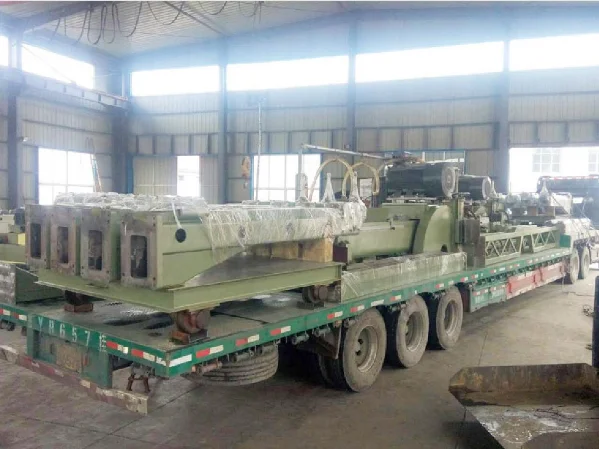

Product packaging
- Nude with Plastic Film and Wire Fixing
- 40ft dry HQ container Load 1 Set
- Qingdao Port Shipment
- 1 Year Warranty
- 40ft dry HQ container Load 1 Set
- Qingdao Port Shipment
- 1 Year Warranty
- OEM&ODM Available
- Assemble Tools Included
- Spare Parts Available- Wirerope,Strap,Wood batten reinforce
- Assemble Tools Included
- Spare Parts Available- Wirerope,Strap,Wood batten reinforce
Recommend Products
Company Profile
Established in 1996,Laizhou Oriental Machinery Co.,Ltd. had engaged in the stone processing equipment industry for 27 years. We have the first-class designable talents and experienced technicians and are always specialized in developing and manufacturing the latest and most efficient stone processing machines.
Our Service
1. 27 years Stone Machinery Manufacturing Experiences;
2. Quick and Safe Delivery;
3. Experienced Service Team;
4. Provide OEM and ODM Services;
5. High reputation in World.
6. Top Quality, Reasonable Price ,Best Performance .
2. Quick and Safe Delivery;
3. Experienced Service Team;
4. Provide OEM and ODM Services;
5. High reputation in World.
6. Top Quality, Reasonable Price ,Best Performance .
FAQ
Q: Are you a manufacturer or trading company?
A: We are a stone machinery manufacturer since 1996.
Q: Can I become a distributor?
A: Yes, we have special discount for distributor.
Q: Can you accept OEM or ODM?
A: Yes, you can provide your logo and related design.
Q: What is the lead time?
A: 7-15 working days depends on machine models.
Q: How is the machine packed?
A: For OSC series, we pack with fumigation free plywood box. For OMC series, we pack nude with plastic films and wire fixing.
Q: What is the delivery details?
A: Our nearest port is Qingdao. We can also deliver from every main port in China by FCL or LCL.
Q: What trade terms do you accept?
A: We accept EXW, FOB, CFR, CIF, FCA, etc.
A: We are a stone machinery manufacturer since 1996.
Q: Can I become a distributor?
A: Yes, we have special discount for distributor.
Q: Can you accept OEM or ODM?
A: Yes, you can provide your logo and related design.
Q: What is the lead time?
A: 7-15 working days depends on machine models.
Q: How is the machine packed?
A: For OSC series, we pack with fumigation free plywood box. For OMC series, we pack nude with plastic films and wire fixing.
Q: What is the delivery details?
A: Our nearest port is Qingdao. We can also deliver from every main port in China by FCL or LCL.
Q: What trade terms do you accept?
A: We accept EXW, FOB, CFR, CIF, FCA, etc.
