Tungsten carbide cross rock drill bit Manufacturer Cross Drill Bit Cross Bit For Rock Drilling
- Category: >>>
- Supplier: Zhengzhou Sungood New Material Technology Co. Ltd.
Share on (1601013551395):
Product Overview
Description
Product Description

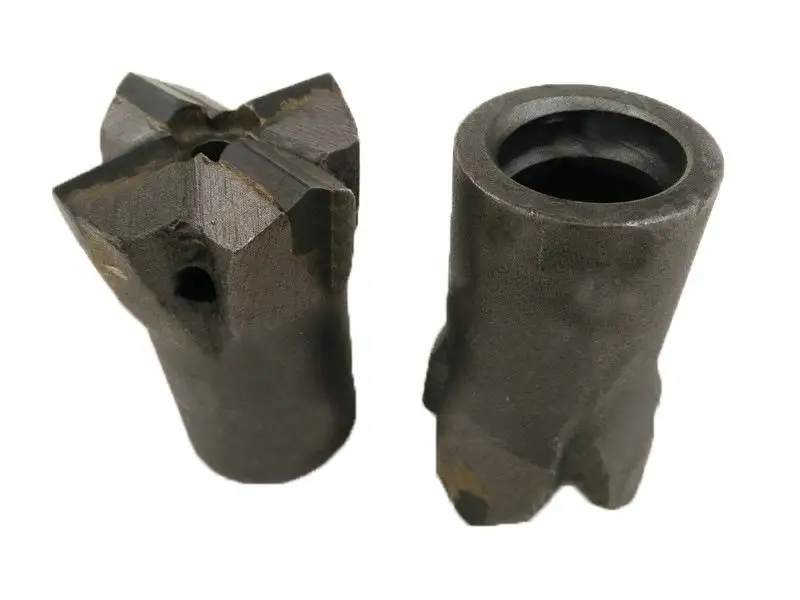

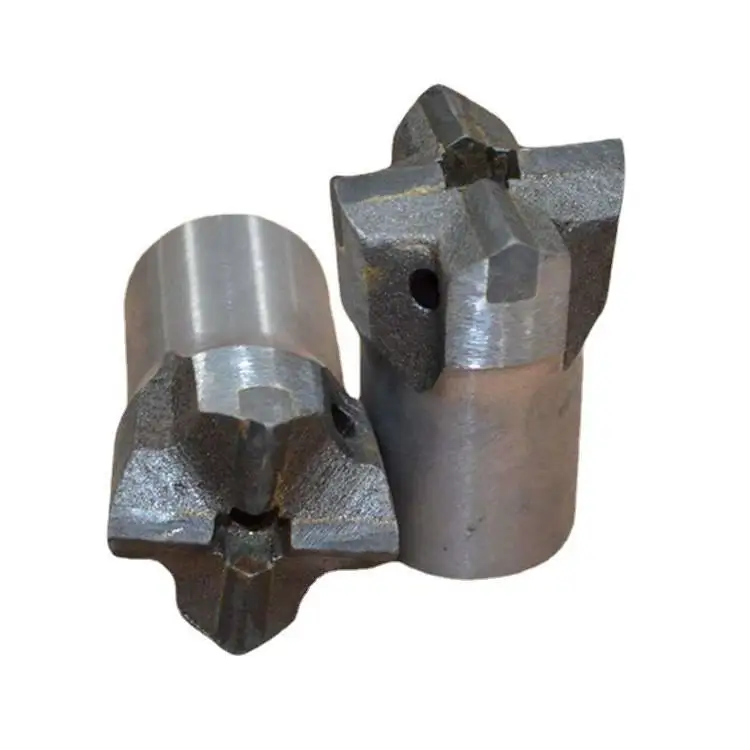

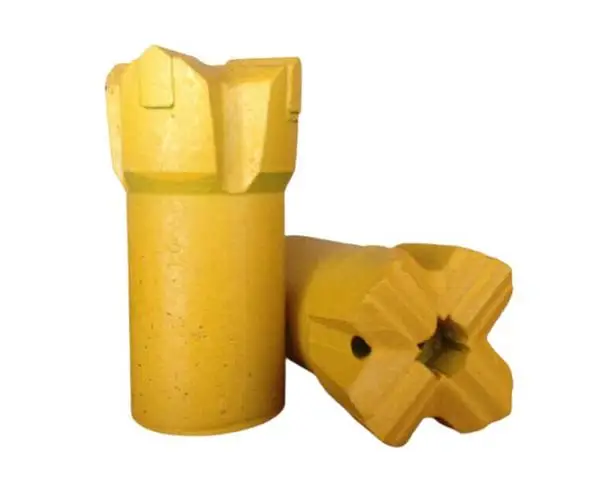

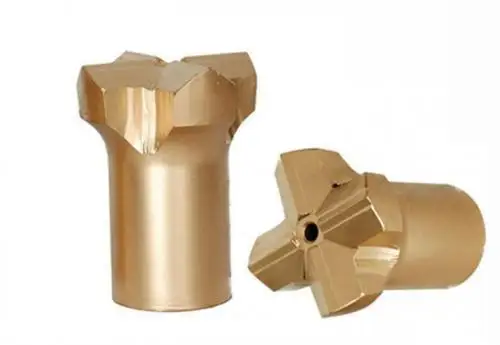

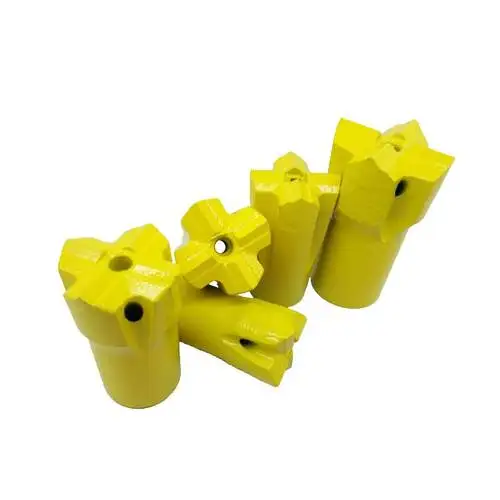

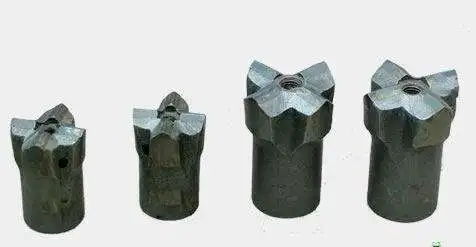

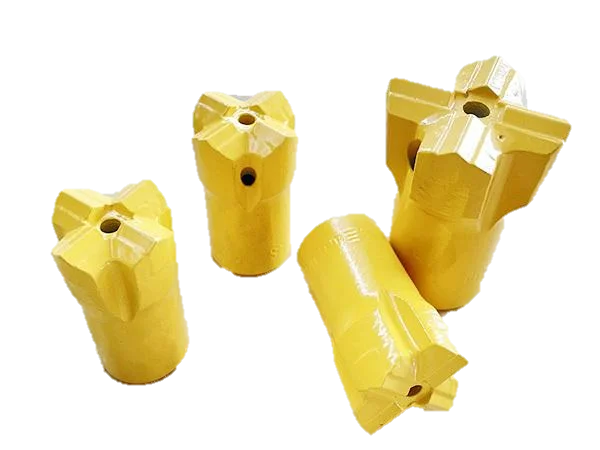

Tungsten steel cross drill bit
The hardest part of the cylindrical drill bit is the top column head, made of Tungsten steel alloy, and the cylindrical shell is made of Nickel-added steel.
The following threads are available with or without internal threads. When ordering, the type of thread should be determined based on the thread situation of the customer's drill pipe.
Name | Tungsten steel cross drill bit | Borehole depth | 18m |
Hole diameter | 38-60mm | Weight | 0.5kg |
Overall dimension | 38-60mm | Pipe type | B19/B22 |
Vertical shaft speed | 80 RPM | Spherical tooth material | Tungsten steel alloy(YG9C/YK20) |
Custom | Acceptable customization | Column material | Nickel steel |
Color | Primary colors, yellow, green,Black | Usage | Mining quarrying, drilling perforations, engineering tunnels |

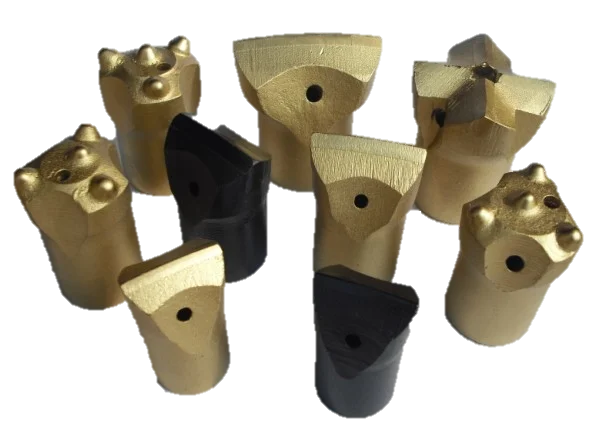

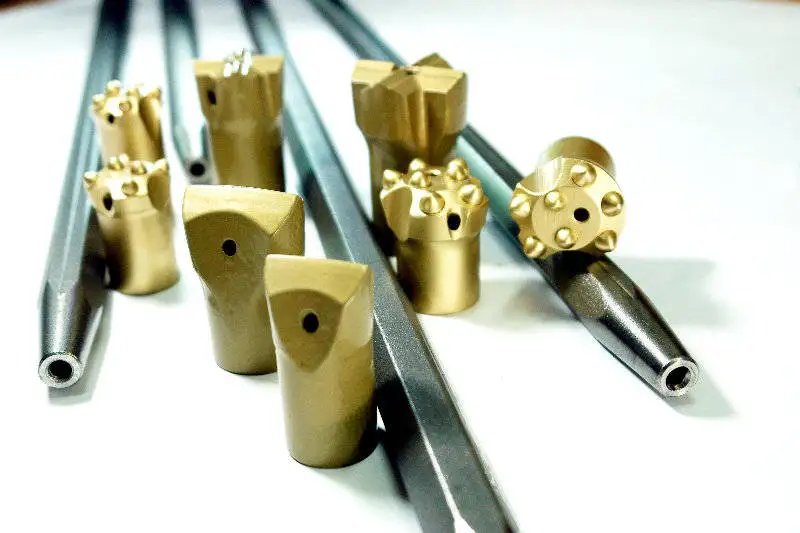

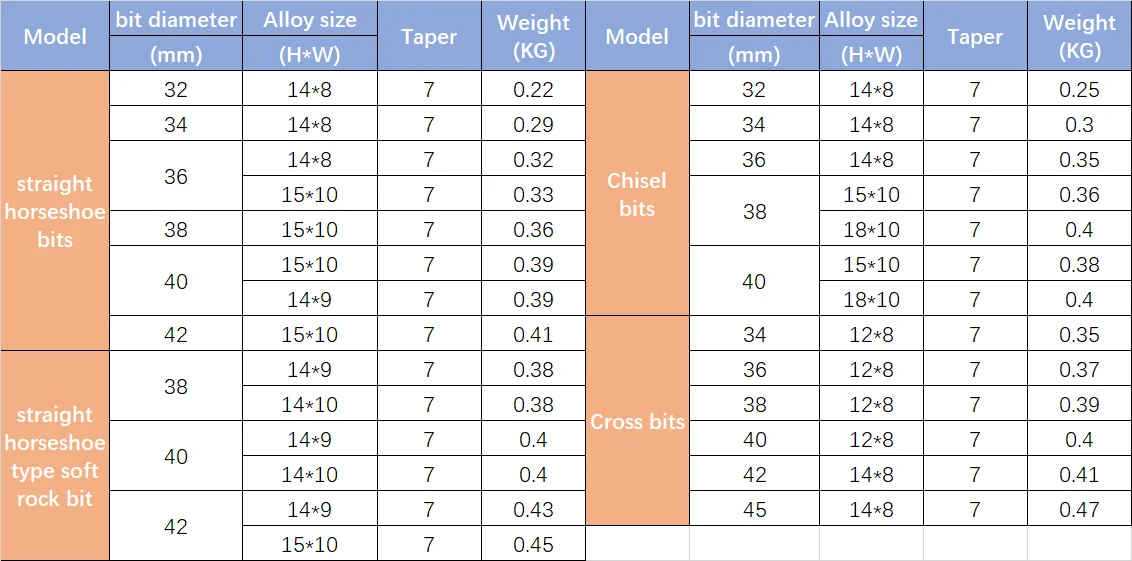

Our company produces complete specifications of taper horseshoe drill bit and cross drill bit,specifications covering 20mm,28mm, 34mm, 36mm, 38mm, 40mm,42mm, 45mm, 50mm, 60mm.Taper drill bit includes 7 degrees, 11 degrees, 12 degrees, thread drill bits include R25,R32,T38,T45,T51 and so on.
The product is treated by heat treatment process, and the wear resistance is better than that of ordinary products.
What you see in this page is the price of 34mm horseshoe taper drill bit, please contact us for other product details.
You can send us customized requirements according to your own needs. Our production capacity is not limited to the product parameters in the above tables, we have the ability to meet the market's conventional and special specifications.
Thank you for continuing to learn about our company and products, you may find a product that meets your needs.
Specification
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Function
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning toavoidhuge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formationis improved.
Application
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.
Company Profile
Why did you choose us?
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
1. Size: | Available in any size of 50mm-300mm.For example, 75mm, 91mm, 112mm, etc |
2. Drill bit type: | 8-tooth hollow core drill bit |
3. PDC tool size: | 1304,1308,1313 |
4. Valve body material: | C45#steel |
5. Applicable rocks: | mud rock, limestone, shale, sandstone,granite, etc. |
6. Color: | gray, gold, blue, green,or according to customer requirements |
Body Material
1.Steel body:suitable for soft to medium hard chunks of homogeneous,hard and abrasive high formation.
2.Matrix body:Suitable for harder geological conditions
Cutter size | 13X 8 mm | The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed . | ||||
13X19 mm | ||||||
16X13 mm | ||||||
19X13 mm | ||||||
Unmatched quality gives you peace of mind
Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.
PDC matrix flat top drill bit（50mm,75mm,90mm,113mm,......）
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
main features
1) Wear resistance and long service life;2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
Packing & Delivery
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
FAQ
To provide you with thoughtful service
Question 1. What are your packaging conditions?
Answer: Usually, we package the goods in neutral white boxes and brown cardboard boxes. If you have a legally registered patent, we can package the goods in your brand box after receiving your authorizationletter.
Question 2. What are your payment terms?
Answer: T/T 50% as deposit, 50% before delivery. Before you make the remainingpayment, we will show you photos of the product and packaging.
Question 3. What are your delivery terms?
Answer: EXW, FOB, CFR,CIF.
Question 4. What is your delivery time?
Answer: Generally speaking, it takes 10 to 15 working days after receiving the advance payment. The specific delivery time depends on the items and quantity in your order.
Question 5. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Question 6. What is your sample policy?
Question 6. What is your sample policy?
Answer: If we have ready-made inventory of parts, we can provide samples, but customers must pay for sample and courier fees.
Question 7. Do you test all the goods before delivery? Answer: Yes, we have 100% testing before delivery
Question 8: How can you establish long-term good relationships with our business?
Answer: 1. We maintain good quality and competitive prices to ensure that our customers benefit; 2. We respect every customer as our friend, no matter where they come
from, we sincerely do business with them and make friends.
from, we sincerely do business with them and make friends.
