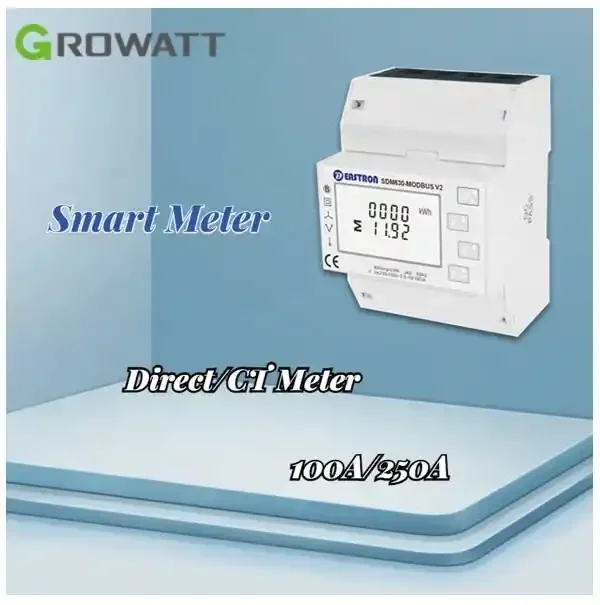

Three Phase Growatt Smart Electricity Meter digital LCD display household watt hour kwh meter electric energy meter In Warehouse
- Category: >>>
- Supplier: Anhui Kingwooh Energy Technology Co. Ltd.
Share on (1601014076199):
Product Overview
Description
Product Information
Technical specifications
Application

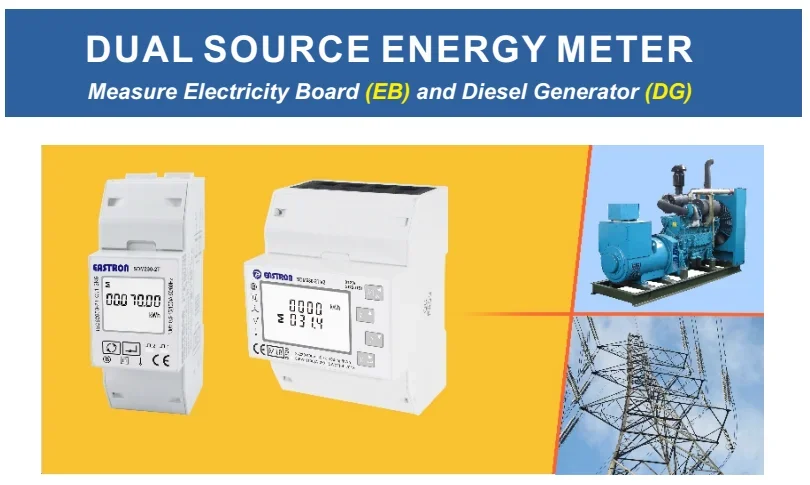

Dual Source Measurement

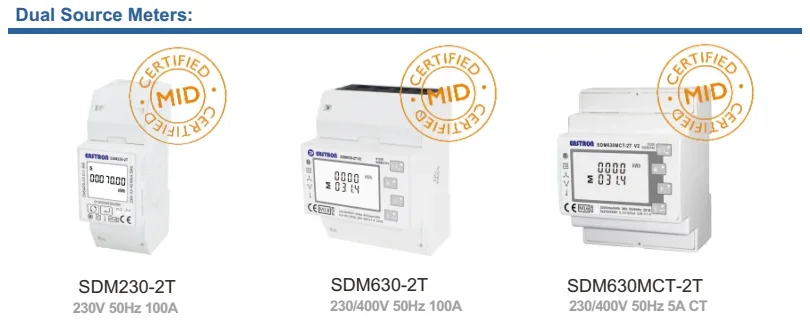

SDM630-2T Dual Source Energy meter replaces 2 energy meters recording data from two different sources of energy. It provides two counters showing energy consumption on public electricity board (EB) and diesel generator ( DG).

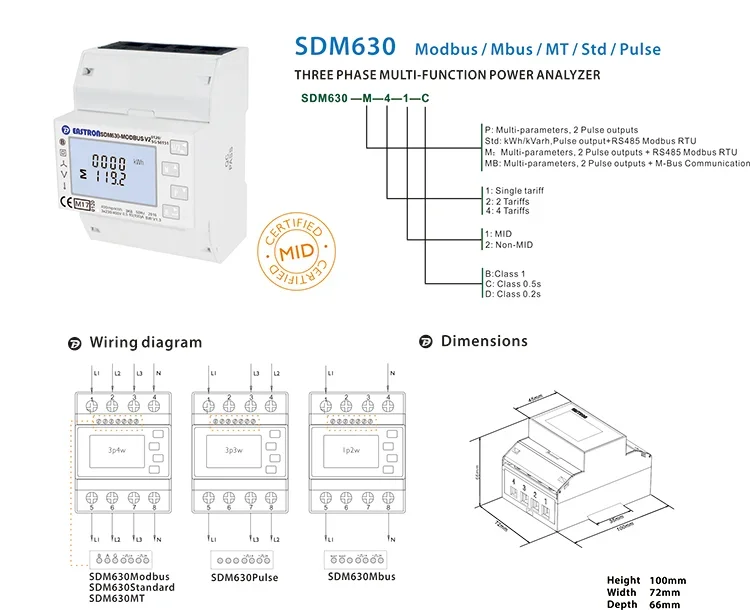

SDM630-2T measures and displays the characteristics of single phase two wires (1p2w), three phase three wires (3p3w,) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes.
SDM630-2T supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.

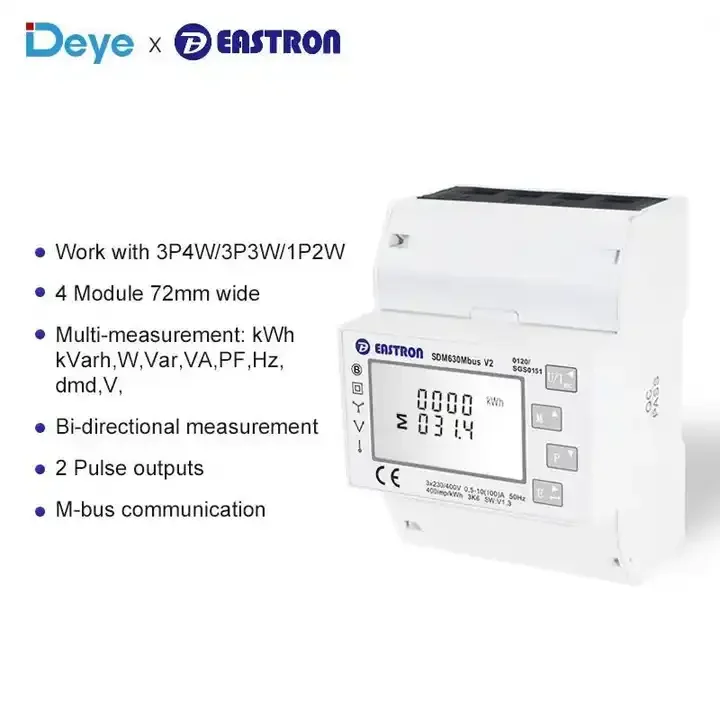

Multi-parameter Measurements
Dual Source Measurement for Utility & Generator Monitoring
RS485 Modbus RTU
2 Pulse Outputs
Accuracy Class 0.5s /1.0
MID B+D Apporved
Single Phase & Three Phase Available
SDM630-2T Dual Source Energy meter replaces 2 energy meters recording data from two different sources of energy. It provides two counters showing energy consumption on public electricity board (EB) and diesel generator ( DG).
SDM630-2T measures and displays the characteristics of single phase two wires (1p2w), three phase three wires (3p3w,) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes.
SDM630-2T supports max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.
Multi-parameter Measurements
Dual Source Measurement for Utility & Generator Monitoring
RS485 Modbus RTU
2 Pulse Outputs
Accuracy Class 0.5s /1.0
MID B+D Apporved
Single Phase & Three Phase Available
Parameters
Electrical characteristics | |||||
Type of measurement | RMS including harmonics on three phase AC system (3P, 3P+N) | ||||
Measurement accuracy | Power | IEC 61557-12 Class 0.5 | |||
Active Energy | IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5 | ||||
Reactive Energy | IEC62053-23 Class 2, IEC 61557-12 Class 2 | ||||
Frequency | ±0.1% | ||||
Current | ±0.2% | ||||
Voltage | ±0.2% | ||||
Power Factor | ±0.01 | ||||
