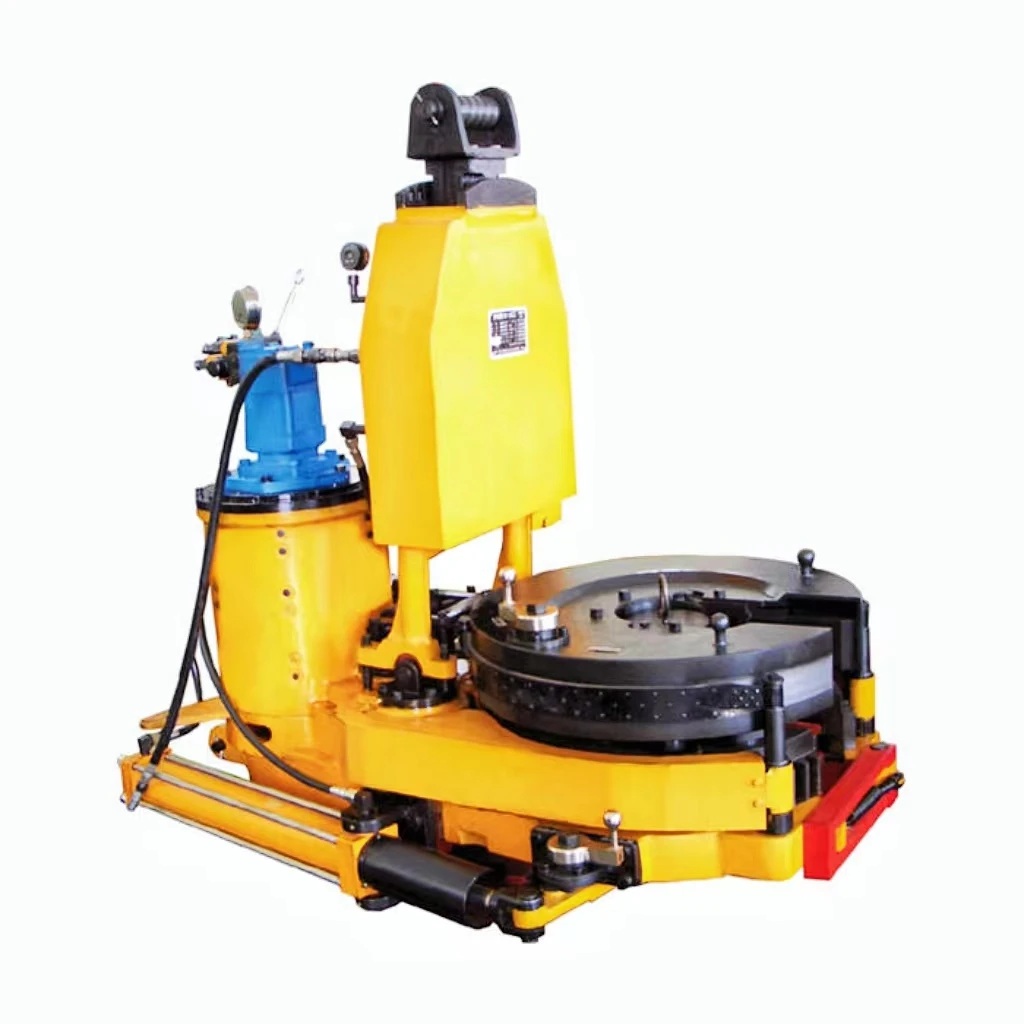

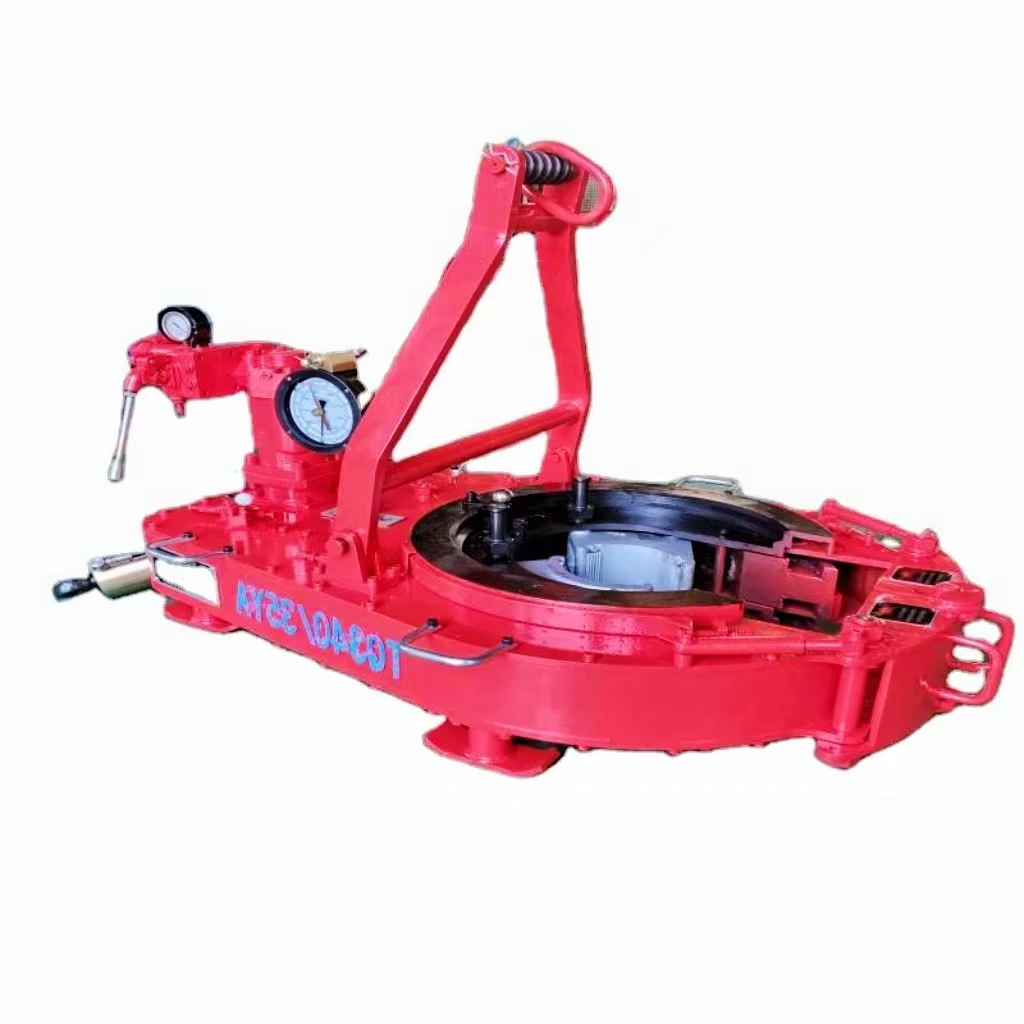

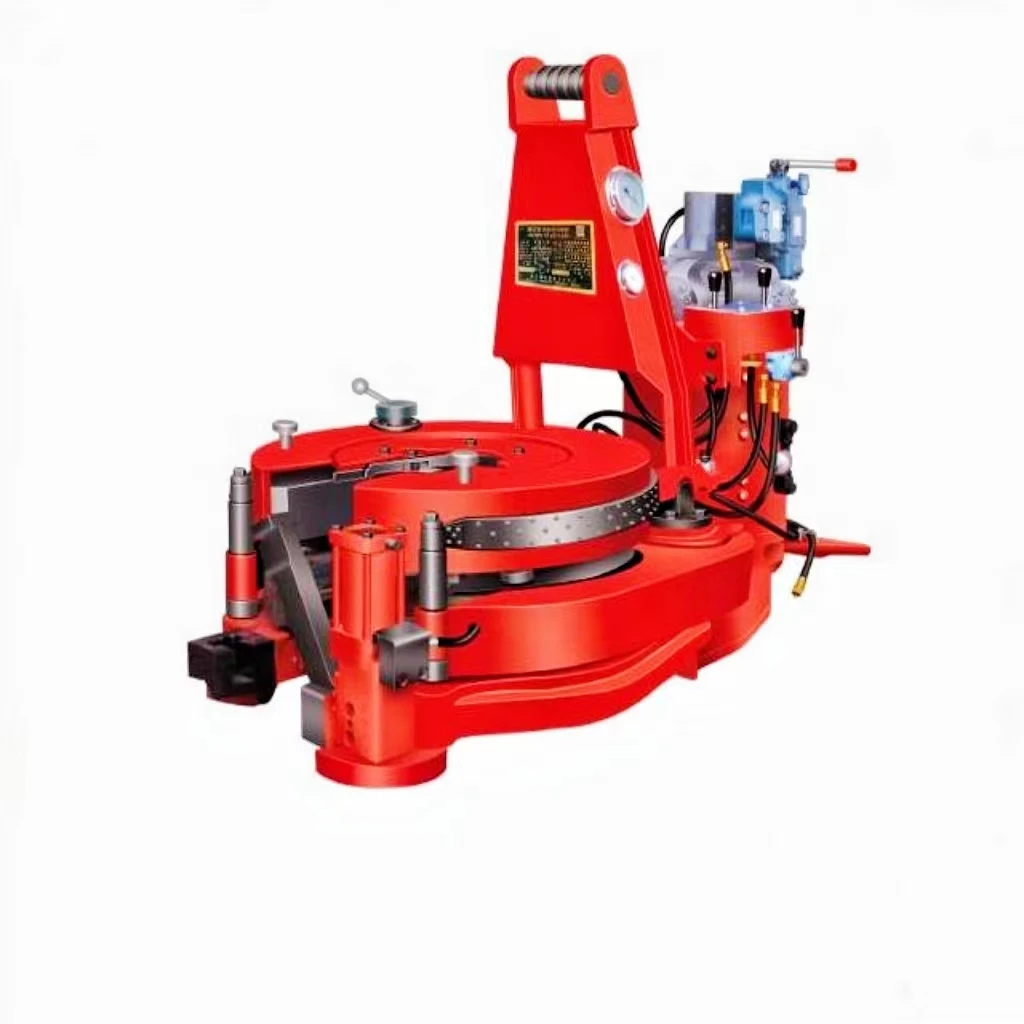

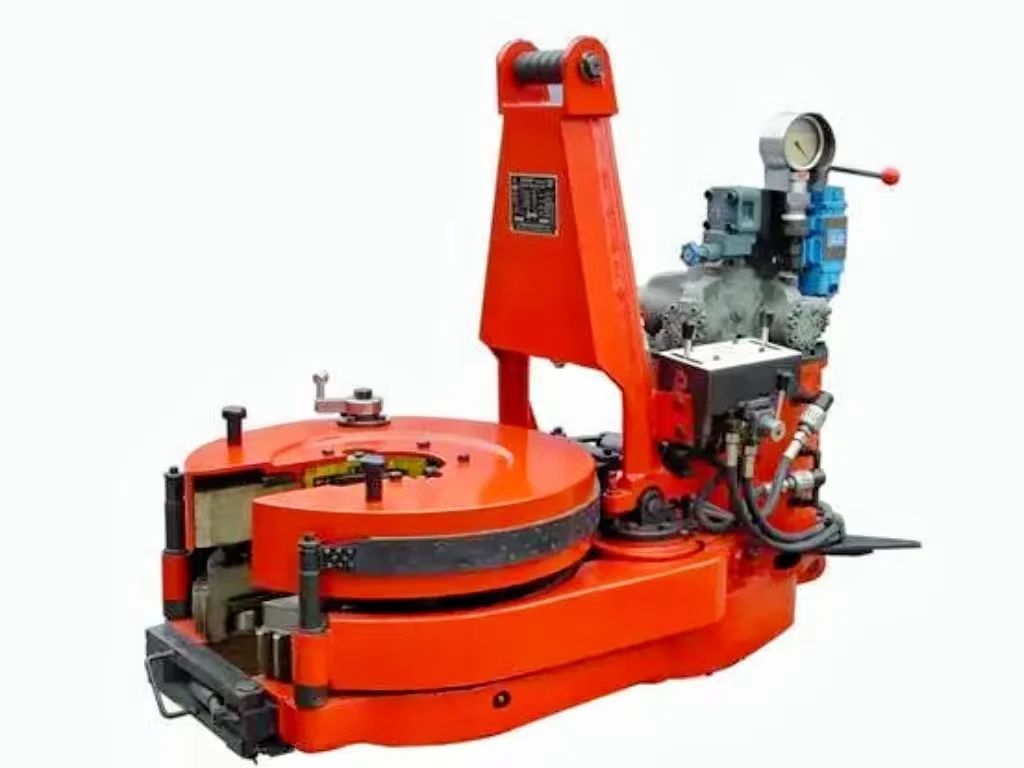

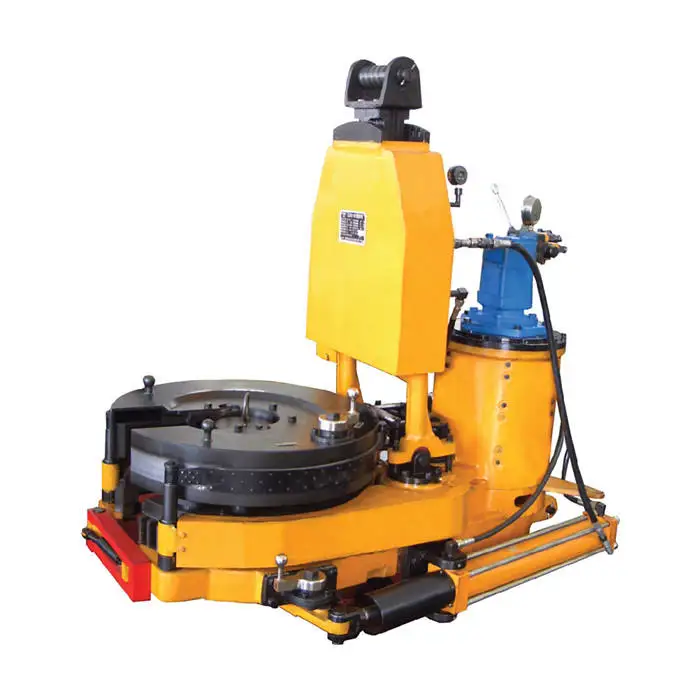

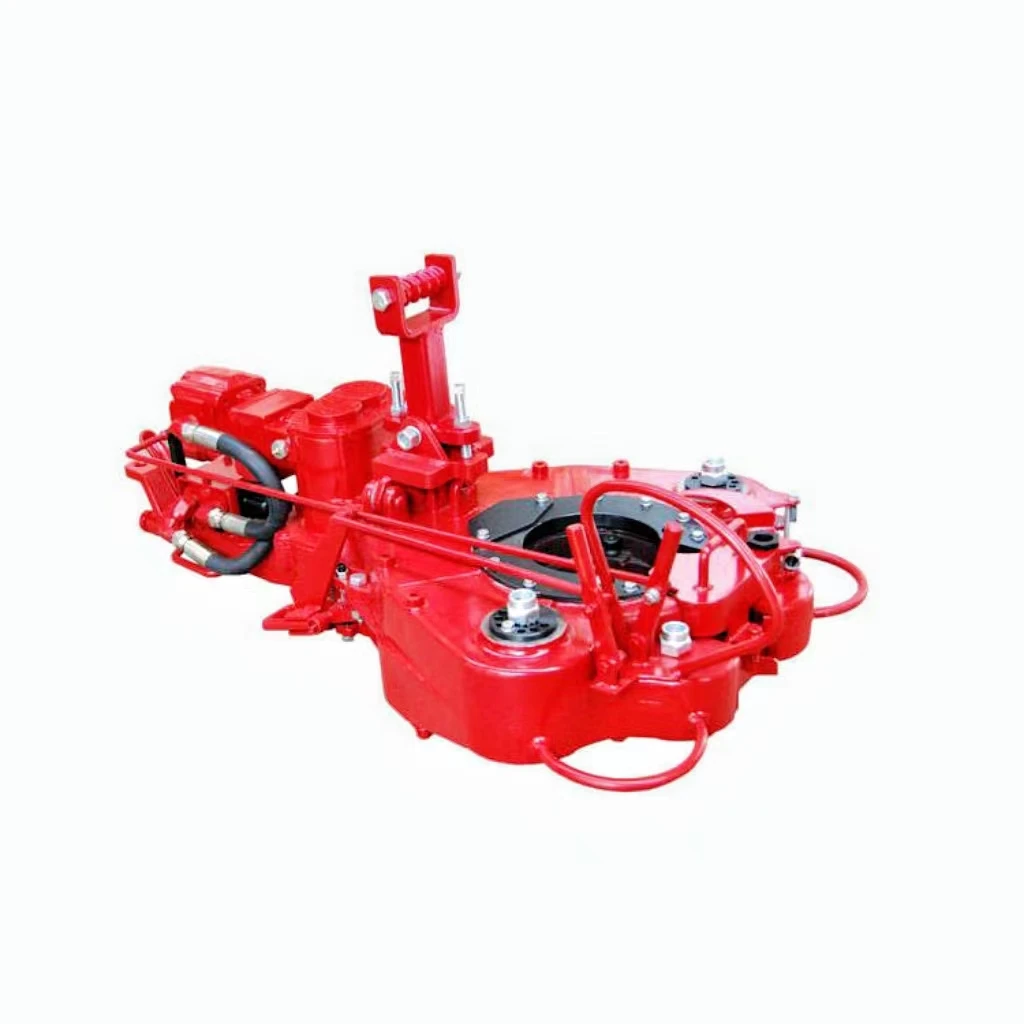

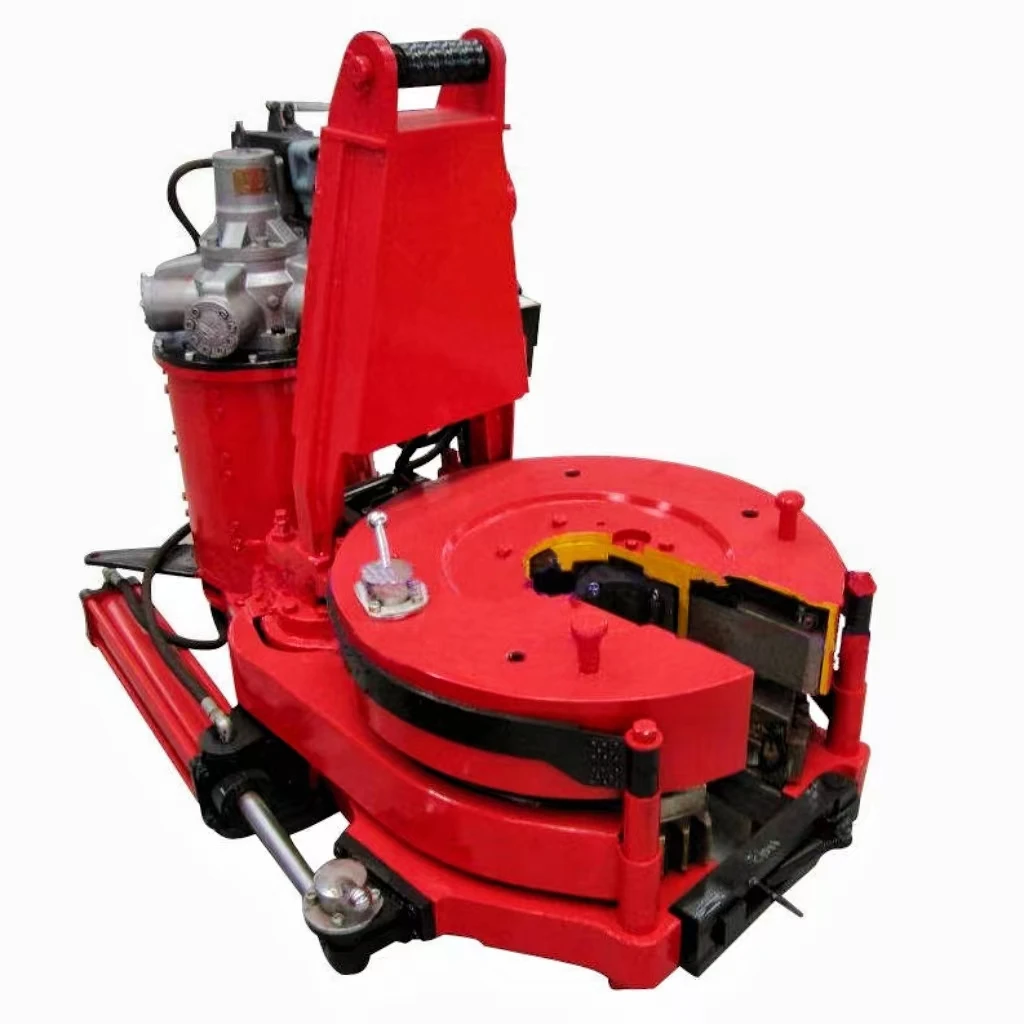

Good Price Tq340/35y Hydraulic Tong for Casing Making up and Breaking out
- Category: >>>
- Supplier: Shandong Wealth Petroleum Equipment Co. Ltd.
Share on (1601014964359):
Product Overview
Description
Products Description

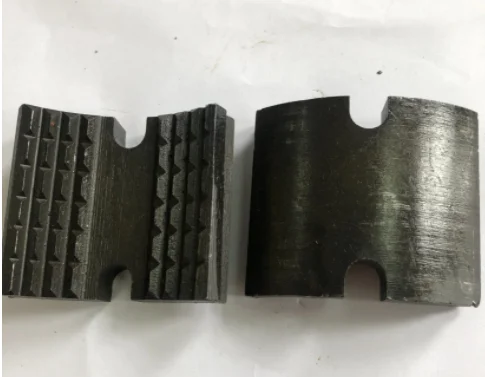

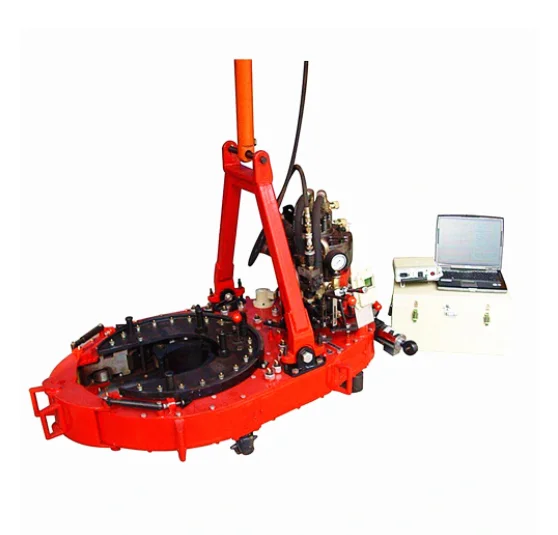

The TQ series casing pliers are widely used for up and down operations of casing or pipelines. The casing pliers have the characteristics of high efficiency, safety, reliability, and labor-saving, which can ensure the quality of the connection. The clamp head is designed as an open type with two jaws to ensure reliable grip. The transmission mechanism adopts an inflatable tire clutch, which can shift gears while driving. This series of casing tongs can be equipped with a torque device for computer monitoring and management of pressure, torque, and rotation. The oil pipe power tong sleeve pipe tong drill pipe tong has obtained a national invention patent. The casing tongs are designed and manufactured in accordance with SY/T5074 and API Spec 7K "Drilling Equipment Specification"
Model: TQ178-16/TQ340-20Y/TQ340-35/TQ178-16Y/TQ34035Y/TQ508-70Y
Product Paramenters
Specification | Tq178/16 | Tq245/20 | Tq340/35 | Tq508/40 | |||
Applicable pipe diameter range mm(in) | 101.6~178 (4~7casing) | 101.6~244.5 (4~9 5⁄8 casing) | 139.7~339.7 (5 1⁄2~13 3⁄8 casing) | 244.5~508 (9 5⁄8~20 casing) | |||
Rated pressure of hydraulic source (MPa) | 12~18 | ||||||
Working air pressure (MPa) | 0.5~0.9 | ||||||
Maximum Torque kN•m | ≧16 | ≧20 | ≧35 | ≧40 | |||
Middle gear torque kN•m | / | ≧6.0 | ≧7.5 | ||||
High gear torque kN•m | ≧2.5 | ≧2.5 | ≧2.5 | ≧3.5 | |||
Low gear speed r/min | 9~14 | 9~14 | 3.6~5.3 | 2.5~3.6 | |||
Middle gear speed r/min | / | 21~30 | 14~20 | ||||
High gear speed r/min | 50~80 | 50~80 | 60~85 | 40~60 | |||

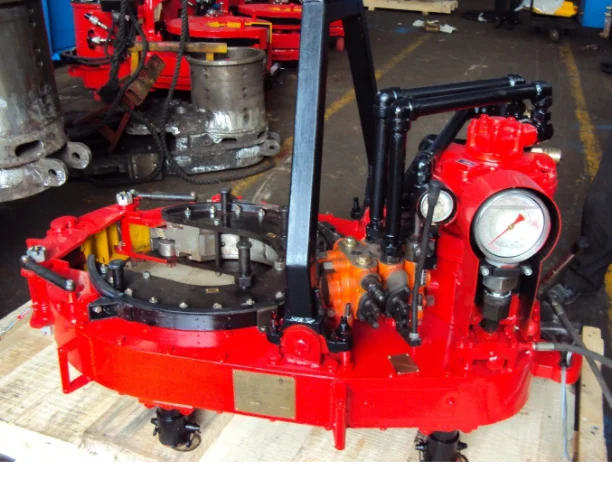

Manufacturing Technique

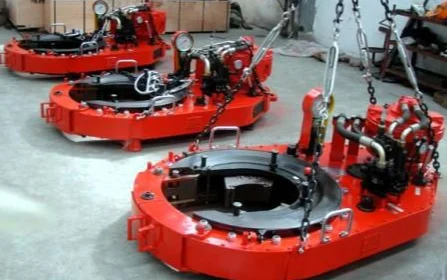

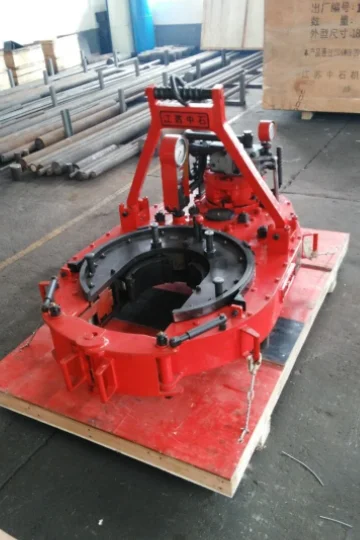

Product packaging
Company Profile
# OUR COMPANY #
We Shandong Wealth petroleum equipment Co., Ltd. is located in Dongying, Shandong Province,China.
Our company export to global markets an extensive range of oil equipements. So far, we have expanded our sales into more than 10 countries including South America, the Middle East, and Middle Asia,
The product quality has been recognized by internationally renowned oil companies.
We have a high reputation in terms of product quality and delivery.
Our vision is to produce first-class products, provide first-class service.
At present, We have 3 professional technical personnel, 30 production workers,15 professional inspectors, 6 professional sales personnel, 5 professional service personnel, more than 10 sets of large-scale professional processing equipment, more than 30 sets of professional testing equipment,
and a workshop of over 3000 square meters.Our mission is to provide customers with the best petroleum equipment, and we are willing to work hard for this target.
