4K Endoscopy Camera System with E42A Light Source 2 in 1 with 7 Inch Touch Screen

Product Overview

Description

Easywell 4K Endoscopy camera system with E42A Light Source 2 in 1 with 7 inch Touch Screen



The resolution of 4K Endoscopy camera is 3840 x 2160, it can present doctors with more excellent endoscopic images, and the ultra-high processing chip realized rich color gamut. FPGA image processing algorithms can achieve stronger noisereduction, sharpening, brightness, contrast and extinction functions, and better meet the needs of doctors in the diagnosis ofcomplex surgical treatment.

Feature
Camera Head:
Image sensor: 1/1.8" 1/1.2'' COMS
Resolution :3840x2160p (4K)
IPX8 waterproof

Video system:
Image resolution:3840x2160p (4K)
Horizontal resolution: 2000TVL
SNR:50DB Tolerance:20%
Scanning system: Processive Scanning
White balanceSrceen size: 7 'with output display(E42B)
Custom buttons: 9 kinds of functions
Storage:U disk or Hard disk or SD card
Replay: Video and Picture
Video Recording : 3840x2160,MP4 format
Photograph: 3840x2160p 8 megapixel JPG
Video signal output: USB 3.0 X3, 3G-SDI, HDMI1.4, HDMI2.0 ,DVI, RJ45(internet)

Light source:
Light source: LED
Life span of LED 50,000Hours
Input power 100W
Input Voltage AC100-240V, 50/60Hz
Color rendering index >90
Color Temperature 5700-6500K
Illumination Intensity: > 2,000,000 Lux

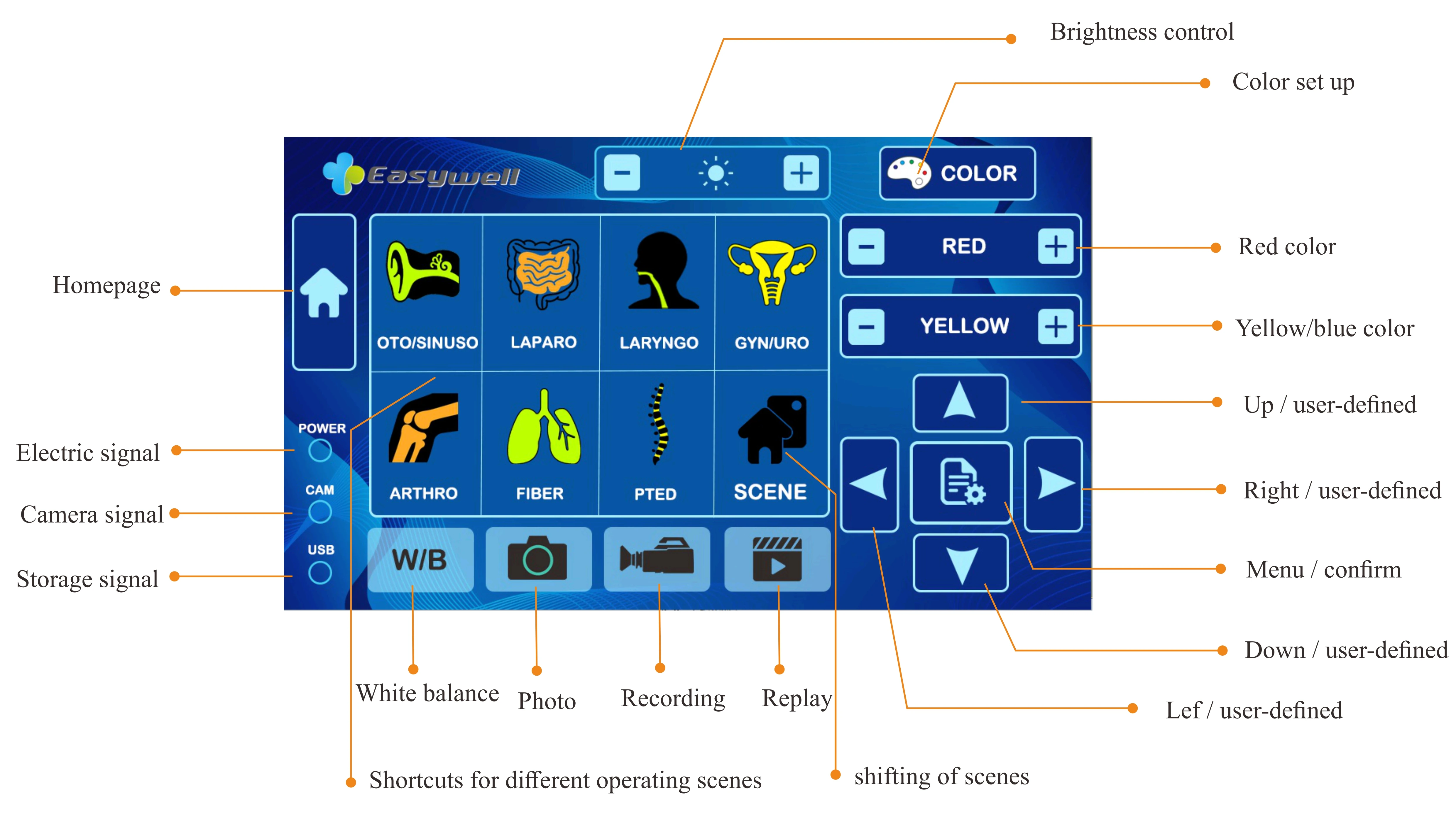

Control panel screen

Certificate of Quality

Manufacturer's Certificate



Exhibition
