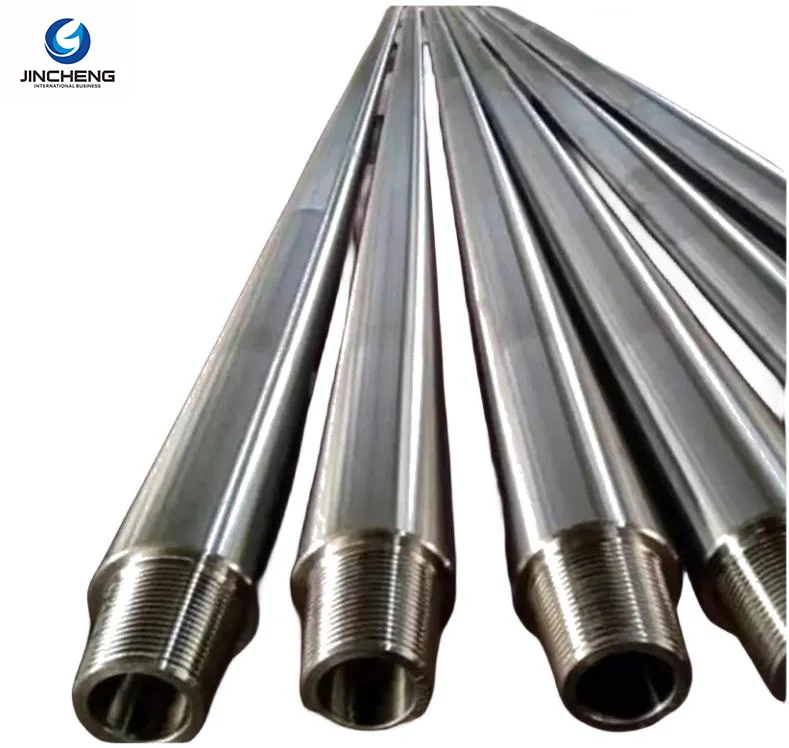

API Spec1 7 P550 P530 0il / Gas / Water Drilling NMDC Non Magnetic Drill Collar
- Category: >>>
- Supplier: Qingdao Jincheng International Business Co. Ltd.Qingdao Ltd.
Share on (1601015284178):
Product Overview
Description
Product Description

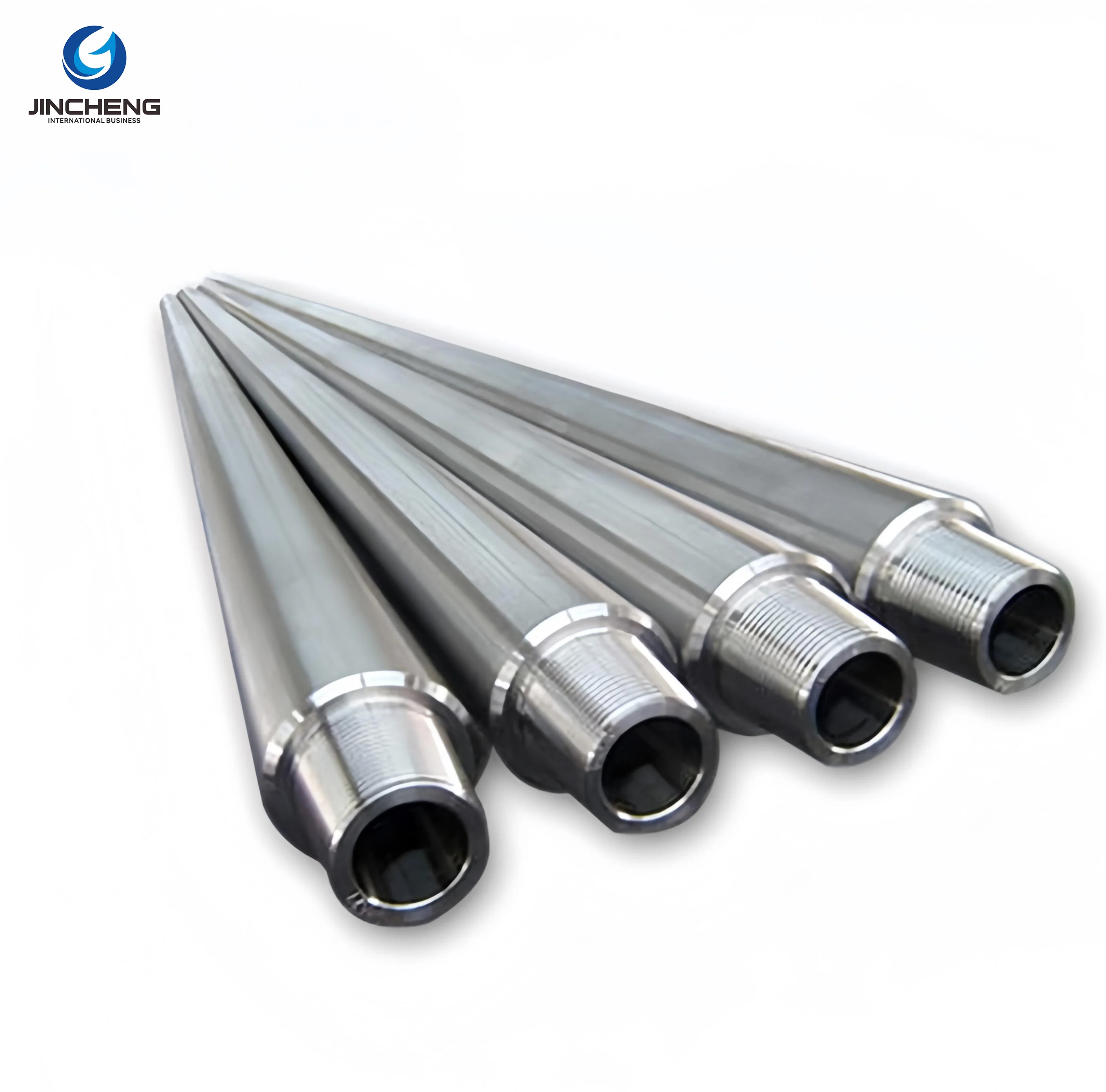

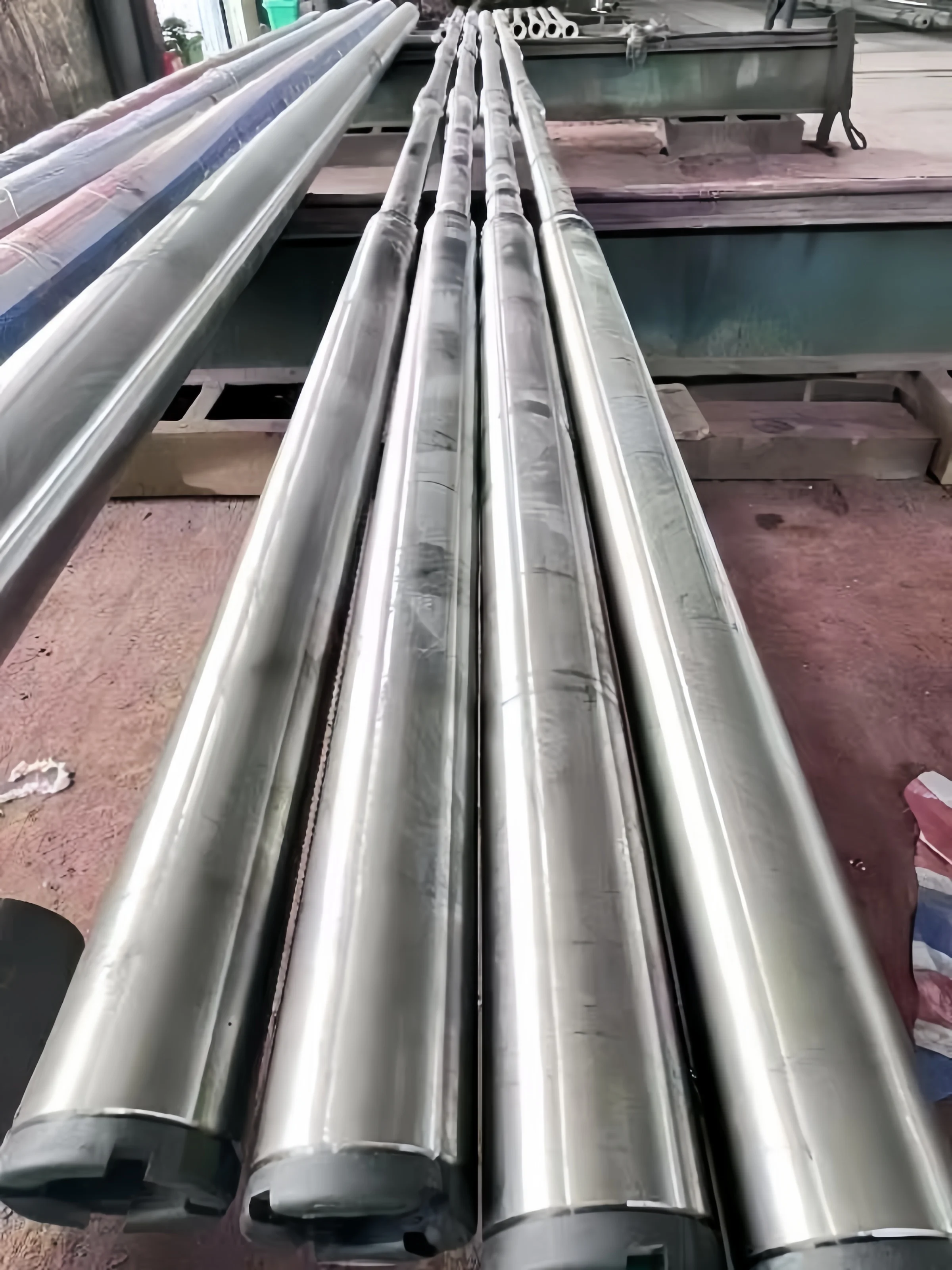

API 7-1 P550 P650 Non Magnetic Flex Steel pipe Drill Collar for Oil Well Drilling Tools
Non magnetic drill collars are made of a low-carbon, high chromium manganese alloy steel. They are refined through strict chemical composition ratios and forged to achieve their mechanical properties. They have good low magnetic permeability, high strength mechanical properties, excellent intergranular corrosion cracking resistance, and excellent wear resistance. When the magnetic field strength is 1 × Relative magnetic permeability of non-magnetic drill collars at 105/4 π A/m ,μ R ≤ 1.010.
Magnetic induction intensity gradient of non-magnetic drill collars at any distance of 100mm along the inner hole ≤ 0.05 μ T.
Specification
Our P550 Non Magnetic Steel Material Chemical Composition | ||||||||||||||||
C | Si | Mn | Cr | Mo | Ni | S | P | N | ||||||||
0.025 | 0.23 | 21.03 | 17.75 | 0.52 | 1.7 | 0.004 | 0.019 | 0.53 | ||||||||
Our P650 Non Magnetic Steel Material Chemical Composition | ||||||||||||||||
C | Si | Mn | Cr | Mo | Ni | S | P | N | ||||||||
0.03 | 0.14 | 20.35 | 18.37 | 1.91 | 4.43 | 0.002 | 0.019 | 0.68 | ||||||||
Type | Diameter (mm) | Internal Diameter (mm) | Internal bore length (mm) | Lower-end aperture (mm) | Total leagth (mm) |
MWD-121 | 121 | 88.2 | 1590 | 65 | 2500 |
MWD-172 | 172 | 111.5 | 1316 | 83 | 2073 |
MWD-175 | 175 | 127.4 | 1280 | 76 | 1690 |
MWD-203 | 203 | 127 | 1406 | 83 | 2048 |

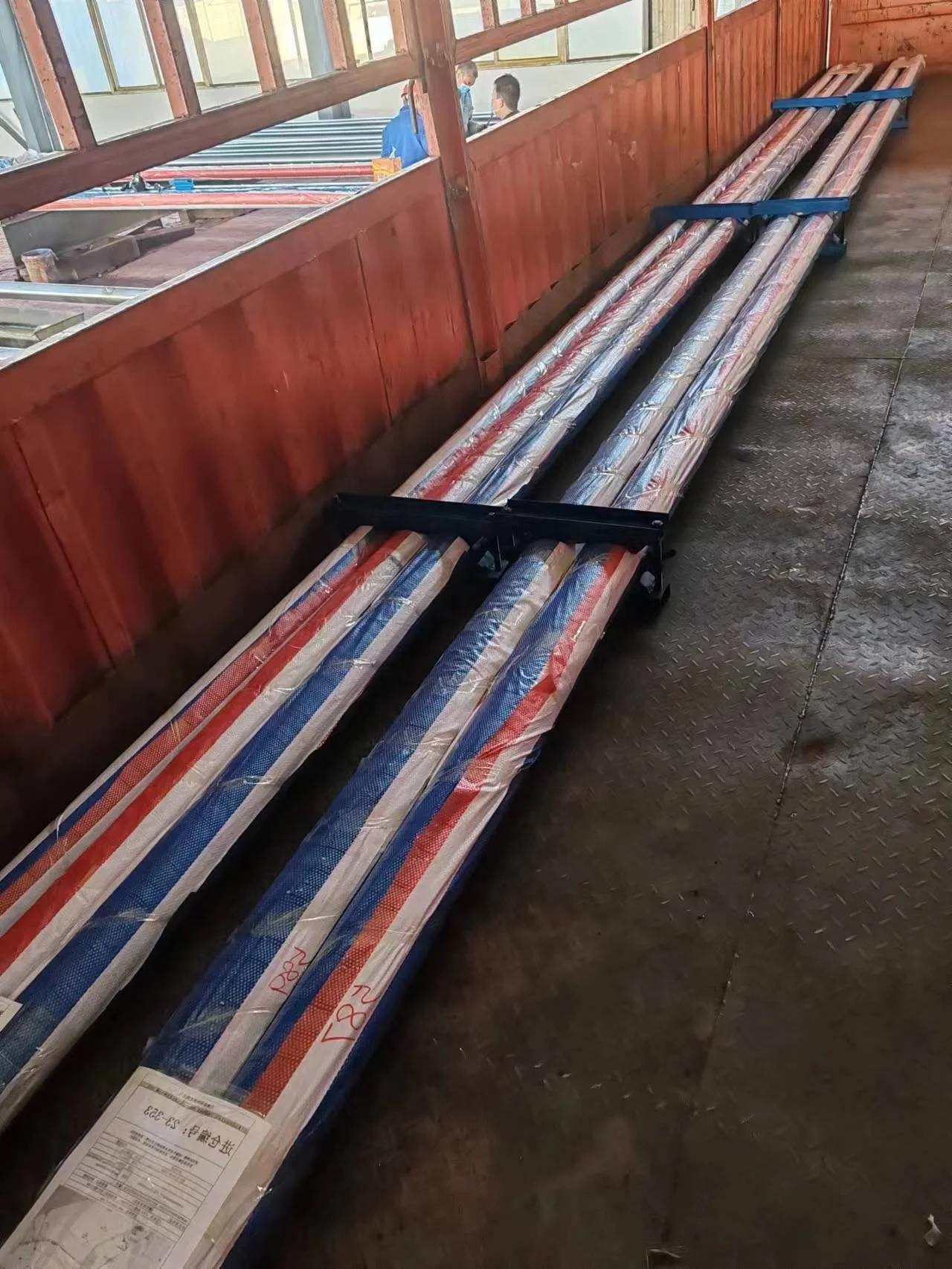

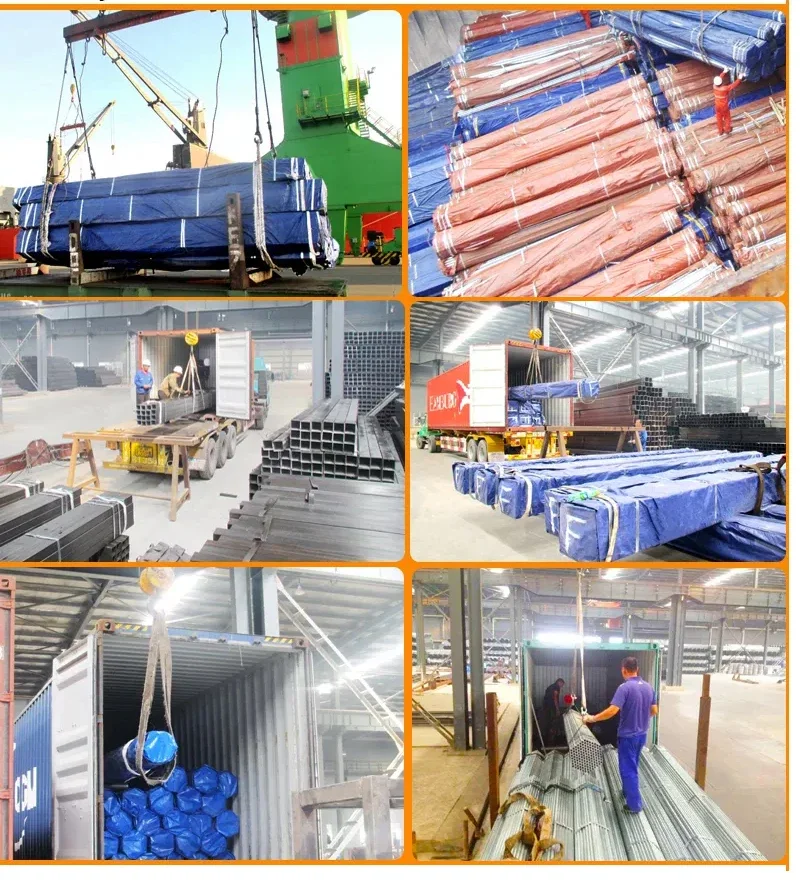

Packing & Delivery
As per standard export package

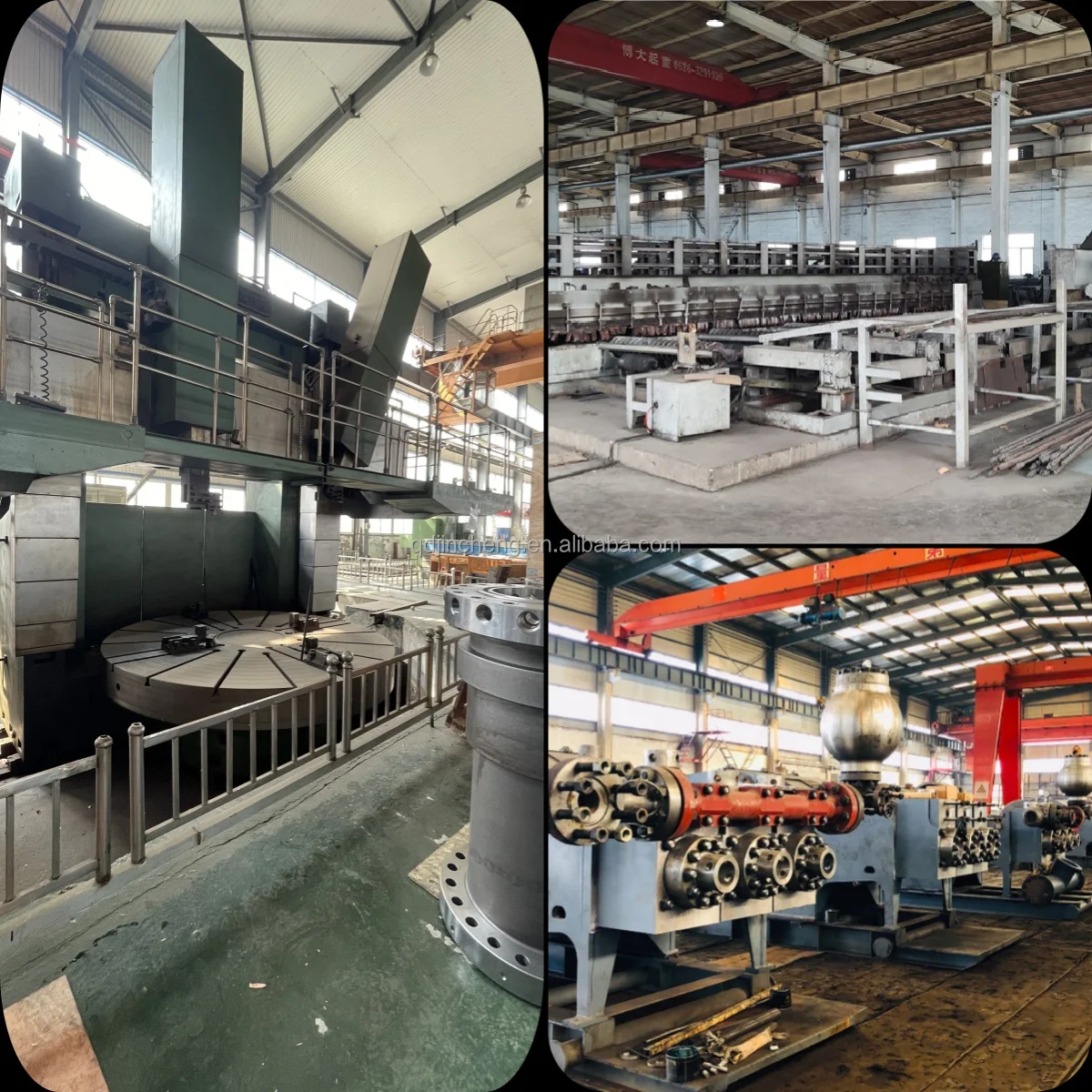

Company Profile
